ESP32 S3 Development Board 1.85 inch Round LCD Display 360×360 QMI8658 Sensor / MIC / SD /MP3 Audio /Battery Port LVGL/HMI For Arduino

$24.99

Brand:SpotPear
SKU:0208035
Date:2024-09-18 09:32
No:
In Stock

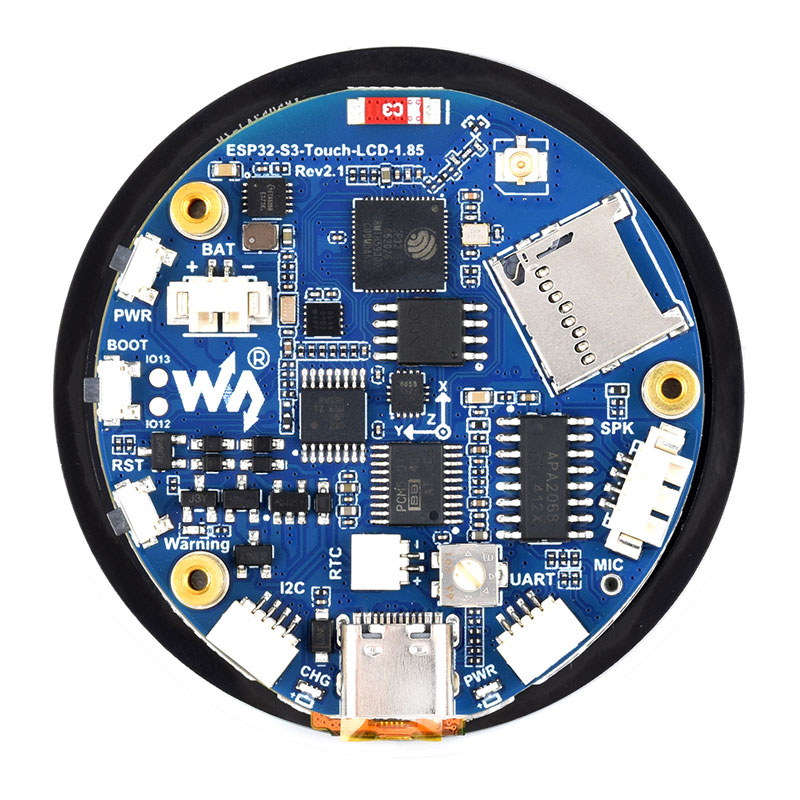

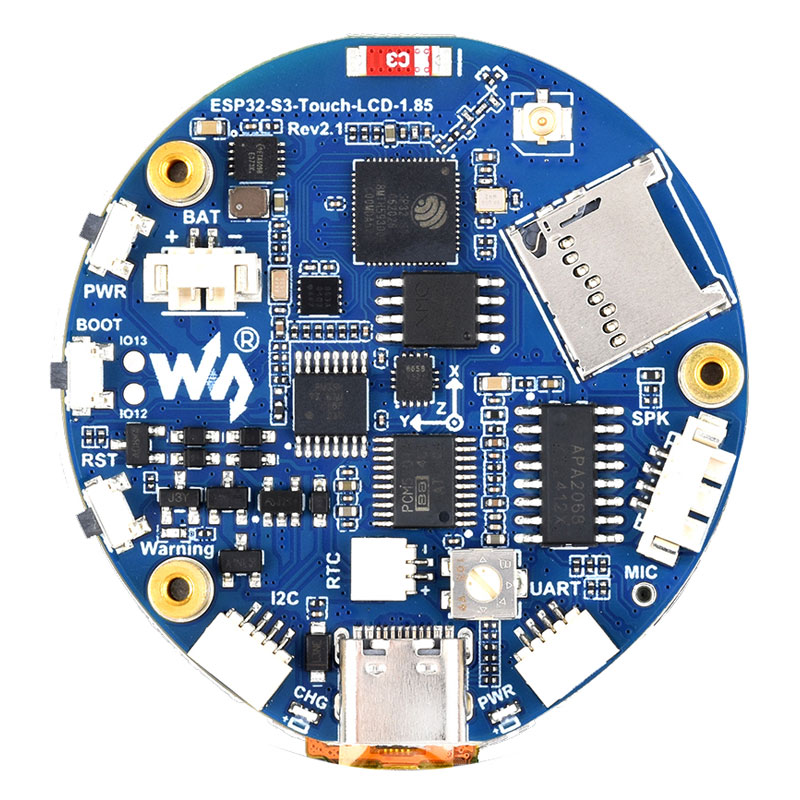

ESP32-S3 1.85″ LCD Development Board

Integrates QSPI Interface Display, Multiple Peripheral Interfaces

【Overview】
[] ESP32-S3 1.85″ LCD Development Board

[] Integrates QSPI Interface Display, Multiple Peripheral Interfaces

【Features】
ESP32-S3-LCD-1.85 is a microcontroller development board with 2.4GHz WiFi and Bluetooth BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 1.85inch LCD display which can smoothly run GUI programs such as LVGL, optional for capacitive touch function. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications.


[] Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency

[] Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna

[] Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM

[] Onboard 1.85inch LCD display, 360×360 resolution, 262K color

[] Optional for capacitive touch function controled via I2C interface, with interrupt support

[] Adapting UART, I2C and some IO interfaces

[] Onboard audio decoder, Microphone, QMI8658 6-axis sensor, RTC sensor, TF card slot and battery recharge management module, etc.

[] Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios

【Version Options】

【Application Scenarios】

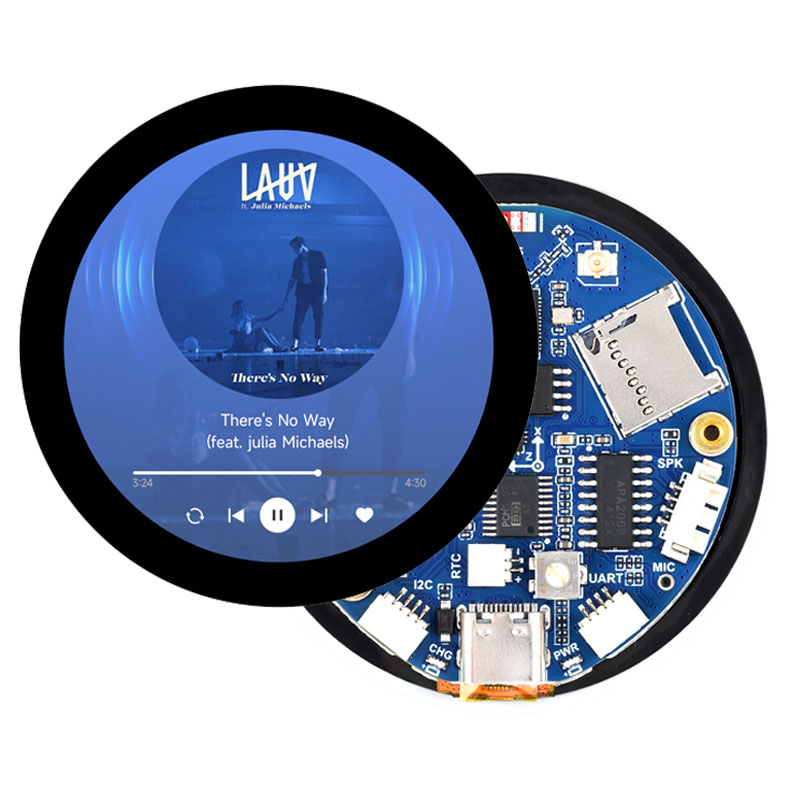

【IPS Display Panel】

[] 262K Color, 360×360 Resolution, Wide Viewing Angle


【Capacitive Touch】

[] Optional For Capacitive Touch Function Controled Via I2C Interface For Flexible Operation And Smooth UI Interaction, With Interrupt Support

Note: this function is only available on ESP32-S3-Touch-LCD-1.85 version.

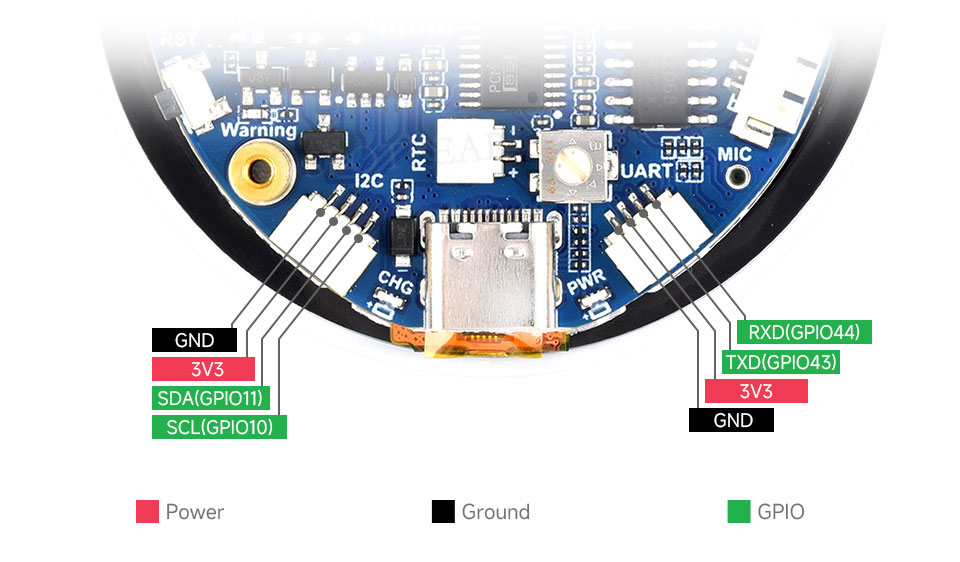

【Supports Multiple Peripherals】

[] Supports The Expansion Of Multiple Peripherals Via GPIO And I2C Interfaces, Etc.

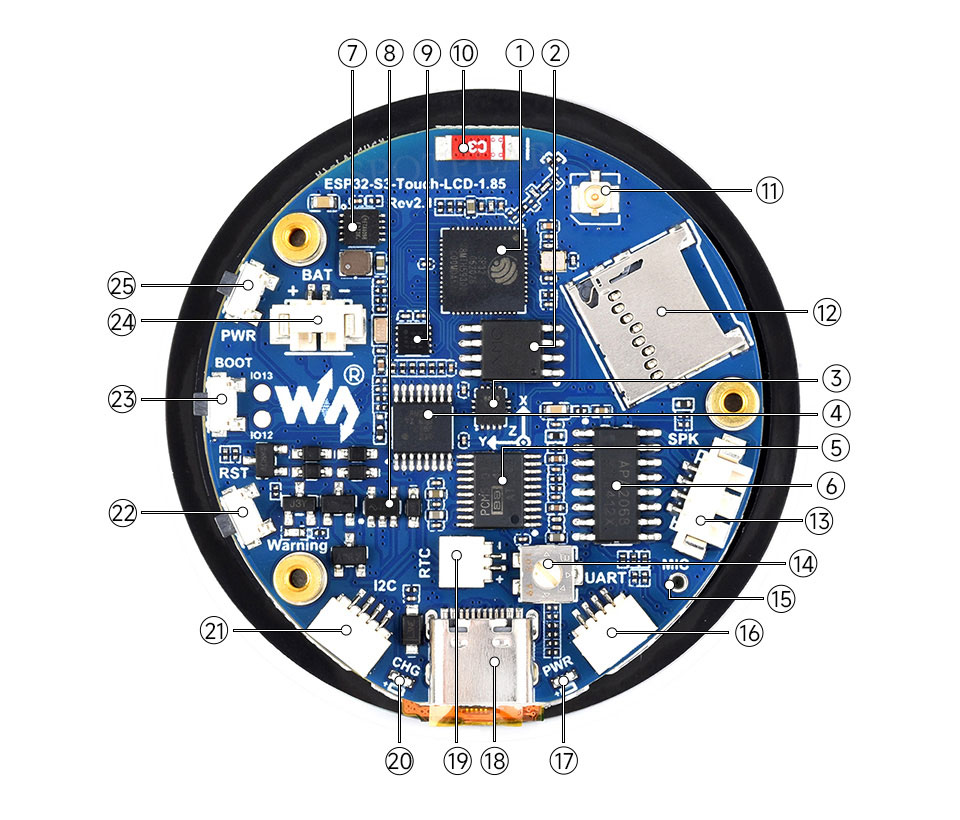

【What's On Board】

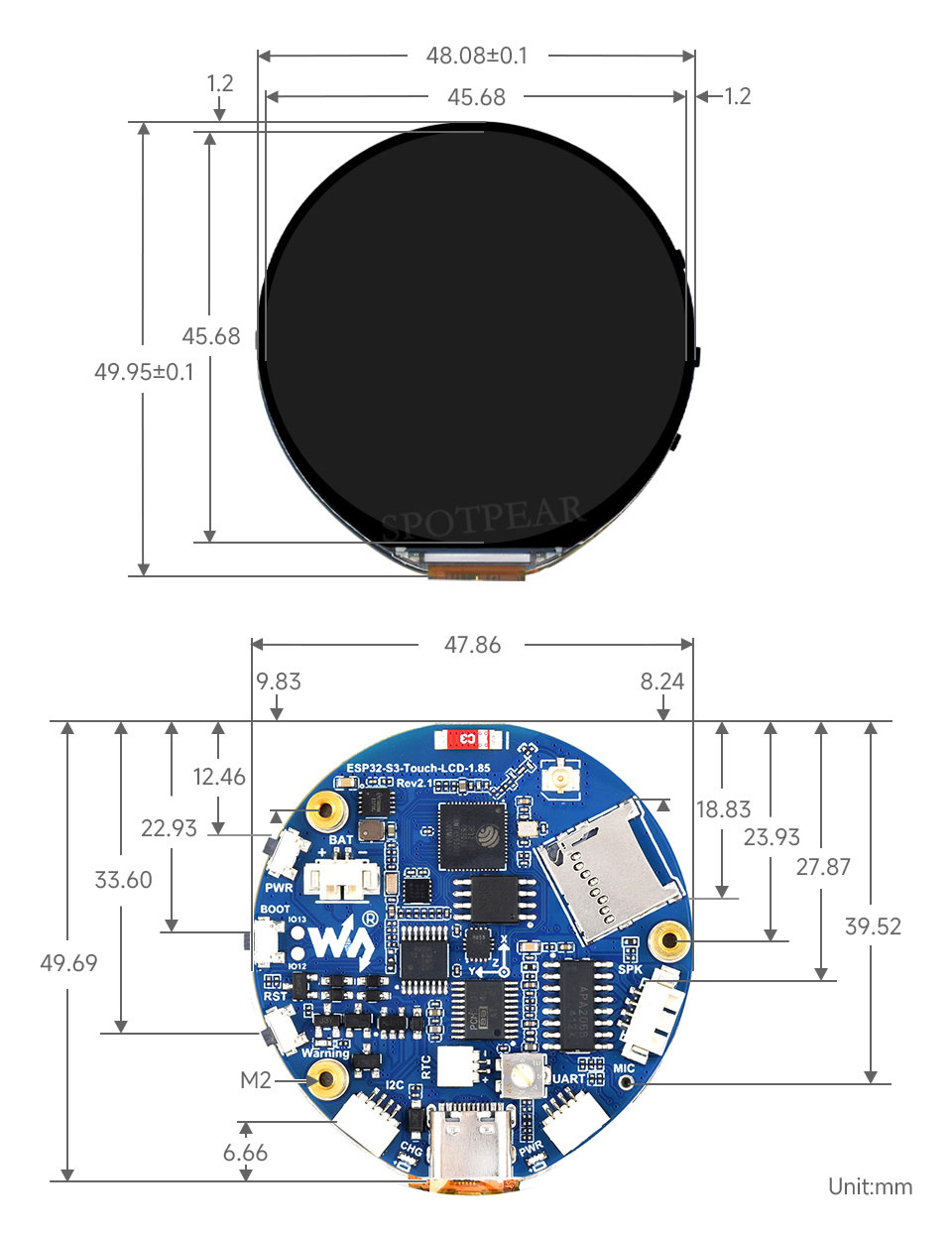

【Outline Dimensions】

[] ESP32-S3-LCD-1.85

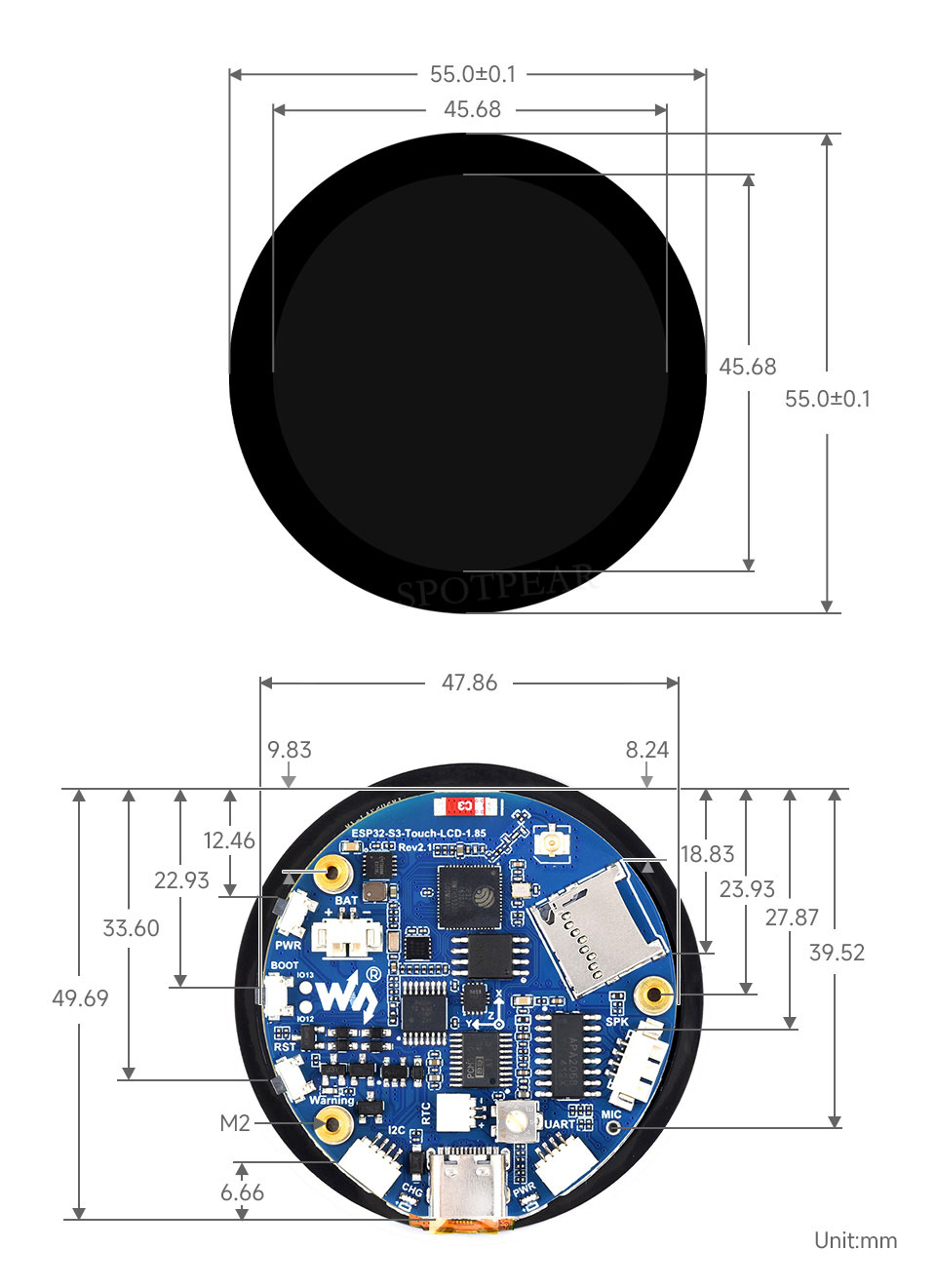

[] ESP32-S3-Touch-LCD-1.85
