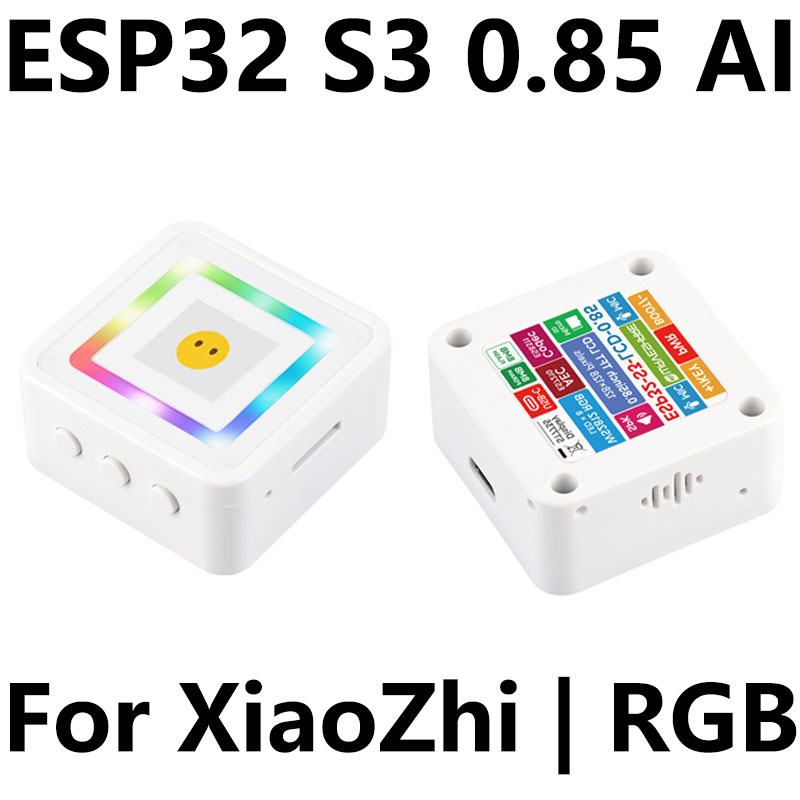

ESP32 S3 AI 0.85inch Development Board 0.85 inch DeepSeek RGB surround light

ESP32 S3 AI 0.85inch Development Board 0.85 inch DeepSeek RGB surround light

$18.9

Brand：SpotPear

SKU：020812400000

Date：2026-03-07 16:36

Part Number：

ESP32-S3-LCD-0.85【With Battery】 ESP32-S3-LCD-0.85-EN【No Battery】

No：

- +

In Stock

Buy It Now

Add to cart

Ask a Question

Copy Link

ESP32-S3 0.85inch LCD Display Development Board, 128 × 128 Resolution, Onboard Dual Microphones Array And Surround RGB LEDs, Supports 2.4GHz Wi-Fi And BLE 5

EPS32 DeepSeek AI Recommend

Toy-AI-Core-ESP32-C3-MINI

ESP32-S3-N16R8

ESP32-S3-AI-Kit-(A)

ESP32-S3-AI-Kit-(B)

ESP32-S3-OLED-0.96

ESP32-P4-WIFI6

ESP32-P4-WIFI6-DEV-KIT

ESP32-Hi-Dog

ESP32-S3-AI-MINI-0.85

ESP32-S3-LCD-0.85

Xmini-C3

Xmini-C3-Kit-BOX

ESP32-S3-1.28inch-AI-EN

ESP32-S3-Touch-LCD-1.28-BOX-THIN

ESP32-S3-DualEye-LCD-1.28

Toy-AI-Core-ESP32-C3-1.28-Case

ESP32-S3-1.3-AI-BOX

ESP32-S3-Touch-AMOLED-1.32

ESP32-C6-Touch-AMOLED-1.32

ESP32-C6-Touch-AMOLED-1.43

ESP32-S3-Touch-LCD-1.46

ESP32-S3-AI-Kit-(C)

ESP32-S3-ePaper-1.54

ESP32-S3-AI-1.54-MUMA

ESP32-S3-AI-1.54-Box

Toy-AI-Core-ESP32-C3-1.54-Case

ESP32-C6-Touch-LCD-1.69

ESP32-S3-Touch-AMOLED-1.75

T5-E1-Touch-AMOLED-1.75

ESP32-S3-Touch-AMOLED-1.75C

ESP32-S3-Touch-AMOLED-1.8-EN

ESP32-S3-Touch-AMOLED-1.8-Watch

ESP32-C6-Touch-AMOLED-1.8

EPS32-S3-1.8inch-Touch-LCD

ESP32-S3-Touch-LCD-1.83

ESP32-S3-LCD-1.85

ESP32-S3-LCD-1.85-EchoEar

ESP32-S3-LCD-1.85-Battery

ESP32-S3-Touch-LCD-1.85C

ESP32-S3-AUDIO-Board

AI-BOX-Dual-Eye-0.71-Recog

JLC-Pi-ESP32-S3-2inch-LCD-Camera

ESP32-S3-Touch-AMOLED-2.06

ESP32-C6-Touch-AMOLED-2.06

ESP32-S3-AI-3.13inch-LCD

ESP32-S3-Touch-LCD-3.49-EN

ESP32-Touch-LCD-3.5

ESP32-S3-Touch-LCD-3.5B

ESP32-S3-ePaper-3.97

ESP32-S3-Touch-LCD-4B

ESP32-S3-RLCD-4.2-EN

ESP32-S3-Touch-LCD-4.3C

ESP32-P4-WIFI6-Touch-LCD-4.3

ESP32-P4-WIFI6-Touch-LCD-7B

ESP32-S3-PhotoPainter

ESP32-S3 0.85inch LCD Display
Development Board

Supports AI Speech Interaction, Online LLM Platforms, And DIY Customization

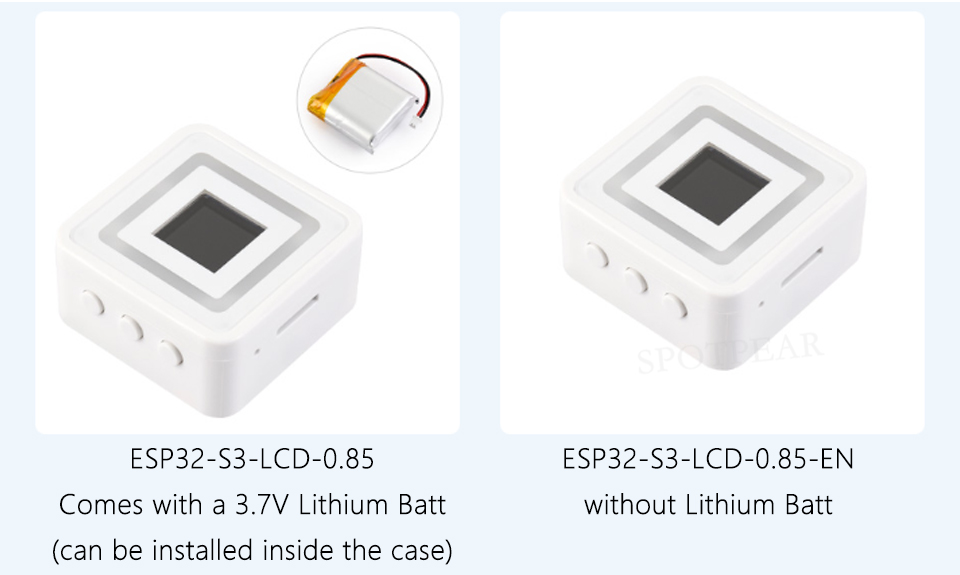

Version Options

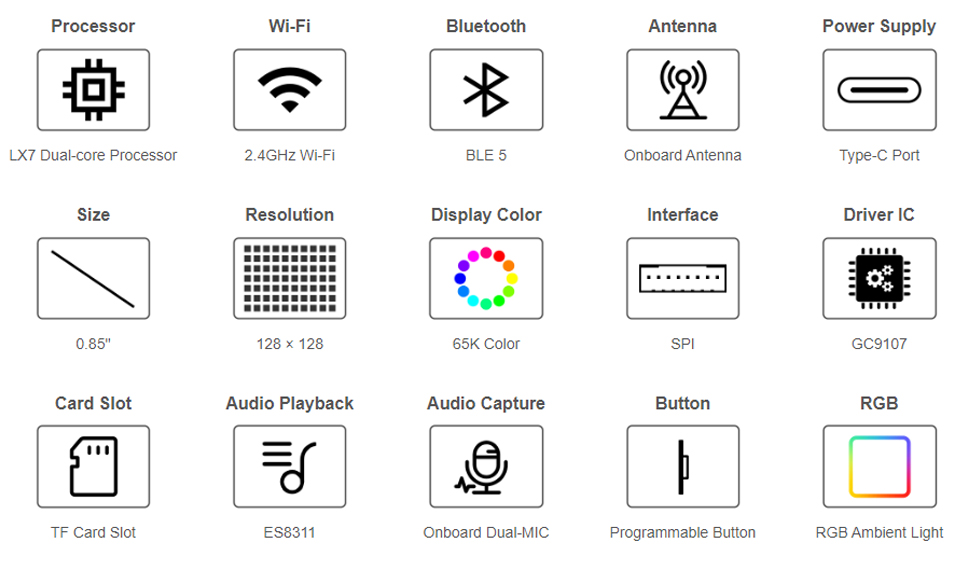

Features

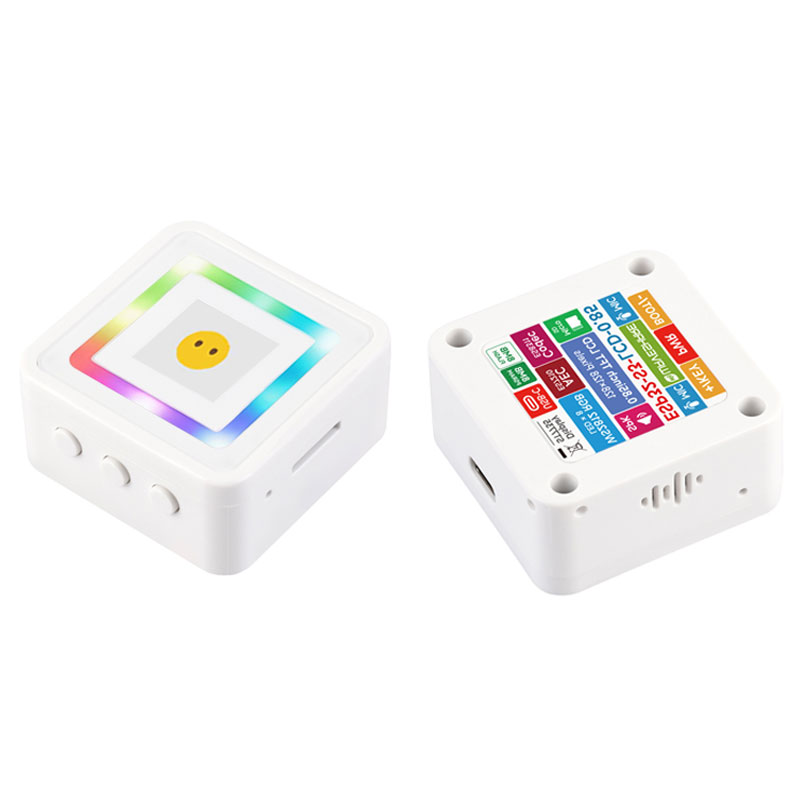

The ESP32-S3-LCD-0.85 is a microcontroller development board that supports 2.4GHz Wi-Fi and Bluetooth BLE 5. It features a custom-molded square plastic case, offering a compact and premium appearance. Onboard 0.85inch IPS color LCD display, TF card slot, 8 × surround RGB LEDs, low-power audio codec chip, and so on, enabling convenient development of multimedia and interactive applications. With these hardware resources, this product supports functions such as image display, audio playback, and lighting effects control, making it suitable for rapid prototyping and integration into end products for customized expansion and secondary development.

Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built-in 512KB Static RAM, 384KB ROM, 8MB Flash memory, and 8MB PSRAM
Type-C port, improving device compatibility, easier to use

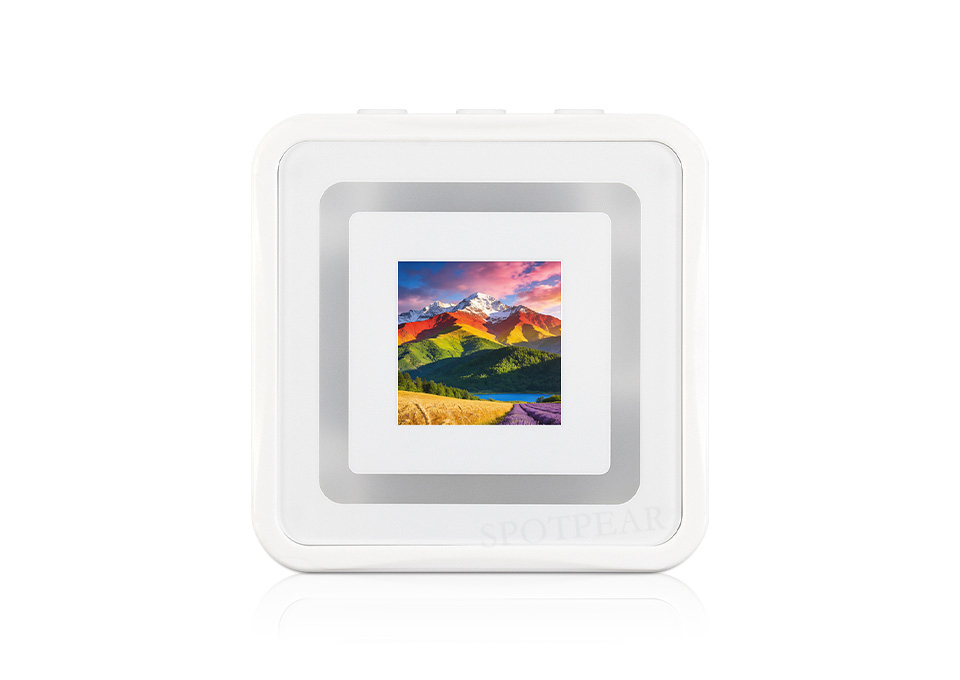

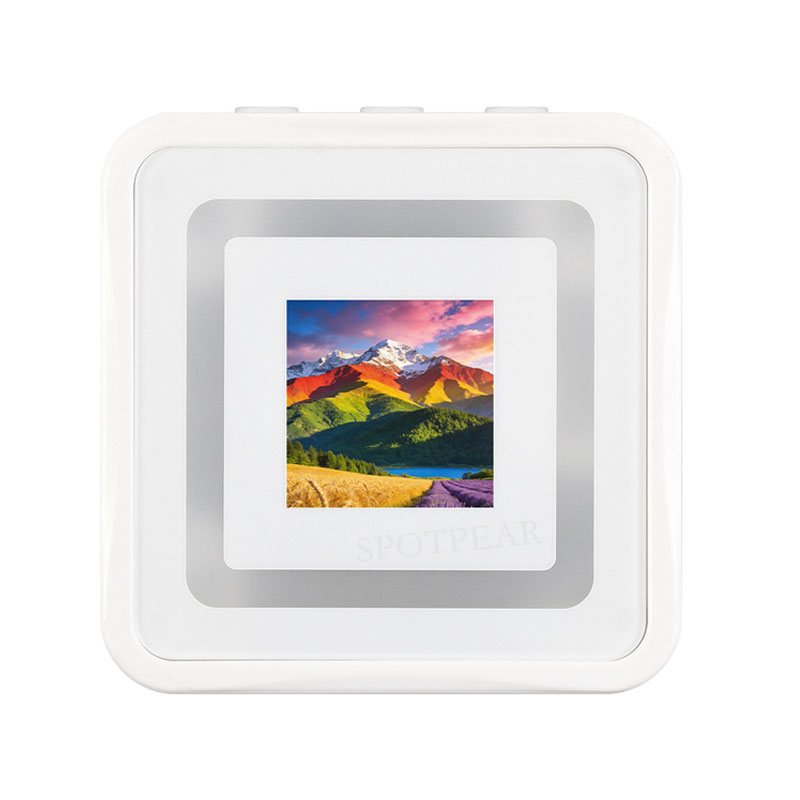

Onboard 0.85inch LCD display, 128 × 128 resolution, 65K color
Onboard 8 × surround RGB LEDs, programmable for multiple dynamic lighting effects
Onboard 3.7V MX1.25 Lithium Batt recharge/discharge header
Adapting I2C, UART, and other pin pads for external device connection and debugging, enabling flexible peripheral configuration
Onboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback, simplifying circuit design
Onboard ES8311 audio codec chip, dual microphones module, and other resources

LCD Parameters

OPERATING VOLTAGE	3.3V/5V	DISPLAY SIZE	15.21 × 15.21 (mm)
RESOLUTION	128 × 128 pixels	DISPLAY COLOR	65K
DISPLAY PANEL	IPS	PIXEL PITCH	39.6 × 118.8 (um)
COMMUNICATION INTERFACE	4-wire SPI	DRIVER IC	GC9107

Onboard Audio Codec

Supports High-Quality Audio Processing, Providing Clear And High-Quality Audio Input And Output

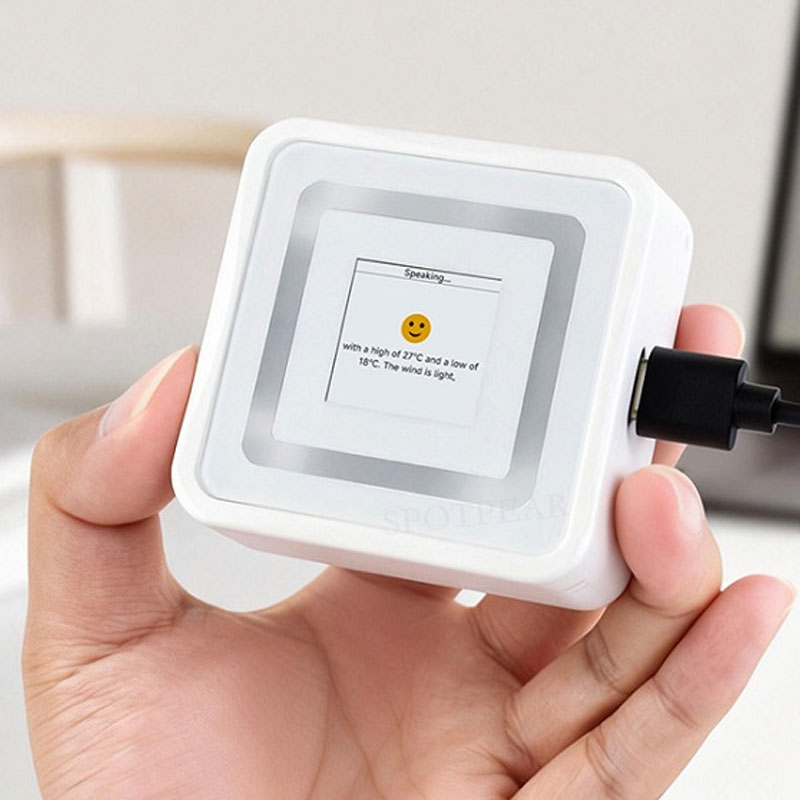

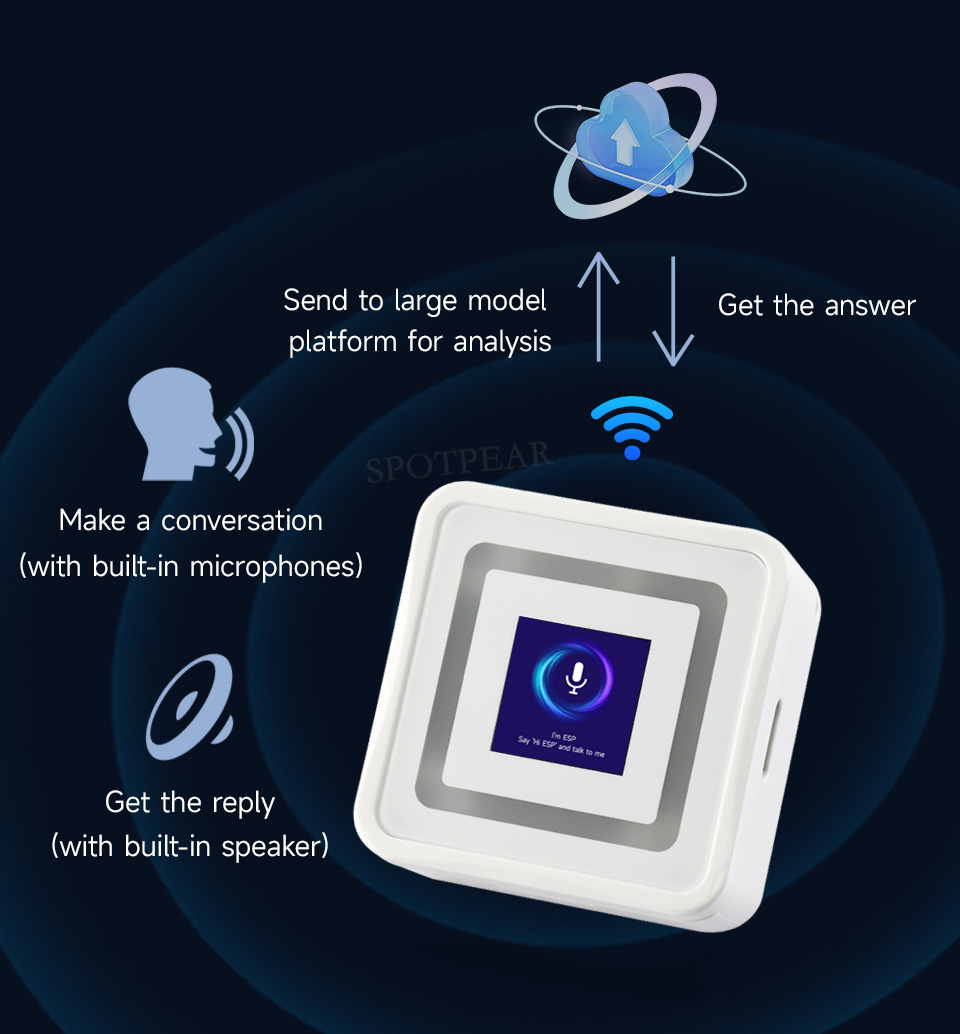

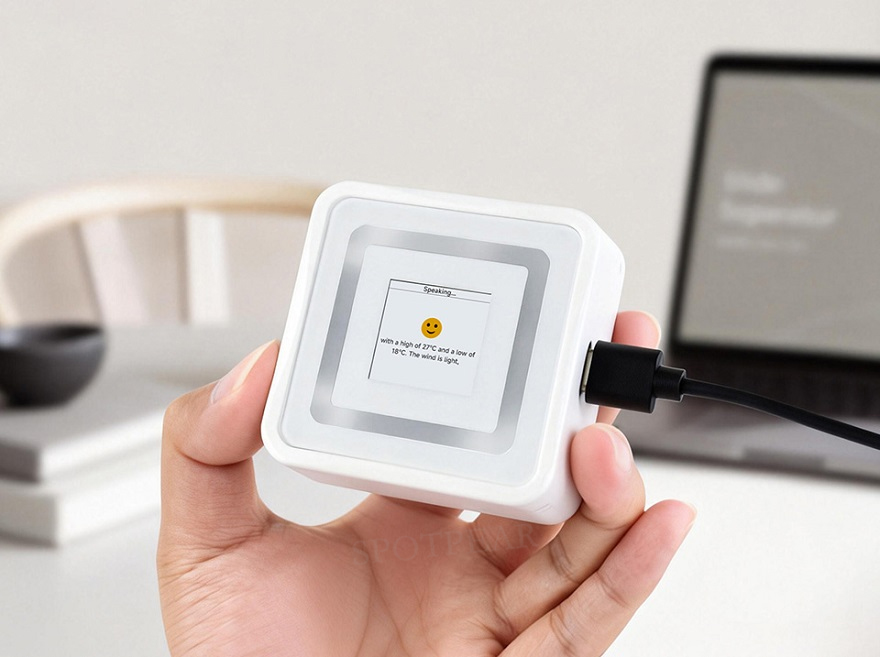

Supports AI Speech Interaction

Allows Access To Online Large Model Platforms Such As DeepSeek, Doubao, Etc.

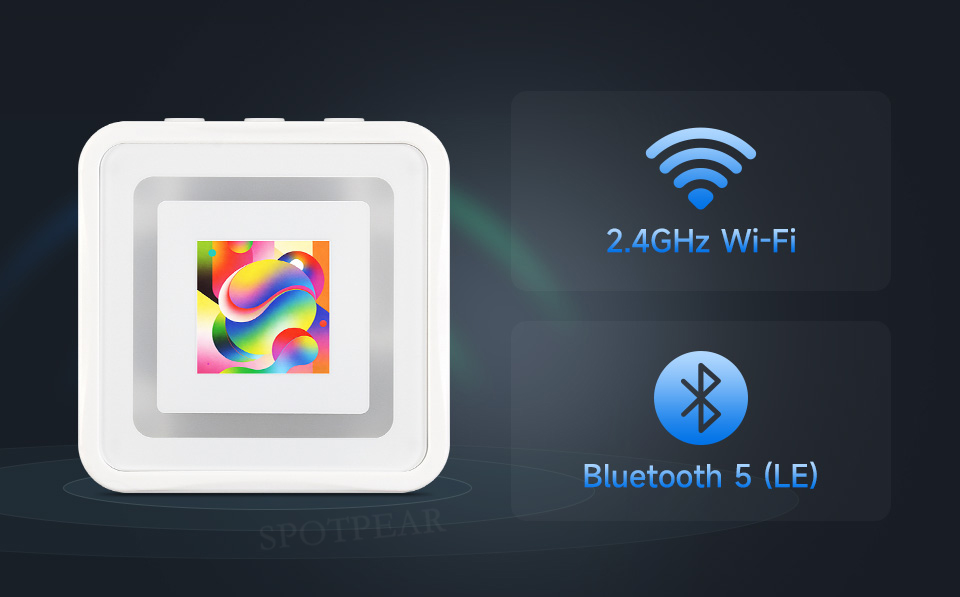

Wi-Fi And BLE 5 Support

ESP32-S3 Integrates 2.4 GHz Wi-Fi (802.11 B/G/N) With 40 MHz Of Bandwidth Support,
Its Bluetooth Low Energy Subsystem Supports Bluetooth 5 (LE) And Bluetooth Mesh

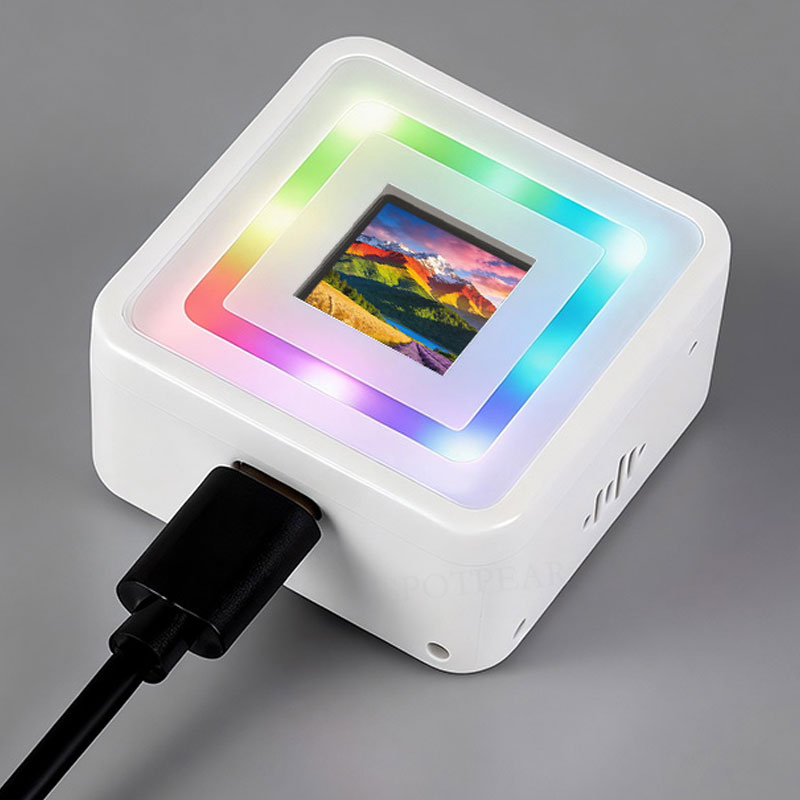

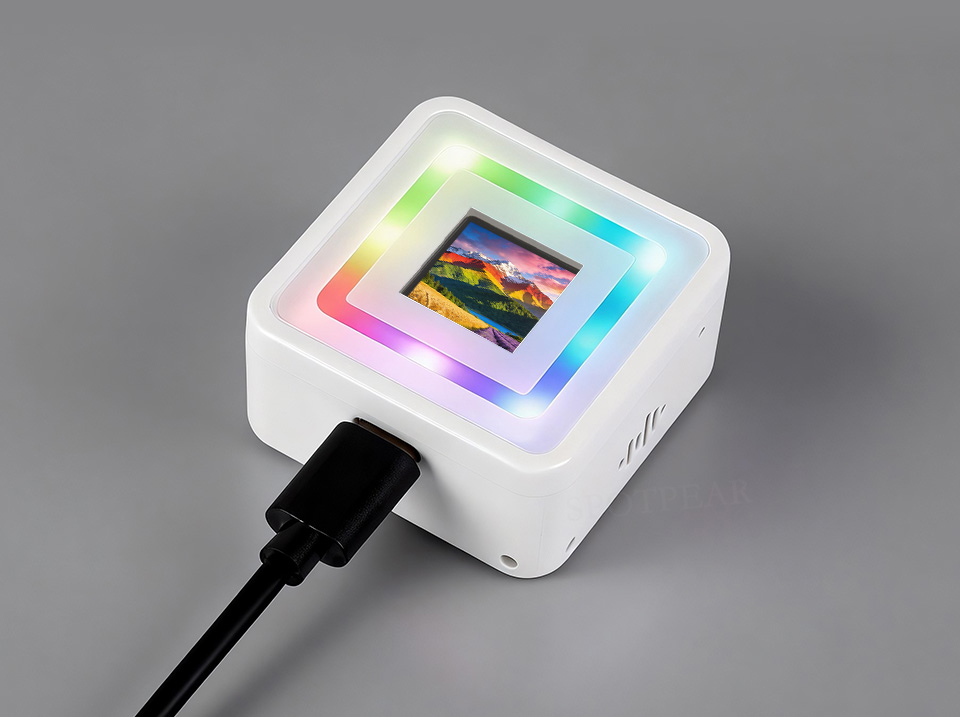

Surround RGB Lighting Effects

Onboard 8 × Surround RGB LEDs, Programmable For Multiple Dynamic Lighting Effects

Supports ESP-IDF, Arduino IDE

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

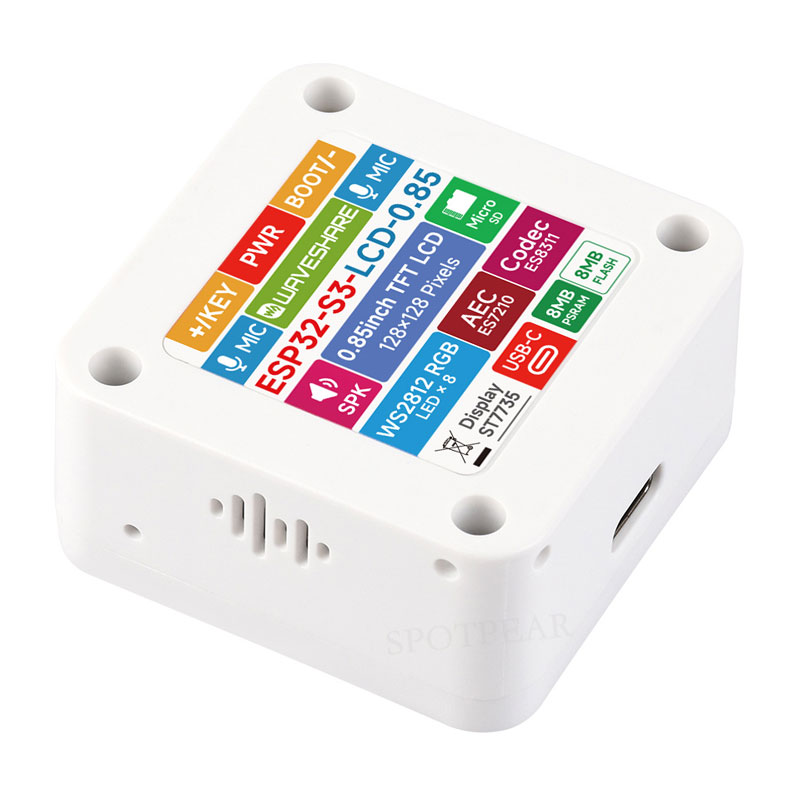

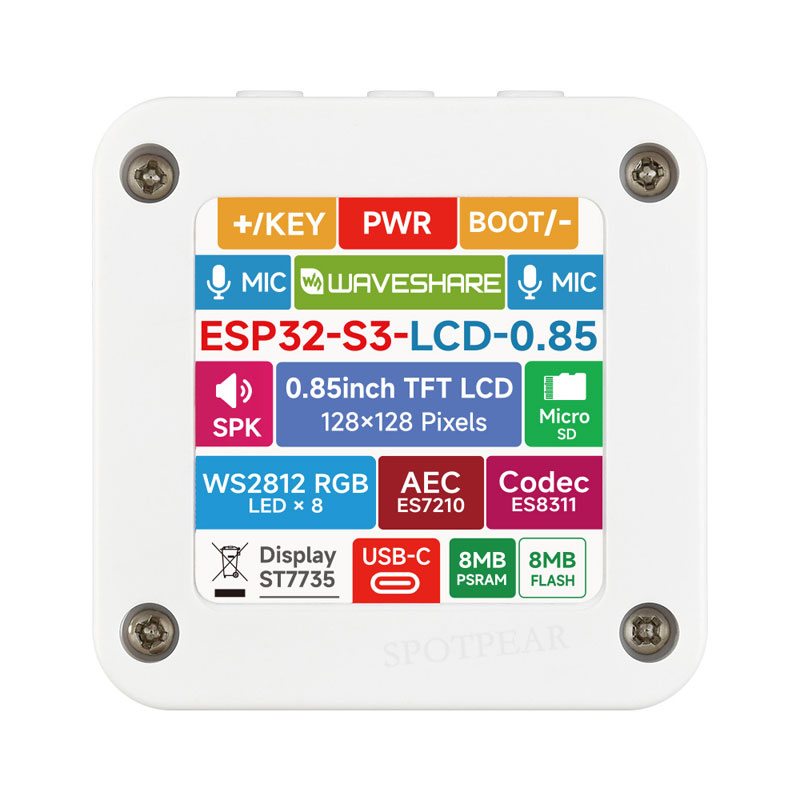

What's On Board

ESP32-S3-PICO-1-N8R8
Dual-core processor, up to 240MHz operating frequency, with built-in 8MB Flash and 8MB PSRAM
NS4150
audio power amplifier chip
ES8311 audio codec chip
Batt recharge and discharge management chip
ES7210
PLUS button
PWR power button
for system power supply ON/OFF, supports custom function
BOOT button
for device startup and function debugging

Microphones
TF card slot
Onboard antenna
supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE)
Batt header
MX1.25 2PIN connector, for 3.7 Lithium Batt, supports charging and discharging
USB Type-C port
ESP32-S3 USB port for programming and log printing
Speaker header

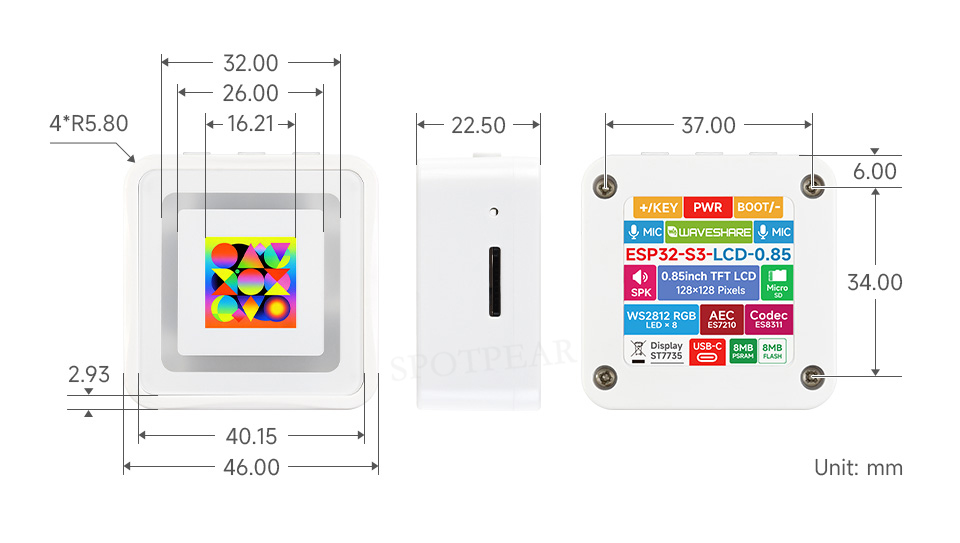

Outline Dimensions

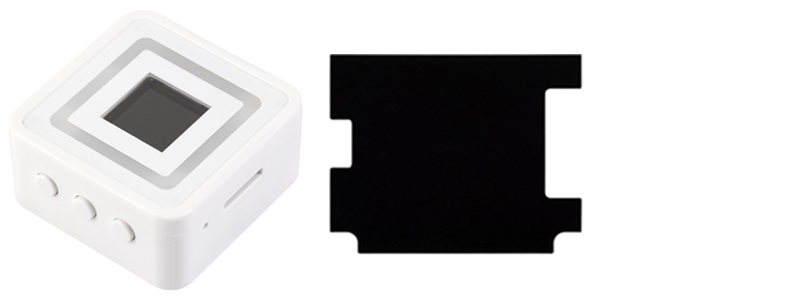

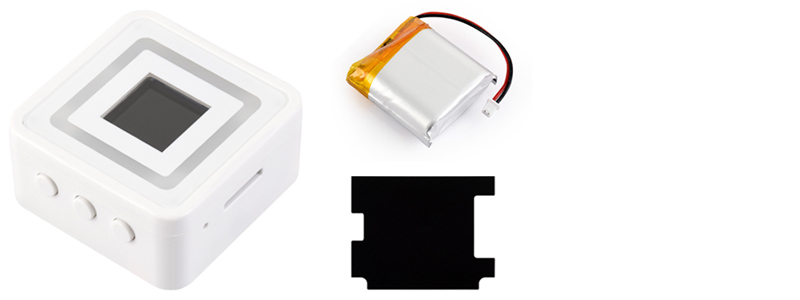

[] ESP32-S3-LCD-0.85

[] ESP32-S3-LCD-0.85-EN
