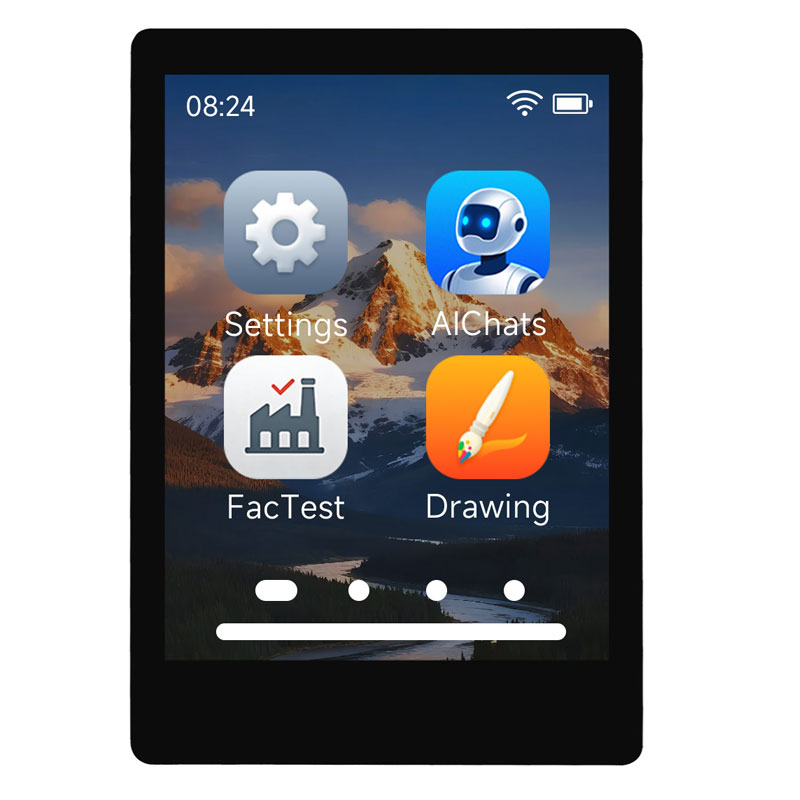

ESP32-C5 2.8inch LCD Display Capacitive AI Development Board 240×320 2.8 inch TouchScreen

ESP32-C5 2.8inch LCD Display Capacitive AI Development Board 240×320 2.8 inch TouchScreen

$30.9

Brand：SpotPear

SKU：020816200000

Date：2026-07-06 16:47

Part Number：

ESP32-C5-Touch-LCD-2.8 ESP32-C5-Touch-LCD-2.8-EN

No：

- +

In Stock

Buy It Now

Add to cart

Ask a Question

Copy Link

ESP32-C5 2.8inch IPS Capacitive Touch Display Development Board, 240 × 320 Resolution, 5-Point Touch, 262K Color, Integrated 2.4GHz/5GHz Dual-band Wi-Fi And Bluetooth 5 (LE)

EPS32 DeepSeek AI Recommend

Toy-AI-Core-ESP32-C3-MINI

ESP32-S3-N16R8

ESP32-S3-AI-Kit-(A)

ESP32-S3-AI-Kit-(B)

ESP32-S3-OLED-0.96

ESP32-P4-WIFI6

ESP32-P4-WIFI6-DEV-KIT

ESP32-Hi-Dog

ESP32-S3-LCD-0.85-AI

ESP32-S3-AI-MINI-0.85

ESP32-S3-LCD-0.85

ESP32-C6-LCD-0.85

Xmini-C3

Xmini-C3-Kit-BOX

ESP32-S3-1.28inch-AI-EN

ESP32-S3-1.28inch-AI-legs-Bat-0.3MP

ESP32-S3-Touch-LCD-1.28-BOX-THIN

ESP32-S3-DualEye-LCD-1.28

Toy-AI-Core-ESP32-C3-1.28-Case

ESP32-S3-1.3-AI-BOX

ESP32-S3-Touch-AMOLED-1.32

ESP32-C6-Touch-AMOLED-1.32

ESP32-C6-Touch-AMOLED-1.43

ESP32-S3-Touch-AMOLED-1.43C

ESP32-S3-Touch-LCD-1.46

ESP32-S3-AI-Kit-(C)

ESP32-S3-Ai-Robot-(A)

ESP32-C6-ePaper-1.54

ESP32-S3-ePaper-1.54

ESP32-S3-ePaper-1.54G

ESP32-S3-AI-1.54-MUMA

sp-esp32-s3-1.54-bg

ESP32-S3-AI-1.54-Box

Toy-AI-Core-ESP32-C3-1.54-Case

ESP32-S3-LCD-1.54

ESP32-C6-LCD-1.54

ESP32-C6-Touch-LCD-1.69

ESP32-S3-Touch-AMOLED-1.75

T5-E1-Touch-AMOLED-1.75

ESP32-S3-Touch-AMOLED-1.75C

ESP32-S3-Touch-AMOLED-1.8-EN

ESP32-S3-Touch-AMOLED-1.8-Watch

ESP32-C6-Touch-AMOLED-1.8

EPS32-S3-1.8inch-Touch-LCD

ESP32-S3-Touch-LCD-1.83

ESP32-S3-LCD-1.85

ESP32-S3-LCD-1.85-EchoEar

ESP32-S3-LCD-1.85-Battery

ESP32-S3-Touch-LCD-1.85C

ESP32-S3-Touch-LCD-1.85B

ESP32-S3-AUDIO-Board

AI-BOX-Dual-Eye-0.71-Recog

JLC-Pi-ESP32-S3-2inch-LCD-Camera

ESP32-S3-Touch-AMOLED-2.06

ESP32-C6-Touch-AMOLED-2.06

ESP32-S3-Touch-AMOLED-2.16

ESP32-C6-Touch-AMOLED-2.16

ESP32-C5-Touch-LCD-2.8

ESP32-S3-AI-3.13inch-LCD

ESP32-S3-Touch-LCD-3.49-EN

ESP32S3-MAX35-Only-Board

ESP32S3-MAX35-TV

ESP32-Touch-LCD-3.5

ESP32-S3-Touch-LCD-3.5B

ESP32-P4-WIFI6-Touch-LCD-3.5

ESP32-S3-ePaper-3.97

ESP32-S3-Touch-LCD-4B

ESP32-S3-RLCD-4.2-EN

ESP32-S3-Touch-LCD-4.3C

ESP32-P4-WIFI6-Touch-LCD-4.3

ESP32-P4-WIFI6-Touch-LCD-5

ESP32-S3-Touch-LCD-7C-BOX

ESP32-P4-WIFI6-Touch-LCD-7B

ESP32-S3-PhotoPainter

ESP32-C5 2.8inch IPS Capacitive Touch Display Development Board

Integrates SPI Interface Display, 240 × 320 Resolution, Multiple Peripheral Interfaces

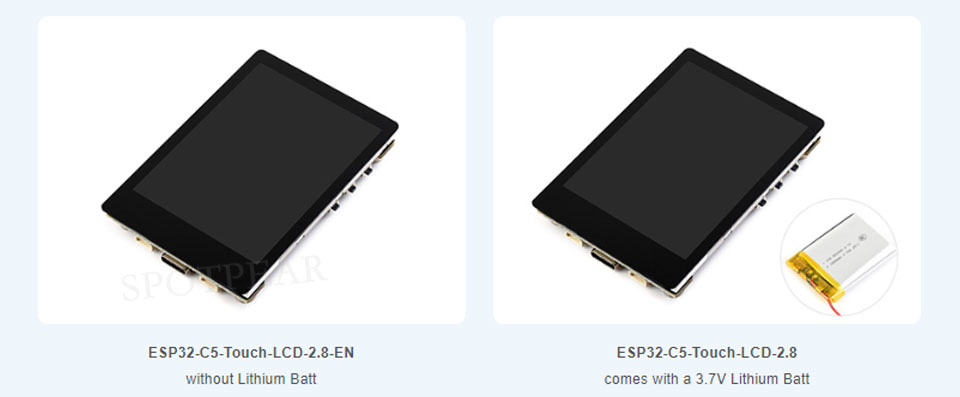

Version Options

Features

This product is designed by Waveshare with onboard 2.8inch LCD display, 6-axis sensor, temperature and humidity sensor, and TF card slot, providing the hardware foundation for display, sensing, voice, and multimedia storage. With these hardware resources, it supports fun interactive mini-games and voice wake-up. It allows access to online AI large model platforms, enabling intelligent voice interaction and continuous upgrades. It comes pre-installed functions such as AI conversation, audio playback, a gravity ball game, 2048 game, and weather. It can be used directly as an AI chatting toy, while also supporting customization and secondary development.

Equipped with the ESP32-C5-WROOM-1 series module, featuring a RISC-V 32-bit processor, up to 240MHz main frequency
Integrated with 384KB Static RAM, 320KB ROM, 8MB PSRAM, and 32MB Flash, meeting the requirements for program execution, graphical interface, and data storage
Integrated 2.4GHz and 5GHz dual-band Wi-Fi, Bluetooth 5 (LE), and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communications, with outstanding RF performance
Onboard Batt recharge management module, with reserved 3.7V MX1.25 Lithium Batt header for connecting external Batt
Type-C port, improving device compatibility, easier to use
Onboard 2.8inch LCD display, 240 × 320 resolution, 262K color
Supports 5-point capacitive touch controlled via I2C interface, with interrupt support
Adapting UART, I2C and some IO interfaces, integrates full-speed USB port
Onboard QMI8658 6-axis sensor, RTC sensor, SHTC3 temperature and humidity sensor, TF card slot, etc.
Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
Onboard ES8311 audio codec chip, NS4150B power amplifier chip, microphone, and speaker
Supports ESP-IDF, Arduino, and other development environments, with rich resources for quick and easy development

LCD Parameters

DISPLAY PANEL	IPS	DISPLAY SIZE	2.8inch
DISPLAY RESOLUTION	240 × 320 pixels	DISPLAY COLOR	262K
COMMUNICATION INTERFACE	4-wire SPI	DRIVER IC	ST7789
TOUCH TYPE	Capacitive touch	TOUCH IC	CST3530
ACTIVE DISPLAY AREA	57.60 × 43.20 (mm)

Function Overview

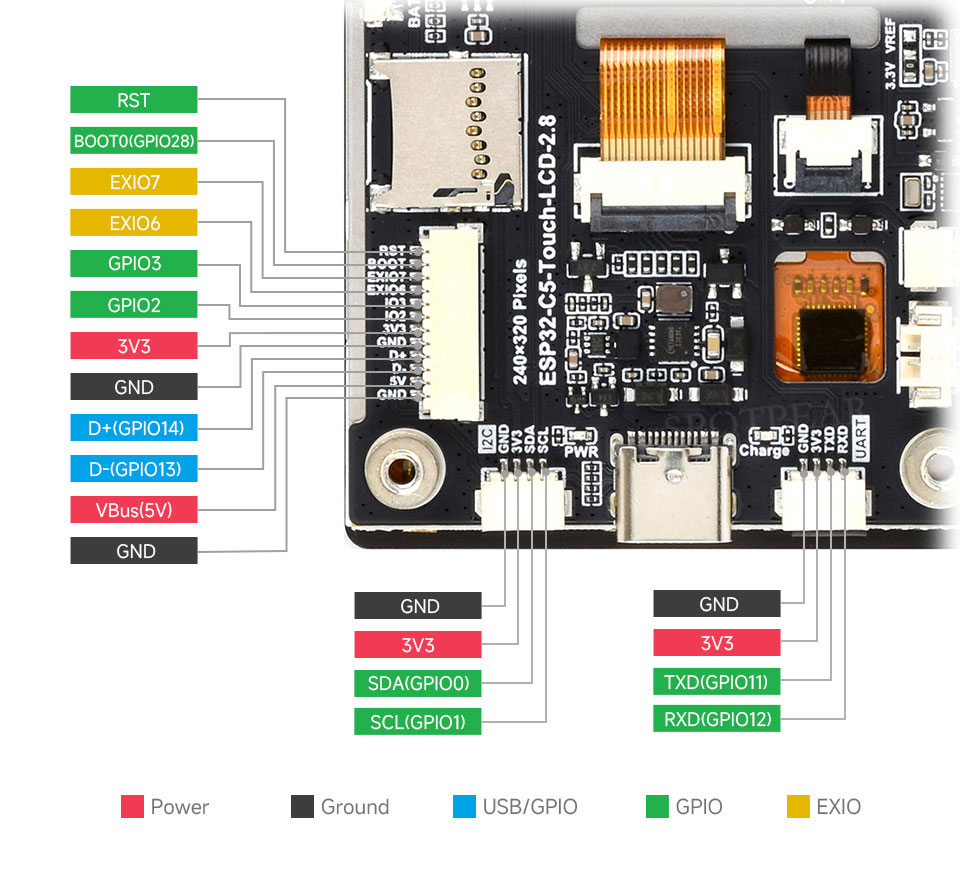

Supports Multiple Peripherals

Supports The Expansion Of Multiple Peripherals Via GPIO, UART And I2C Interfaces, Etc.

IPS Display Panel

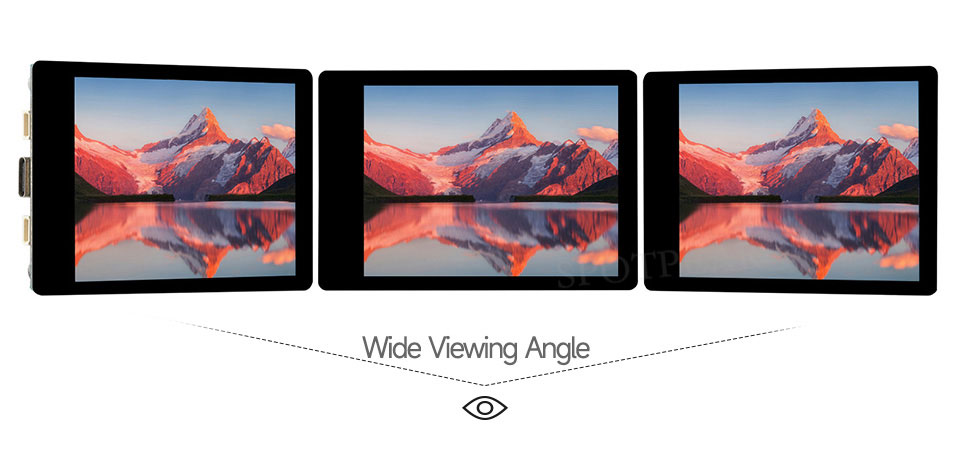

262K Color, 240 × 320 Resolution, Wide Viewing Angle

Supports ESP-IDF, Arduino IDE

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

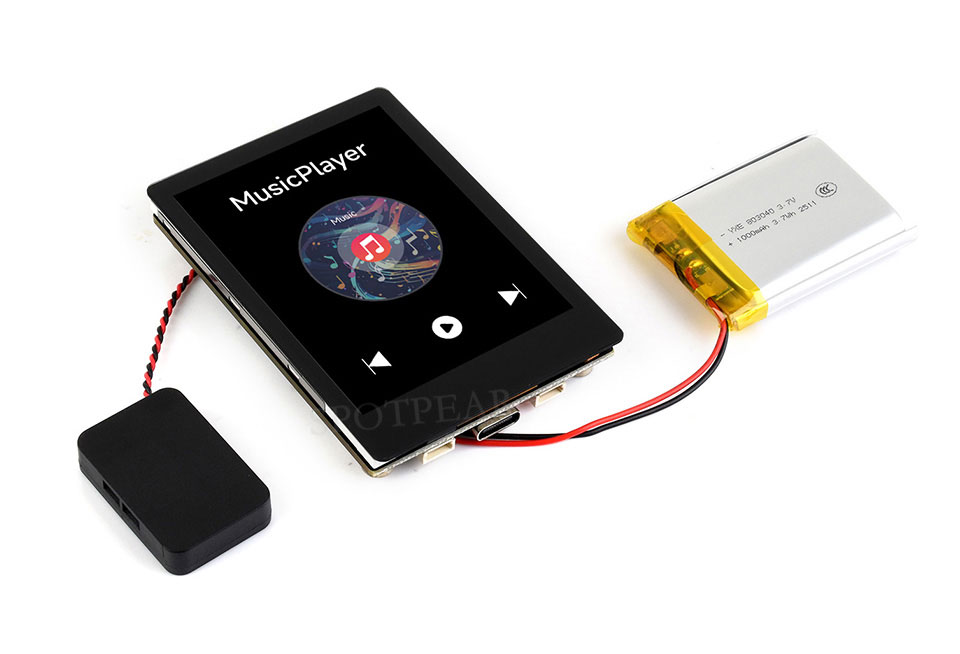

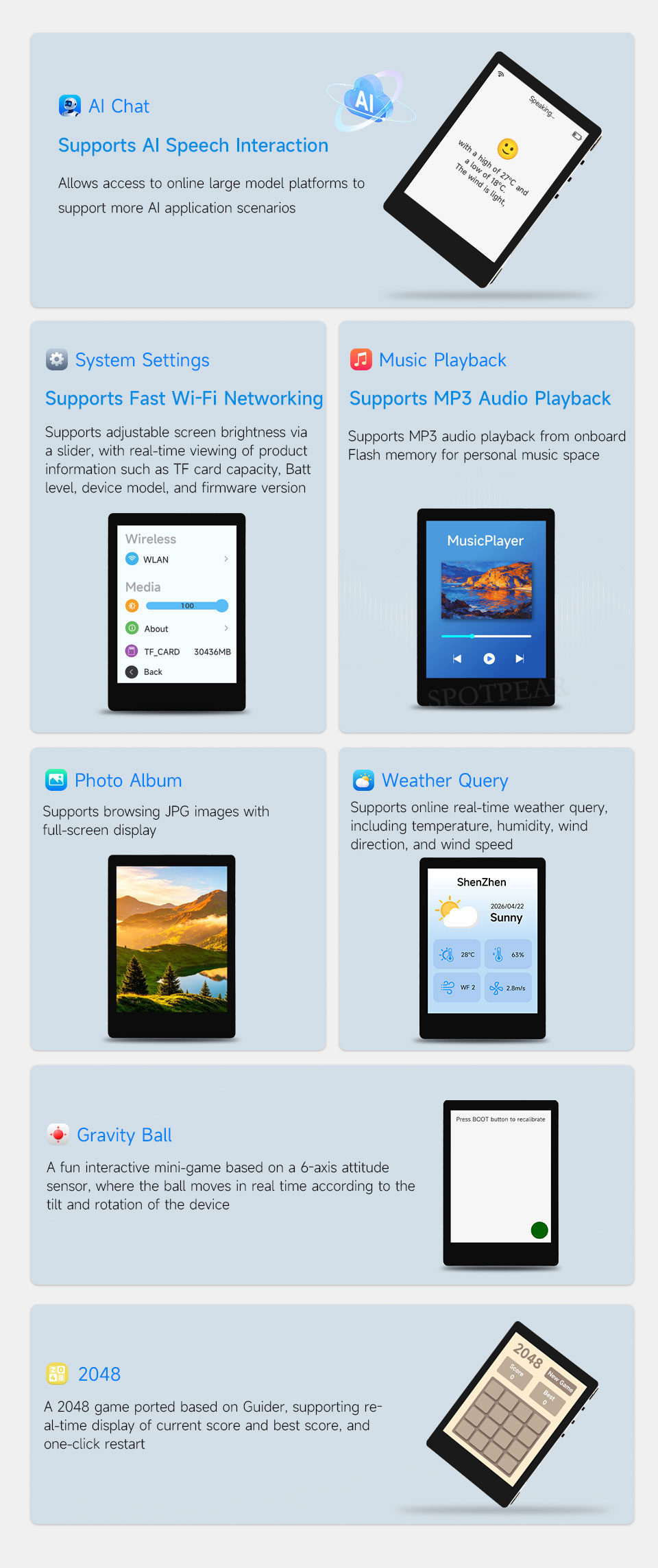

Application Example

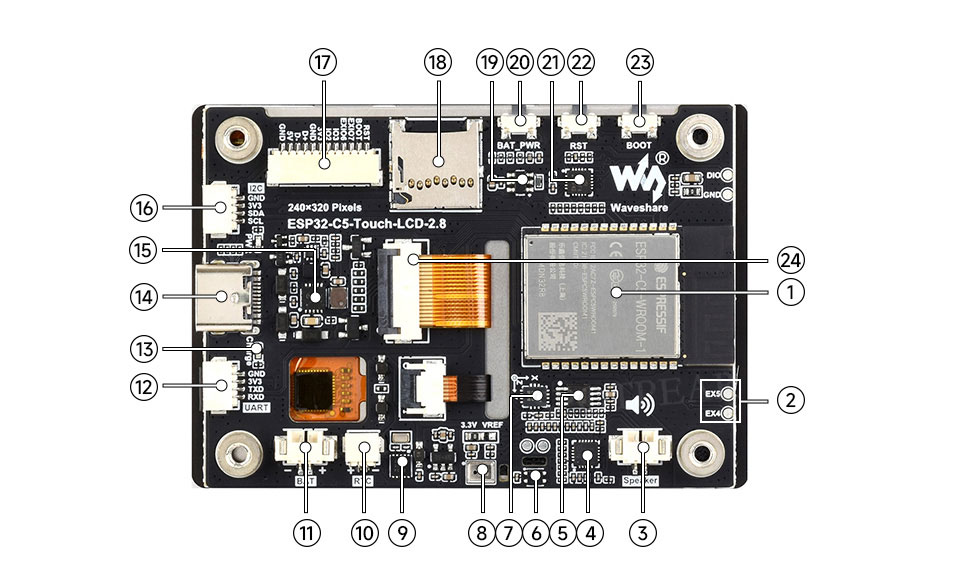

What's On Board

ESP32-C5-WROOM-1
Expansion IO pads
MX1.25 2PIN speaker header
Audio output signal, for connecting external speaker
ES8311
low-power audio codec chip
NS4150B
audio power amplifier chip
SHTC3 temperature and humidity sensor
provides temperature and humidity measurement for environmental monitoring applications
QMI8658
6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer
Onboard microphone
PCF85063 RTC chip
SH1.0 2PIN RTC Batt header
for connecting rechargeable RTC Batt
MX1.25 2PIN Lithium Batt header
for 3.7V Lithium Batt, supports charging and discharging

UART header
Charging indicator
Lithium battery charge indicator, lights up when charging, off when fully charged (the light status is uncertain when the battery is not connected)
USB Type-C port
ETA6098 charging management chip
I2C header
SH1.0 12PIN connector
TF card slot
supports TF card up to 64GB
Power ON/OFF chip
BAT power button
When a Batt is connected, long press 2s to power off, short press 1s to power on
CH32V003 IO expansion chip
RESET button
BOOT button
for entering download mode, and can also be reused as a general-purpose button
2.8inch display panel connector

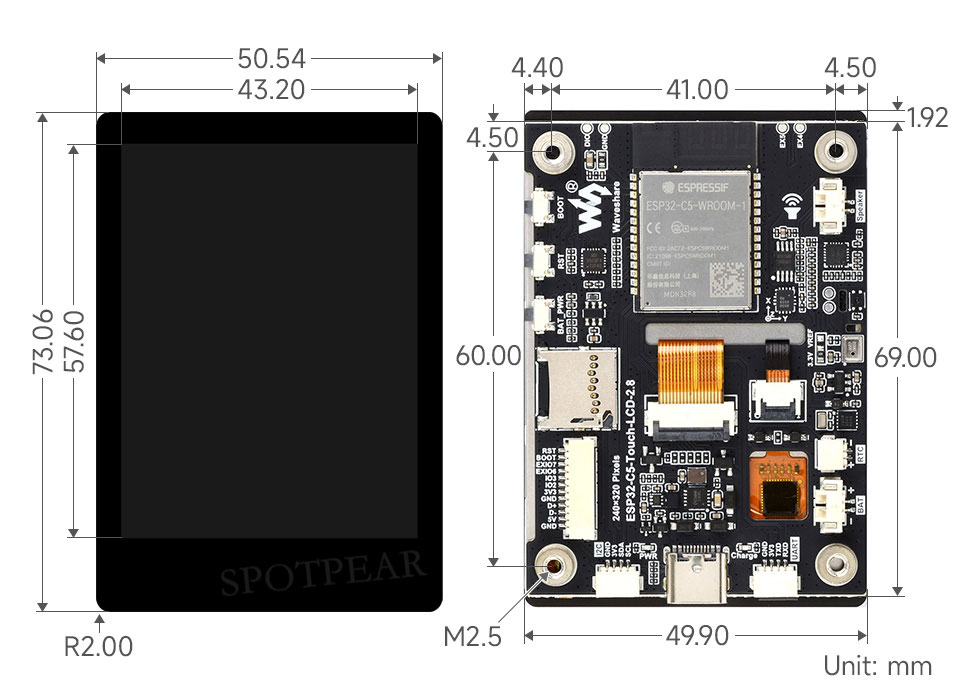

Outline Dimensions

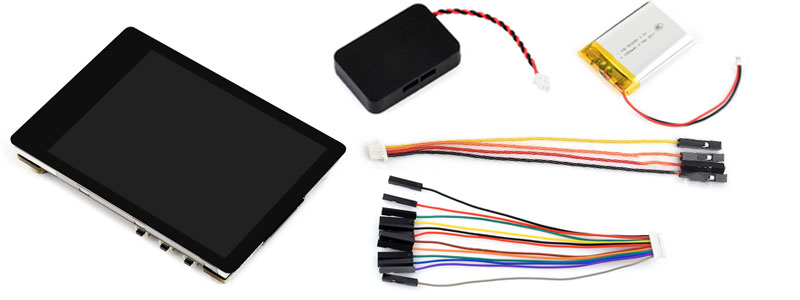

[] ESP32-C5-Touch-LCD-2.8

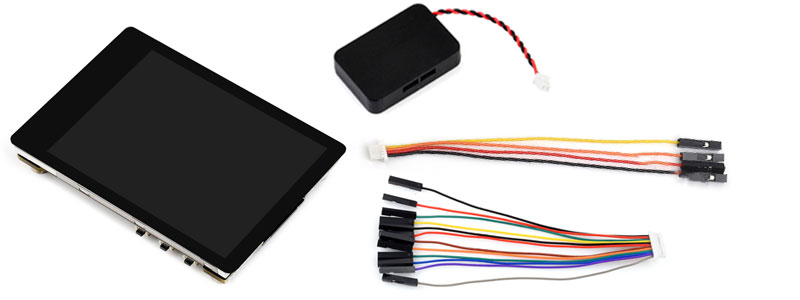

[] ESP32-C5-Touch-LCD-2.8-EN
