USB Binocular Camera 2MP AR0144 Distortion Free Binocular Synchronous Frame USB 2.0 Plug and Play
$72.9
Brand：SpotPear
SKU：010308200000
Date：2025-12-05 15:59
Part Number：

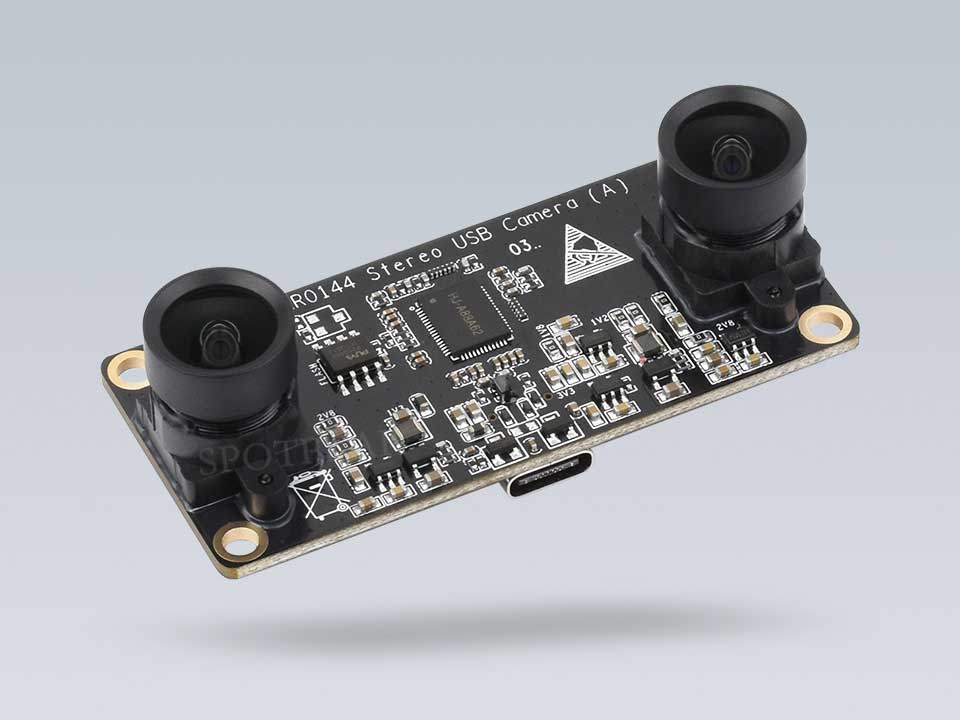

AR0144 2MP Binocular Camera Module Adopts AR0144 image sensor USB 2.0 interface Synchronous same-frame output 52mm baseline Equipped with distortion-free lens
USB Industrial Camera
2MP BINOCULAR USB CAMERA MODULE
AR0144 Sensor | USB2.0 Port | Synchronized Same-Frame Output
Specifications
| PIXELS | 2MP | ||
|---|---|---|---|
| SENSOR CHIP | AR0144 | ||
| INTERFACE | USB2.0 (Type-C) | ||
| CAMERA | SENSOR SIZE | 1/4inch | |
| APERTURE (F) | 2.2 | ||
| FOCAL LENGTH (EFL) | 2.88mm | ||
| FIELD OF VIEW (FOV) | 74°(D) / 65°(H) / 43°(V) | ||
| FOCUSING | Fixed-focus | ||
| DISTORTION | < 0.2% | ||
| IR FILTER | 650nm filter | ||
| SHUTTER | Global Shutter | ||
| IMAGE | FORMAT SUPPORT | MJPG、YUY2 | |
| STATIC IMAGE RESOLUTION | 2560 × 720 (1280 × 720) | ||
| VIDEO RECORDING | MJPG: 30FPS 2560 × 720 60FPS 1600 × 600 60FPS 1280 × 720 60FPS 800 × 600 60FPS 640 × 480 120FPS 640 × 352 120FPS 640 × 360 | ||
| YUY2: 5FPS 2560 × 720 10FPS 1280 × 720 20FPS 800 × 600 30FPS 640 × 480 30FPS 640 × 360 | |||
| BASELINE LENGTH | 52mm | ||
| COMMUNICATION | Type-C USB2.0 | ||
| OPERATING VOLTAGE | 5V ± 5% | ||
| DIMENSIONS | 66.00 × 30.00 × 17.72 (mm) | ||
52mm Baseline Length
Frame-Synchronized Stereo Output
Synchronized Driving Ensures Both Image Channels Output In The Same Frame, Enabling Efficient Coordination And Precise Synchronization
Distortion-Free
Equipped With Dual Distortion-Free Lenses With A Distortion Rate Of Less Than 0.2%, Delivering Undistorted Imaging And More Accurate Reproduction Of Real-World Scenes
Plug And Play, Easy Connection
Onboard USB 2.0 Port, Driver-Free, Compatible With Various USB Hosts Such As PC And Smart Devices, Simply Plug It In To Start Using

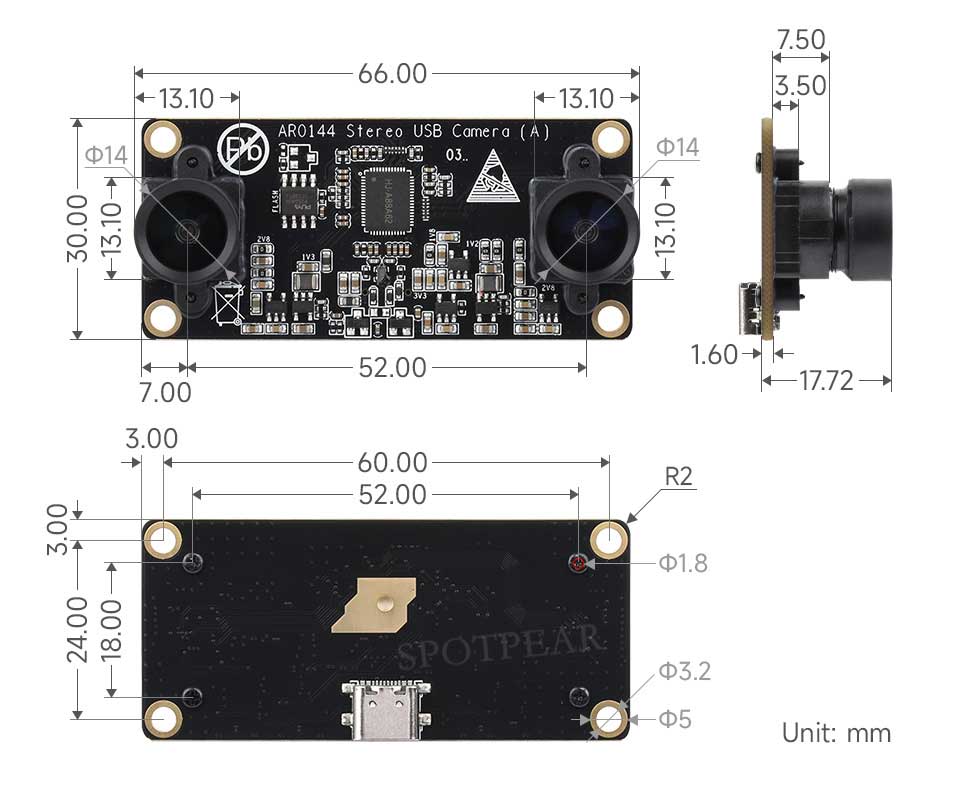

Outline Dimensions
Outline Dimensions
