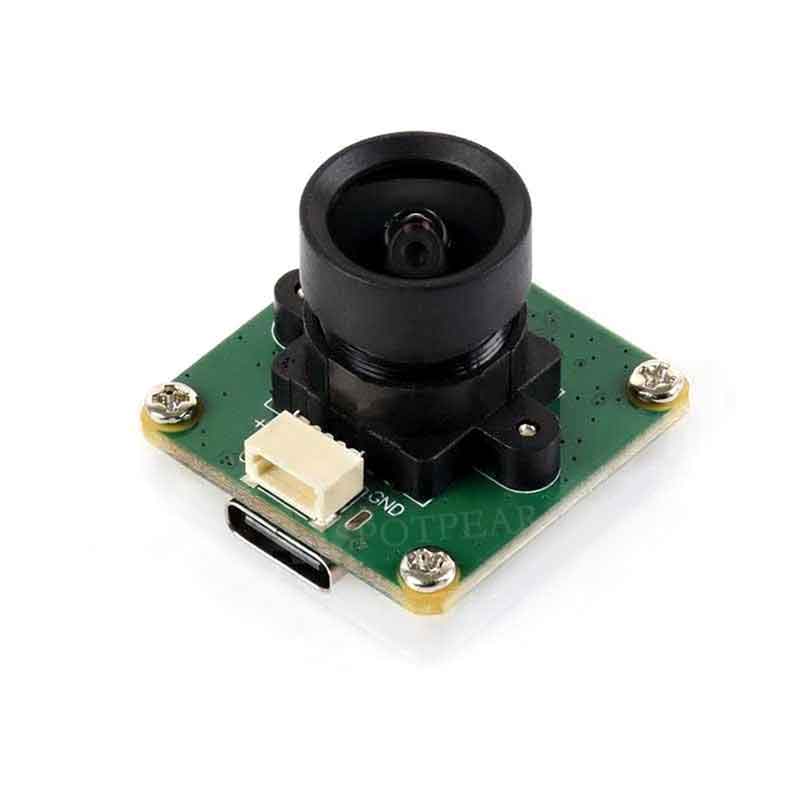

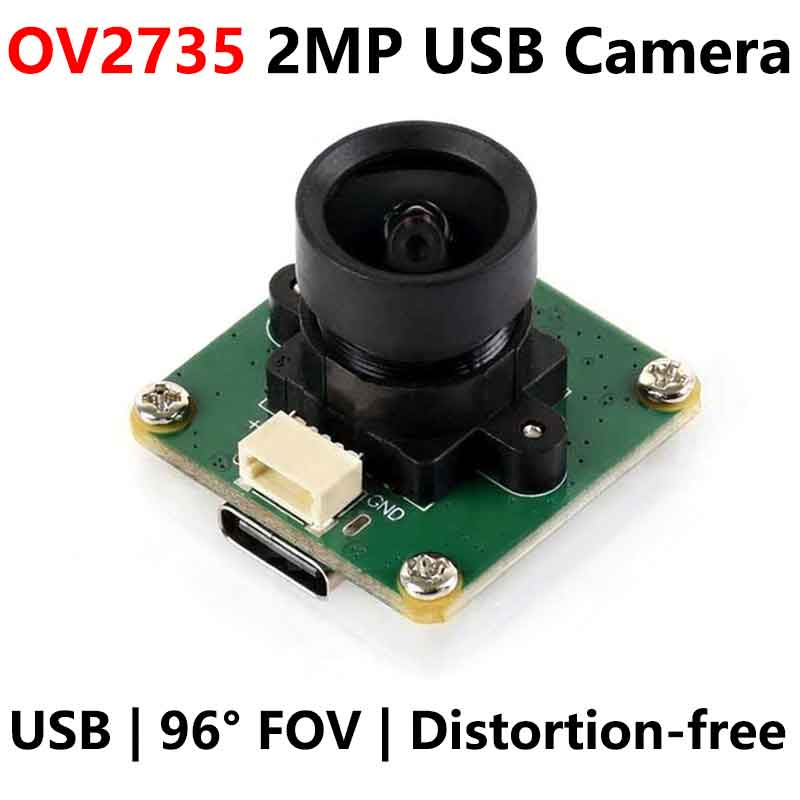

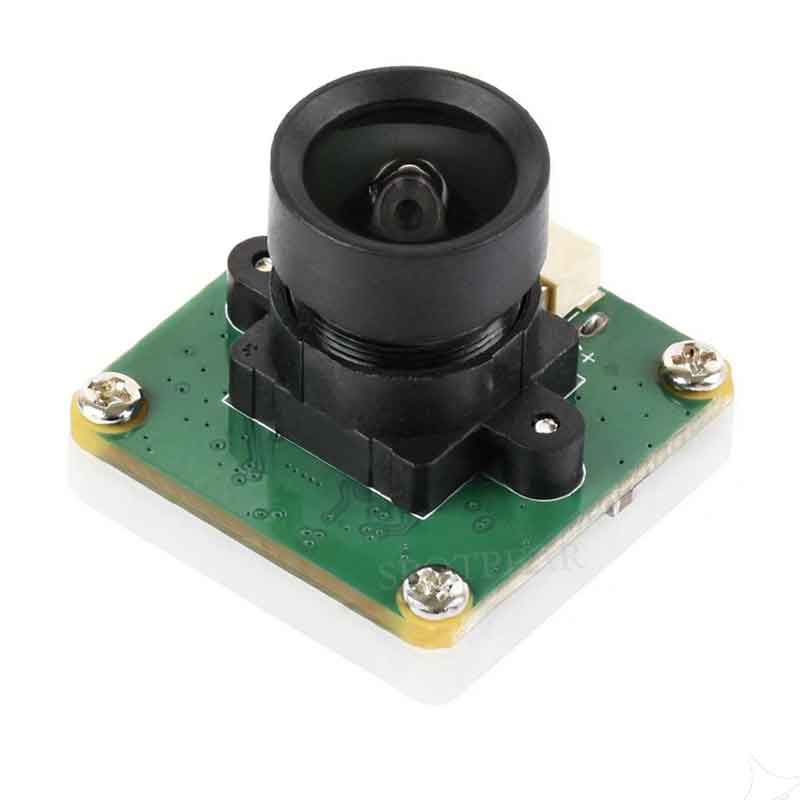

Raspberry Pi USB Camera 2MP OV2735 Distortion-Free USB 2.0 For Jeston RDK

Raspberry Pi USB Camera 2MP OV2735 Distortion-Free USB 2.0 For Jeston RDK

$14.9

Brand：SpotPear

SKU：010308400000

Date：2025-12-31 18:22

Part Number：

OV2735 2MP USB Camera (A)

No：

- +

In Stock

Buy It Now

Add to cart

Ask a Question

Copy Link

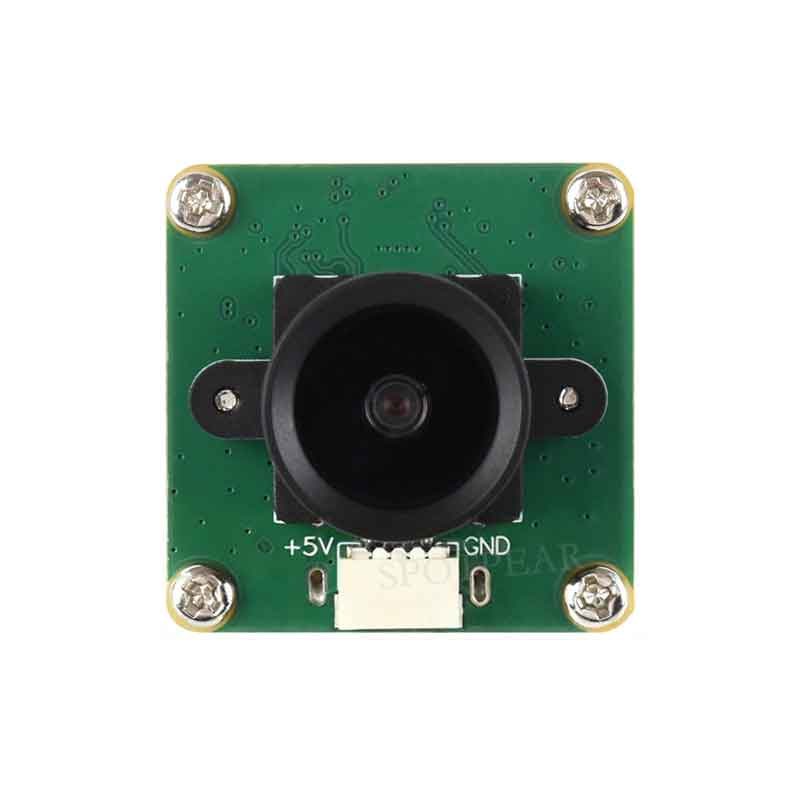

OV2735 2MP USB Camera (A), Supports USB2.0 Type-C Port And SH1.0 4PIN Header

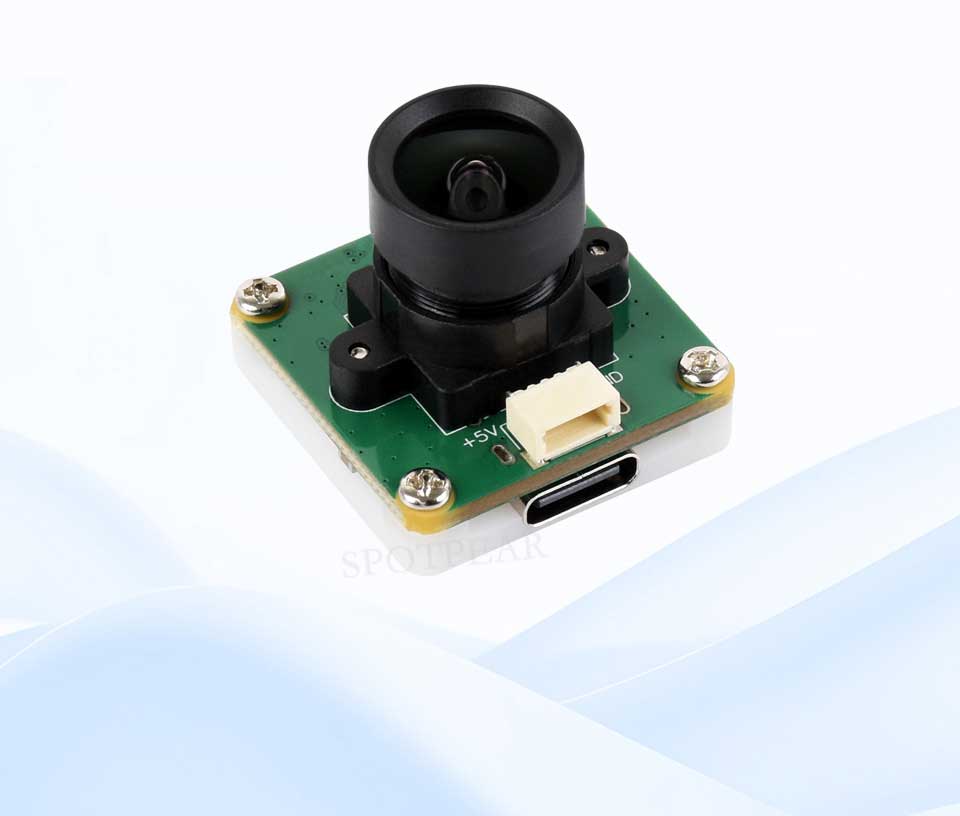

OV2735 USB CAMERA

2MP | USB2.0 Type-C Port | 96° FOV

Specifications

PIXELS	2MP
SENSOR	OV2735
INTERFACE	USB2.0 Type-C port / SH1.0 4PIN header
CAMERA	Sensor size	1/2.7 inch
	Aperture (F)	2.7
	Focal length (EFL)	2.88mm
	Field of view (FOV)	96°
	Distortion	<-0.2%
	Focusing	Fixed-focus
IMAGE	Format support	MJPG, YUY2
	Static image resolution	1920 × 1080
	Video recording	30 FPS 1920 × 1080 30 FPS 1280 × 720
OPERATING VOLTAGE	5V ± 5%
OPERATING TEMPERATURE	0°C ~ 50°C
MODULE SIZE	25.00 × 25.00 (mm)

2MP Resolution

Supports 1080P 30 FPS Output

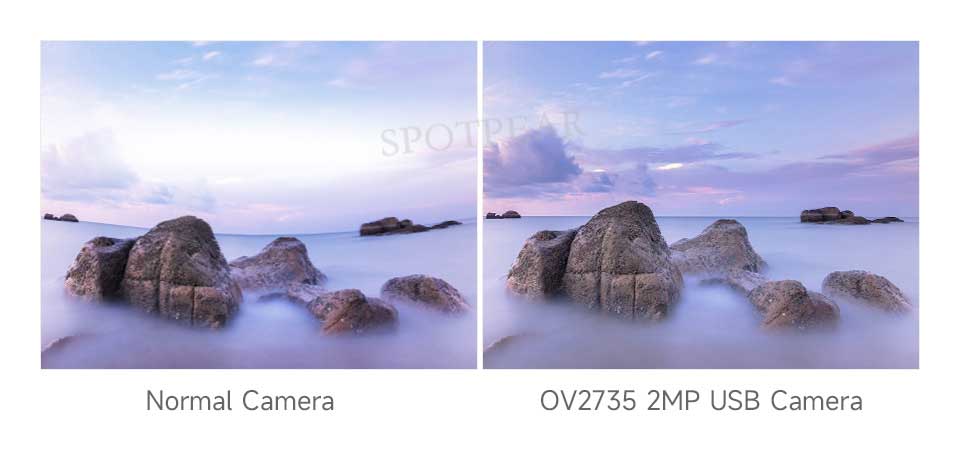

Distortion-Free

Equipped With A Distortion-Free Lens With A Distortion Rate Of Less Than -0.2%, Delivering Undistorted Imaging And More Accurate Reproduction Of Real-World Scenes

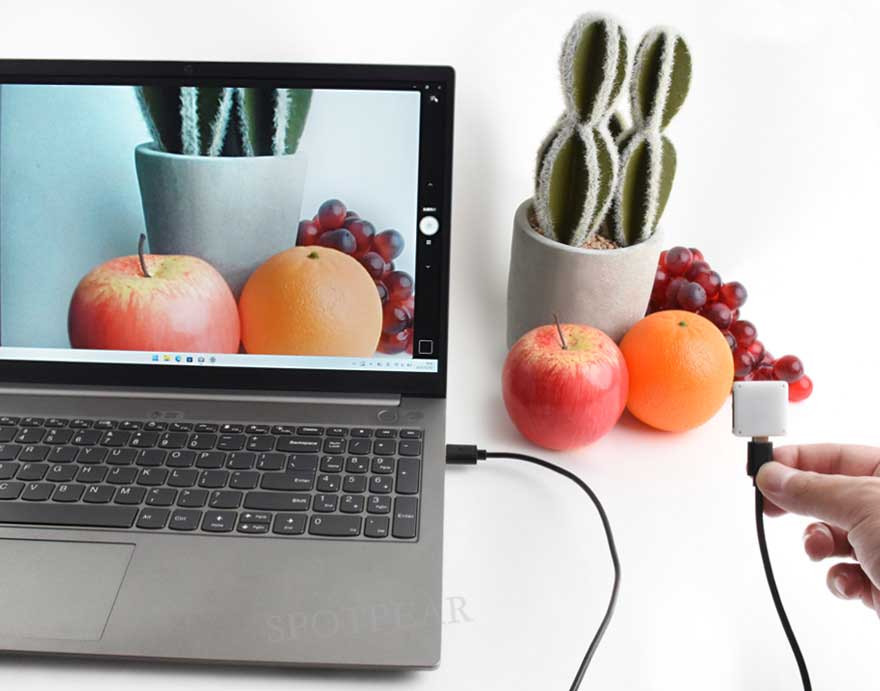

Plug And Play, Easy Connection

Onboard USB 2.0 Port, Driver-Free, Compatible With Various USB Hosts Such As PC And Smart Devices, Simply Plug It In To Start Using

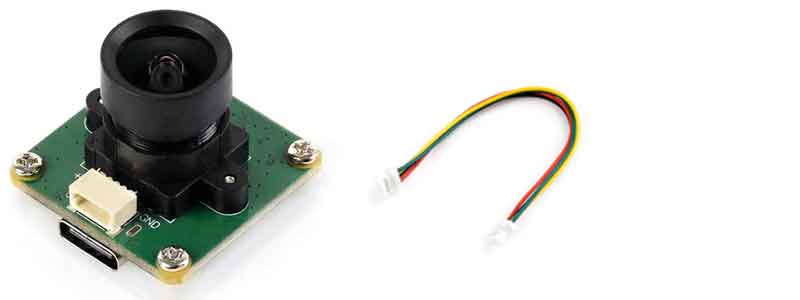

* for reference only, please refer to the package content for the detailed part list.

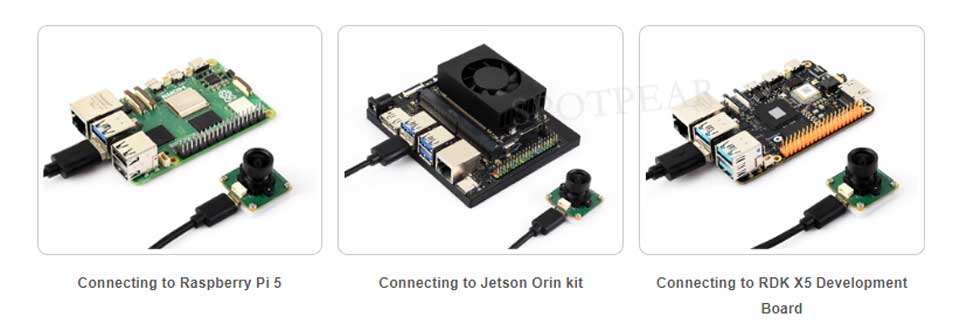

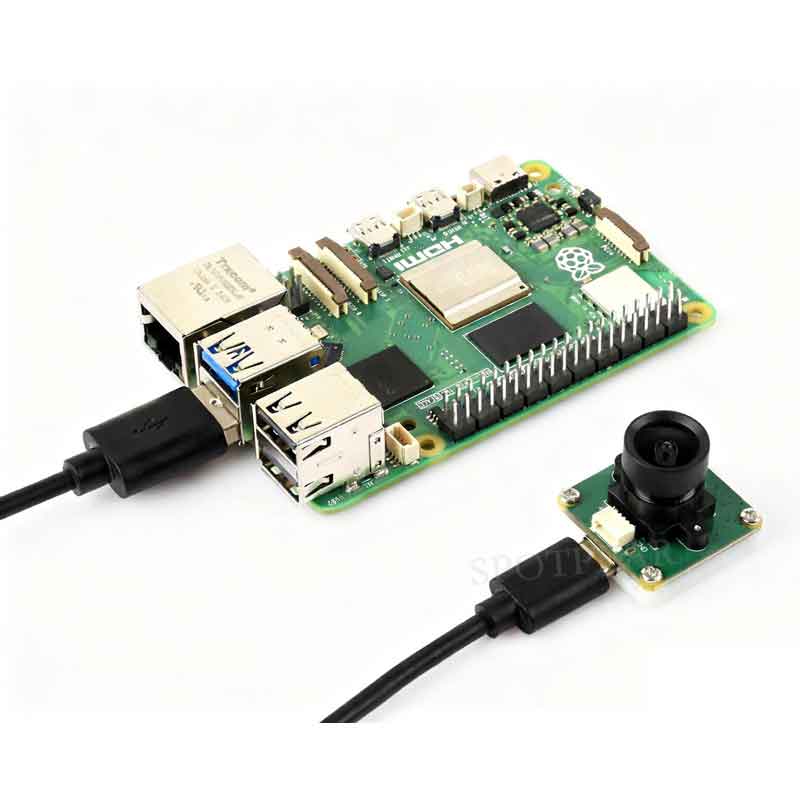

Connecting With USB Cable

* for reference only, the Raspberry Pi 5, Jetson Orin kit and RDK X5 Development Board are NOT included

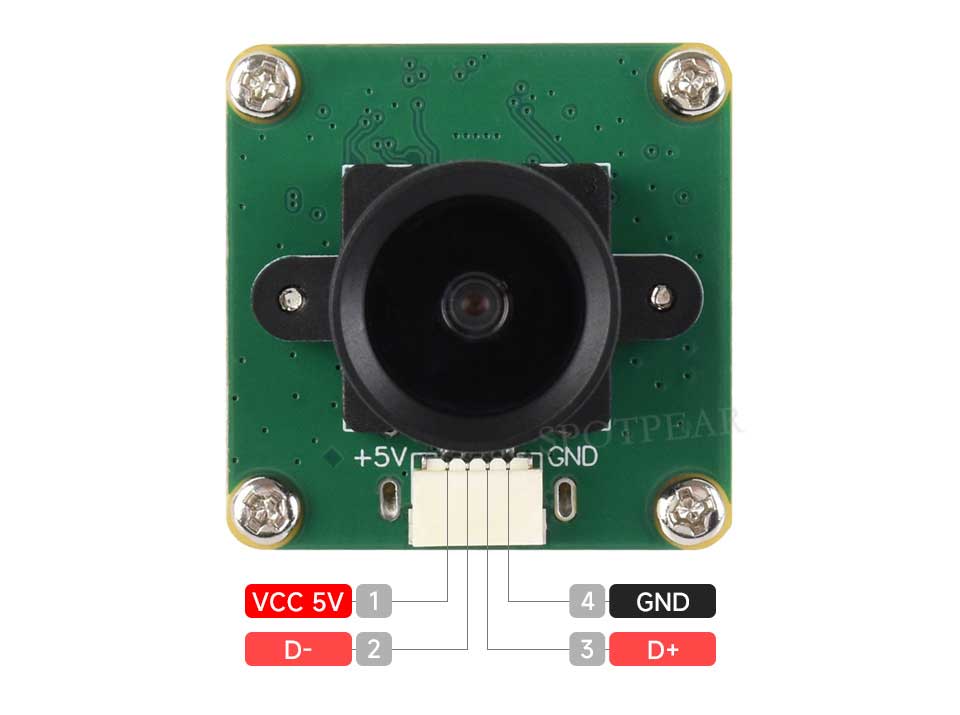

Pinout Definition

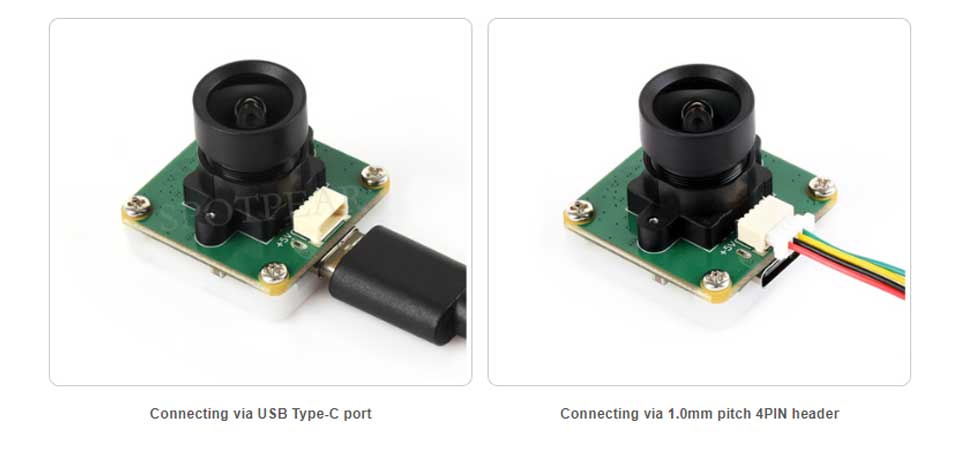

Onboard Two Types Of Connectors

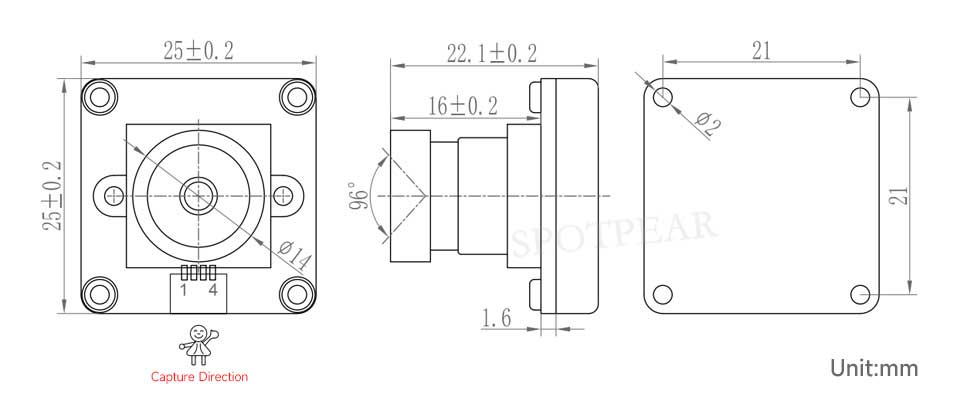

Outline Dimensions

[] OV2735 2MP USB Camera (A)
