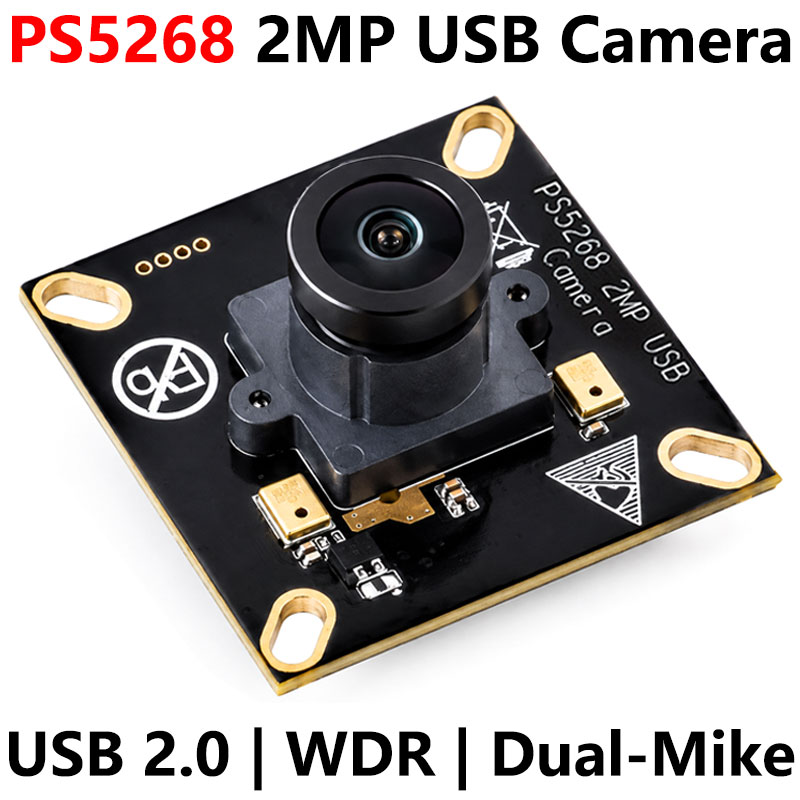

USB Camera 2MP PS5268 USB 2.0 Dual-Mike Wide Dynamic range

USB Camera 2MP PS5268 USB 2.0 Dual-Mike Wide Dynamic range

$179

Brand：SpotPear

SKU：010310900000

Date：2026-09-09 13:53

Part Number：

PS5268 2MP USB Camera (B)

No：

- +

In Stock

Buy It Now

Add to cart

Ask a Question

Copy Link

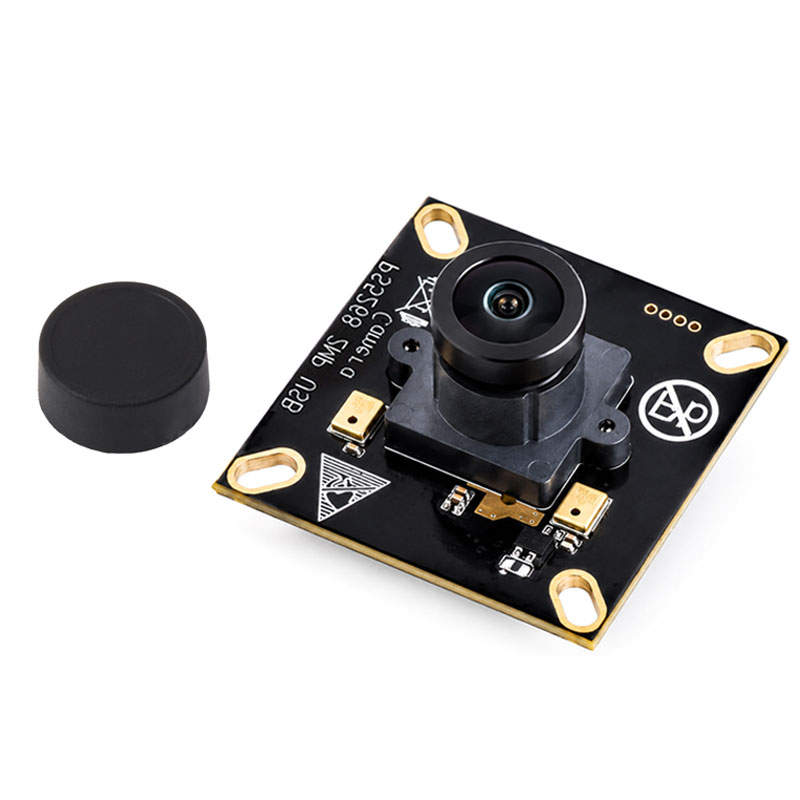

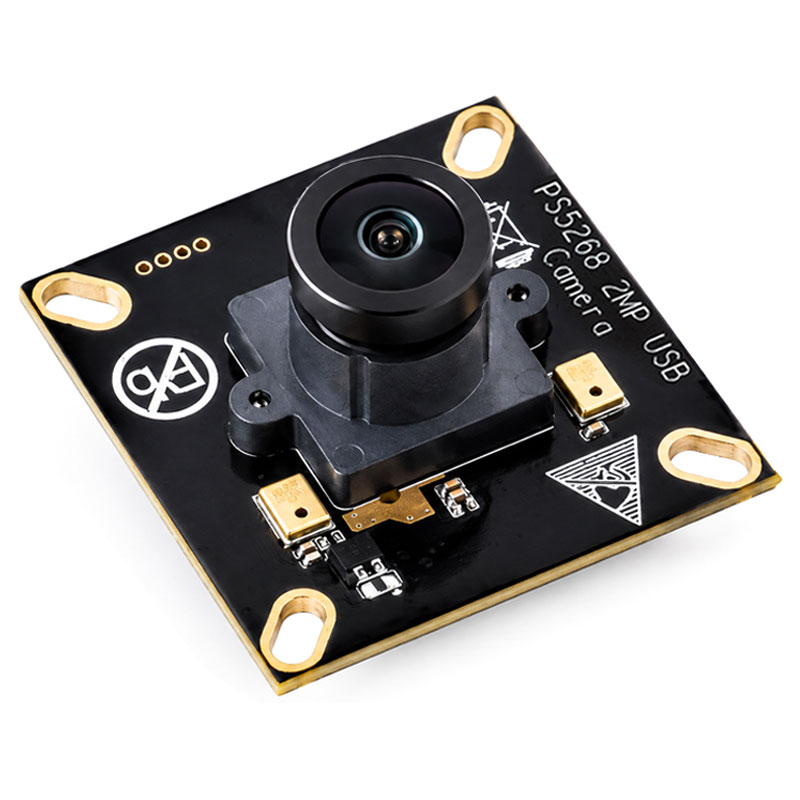

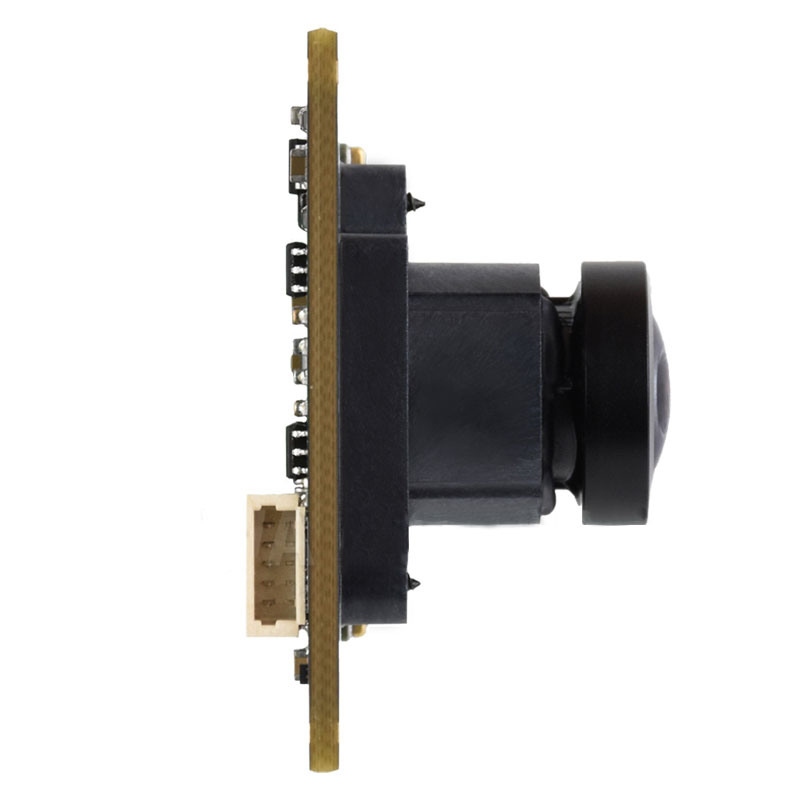

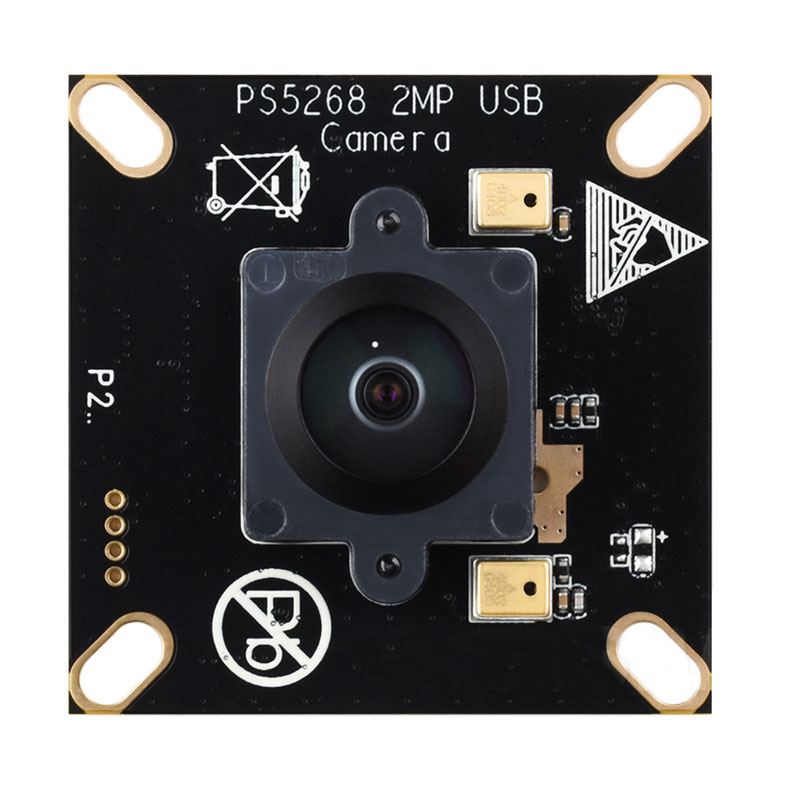

PS5268 2MP M12 Camera Module Type B, USB 2.0 Header, High Dynamic Range, Rolling Shutter, Onboard Dual Microphones

USB Industrial Camera

200W-OV2710 ---$36.9

500W-ICT518-Starlight-$52

200W-IMX462-Starlight-$52

1200W-IMX377-4K -$118

GC2093-2MP-USB-Camera-(A) $24.9

OV9281 1MP USB Camera (A) $25.9

OS08A10 8MP USB Camera (A)

OS02G10 Stereo USB Camera (A) $61.49

OV2735 2MP USB Camera (A) $14.9

OS05A10 5MP USB Camera (A) $33.9

OS05A20 5MP USB Camera (B) $45.99

OS05A20 5MP USB Camera (C) $45.99

AR0144 Stereo USB Camera (A) $72.9

IMX327 2MP IR-CUT Camera (A) $33.9

IMX335 5MP USB Camera (C) $34.9

IMX378 12MP USB Camera (A) $39.9

IMX415 8MP USB Camera (A) $31.9

IMX415 8MP Camera (A) $17.9

IMX577 12MP USB Camera (A) $74.9

IMX577 12MP USB Camera (B) $69.9

IMX678 8MP USB Camera (A) $69

SC2210 2MP USB Camera (A) $67

PS5268-2MP-USB-Camera-A $112.9

OS05A20 5MP USB Camera (C) $45.99

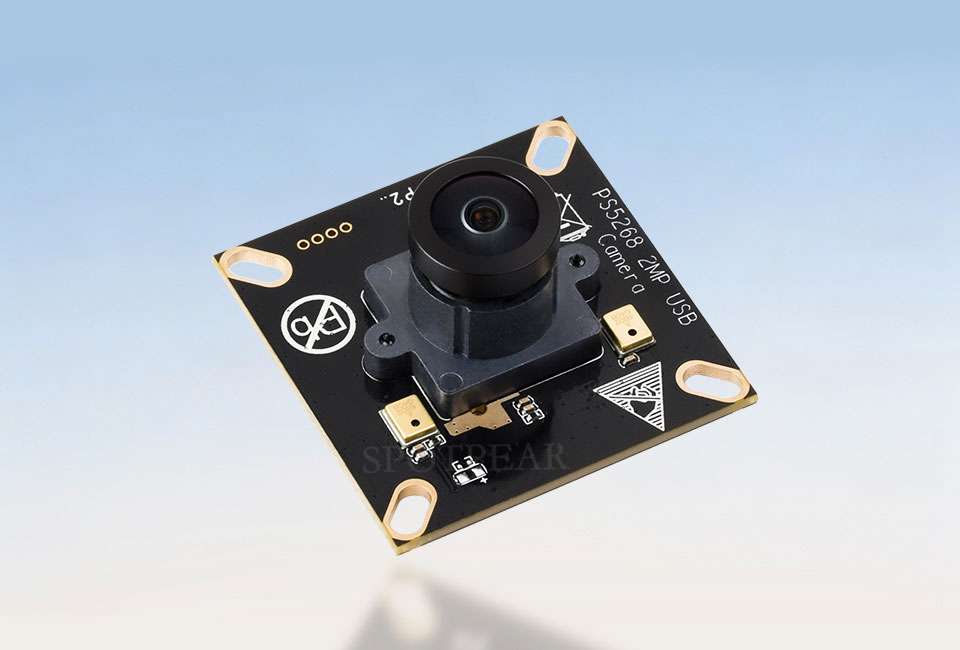

2MP M12 CAMERA MODULE

PS5268 Sensor, USB 2.0 Header, High Dynamic Range

Specifications

PIXELS		2MP
SENSOR CHIP		PS5268
INTERFACE		USB 2.0
CAMERA	SENSOR SIZE	1/2.7inch
	APERTURE (F)	2.2
	FOCAL LENGTH (EFL)	2.28mm
	FIELD OF VIEW (FOV)	187.4°(D) × 156.7°(H) × 93.4°(V)
	FOCUSING	Fixed-focus
	DISTORTION	<-31%
	DYNAMIC RANGE	85dB
	IR FILTER	650nm filter
IMAGE	FORMAT SUPPORT	MJPG, YUY2
	STATIC IMAGE RESOLUTION	1920 × 1080
	VIDEO RECORDING	MJPG: 30FPS 640 × 360 30FPS 640 × 480 30FPS 960 × 544 30FPS 1280 × 720 30FPS 1920 × 1080
	VIDEO RECORDING	YUY2: 10FPS 640 × 360 10FPS 640 × 480 5FPS 960 × 544 5FPS 1280 × 720 5FPS 1920 × 1080
SHUTTER		Rolling shutter
AUDIO		Onboard dual microphones
OPERATING VOLTAGE		5V ± 5%
DIMENSIONS		38.00 × 38.00 × 19.20 (mm)

High Dynamic Range And Better
Low-Light Sensitivity

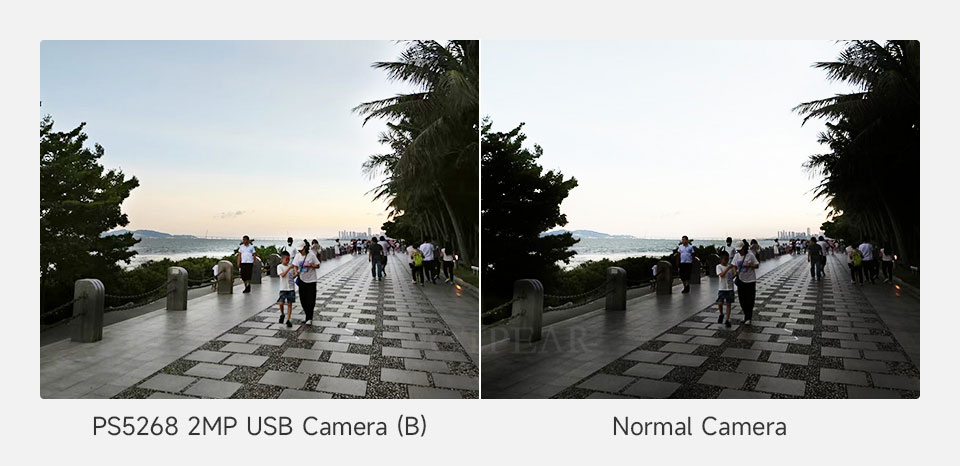

85dB High Dynamic Range (HDR), Ensuring The Capture Of Rich Image Details In Both High And Low Light Environments

* the above picture is the HDR effect simulation, please refer to the actual imaging effect

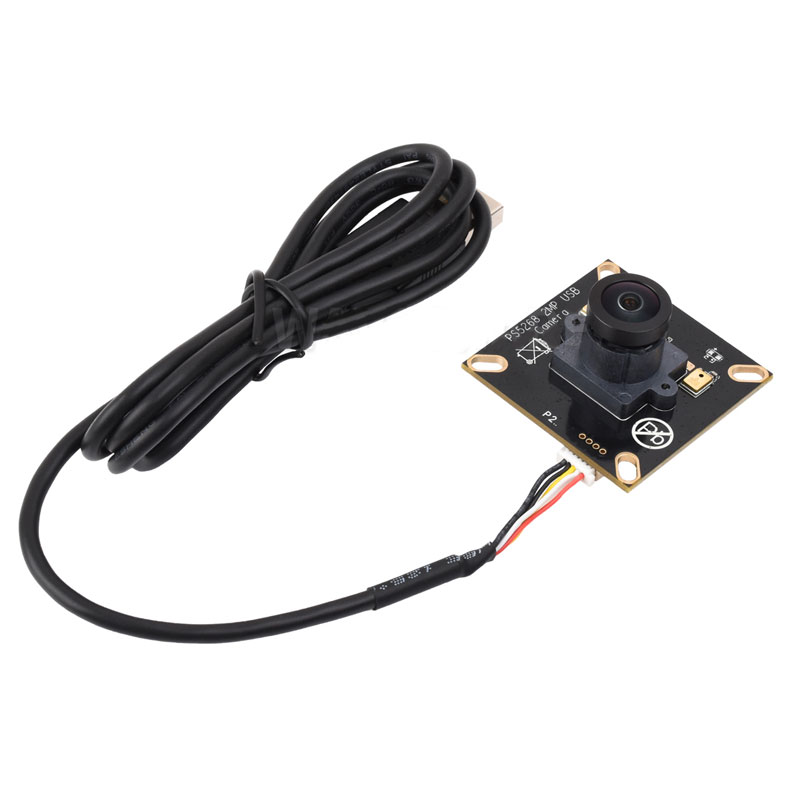

Plug And Play, Easy Connection

Onboard USB 2.0 Header, Driver-Free, Compatible With Various USB Hosts Such As PC And Smart Devices, Simply Plug It In To Start Using

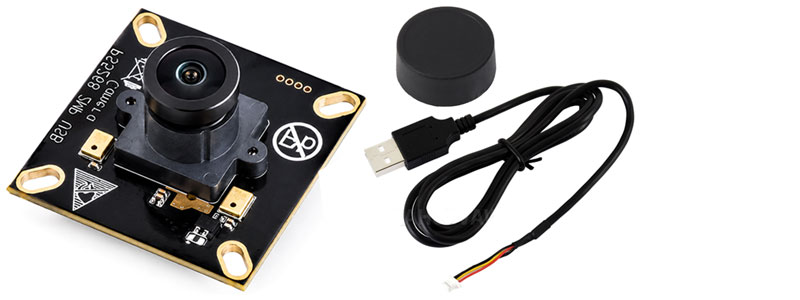

* for reference only, please refer to the package content for the detailed part list.

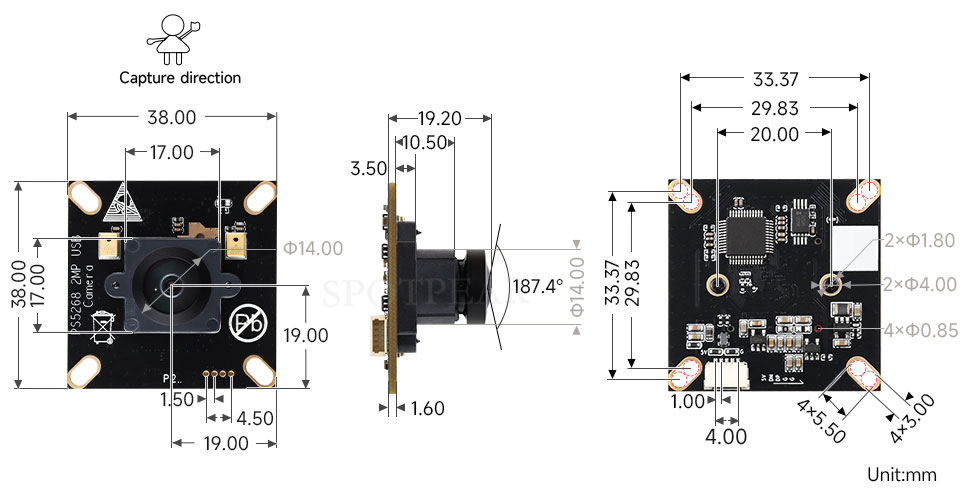

Outline Dimensions

[] PS5268 2MP USB Camera (B)
