USB Binocular Camera 2MP OS02G10 Distortion Free Binocular Synchronous Frame USB 2.0 Plug and Play

USB Binocular Camera 2MP OS02G10 Distortion Free Binocular Synchronous Frame USB 2.0 Plug and Play

$61.49

Brand：SpotPear

SKU：010307700000

Date：2025-11-15 15:31

Part Number：

OS02G10 Stereo USB Camera (A)

No：

- +

In Stock

Buy It Now

Add to cart

Ask a Question

Copy Link

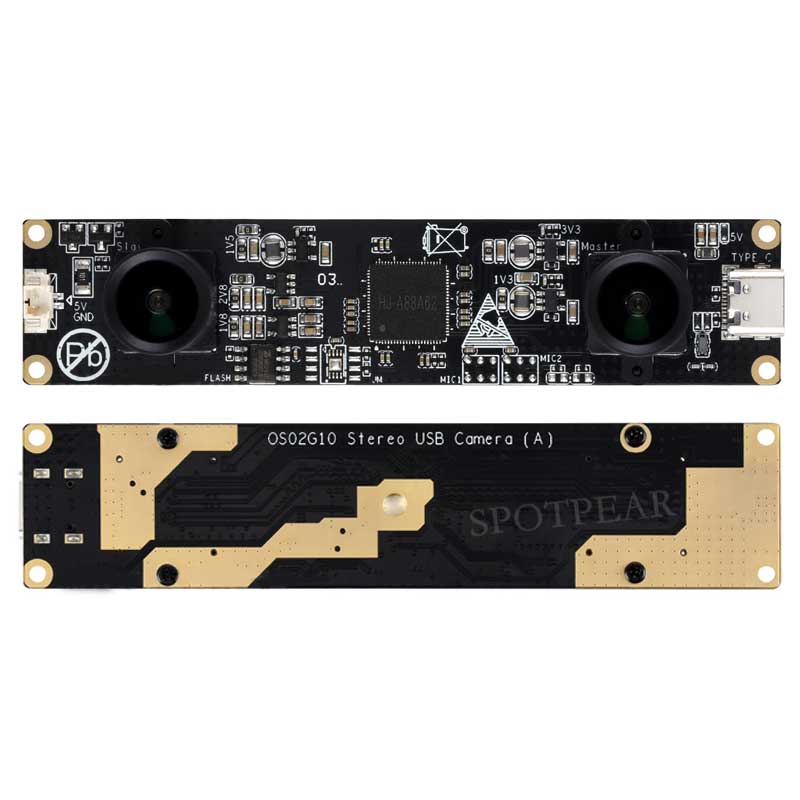

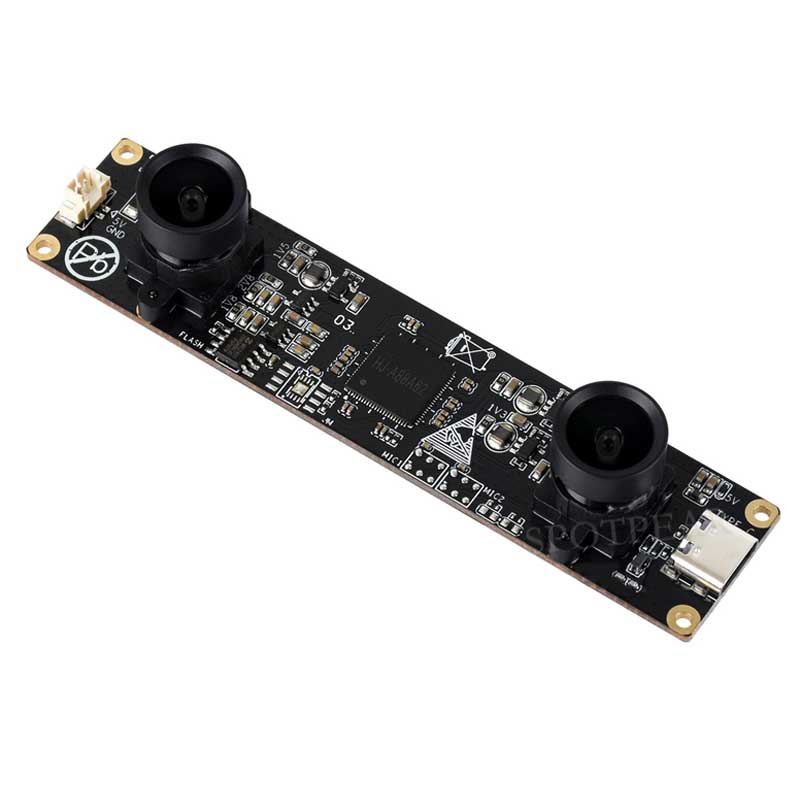

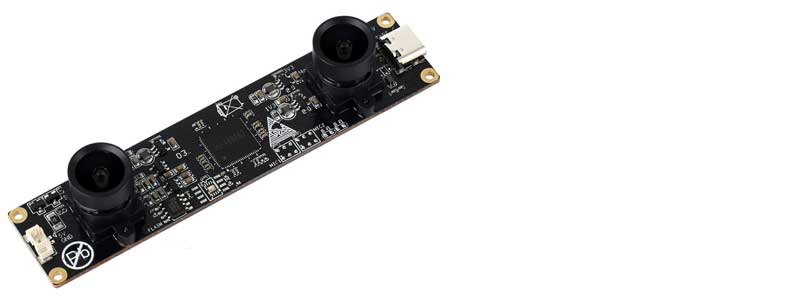

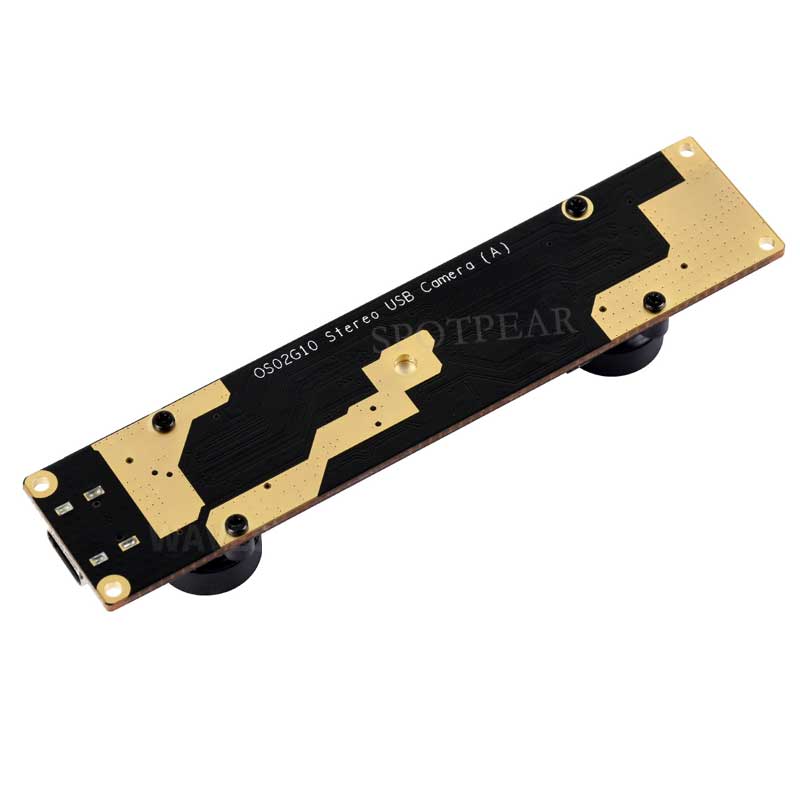

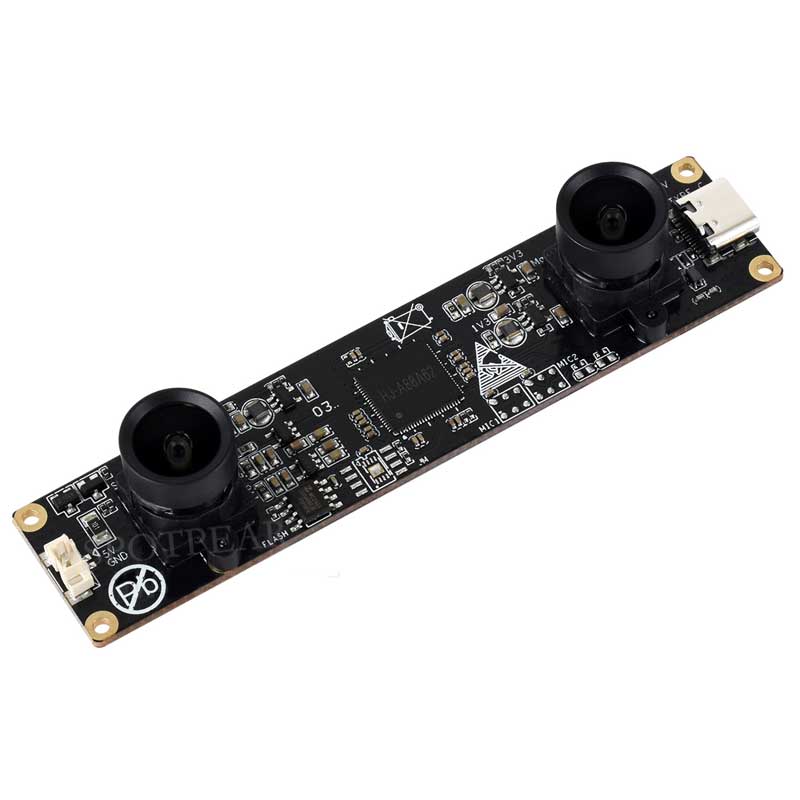

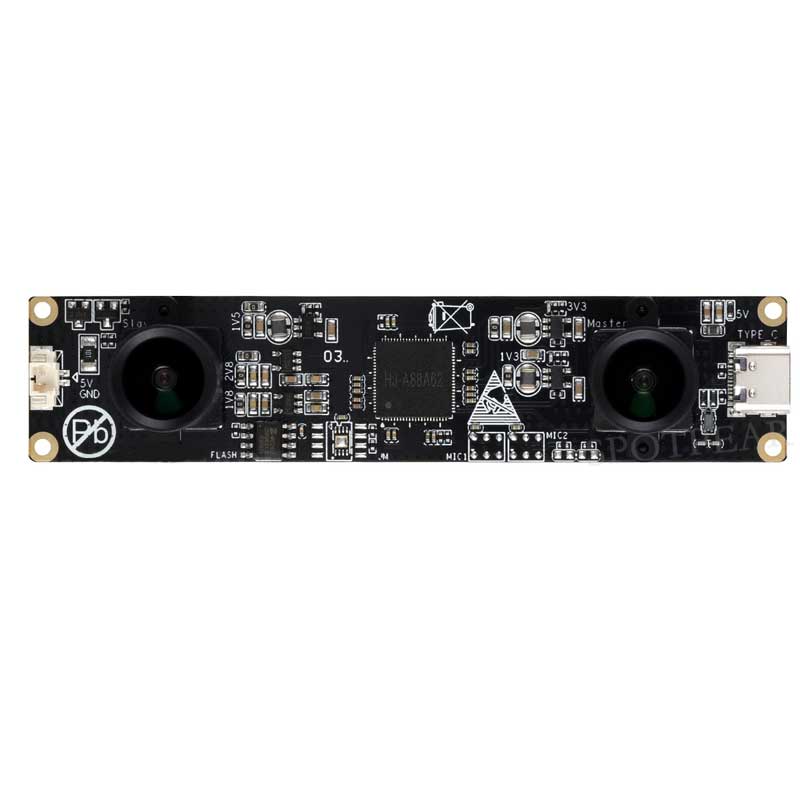

OS02G10 2MP Stereo USB Camera Module, OS02G10 Sensor Chip, USB2.0 Port, Synchronized Same-frame Output, 62mm Baseline, Featuring Distortion-free Lenses

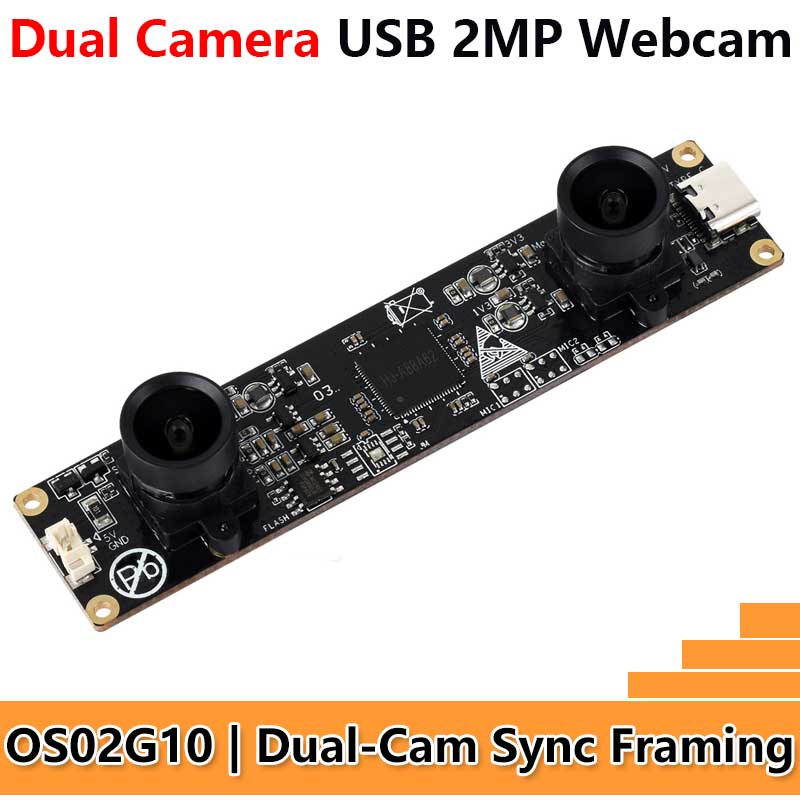

2MP BINOCULAR USB CAMERA MODULE

OS02G10 Sensor | USB2.0 Port | Synchronized Same-Frame Output

Specifications

PIXELS		2MP
SENSOR CHIP		OS02G10
INTERFACE		USB2.0 (Type-C)
CAMERA	SENSOR SIZE	1/2.9inch
	APERTURE (F)	2.2
	FOCAL LENGTH (EFL)	2.88mm
	FIELD OF VIEW (FOV)	92°(D) / 84°(H) / 54°(V)
	FOCUSING	Fixed-focus
	DISTORTION	< 0.4%
	IR FILTER	650nm filter
	SHUTTER	Rolling shutter
IMAGE	FORMAT SUPPORT	MJPG, YUY2
	STATIC IMAGE RESOLUTION	3840 × 1080
	VIDEO RECORDING	MJPG: 10FPS 3480×1080 30FPS 2560×720 30FPS 1920×1080 30FPS 1600×600 30FPS 1280×720 30FPS 1280×480 30FPS 800×600 30FPS 640×480 30FPS 640×240 30FPS 320×240
	VIDEO RECORDING	YUY2: 2FPS 3480×1080 5FPS 2560×720 5FPS 1920×1080 10FPS 1280×720 10FPS 1280×480 10FPS 800×600 30FPS 640×480 30FPS 640×240 30FPS 320×240
BASELINE LENGTH		62mm
COMMUNICATION		Type-C USB2.0
OPERATING VOLTAGE		5V ± 5%
OPERATING CURRENT		140mA
DIMENSIONS		100.00 × 22.00 × 17.72 (mm)

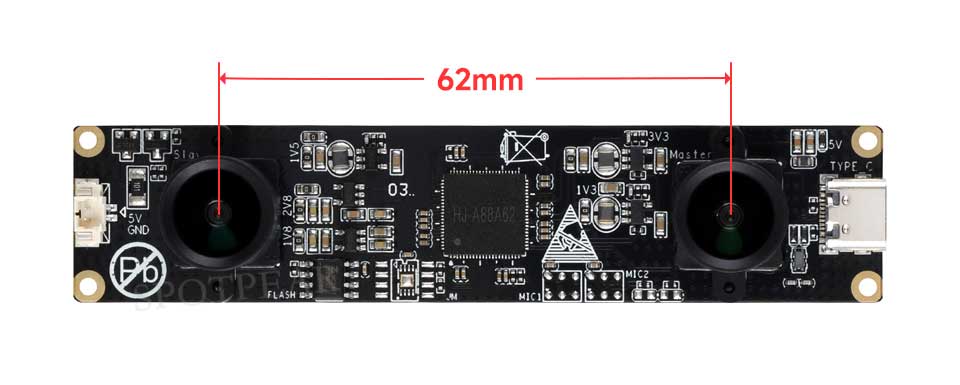

62mm Baseline Length

Frame-Synchronized Stereo Output

Synchronized Driving Ensures Both Image Channels Output In The Same Frame, Enabling Efficient Coordination And Precise Synchronization

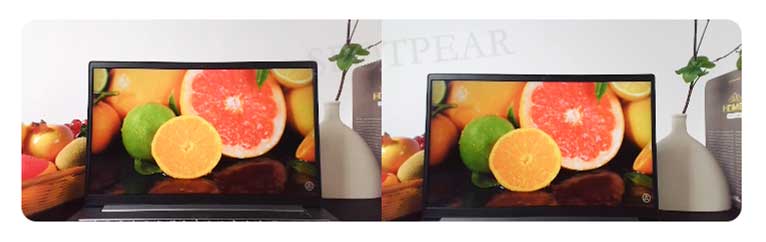

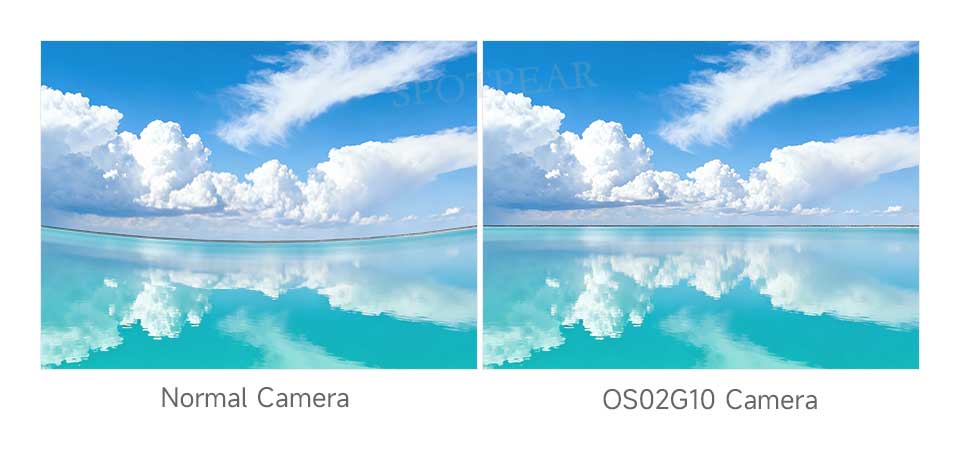

Distortion-Free

Equipped With Dual Distortion-Free Lenses With A Distortion Rate Of Less Than 0.4%, Delivering Undistorted Imaging And More Accurate Reproduction Of Real-World Scenes

Plug And Play, Easy Connection

Onboard USB 2.0 Port, Driver-Free, Compatible With Various USB Hosts Such As PC And Smart Devices, Simply Plug It In To Start Using

* for reference only, please refer to the package content for the detailed part list.

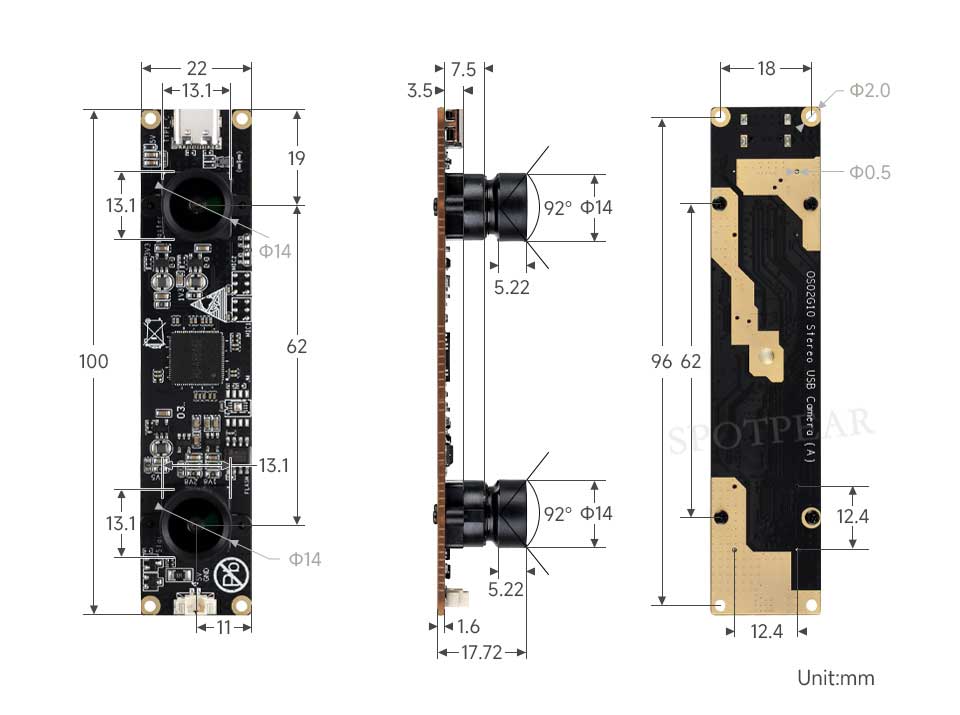

Outline Dimensions

[] OS02G10 Stereo USB Camera (A)
