IMX577 12MP USB Camera (B), 3840 × 3024 Resolution, Plug and Play, Supports C/CS Lenses

USB Industrial Camera

200W-OV2710 ---$36.9

500W-ICT518-Starlight-$52

200W-IMX462-Starlight-$52

1200W-IMX377-4K -$118

GC2093-2MP-USB-Camera-(A) $24.9

OV9281 1MP USB Camera (A) $25.9

OS08A10 8MP USB Camera (A)

OS02G10 Stereo USB Camera (A) $61.49

OV2735 2MP USB Camera (A) $14.9

OS05A10 5MP USB Camera (A) $33.9

AR0144 Stereo USB Camera (A) $72.9

IMX327 2MP IR-CUT Camera (A) $33.9

IMX335 5MP USB Camera (C) $34.9

IMX378 12MP USB Camera (A) $39.9

IMX415 8MP Camera (A) $17.9

IMX577 12MP USB Camera (A) $74.9

IMX577 12MP USB Camera (B) $69.9

IMX678 8MP USB Camera (A) $69

SC2210 2MP USB Camera (A) $67

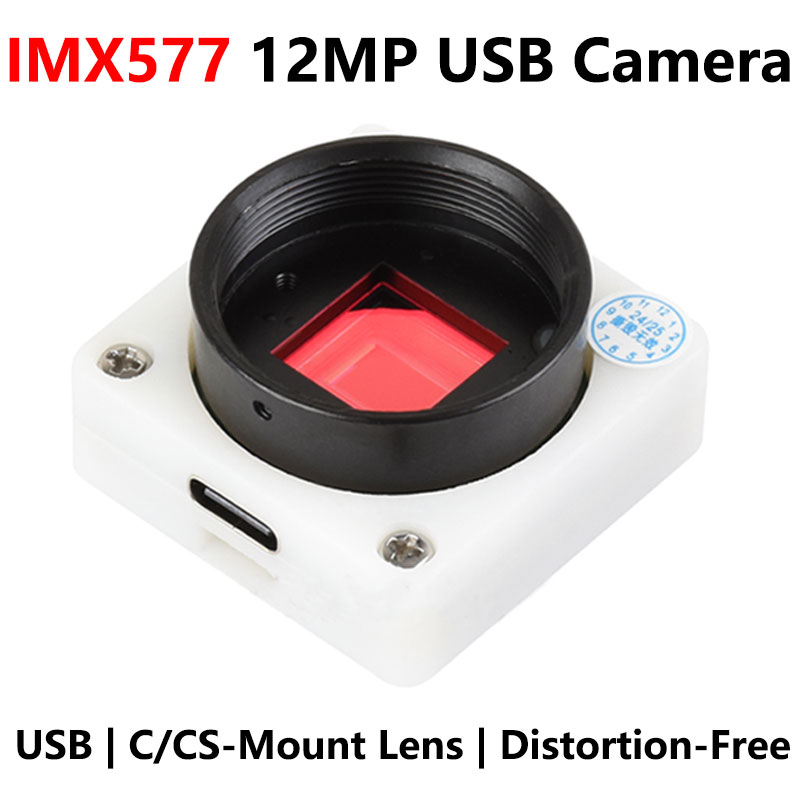

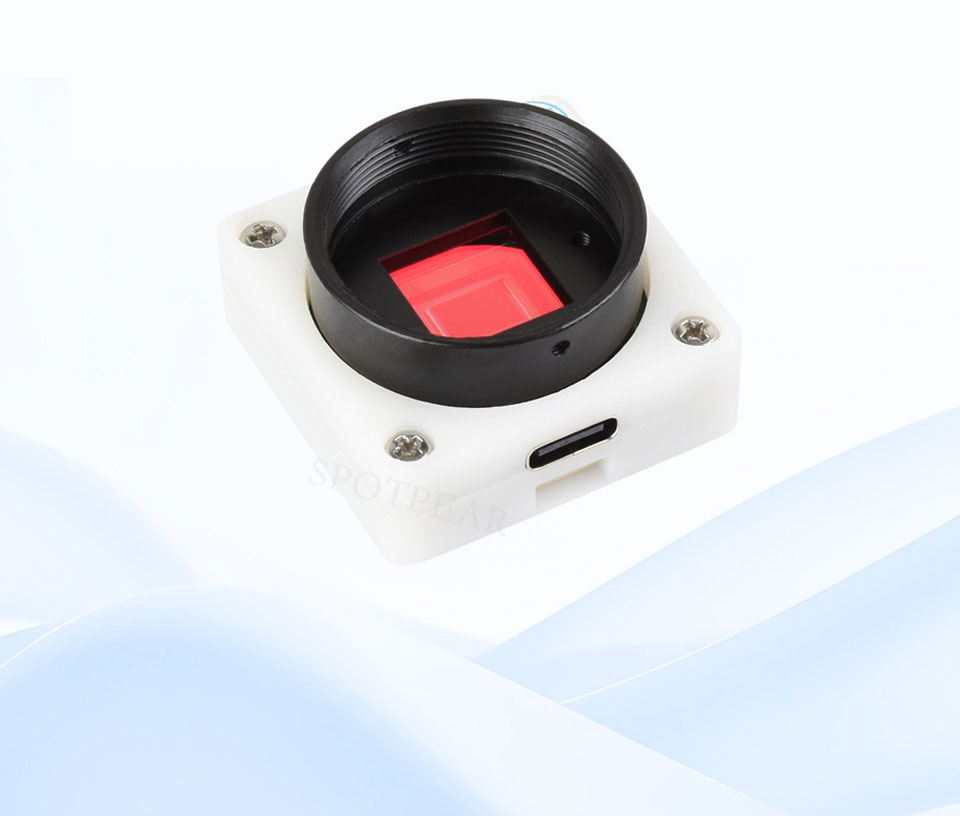

IMX577 USB CAMERA

12MP High-Resolution | USB2.0 Type-C Port | C/CS Lenses Support

Specifications

PIXELS	12MP
SENSOR	IMX577
INTERFACE	USB2.0 Type-C port / SH1.0 4PIN header
CAMERA	Sensor size	1/2.3 inch
CAMERA	Lens support	C-mount / CS-mount (C-CS adapter included)
IMAGE	Format support	MJPG, YUY2
	Static image resolution	3840 × 3024
	Video recording	20FPS 3840 × 3024 30FPS 3840 × 2160 30FPS 2592 × 1944 30FPS 1920 × 1080
OPERATING VOLTAGE	5V ± 5%
OPERATING TEMPERATURE	0°C ~ 50°C
MODULE SIZE	34.00 × 34.00 (mm)

12MP Resolution

Supports 3840 × 3024 20 FPS Output

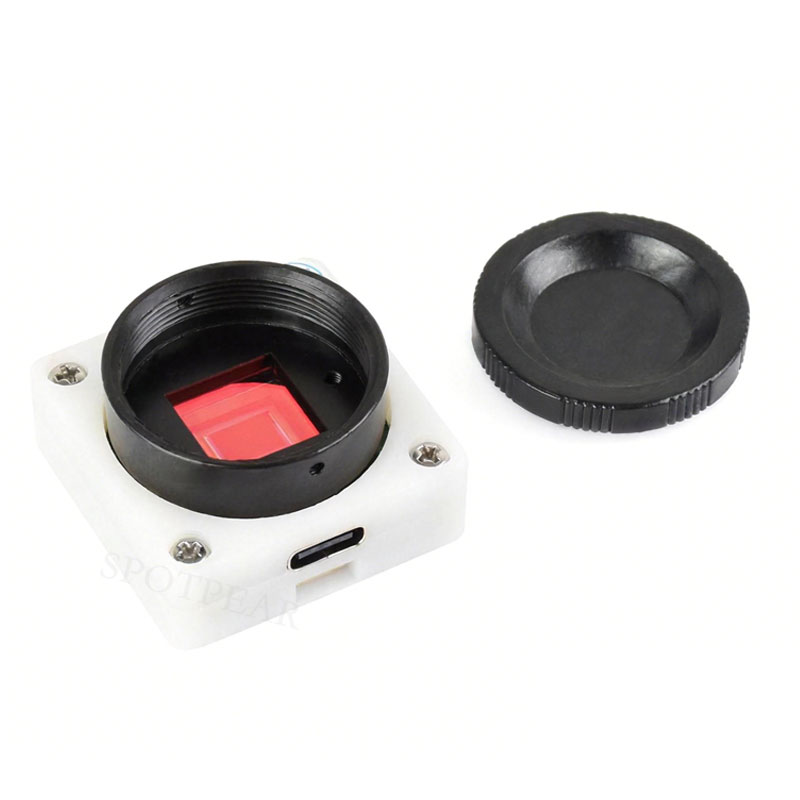

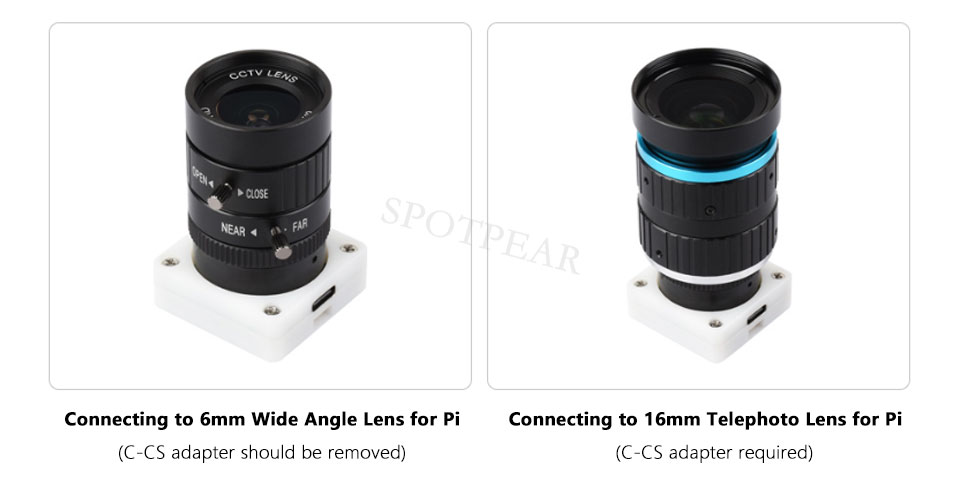

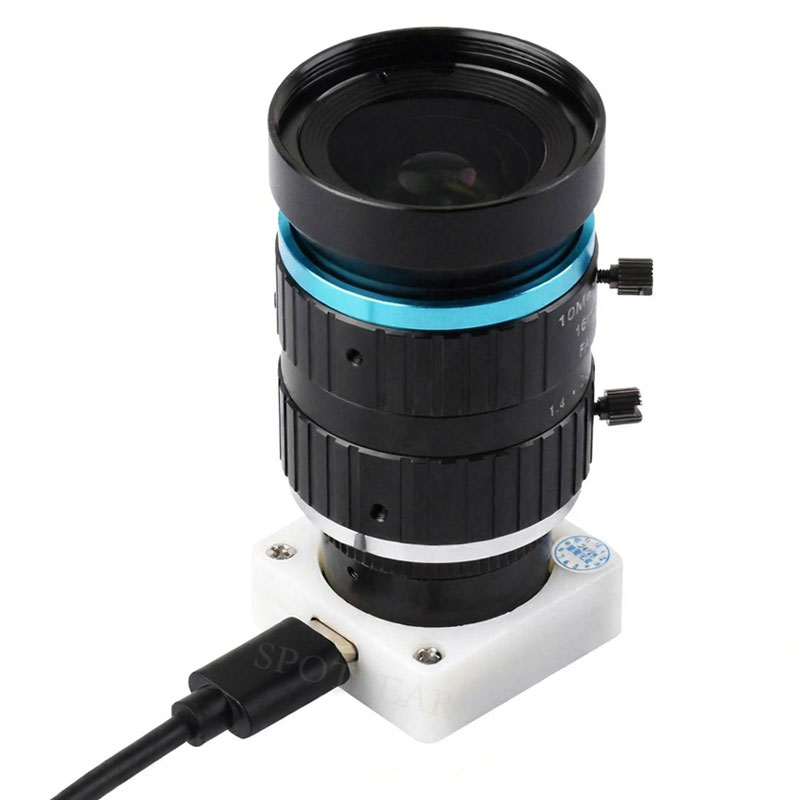

Comes With C-CS Adapter
For Various Lenses

The Camera Adopts CS Mount And Comes With C-CS Adapter For Flexible Use With Different Lenses

* When replacing the lens, please ensure a dust-free operation to prevent dust from entering the camera.

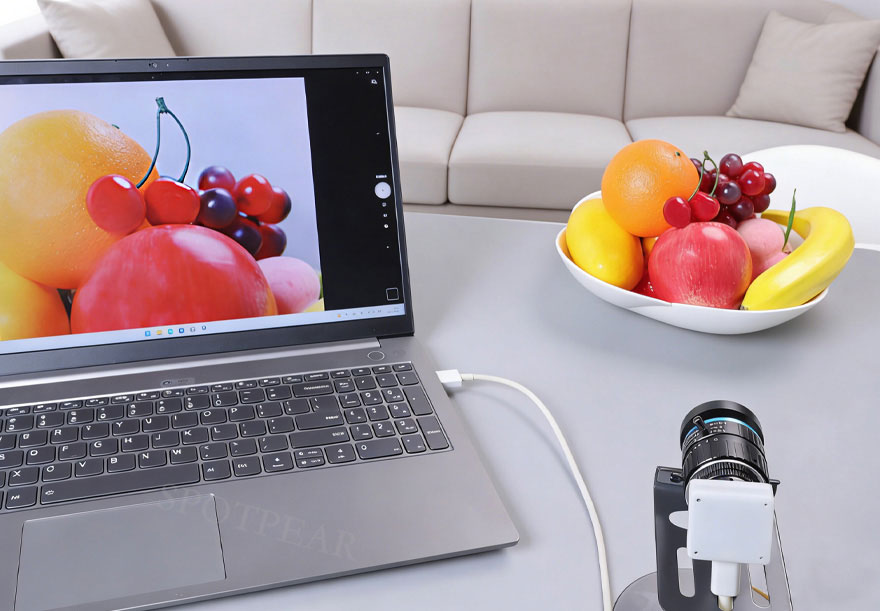

Plug And Play, Easy Connection

Onboard USB 2.0 Port, Driver-Free, Compatible With Various USB Hosts Such As PC And Smart Devices, Simply Plug It In To Start Using

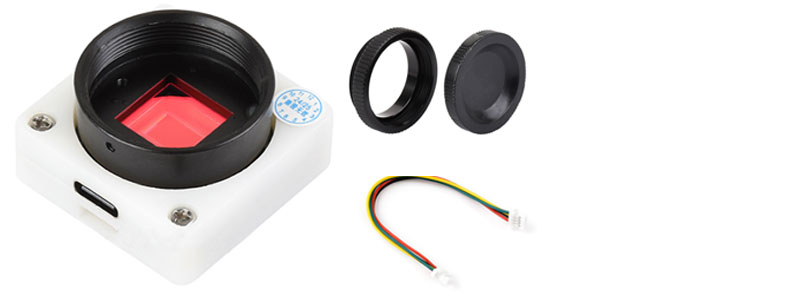

* for reference only, please refer to the package content for the detailed part list.

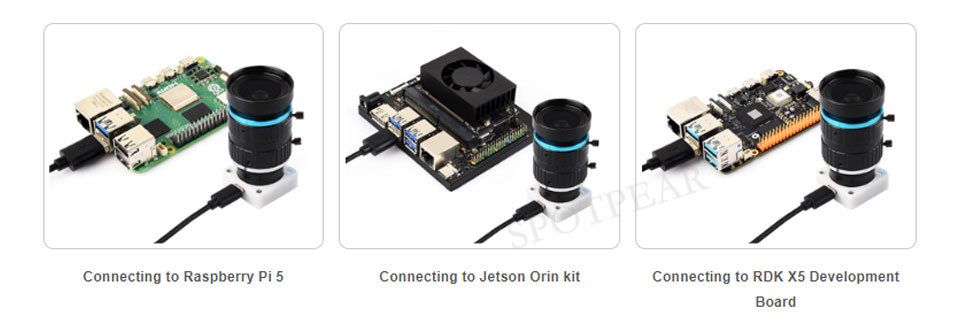

Connecting With USB Cable

* for reference only, the Raspberry Pi 5, Jetson Orin kit and RDK X5 Development Board are NOT included

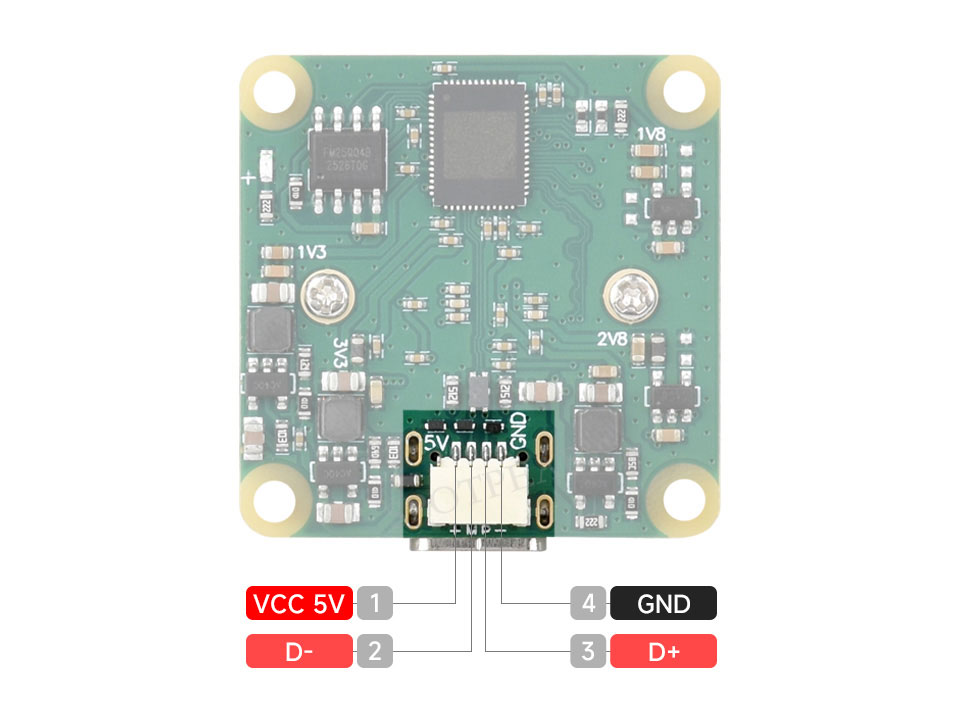

Pinout Definition

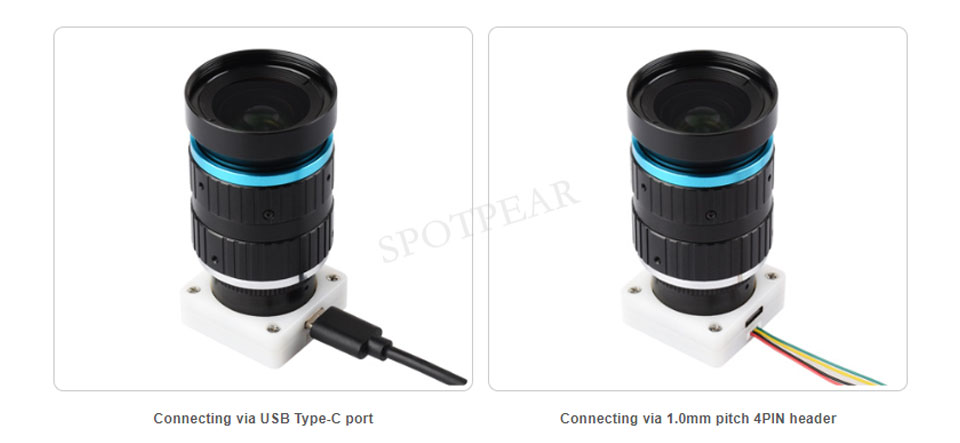

Onboard Two Types Of Connectors

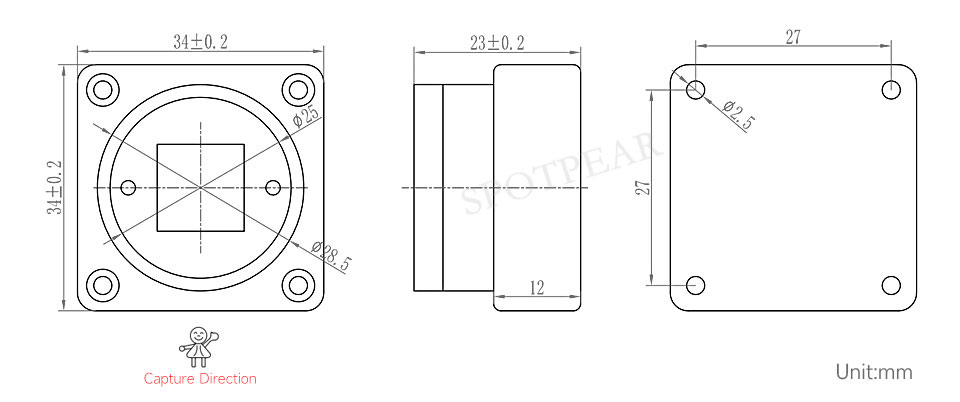

Outline Dimensions
