【Overview】

[] ESP32-S3-LCD-1.28，Embedded GC9A01 Display Driver Chip，32-bit LX7 dual-core processor，Type-C  Port，240×240 Pixels，65K Color.

【Features】

[] ESP32-S3-LCD-1.28 is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 1.28inch LCD display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, which makes it easy for you to develop and integrate it into products quickly.

Key features include:

[] Equipped with Xtensa® 32-bit LX7 dual-core processor, up to 240MHz main frequency

[] Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (BLE), with onboard antenna

[] Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory

[] Type-C connector, keeps it up to date, easier to use

[] Onboard 1.28inch LCD display, round IPS panel, 240×240 resolution, 65K color

[] Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture

[] Onboard 3.7V lithium battery recharge/discharge header and GPIO headers

[] Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios

[] Integrated with USB serial port full-speed controller, GPIO pins allow flexibly configuring pin functions

【Onboard 1.28inch LCD Screen】

Round IPS Panel, 240×240 Resolution, 65K Color

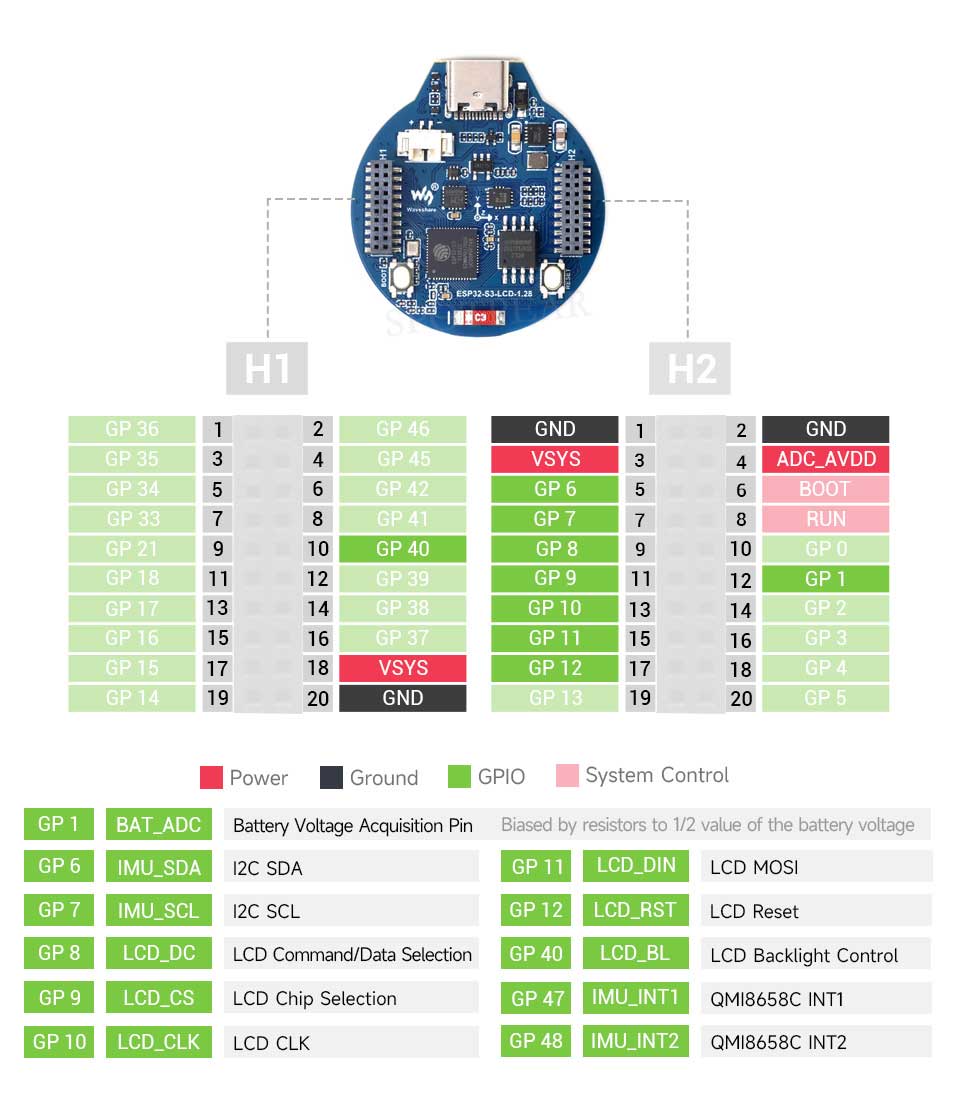

【30 × Multi-Function GPIO Pins】

Configurable Pin Function, Allows Flexible Development And Integration

【Resource Overview】

1. ESP32-S3R2

The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, with onboard 2MB PSRAM

2. W25Q128JVSIQ

16MB NOR-Flash

3. QMI8658

6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer.

4. ME6217C33M5G

800mA output, low dropout, high rejection rate

5. CH343P

USB to UART chip

6. ETA6096

high-efficiency Lithium battery recharge manager

7. 1.27mm pitch headers

Adapting multiple GPIO pins

8. BOOT button

Press it before resetting to enter download mode

9. RESET button

10. MX1.25 battery header

MX1.25 2P connector, for 3.7V Lithium battery, supports charging and discharging

11. USB Type-C connector

USB to UART, for programming and log printing

12. 2.4GHz ceramic antenna

【Dimensions】

[] ESP32-S3-LCD-1.28 × 1
