Raspberry Pi Pico GNSS expansion board L76K GPS Beidou (BDS) GLONASS QZSS A-GNSS For RP2040/RP2350
$13.9
Raspberry Pi Pico GNSS expansion board Based on L76K module Supports GPS, BeiDou (BDS), GLONASS and QZSS multiple satellite systems Supports A-GNSS function

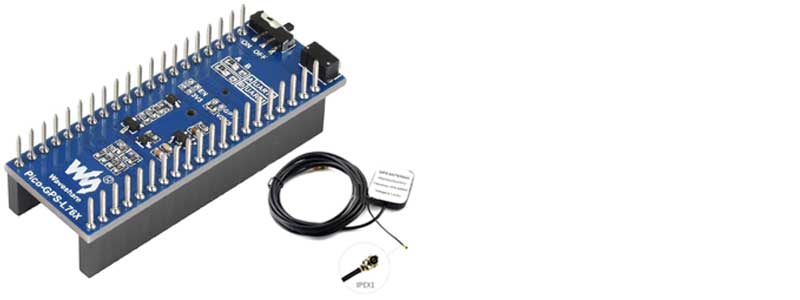

Raspberry Pi Pico GNSS Expansion Board
L76K-based GNSS module
Product Features
This product is a Raspberry Pi Pico GNSS (Global Navigation Satellite System) expansion board based on the L76K module. It supports multiple satellite systems including GPS, BeiDou (BDS), GLONASS and QZSS. It can perform multi-system joint positioning and single-system independent positioning, and supports A-GNSS function. It has the advantages of fast, accurate positioning and low power consumption. When used with Raspberry Pi Pico / Pico 2, global positioning can be easily achieved.
- Onboard Raspberry Pi Pico interface, suitable for Raspberry Pi Pico series motherboards
- Supports GPS, BeiDou (BDS), GLONASS and QZSS multiple satellite systems
- Built-in low noise amplifier (LNA) to improve reception sensitivity
- Built-in SAW filter to enhance noise elimination performance
- Support A-GNSS function
- Support serial communication baud rate range: 4800bps ~ 115200bps (default 9600bps)
- Onboard battery holder, can be connected to ML1220 rechargeable battery, used for power failure to save ephemeris data and fast hot start
- Onboard 4 LED indicators for easy viewing of module operating status
- Provides complete supporting manuals (Raspberry Pi Pico's C/C++ and MicroPython example programs)
Product Parameters
| GNSS parameters | |
|---|---|
| GNSS | GPS / GLONASS / BDS / QZSS |
| Chip Platform | AT6558R |
| L1 Receiver Type (Number of channels) | 32 Tracking / 72 Captures |
| L1 Receiver Type SBAS | Not supported |
| A-GNSS | support |
| Sensitivity (auto capture) | -148dBm |
| Sensitivity (recapture) | -160dBm |
| Sensitivity (tracking) | -162dBm |
| TTFF (Time to First Fix) Cold Start | 30s，Autonomous 5.5s，With A-GNSS |
| TTFF (Time to First Fix) Hot Start | 2s |
| Position accuracy | 2.0m CEP |
| Speed accuracy | 0.1m/s |
| Acceleration accuracy (Max) | 0.1m/s² |
| Timing accuracy | 30ns |
| Other parameters | |
| Communication interface | UART |
| Serial port baud rate | 4800bps~115200bps (default 9600bps) |
| Data update frequency | 1Hz (default)，5Hz (max) |
| Communication Protocol | NMEA 0183，CASIC Proprietary communication protocol |
| Supply voltage | 5V |
| Current consumption | < 40mA@5V (Continue model) |
| Operating temperature | -40℃ ~ 85℃ |
| Product size | 55.95 × 21.00 (mm) |

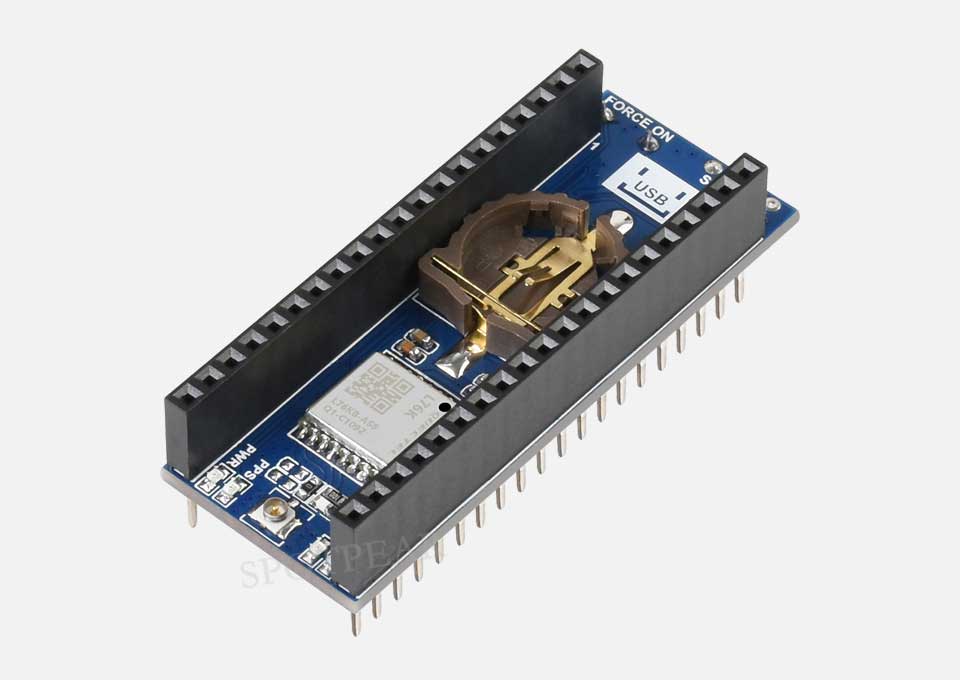

Based on Raspberry Pi Pico interface design
Suitable for Raspberry Pi Pico series motherboards,

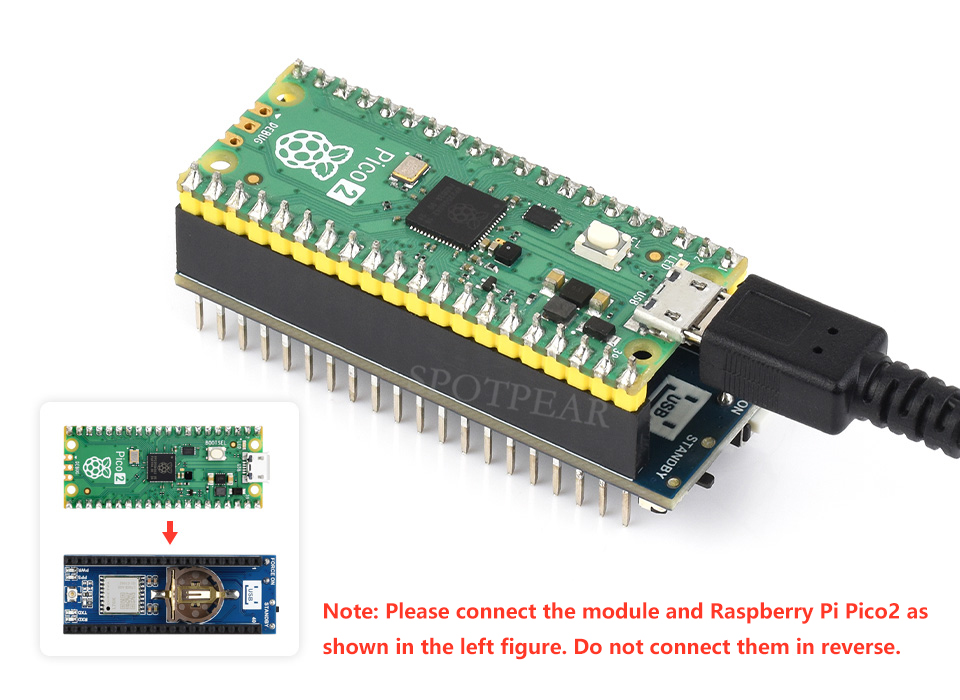

Solder female headers, can be directly connected to Pico 2 motherboard
This product does not include Raspberry Pi Pico 2. If you need it, please purchase it separately.
Support multi-satellite system positioning
Supports GPS, BeiDou (BDS), GLONASS and QZSS multiple satellite systems
Support positioning enhancement system
The positioning enhancement system is a system that improves the accuracy, integrity, reliability and availability of positioning and navigation. This product supports the A-GNSS positioning enhancement system.

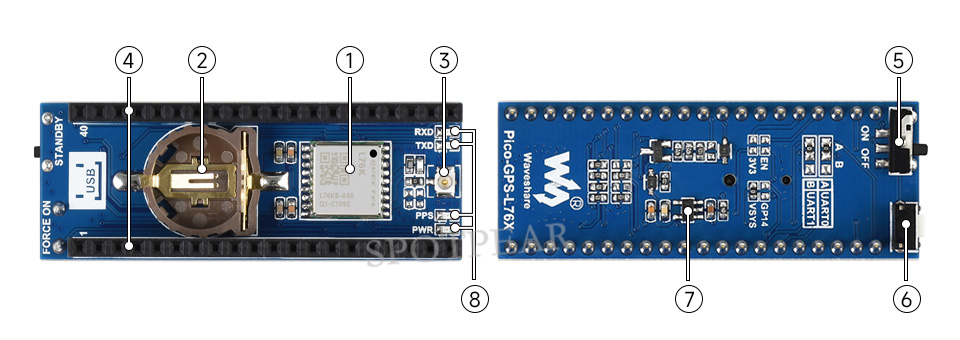

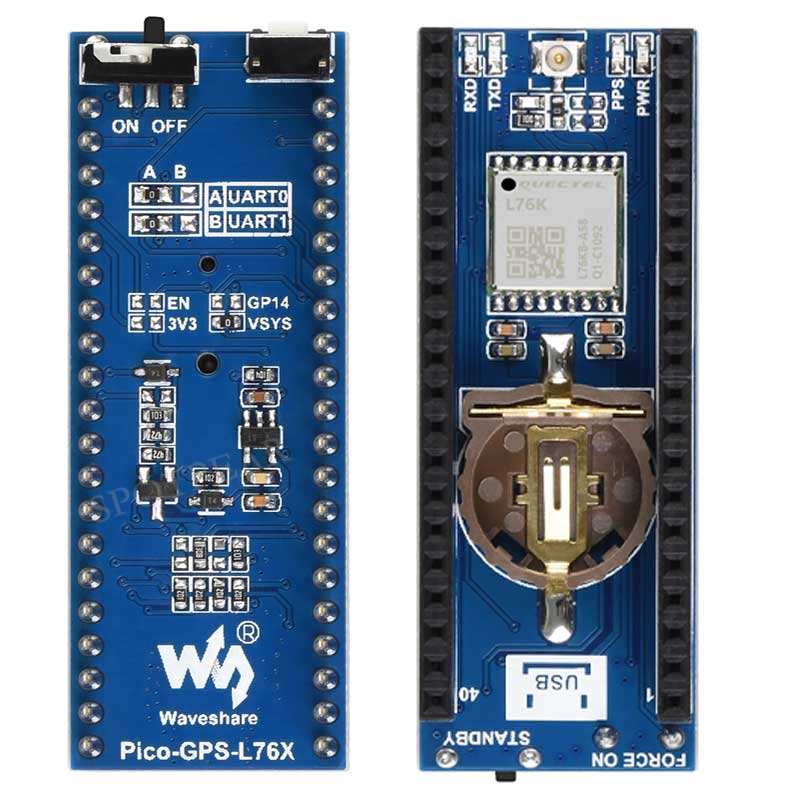

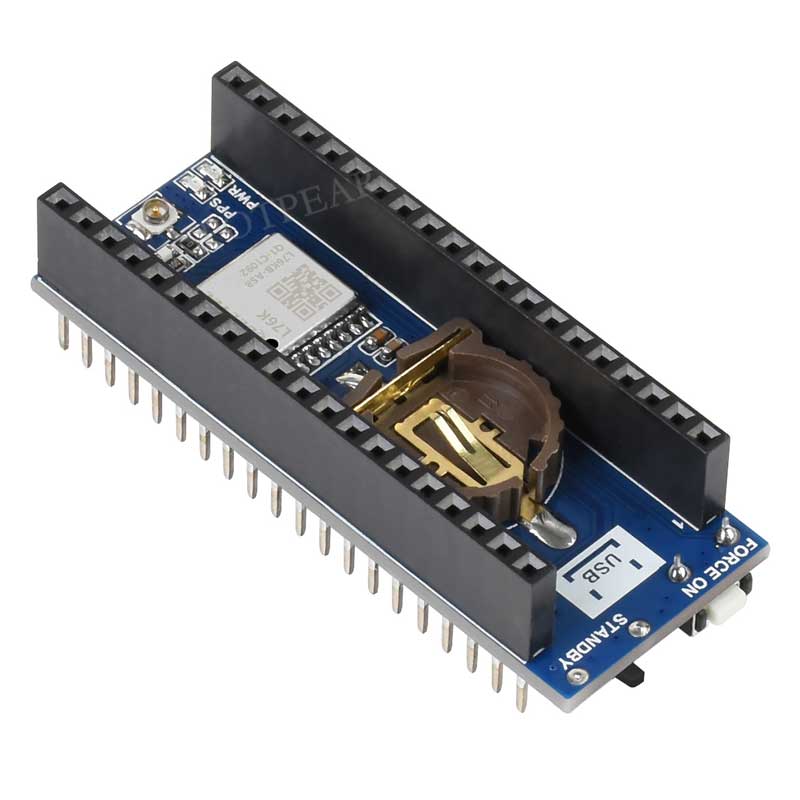

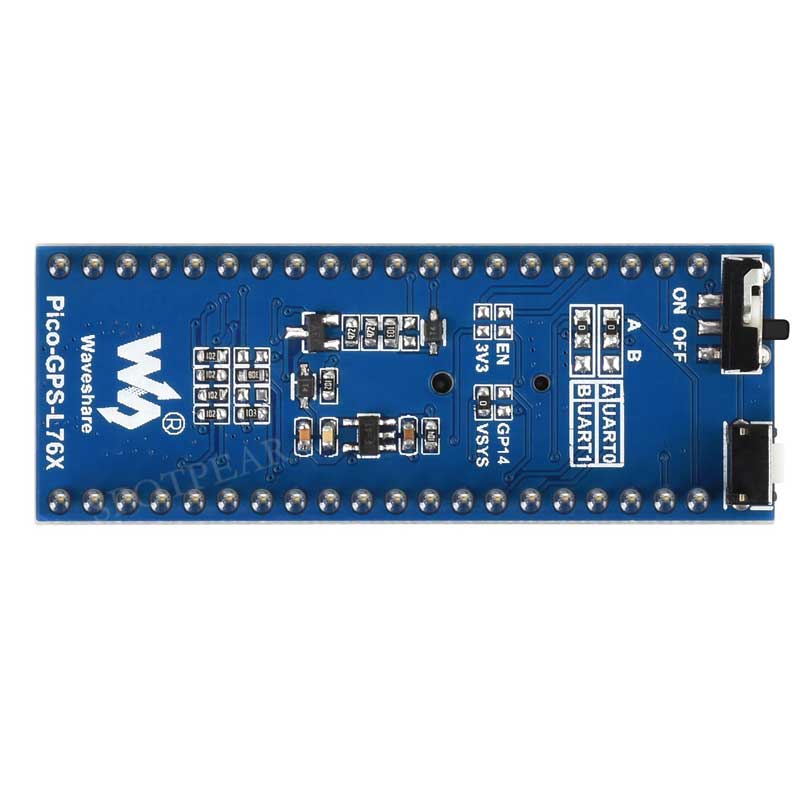

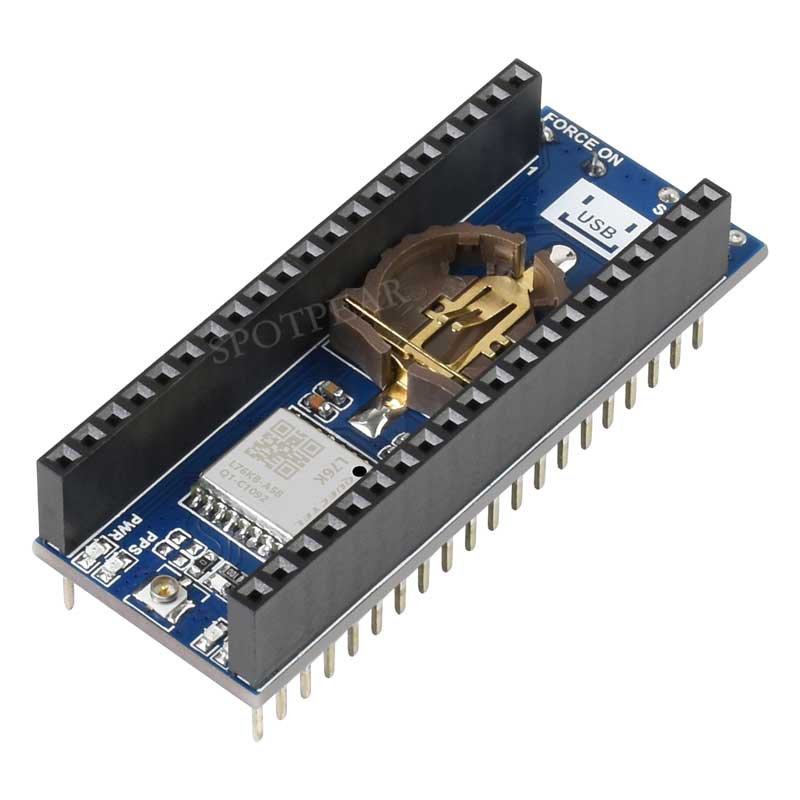

Resource Overview
- L76K Module
- ML1220 Battery Holder
Can be connected to ML1220 rechargeable battery to save ephemeris data and quickly hot start when power is off
- GNSS antenna interface

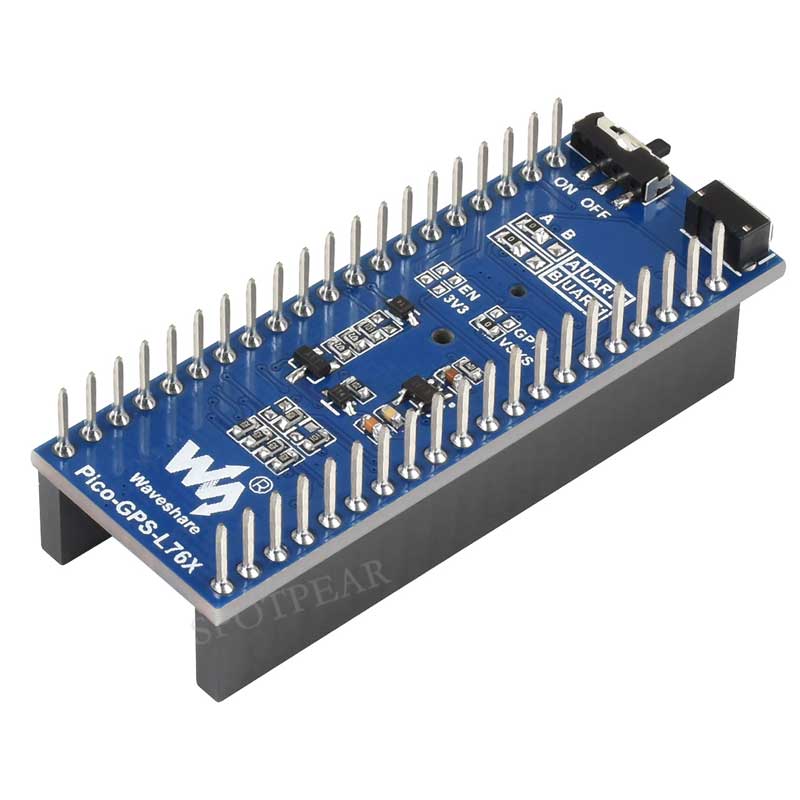

- Raspberry Pi Pico Interface
Can be connected to Raspberry Pi Pico mainboard
- Standby mode switch
- Galaxy Configuration Button
- RT9193-33 Power IC
- Status indicator
RXD / TXD：Serial port receiving and sending indicator
PPS：GPS status indicator
PWR：Power indicator

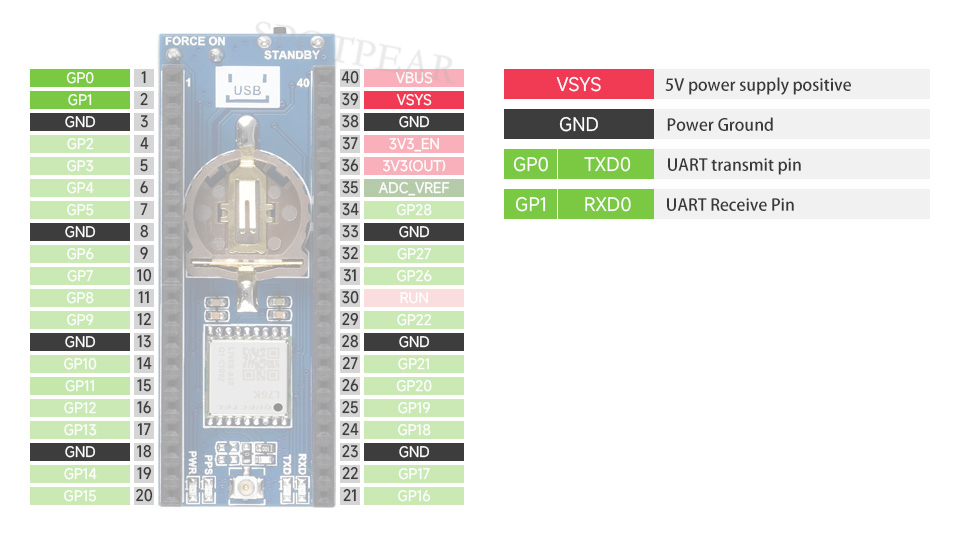

Interface Definition

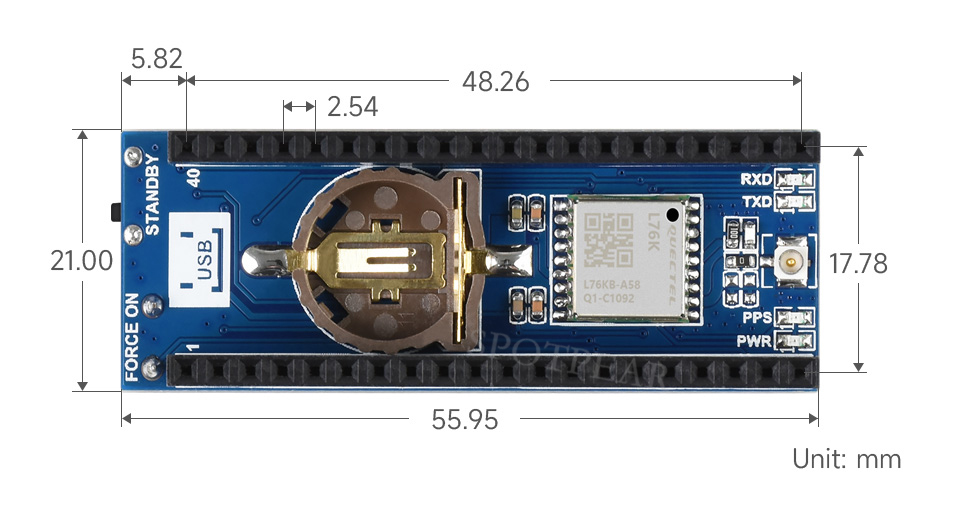

Product size
