【Overview】

ESP32-S3-Touch-LCD-1.28-B

Embedded GC9A01 Display Driver And CST816S Touch Driver, With CNC Metal Case

【Features】

[] Equipped with Xtensa® 32-bit LX7 dual-core processor, up to 240MHz main frequency

[] Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (BLE), with onboard antenna

[] Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash        memory

[] Type-C connector, keeps it up to date, easier to use

[] Onboard 1.28inch capacitive touch display, 240×240 resolution, 65K color

[] Adopts CNC metal case with Acrylic dull-polish bottom plate

[] Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion       gesture

[] Onboard 3.7V MX1.25 lithium battery recharge/discharge header

[] Adapting 6 × GPIO pins via SH1.0 connector

[] Supports flexible clock, module power supply independent setting, and other controls to realize       low power consumption in different scenarios

[] Integrated with USB serial port full-speed controller, GPIO pins allows flexibly configuring pin             functions

【Small Size, Touch More Possibilities】

Suitable For Various Smart Devices Development, Can Realize Human-Computer Interaction Function
【CNC Metal Case】

Adopts CNC Metal Case With Acrylic Dull-Polish Bottom Plate

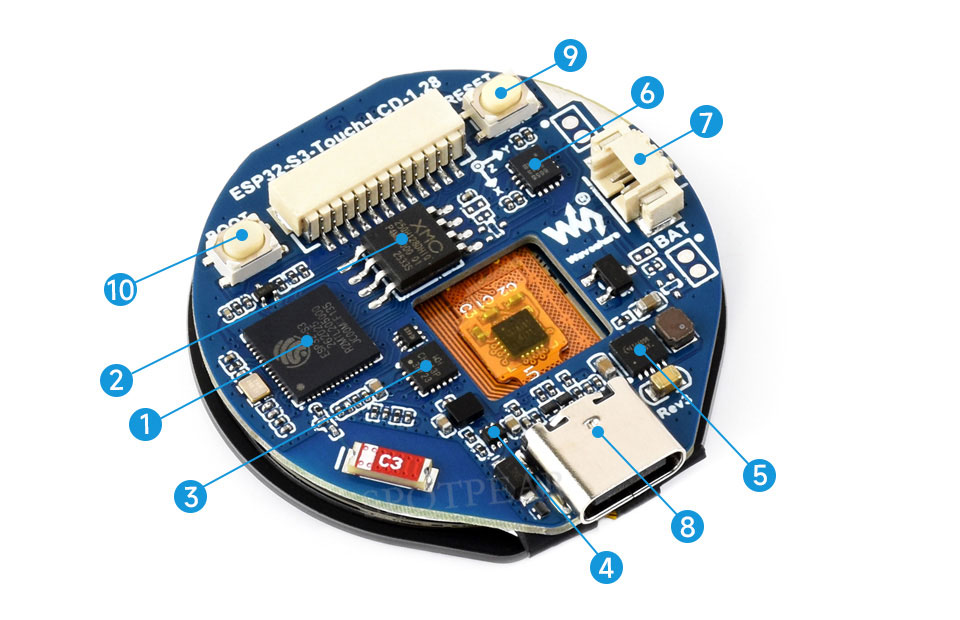

【What's On Board】

1. ESP32-S3R2 / ESP32-S3RH2
   The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, with onboard 2MB PSRAM
2. W25Q128JVSIQ
   16MB NOR-Flash
3. CH343P
   USB to UART chip
4. MP1605
   power module, supports up to 3.3V 2A output
5. ETA6096
   high-efficiency Lithium battery recharge manager



6. QMI8658
   6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer.
7. MX1.25 battery header
   MX1.25 2P connector, for 3.7V Lithium battery, supports charging and discharging
8. USB Type-C connector
   for programme burning and log printing
9. RESET button
10. BOOT button
    Press it before resetting to enter download mode

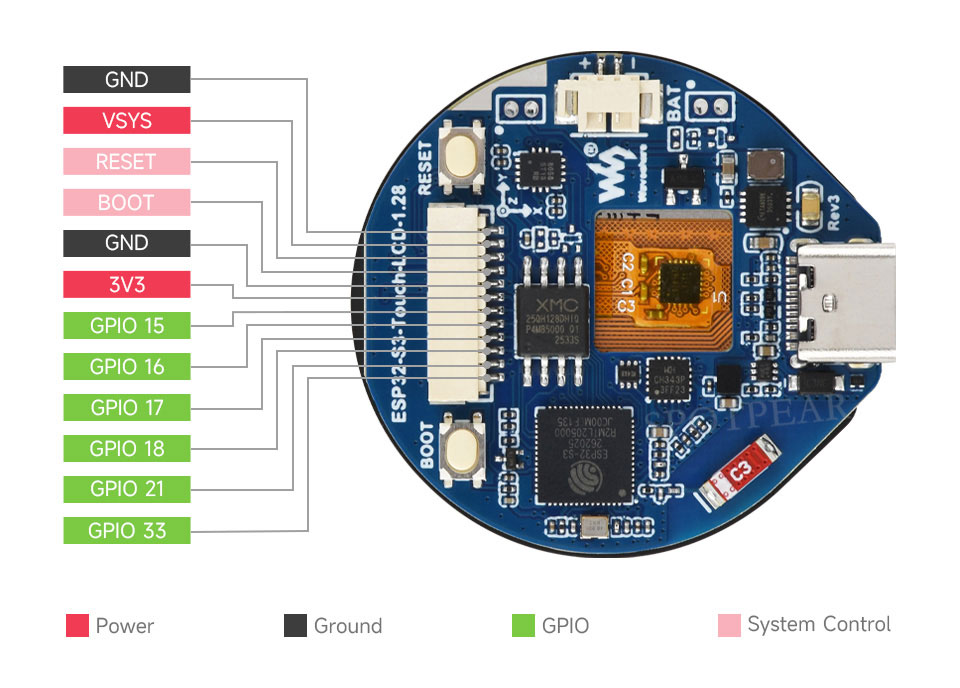

【Pin Definition】

【Outline Dimensions】

[] ESP32-S3-Touch-LCD-1.28 x1

[] SH1.0 12PIN cable x1

[] Screwdriver x1
