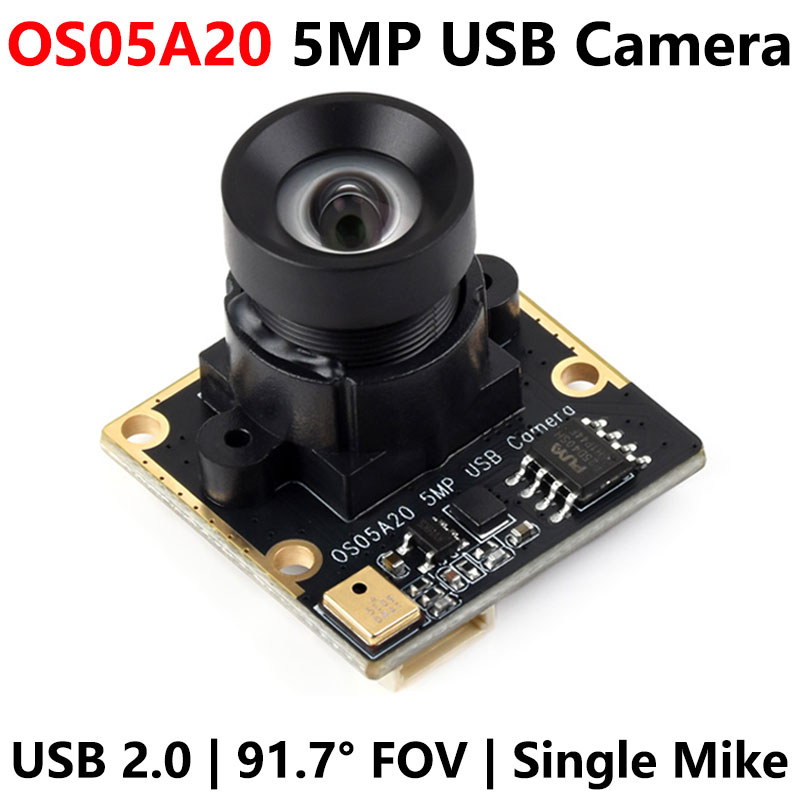

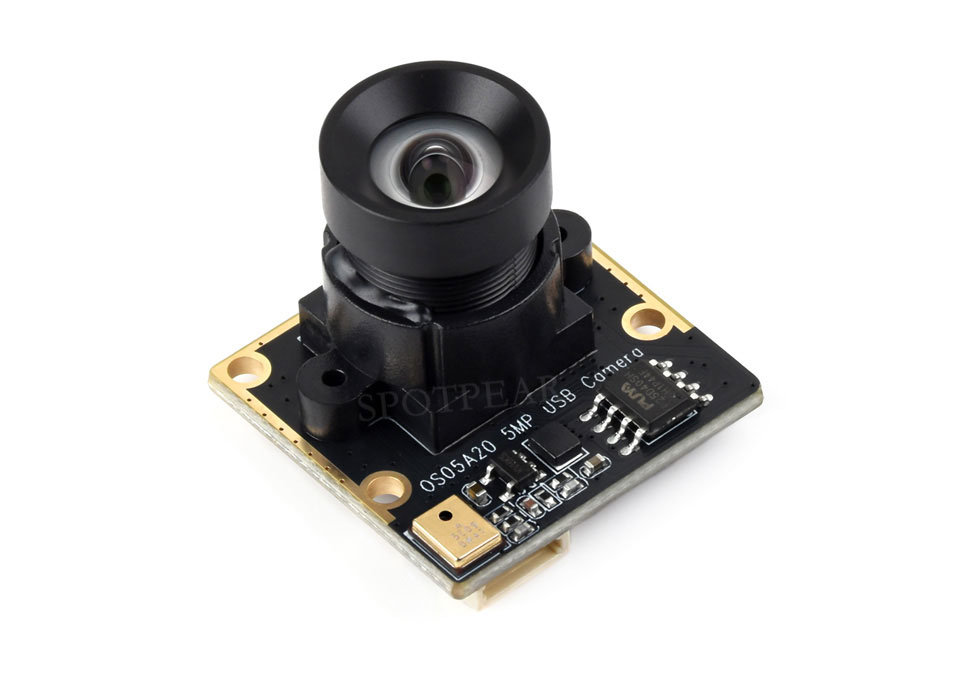

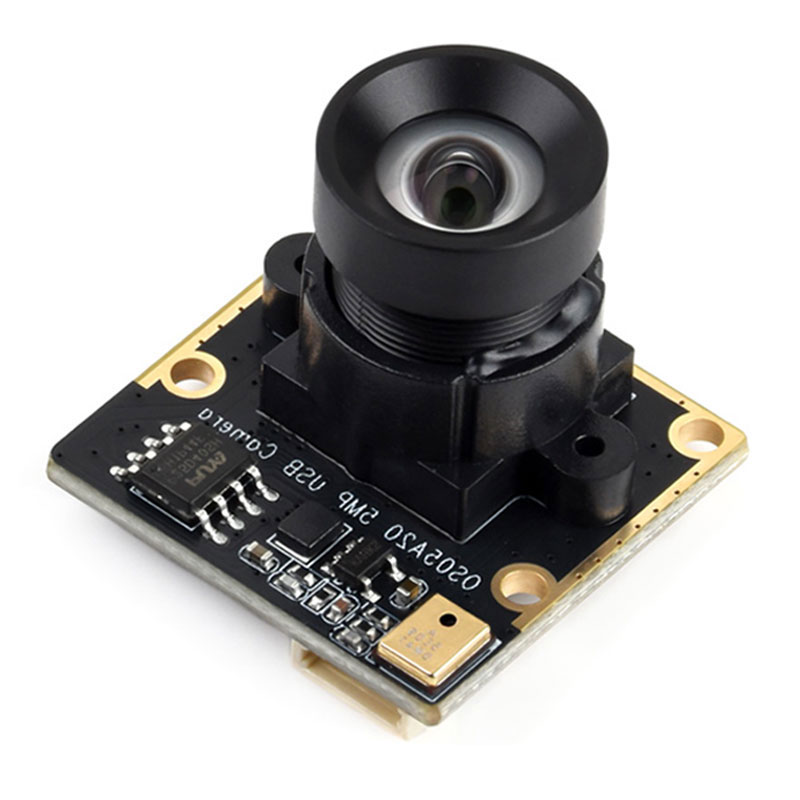

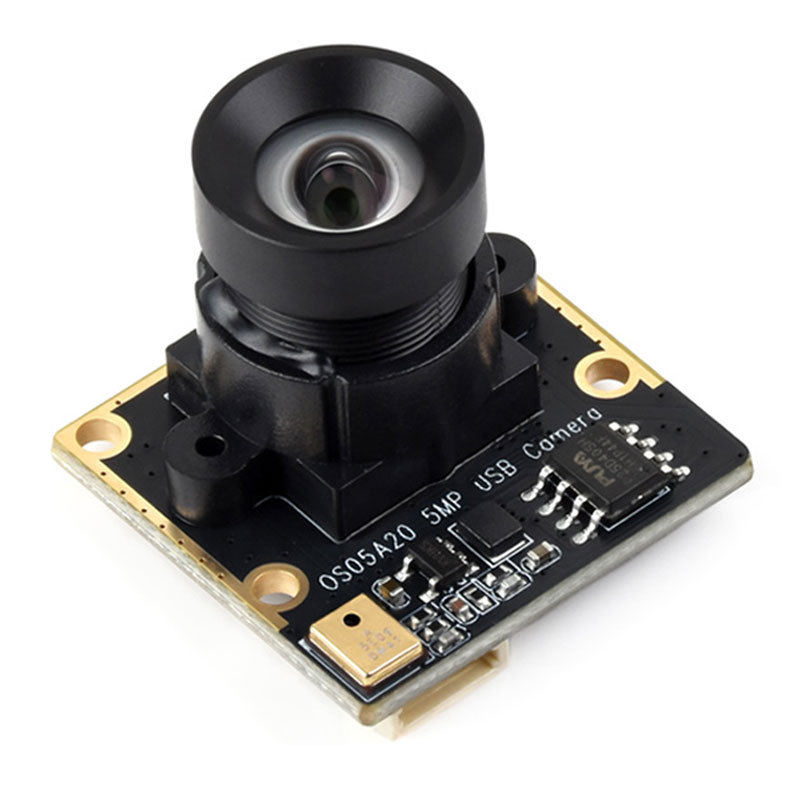

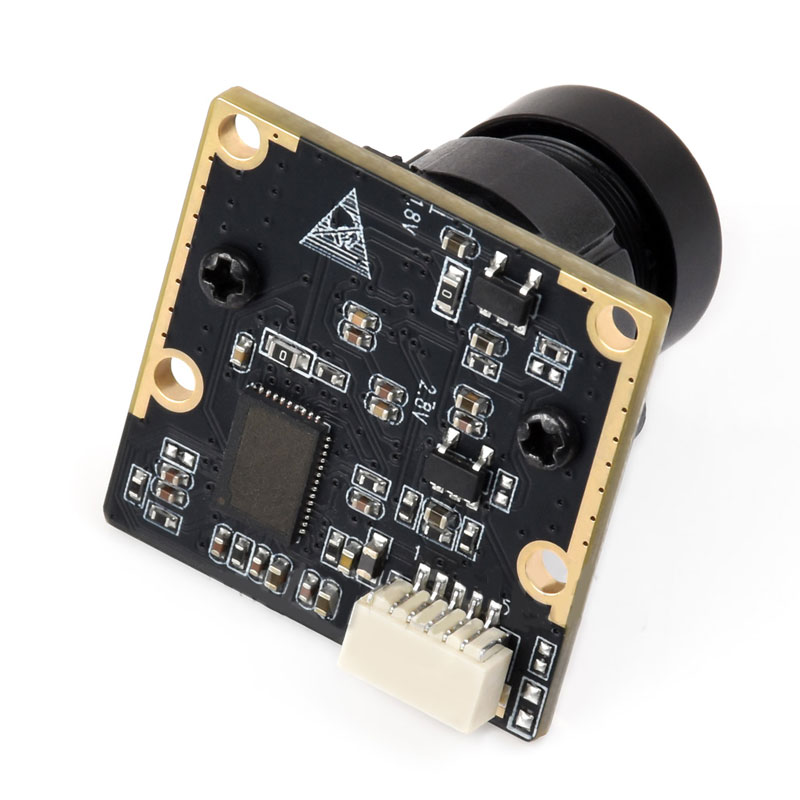

5MP USB CAMERA MODULE

OS05A20 Sensor, USB2.0 Port, 91.7° FOV Distortion-Free Lens

Specifications

PIXELS	5MP
SENSOR	OS05A20
INTERFACE	USB 2.0
CAMERA	Sensor size	1/2.7inch
	Aperture (F)	2.4
	Focal length (EFL)	3.25mm
	Field of view (FOV)	91.7° (D)
	Distortion	<-1.22%
	Focusing	Fixed-focus
MOUNT	M12
SHUTTER MODE	Rolling shutter
IMAGE	Format support	MJPG
	Static image resolution	2592 × 1944
	Video recording	30 FPS 2592 × 1944 30 FPS 1920 × 1080 30 FPS 1280 × 720
	Dynamic range	74dB
OPERATING VOLTAGE	5V ± 5%
OPERATING TEMPERATURE	-10°C ~ 60°C
MODULE SIZE	25 × 24 (mm)

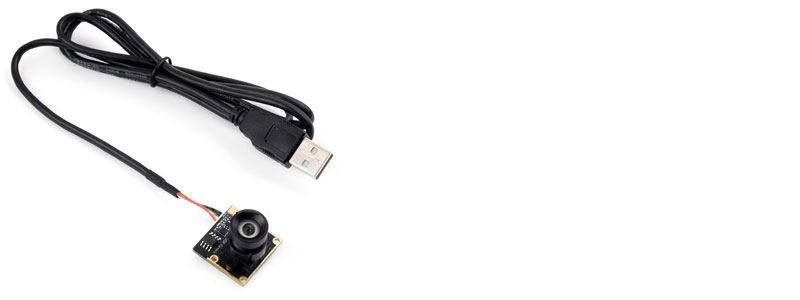

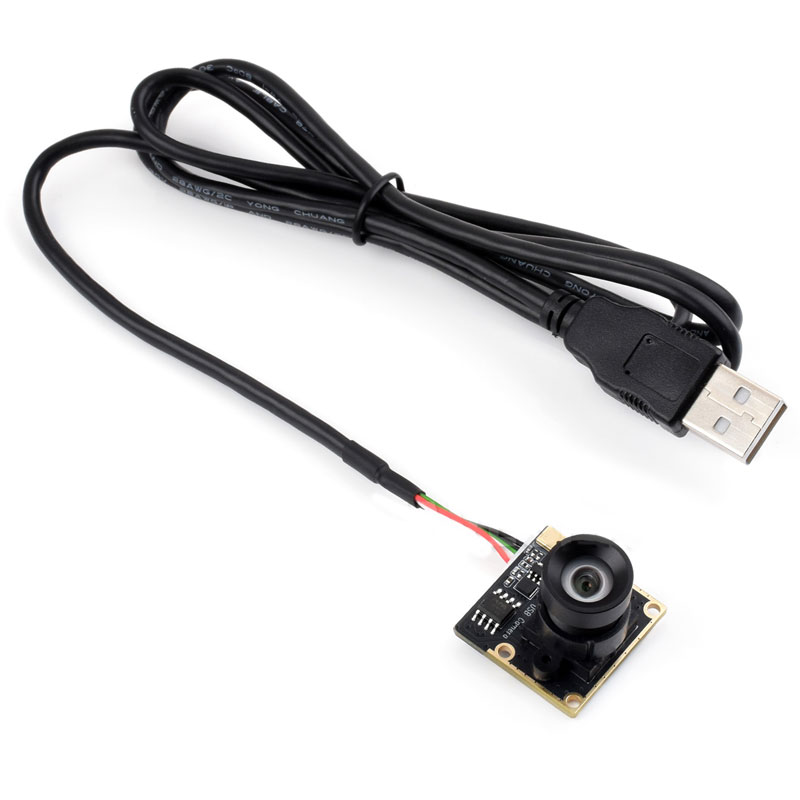

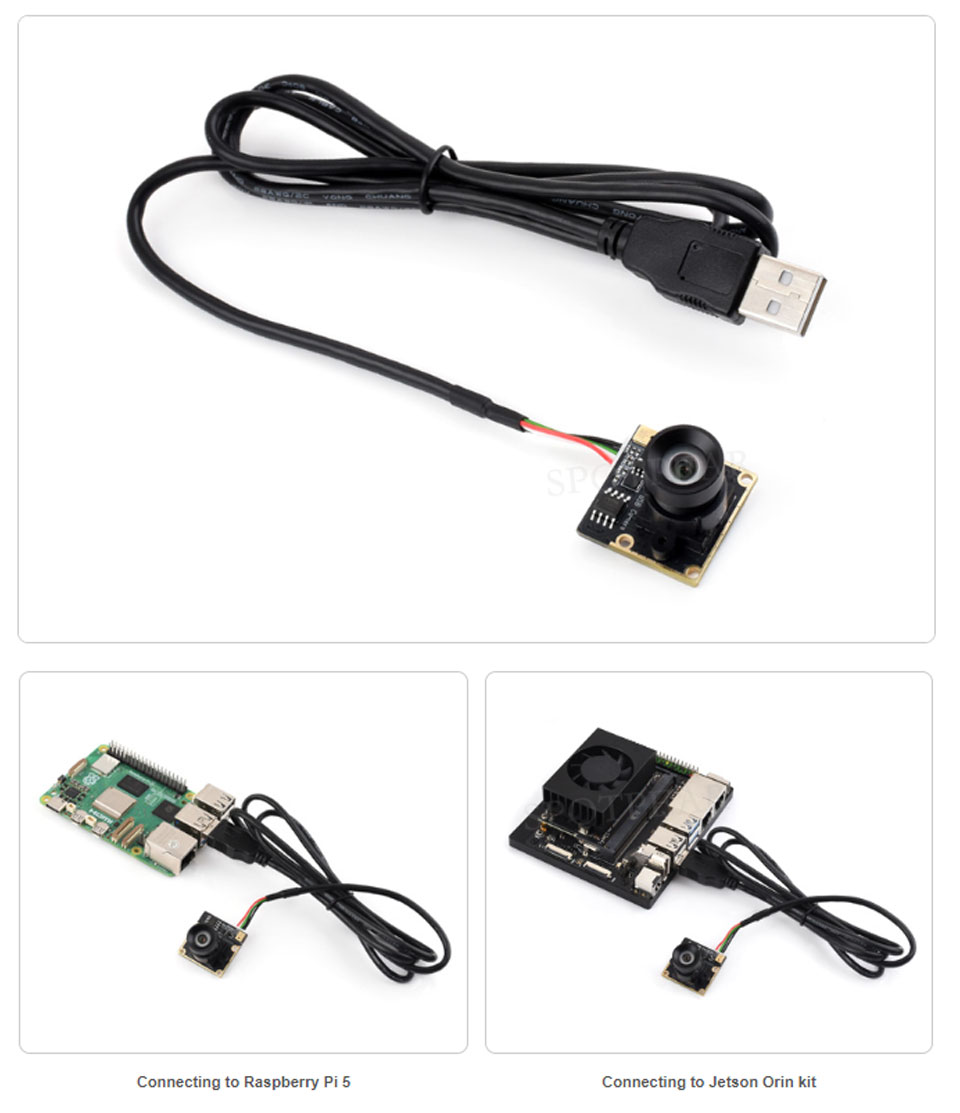

Connecting With USB Cable

* for reference only, the Raspberry Pi 5 and Jetson Orin kit are NOT included

5MP High Resolution

Supports 30 FPS Output, Suitable For Capturing Details

Better Low-Light Sensitivity

Provides A Better Imaging Effect In Low Light Condition

Wide Dynamic Range

Supports Dual-Exposure On-Chip HDR For Maintaining Image Details And Quality In High Contrast Scenes

* The above pictures are the simulated effect for demonstrating the expected performance of OS05A20 camera under various conditions, for reference only, please refer to actual effect.

Distortion-Free

Equipped With A Distortion-Free Lens With A Distortion Rate Of Less Than -1.22%, Delivering Undistorted Imaging And More Accurate Reproduction Of Real-World Scenes

* Note: In the industry, lenses with distortion rate less than 2% are generally considered distortion-free.

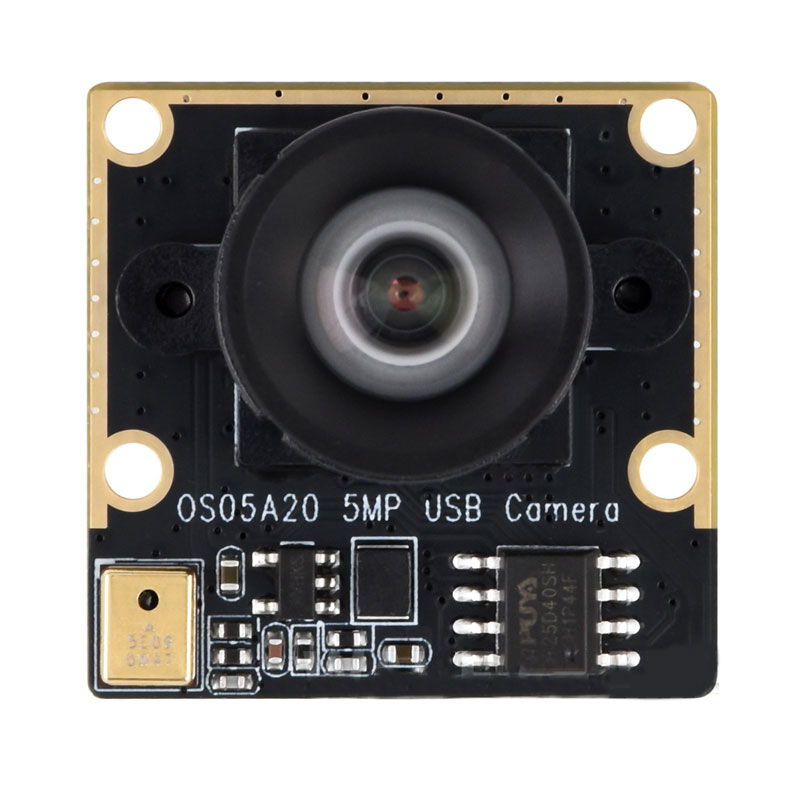

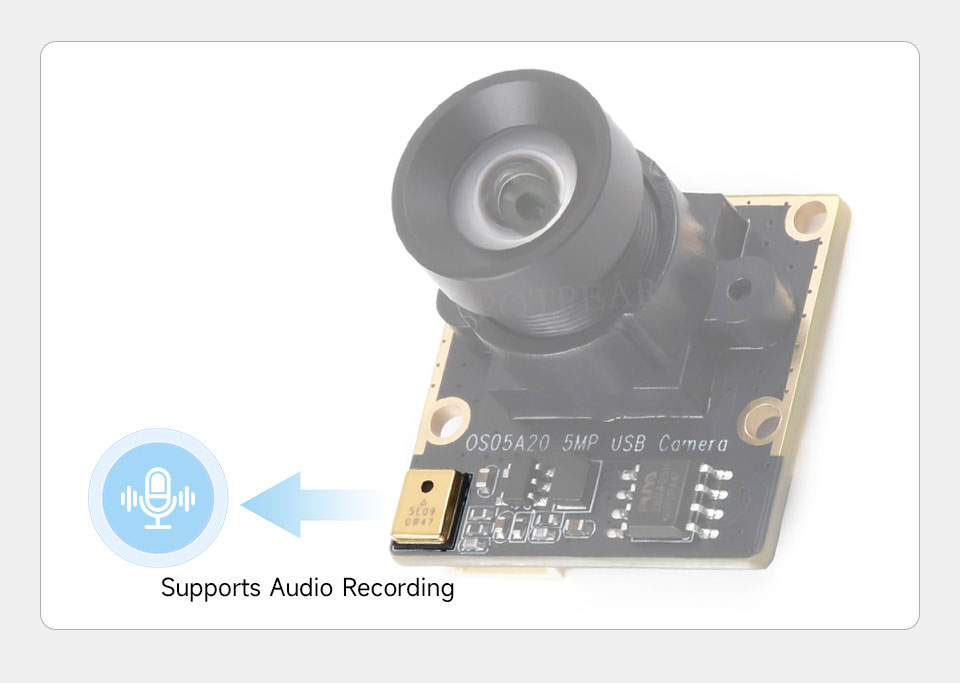

Onboard Microphone

Onboard Single Microphone, Supporting Simultaneous Audio Recording

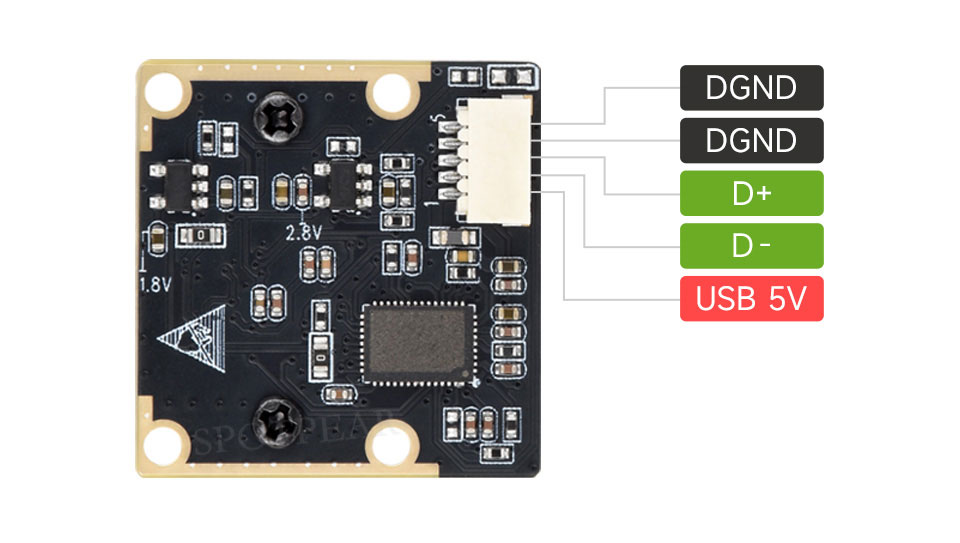

Pinout Definition

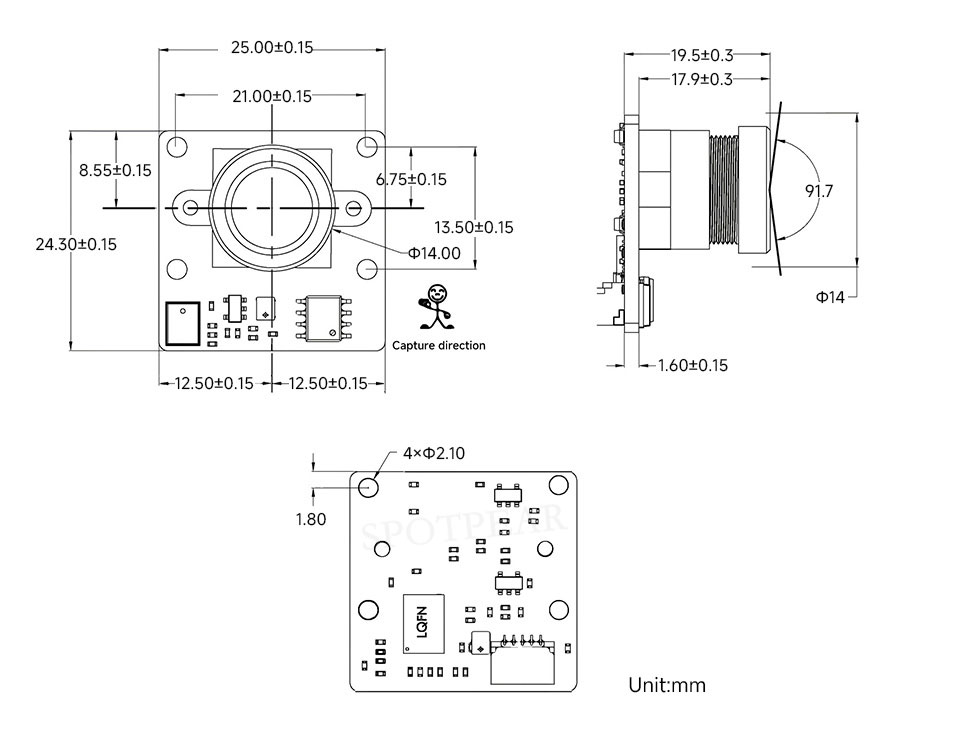

Outline Dimensions
