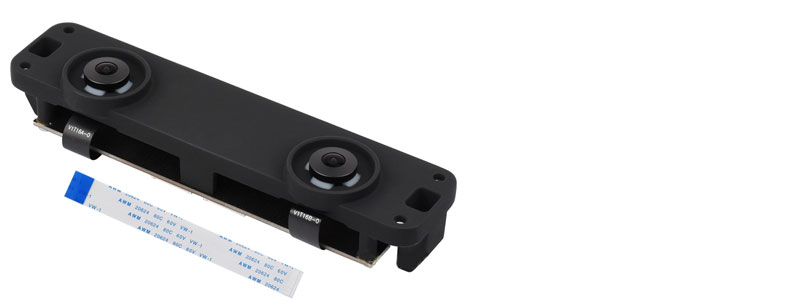

RDK X5 Binocular Depth Camera Module D-Robotics SC132GS Dual 1.3MP Global Shutter

RDK X5 Binocular Depth Camera Module D-Robotics SC132GS Dual 1.3MP Global Shutter

$53.9

Brand：D-Robotics

SKU：080402100000

Date：2026-01-10 14:28

Part Number：

RDK Stereo Camera Module GS130W

No：

- +

In Stock

Buy It Now

Add to cart

Ask a Question

Copy Link

SC132GS Binocular Stereo Camera Module, Global Shutter, 157° DFoV, Dual 1.3MP Cameras, Suitable For RDK X5

D-Robotics Horizon Sunrise Recommend

RDK X3

RDK-X3-Module

RDK-X3-MD-Carrier-Board

RDK X5

RDK X5 MD

RDK Stereo Camera Module For RDK-X5

RDK Stereo Camera Module GS130W

RDK PoE Module For RDK-X5

RDK-Ultra

RDK-S100-MCU-Port-Expansion-Board

RDK-S100-Camera-Expansion-Board

RDK-S100

RDK X5 Case

RDK Binocular Stereo Camera Module

SC132GS | 1.3MP | Hardware Synchronization | 157° DFoV | Global Shutter

Features

This product is a stereo depth camera based on the dual SC132GS global shutter sensors with onboard MIPI interfaces, supports synchronized dual exposure and external trigger operation. The module features an 80 mm baseline and delivers a maximum output frame rate of 120 fps. It provides high dynamic range (HDR) performance with a 40 dB SNR, features 1280 × 1080 resolution per channel and enhanced sensitivity in the 850 nm / 940 nm near-infrared (NIR) bands. It is suitable for applications such as robot vision, machine vision inspection, and real-time motion monitoring.

Specifications

PIXELS		1.3MP
SENSOR CHIP		SC132GS
CAMERA	SENSOR SIZE	1/4 inch
	APERTURE (F)	2.0
	RESOLUTION	1280 × 1080 (per camera)
	FOCAL LENGTH (BFL)	1.75mm
	FIELD OF VIEW (FOV)	157.2°(D) 96.8°(H) 115.6°(V)
	MAX FRAME RATE	120FPS
	SIGNAL-TO-NOISE RATIO (SNR)	40dB
	BASELINE LENGTH	80mm
SYNCHRONIZATION		Supports external triggering and synchronization
OPERATING TEMPERATURE		-20°C ~ 60°C

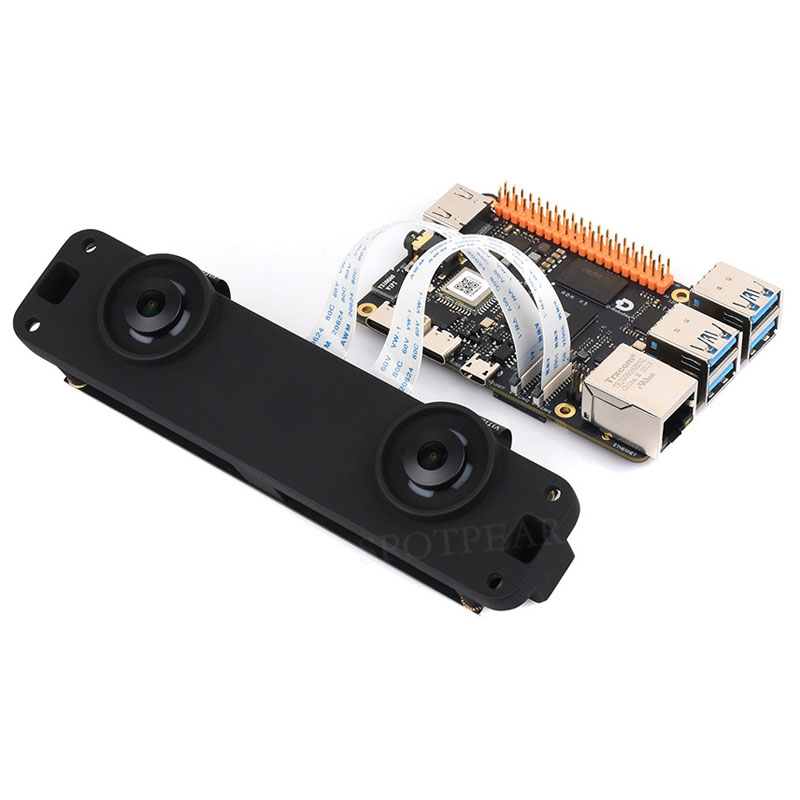

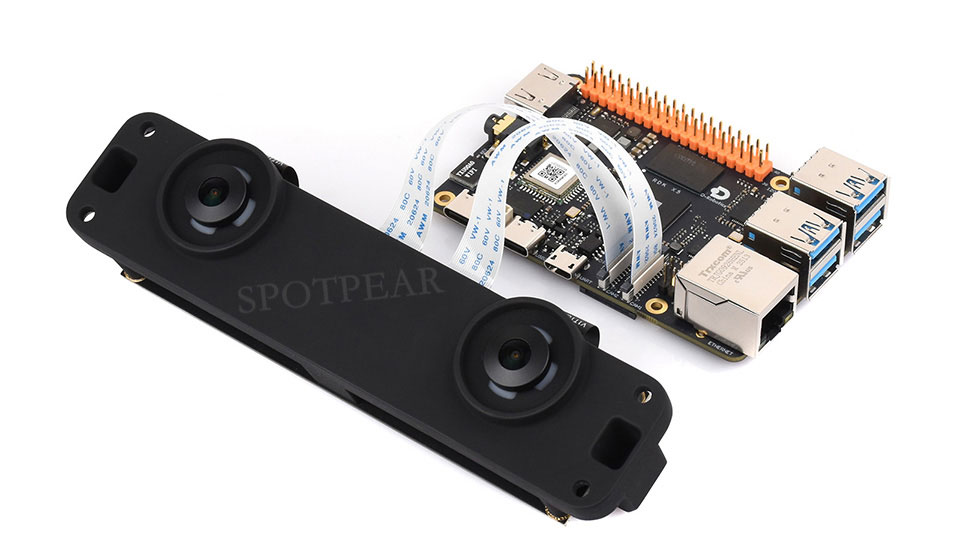

Connection Example

* for reference only, the RDK X5 is NOT included.

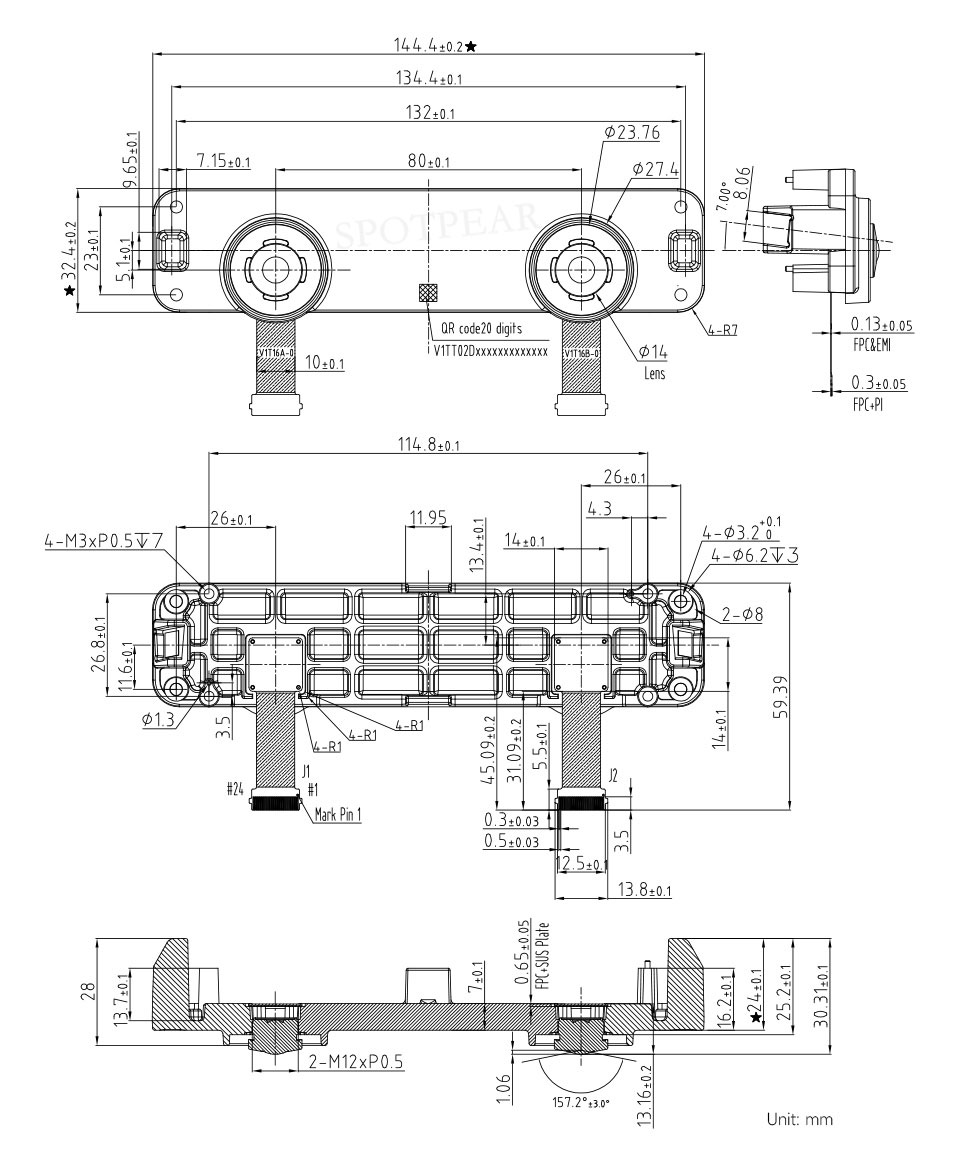

Outline Dimensions

[] RDK Stereo Camera Module GS130W
