Raspberry Pi CM4/CM5 Adapter Interface Port Protection Board Often Testing Board For Raspberry Pi CM4/CM5

$6.99

Brand:Waveshare
SKU:0101458
Date:2025-05-22 09:52
No:
Off-production

Raspberry Pi CM4/CM5 interface protection board Compute Module series interface physical protection is not afraid of repeated plugging and unplugging

【Note】

[] In testing, the probability of CM4 damage is greatly reduced by using this adapter board.

If used with the Heatsink, the probability of damage to the adapter board will also be reduced.

[] The function of the board is to physically replace the damage of the CM4 socket.

In testing, most of the damage is caused by frequent plugging and unplugging of the CM4 socket.


【Product Introduction】

[] Raspberry Pi CM4/CM5 interface protection board.Designed based on Raspberry Pi CM4/CM5

[] Raspberry Pi CM4/CM5 interface protection board Compute Module series interface physical protection is not afraid of repeated plugging and unplugging

【Product Details】

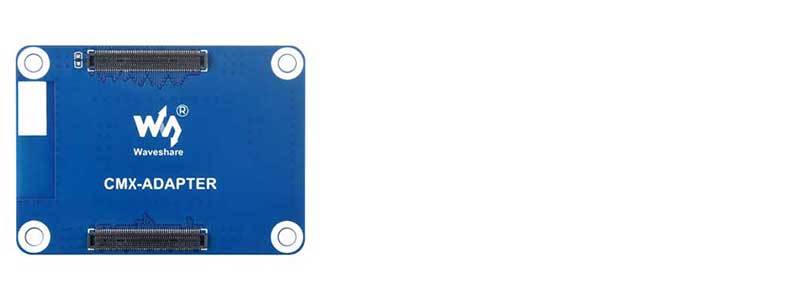

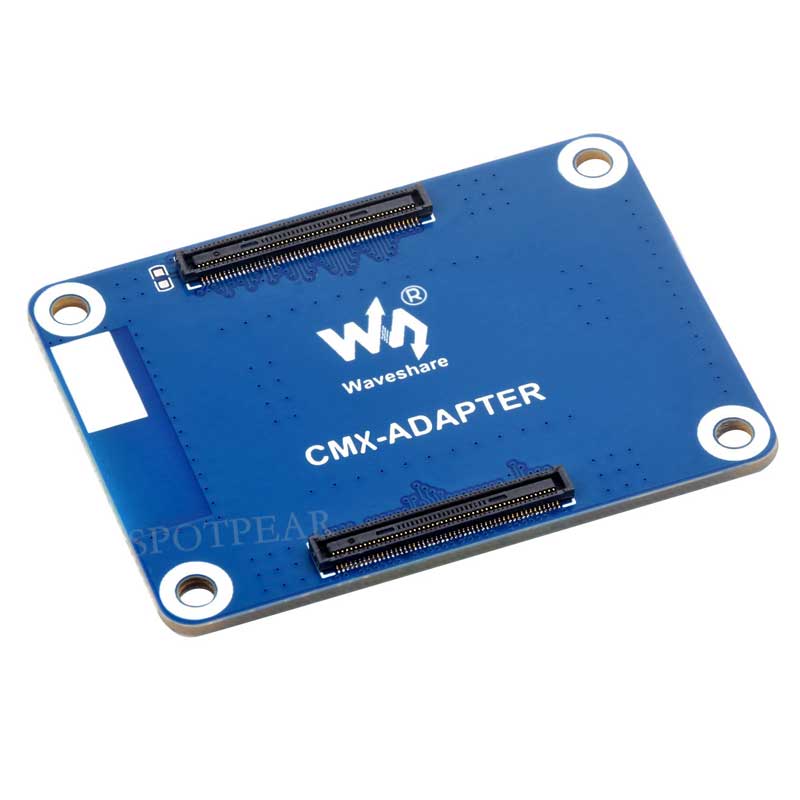

Raspberry Pi CM4 / CM5 Interface Protection Board


Designed based on Raspberry Pi CM4 / CM5

Onboard standard CM4 / CM5 connector,

supports access to CM4 / CM5 Lite / eMMC series motherboards and corresponding baseboards or expansion boards


Physical protection, no need to worry about repeated plugging and unplugging

Protect the CM4 / CM5 socket to prevent the connector from being damaged due to multiple physical plugging and unplugging.

Suitable for environments that require multiple plugging and unplugging, protecting the CM4 / CM5 core board socket

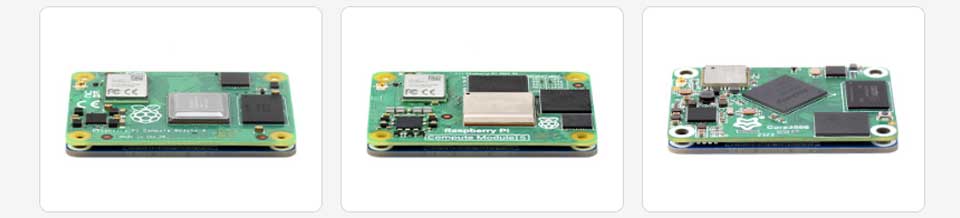

              Protect CM4 Core board                 Protect CM5 Core board              Protect Lucky Fox Core3566

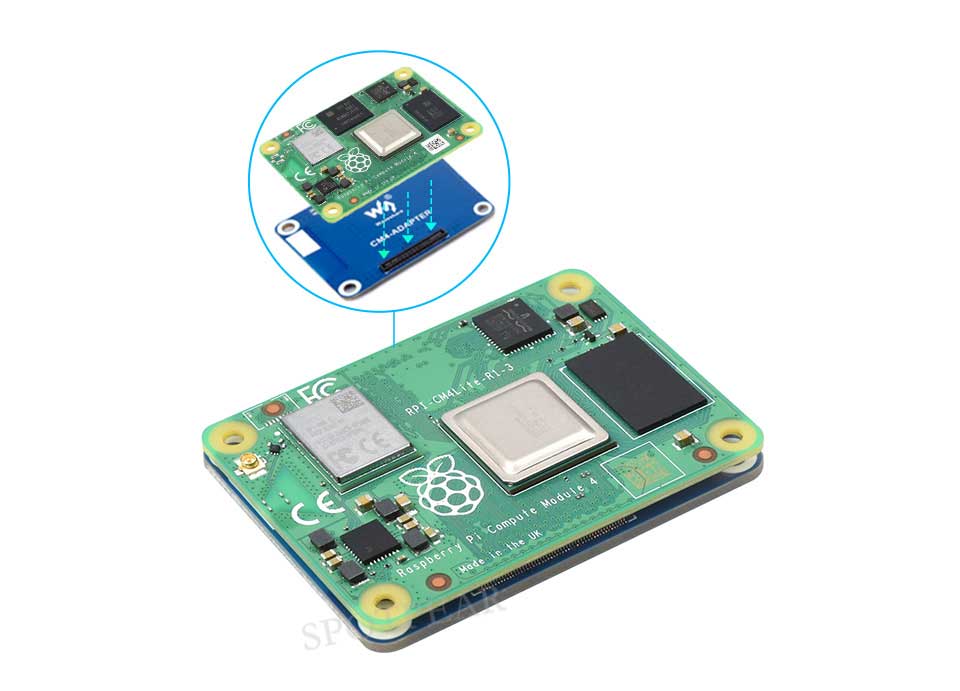

Easy to adapt and install

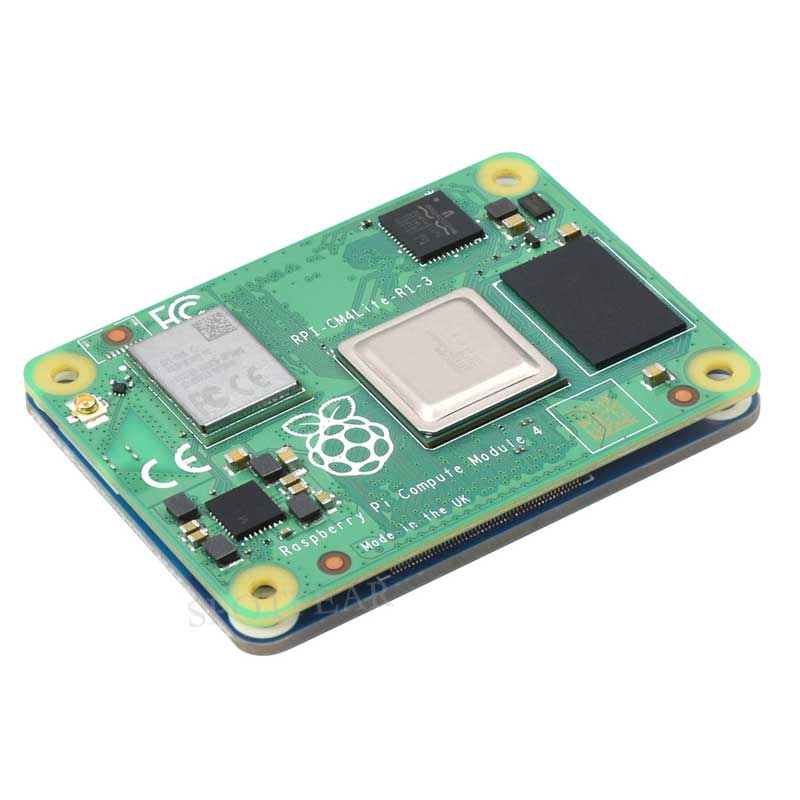

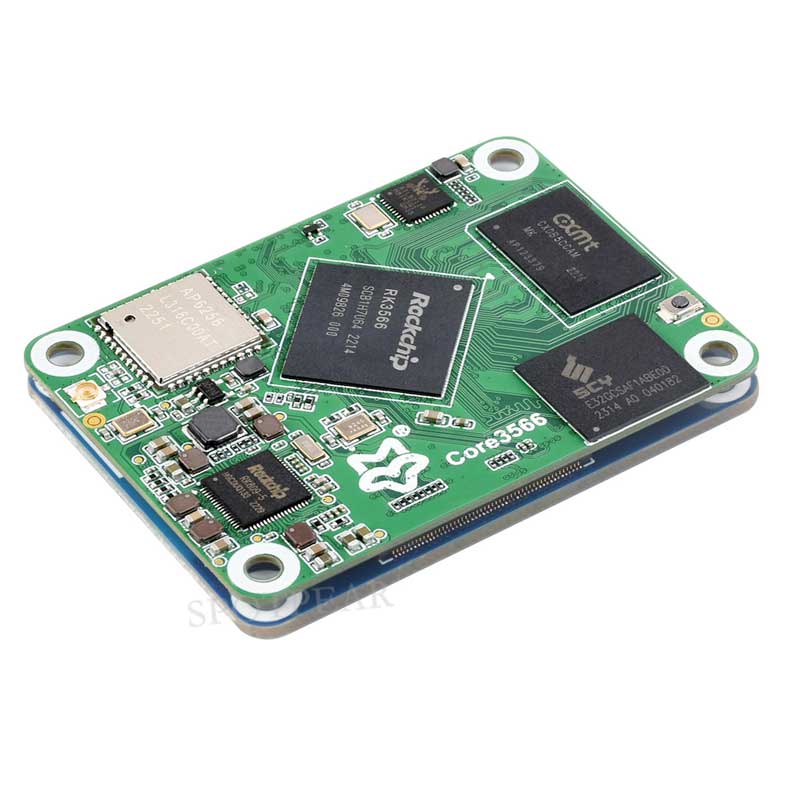

                                 CM4 core board                                                         Xinghu Core3566 module

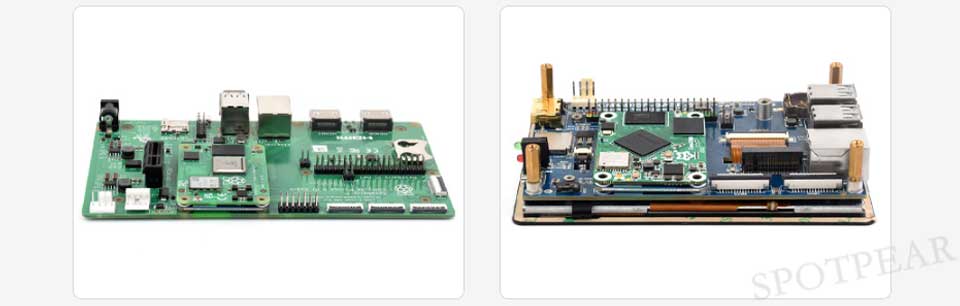

   Connect to CM4 baseboard through this product                 Through this product to access the screen

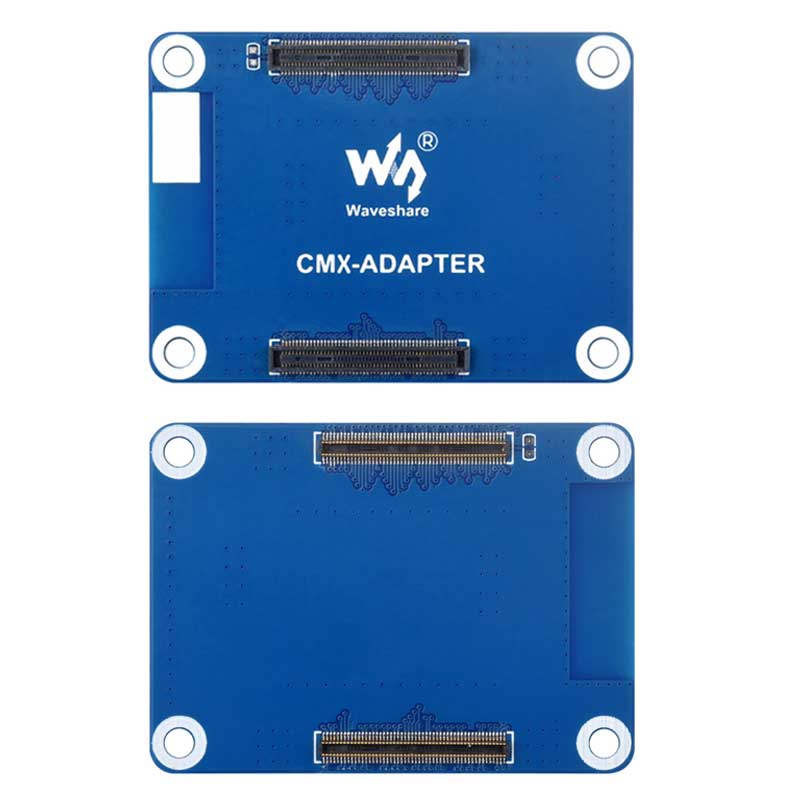

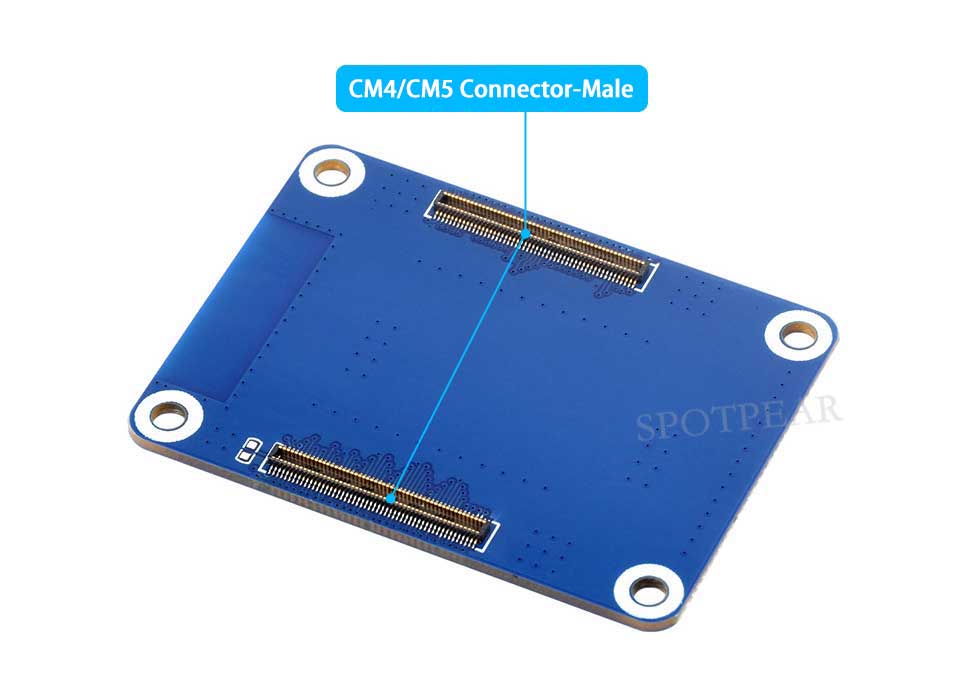

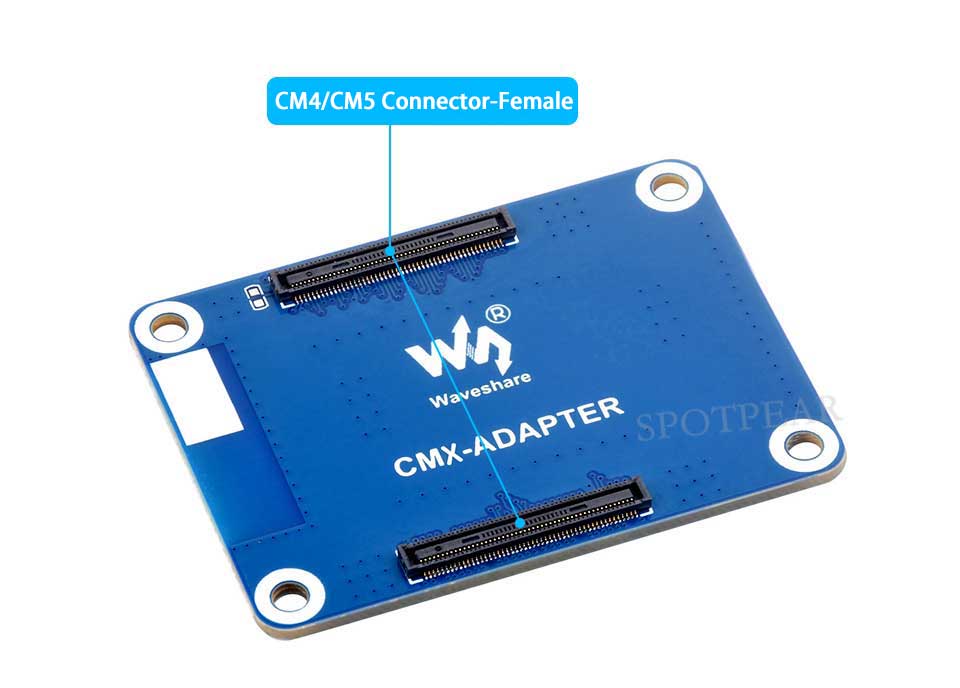

【Interface display】

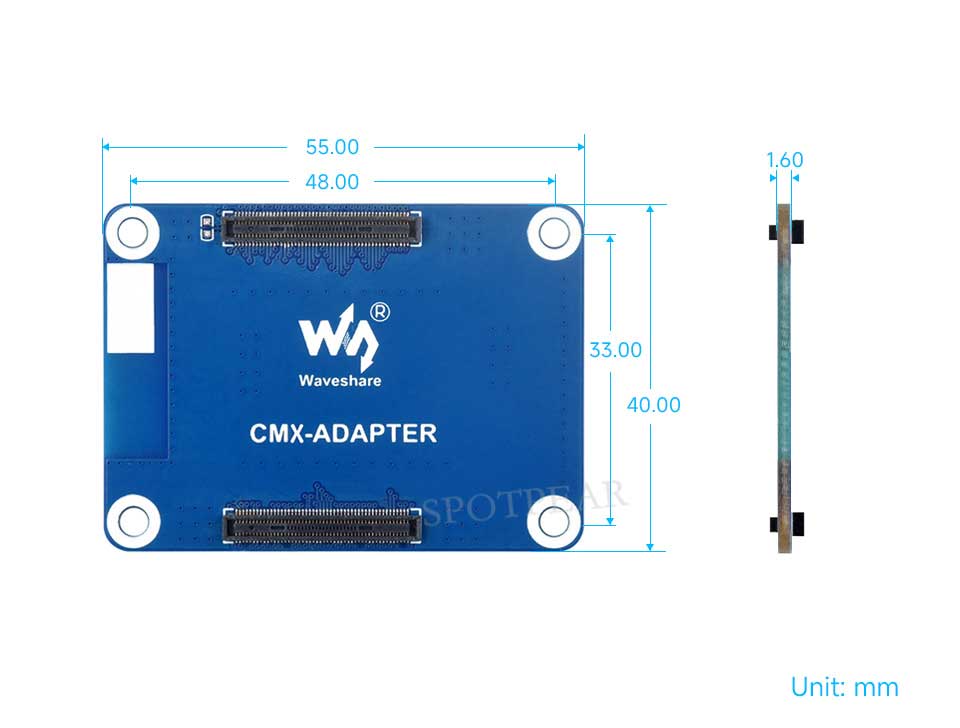

【Product Size】
