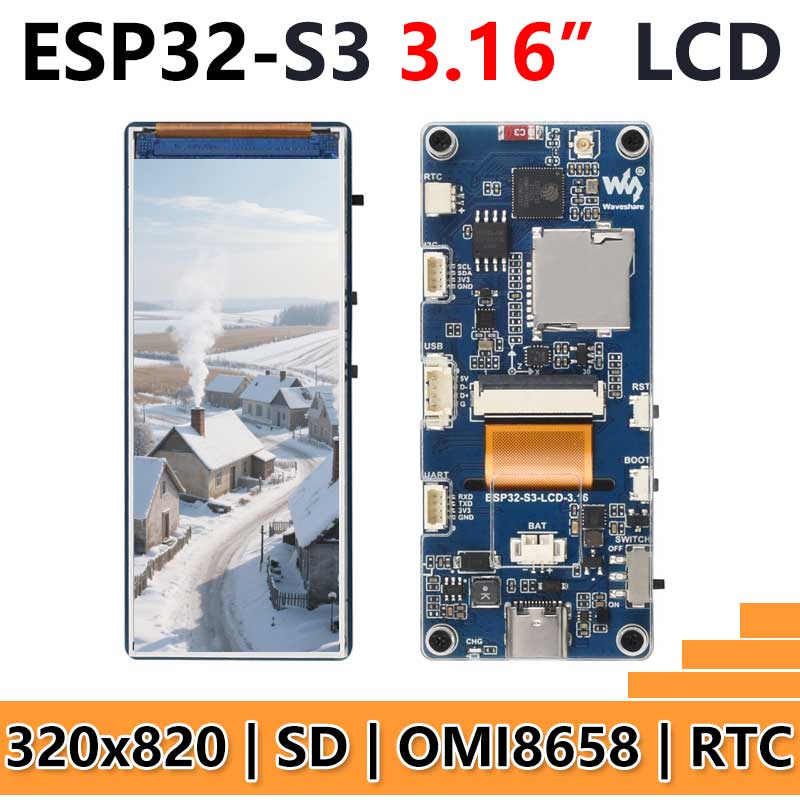

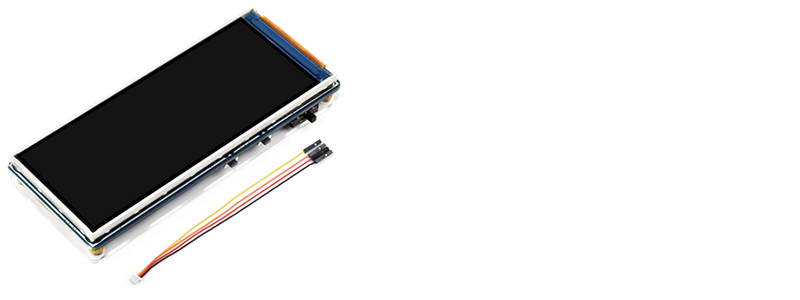

ESP32-S3 Development Board 3.16 inch LCD display 3.16inch Screen SD slot 320x820 RGB LED ST7701
$17.9
ESP32-S3 3.16-inch 320×820 LCD screen development board Dual-core 240MHz processor with wireless WIFI Bluetooth Small board onboard accelerometer and gyroscope sensor development board
ESP32 Display Recommend
ESP32-S3
3.16-inch LCD screen development board

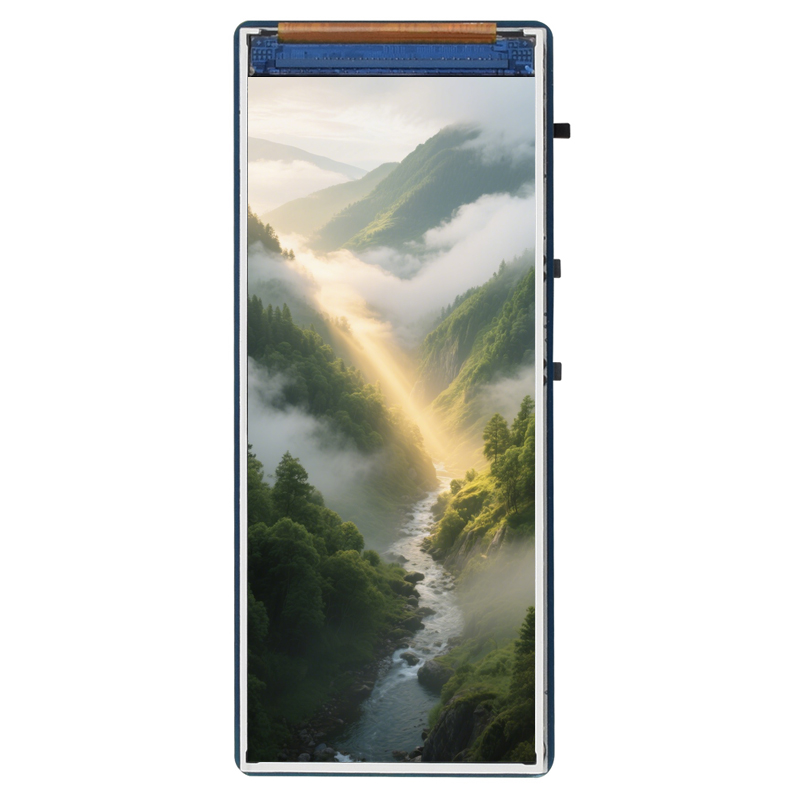

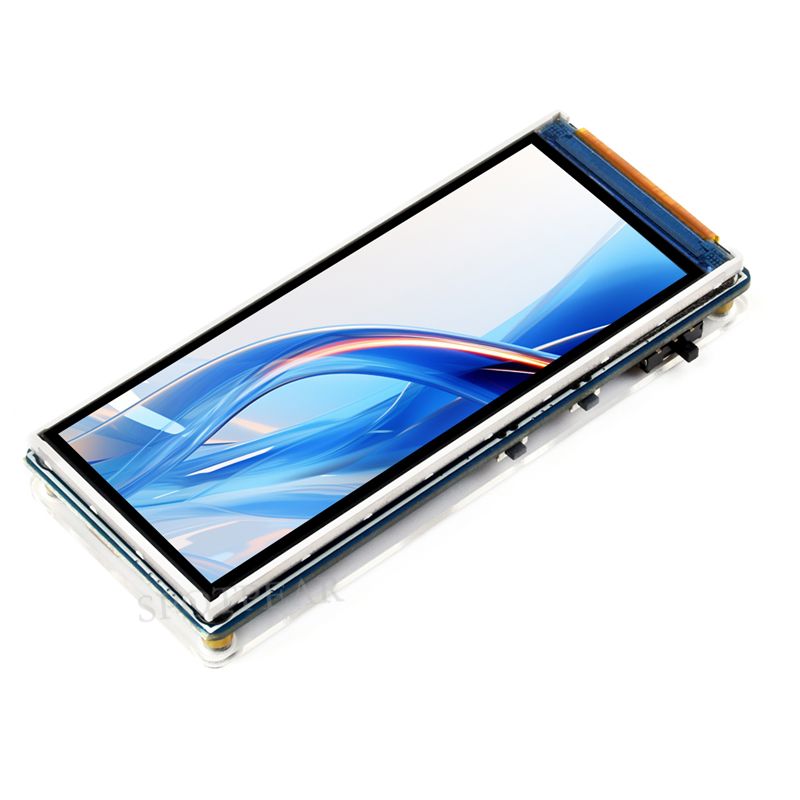

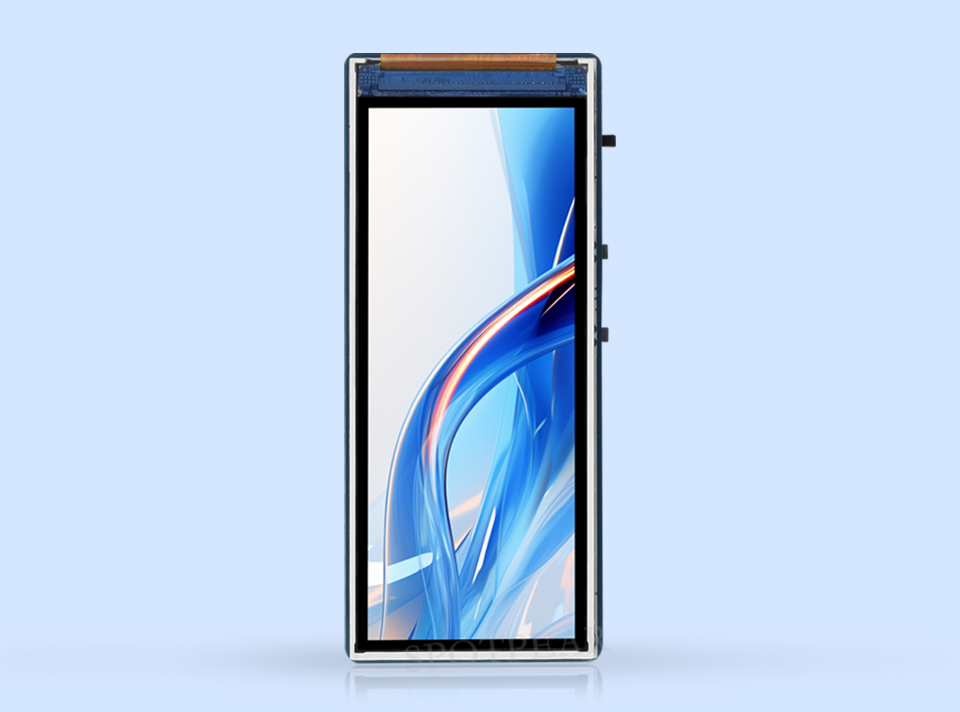

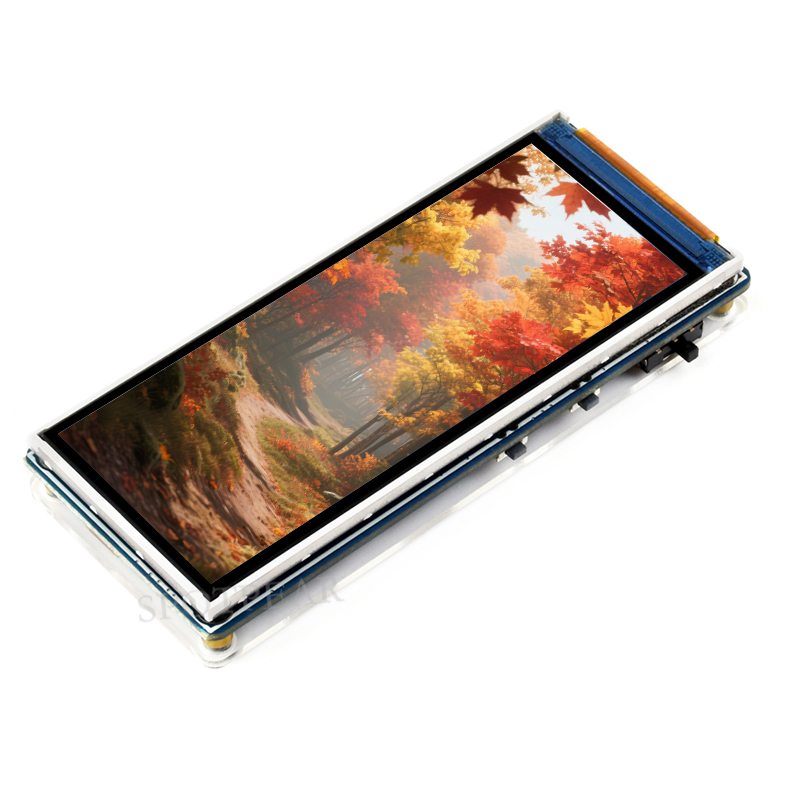

320 × 820 resolution, RGB interface communication, horizontal screen display can be achieved through software
The pictures are for reference only. Please refer to the actual picture effect
Product Features
This product uses the ESP32-S3R8 chip, supports 2.4GHz Wi-Fi and BLE 5 Bluetooth functions, and has built-in large-capacity Flash and PSRAM. It is equipped with a 3.16-inch high-definition LCD display and can run GUI programs such as LVGL smoothly. It has onboard RTC, IMU, Micro SD card slot and lithium battery charging function, rich peripheral resources, and reserved USB, UART and I2C interfaces, providing flexible expansion capabilities. It is an ideal choice for rapid development of HMI applications based on ESP32-S3.
The main features are：

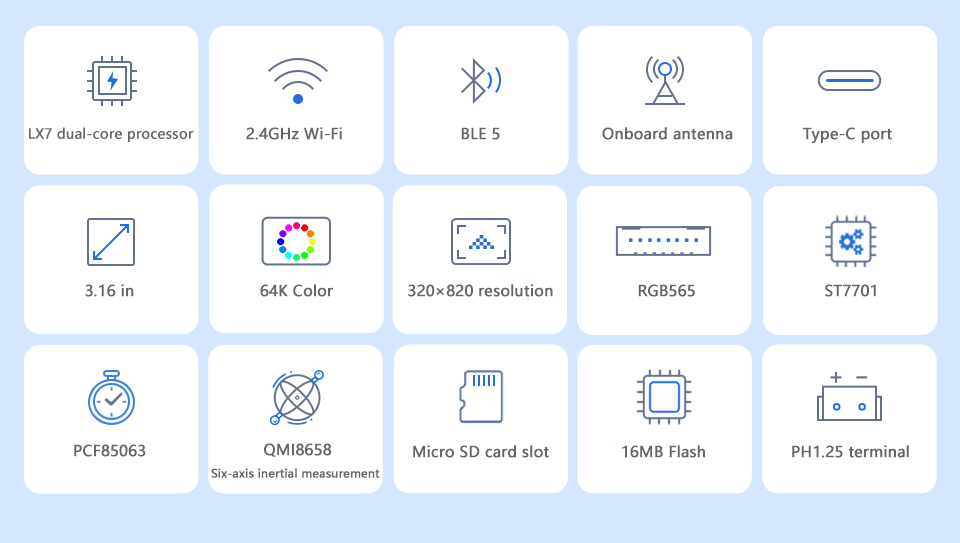

- Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, with a main frequency of up to 240MHz
- Supports 2.4GHz Wi-Fi and Bluetooth 5 (LE), with internal antenna on board and reserved solder points for external antenna
- Built-in 512KB SRAM and 384KB ROM, stacked with 16MB Flash and 8MB PSRAM
- Onboard 3.16-inch LCD display, 320 × 820 resolution, 64K color, communication interface uses RGB565
- Onboard QMI8658 six-axis inertial measurement unit (3-axis acceleration, 3-axis gyroscope) for motion detection, step counting, etc.
- Onboard PCF85063 RTC chip, reserved SH1.0 battery slot, can easily realize RTC function requirements
- Use a toggle switch to control the power on and off of the system, which is more controllable
- Onboard RST and BOOT side buttons, BOOT supports custom button functions, making development and use more flexible
- Onboard 3.7V MX1.25 lithium battery charging and discharging interface
- Onboard Micro SD card slot, can be connected to an external Micro SD card to store pictures or files
- Lead out UART, I2C SH1.0 4PIN interface and USB MX1.25 4PIN interface
- Onboard USB Type-C interface, which can be used for power supply and download debugging, making it convenient for development and use
LCD screen parameters
| Display Panel | LCD | Display size | 3.16inch |
|---|---|---|---|
| Display resolution | 320 × 820 | Display Color | 64K |
| Display brightness | 550cd/m² | Contrast | 1500:1 |
| Communication interface | RGB565 | Driver IC | ST7701 |
Purpose-built for the AIoT market
Equipped with Xtensa 32-bit LX7 dual-core processor,
powerful AI computing capability and secure encryption mechanism with a main frequency of up to 240MHz

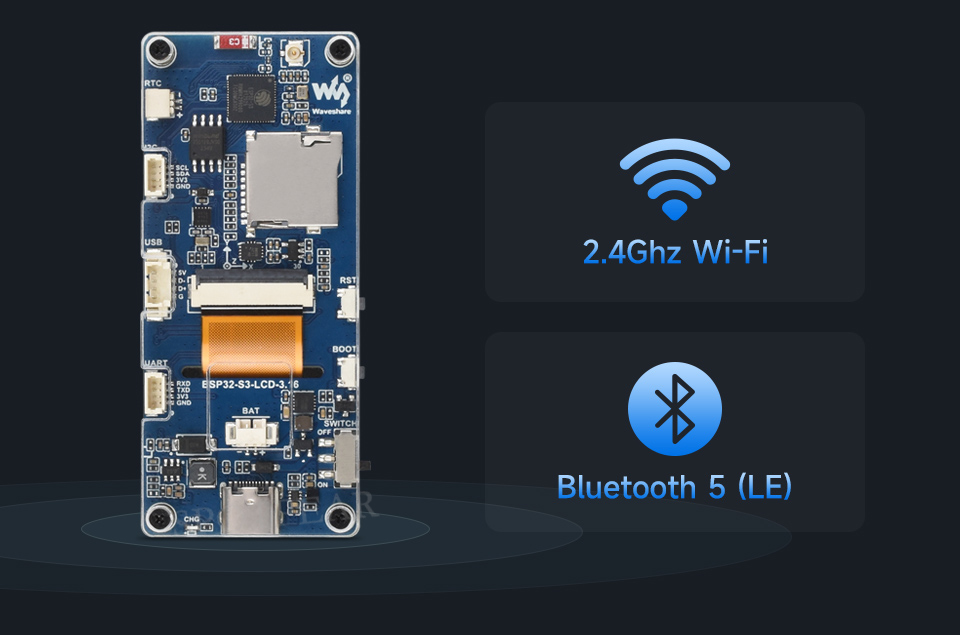

Supports Wi-Fi and BLE 5
ESP32-S3 integrates 2.4GHz Wi-Fi (802.11 b/g/n) with 40MHz bandwidth, and its low-power Bluetooth subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh

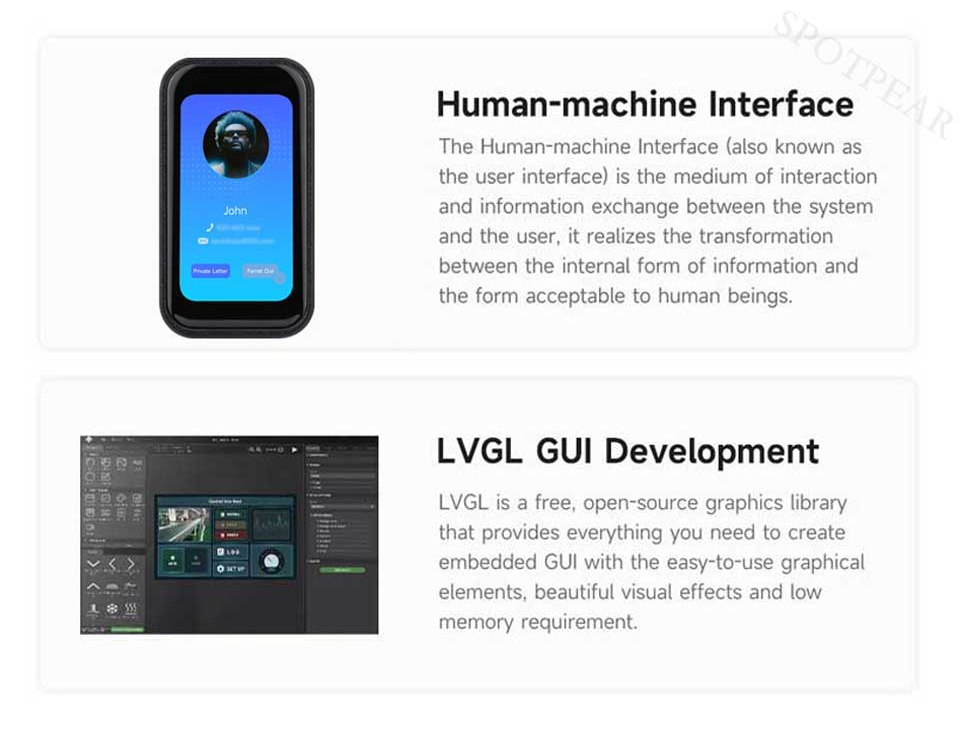

Application Scenario

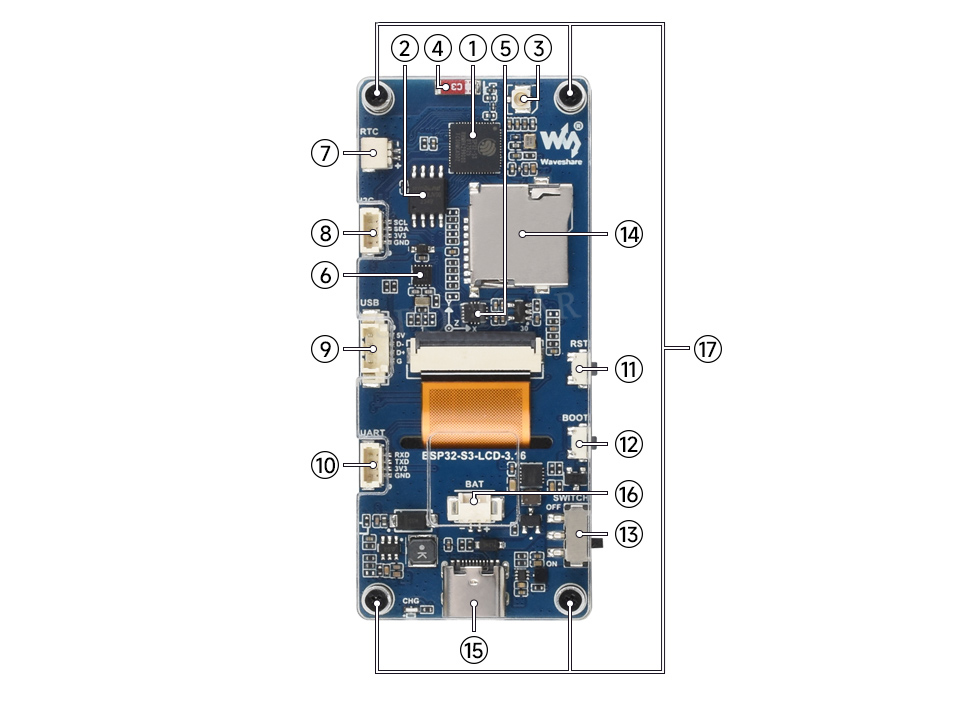

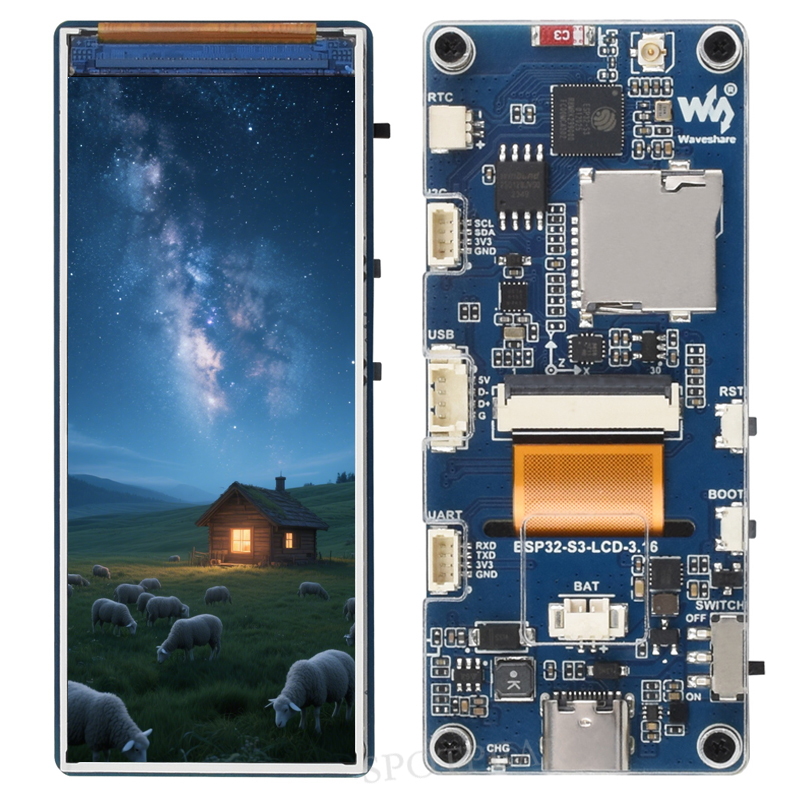

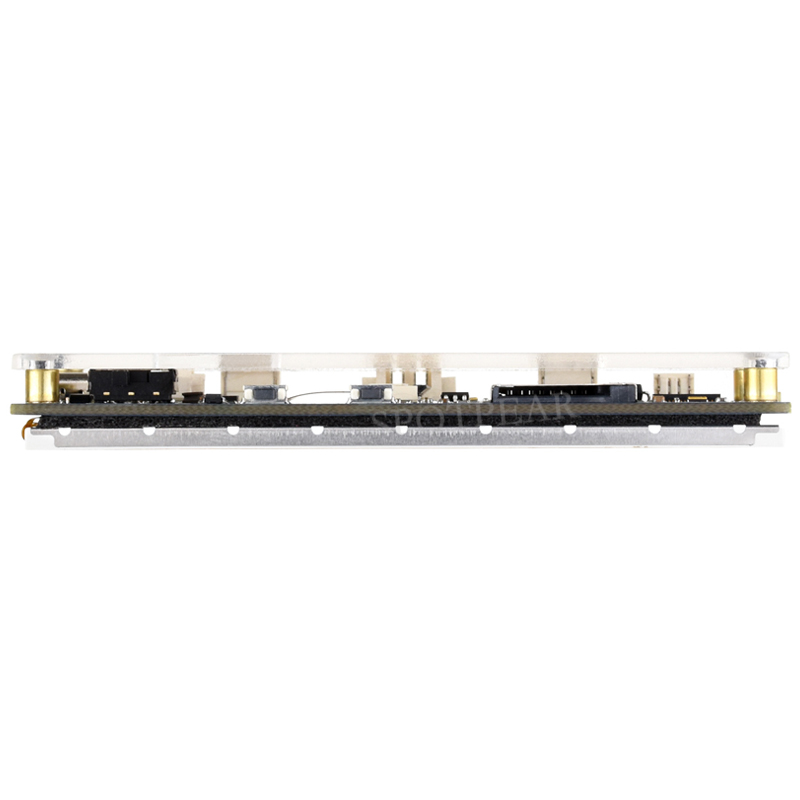

Resource Overview
- ESP32-S3R8
Wi-Fi and Bluetooth SoC, running at 240MHz, with 8MB PSRAM on-package
- 16MB NOR-Flash
- IPEX1 external antenna interface (need to change solder joint)
- Onboard patch antenna
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE)
- QMI8658
Six-axis inertial measurement unit (IMU), including a 3-axis gyroscope and a 3-axis accelerometer
- PCF85063
RTC clock chip
- RTC independent battery interface
- PH1.0 4PIN I2C interface
- MX1.25 4PIN USB interface
- PH1.0 4PIN UART interface
- RST button
- BOOT button
Press and hold BOOT and click RST to enter download mode.
- Toggle switch
OFF turns off the system power, ON turns on the system power
- Micro SD card slot
The SD card needs to be formatted as FAT32 when used
- Type-C port
ESP32-S3 USB interface, can be used for burning programs and logging
- MX1.25 Li-ion battery port
MX1.25 2P connector, can be used to connect 3.7V lithium battery, support charging and discharging
- SMD copper nut
M2×3.5×3.5+2.0×1.2

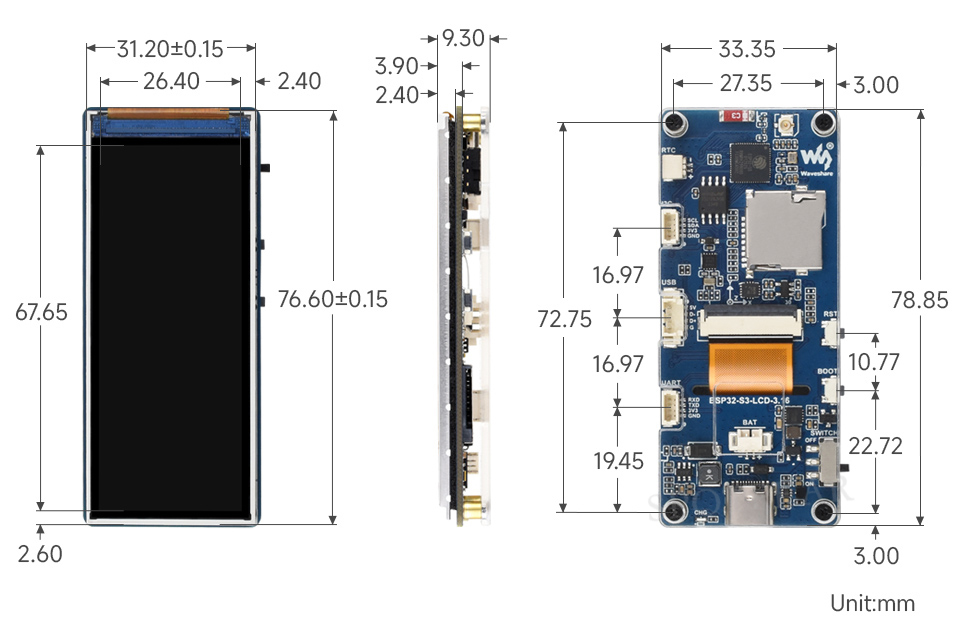

Product size
