EyeLink-RC-S1 Industrial Edition 5.5 inch Touchscreen Camera R1M Card Recording Flight Controller FPV Drone ground station image transmission remote
$599
Brand：SpotPear
SKU：021006900000
Date：2025-10-10 15:33
Part Number：

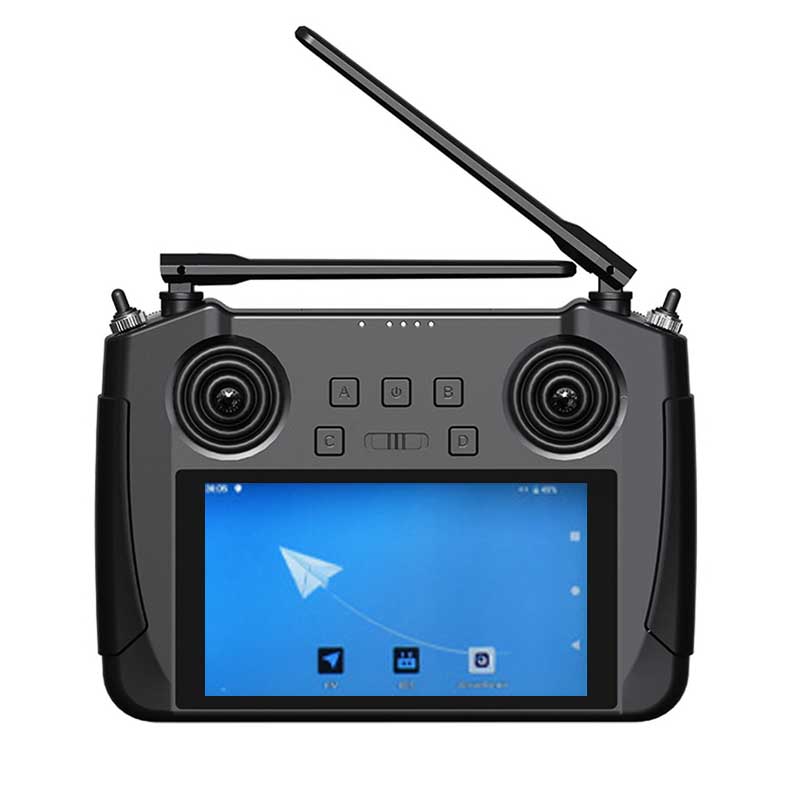

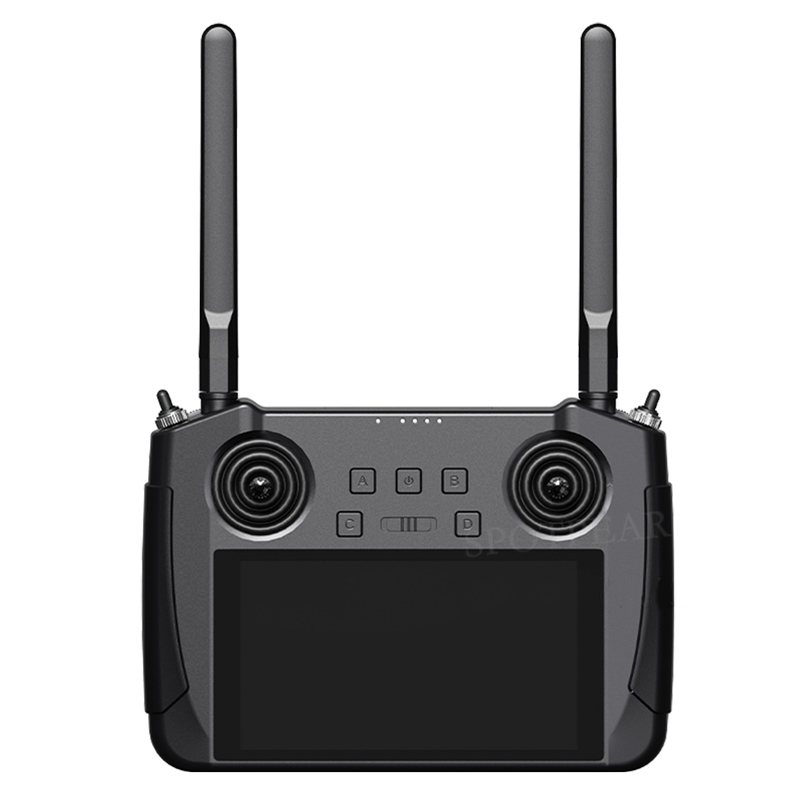

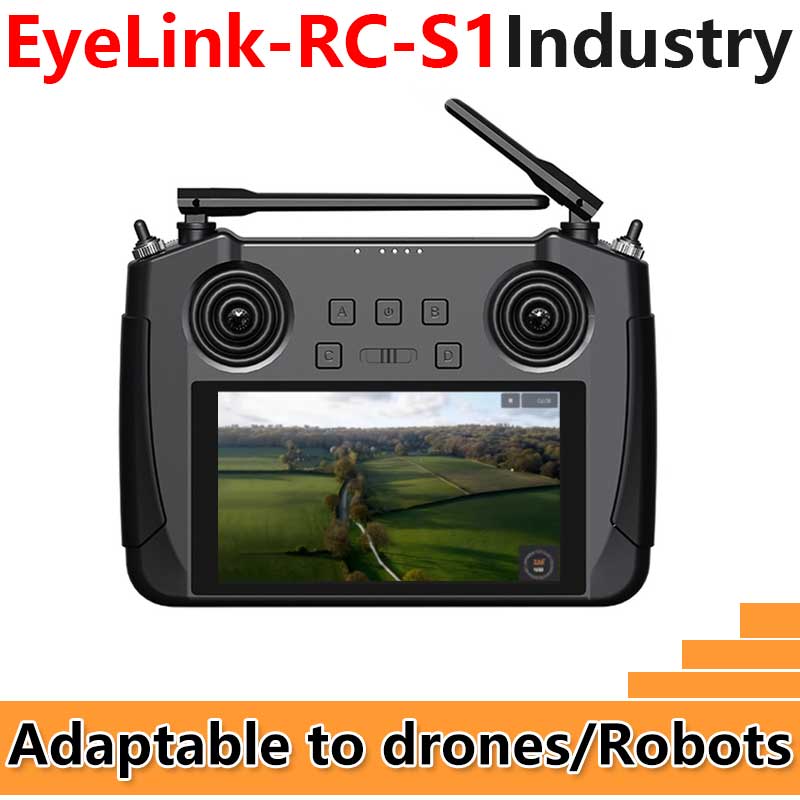

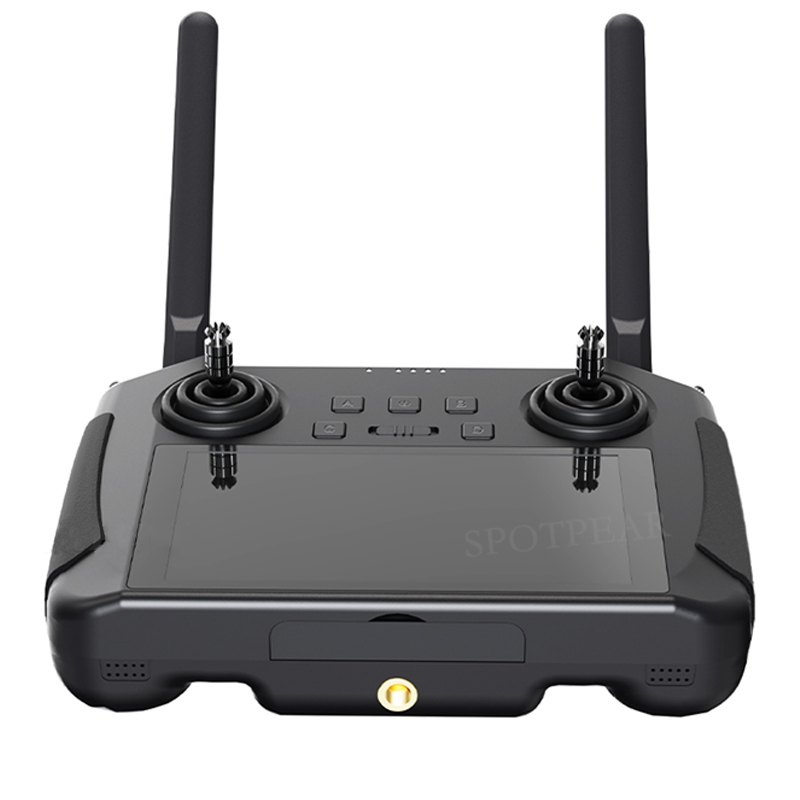

EyeLink-RC-S1 Industrial Edition Lightweight handheld ground station with an octa-core CPU, an onboard 5.5-inch 1080P touchscreen, and an R1M card-based HD camera. Supports external HD cameras.

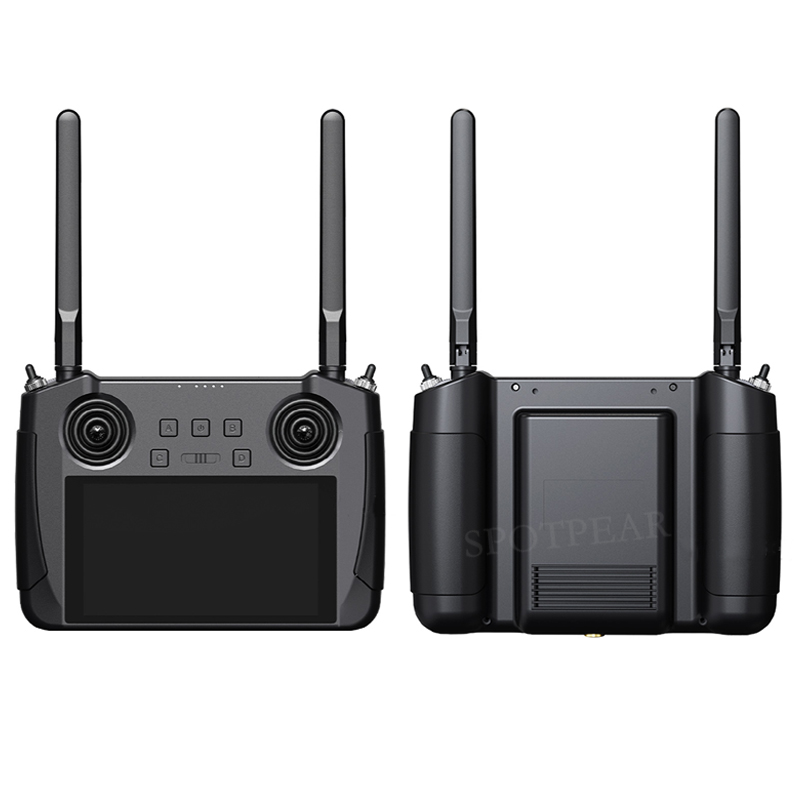

EyeLink-RC-S1 Industrial
Lightweight handheld ground station
Product Parameters
| Overall performance | |
|---|---|
| Maximum communication distance (No interference, no obstruction) | 15KM |
| aisle | Physical channels: 13 Communication channels: 16 |
| Data transmission supports flight control | Open source flight control PIX, APM, etc. BoYing Paladin v2 JIYI K3A Pro / K++ Microfly V7AG |
| Image transmission supports ground station | QGroundControl MissionPlanner IFLY / Fly Defense Manager Boying Agriculture Microfly V7Pro Ground Station |
| Ground terminal | |
| Display devices | 5.5-inch 1080P high-definition high-brightness LCD touch screen |
| System Configuration | Android 9.0, 2G RAM, 16G storage |
| size (Antenna retracted) | 189.09 × 137.95 × 69.72 (mm) |
| weight | 850g |
| Battery capacity and type | 10200mAh, 7.4V 2S lithium-ion battery |
| Fast charging protocol | PD 20W |
| Charging time | 5h (20W fast charge) |
| Operation endurance | 13h |

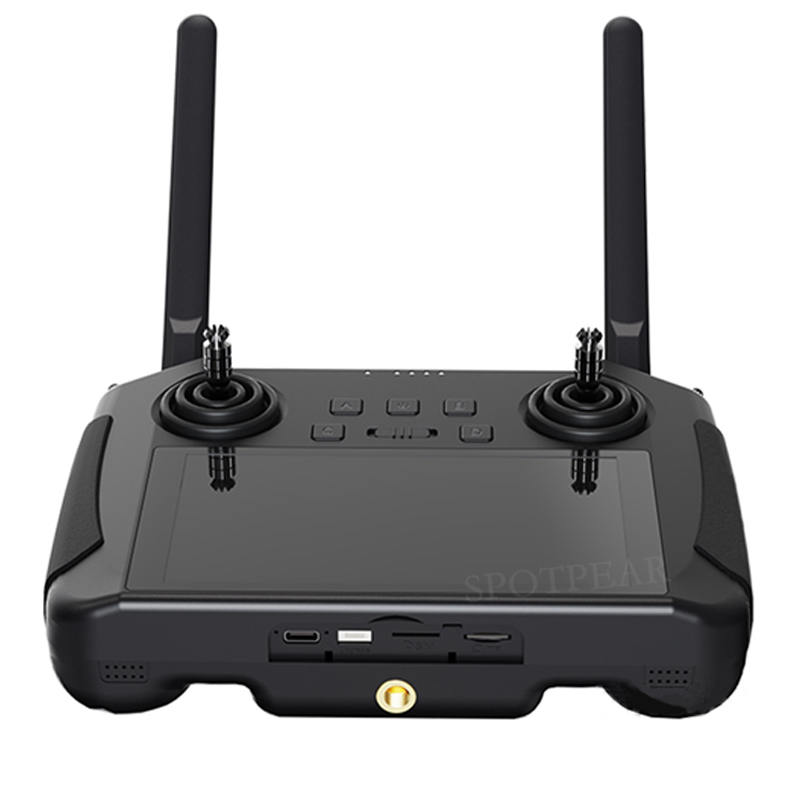

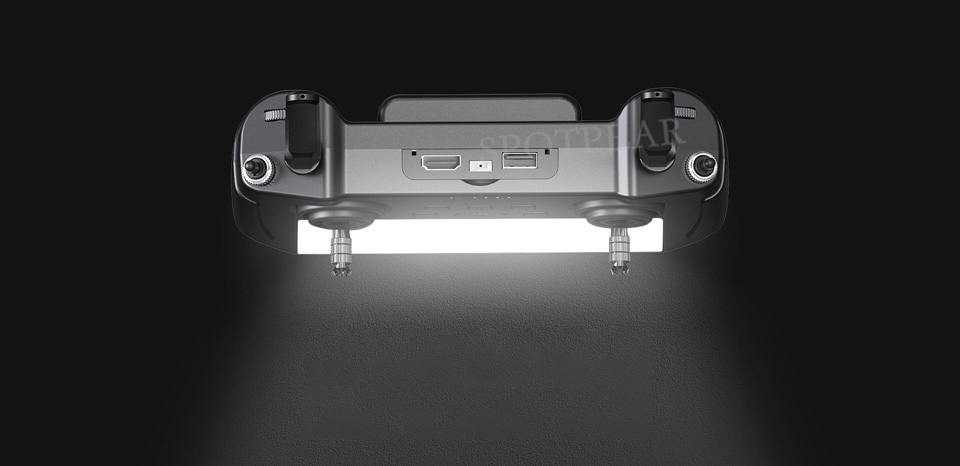

| Functional Interface | Charging: Type-C Firmware upgrade: DATA (4PIN) Mobile network: SIM card slot External storage: TF card slot Tripod mount: 1/4 threaded hole Video output: Standard HDMI External RTK: DATA (4-pin) External USB flash drive: USB-A |
| Waterproof grade | IP53 |
| Working temperature | -10℃ ~ 55℃ |
| Sky System | |
| Signal output | 16-channel S.Bus 5-channel PWM |
| Functional Interface | S.Bus：3PIN Data transmission (connecting to flight controller): UART 4PIN PWM channels 1-5: 6-pin Video input: 8PIN Firmware upgrade: Type-C |
| size (without antenna) | 70 × 55 × 16 (mm) (Including fan height) |
| weight (without antenna) | 100g (including step-down module) |
| Antenna gain | 5dBi |
| Operating voltage | 25.2V ~ 58.8V (6S ~ 14S) |
| Working temperature | -10℃ ~ 55℃ |
| R1M Card Recording FPV Camera | |
| Video output interface | Ethernet port |
| Image sensor | 1/2.9 inch |
| Pixel | 2 megapixels |
| Camera perspective | Diagonal: 90° Horizontal: 80° |
| Operating voltage | 12V |
| Power consumption | 2.5W |
| Video recording resolution | 1080p (1920 × 1080) @30fps 720p (1280 × 720) @30fps |
| Video recording bitrate | 12Mbps |
| Video file formats | MP4 |
| Supported memory card types | Micro SD Class10，Up to 32GB |
| Storage format | FAT32 |
| size | 42 × 42 × 25 (mm) |
| weight | 23g |
| Working temperature | -10℃ ~ 50℃ |
15KM wireless digital image transmission
Dual-channel full HD video real-time display
The system is based on independently developed wireless HD image transmission technology, combining remote control, data, and image transmission. It features adaptive frequency bands to effectively avoid interference and ensure stable transmission.

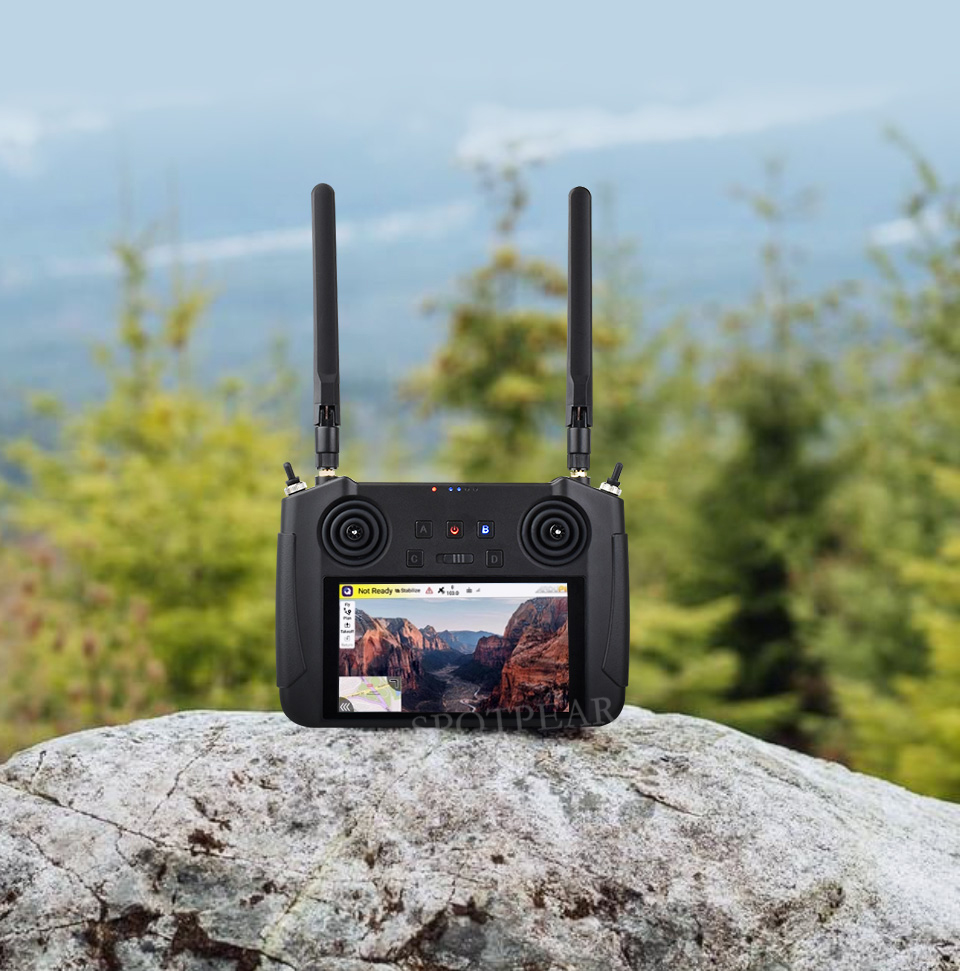

5.5-inch HD display
1000 nits high brightness display
The EyeLink-RC-S1 lightweight handheld ground station features a 5.5-inch high-definition, high-brightness display with a maximum brightness of 1000 nits (cd/㎡). Even in direct sunlight, it clearly displays ground station information and high-definition image transmission.
Octa-core CPU for high-speed computing
The EyeLink-RC-S1 handheld ground station is equipped with a Qualcomm octa-core high-performance CPU, which can easily decode H.264/H.265 and 1080P 60fps video streams and run various ground station software at high speed.

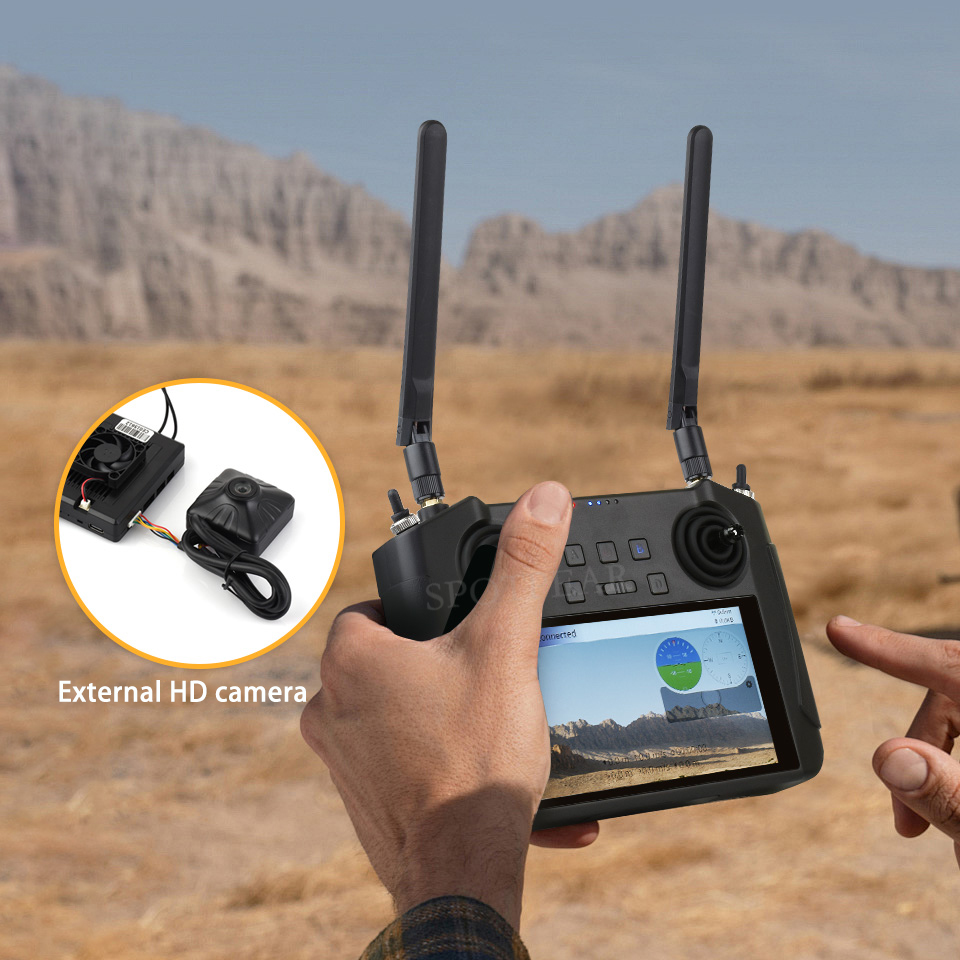

Equipped With HD Camera
Equipped With An R1M Recording HD Camera, Plug-And-Play, Enabling Real-Time Image Capture With A Wider And Clearer Field Of View

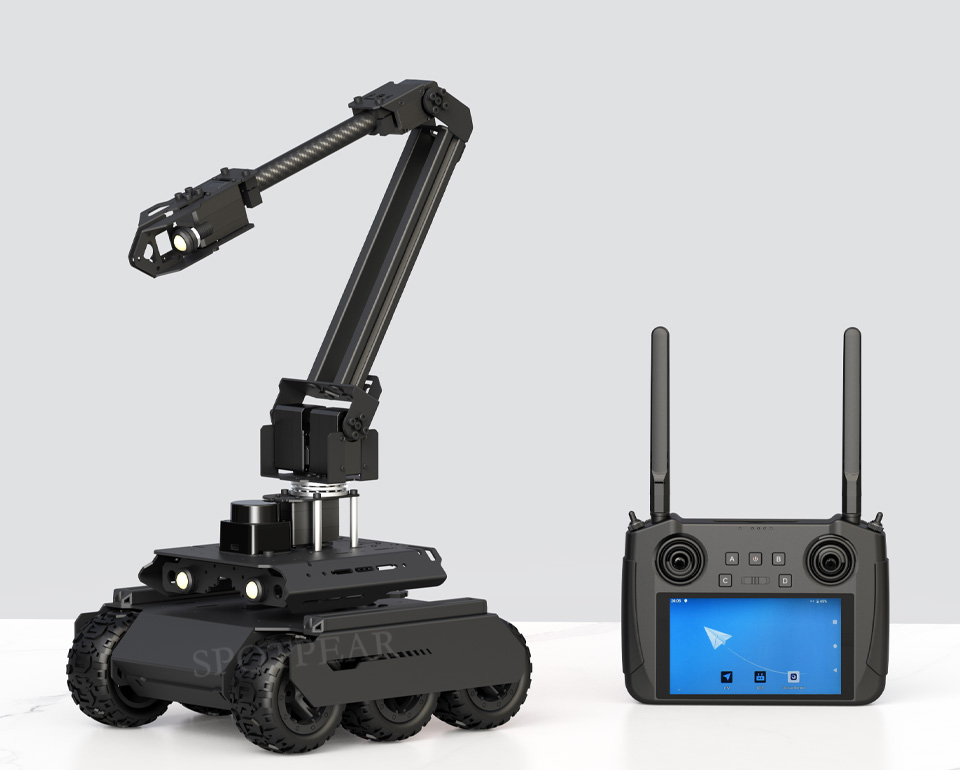

Provides Open-Source Demos For Controlling Various Robots
The Remote Control Receiver Can Be Connected To The General Driver For Robots, We Provide S.Bus Data Parsing Demo For Efficient Secondary Development

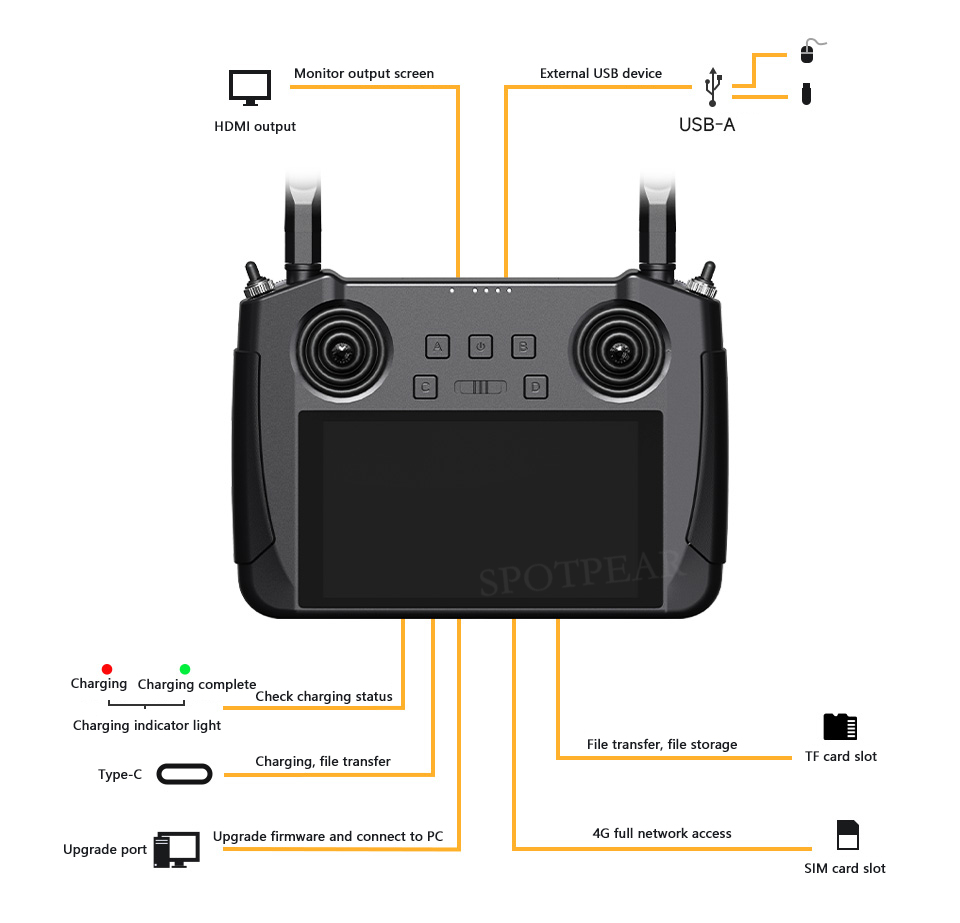

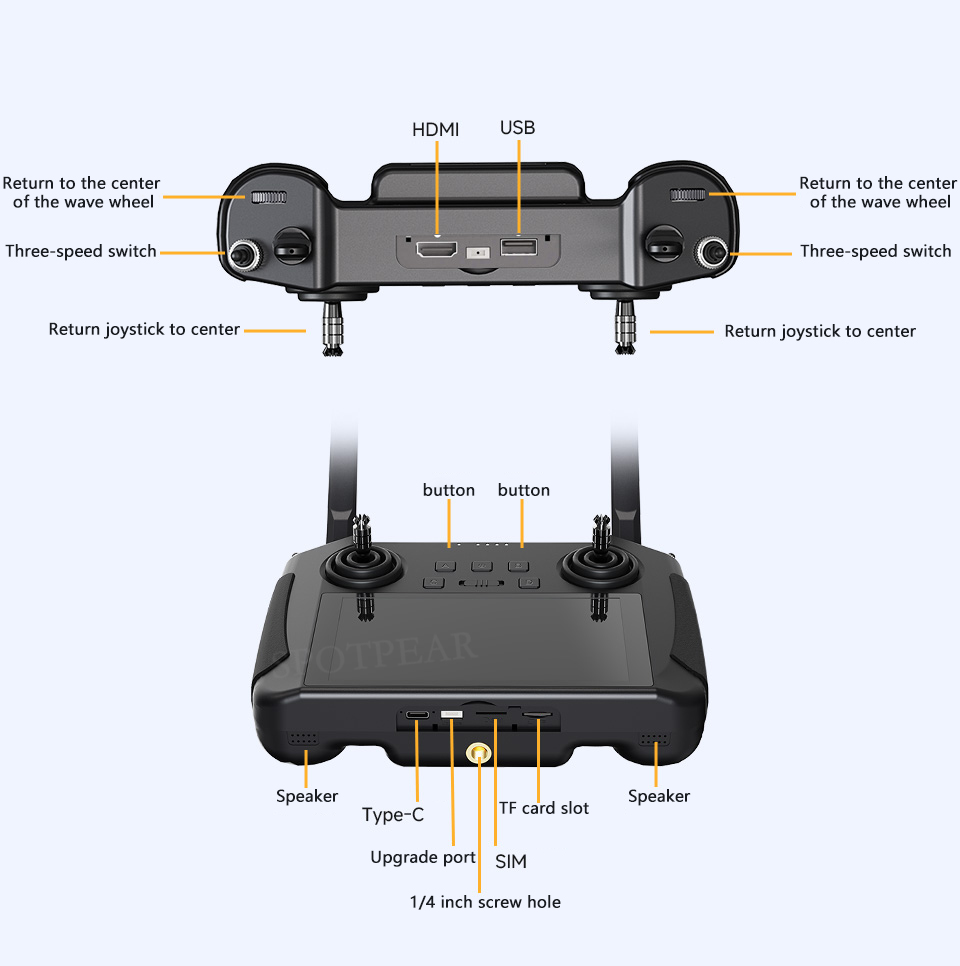

Interface Definition

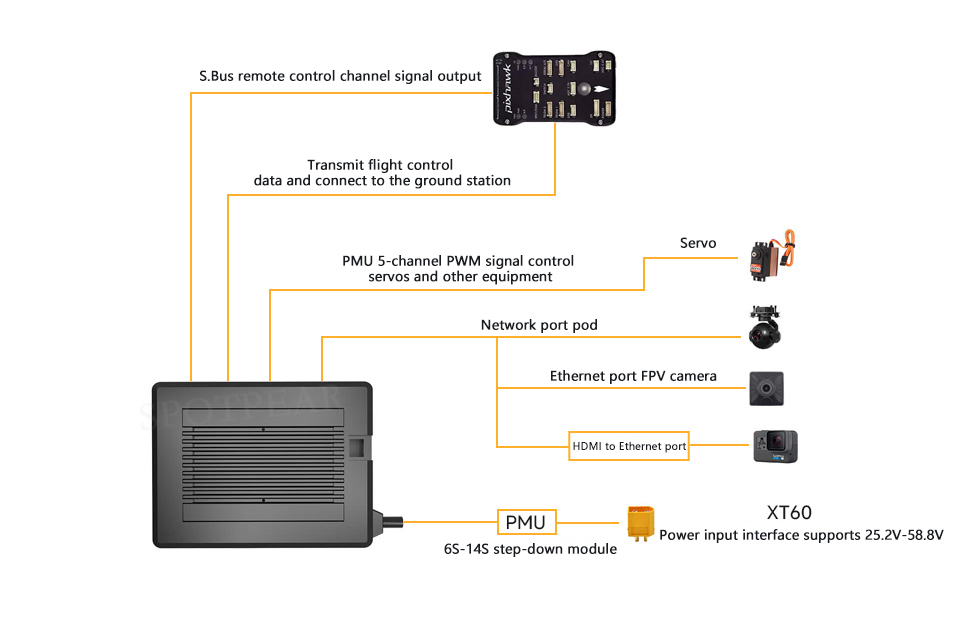

Interface Definition For Data Stream Connection

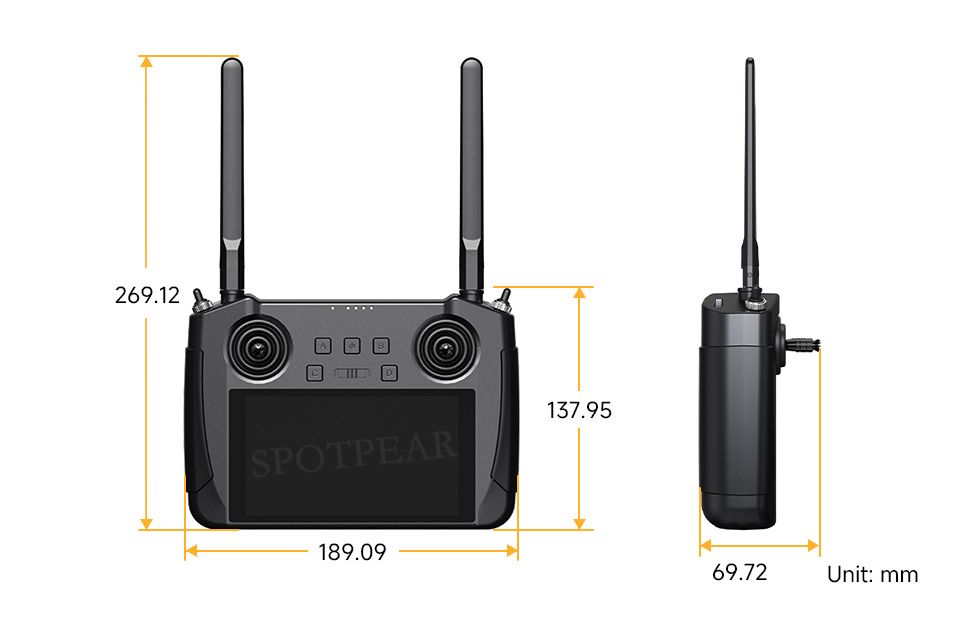

Outline Dimensions
