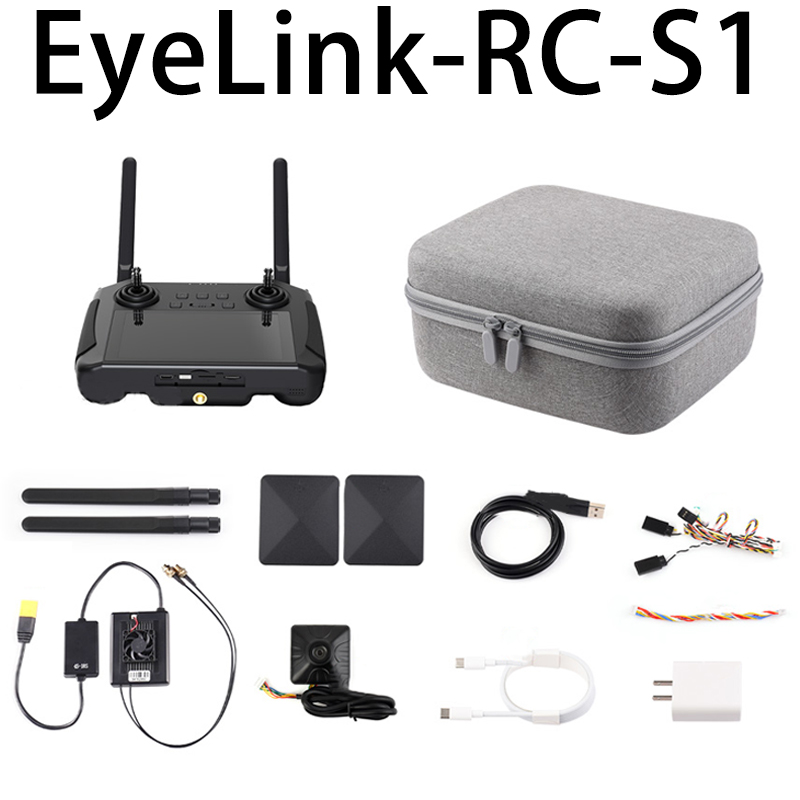

EyeLink-RC-S1 Industrial Edition 5.5 inch Touchscreen Camera R1M Card Recording Flight Controller FPV Drone ground station image transmission remote

$599

Brand:SpotPear
SKU:021006900000
Date:2025-10-10 15:33
Part Number:
No:
In Stock

EyeLink-RC-S1 Industrial Edition Lightweight handheld ground station with an octa-core CPU, an onboard 5.5-inch 1080P touchscreen, and an R1M card-based HD camera. Supports external HD cameras.

EyeLink-RC-S1 Industrial

Lightweight handheld ground station



Product Parameters

Overall performance
Maximum communication distance
(No interference, no obstruction)
15KM
aislePhysical channels: 13
Communication channels: 16
Data transmission supports flight controlOpen source flight control PIX, APM, etc.
BoYing Paladin v2
JIYI K3A Pro / K++
Microfly V7AG
Image transmission supports ground stationQGroundControl
MissionPlanner
IFLY / Fly Defense Manager
Boying Agriculture
Microfly V7Pro Ground Station
Ground terminal
Display devices5.5-inch 1080P high-definition high-brightness LCD touch screen
System ConfigurationAndroid 9.0, 2G RAM, 16G storage
size
(Antenna retracted)
189.09 × 137.95 × 69.72 (mm)
weight850g
Battery capacity and type10200mAh, 7.4V 2S lithium-ion battery
Fast charging protocolPD 20W
Charging time5h (20W fast charge)
Operation endurance13h
Functional InterfaceCharging: Type-C
Firmware upgrade: DATA (4PIN)
Mobile network: SIM card slot
External storage: TF card slot
Tripod mount: 1/4 threaded hole
Video output: Standard HDMI
External RTK: DATA (4-pin)
External USB flash drive: USB-A
Waterproof gradeIP53
Working temperature-10℃ ~ 55℃
Sky System
Signal output16-channel S.Bus
5-channel PWM
Functional InterfaceS.Bus:3PIN
Data transmission (connecting to flight controller): UART 4PIN
PWM channels 1-5: 6-pin
Video input: 8PIN
Firmware upgrade: Type-C
size
(without antenna)
70 × 55 × 16 (mm)
(Including fan height)
weight
(without antenna)
100g (including step-down module)
Antenna gain5dBi
Operating voltage25.2V ~ 58.8V (6S ~ 14S)
Working temperature-10℃ ~ 55℃
R1M Card Recording FPV Camera
Video output interfaceEthernet port
Image sensor1/2.9 inch
Pixel2 megapixels
Camera perspectiveDiagonal: 90°
Horizontal: 80°
Operating voltage12V
Power consumption2.5W
Video recording resolution1080p (1920 × 1080) @30fps
720p (1280 × 720) @30fps
Video recording bitrate12Mbps
Video file formatsMP4
Supported memory card typesMicro SD Class10,Up to 32GB
Storage formatFAT32
size42 × 42 × 25 (mm)
weight23g
Working temperature-10℃ ~ 50℃

15KM wireless digital image transmission

Dual-channel full HD video real-time display

The system is based on independently developed wireless HD image transmission technology, combining remote control, data, and image transmission. It features adaptive frequency bands to effectively avoid interference and ensure stable transmission.

5.5-inch HD display

1000 nits high brightness display

The EyeLink-RC-S1 lightweight handheld ground station features a 5.5-inch high-definition, high-brightness display with a maximum brightness of 1000 nits (cd/㎡). Even in direct sunlight, it clearly displays ground station information and high-definition image transmission.

Octa-core CPU for high-speed computing

The EyeLink-RC-S1 handheld ground station is equipped with a Qualcomm octa-core high-performance CPU, which can easily decode H.264/H.265 and 1080P 60fps video streams and run various ground station software at high speed.

Equipped With HD Camera

Equipped With An R1M Recording HD Camera, Plug-And-Play, Enabling Real-Time Image Capture With A Wider And Clearer Field Of View

Provides Open-Source Demos For Controlling Various Robots

The Remote Control Receiver Can Be Connected To The General Driver For Robots, We Provide S.Bus Data Parsing Demo For Efficient Secondary Development


Interface Definition


Interface Definition For Data Stream Connection


Outline Dimensions
