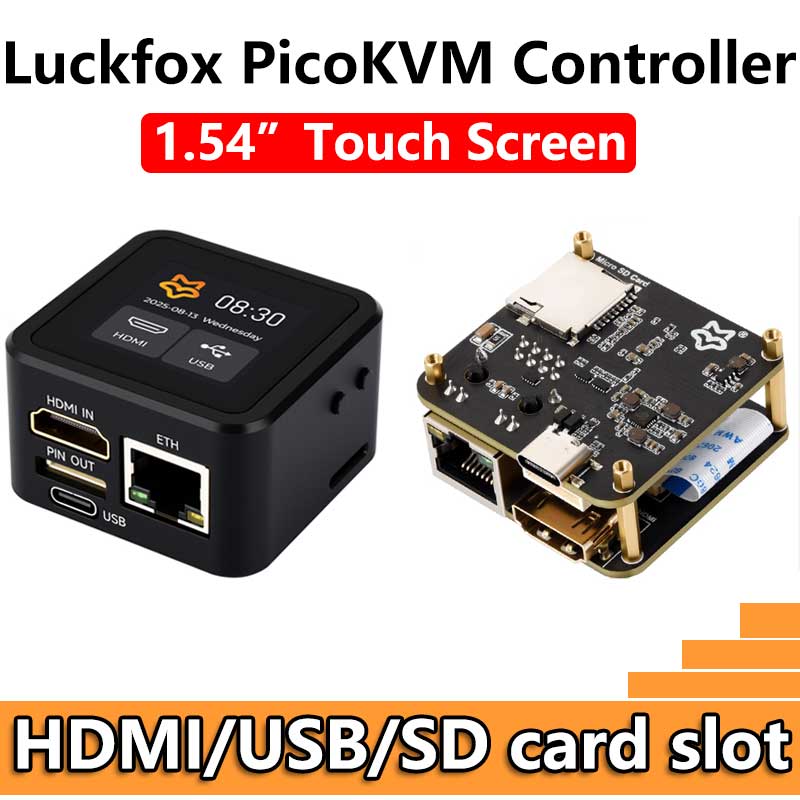

Luckfox PicoKVM KVM NanoKVM RV1106 Pico Remote Control /Power /Desktop Maintenance Server HDMI USB For PiKVM Raspberry Pi
$58.9
Luckfox PicoKVM is a lightweight IP KVM operation and maintenance tool that supports 1920 × 1080@60fps HDMI video input and output HID signal control devices.
KVM Recommend
Luckfox Pico Recommend

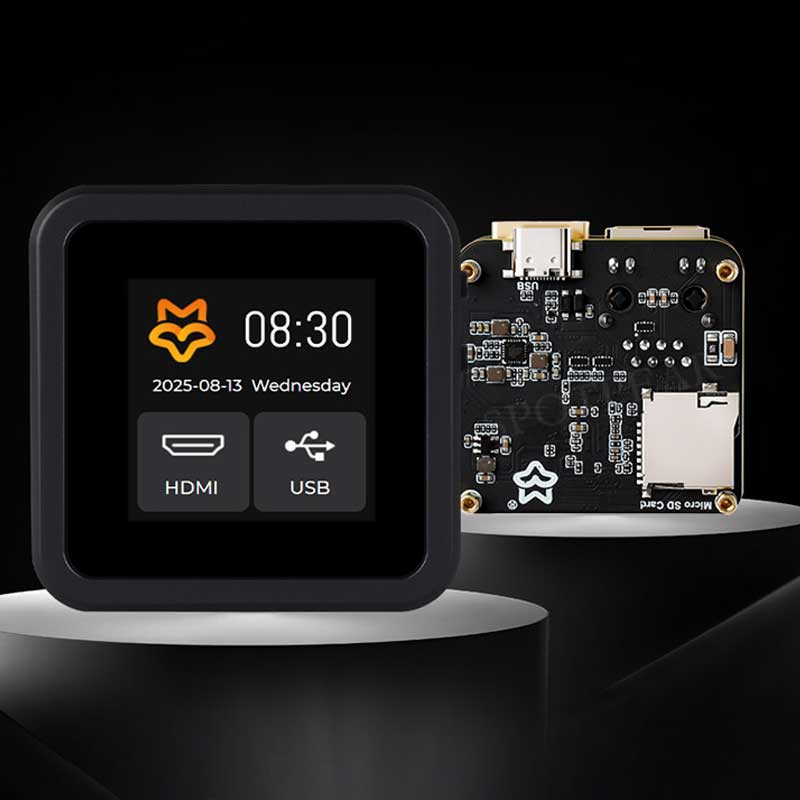

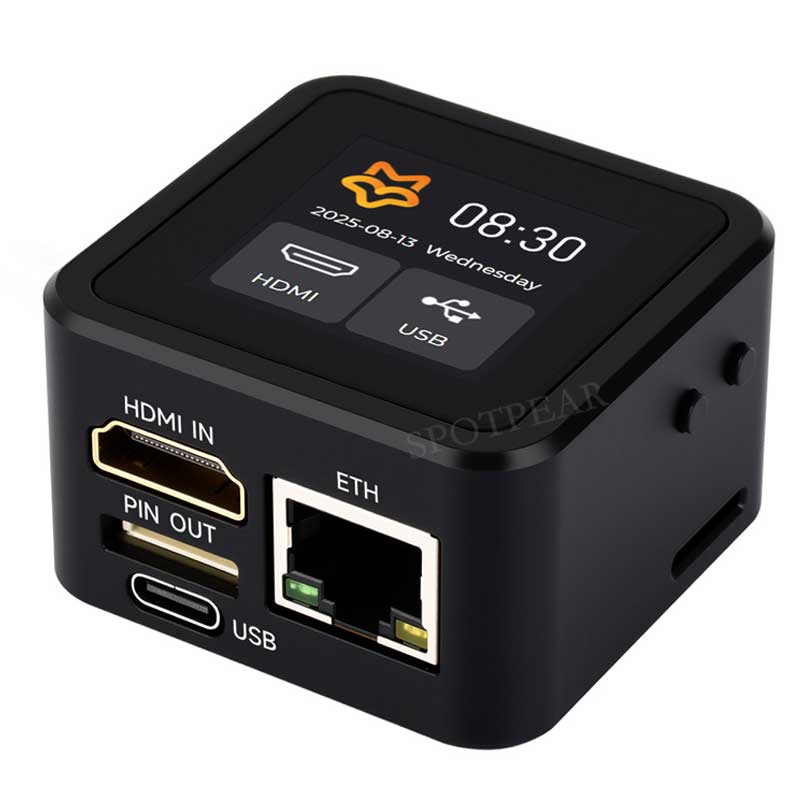

Luckfox PicoKVM

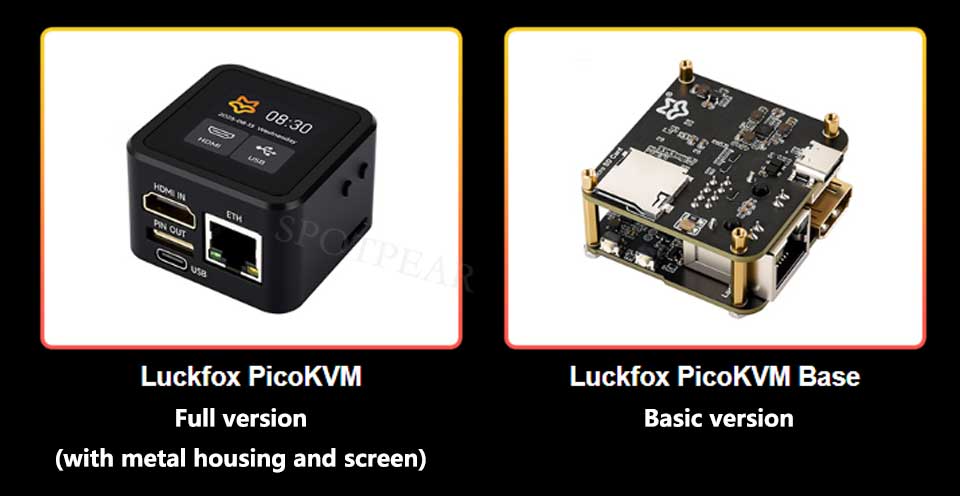

Optional version
Product Introduction

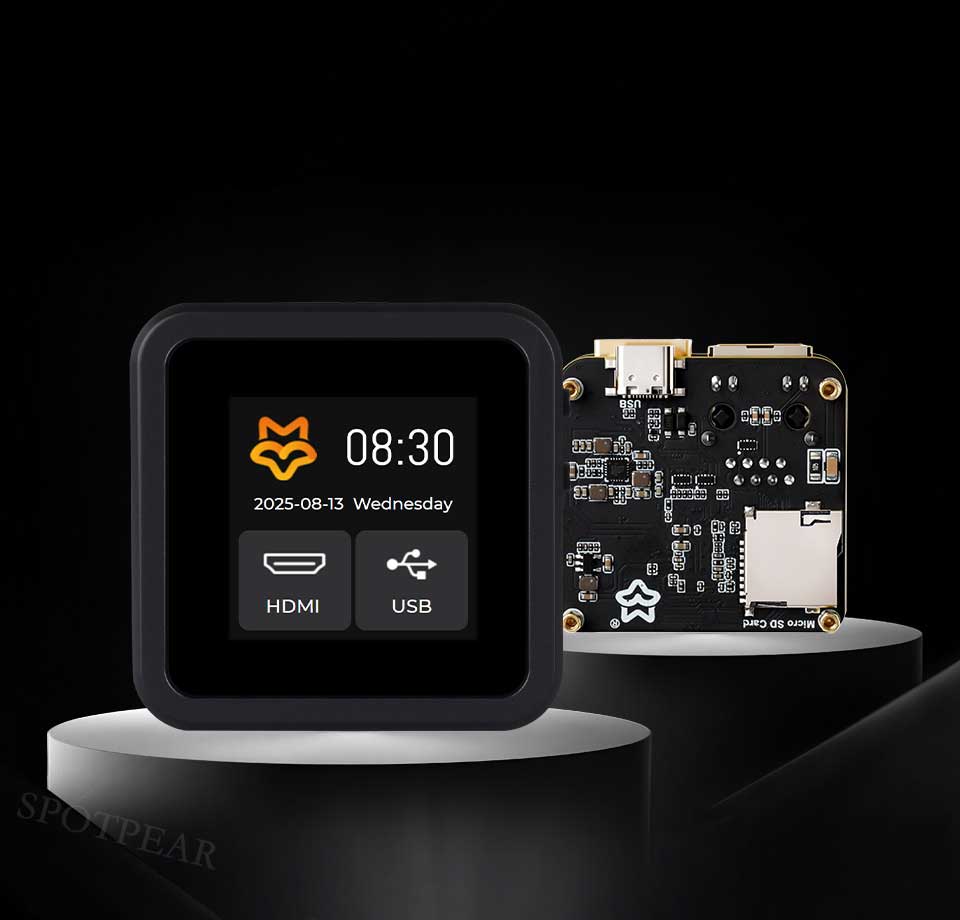

Luckfox PicoKVM is a lightweight IP KVM operation and maintenance tool that supports remote access to target device images and simulates HID input over the network, enabling contactless operation and maintenance of systems such as development boards, computers, and servers. This product offers stable, low-latency video capture and remote control capabilities, making it widely applicable in scenarios such as remote computer control and server maintenance.
Main features：
- Onboard HDMI input interface: can be recognized by the computer as a monitor to achieve screen capture
- Onboard USB interface: supports mouse, keyboard and USB device simulation
- Onboard 100Mbps Ethernet interface: used for video and control signal transmission
- 1.54-inch touch screen: displays IP, connection status and system operation status
- Micro SD card slot: supports storage expansion
- IO expansion interface: can be used to control the host power on and off
Functional support
| product | Luckfox PicoKVM |
|---|---|
| Master | RV1106G3 |
| core | 1 × A7@1.2G |
| Memory | 256M DDR3 |
| harddisk | 8G eMMC |
| system | PicoKVM |
| Resolution | 1080P@60fps |
| Video Encoding | H264 |
| Video Delay | 80ms ~ 200ms |
| Audio transmission | √ |
| UEFI / BIOS support | √ |
| Emulate USB keyboard and mouse | √ |
| Emulating USB storage | √ |
| UEFI / BIOS range | √ |
| Wake-on-LAN (WOL) | √ |
| Web Terminal | √ |
| Custom Scripts | √ |
| Serial Terminal | 1 channel |
| Storage Expansion | Micro SD card |
| Power Control | GPIO Control |
| Ethernet | 100Mbps |
| LCD display | 1.54-inch 240 × 240 resolution touchscreen (full version only) |
| Power input | Type-C |

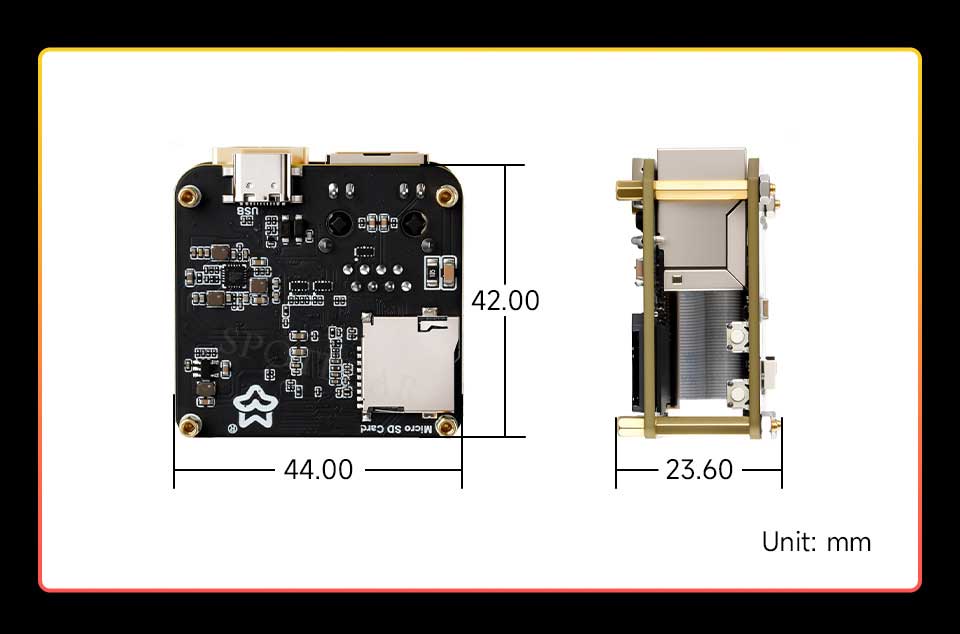

| size | Full version：48.50 × 48.50 × 29.00 (mm) |

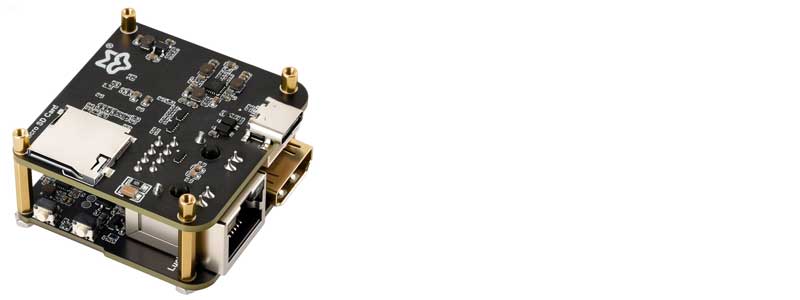

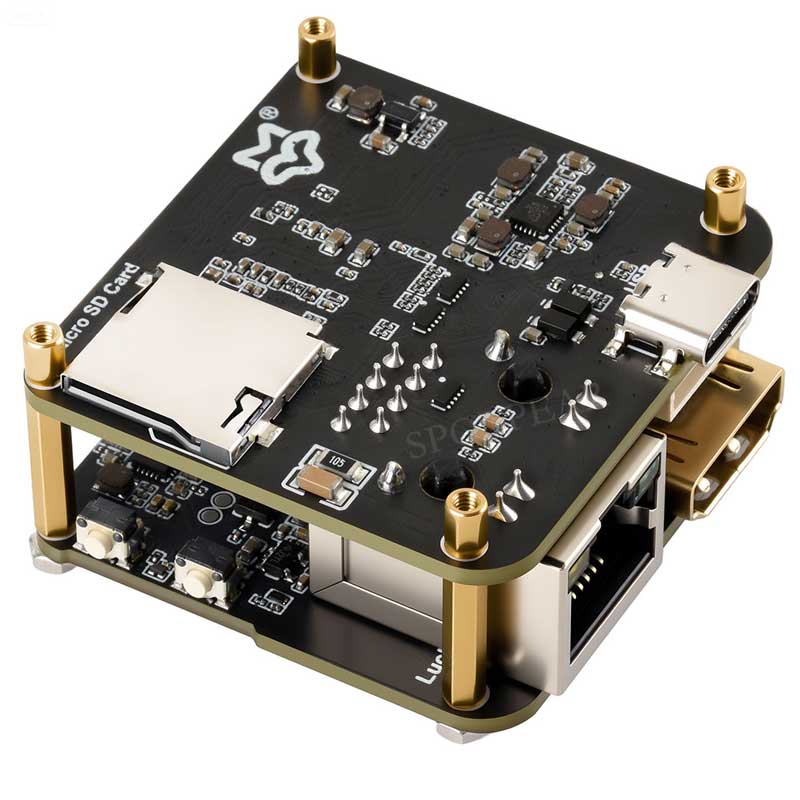

| Basic Edition：44.00 × 42.00 × 23.60 (mm) |
Remote control software comparison
The pictures are for display only. This product does not include the above motherboard or host.
Functional Demonstration

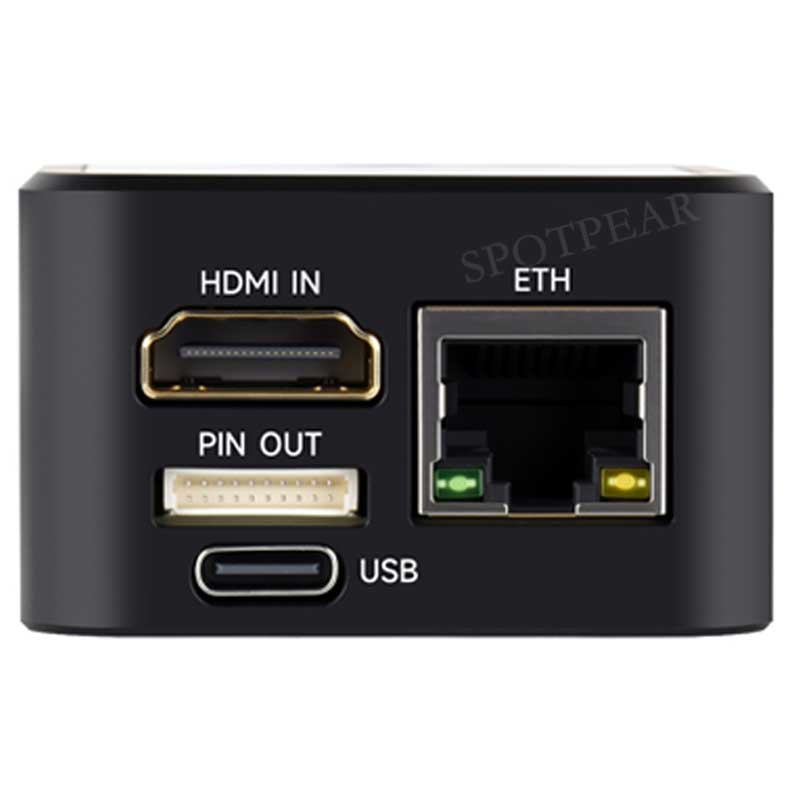

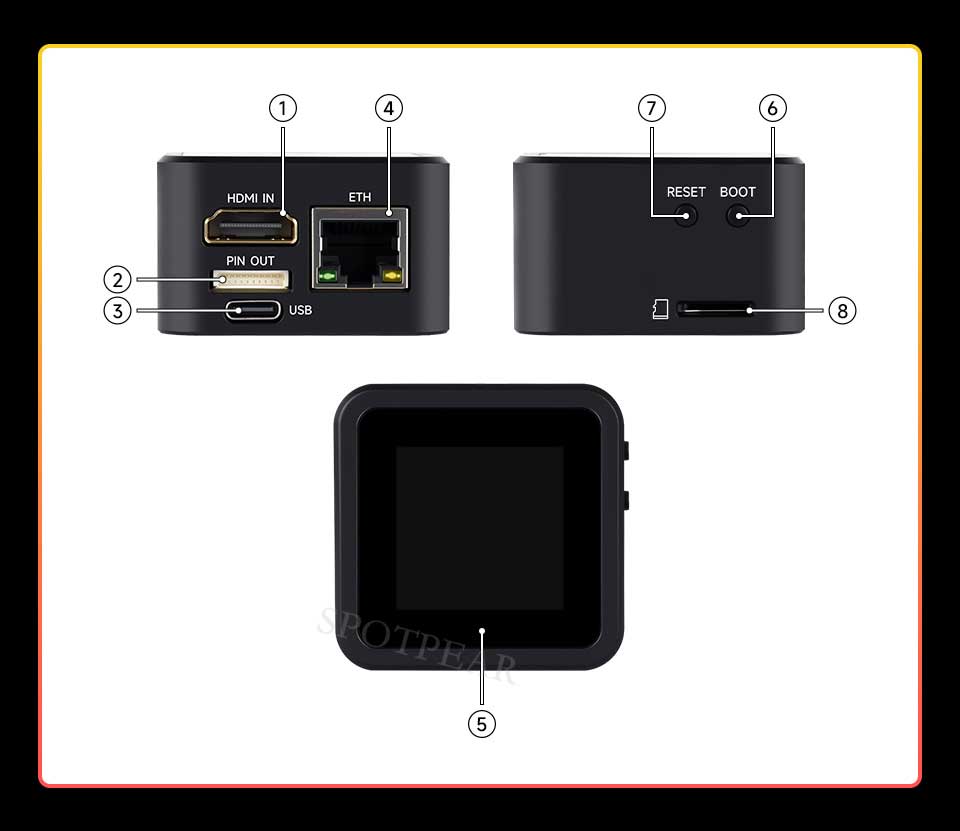

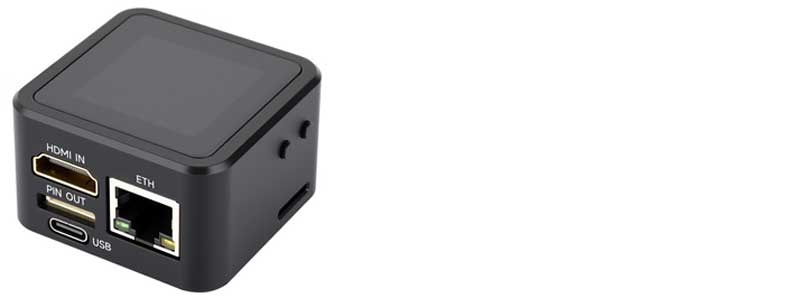

Resource Introduction
- HDMI IN port
Connect to the HDMI output interface of the controlled host

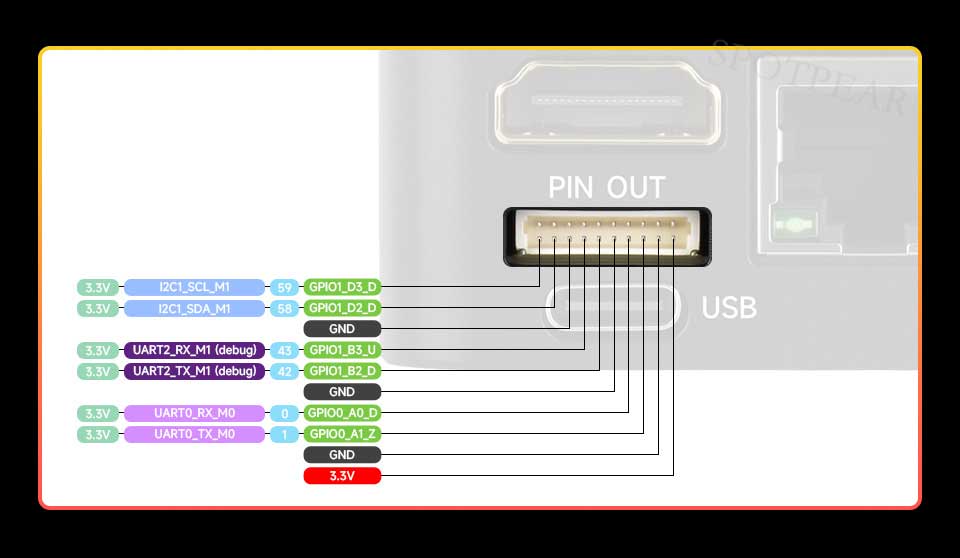

- IO expansion interface
- USB Type-C port
Used for power supply, emulation of HID/UMS devices and program burning
- 10/100Mbps RJ45 network port with indicator light

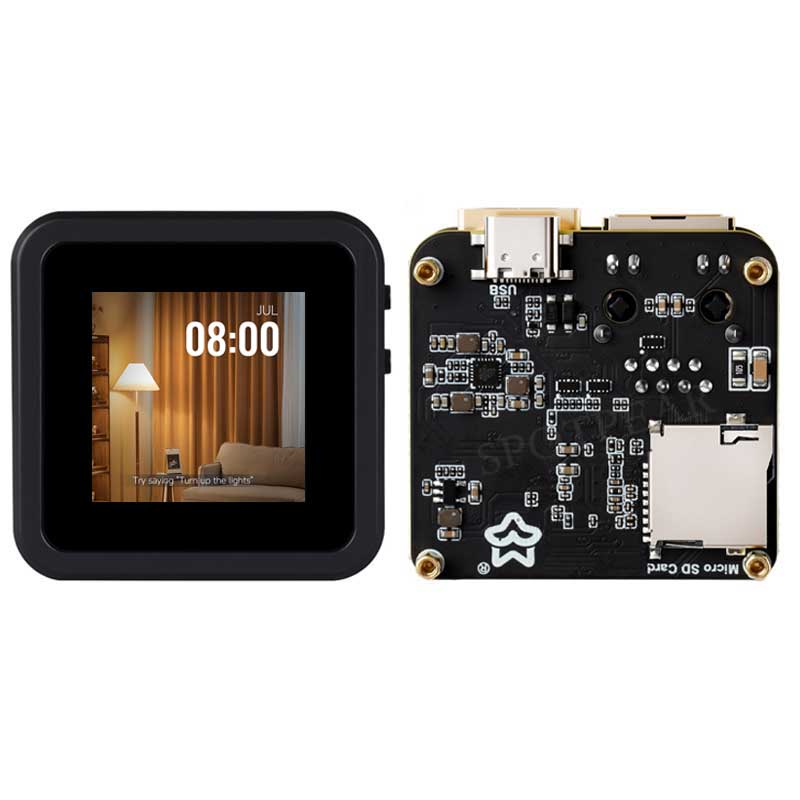

- 1.54-inch touch LCD
- BOOT button
Press when powering on or resetting to enter download mode
- RESET button
- Micro SD card slot
