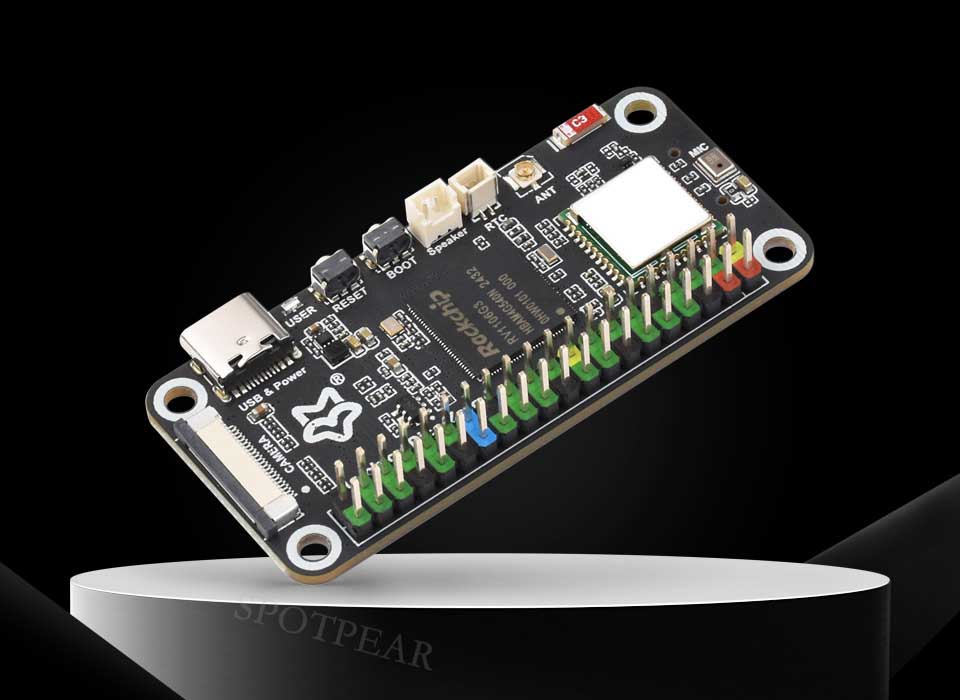

Luckfox Pico Zero
This product is a cost-effective Linux development board based on the Rockchip RV1106G3 chip, designed to provide developers with a simple and efficient development platform. It supports multiple interfaces, including MIPI CSI, GPIO, UART, SPI, I2C, and USB, and is equipped with a wireless module, making it suitable for a variety of embedded application scenarios.。

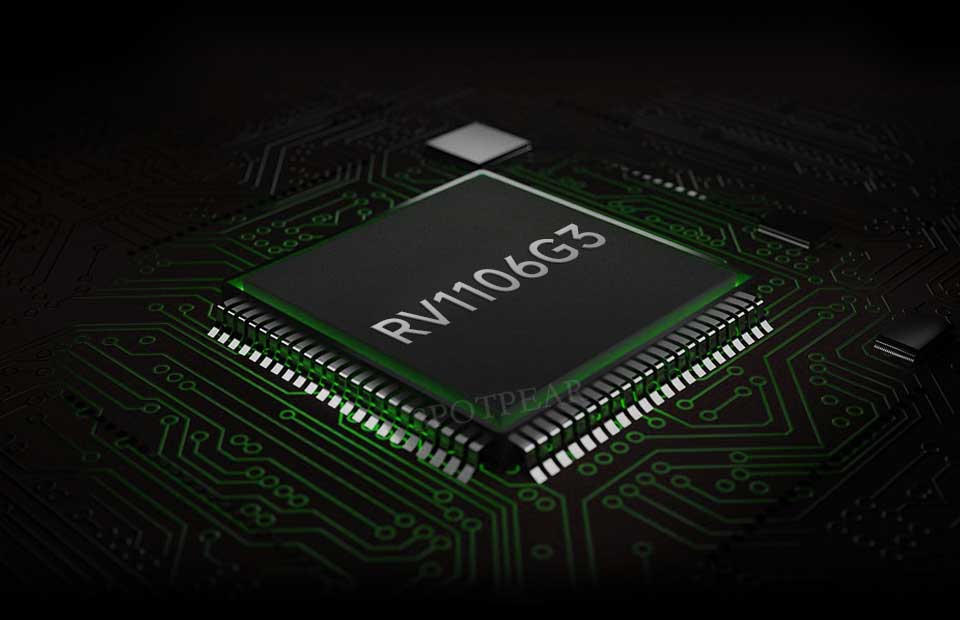

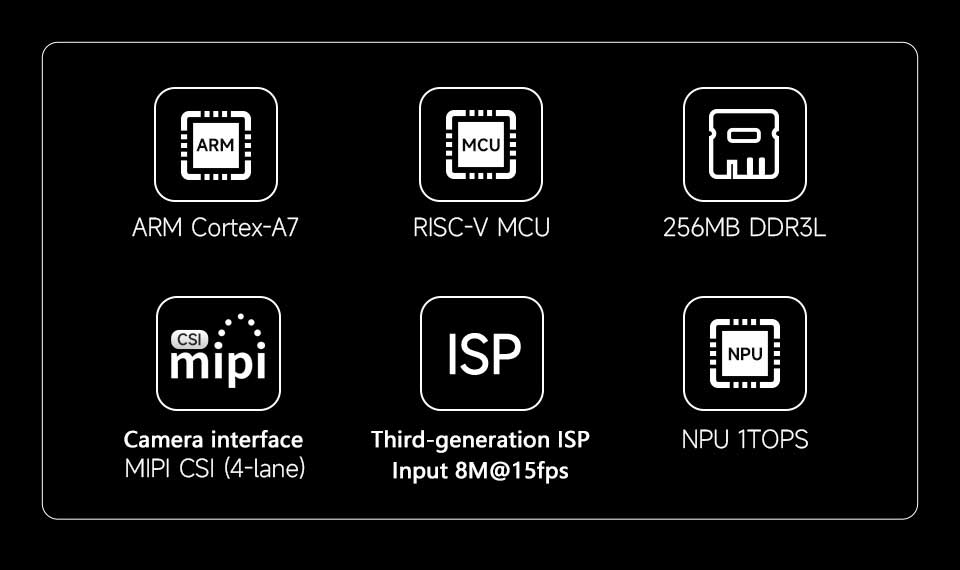

Highly integrated, powerful performance
- Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
- The RV1106G3 is equipped with Rockchip's 4th-generation NPU, which offers high precision and supports mixed quantization of int4, int8, and int16. The int8 computing power is 1 TOPS.
- Built-in self-developed third-generation ISP3.2, supports 8 million pixels, and supports multiple image enhancement and correction algorithms such as HDR, WDR and multi-level noise reduction
- It has powerful encoding performance and supports intelligent encoding. It can save bitrate according to the scene, saving more than 50% bitrate compared with the conventional CBR mode. It can not only shoot high-definition pictures, but also make the video smaller.
- Built-in 16-bit 256MB DRAM DDR3L to meet demanding memory bandwidth requirements

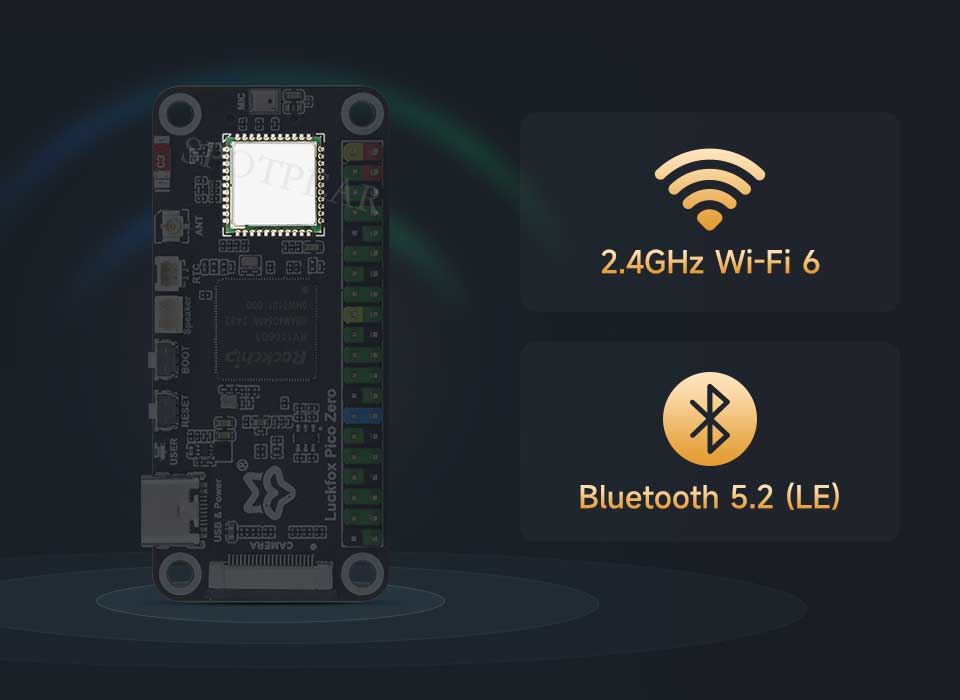

Wi-Fi 6 and Bluetooth modules
Onboard 2.4GHz Wi-Fi 6 and Bluetooth 5.2 (LE) modules for stable connection and efficient transmission

Antenna switching
Flexible switching between external antenna and onboard patch antenna to meet various usage scenarios

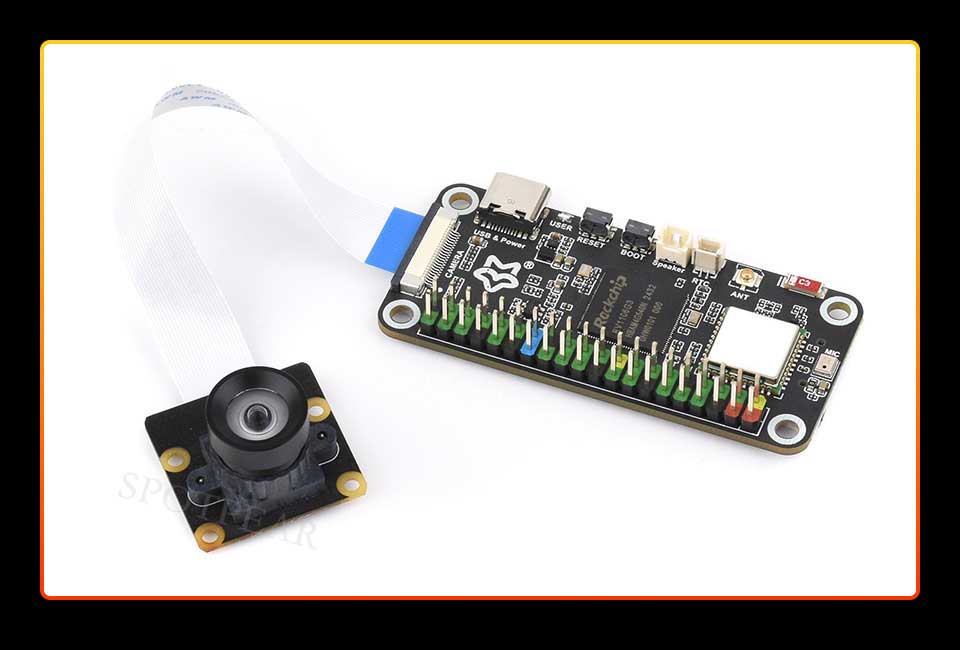

MIPI CSI 4-lane interface
Consists of two MIPI-CSI (2-lane)

The camera resolution shown is 1280 × 1080.
It supports up to 3840 × 2160 (8MB) @15FPS input.
Images are for illustration purposes only. Please refer to the configuration list for detailed configuration.

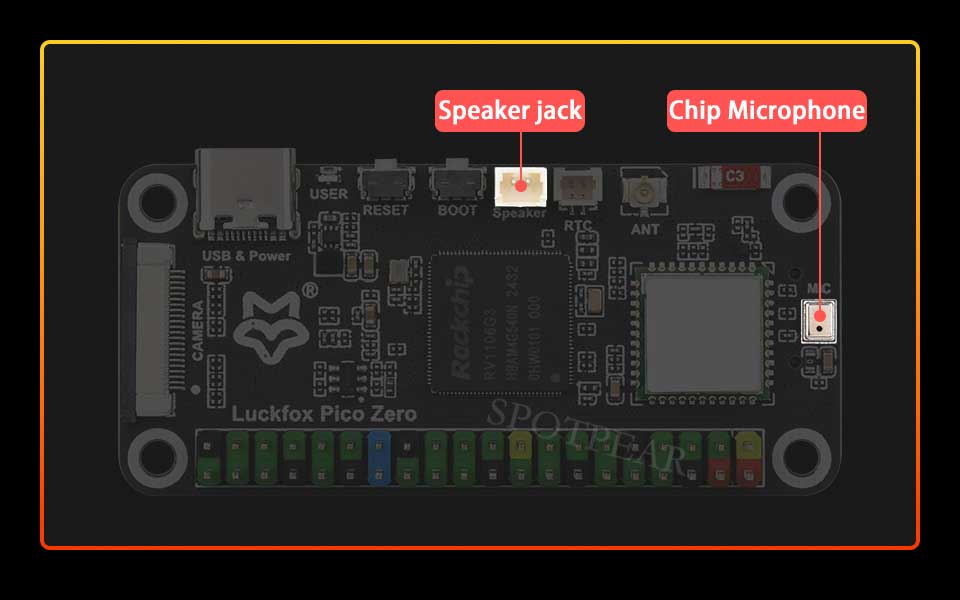

Audio Interface
Chip microphone + speaker interface
Meet audio application scenarios

Applicable to more application scenarios

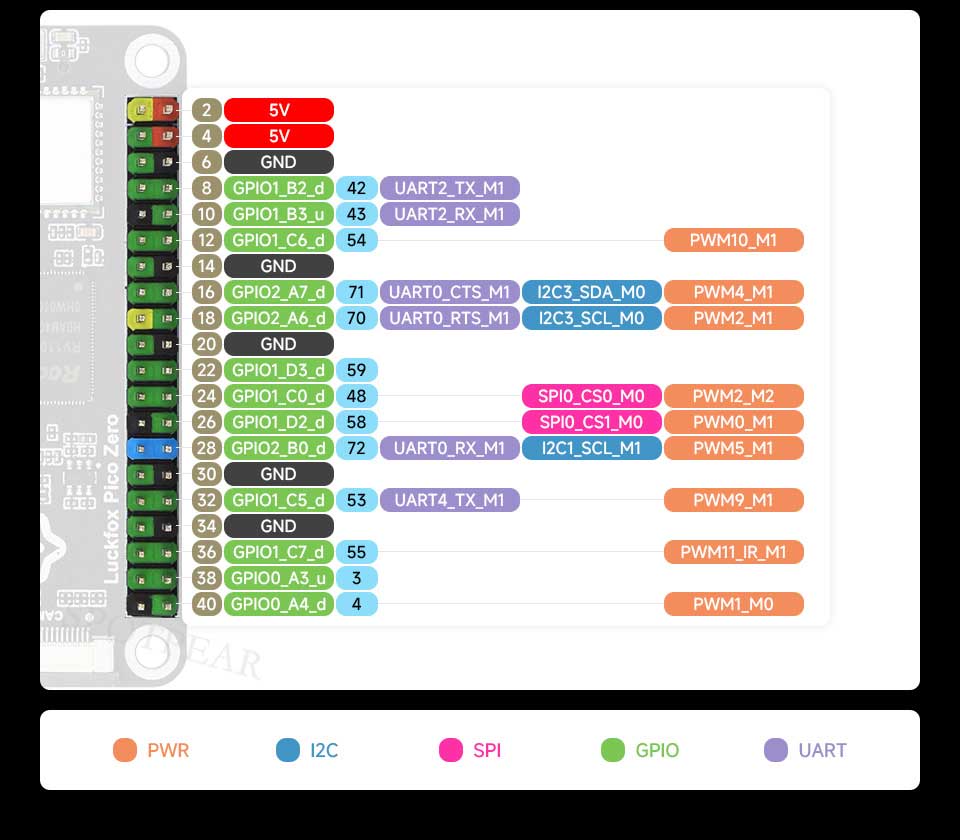

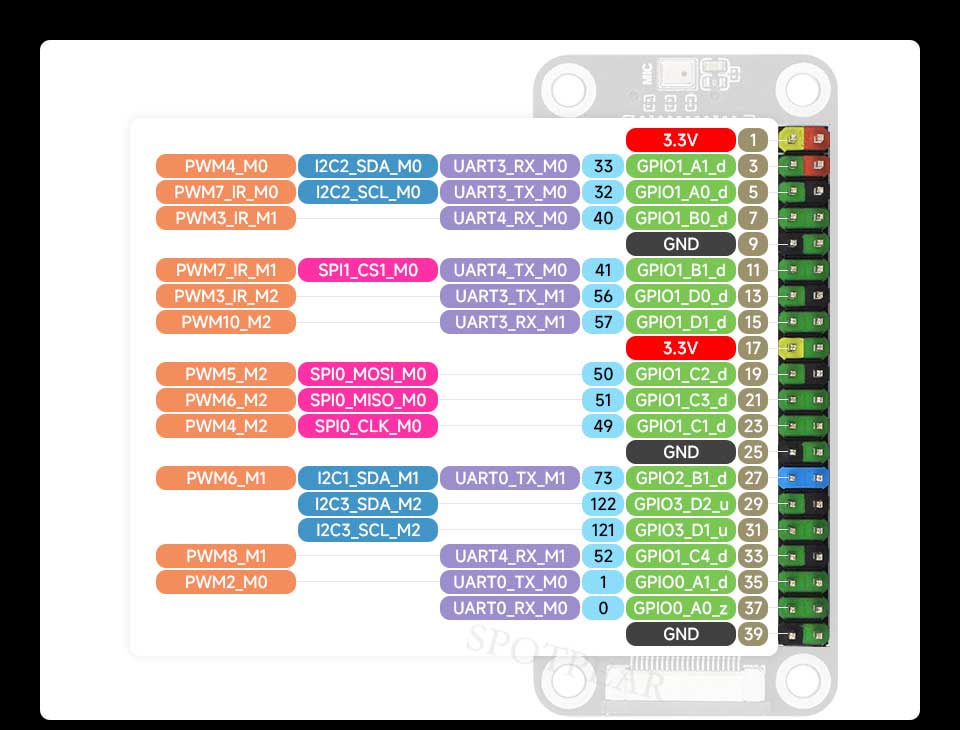

Pin Definition

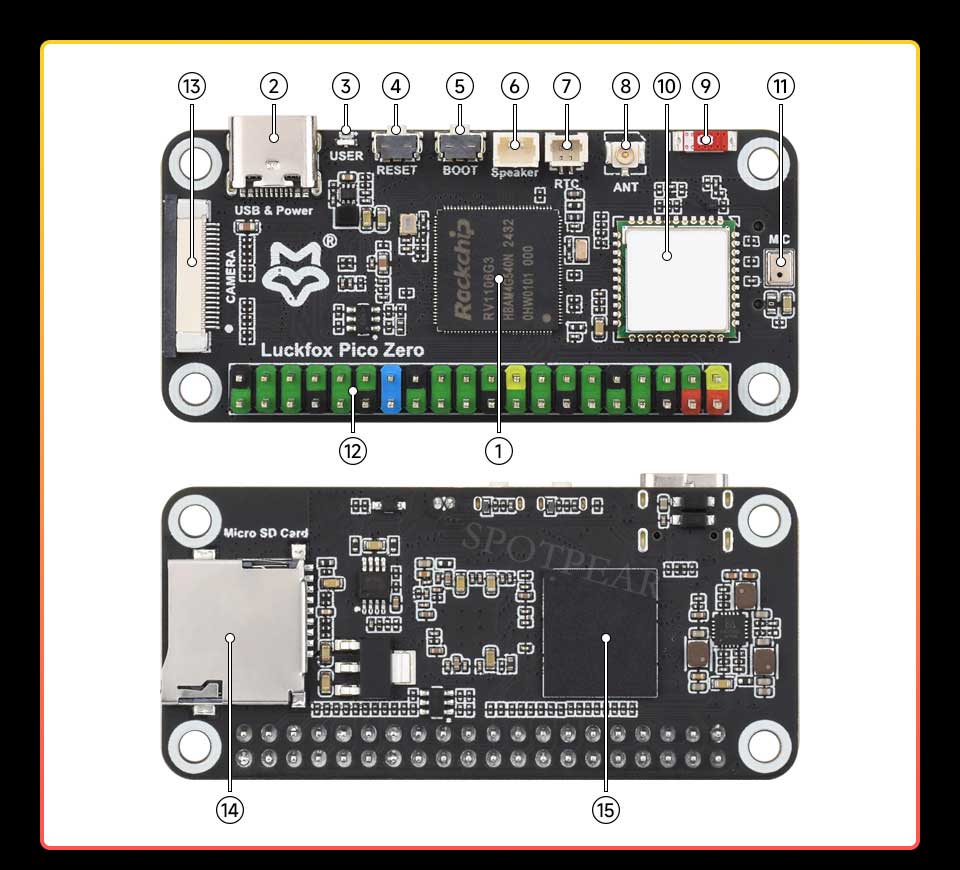

Resource Introduction

- RV1106G3
Vision processor SoC with built-in ARM Cortex-A7 core
- USB-C port
Can be used for power supply and program burning
- USER_LED
The default image is used to indicate the system operation status
- RESET button
- BOOT button
Press when powering on or resetting to enter download mode
- Speaker jack
MX1.25 2P connector, supports 8Ω 1W speakers
- RTC socket
- Antenna interface
- Patch antenna
- Wi-Fi / BT module
2.4GHz Wi-Fi 6 / Bluetooth 5.2 (LE) module
- Chip Microphone
- 40-pin GPIO interface
Compatible with some Raspberry Pi HAT expansion boards
- Camera interface
MIPI CSI (4-lane)
- Micro SD card slot
Only supports storage expansion
- 8GB eMMC

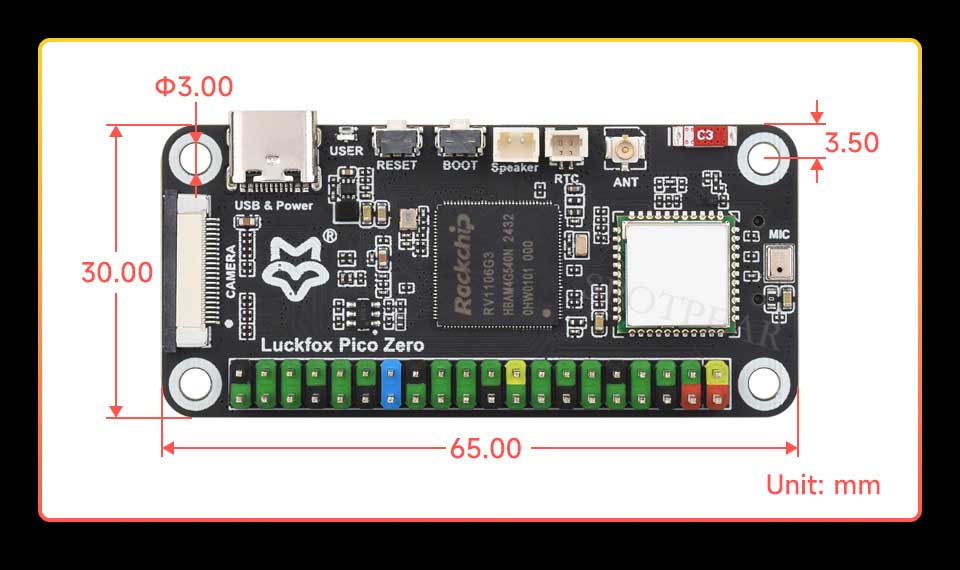

Product size
