Luckfox Pico Zero RV1106G3 SD WiFi6 Audio eMMC-8G RAM-256MB

$16.9

Brand:Luckfox
SKU:01054700000
Date:2025-08-05 17:34
Part Number:
No:
In Stock

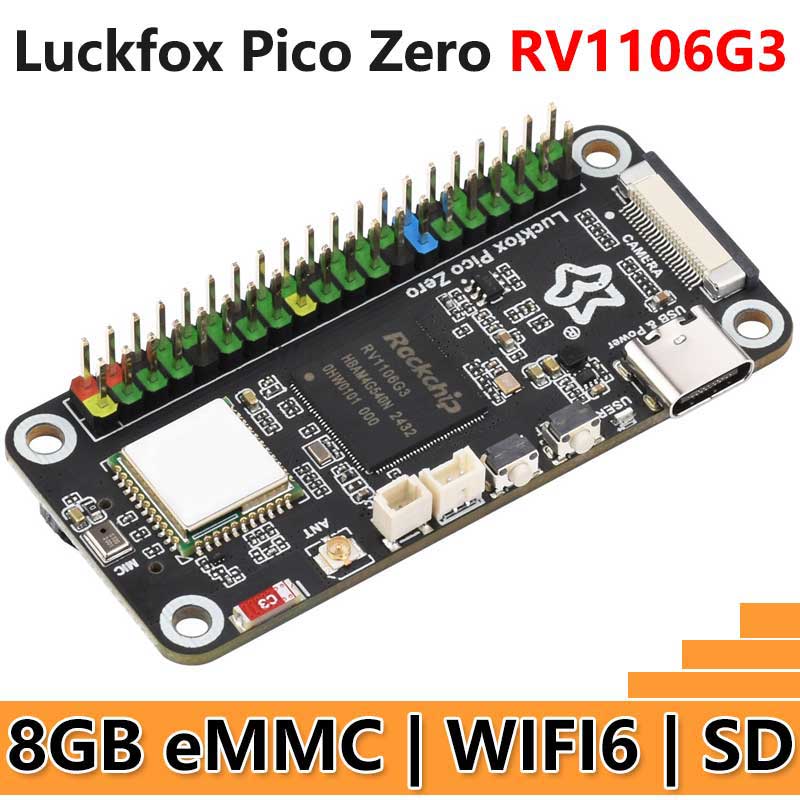

Luckfox Pico Zero RV1106G3 Mini 1TOPS Linux Development Board with 8GB eMMC and Wireless Module

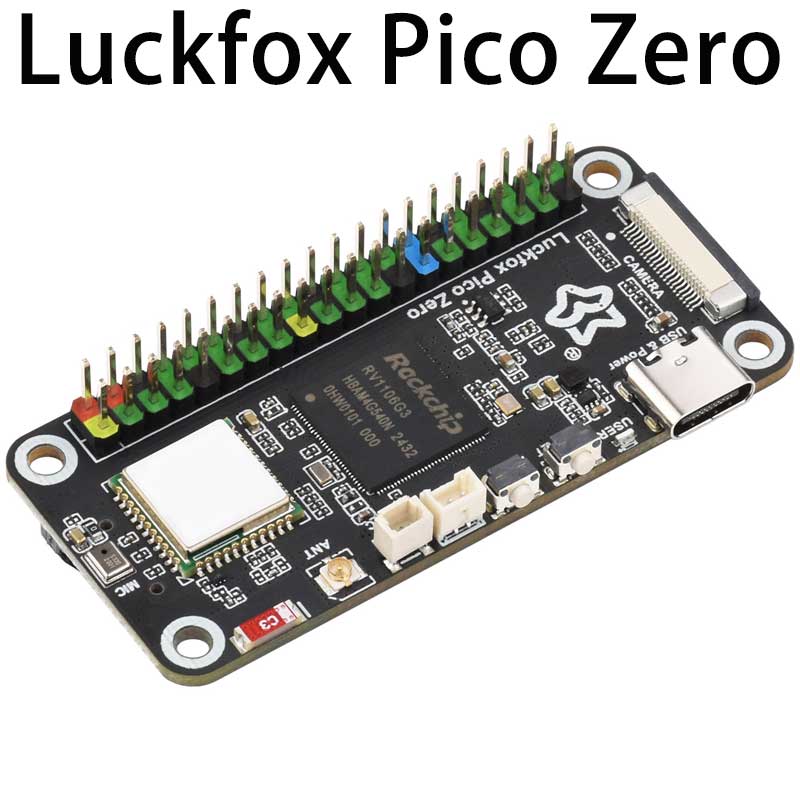

Luckfox Pico Zero

This product is a cost-effective Linux development board based on the Rockchip RV1106G3 chip, designed to provide developers with a simple and efficient development platform. It supports multiple interfaces, including MIPI CSI, GPIO, UART, SPI, I2C, and USB, and is equipped with a wireless module, making it suitable for a variety of embedded application scenarios.。


Highly integrated, powerful performance

  • Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
  • The RV1106G3 is equipped with Rockchip's 4th-generation NPU, which offers high precision and supports mixed quantization of int4, int8, and int16. The int8 computing power is 1 TOPS.
  • Built-in self-developed third-generation ISP3.2, supports 8 million pixels, and supports multiple image enhancement and correction algorithms such as HDR, WDR and multi-level noise reduction
  • It has powerful encoding performance and supports intelligent encoding. It can save bitrate according to the scene, saving more than 50% bitrate compared with the conventional CBR mode. It can not only shoot high-definition pictures, but also make the video smaller.
  • Built-in 16-bit 256MB DRAM DDR3L to meet demanding memory bandwidth requirements

Wi-Fi 6 and Bluetooth modules

Onboard 2.4GHz Wi-Fi 6 and Bluetooth 5.2 (LE) modules for stable connection and efficient transmission

Antenna switching

Flexible switching between external antenna and onboard patch antenna to meet various usage scenarios


MIPI CSI 4-lane interface

Consists of two MIPI-CSI (2-lane)

The camera resolution shown is 1280 × 1080.

It supports up to 3840 × 2160 (8MB) @15FPS input.

Images are for illustration purposes only. Please refer to the configuration list for detailed configuration.

Audio Interface

Chip microphone + speaker interface

Meet audio application scenarios

Applicable to more application scenarios


Pin Definition

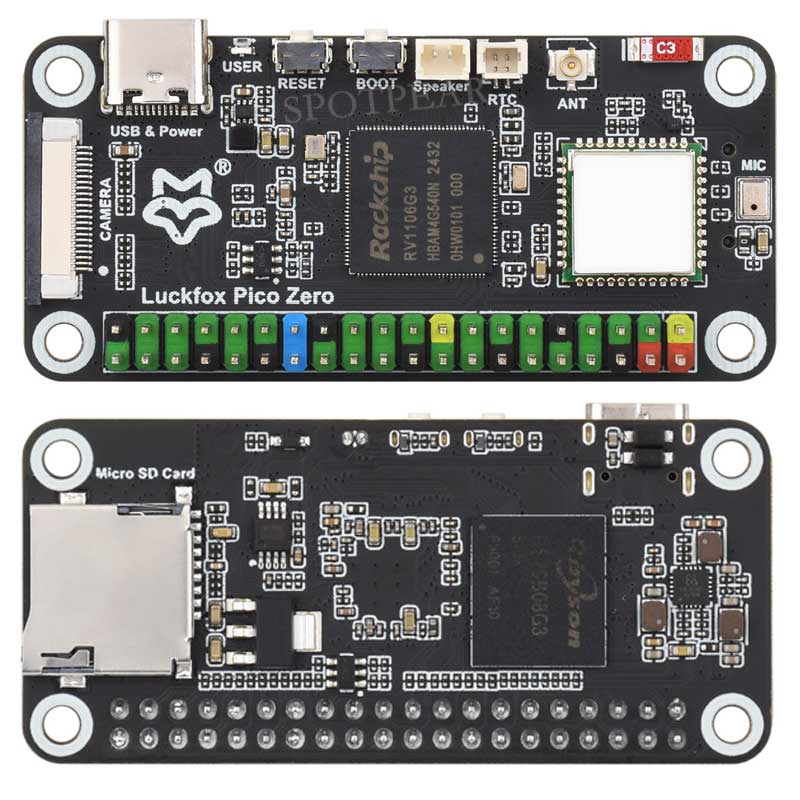

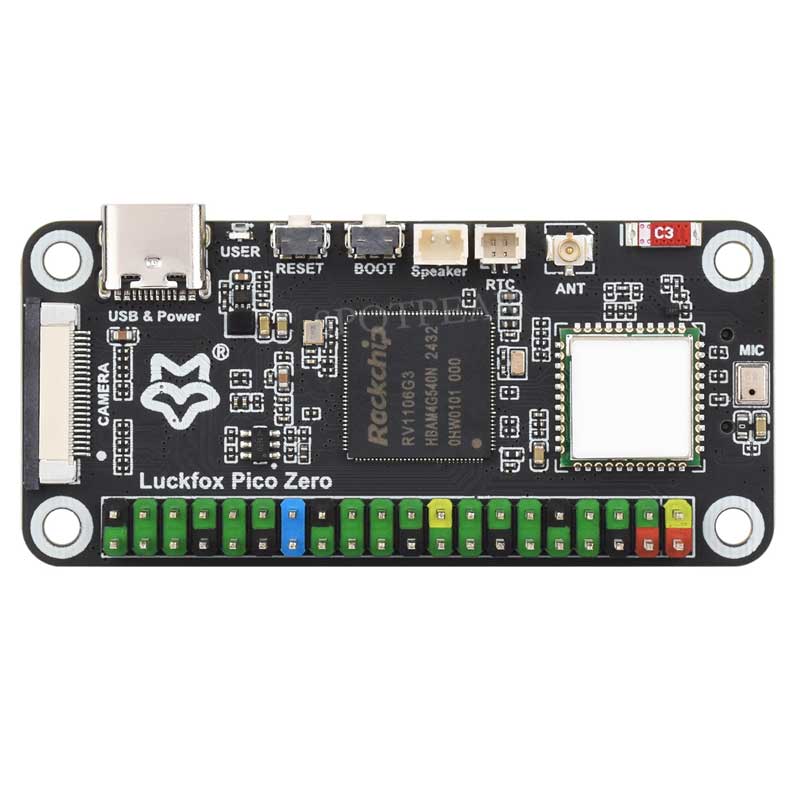

Resource Introduction


  1. RV1106G3

    Vision processor SoC with built-in ARM Cortex-A7 core

  2. USB-C port

    Can be used for power supply and program burning

  3. USER_LED

    The default image is used to indicate the system operation status

  4. RESET button

  5. BOOT button

    Press when powering on or resetting to enter download mode

  6. Speaker jack

    MX1.25 2P connector, supports 8Ω 1W speakers

  7. RTC socket

  8. Antenna interface

  1. Patch antenna

  2. Wi-Fi / BT module

    2.4GHz Wi-Fi 6 / Bluetooth 5.2 (LE) module

  3. Chip Microphone

  4. 40-pin GPIO interface

    Compatible with some Raspberry Pi HAT expansion boards

  5. Camera interface

    MIPI CSI (4-lane)

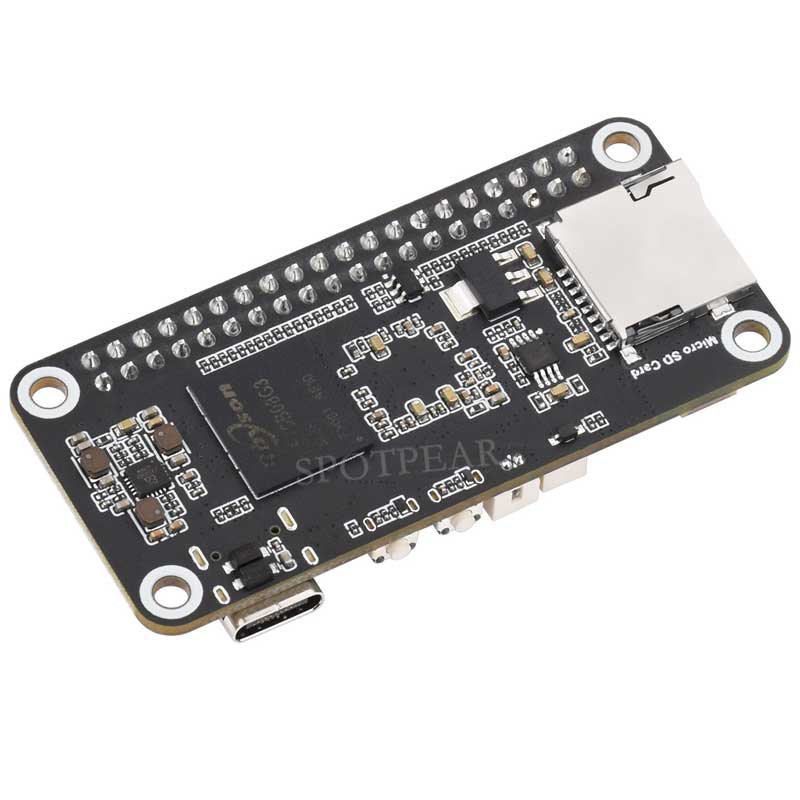

  6. Micro SD card slot

    Only supports storage expansion

  7. 8GB eMMC

Product size
