【Overview】

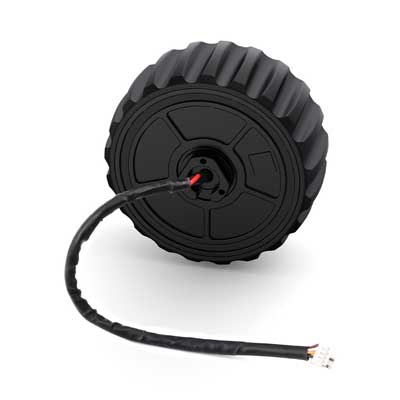

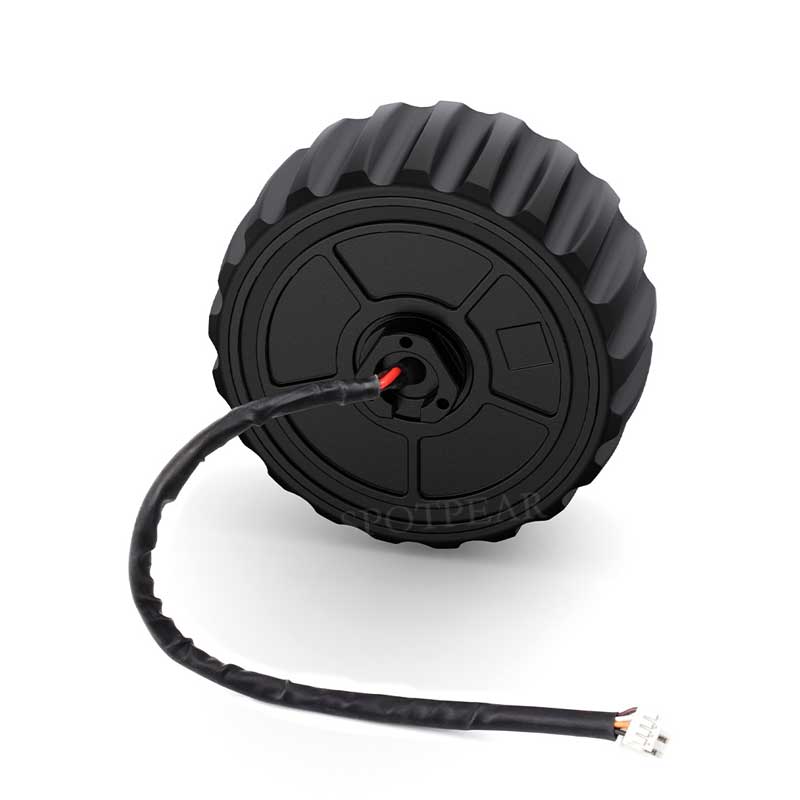

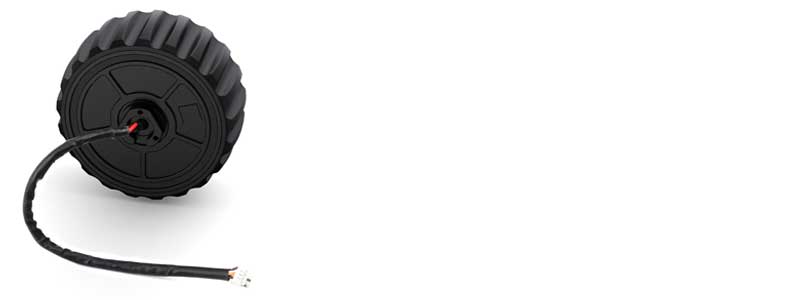

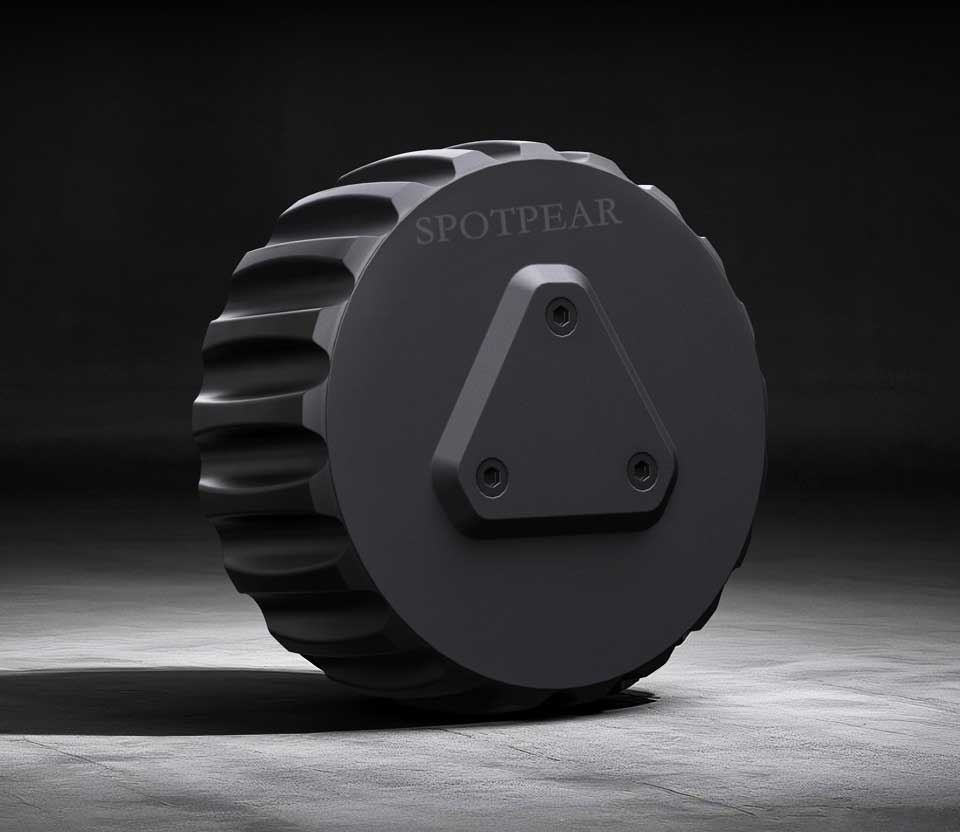

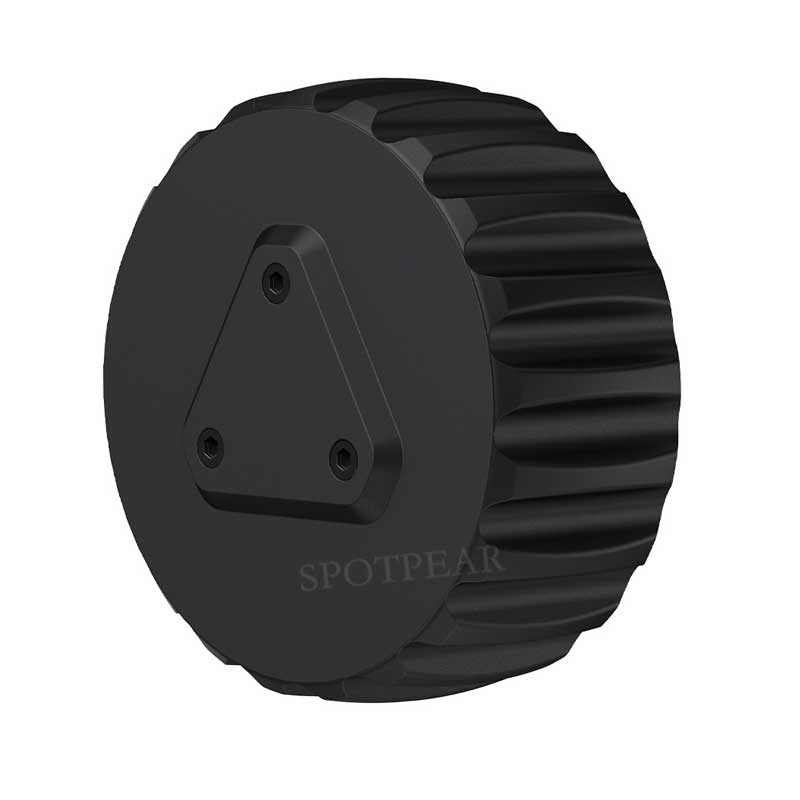

[] DDSM315 Direct Drive Servo Motor
[] Adopts Advanced Direct Drive Technology, Removes The Reducer In The Traditional Drive  Solution. Say Goodbye To The Shortcomings Of Expensive, Noisy, Inefficient And Bulky

【All-In-One Robot Joint】
[] Based On The Integrated Development Concept, DDSM400 Is A High-Reliability Permanent Magnet Synchronous Motor (PMSM) Integrating Outer Rotor Brushless Motor, Encoder And Servo

【Features At A Glance】
[] Ultra low noise

[] High precision and zero-backlash

[] Fast response, direct drive without delay

[] Integrated motor and driver, compact structure and high integration

[] Supports RS485 bus communication

[] Supports obtaining motor feedback information through communication such as position, speed, current, error code, etc.

[] With Hall position detection, over-current protection, etc.

[] Supports electric brake

[] No drive mechanical friction, drive efficiency close to 99.99%

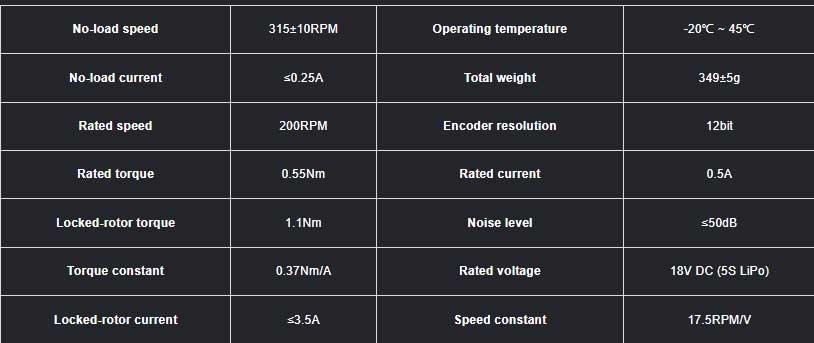

【Specifications】

Note: The above parameters were measured at the rated voltage of 18V DC.

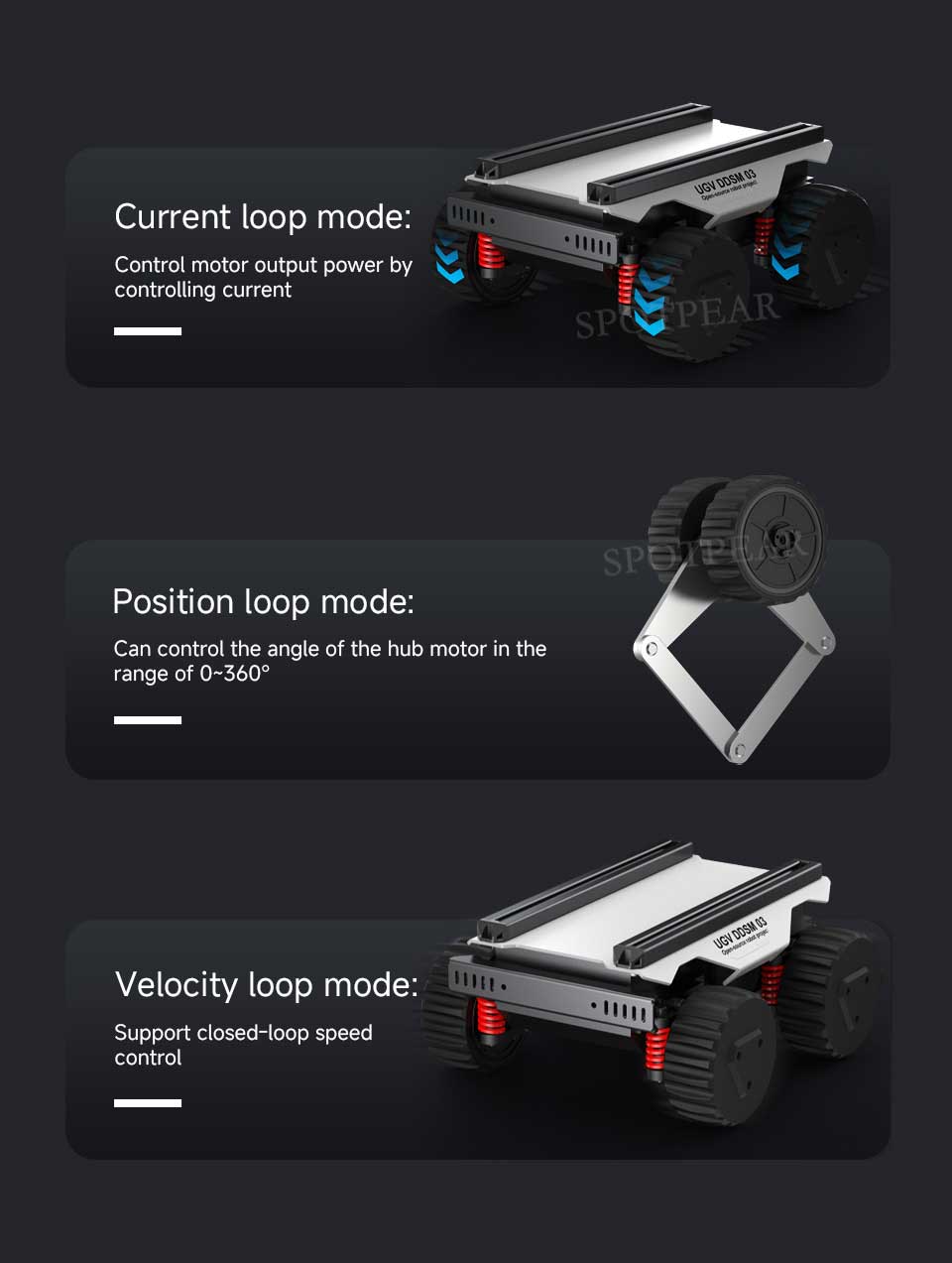

【Multiple Operating Modes】
[] Current Loop Mode, Position Loop Mode, Velocity Loop Mode

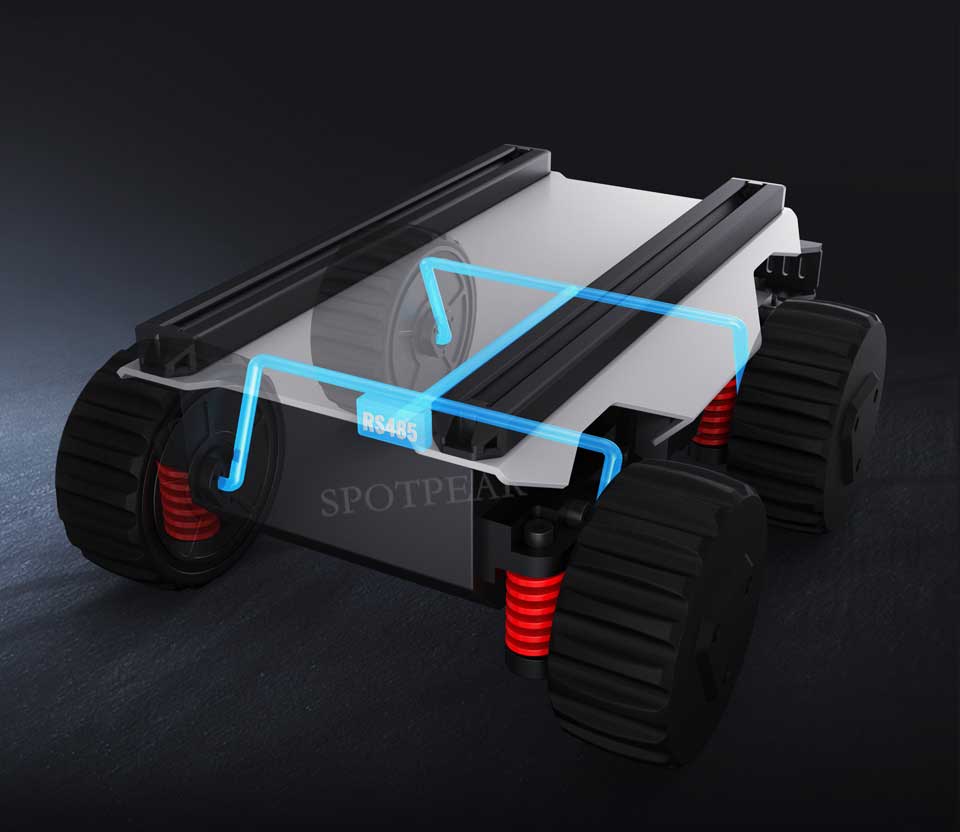

【Supports RS485 Bus Communication】
[] Only 1-Ch RS485 Bus Is Required To Control Multiple Direct Drive Servo Motors At The Same Time

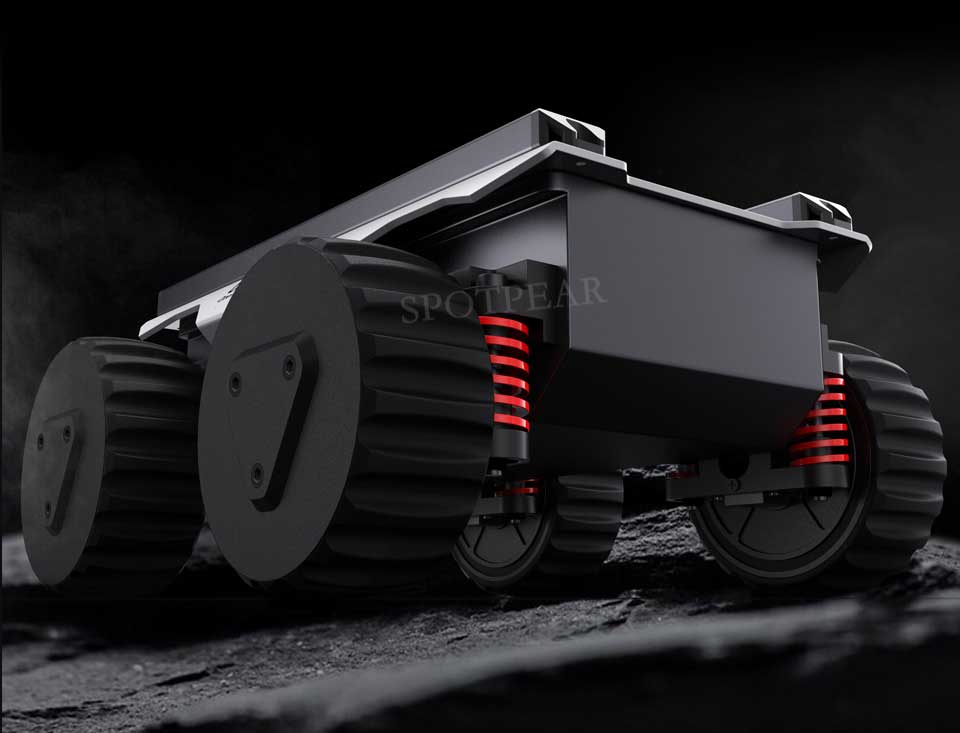

* the robot chassis shown in the picture is not included, but we provide its open-source drawing, please refer to the Package Content for detailed part list

【Closed-Loop Control, Multiple Feedback】
[] You Can Get The Motor Feedback Information Such As Temperature, Position, Velocity, Current, Etc. By Communication

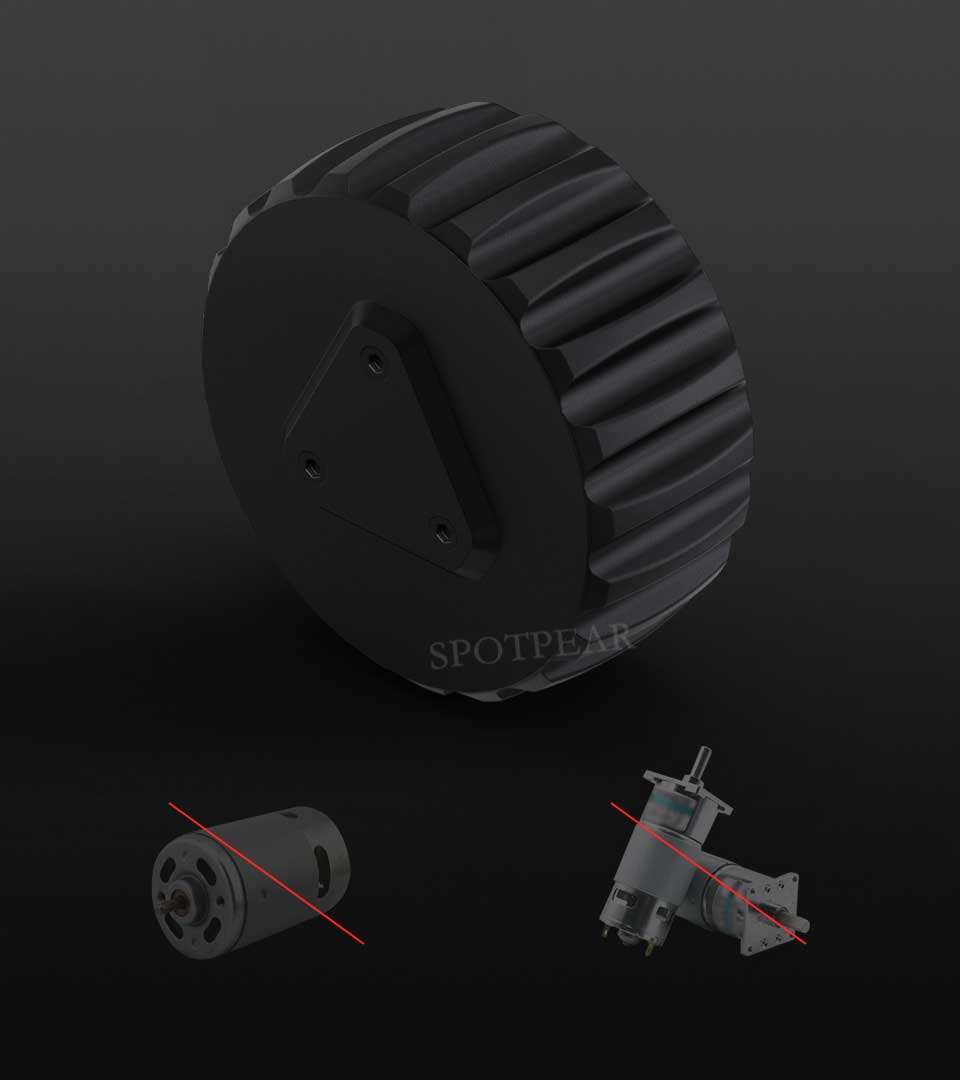

【Integrated Direct Drive Design, No Reducer】
[] The integrated direct drive motor design allows the motor to provide smooth torque, steady speed and accurate position without an external reducer, also with the advantages of compact structure and high integration

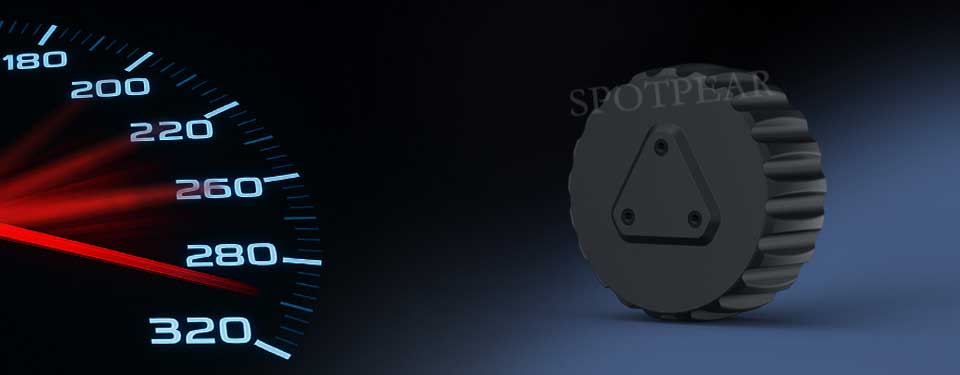

Wide Speed Range Adjustable】
[] The no-load speed of DDSM315 is up to 315±10RPM, and is capable of operating at a rated speed of 200RPM combined with a rated torque of 0.55Nm, suitable for robotic projects that require high speed running with reliable load-handling capability.

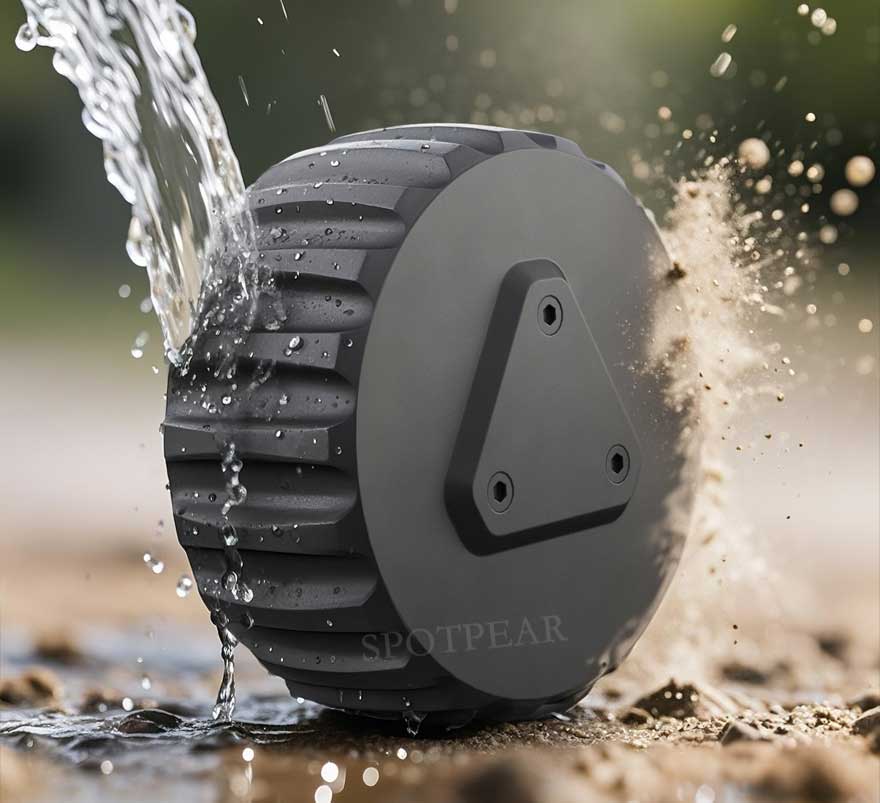

【Waterproof & Dustproof, Longer Service Life】
[] IP54 Protection Rating, The Ingress Protection Design Against Dust And Water Jets Can Make The Motor Better Protected, Provides A Longer Lifetime And Better Performance

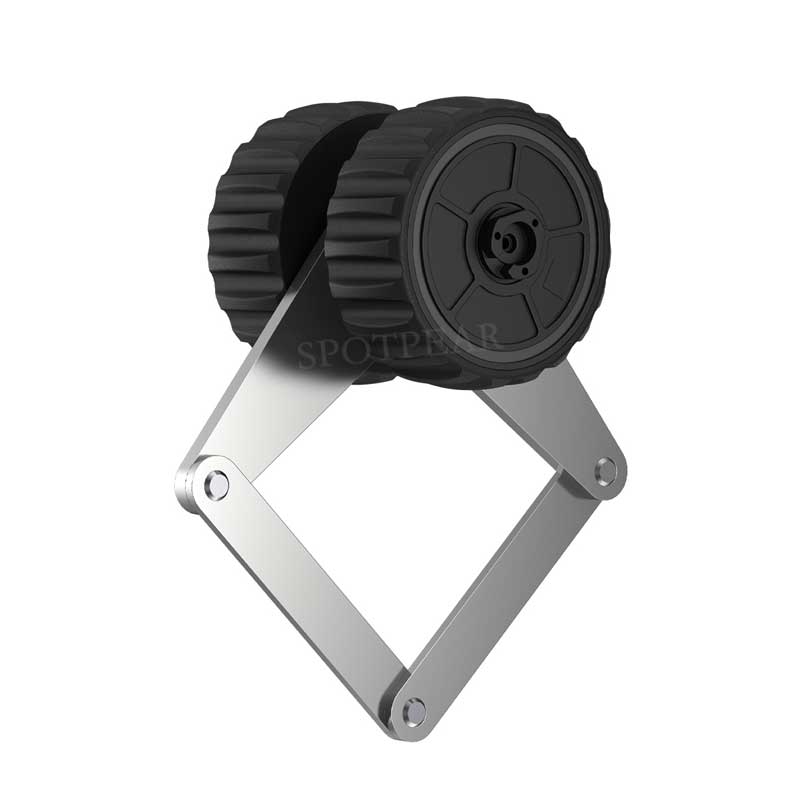

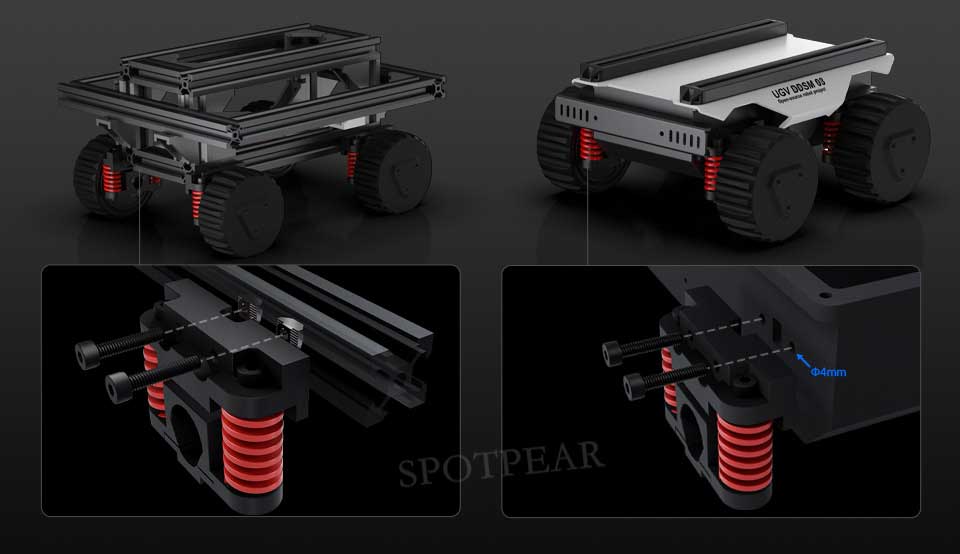

【Supports Suspension Installation】
[] Supports Installing With Our UGV Suspension Designed For Hub Motors Via Aluminum Profile Or By Cutting Holes On The Side Of The Chassis, Reducing The Difficulty Of Chassis Design

* for reference only, the UGV Suspension (A) and robot chassis are not included, please purchase separately. The open-source drawing of robot chassis is provided in the wiki.

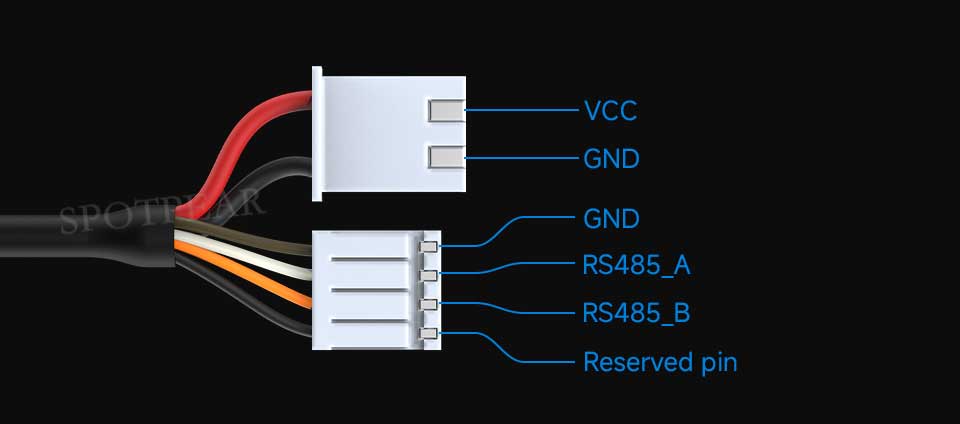

【Pin Definition】

【Application Scenarios】
[] Home Robots, Industrial/Commercial Robots, Robot Chassis, Etc.

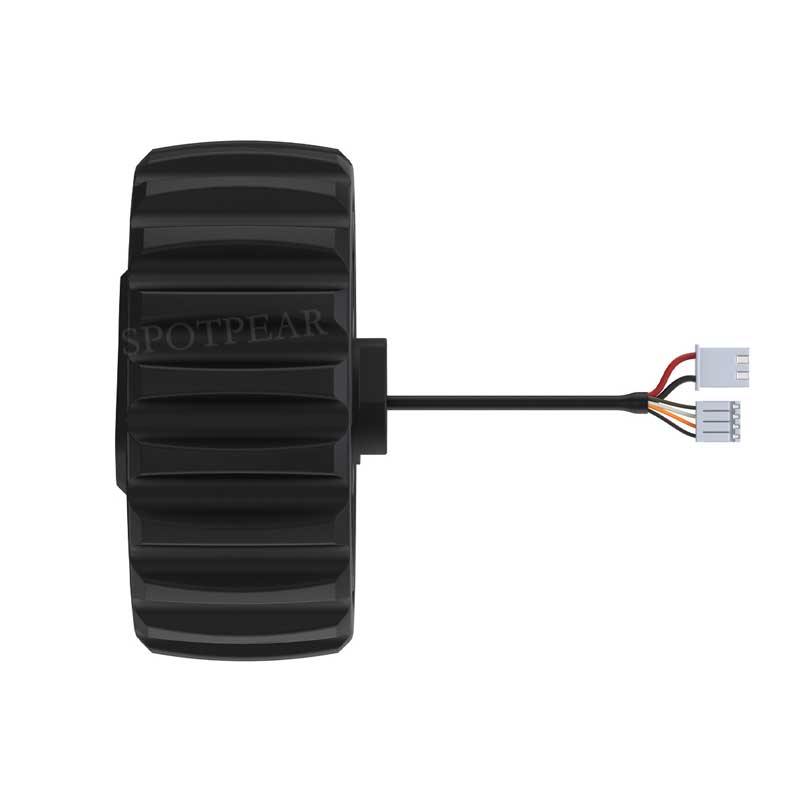

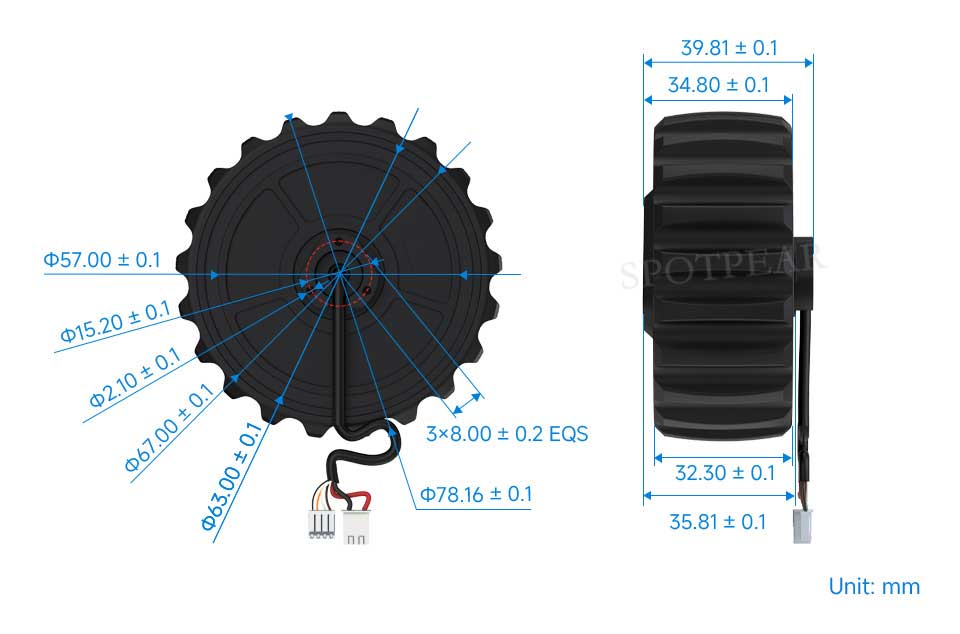

【Dimensions】

[] DDSM315
