USB Camera 2MP GC2093 ‌WDR Backlight Compensation‌ Onboard microphone

USB Camera 2MP GC2093 ‌WDR Backlight Compensation‌ Onboard microphone

$24.9

Brand：SpotPear

SKU：010307100000

Date：2025-05-19 09:57

Part Number：

GC2093-2MP-USB-Camera-(A)

No：

- +

In Stock

Buy It Now

Add to cart

Ask a Question

Copy Link

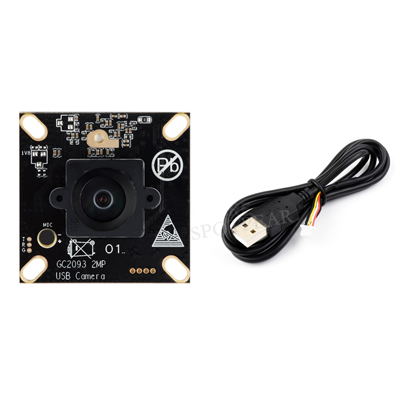

GC2093 USB camera module 2 megapixels wide dynamic range backlit shooting fixed focus onboard microphone

2-megapixel M12 camera module

Adopt GC2093 photosensitive chip, USB 2.0 interface, wide dynamic backlight

Product Parameters

Pixel	2 million
Photosensitive chip	GC2093
Interface Type	USB 2.0
Camera	Sensor size	1/2.9 inch
	Aperture (F)	2.2
	Focal length (EFL)	2.28 mm
	Field of View (FOV)	170.2°(D) 144°(H) 77.6°(V)
	Focusing method	Fixed focus
	distortion	< -27°
	Dynamic Range	81dB Linear mode, 105dB HDR mode
	Infrared filter	650nm filter
image	Supported formats	MJPG、YUY2
	Still image resolution	1920 × 1080
	Video recording support	MJPG: 30FPS 640×360 30FPS 640×480 30FPS 1024×576 30FPS 1280×720 30FPS 1920×1080
	Video recording support	YUY2: 25FPS 640×360 25FPS 640×480 20FPS 1024×576 15FPS 1280×720
Audio	Onboard microphone
Operating voltage	5V ± 5%
Working current	180mA
Module size	38.00 × 38.00 × 19.01 (mm)

Excellent wide dynamic backlight adaptation

With a high dynamic range of 81dB Linear mode and 105dB HDR mode, combined with the characteristics of GC2093, it performs amazingly in backlit environments. Whether it is direct sunlight or a scene with strong contrast between light and dark, it can balance the brightness of the picture and clearly present the details of the bright and dark parts, so that backlight will no longer be an obstacle to shooting

Note: The above picture is a comparison of the effects of simulated wide dynamic (WDR) technology, not a real shot. Please refer to the actual shooting effect.

Plug and play, easy connection

Adopting USB 2.0 interface, no need to install driver. It is easy and convenient to connect with various USB hosts, whether it is a computer, smart device or other terminal that supports USB interface, it can be quickly put into use by simply plugging and unplugging, saving installation time and effort

Dimensions

[] GC2093-2MP-USB-Camera-(A)
