GC2093-2MP-USB-Camera-A User Guide

Specifications

  • Pixels: 2 million
  • Photosensitive chip: GC2093
  • DSP: Auto gain/exposure/white balance
  • Camera:
    • CCD dimensions: 1/2.9inch
    • Aperture (F): 2.2
    • Focal length (EFL): 2.28mm
    • Field of View (FOV): 170.2°(D) 144°(H) 77.6°(V)
    • Distortion: < -27%
  • Focus mode: Fixed focus
  • Interface type: USB2.0
  • Image:
    • Supported image formats: MJPG, YUY2
    • Static image resolution: 1920 × 1080
    • Video recording support (MJPG):
      30 FPS 1920 × 1080
      30 FPS 1280 × 720
      30 FPS 640 × 480
      30FPS 1024×576
      30FPS 640×480
      30FPS 640×360
    • Video recording support (YUY2):
      15 FPS 1920 × 1080
      20 FPS 1280 × 720
      25FPS 640×480
      25FPS 640×360
  • Operating voltage: 5V ± 5%
  • Operating temperature: 0°C ~ 50°C
  • Dimensions: 38.00 × 38.00 × 19.01 (mm)
  • Supported systems: Windows, Linux, MacOS

Working with Windows PC

Test Software

Currently, a camera software is generally pre-installed with Windows 10 systems. You can test it by opening the camera software that comes with your Windows computer.
If you are using the Windows 7 system, or if the camera software cannot be found in the system, you can download and install the AMCAP test software provided by us from Resources->Softwares.

Test Steps

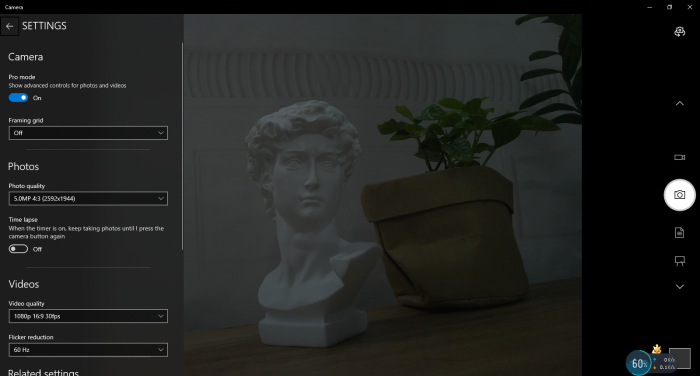

Window camera software
  • Search for "Camera" to open the software
  • Click the gear icon in the upper left corner to open the settings interface, where you can set the resolution for taking pictures or videos

  • Click the video or capture icon on the right to switch between recording and shooting

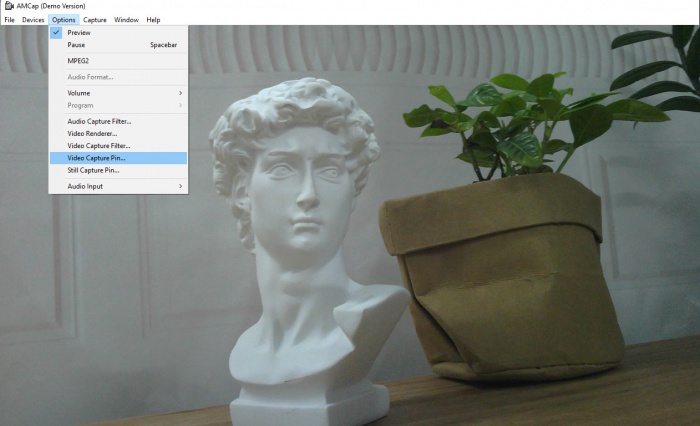

AMCap software
  • Download and install AMCap software
  • You can click on the Option option and select Video Capture Pin... or Still Capture Pin... to set the parameters of the image and video

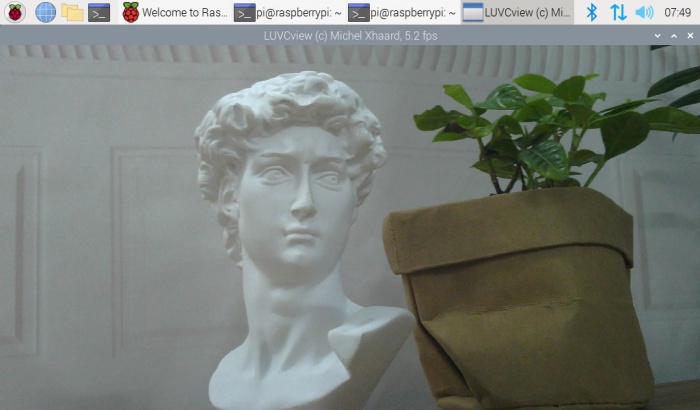

Working with Raspberry Pi

  • Open the Raspberry Pi terminal, enter the command to install the Luvcview software
    • sudo apt-get install luvcview -y
  • After installation, enter the command on the terminal to open the software for USB camera testing
sudo luvcview -s 1920x1080

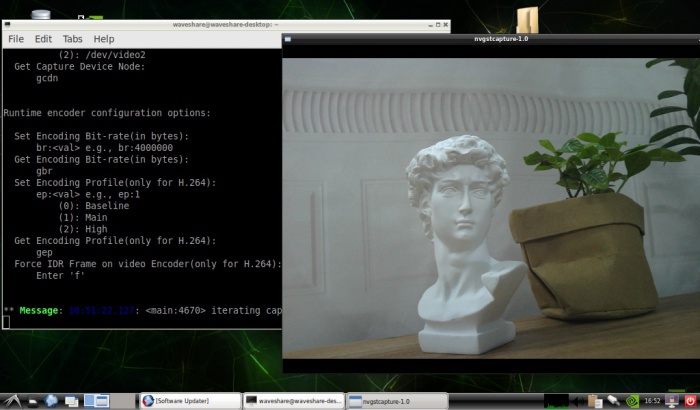

Working with Jetson Nano Developer Kit

  • Open the Jetson Nano Developer Kit terminal (open with Ctrl+Alt+T or mouse click)
  • Input the following command to preview:
    • nvgstcapture-1.0 --camsrc=0
  • After inputting, a preview window will open


Note: In practical application, you may need to call with a program, and you can refer to Opencv and other related image processing library materials by yourself

Resources

Document

Softwares

FAQ

Question: If the hand touches the back of the PCB, will the camera display abnormalities?

 Answer:
  • Do not touch the components on the back of the PCB with your hands to avoid affecting the electrical characteristics


Question: Does the module get hot during use?

 Answer:
  • During use, the module heats up significantly and may feel hot, which is normal.


Question: Why can't I control parameters like brightness, contrast, etc.?

 Answer:
  • If you are using Mac and Opencv, some parameter settings cannot be used, it is recommended to use Linux and V4L2 drivers.
