Servo PWM motor WP5320 WP5335 35/20KG.CM 180° PWM digital servo double ball bearings

Servo PWM motor WP5320 WP5335 35/20KG.CM 180° PWM digital servo double ball bearings

$13.99

Brand：SpotPear

SKU：021006400000

Date：2025-06-10 14:55

Part Number：

WP5320 WP5335

No：

- +

In Stock

Buy It Now

Add to cart

Ask a Question

Copy Link

35/20kg.cm high torque 180° digital servo, featuring a combination of copper and aluminum gears, lightweight and wear-resistant design, flexible assembly of various servo arms, and waterproof and dustproof design

Servo Motor Recommend

MG90S-Servo

MG996R-Servo

WP90-Servo

WP5320-WP5335

SG90-Servo

SC09-Servo

SC15-Servo

ST3215-Servo

ST3215-HS-Servo-Motor

ST3020-Servo

ST3025-Servo

ST3235-Servo

CF35-12

RSBL120-24

RSBL85-12/24

RSBL35-24-HS

RSBL45-24

DC-BUCK-Adapter-7.2V

Servo-Driver-with-ESP32

Bus-Servo-Adapter-A

DDSM-Driver-HAT-(A)

DDSM Driver HAT (B)

DDSM115

DDSM210

DDSM315

DDSM400

Metal-Flat-Key-Shaft-Flange-Plate-A

20kg.cm / 35kg.cm
Large Torque 180° digital servo

Large Torque | Copper gear or Steel gear | Metal middle case

version options

Specifications

Model	WP5320 Servo	WP5335 Servo
Product type	PWM digital servo
Torque	20kg.cm@7.4V	35.5kg.cm@7.4V
Protection level	IP54
Rotation angle	180° (500μsec → 2500μsec)
Mechanical limited angle	No Limit
Operating voltage	4V ~ 8.4V
Encoder type	Carbon film potentiometer
Signal frequency	50Hz
Gear material	Copper gear	Steel gear
No-load speed	0.151sec/60° (66RPM) @7.4V	0.192sec/60° (52RPM) @7.4V
No-load current	120mA	180mA
Locked-rotor current	3A@7.4V	3.9A@7.4V
Kt	6.5kg.cm/A	10kg.cm/A

Two gear material options, with dual ball bearings

The gear shaft is reinforced to 5.9mm, and features dual ball bearings design for longer lifespan

Comes with multiple servo arms for more flexible assembly methods

Allows Controlling Up To 16 Servos At The Same Time via Raspberry Pi Servo HAT

* for reference only, the Raspberry Pi and Servo Driver HAT are NOT included.

Waterproof and dustproof design, suitable for various usage environments

The protection level of the servo is IP54, with internal sealing process and added waterproof rubber rings at joints to enhance protection and adapt to various environments

application scenarios

Aircraft Model

* for reference only, please refer to the Package Content for the detailed part list.

Pin definition

Outline Dimensions

[] WP5320

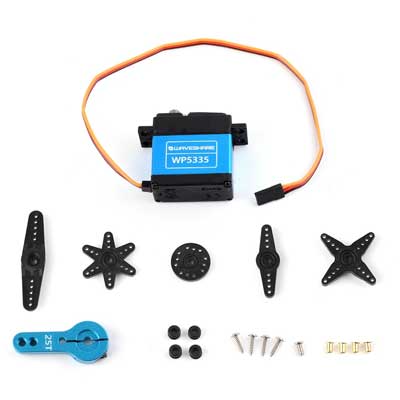

[] WP5335
