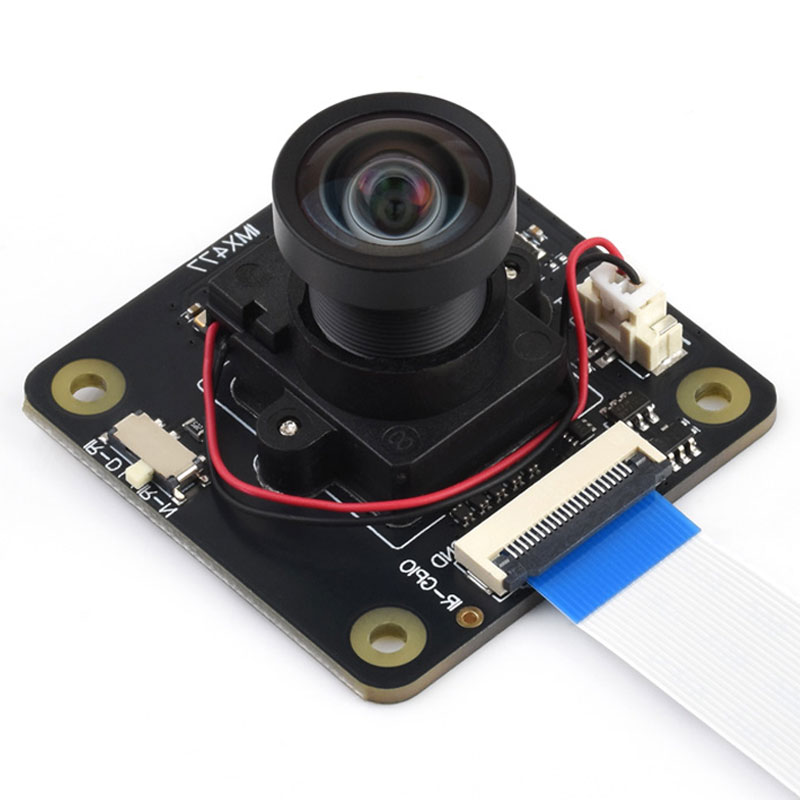

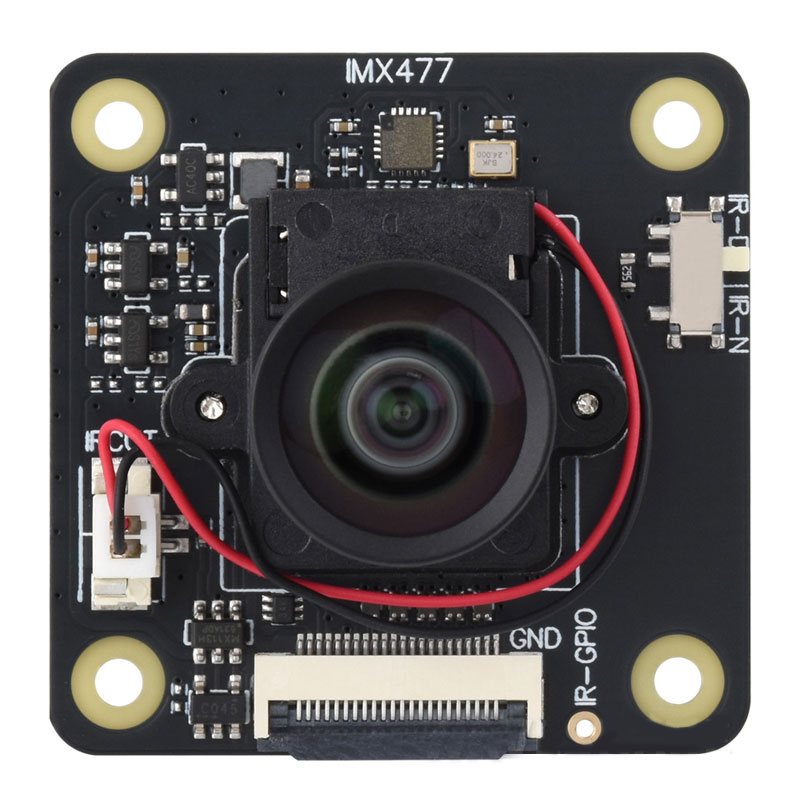

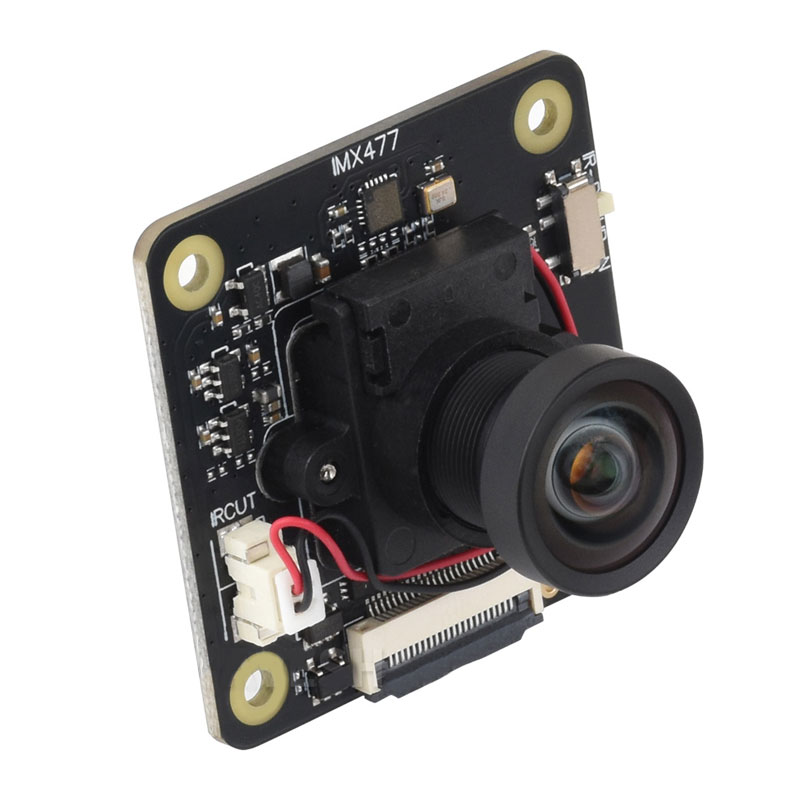

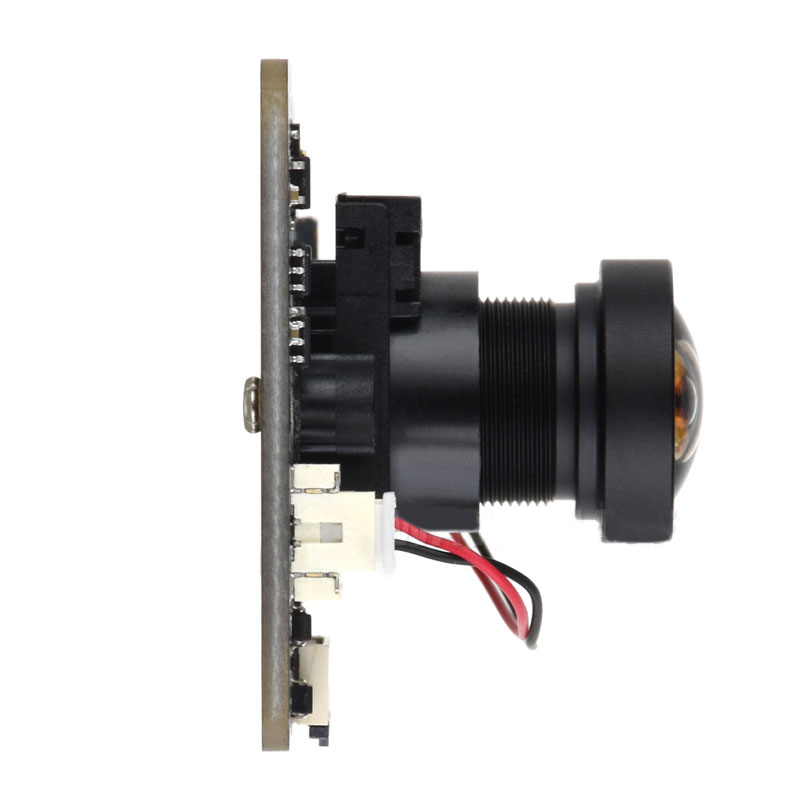

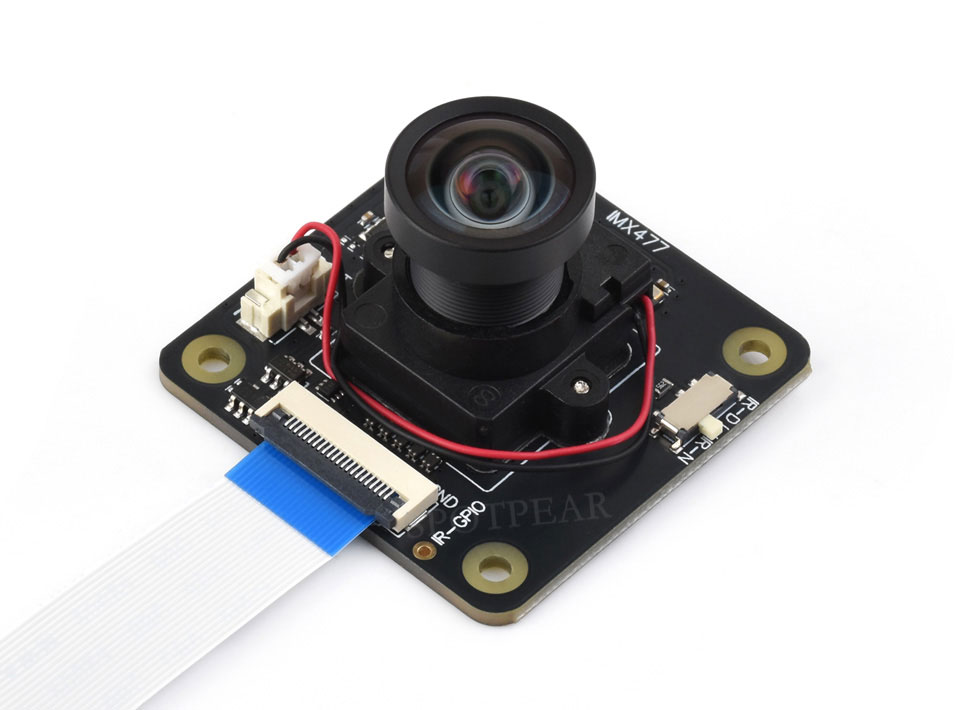

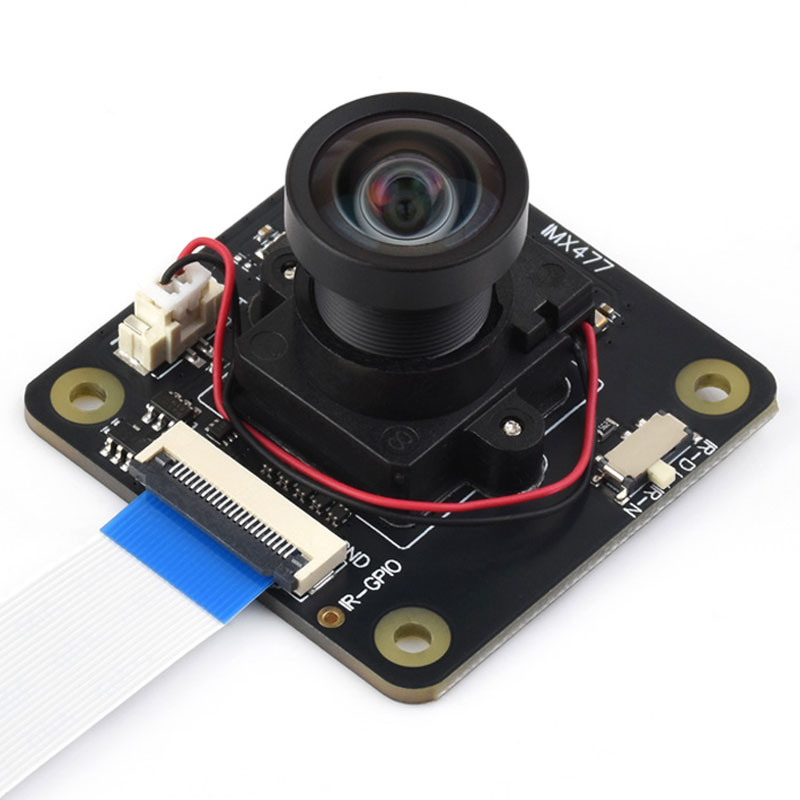

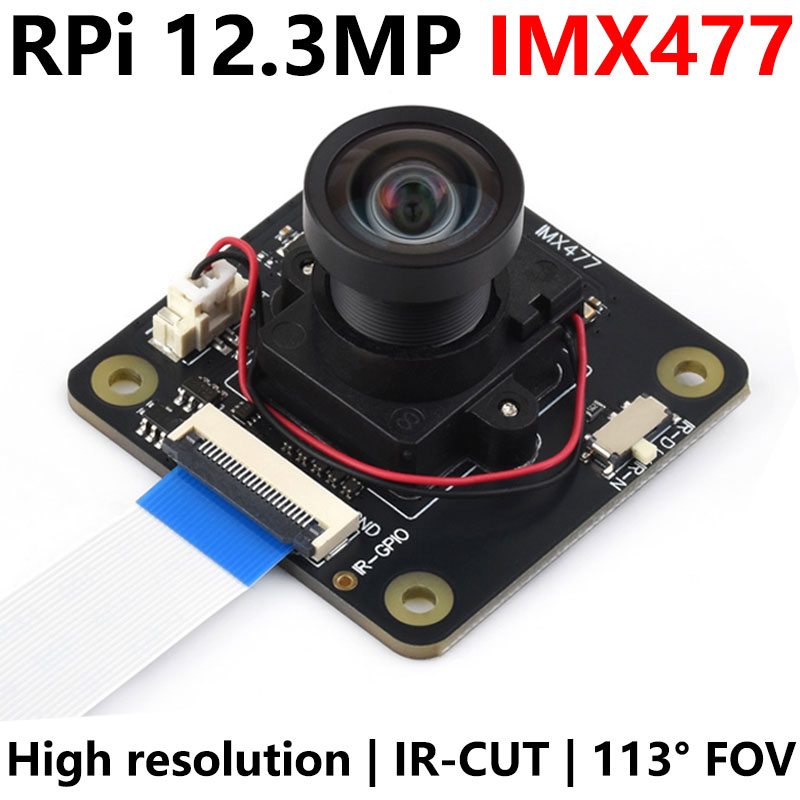

IMX477 IR-CUT Camera Module

IMX477 Sensor, 12.3MP, Applicable For Raspberry Pi / Jetson / RDK Series Boards

Specifications

SENSOR	Model	IMX477
	Resolution	12.3MP, 4056 × 3040
	CMOS diagonal length	7.9mm
	Pixel size	1.55µm (H) × 1.55µm (V)
	Shutter Type	Rolling Shutter
CAMERA	Aperture (F)	2.8
	Focal length (EFL)	2.7mm
	Field of view (FOV)	113°(D)
	Distortion	<-1.5%
OPERATING VOLTAGE	3.3V
APPLICATIONS	suitable for AI applications like facial recognition, road mark recognition, license plate number recognition, and so on.

Ultra High Resolution

The IMX477 Sensor Supports Up To 12.3MP Resolution, Capturing Every Detail In The Picture

Built-In IR-CUT For All-Day Use

Allows The User To Switch Filters Freely According To The Usage Scenario

* Note: the infrared light is required for night vision function and needs to be purchased separately.

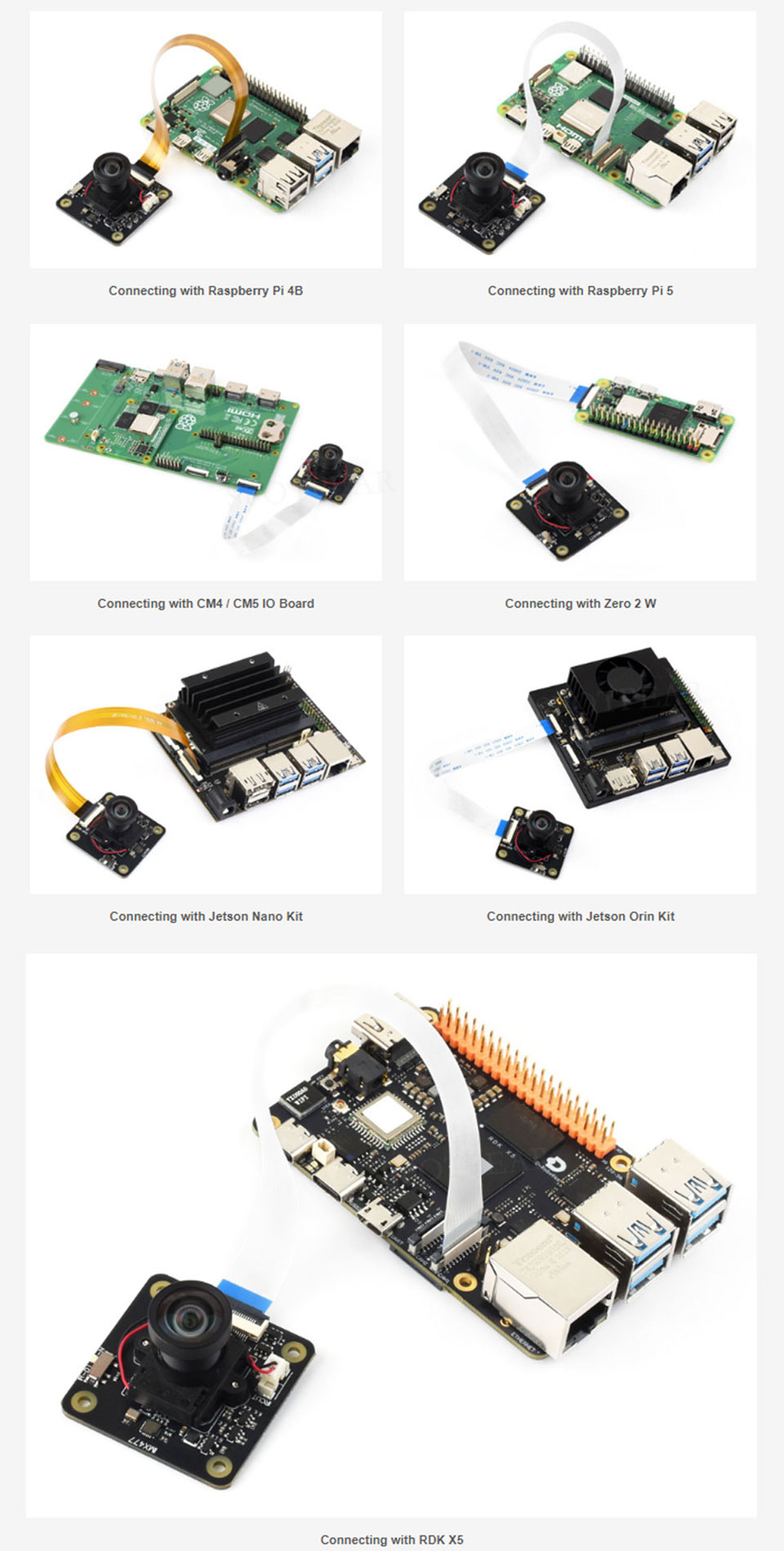

Supports Multiple Boards And Kits

Compatible With Raspberry Pi Series, CM3/3+/4/5 Series, Zero Series, Jetson Series (Requires Dedicated Driver), And RDK Series Boards

The images above are for illustrative purposes only. This product does not include the motherboard and kits shown.

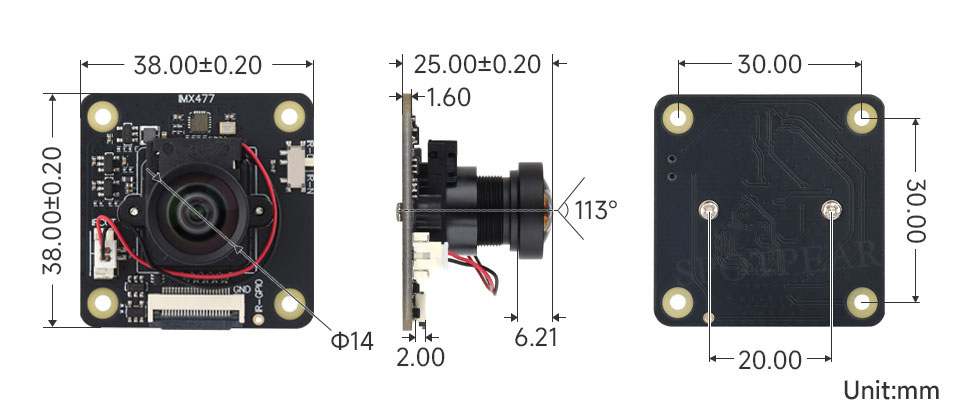

Outline Dimensions

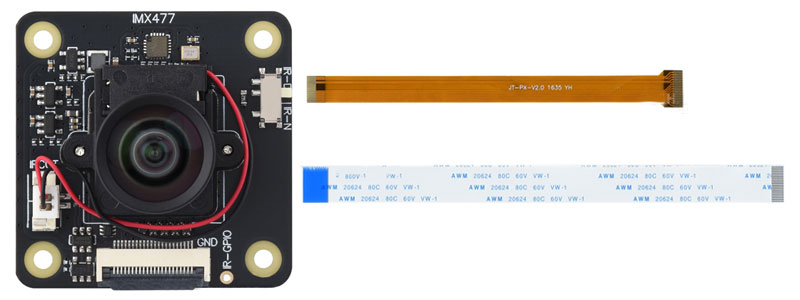

[] IMX477 IR-CUT Camera (B)
