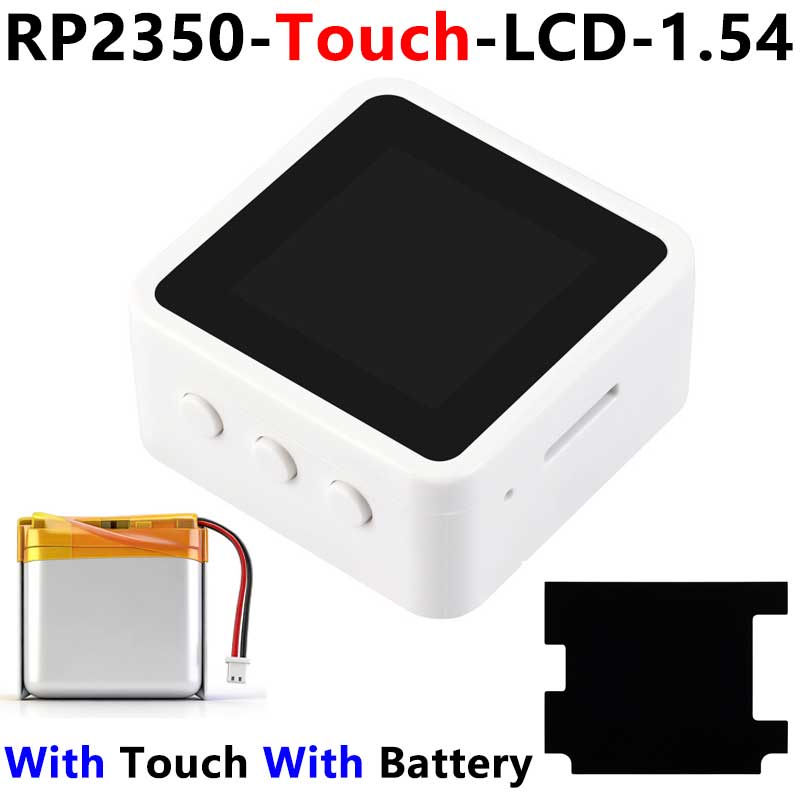

Raspberry Pi Pico 2 RP2350A 1.54inch TouchScreen 1.54 inch LCD Display Development Board 240×240

Raspberry Pi Pico 2 RP2350A 1.54inch TouchScreen 1.54 inch LCD Display Development Board 240×240

$20.9

Brand：斑梨电子

SKU：010196000000

Date：2026-04-01 14:18

Part Number：

RP2350-LCD-1.54【No Touch With Battery】 RP2350-LCD-1.54-EN【No Touch No Battery】 RP2350-Touch-LCD-1.54【With Touch With Battery】 RP2350-Touch-LCD-1.54-EN【With Touch No Battery】

No：

- +

In Stock

Buy It Now

Add to cart

Ask a Question

Copy Link

RP2350 1.54inch LCD Display Development Board, 240 × 240 Resolution, 65K Color, IPS Display Panel, Dual-core And Dual-architecture

Raspberry Pi Pico 2 RP2350 Recommend

RP2350-RP2354-AB

Raspberry-Pi-Pico-2

Raspberry Pi Pico 2 W

RP2350B-Plus-W

RP2350-Core-A

Core2350B0

RP2350-Plus

RP2350-Zero

XIAO RP2350

RP2350-LCD-0.85

RP2350B-MINI-A

RP2350-LCD-1.28

RP2350-Touch-LCD-1.28

RP2350-Touch-AMOLED-1.43

RP2350-Touch-LCD-1.46

RP2350-LCD-1.47-A

RP2350-LCD-1.47-B

RP2350-LCD-1.54

RP2350-Touch-AMOLED-1.64

RP2350-Touch-AMOLED-1.75

RP2350-Touch-AMOLED-1.8

RP2350-Touch-LCD-1.85C

RP2350-Touch-LCD-2

RP2350-Touch-LCD-2.1

RP2350-Touch-AMOLED-2.41

RP2350-Touch-LCD-2.8

RP2350-Touch-LCD-2.8C

RP2350-Touch-LCD-3.49-EN

RP2350-Touch-LCD-3.5

RP2350-LCD-4

RP2350-Touch-LCD-4.3B

RP2350-LCD-7

RP2350-GEEK

RP2350-LCD-0.96

RP2350-USB-A

RP2350-ETH

RP2350-One

RP2350-PiZero

RP2350-CAN

RP2350-Tiny

RP2350-Matrix

RP2350:bit-Board

RP2350 1.54inch LCD Display
Development Board

Version Options

Features

This product is a high-performance, highly integrated microcontroller development board designed by Waveshare. It integrates high-capacity Flash and onboard 1.54inch capacitive LCD display, IMU, TF card slot, and other peripherals, with multiple communication interfaces for easy development and integration into products.

Key features:

RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
Adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz
Built-in 512KB Static RAM, with onboard 16MB Flash
Type-C port for easier use
Onboard 1.54inch LCD display, 240 × 240 resolution, 65K color
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
Adapting 4 × multi-functional GPIO pins
1 × I2C, 1 × UART, 2 × 12-bit ADC, 2 × controllable PWM channels
Accurate clock and timer on-chip
Built-in temperature sensor for real-time monitoring of chip temperature
12 × programmable I/O (PIO) state machines for custom peripheral support

LCD Parameters

DISPLAY PANEL	IPS	DISPLAY SIZE	1.54inch
DISPLAY RESOLUTION	240 × 240 pixels	DISPLAY COLOR	65K
COMMUNICATION INTERFACE	4-wire SPI	DRIVER IC	ST7789
TOUCH TYPE (TOUCH VERSION ONLY)	Capacitive touch	TOUCH IC (TOUCH VERSION ONLY)	CST816
ACTIVE DISPLAY AREA	27.72 × 27.72 (mm)

Small Size, Touch More Possibilities

Suitable For Various Smart Device Development, And Can Realize Human-Computer Interaction Function. Supports Connecting To A Batt For Independent Operation

*for touch version only

IPS Dislay Panel

Excellent Display Performance, 65K Color, 240 × 240 Resolution,
With Wide Viewing Angle

Dual-Core, Dual-Architecture

The Unique Dual-Core, Dual-Architecture Capability Of RP2350 Allows Users To Choose Between A Pair Of Industry-Standard Arm Cortex-M33 Cores, And A Pair Of Open-Hardware Hazard3 Cores, Giving Developers A Chance To Experiment With The RISC-V Architecture In A Stable, Well-Supported Environment

Supports C/C++, MicroPython, Arduino

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

What's On Board

RP2350A
Dual-core and dual-architecture design, up to 150 MHz operating frequency
16MB NOR-Flash
Microphone
TF card slot
MX1.25 Lithium Batt header
for 3.7V Lithium Batt, supports charging and discharging, up to 300mA peak charging current
Batt recharge and discharge management chip
QMI8658
6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer

USB Type-C port
for downloading programs, USB 1.1 with device and host support
ES8311
low power audio codec chip
MX1.25 speaker header
NS4150B
audio power amplifier chip
Volume control button
short press to increase volume, long press to decrease volume, programmable for other functions
PWR button
BOOT button

Outline Dimensions

[] RP2350-LCD-1.54

[] RP2350-LCD-1.54-EN

[] RP2350-Touch-LCD-1.54

[] RP2350-Touch-LCD-1.54-EN
