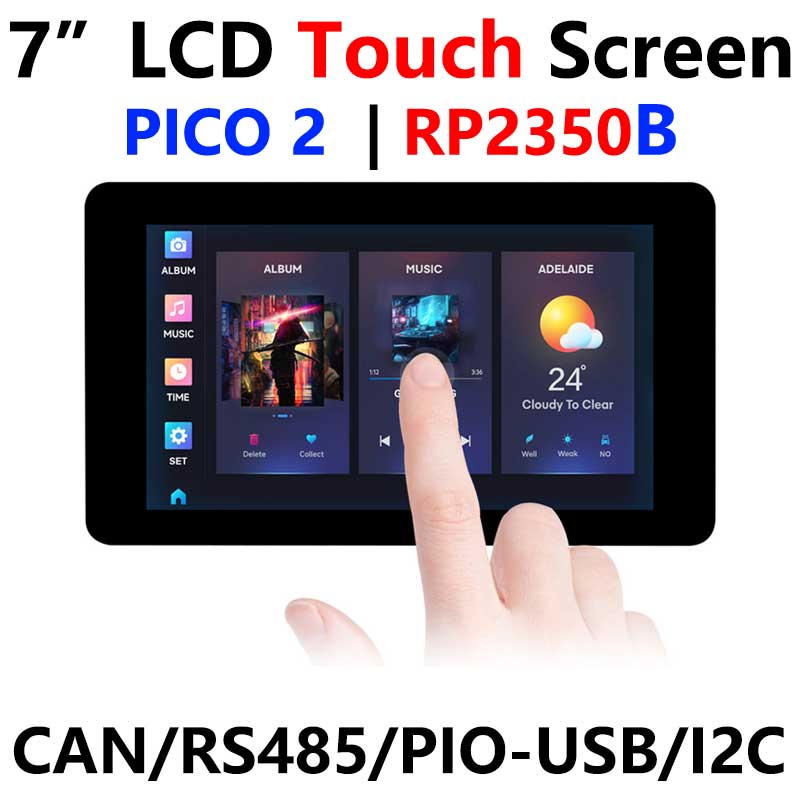

Raspberry Pi Pico 2 RP2350B 7inch Capacitive TouchScreen 7 inch LCD Display Development Board 800×480

Raspberry Pi Pico 2 RP2350B 7inch Capacitive TouchScreen 7 inch LCD Display Development Board 800×480

$29.9

Brand：SpotPear

SKU：010193000000

Date：2026-01-06 18:00

Part Number：

RP2350-LCD-7【No Touch】 RP2350-Touch-LCD-7【With Touch】

No：

- +

In Stock

Buy It Now

Add to cart

Ask a Question

Copy Link

RP2350 7inch LCD Development Board, 800 × 480 Resolution, 65K Color, Supports Dual-core And Dual-architecture

Raspberry Pi Pico 2 RP2350 Recommend

RP2350-RP2354-AB

Raspberry-Pi-Pico-2

Raspberry Pi Pico 2 W

RP2350B-Plus-W

RP2350-Core-A

Core2350B0

RP2350-Plus

RP2350-Zero

XIAO RP2350

RP2350-LCD-0.85

RP2350B-MINI-A

RP2350-LCD-1.28

RP2350-Touch-LCD-1.28

RP2350-Touch-AMOLED-1.43

RP2350-Touch-LCD-1.46

RP2350-LCD-1.47-A

RP2350-LCD-1.47-B

RP2350-Touch-AMOLED-1.64

RP2350-Touch-AMOLED-1.8

RP2350-Touch-LCD-1.85C

RP2350-Touch-LCD-2

RP2350-Touch-LCD-2.1

RP2350-Touch-AMOLED-2.41

RP2350-Touch-LCD-2.8

RP2350-Touch-LCD-2.8C

RP2350-Touch-LCD-3.49-EN

RP2350-LCD-4

RP2350-Touch-LCD-4.3B

RP2350-LCD-7

RP2350-GEEK

RP2350-LCD-0.96

RP2350-USB-A

RP2350-ETH

RP2350-One

RP2350-PiZero

RP2350-CAN

RP2350-Tiny

RP2350-Matrix

RP2350:bit-Board

RP2350 7″ LCD Development Board

Integrates RGB Interface And 5-Point Touch (Optional), Multiple Peripheral Interfaces

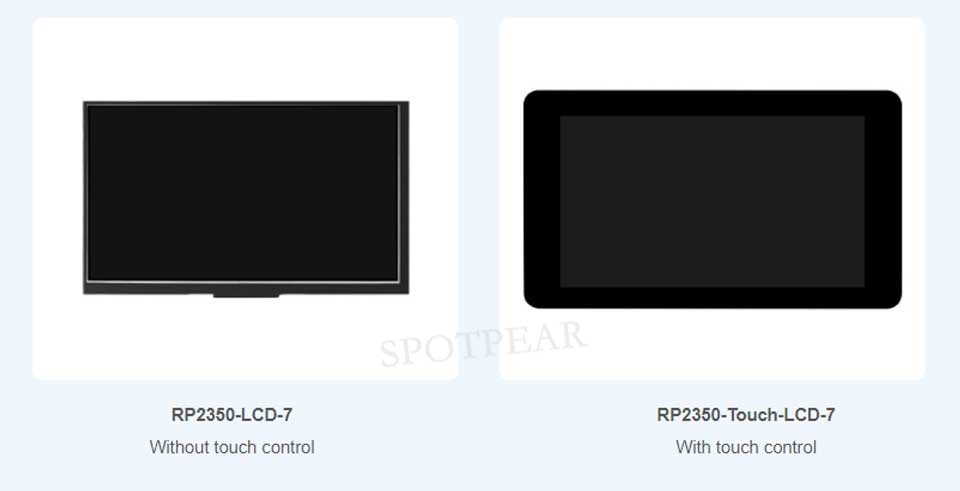

Version Options

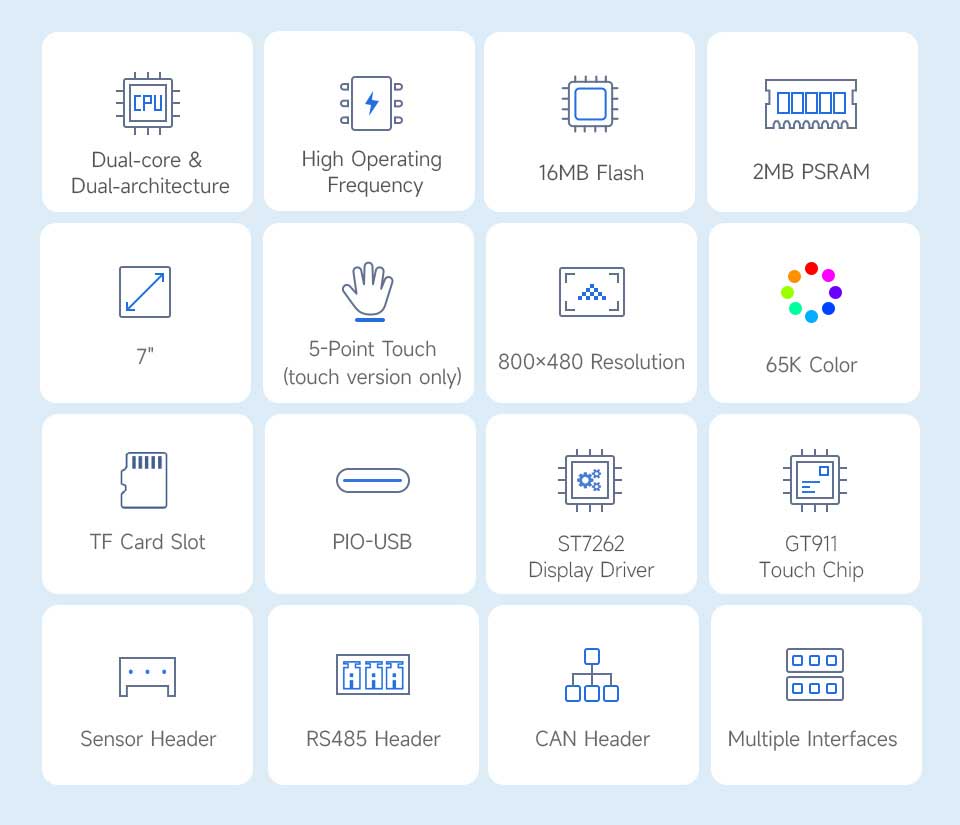

Features

This product is a high-performance, highly integrated microcontroller development board designed by Waveshare. It integrates high-capacity Flash and PSRAM. Onboard 7inch capacitive LCD display, TF card slot, PIO-USB, and so on, combined with various communication interfaces for easy development and integration into products.

RP2350B microcontroller chip designed by Raspberry Pi in the United Kingdom
Adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz
Built in 520KB Static RAM, with onboard 16MB Flash and 2MB PSRAM
Type-C port for easier use
Onboard 7inch capacitive touch LCD, 800 × 480 resolution, 65K color
Supports 5-point capacitive touch control via I2C interface, with interrupt support (for touch version only)
Onboard Sensor, CAN, RS485, I2C and UART interfaces, etc.
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
Accurate clock and timer on-chip
Built-in temperature sensor for real-time monitoring of chip temperature
12 × programmable I/O (PIO) state machines for custom peripheral support

Application Scenarios

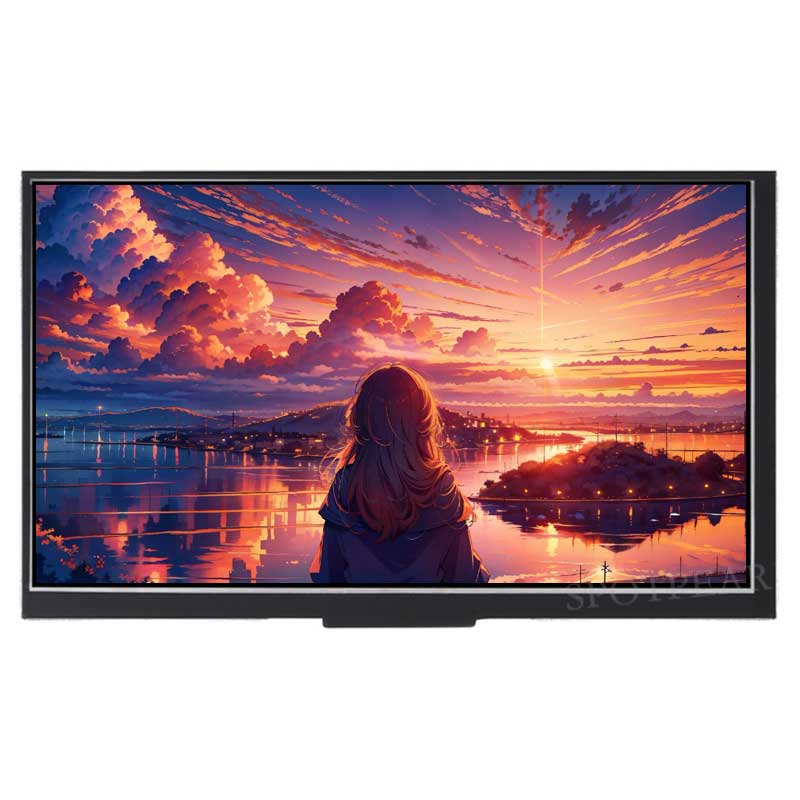

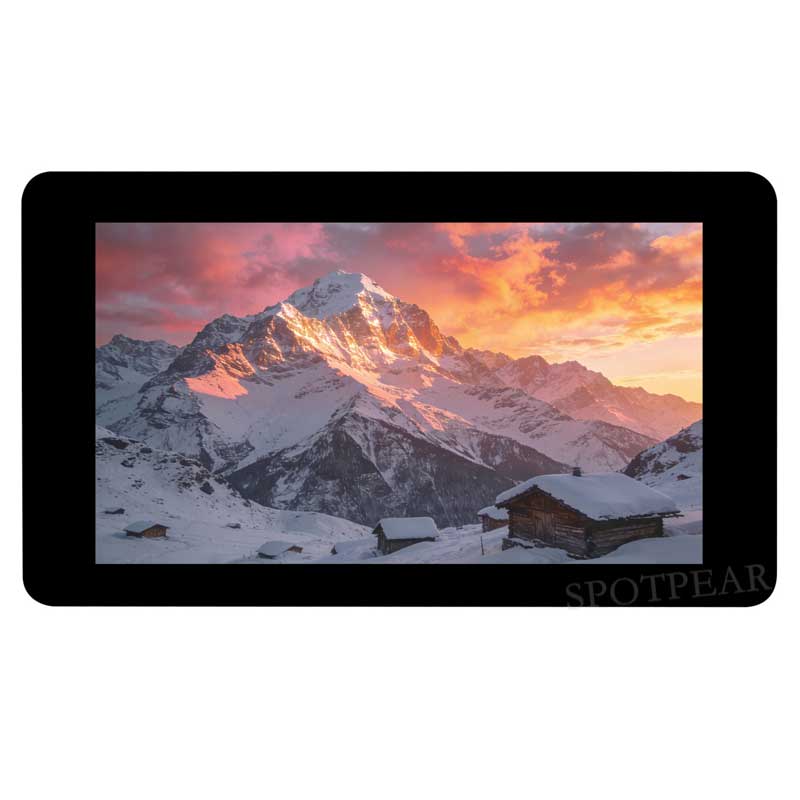

IPS Display Panel

Excellent Display Performance, 170° Viewing Angle

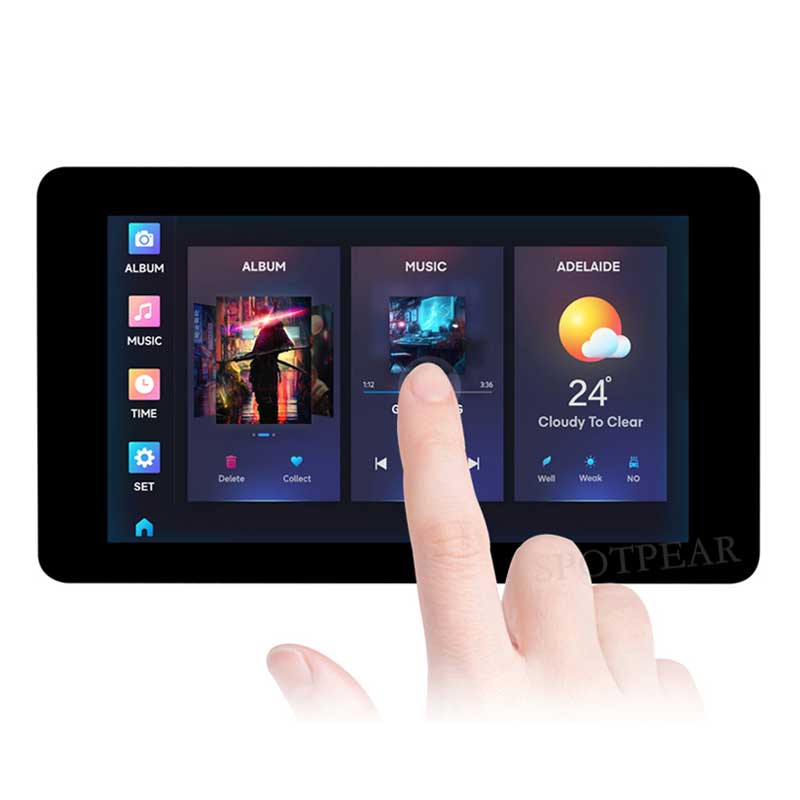

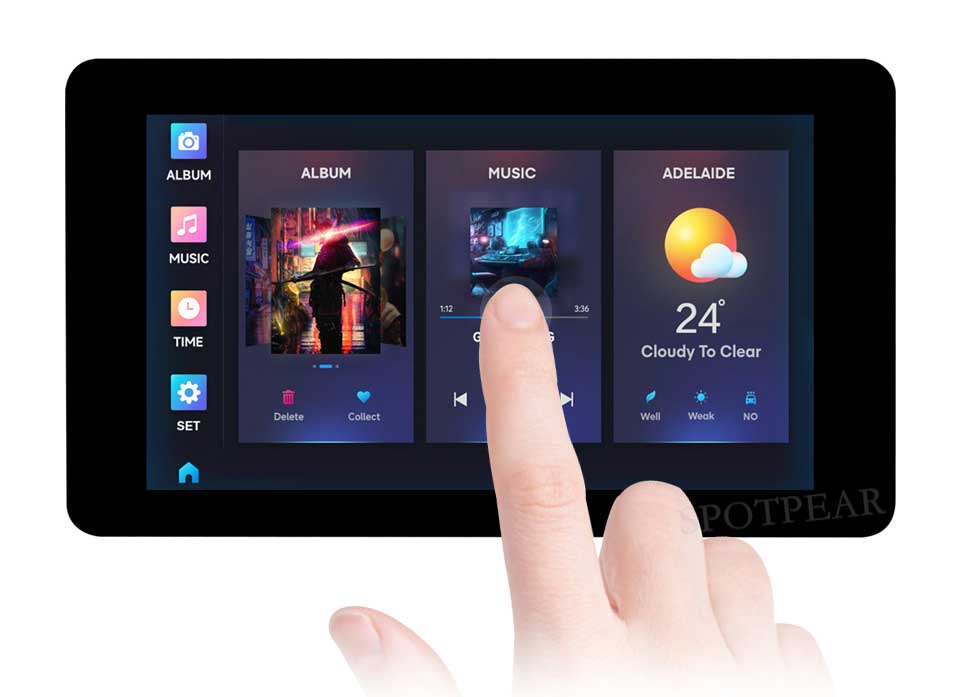

Capacitive 5-Point Touch

Supports Touch Function With I2C Interface, 5-Point Touch For Flexible Operation And Smooth Multi-Point UI Interaction (For Touch Version Only)

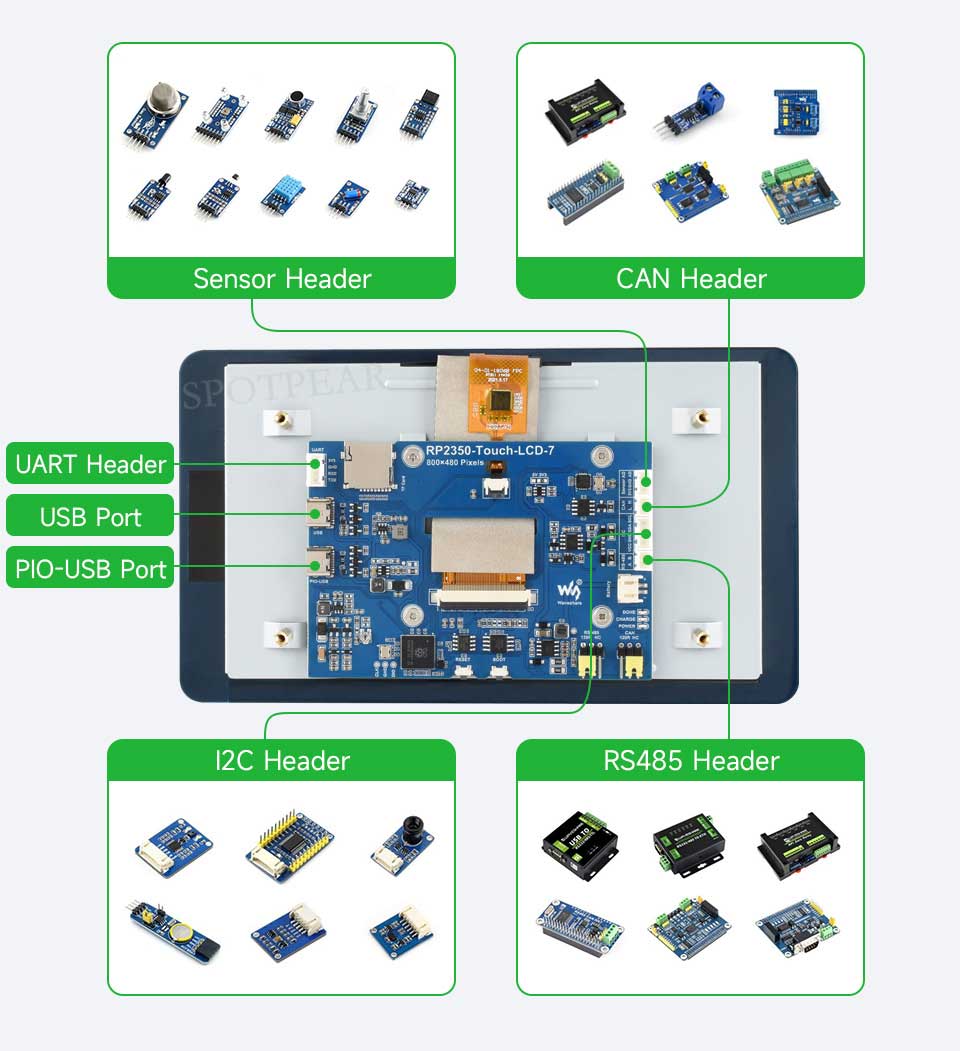

Supports Multiple Peripherals

Supports The Expansion Of Multiple Peripherals Via Sensor, CAN, RS485,
And I2C Interfaces

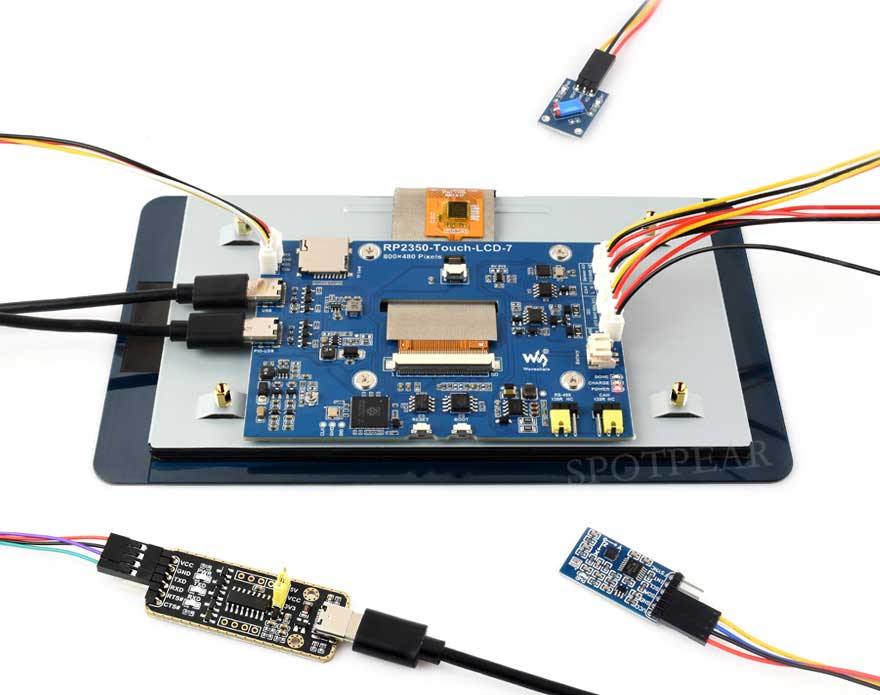

Application Example

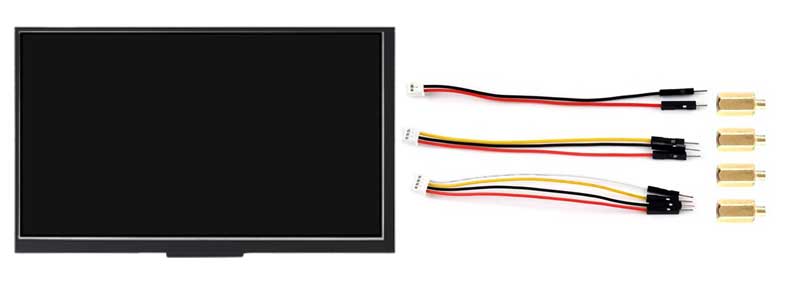

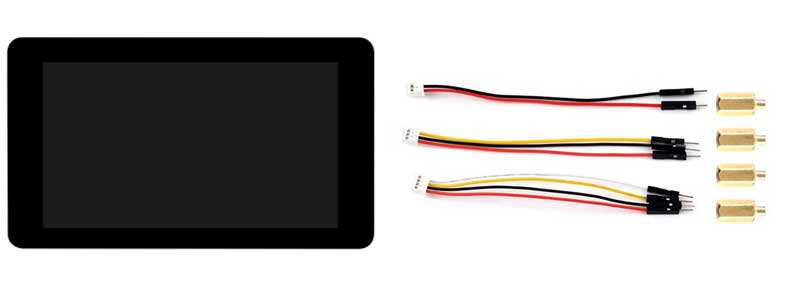

for reference only, please refer to the Package Content for the detailed part list

Dual-Core, Dual-Architecture

The Unique Dual-Core, Dual-Architecture Capability Of RP2350 Allows Users To Choose Between A Pair Of Industry-Standard Arm Cortex-M33 Cores, And A Pair Of Open-Hardware Hazard3 Cores, Giving Developers A Chance To Experiment With The RISC-V Architecture In A Stable, Well-Supported Environment

Supports C/C++, MicroPython, Arduino IDE

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

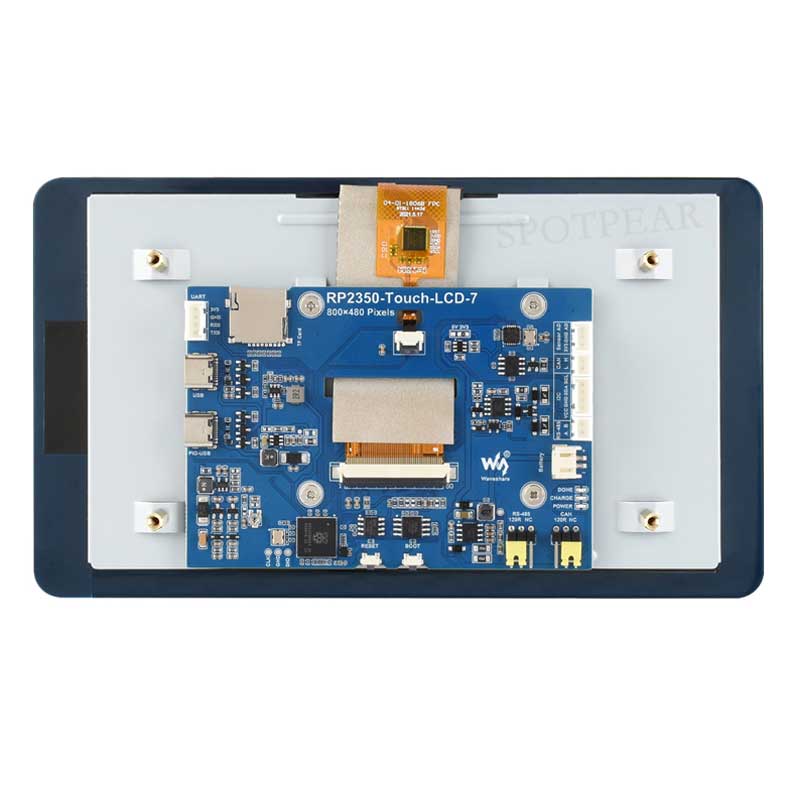

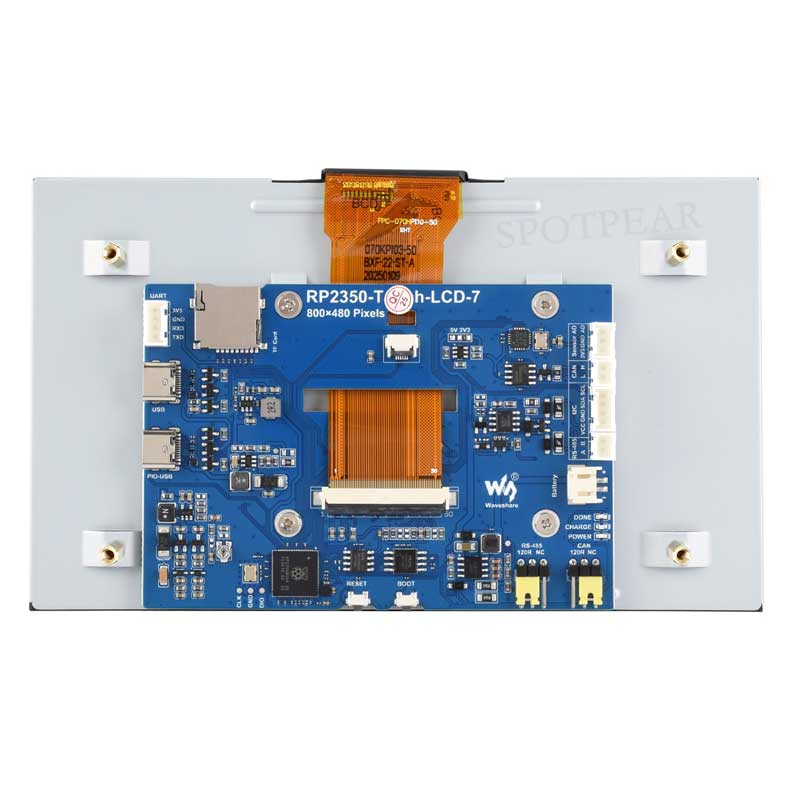

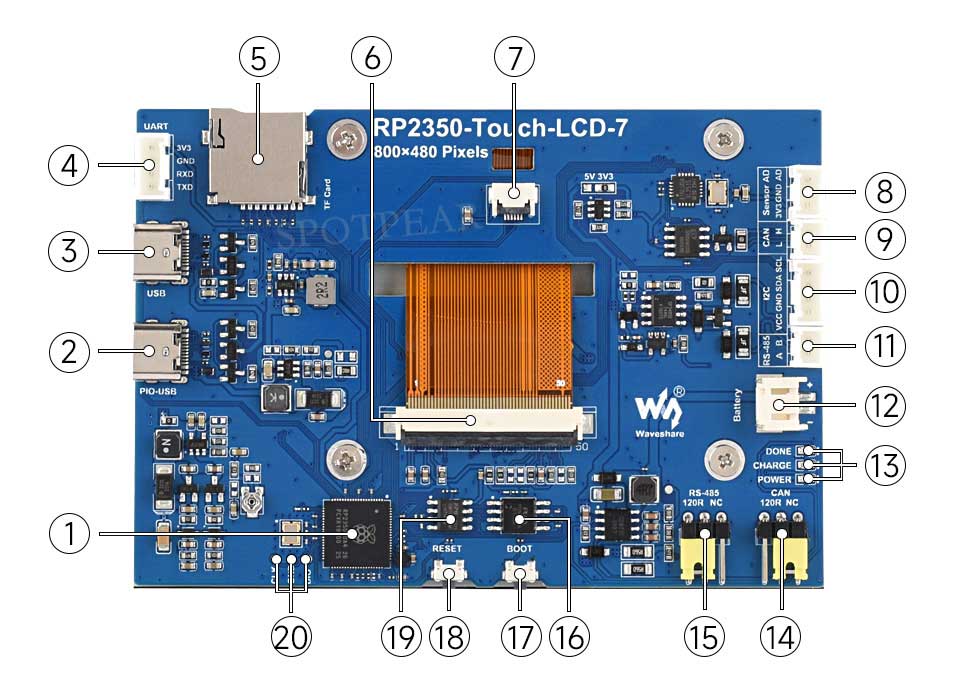

What's On Board

RP2350B
Dual-core and dual-architecture design, up to 150 MHz operating frequency
PIO-USB port
USB with device and host via PIO
USB Type-C port
for programming, USB 1.1 with device and host support
UART header
TF card slot
7inch display panel connector
Touch panel connector
Sensor header
CAN header
I2C header
RS485 header

MX1.25 Lithium Batt header
for 3.7V Lithium Batt, supports charging and discharging, with charging current of up to 500mA
Status Indicators
DONE: Lithium Batt charging completed indicator
CHG: Lithium Batt charging indicator
PWR: Power supply indicator
CAN terminal resistor selection
RS485 terminal resistor selection
16MB Flash
BOOT button
Press it when resetting to enter download mode
RESET button
2MB PSRAM
Debug interface

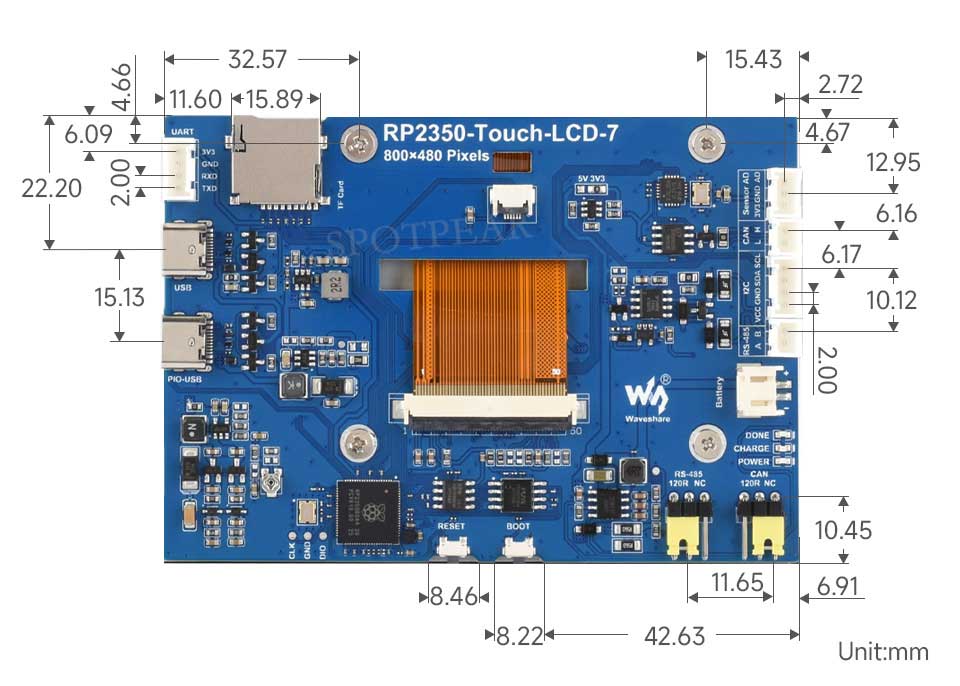

Outline Dimensions

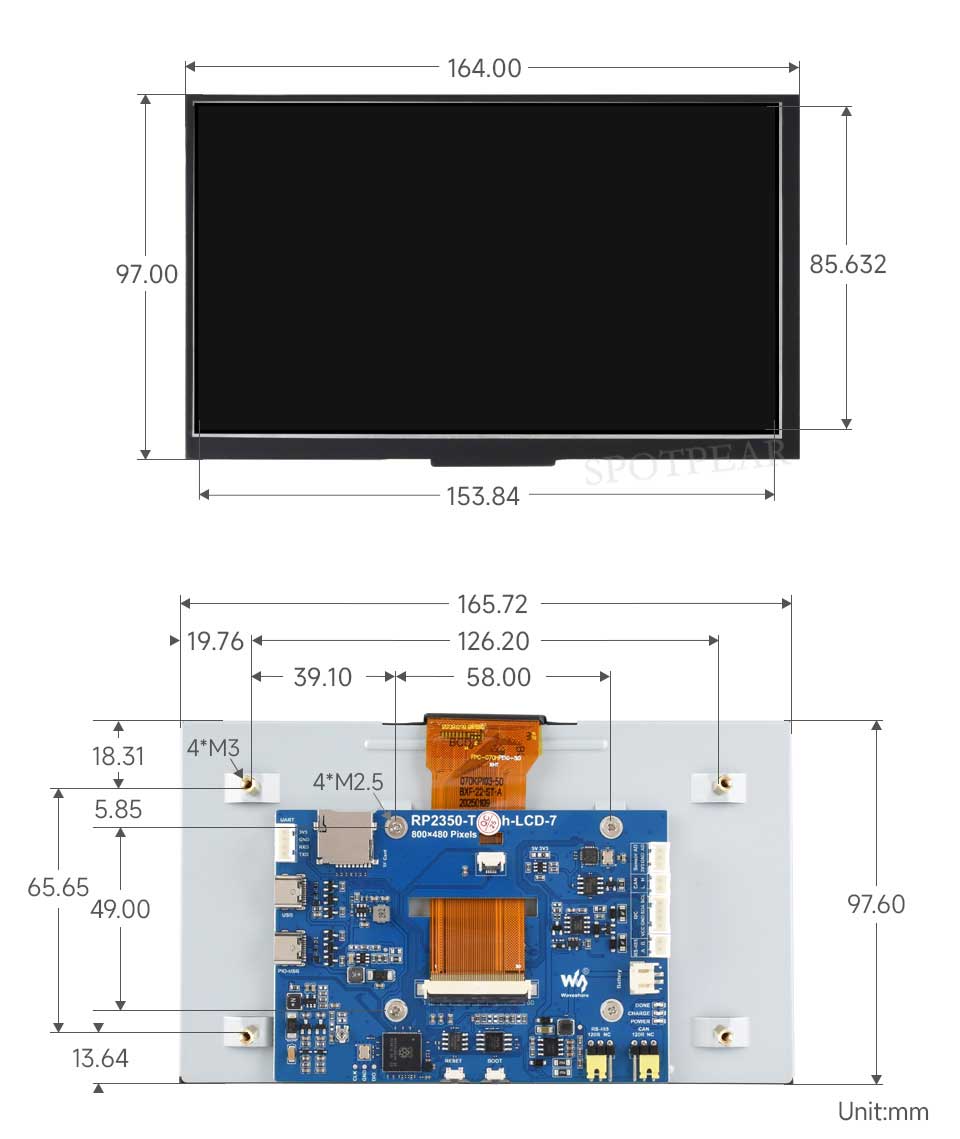

RP2350-LCD-7 (without touch control)

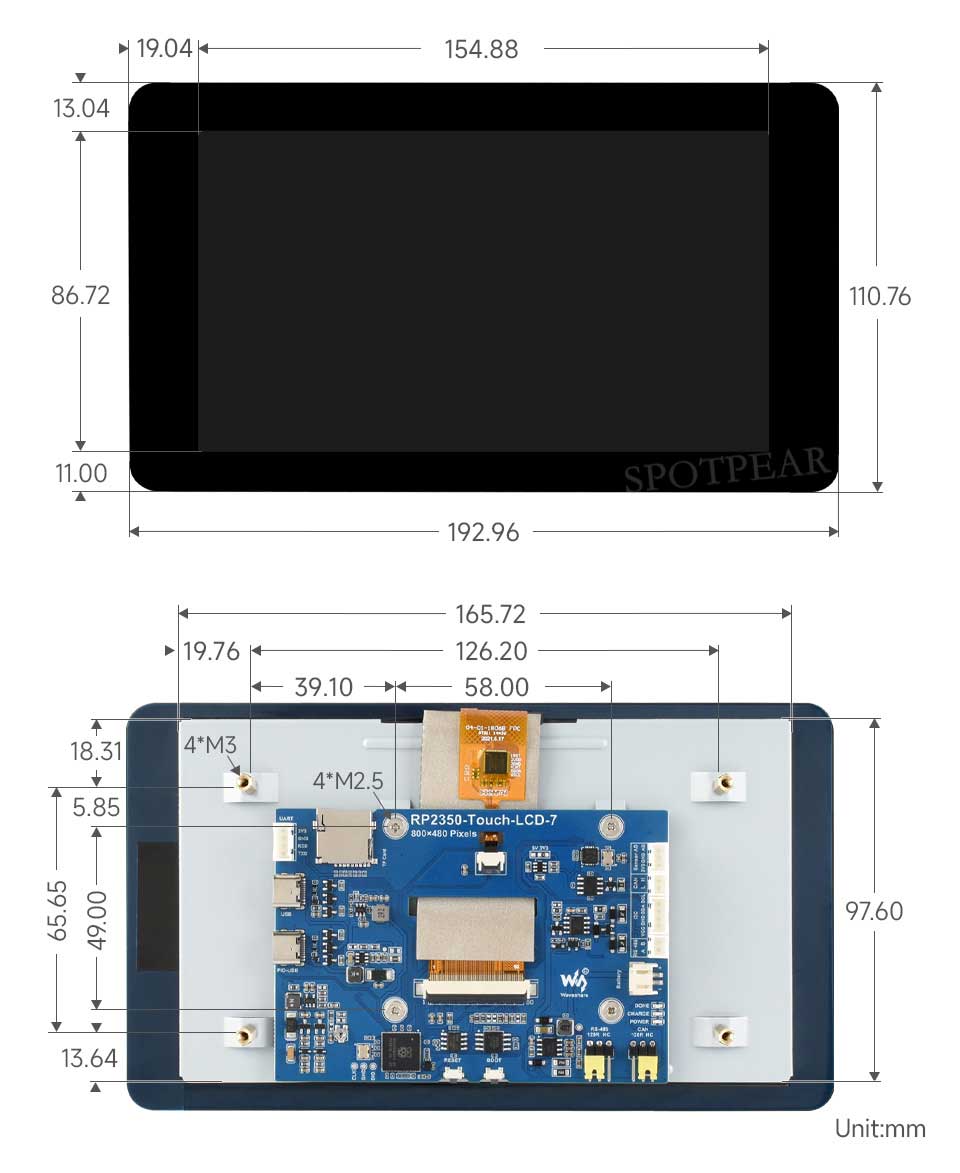

RP2350-Touch-LCD-7 (with touch control)

Development Board Dimensions

[] RP2350-LCD-7

[] RP2350-Touch-LCD-7
