ESP32 C6 AI 1.54inch Development Board 1.54 inch TouchScreen Display DeepSeek
ESP32 C6 AI 1.54inch Development Board 1.54 inch TouchScreen Display DeepSeek
ESP32 C6 AI 1.54inch Development Board 1.54 inch TouchScreen Display DeepSeek
ESP32 C6 AI 1.54inch Development Board 1.54 inch TouchScreen Display DeepSeek
ESP32 C6 AI 1.54inch Development Board 1.54 inch TouchScreen Display DeepSeek
ESP32 C6 AI 1.54inch Development Board 1.54 inch TouchScreen Display DeepSeek
ESP32 C6 AI 1.54inch Development Board 1.54 inch TouchScreen Display DeepSeek

ESP32 C6 AI 1.54inch Development Board 1.54 inch TouchScreen Display DeepSeek

$21.9

Brand：SpotPear
SKU：020815100000
Date：2026-05-27 16:29
Part Number：

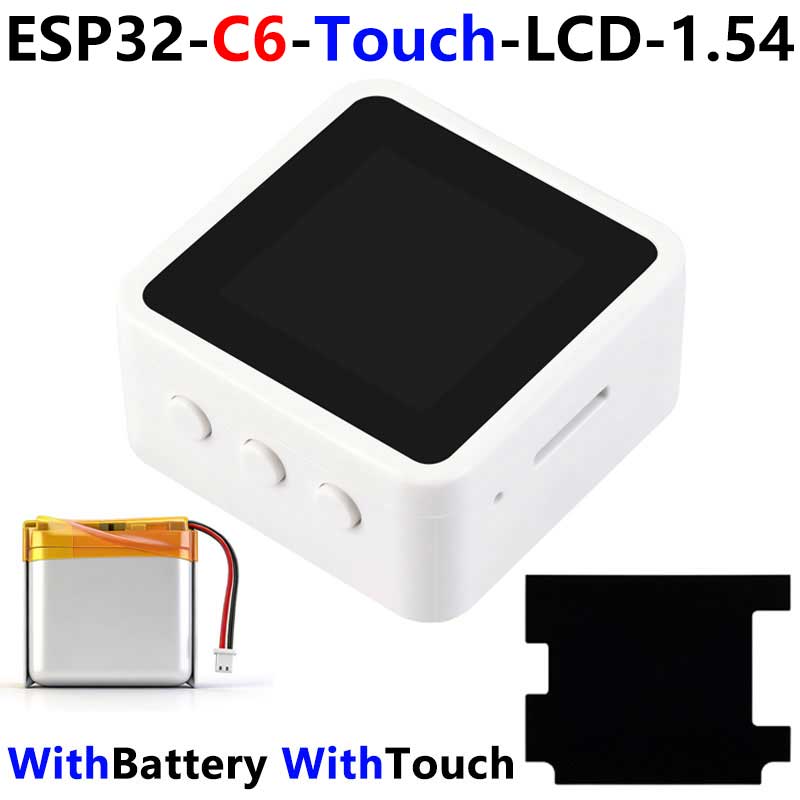

ESP32-C6-LCD-1.54【With Battery No Touch】 ESP32-C6-LCD-1.54-EN【No Battery No Touch】 ESP32-C6-Touch-LCD-1.54【With Battery With Touch】 ESP32-C6-Touch-LCD-1.54-EN【No Battery With Touch】
No：
- +
In Stock
Add to cart
Ask a Question

ESP32-C6 1.54inch LCD Display Development Board, 240 × 240 Resolution, 262K Color, Supports Dual Microphones, 2.4GHz Wi-Fi 6 And BLE 5

EPS32 DeepSeek AI Recommend

Toy-AI-Core-ESP32-C3-MINI

ESP32-S3-N16R8

ESP32-S3-AI-Kit-(A)

ESP32-S3-AI-Kit-(B)

ESP32-S3-OLED-0.96

ESP32-P4-WIFI6

ESP32-P4-WIFI6-DEV-KIT

ESP32-Hi-Dog

ESP32-S3-LCD-0.85-AI

ESP32-S3-AI-MINI-0.85

ESP32-S3-LCD-0.85

ESP32-C6-LCD-0.85

Xmini-C3

Xmini-C3-Kit-BOX

ESP32-S3-1.28inch-AI-EN

ESP32-S3-1.28inch-AI-legs-Bat-0.3MP

ESP32-S3-Touch-LCD-1.28-BOX-THIN

ESP32-S3-DualEye-LCD-1.28

Toy-AI-Core-ESP32-C3-1.28-Case

ESP32-S3-1.3-AI-BOX

ESP32-S3-Touch-AMOLED-1.32

ESP32-C6-Touch-AMOLED-1.32

ESP32-C6-Touch-AMOLED-1.43

ESP32-S3-Touch-AMOLED-1.43C

ESP32-S3-Touch-LCD-1.46

ESP32-S3-AI-Kit-(C)

ESP32-C6-ePaper-1.54

ESP32-S3-ePaper-1.54

ESP32-S3-ePaper-1.54G

ESP32-S3-AI-1.54-MUMA

sp-esp32-s3-1.54-bg

ESP32-S3-AI-1.54-Box

Toy-AI-Core-ESP32-C3-1.54-Case

ESP32-S3-LCD-1.54

ESP32-C6-LCD-1.54

ESP32-C6-Touch-LCD-1.69

ESP32-S3-Touch-AMOLED-1.75

T5-E1-Touch-AMOLED-1.75

ESP32-S3-Touch-AMOLED-1.75C

ESP32-S3-Touch-AMOLED-1.8-EN

ESP32-S3-Touch-AMOLED-1.8-Watch

ESP32-C6-Touch-AMOLED-1.8

EPS32-S3-1.8inch-Touch-LCD

ESP32-S3-Touch-LCD-1.83

ESP32-S3-LCD-1.85

ESP32-S3-LCD-1.85-EchoEar

ESP32-S3-LCD-1.85-Battery

ESP32-S3-Touch-LCD-1.85C

ESP32-S3-Touch-LCD-1.85B

ESP32-S3-AUDIO-Board

AI-BOX-Dual-Eye-0.71-Recog

JLC-Pi-ESP32-S3-2inch-LCD-Camera

ESP32-S3-Touch-AMOLED-2.06

ESP32-C6-Touch-AMOLED-2.06

ESP32-S3-Touch-AMOLED-2.16

ESP32-C6-Touch-AMOLED-2.16

ESP32-S3-AI-3.13inch-LCD

ESP32-S3-Touch-LCD-3.49-EN

ESP32S3-MAX35-Only-Board

ESP32S3-MAX35-TV

ESP32-Touch-LCD-3.5

ESP32-S3-Touch-LCD-3.5B

ESP32-P4-WIFI6-Touch-LCD-3.5

ESP32-S3-ePaper-3.97

ESP32-S3-Touch-LCD-4B

ESP32-S3-RLCD-4.2-EN

ESP32-S3-Touch-LCD-4.3C

ESP32-P4-WIFI6-Touch-LCD-4.3

ESP32-P4-WIFI6-Touch-LCD-5

ESP32-P4-WIFI6-Touch-LCD-7B

ESP32-S3-PhotoPainter

ESP32-C6 1.54inch LCD Display
Development Board

Supports AI Speech Interaction, Online LLM Platforms, And DIY Customization


Version Options


Features

This product is designed by Waveshare, featuring a custom-molded square plastic case, offering a compact and premium appearance. Onboard 1.54inch LCD display, 6-axis sensor, dual microphones array, and TF card slot, providing the hardware foundation for display, sensing, voice, and multimedia storage. With these hardware resources, it supports fun interactive mini-games, voice wake-up, noise reduction, and echo cancellation. It allows access to online AI large model platforms, enabling intelligent voice interaction and continuous upgrades. The factory firmware includes built-in functions such as AI conversation, audio playback, photo album, text reading, and a gravity ball game. It can be used directly as an AI chatting toy, while also supporting customization and secondary development.

Key features:

  • Equipped with high-performance ESP32-C6 32-bit RISC-V processor, up to 160MHz main frequency
  • Supports 2.4GHz Wi-Fi 6 and Bluetooth 5, onboard antenna, with superior RF performance
  • Built-in 512KB Static RAM, 320KB ROM, and external 16MB flash
  • Type-C port, improving device compatibility, easier to use
  • Onboard 1.54inch LCD display for clear color picture display, 240 × 240 resolution, 262K color
  • Onboard ES7210 audio encoding chip for dual microphones audio capture and echo cancellation
  • Onboard ES8311 audio codec chip, NS4150B amplifier chip, microphones, and speaker
  • Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture to expand applications
  • Adapting I2C, UART, and other pin pads for external device connection and debugging, enabling flexible peripheral configuration
  • Onboard two customizable function buttons for operations such as single-click, double-click, and long press
  • Onboard 3.7V MX1.25 Lithium Batt recharge/discharge header
  • Onboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback, simplifying circuit design
LCD Parameters
DISPLAY PANELIPSDISPLAY SIZE1.54inch
DISPLAY RESOLUTION240 × 240 resolutionDISPLAY COLOR262K
COMMUNICATION INTERFACE4-wire SPIDRIVER ICST7789
TOUCH TYPE
(TOUCH VERSION ONLY)		Capacitive touchTOUCH IC
(TOUCH VERSION ONLY)		CST816
ACTIVE DISPLAY AREA27.72 × 27.72 (mm)
Small Size, Touch More Possibilities

Suitable For Various Smart Device Development, And Can Realize Human-Computer Interaction Function. Supports Connecting To A Batt For Independent Operation

*for touch version only

Function Overview

IPS Display Panel

Excellent Display Performance, 262K Color, 240 × 240 Resolution,
With Wide Viewing Angle

Wi-Fi 6 And BLE 5 Support

Supports Wi-Fi 6, Bluetooth 5, And IEEE 802.15.4 (Zigbee 3.0 And Thread),
Its Bluetooth Low Energy Subsystem Supports Bluetooth 5 (LE) And Bluetooth Mesh

Supports ESP-IDF, Arduino IDE

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

What's On Board

  1. ESP32-C6
    Integrated RISC-V single-core processor, up to 160MHz operating frequency, supports 2.4GHz Wi-Fi 6 and BLE 5
  2. 16MB NOR Flash
  3. NS4150B
    audio power amplifier chip
  4. ES8311 audio codec chip
    high-performance, low-power audio DAC
  5. ES7210
    ADC chip for echo cancellation circuits
  6. Batt recharge and discharge management chip
  7. QMI8658
    6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer

  1. PLUS button
  2. PWR button
  3. BOOT button
  4. Microphones
  5. TF card slot
  6. Onboard antenna
  7. MX1.25 Lithium Batt header
    MX1.25 2PIN connector, for 3.7 Lithium Batt, supports charging and discharging
  8. USB Type-C port
    ESP32-C6 USB port, for programming and log printing
  9. MX1.25 speaker header
  10. 1.54inch display panel connector
Outline Dimensions
