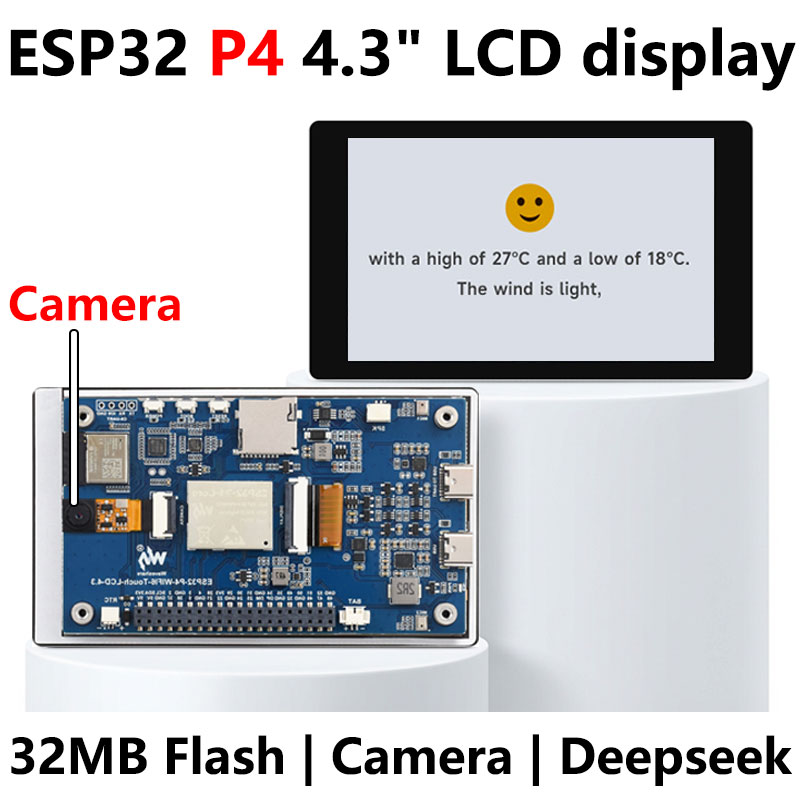

ESP32-P4-WIFI6 4.3inch LCD Display AI Development Board 480×800 4.3 inch TouchScreen Deepseek

ESP32-P4-WIFI6 4.3inch LCD Display AI Development Board 480×800 4.3 inch TouchScreen Deepseek

$40.9

Brand：SpotPear

SKU：020812200000

Date：2026-02-27 14:57

Part Number：

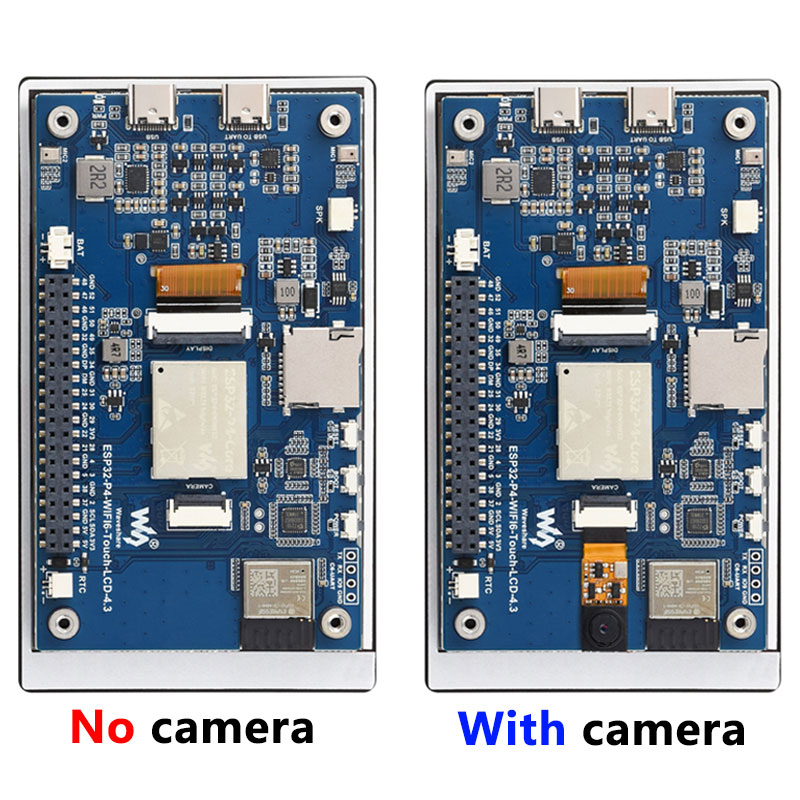

ESP32-P4-WIFI6-Touch-LCD-4.3【No Camera】 ESP32-P4-WIFI6-Touch-LCD-4.3-C【With OV5647 Camera】

No：

- +

In Stock

Buy It Now

Add to cart

Ask a Question

Copy Link

ESP32-P4-WIFI6 4.3inch Development Board, 480 × 800 Resolution, 5-Point Touch, Onboard Audio Codec Chip, Supports Wi-Fi 6 And BLE 5, Optional For OV5647 Camera

ESP32-P4 Recommend

ESP32-P4-Module

WT0132P4-A1-N16R32

ESP32-P4-NANO

ESP32-P4-Module-DEV-KIT

ESP32-P4-WIFI6

ESP32-P4-Pico

ESP32-P4-ETH

ESP32-P4-WIFI6-POE-ETH

ESP32-P4-WIFI6-DEV-KIT

ESP32-P4-WIFI6-Touch-LCD-3.4C

ESP32-P4-WIFI6-Touch-LCD-4C

4-DSI-TOUCH-C

ESP32-P4-WIFI6-Touch-LCD-4.3

ESP32-P4-WIFI6-Touch-LCD-7B

ESP32-P4-86-Panel-ETH-2RO

5-DSI-TOUCH-A

5-DSI-TOUCH-B

7-DSI-TOUCH-A 7inch-DSI-LCD-(H)

7-DSI-TOUCH-C

8-DSI-TOUCH-A

8.8-DSI-TOUCH-A

9-DSI-TOUCH-B

10.1-DSI-TOUCH-A

10.1-DSI-TOUCH-B

ESP32-P4-WIFI6-Touch-LCD-7/8/10.1

EPS32 DeepSeek AI Recommend

Toy-AI-Core-ESP32-C3-MINI

ESP32-S3-N16R8

ESP32-S3-AI-Kit-(A)

ESP32-S3-AI-Kit-(B)

ESP32-S3-OLED-0.96

ESP32-P4-WIFI6

ESP32-P4-WIFI6-DEV-KIT

ESP32-Hi-Dog

ESP32-S3-AI-MINI-0.85

Xmini-C3

Xmini-C3-Kit-BOX

ESP32-S3-1.28inch-AI-EN

ESP32-S3-Touch-LCD-1.28-BOX-THIN

ESP32-S3-DualEye-LCD-1.28

Toy-AI-Core-ESP32-C3-1.28-Case

ESP32-S3-1.3-AI-BOX

ESP32-S3-Touch-AMOLED-1.32

ESP32-C6-Touch-AMOLED-1.32

ESP32-C6-Touch-AMOLED-1.43

ESP32-S3-Touch-LCD-1.46

ESP32-S3-AI-Kit-(C)

ESP32-S3-ePaper-1.54

ESP32-S3-AI-1.54-MUMA

ESP32-S3-AI-1.54-Box

Toy-AI-Core-ESP32-C3-1.54-Case

ESP32-C6-Touch-LCD-1.69

ESP32-S3-Touch-AMOLED-1.75

T5-E1-Touch-AMOLED-1.75

ESP32-S3-Touch-AMOLED-1.75C

ESP32-S3-Touch-AMOLED-1.8-EN

ESP32-S3-Touch-AMOLED-1.8-Watch

ESP32-C6-Touch-AMOLED-1.8

EPS32-S3-1.8inch-Touch-LCD

ESP32-S3-Touch-LCD-1.83

ESP32-S3-LCD-1.85

ESP32-S3-LCD-1.85-EchoEar

ESP32-S3-LCD-1.85-Battery

ESP32-S3-Touch-LCD-1.85C

ESP32-S3-AUDIO-Board

AI-BOX-Dual-Eye-0.71-Recog

JLC-Pi-ESP32-S3-2inch-LCD-Camera

ESP32-S3-Touch-AMOLED-2.06

ESP32-C6-Touch-AMOLED-2.06

ESP32-S3-AI-3.13inch-LCD

ESP32-S3-Touch-LCD-3.49-EN

ESP32-Touch-LCD-3.5

ESP32-S3-Touch-LCD-3.5B

ESP32-S3-ePaper-3.97

ESP32-S3-Touch-LCD-4B

ESP32-S3-RLCD-4.2-EN

ESP32-S3-Touch-LCD-4.3C

ESP32-P4-WIFI6-Touch-LCD-4.3

ESP32-P4-WIFI6-Touch-LCD-7B

ESP32-S3-PhotoPainter

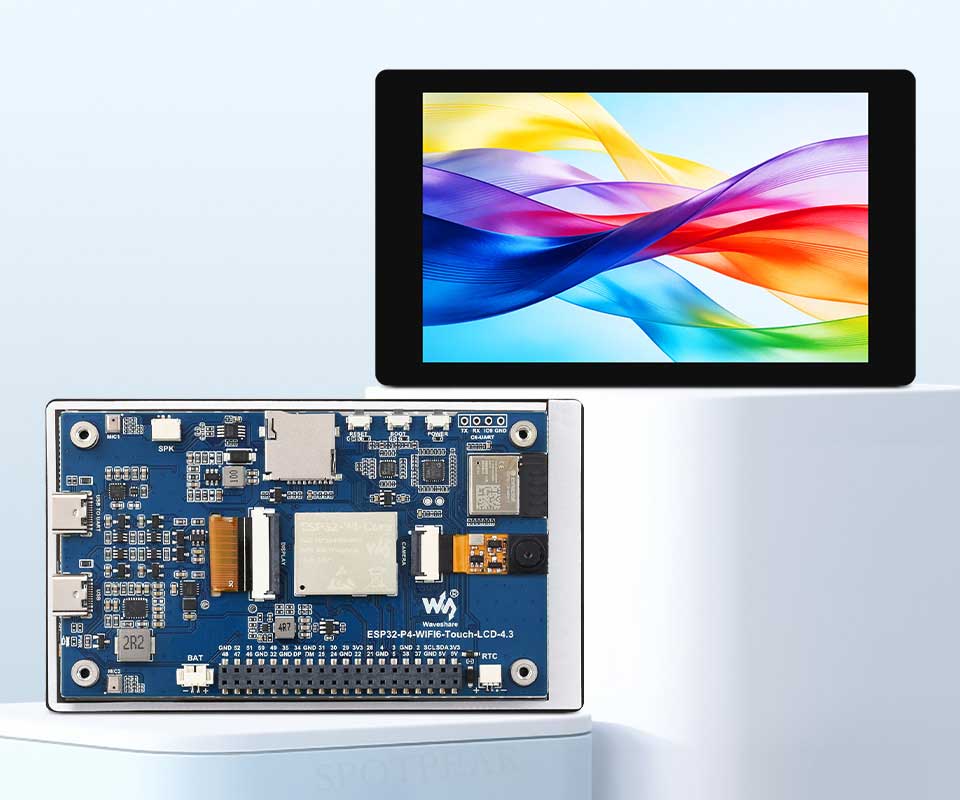

ESP32-P4-WIFI6 4.3inch Rounded Corner LCD Development Board

Based on ESP32-P4 and ESP32-C6 High-Performance Development Board

Integrated Audio Input/Output Module For AI Interaction And Voice Control

The display orientation is portrait by default, 480 × 800 resolution (H × V).
Change the software config for landscape display.

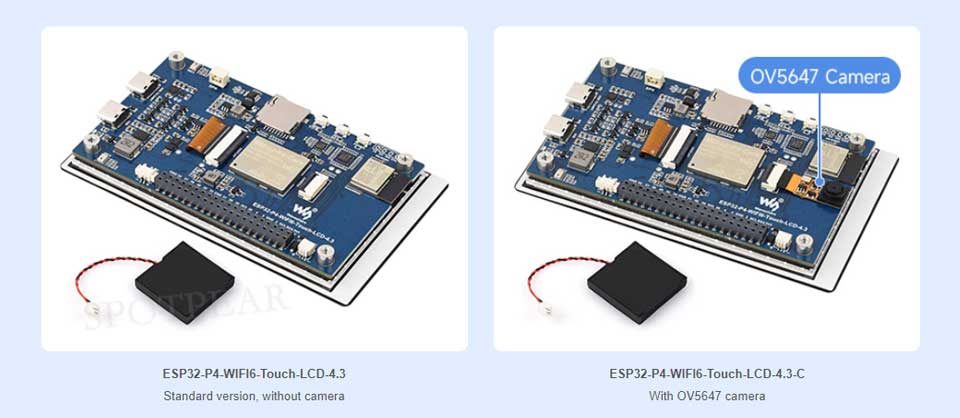

Version Options

Features

The ESP32-P4-WIFI6-Touch-LCD-4.3 is a high-performance development board based on ESP32-P4 controller with RISC-V 32-bit dual-core and single-core processors. Equipped with 4.3inch 480 × 800 resolution IPS touch display, features rich human-machine interfaces including MIPI-CSI (with integrated Image Signal Processor), it also supports USB OTG 2.0 HS for high-speed connectivity and features an onboard 40PIN GPIO expansion header, compatible with some Raspberry Pi HATs for broader application adaptability.

The ESP32-P4 chip integrates the Digital Signature Peripheral and a dedicated Key Management Unit, ensuring secure data and operations. Specifically designed for high-performance and high-security applications, to meet the higher requirements of embedded applications such as Human-Machine interaction, efficient edge computing, and IO expansion.

High-performance MCU with RISC-V 32-bit dual-core and single-core processors
Onboard ESP32-C6-MINI module serving as a Wi-Fi 6 co-processor, extending Wi-Fi 6 and BLE 5 capabilities for ESP32-P4
128KB HP ROM, 16KB LP ROM, 768KB HP L2MEM, 32KB LP Static RAM, 8KB TCM
Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder
32MB PSRAM in the chip's package, with onboard 32MB Nor Flash
Onboard Type-C ports, more convenient, better device compatibility
Onboard 4.3inch capacitive touch IPS display for clear color picture display, 480 × 800 resolution
Onboard 3.7V MX1.25 Lithium Batt recharge/discharge header
Adapting I2C, UART, USB and multiple GPIOs for external device connection and debugging, enabling flexible peripheral configuration
Onboard TF card slot for extended storage, high-speed data transfer, and enhanced flexibility, suitable for data logging and media playback, simplifying circuit design
Onboard camera interface, supporting OV5647 and other MIPI-CSI cameras
Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation

LCD Specifications

DISPLAY PANEL	IPS	DISPLAY SIZE	4.3inch
DISPLAY RESOLUTION	480 × 800 resolution	VIEWING ANGLE	160°
BRIGHTNESS	500cd/㎡	CONTRAST RATIO	1000:1
COMMUNICATION INTERFACE	MIPI-DSI 2-lane	DISPLAY DRIVER	ST7701
TOUCH TYPE	Capacitive touch	TOUCH IC	GT911

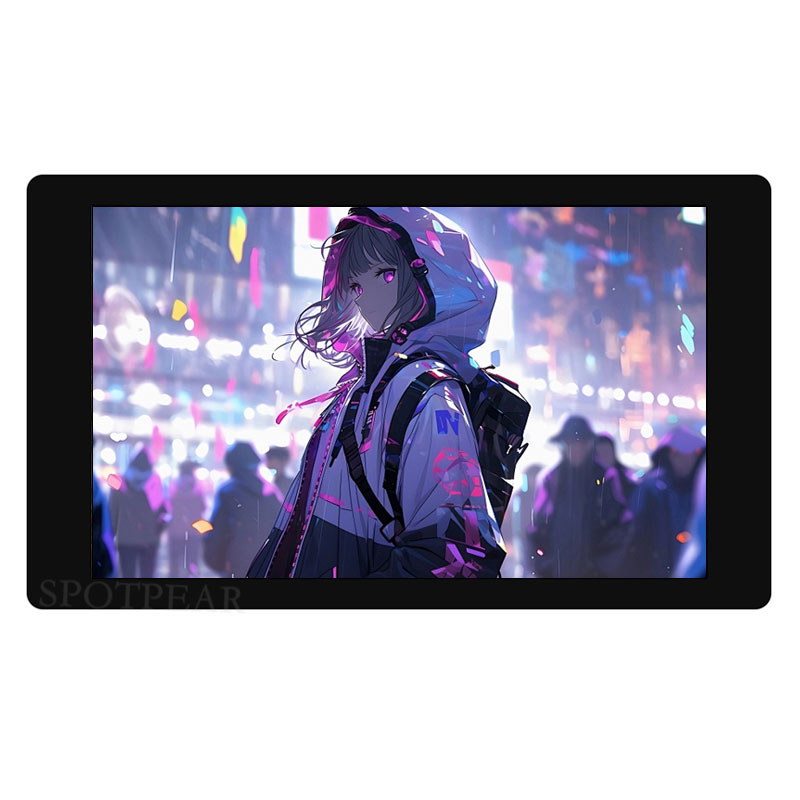

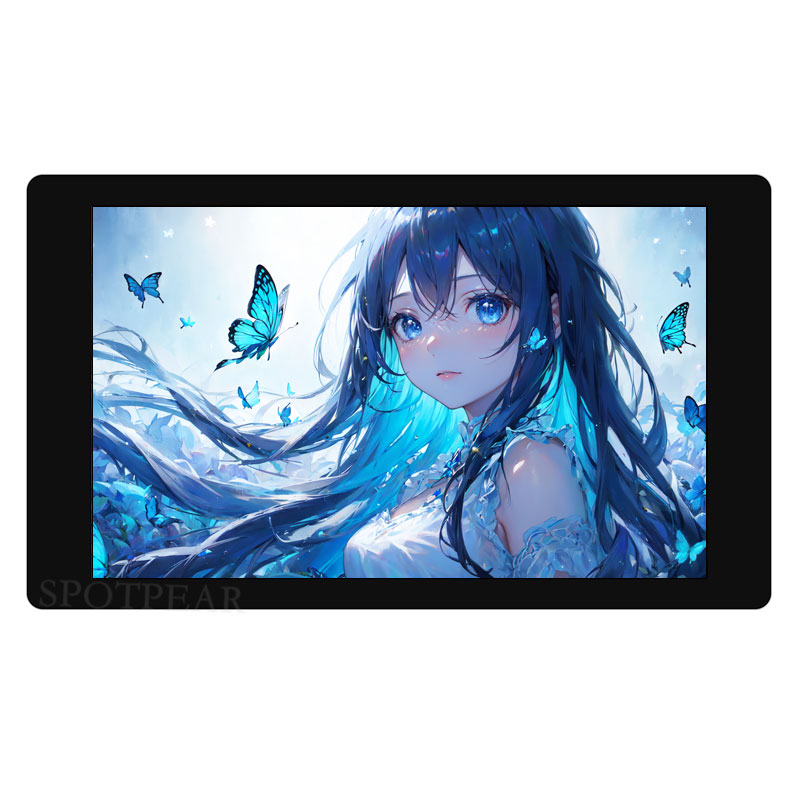

IPS Display Panel

Excellent Display Performance With 160° Wide Viewing Angle

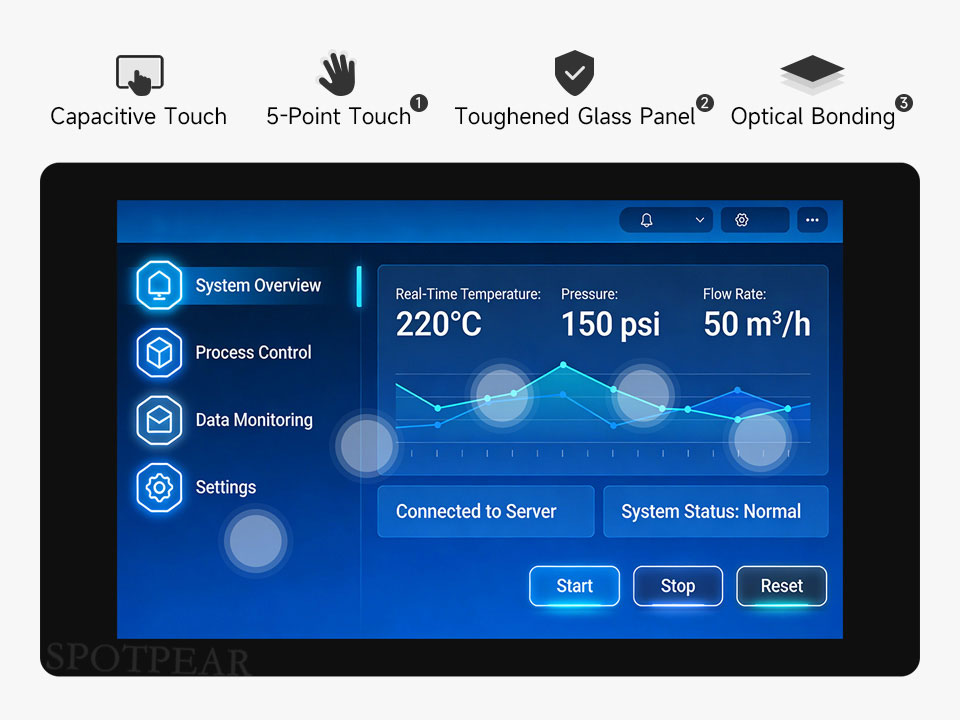

Capacitive 5-Point Touch

Suitable For Developing Various Smart Devices, Enabling Human-Machine Interaction Functions

up to 5-point touch, depending on the operating system
up to 6H hardness toughened glass panel
Optical Bonding, display well and dustproof

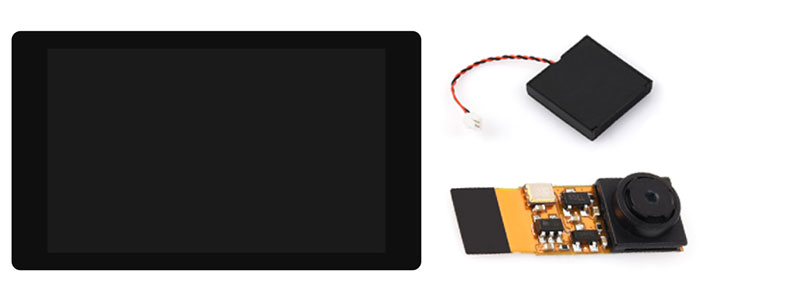

5MP OV5647 Camera

Onboard MIPI CSI Camera Interface, Optional For OV5647 Camera, Suitable For Image Capture, Video Surveillance, And Other Applications, Meeting Diverse Requirements

Camera Specifications

Sensor	OV5647	CMOS Size	1/4inch
Pixel	5MP	Aperture	F2.4
Focal Length	3.07mm	FOV	72.9°
Distortion	< 1.5%	DOF	20cm ~ ∞
Image	static image resolution: 2592 × 1944 pixel
Video Recording	1920 × 1080p at 30 fps, 1280 × 720p at 60 fps 640 × 480p at 60 fps, 640 × 480p at 90 fps

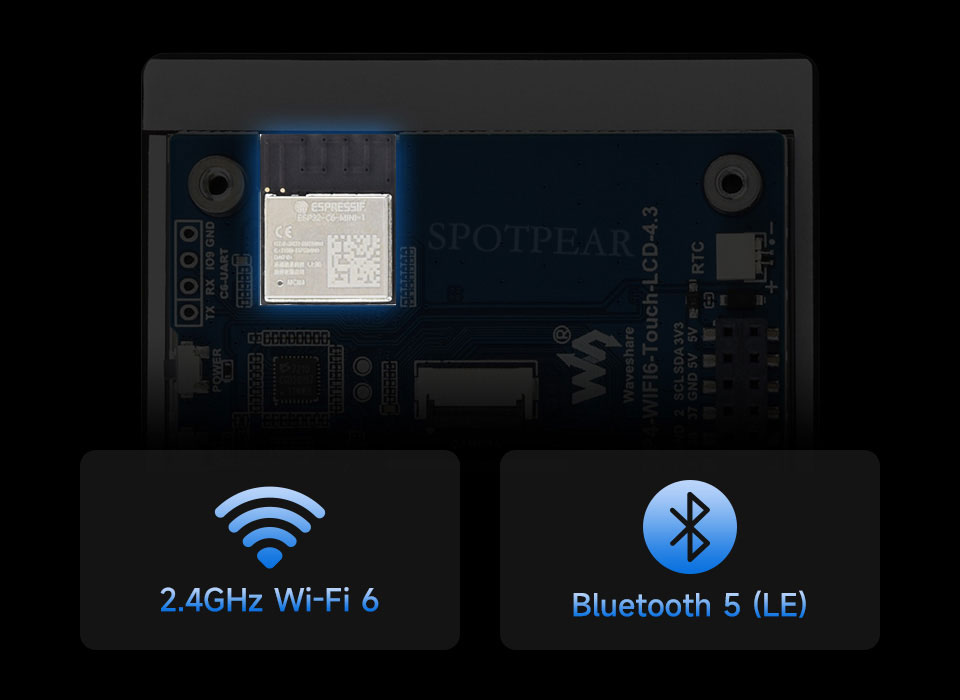

Wi-Fi 6 And Bluetooth Module

Onboard ESP32-C6-MINI Module Extends 2.4GHz Wi-Fi 6 And Bluetooth 5 (LE) For ESP32-P4, Using SDIO Interface Protocol For Stable Connection And Efficient Transmission

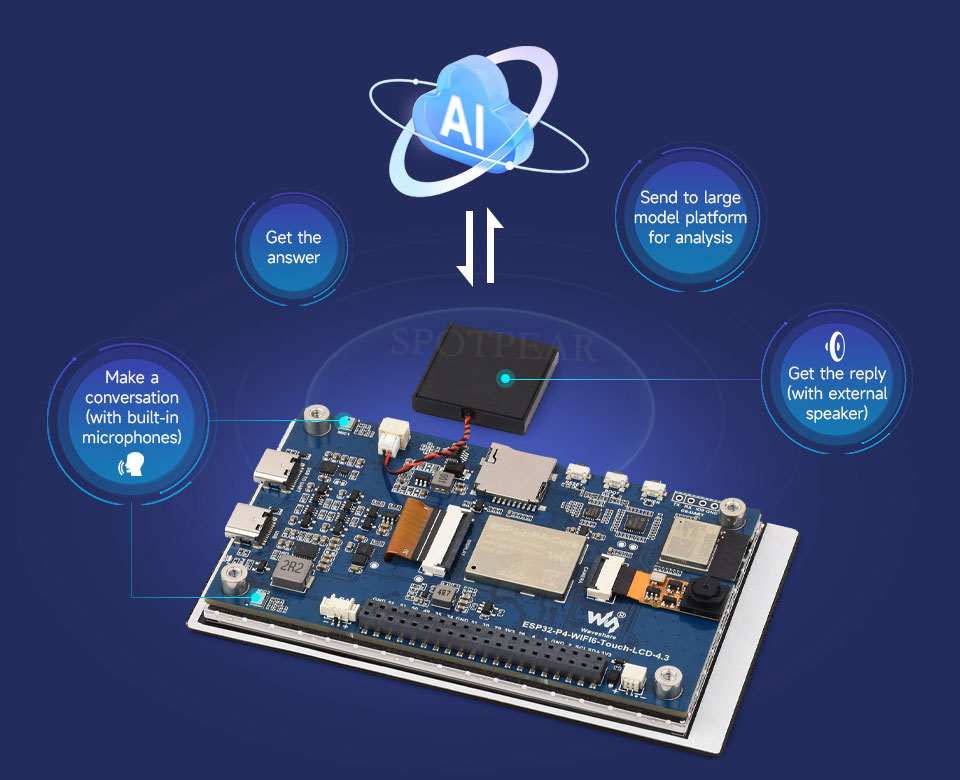

Audio Input / Output

Onboard ES8311 Audio Codec Chip And ES7210 Echo Cancellation Circuit
For Daily Audio Application Scenarios

Supports AI Speech Interaction

Allows Access To Online Large Model Platforms Such As DeepSeek, Doubao, Etc.

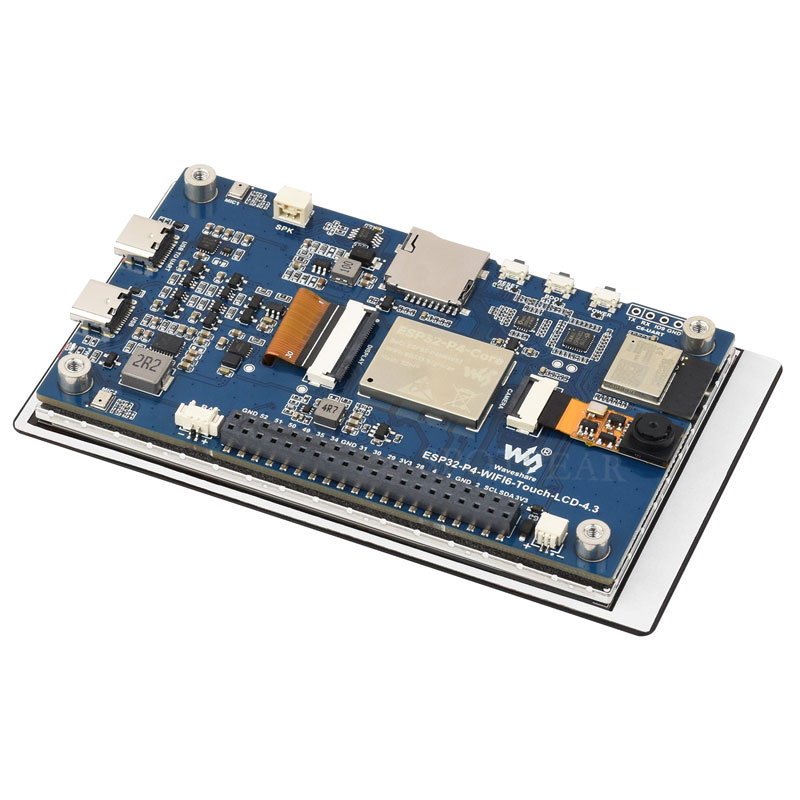

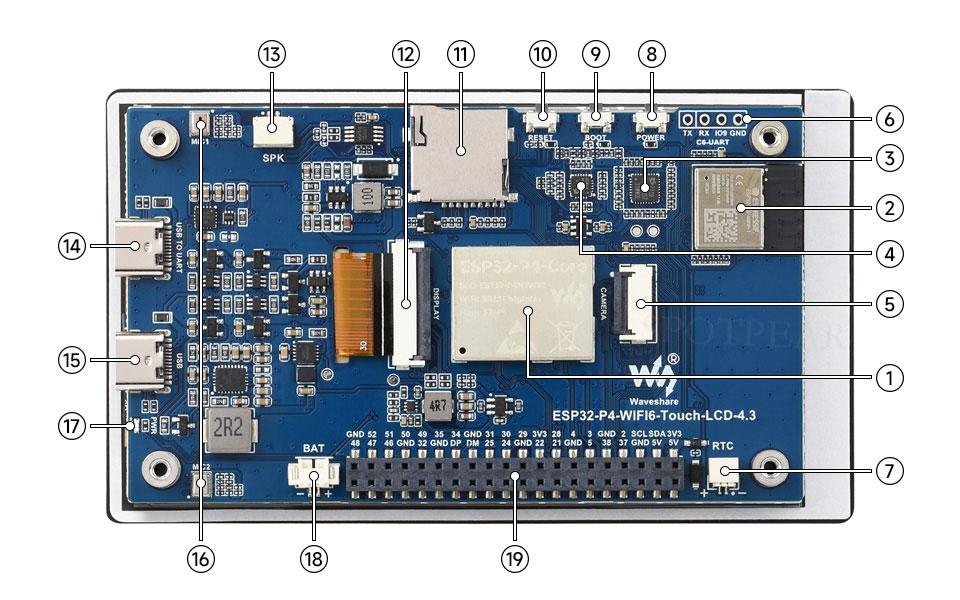

What's On Board

ESP32-P4-Core
integrated ESP32-P4NRW32 and 32MB Nor Flash
ESP32-C6-MINI-1 module
SDIO interface protocol, extending Wi-Fi 6 / Bluetooth 5 (LE)
ES7210 echo cancellation chip
Echo cancellation algorithm chip, used to eliminate echo and improve audio capture accuracy
ES8311 low-power audio codec chip
for audio encoding and decoding
MIPI CSI interface
15PIN 1.0mm pitch interface for connecting MIPI-2lane camera
2.54mm 4PIN pads
for ESP32-C6 module firmware burning
RTC Batt header
for connecting rechargeable RTC Batt (supports rechargeable RTC Batts only)
POWER button
Long press 2s to power off, short press to power on
BOOT button
Press it when powering on or resetting to enter download mode
RESET button

TF card slot
SDIO 3.0 interface protocol
MIPI DSI LCD interface
for connecting MIPI 2-lane display
Speaker header
GH 1.25 2PIN connector (with lock), supports 8Ω 2W speaker (recommended)
USB TO UART Type-C port
for power supply, programming and debugging
USB OTG Type-C port
USB OTG 2.0 High Speed port
Onboard microphones
dual-microphone array input
PWR LED indicator
Power indicator
MX1.25 Lithium Batt header
MX1.25 2PIN connector, for 3.7V Lithium Batt, supports charging and discharging
40PIN expansion header
2.54mm pitch, compatible with some Raspberry Pi HATs (may require a 2*20pin male-to-male header for connection)

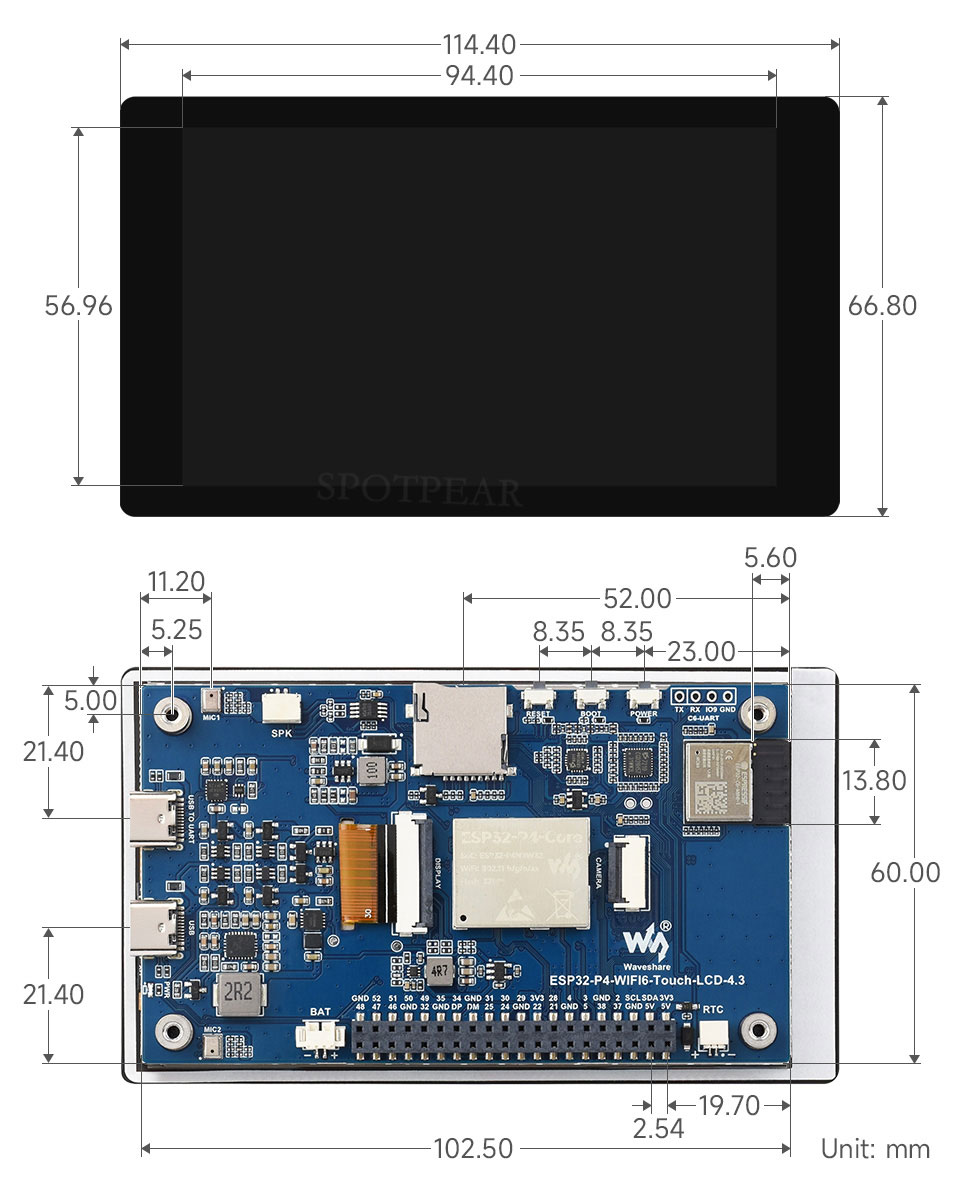

Outline Dimensions

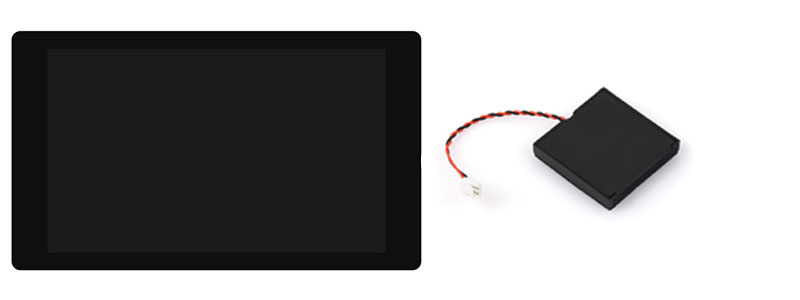

[] ESP32-P4-WIFI6-Touch-LCD-4.3

[] ESP32-P4-WIFI6-Touch-LCD-4.3-C
