ESP32-P4 Pico WIFI6 Development Board C6 MIPI DSI 10.1-inch Display /CSI Camera /Audio Speaker Mic AI Deepseek
$13.9
The ESP32-P4 development board is a high-performance development board based on ESP32-P4 and ESP32-C6, supporting Wi-Fi6 and Bluetooth5/BLE 5, as well as deepseek

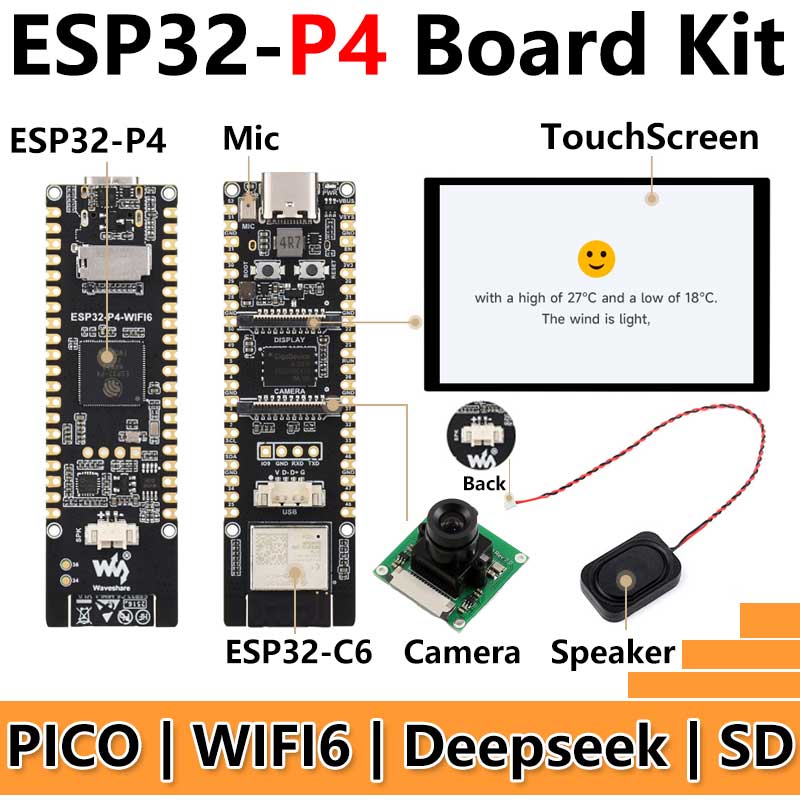

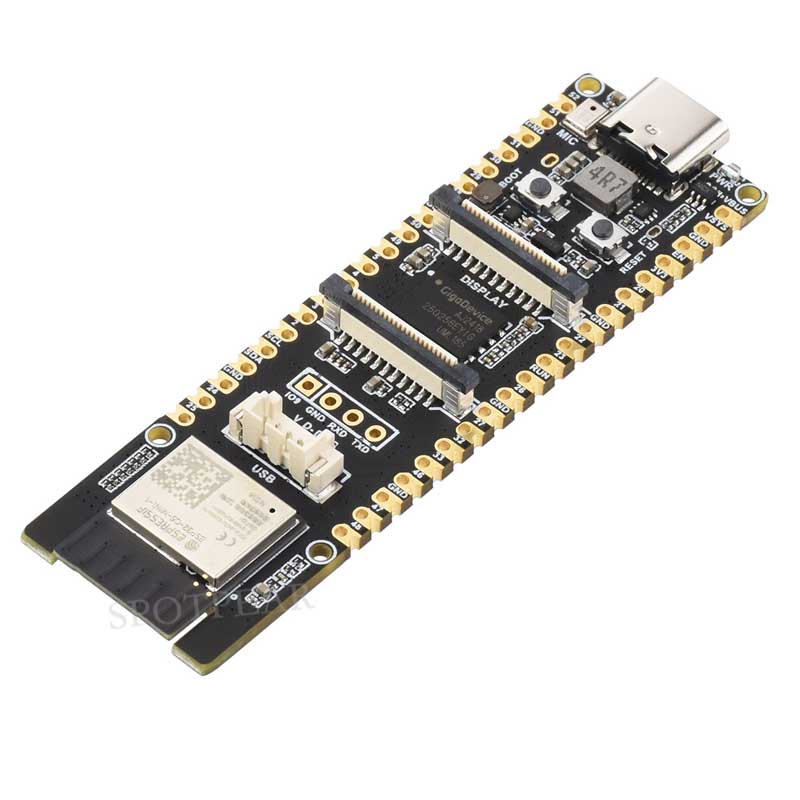

ESP32-P4 development board
High-performance development boards based on ESP32-P4 and ESP32-C6
Rich human-computer interaction interfaces
Board Introduction
This product is a multimedia development board based on ESP32-P4 and integrates ESP32-C6, supporting Wi-Fi 6 and BLE 5 wireless connections. It offers a rich array of human-machine interaction interfaces, including MIPI-CSI (Integrated Image Signal Processor ISP), MIPI-DSI, SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART and TWAI, etc. In addition, it supports USB OTG 2.0 HS and is equipped with a 40-pin GPIO expansion interface on board, which is compatible with some Raspberry PI Pico HAT expansion boards to achieve broader application adaptation. The ESP32-P4 adopts a 400MHz dual-core RISC-V processor, supports up to 32MB PSRAM, and is equipped with peripherals such as USB 2.0, MIPI-CSI/DSI and H.264 encoding, meeting the multimedia development requirements of low cost, high performance and low power consumption. In addition, the ESP32-P4 integrates a digital signature peripheral and a dedicated key management unit to ensure the security of data and operations. ESP32-P4-WIFI6 is specifically designed for high-performance and high-security applications, meeting the requirements of embedded systems in human-computer interaction, edge computing, and IO expansion.
Main functional characteristics：
- High-performance MCU equipped with RISC-V 32-bit dual-core and single-core processors
- 128KB HP ROM、16KB LP ROM、768KB HP L2MEM、32KB LP SRAM、8KB TCM
- Powerful image and voice processing capabilities. The image and voice processing interfaces include JPEG codecs, pixel processing accelerators (PPA), image signal processors (ISP), and H264 video encoders
- The chip package encapsulates 32MB PSRAM internally and integrates 32MB Nor Flash externally
- Common peripheral interfaces such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, SDIO 3.0 SD card slot, microphone and speaker terminals are led out from the board
- 2 × 20 rows of pins are led out from the board, and 27 remaining programmable GPIOs are led out
- Security mechanisms: Secure boot, Flash encryption, hardware encryption accelerator and hardware random number generator. It also supports hardware access protection and can achieve access permission management (APM) and permission separation

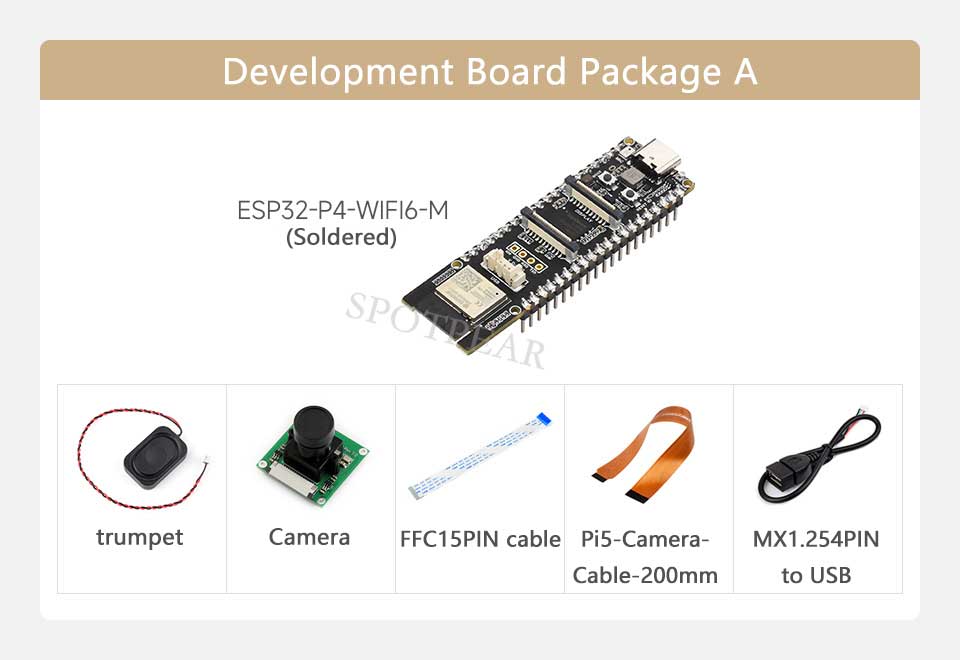

Package selection

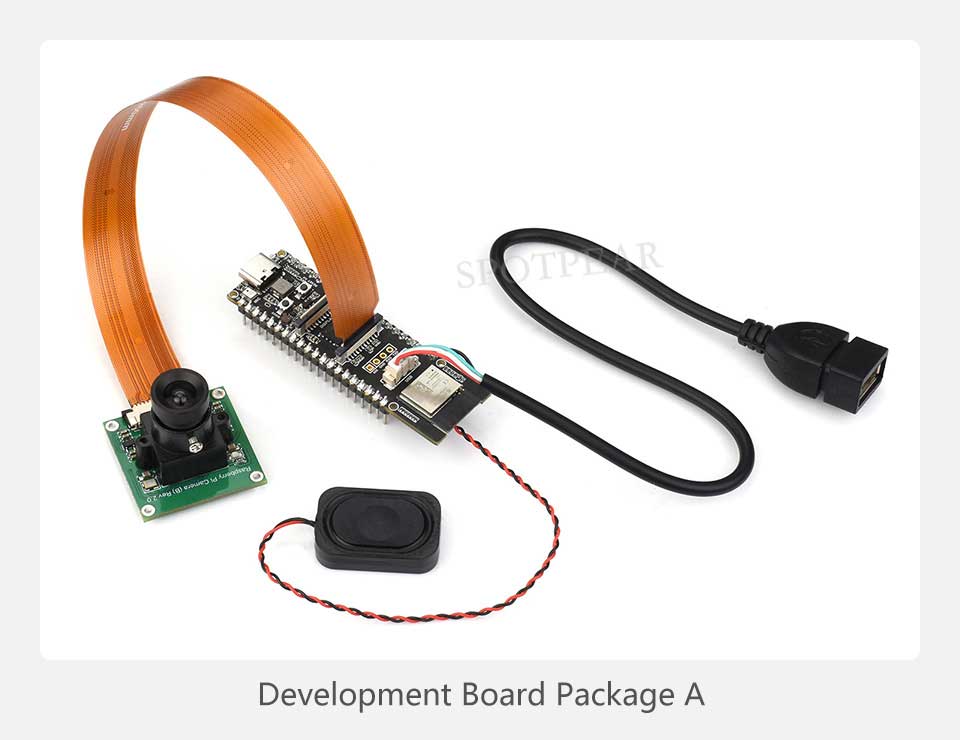

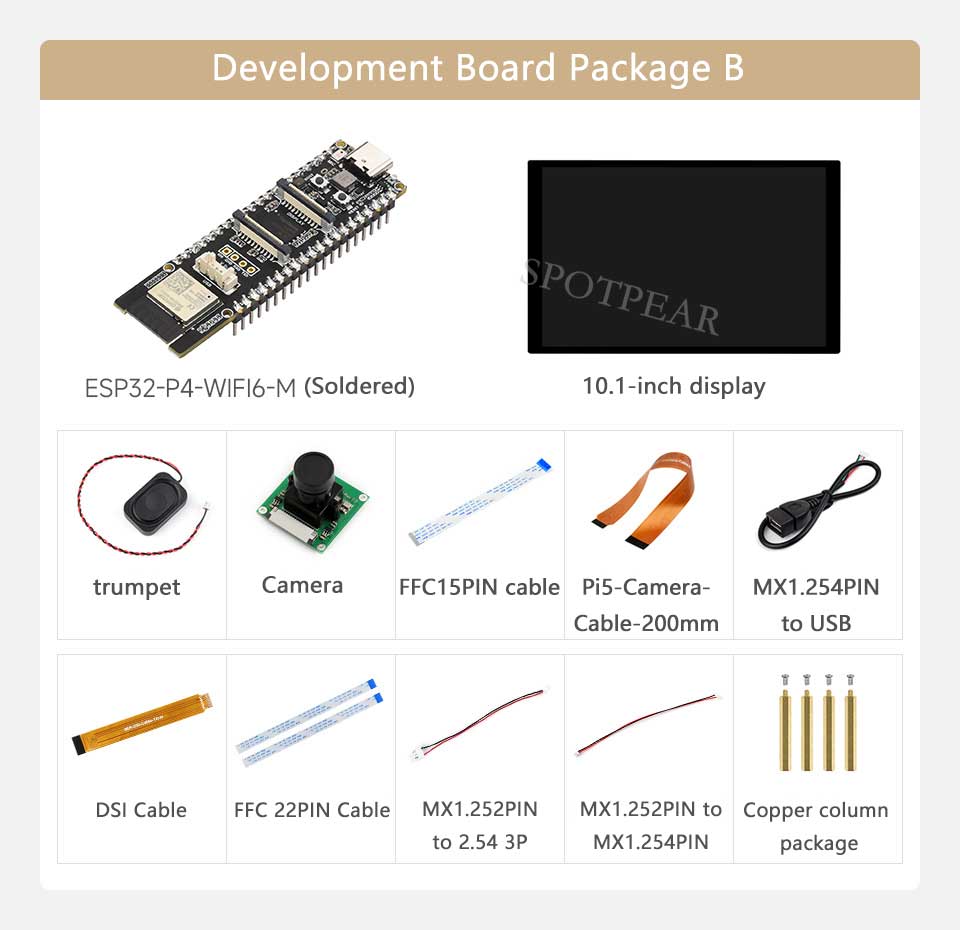

Example of package combination matching

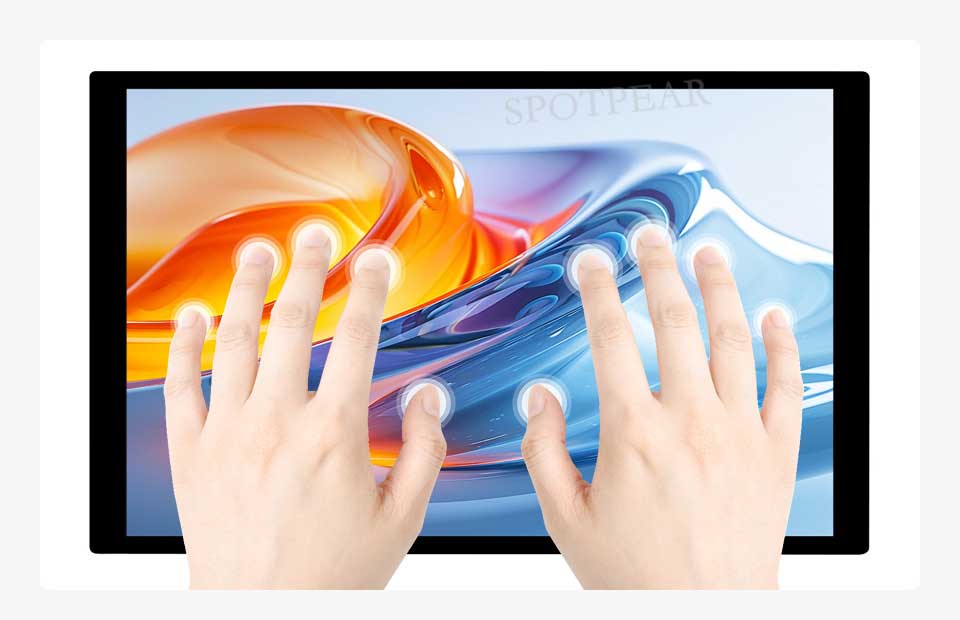

DSI capacitive touch screen
It adopts IPS full-laminated tempered glass panel and has a 178° wide viewing Angle
Supports ten-point touch, with clear pictures and excellent visual experience
| Screen model | 10.1-DSI-TOUCH-A |
|---|---|
| Resolution | 800 × 1280 (H × V) |
| Communication interface | MIPI-DSI (2-lane) |
| Brightness | 400cd/m² (Customizable 1000cd/m² highlighted version supported) |
| Touch chip | GT9271 |
| Overall dimensions | 147.0 × 239.0 (mm) |
| Display size | 135.36 × 216.58 (mm) |
| Pixel size | 0.1692 (H) × 0.1692 (V) (mm) |
| Contrast | 800:1 |
| Temperature | 0℃ ~ 60℃ |

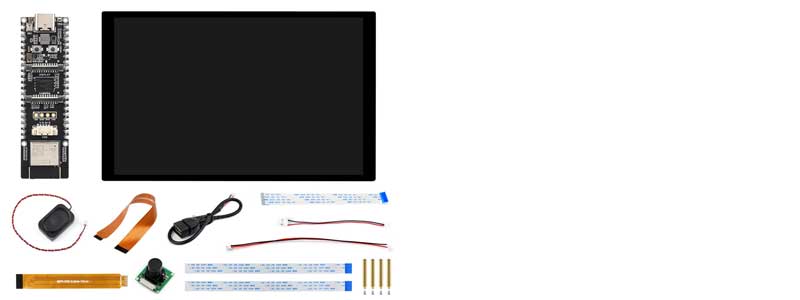

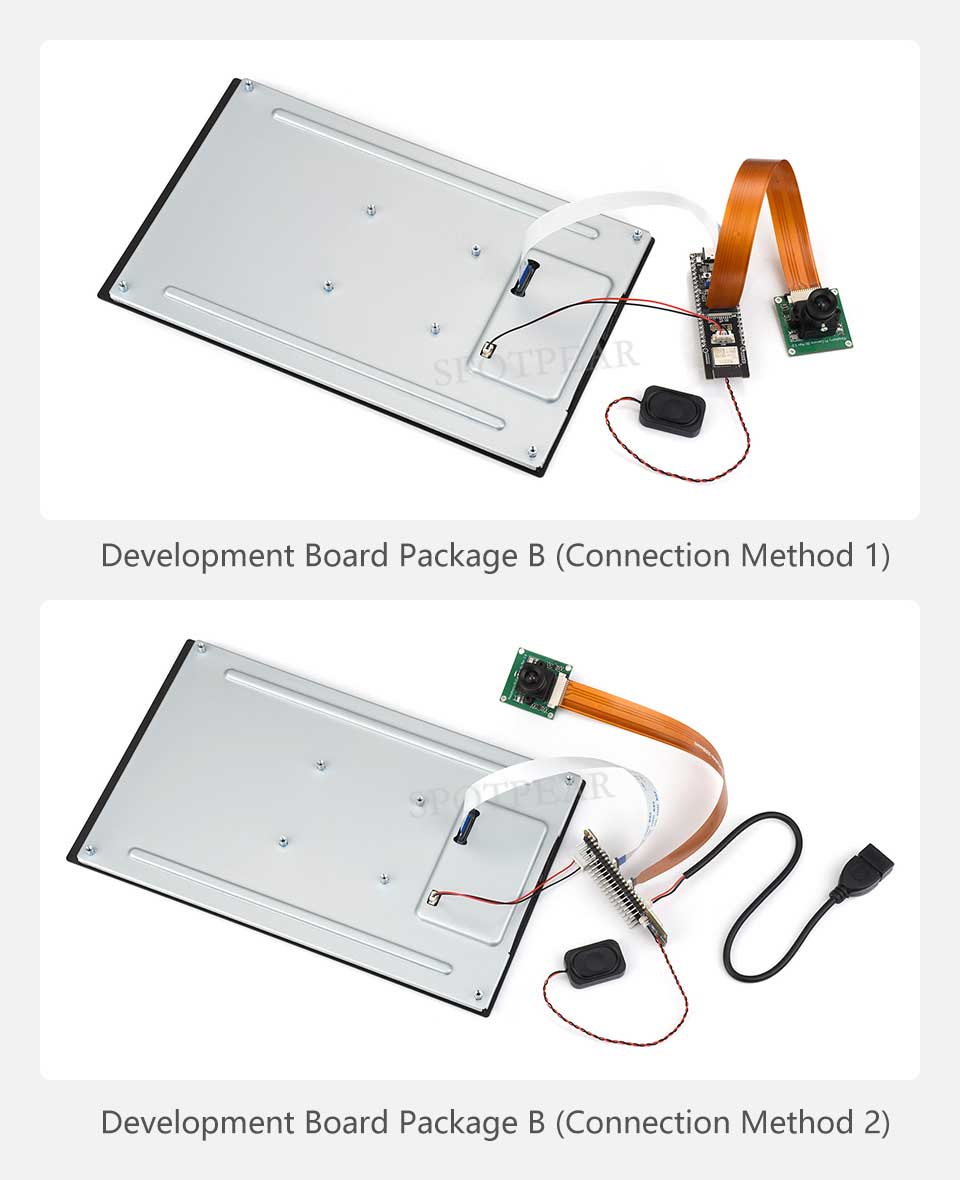

(Only Development Board Package B with a screen)

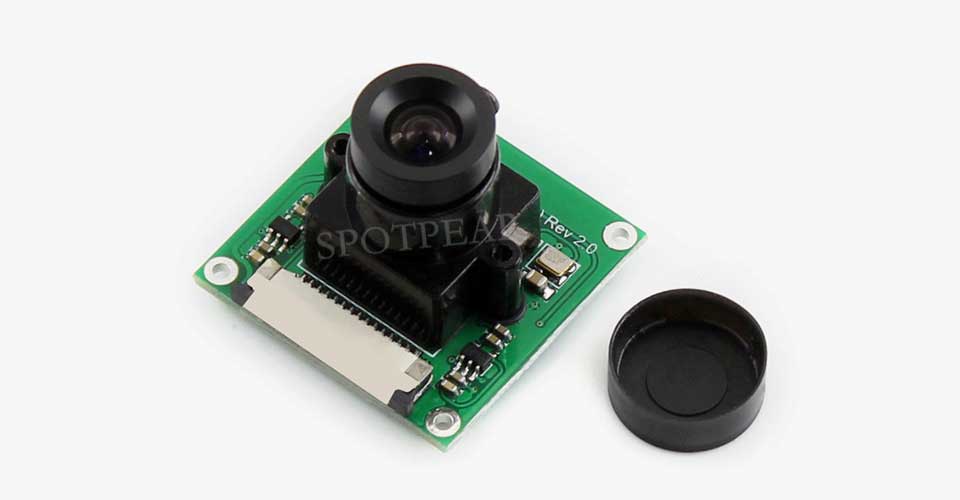

Raspberry PI Camera Type B
5 million pixels, manual focus
Compatible with Raspberry Pi series motherboards
| Photosensitive chip | OV5647 | CMOS size | 1/4 inch |
| Pixel | Five million | Aperture | F2.0 |
| Focal length | 6mm | Diagonal field of view | 60.6° |
| Infrared night vision | Not supported | Focusing mode | Manual focus |
The picture is for display only. The detailed configuration shall be subject to the configuration list

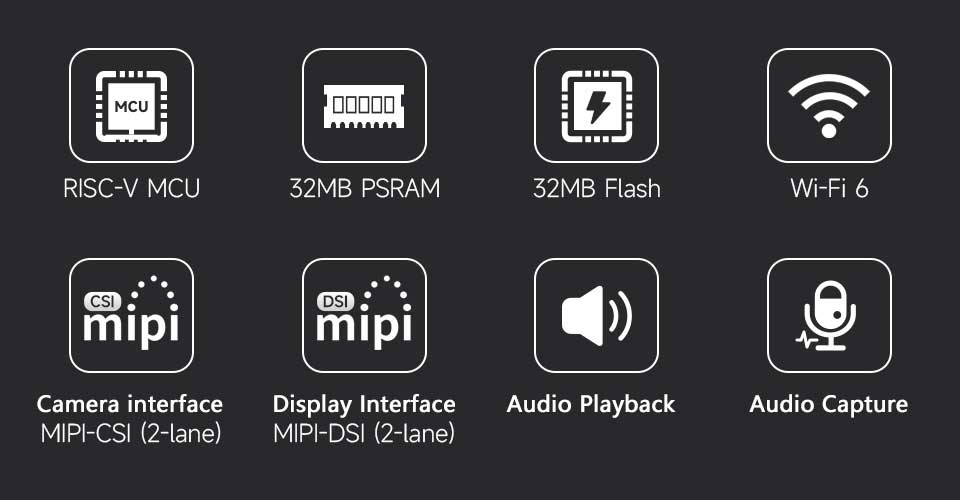

Highly integrated and powerful performance
The development board adopts the ESP32-P4 module and has built-in ESP32-C6 and 32MB Nor Flash

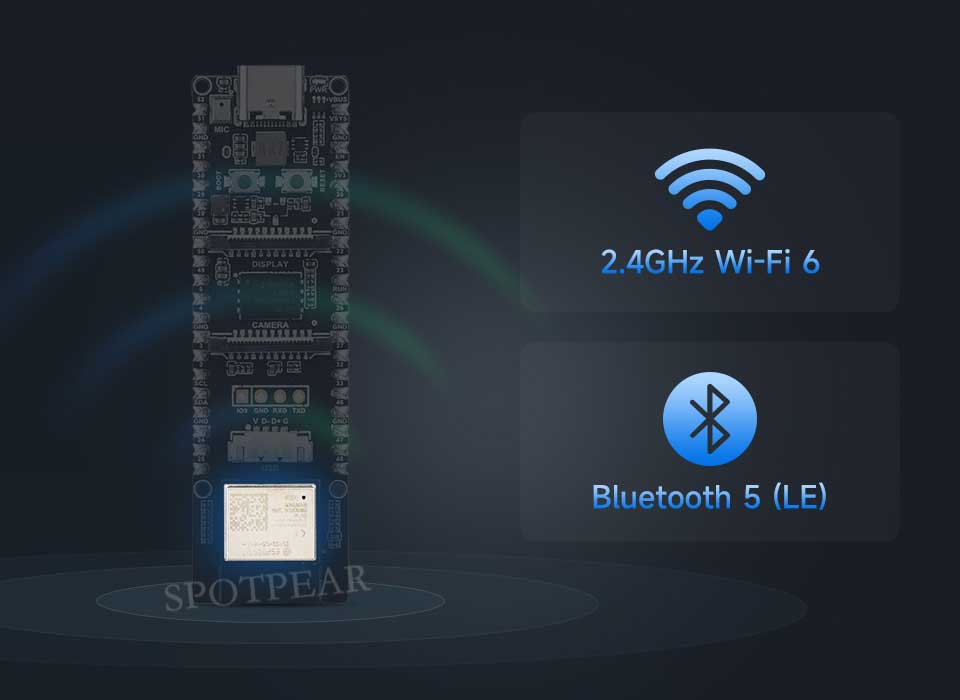

Supports Wi-Fi 6 and Bluetooth modules
The on-board ESP32-C6 chip extends 2.4GHz Wi-Fi 6 to the ESP32-P4
Bluetooth 5/BLE, communicating via the SDIO interface protocol, ensures stable connection and efficient transmission

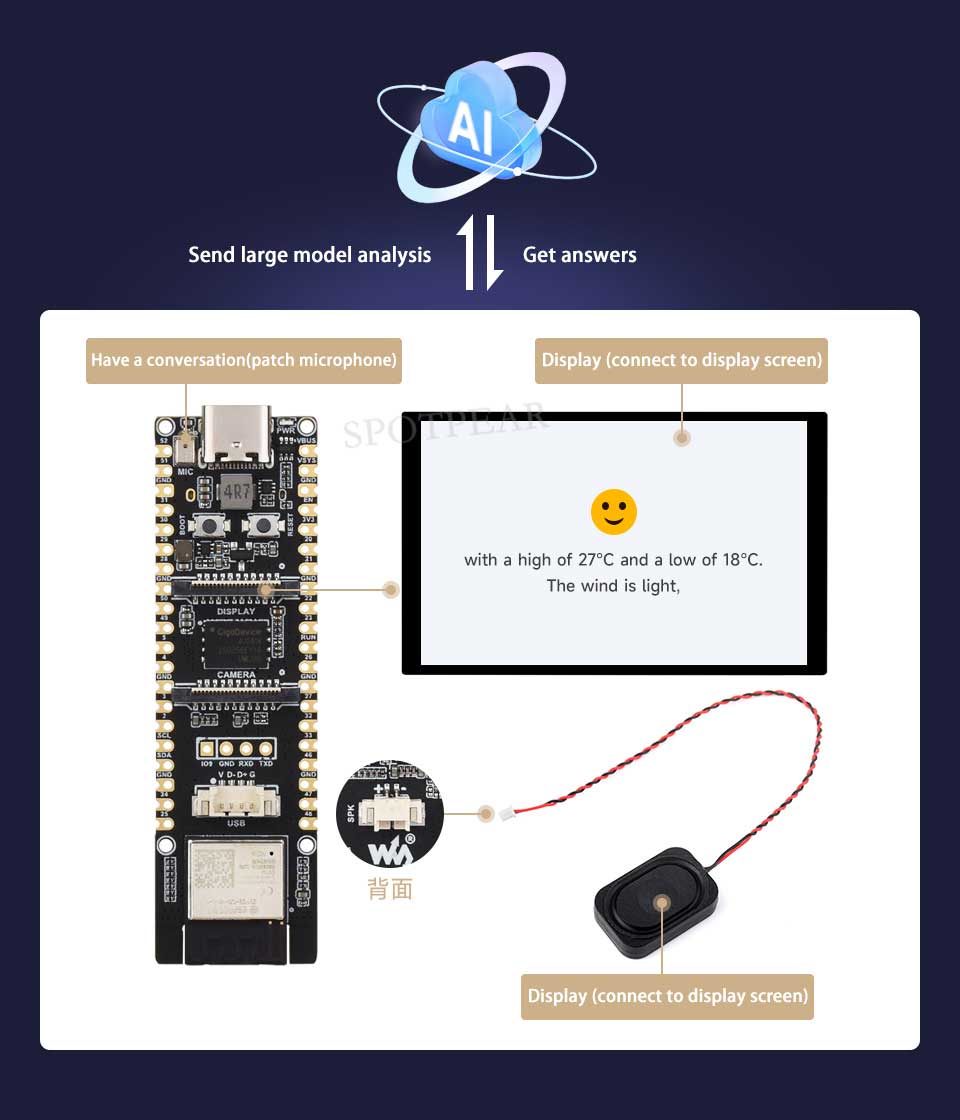

Support AI voice interaction
Supports mainstream AI platforms and can be connected to online large model platforms such as Doubao and DeepSeek

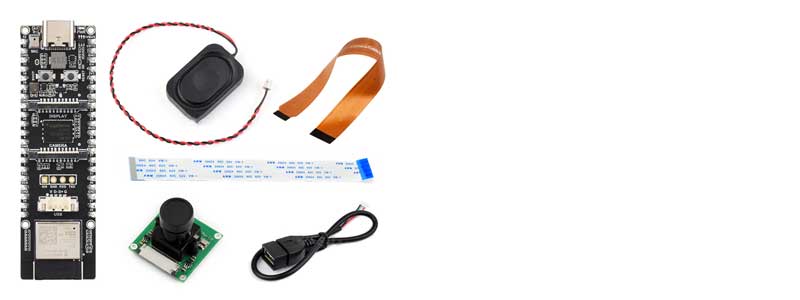

(Only Development board packages A/B with speakers)
(Only Development Board Package B with a screen)

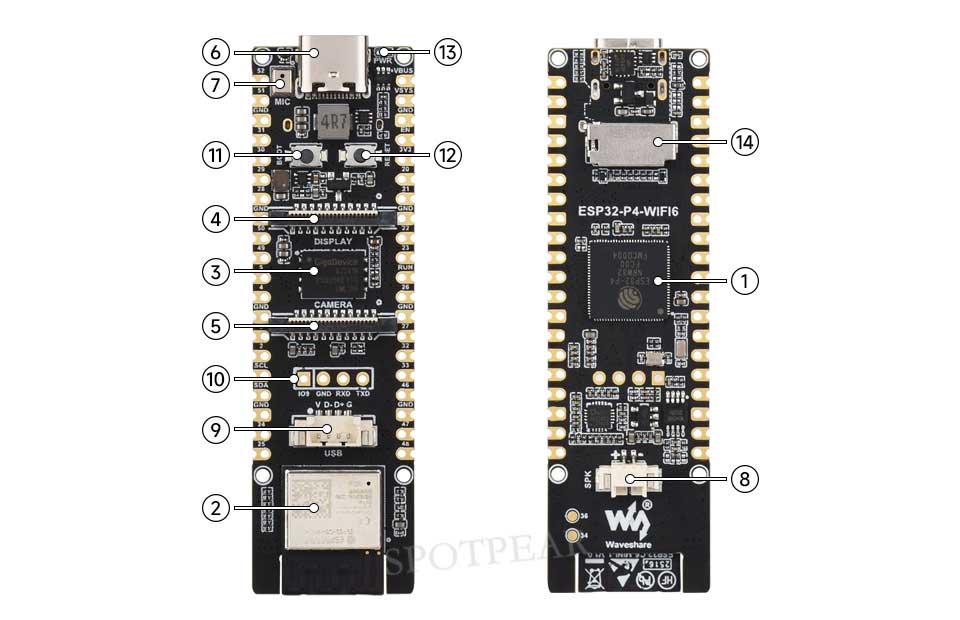

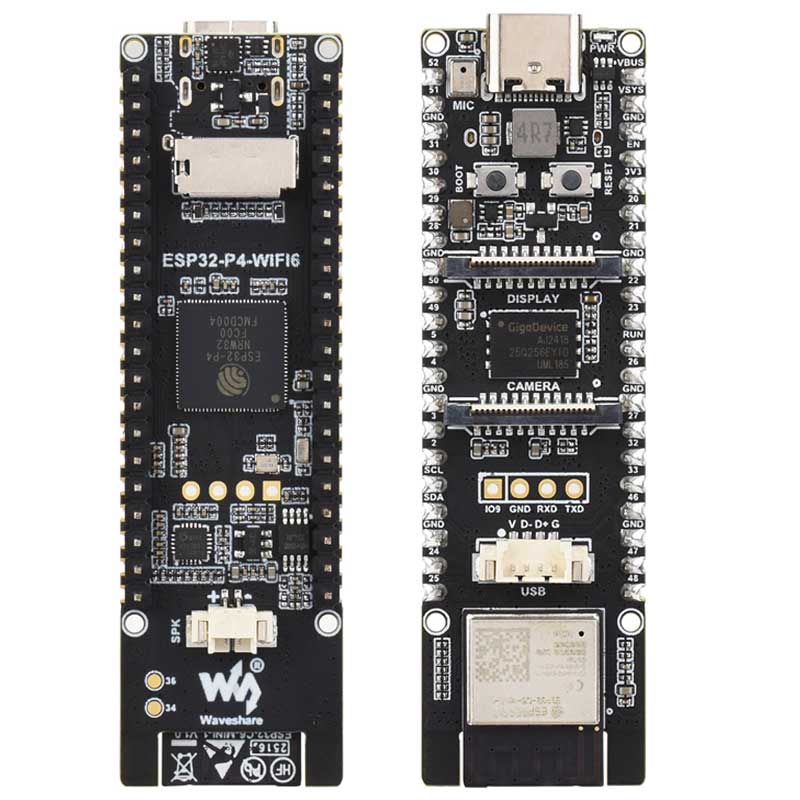

Resource Introduction
- ESP32-P4NRW32
The ESP32-P4 is stacked with 32MB PSRAM
- ESP32-C6-MINI-1
SDIO interface protocol, expansion development board Wi-Fi 6, Bluetooth 5
- 32MB Nor Flash
- Display interface
MIPI-DSI (2-lane), can be connected to 5/7/8/10.1-inch DSI screens
- Camera interface
MIPI-CSI (2-lane) can be connected to cameras such as OV5647
- Type-C interface
It can be used for power supply and program burning
- Surface mount microphone
- Speaker interface
MX1.252P connector, supporting 8Ω 2W speakers
- 4-pin USB interface
USB OTG 2.0 High Speed
- ESP32-C6 UART pad
- BOOT button
Press it when powering on or resetting to enter the download mode
- RST button
Reset button
- Power indicator light
- SD card slot
SDIO 3.0 interface protocol

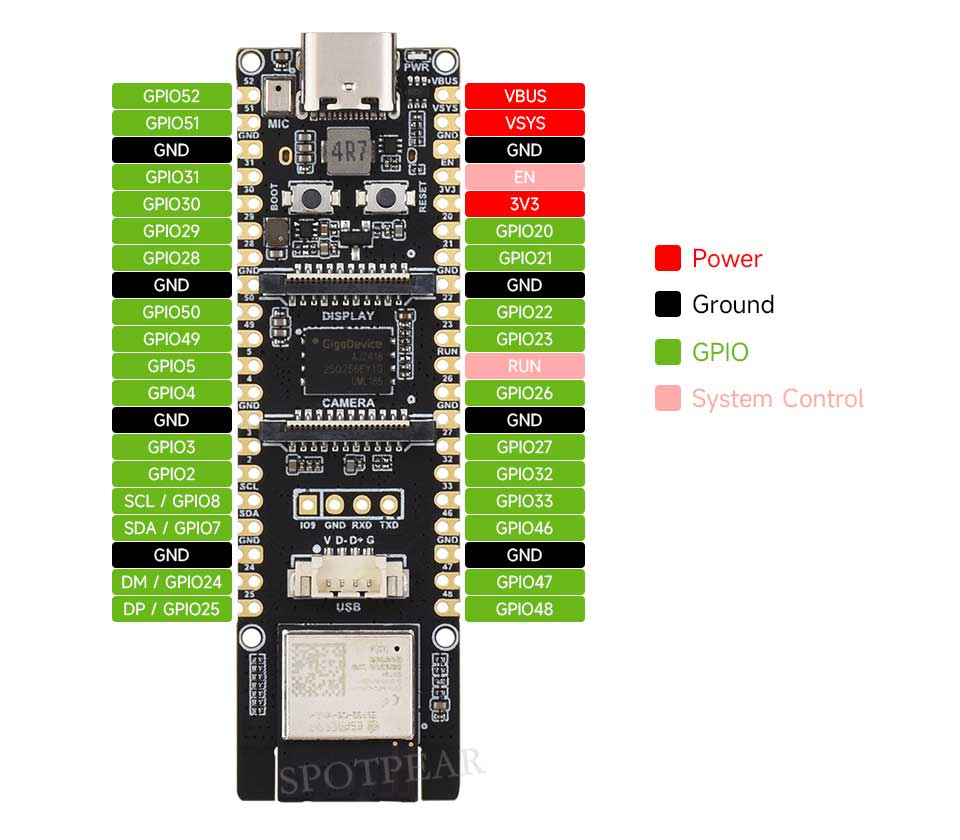

Pin definition

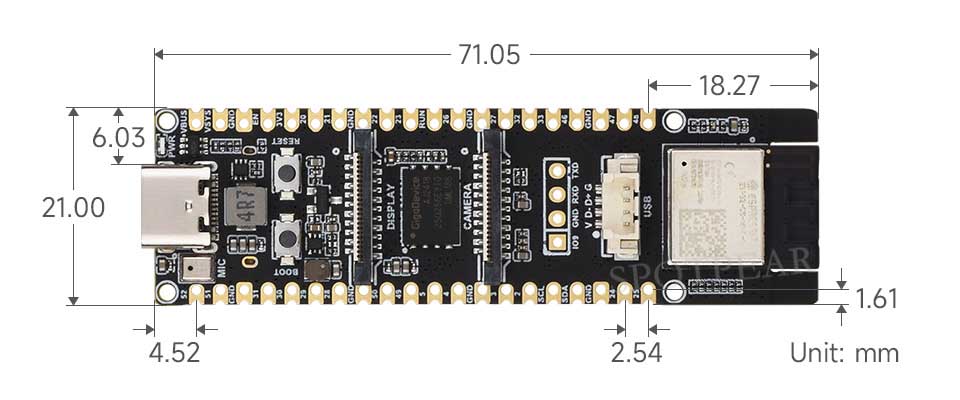

Product size
