ESP32-S3 1.32inch AMOLED Display Development Board

Embedded With CO5300 Display Driver And CST820 Capacitive Touch Chip

Features

The ESP32-S3-Touch-AMOLED-1.32 is a compact 1.32inch AMOLED capacitive touch display development board designed by Waveshare. Onboard power management module, low power audio codec circuit, and MIC, adapting 12PIN expansion I/O interface, Lithium Batt. header, and speaker header, suitable for applications such as AI voice agents.

Equipped with ESP32-S3 high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), onboard antenna
Built-in 512KB of Static RAM and 384KB ROM, with onboard 8MB PSRAM and 8MB Flash memory
Onboard 1.32inch AMOLED capacitive touch display for clear color picture display, 466 × 466 resolution, 16.7M color
Built-in CO5300 display driver and CST820 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources
Onboard PWR and BOOT programmable buttons for easy custom function development
Onboard 3.7V MX1.25 Lithium Batt. recharge/discharge header
Equipped with the ES8311 low-power audio codec chip, supports high-quality audio input and output to meet diverse application needs such as speech interaction and audio playback
Adapting SH1.0 12PIN expansion interface for DIY functionality expansion
Adopts AMOLED screen, featuring advantages of high contrast, wide viewing angle, rich colors, fast response, thinner design, and low power consumption, etc.

AMOLED Parameters

DISPLAY PANEL	AMOLED	DISPLAY SIZE	1.32 inch
RESOLUTION	466 × 466 pixels	DISPLAY COLORS	16.7M
BRIGHTNESS	500 cd/㎡	CONTRAST RATIO	10000:1
COMMUNICATION INTERFACE	QSPI	DRIVER IC	CO5300
TOUCH	Supported	TOUCH IC	CST820

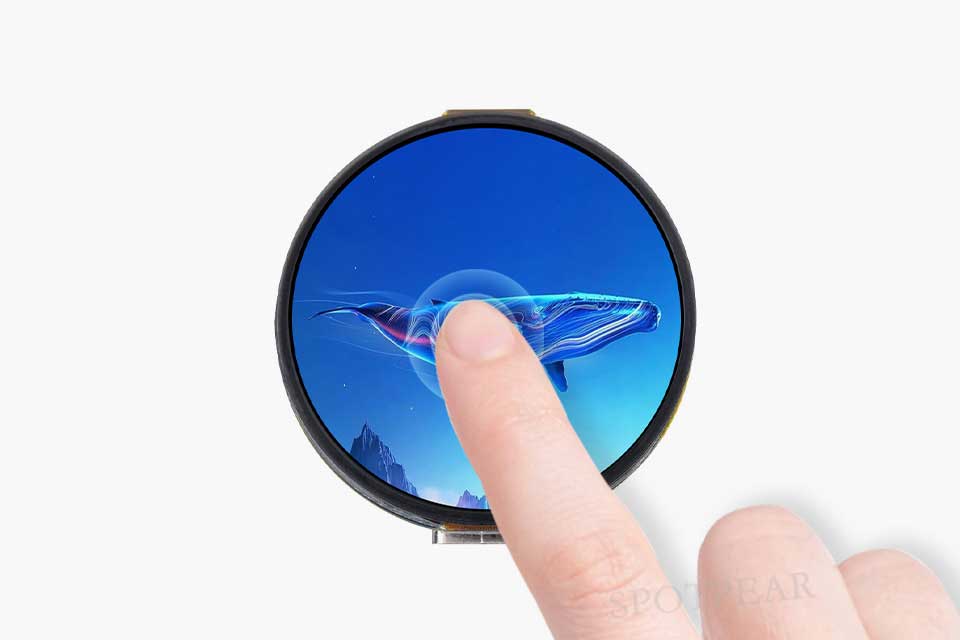

Small Size, Touch More Possibilities

Suitable For Various Smart Device Development, And Can Realize Human-Machine Interaction Function. Supports Connecting To A Batt. For Independent Operation

Adopts AMOLED Screen

The Next-Generation Display Technology, Compared To Traditional LCD Displays, The AMOLED Screen Features Precise Light-Control Capability, Representing More Delicate Colors, More Picture Details, And More Vivid Videos And Images

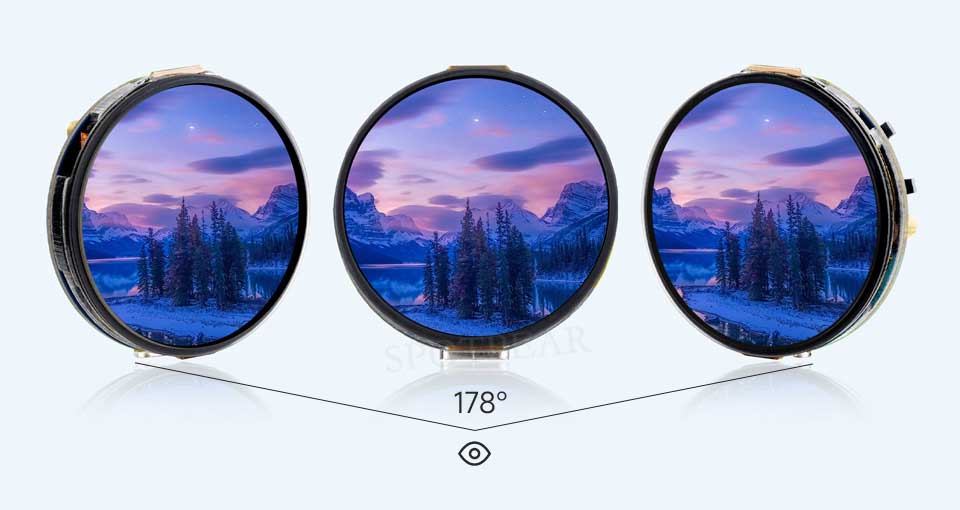

178° Wide Viewing Angle

Excellent Display Performance, 16.7M Color, Wide Viewing Angle

Onboard Audio Codec Chip

Supports High-Quality Audio Processing, Providing Clear And High-Quality Audio Input And Output

Supports AI Speech Interaction

Allows Access To Online Large Model Platforms Such As DeepSeek, Doubao, Etc.

Supports ESP-IDF, Arduino IDE

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

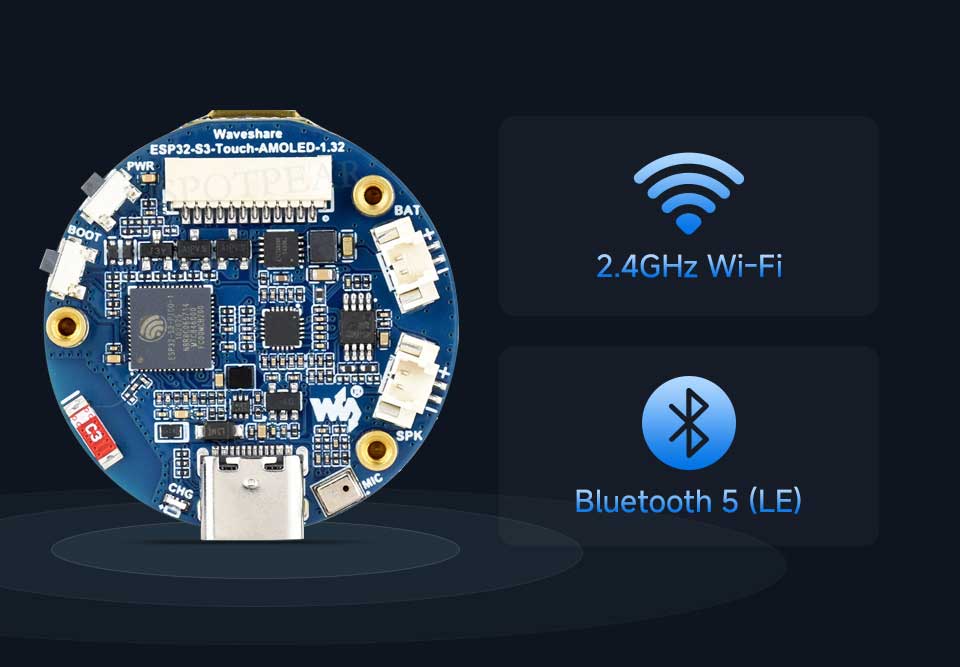

Wi-Fi And BLE 5 Support

ESP32-S3 Integrates 2.4 GHz Wi-Fi (802.11 B/G/N) With 40 MHz Of Bandwidth Support,
Its Bluetooth Low Energy Subsystem Supports Bluetooth 5 (LE) And Bluetooth Mesh

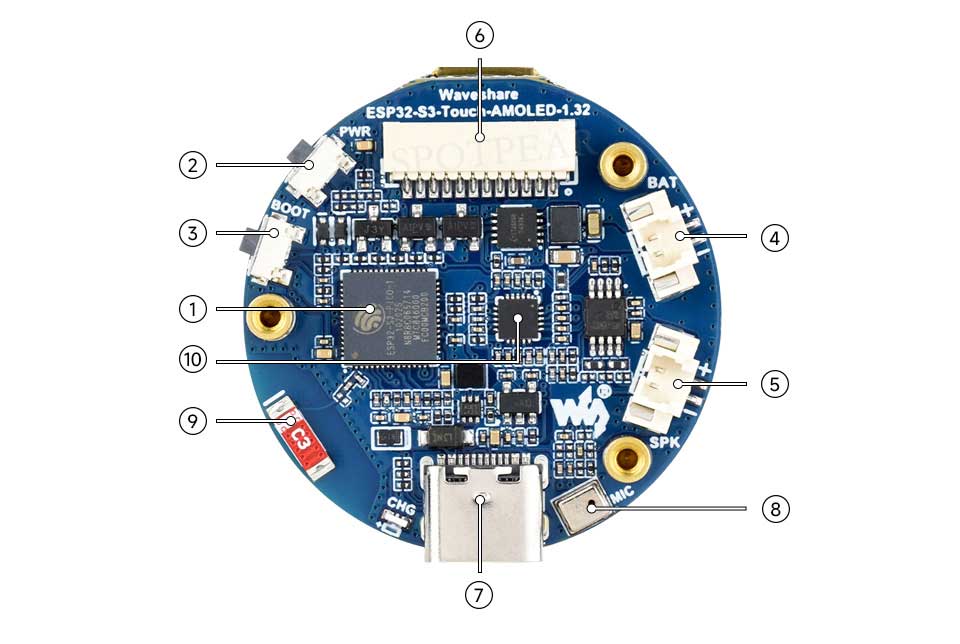

What's On Board

ESP32-S3-PICO-1-N8R8
Wi-Fi and Bluetooth SoC, up to 240MHz operating frequency, with onboard 8MB PSRAM and 8MB Flash memory
PWR button
for power supply ON/OFF when powered by Lithium Batt., driver required
BOOT button
Press and hold the BOOT button, then power up again to enter download mode
MX1.25 2PIN Lithium Batt. header
for 3.7V Lithium Batt., supports charging and discharging
MX1.25 2PIN speaker header
Audio signal output, supports connecting external speakers

SH1.0 12PIN interface
for external device connection and debugging, allowing flexible configuration of peripheral functions
Type-C port
for program burning and log printing
Digital microphone
for audio capture
Onboard antenna
Supports 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE)
ES8311
High-performance and low-power audio codec chip

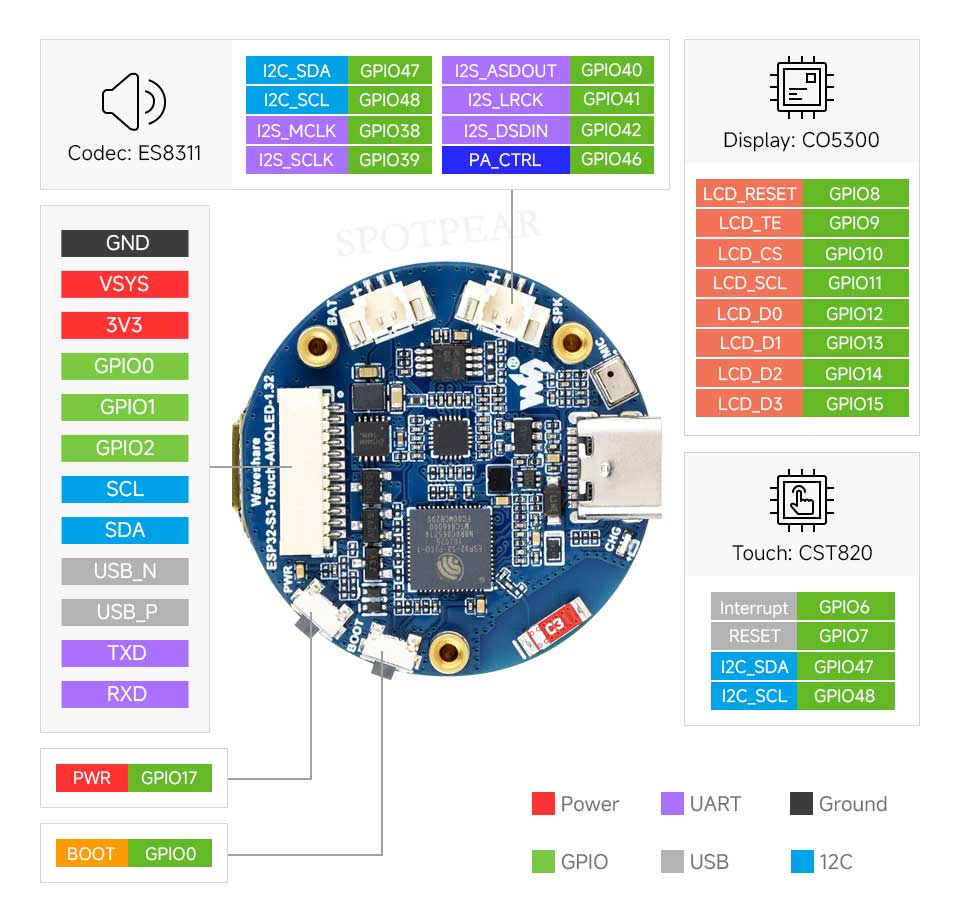

Interface Definition

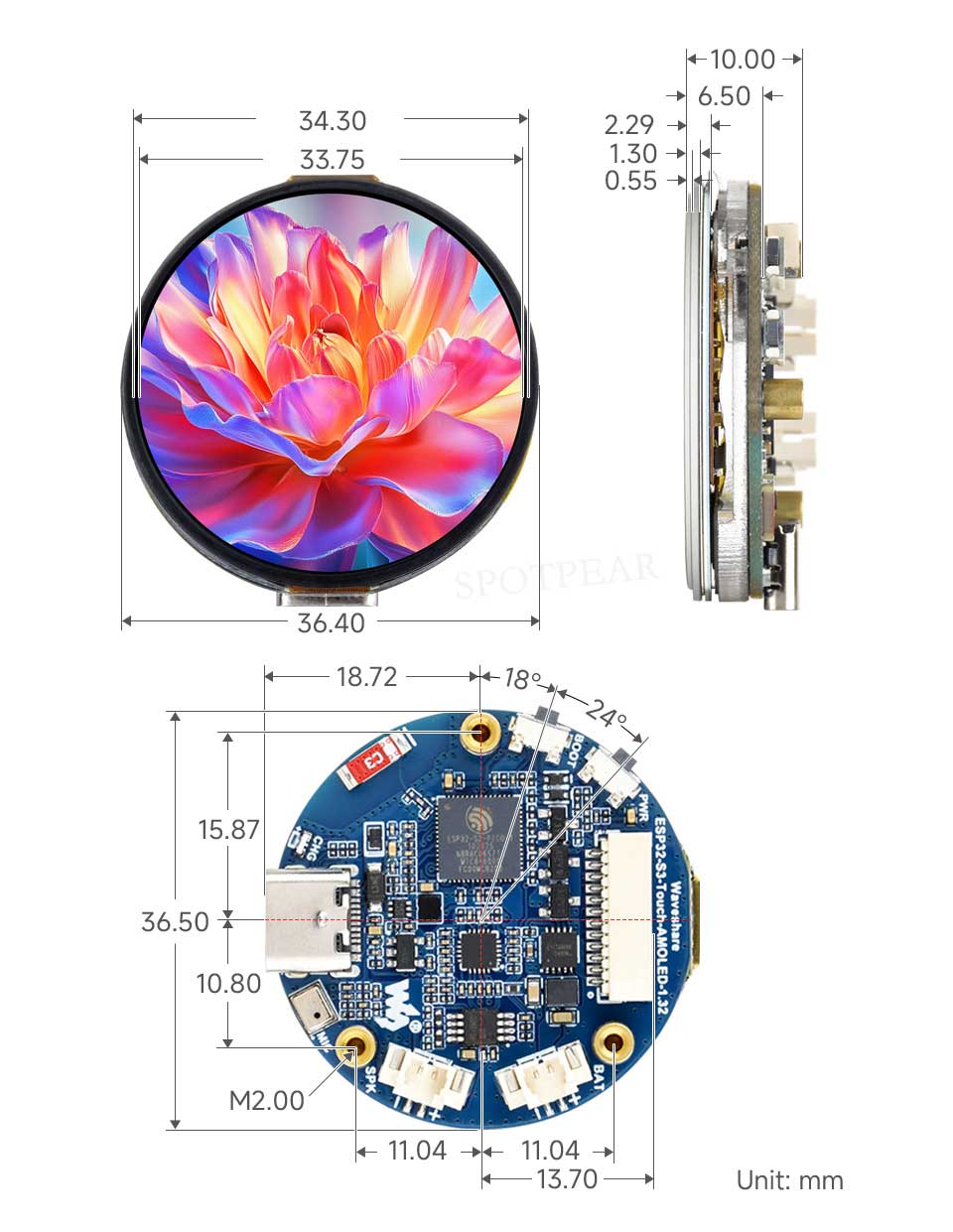

Outline Dimensions

[] ESP32-S3-Touch-AMOLED-1.32
