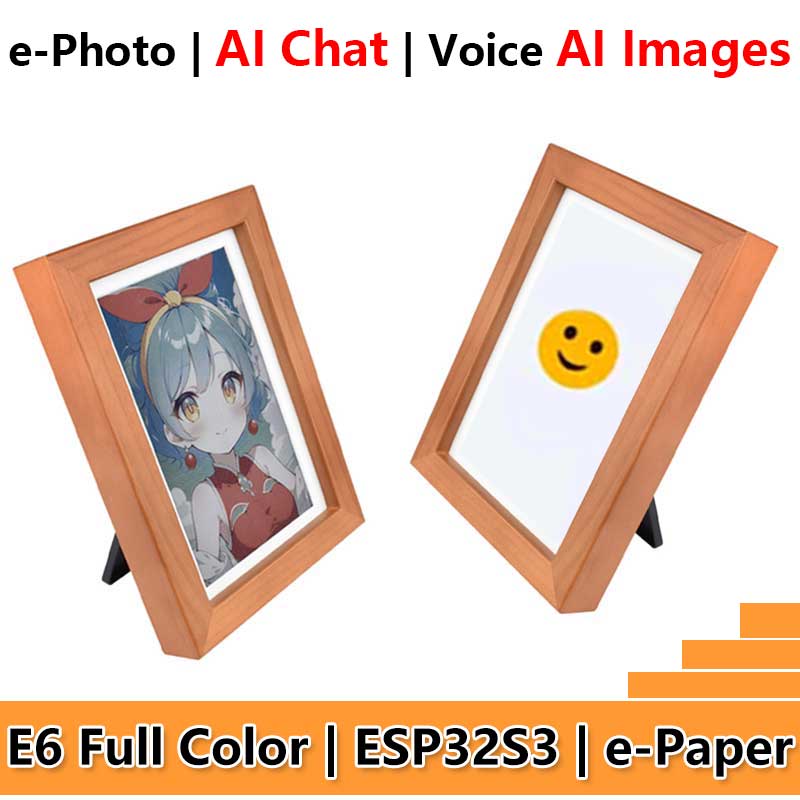

ESP32-S3 7.3″ Full Color E-Paper Display

Adopts E6 Full Color Technology, With Solid Wood Photo Frame

Features

The ESP32-S3-PhotoPainter is an e-Paper AIoT photo frame, equipped with ESP32-S3 microcontroller with Wi-Fi and BLE communication support. Onboard 7.3inch e-paper display, features ultra-low power consumption, suitable for portable devices and long-battery-life scenarios. Integrated with an RTC chip, SHTC3 temperature and humidity sensor, TF card slot, low-power audio codec chip circuit, and Lithium battery recharge management circuit.

Key features include:

Adopts high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GHz Wi-Fi and Bluetooth 5 (LE), with onboard antenna
Built-in 512KB SRAM, 384KB ROM, with integrated 16MB Flash and 8MB PSRAM
Onboard audio encoder and decoder chips, supports voice capture and playback, enabling AI speech interaction applications
Adopts E Ink Spectra 6 (E6) technology, features high contrast and high color saturation
Supports six primary colors and employs Dithering technology to create vivid and saturated full color images
Ultra-low power consumption, basically power is only required for refreshing
Large capacity Lithium battery (optional), onboard power saving circuit, enabling thousands of refreshes on a single charge (without external speaker or other high-power peripherals)
Onboard PCF85063 RTC chip and SHTC3 temperature & humidity sensor for accurate RTC management and environmental monitoring
Simple solid wood photo frame, elegant and beautiful
Rotatable stand and hook hanger on the back, not limited to usage scenarios
Open source code, more freedom to customize functions

Onboard Audio Decoder Chip

Supports High-Quality Audio Processing, Providing Clear And High-Quality Audio Input And Output

Supports AI Speech Interaction And Text-To-Image

Allows Access To Online Large Model Platforms Such As DeepSeek, Doubao, Etc

Simple Solid Wood Photo Frame

High-Quality Solid Wood Frame And White Edge, Simple And Elegant

Multi-Functional Stand

Use the stand to place on the table

Stable Placement, Suitable For Multiple Scenarios

Use a hook to hang on the wall

Easy To Hang On The Wall, More Efficient Use Of Space

Product Functions

What's On Board

ESP32-S3-WROOM-1-N16R8
Wi-Fi and Bluetooth SoC, 240MHz operating frequency, with integrated 16MB Flash and 8MB PSRAM
SHTC3 temperature and humidity sensor
provides ambient temperature and humidity measurements, enabling environmental monitoring function
ES7210 ADC audio decoder chip
high-performance and low-power consumption audio ADC, supports multiple-channel microphone inputs
ES8311 DAC audio encoder chip
high-performance and low-power consumption audio DAC
AXP2101
highly integrated power management chip
TF card slot
supports FAT32-formatted TF card for data expansion
MX1.25 2PIN speaker header
audio output signal, for connecting external speaker
MX1.25 2PIN Lithium battery header
for connecting Lithium battery

MX1.25 2PIN RTC backup battery header
supports rechargeable RTC batteries only
KEY button
for custom function
BOOT button
press it when powering on to enter download mode
PWR power button
for system power supply ON/OFF
PCF85063
RTC chip, for time keeping function
Dual-microphone array design
dual digital microphone array, supporting richer voice interaction functions
Type-C port
for program burning and log printing

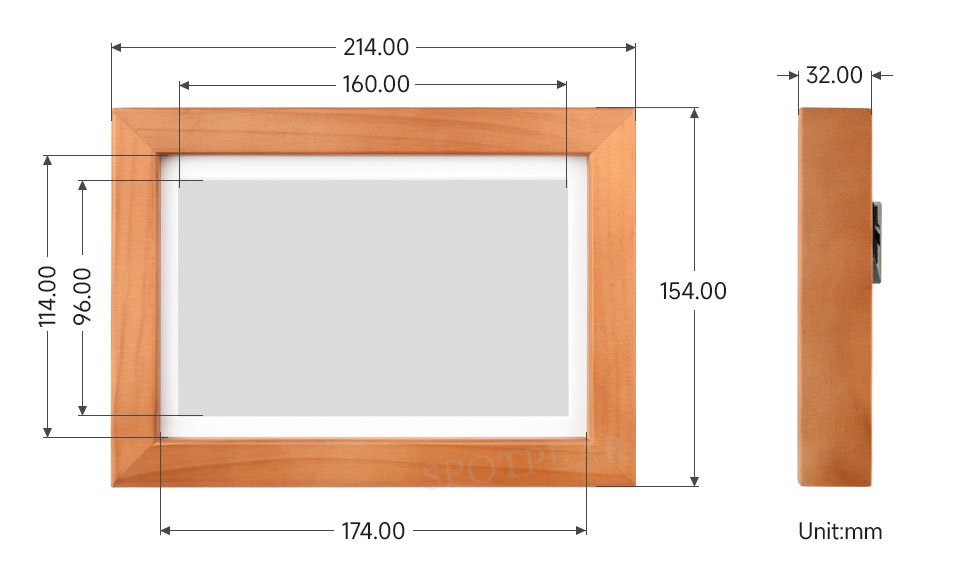

Outline Dimensions

[] ESP32-S3-PhotoPainter
