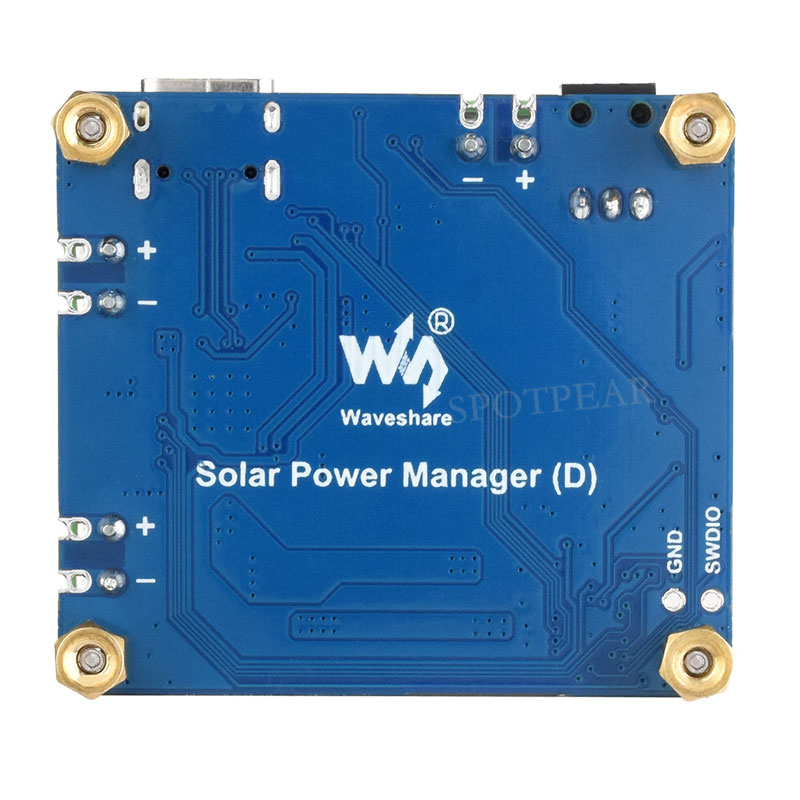

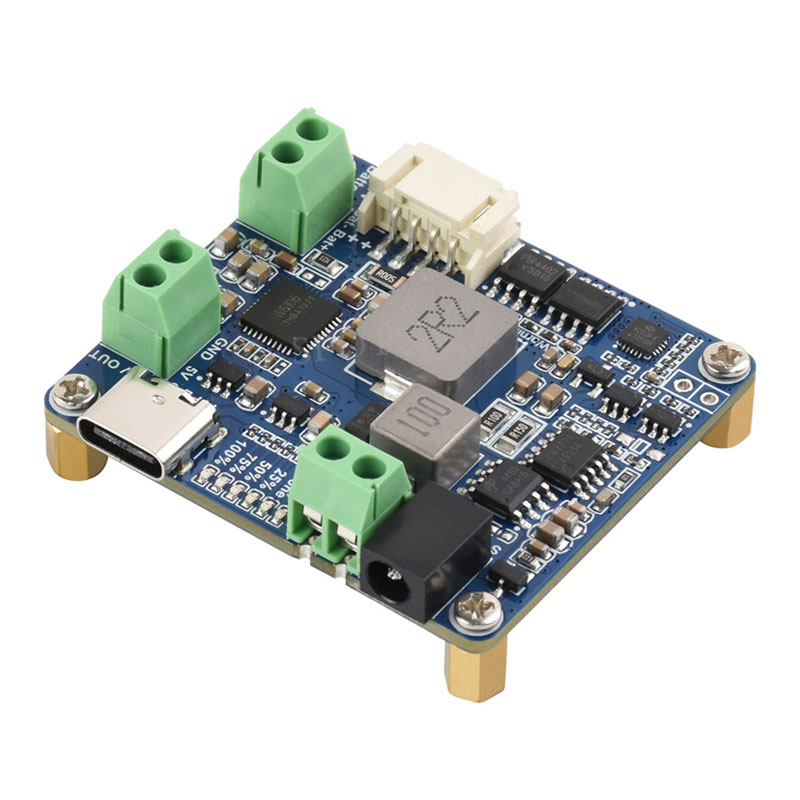

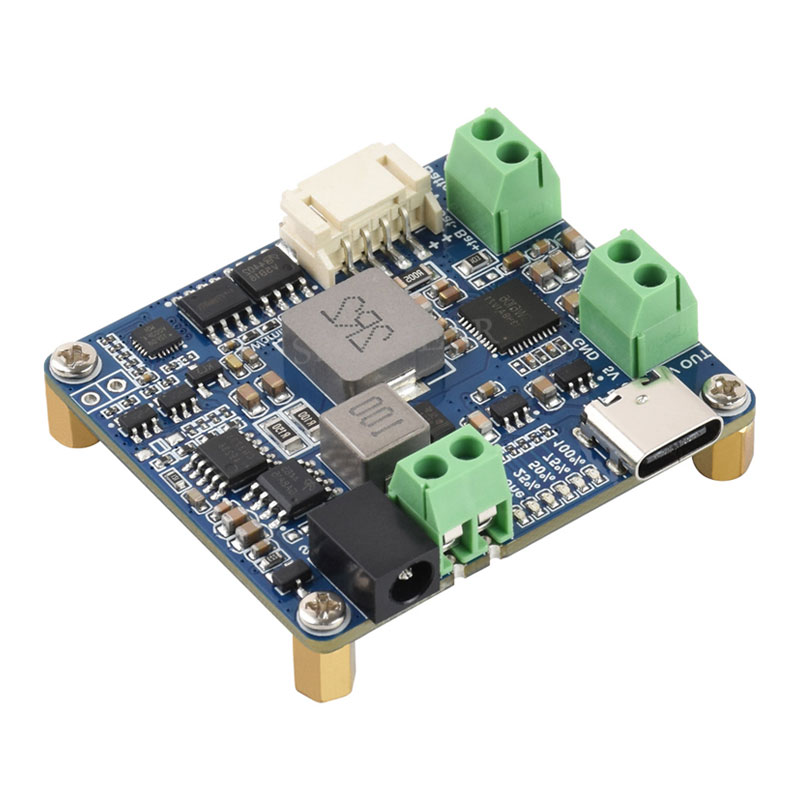

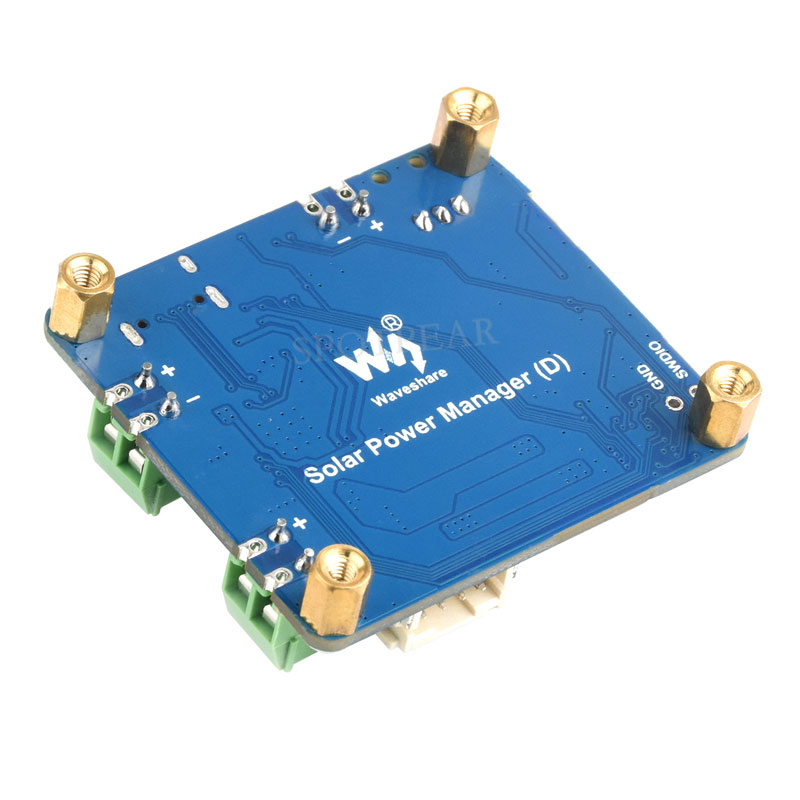

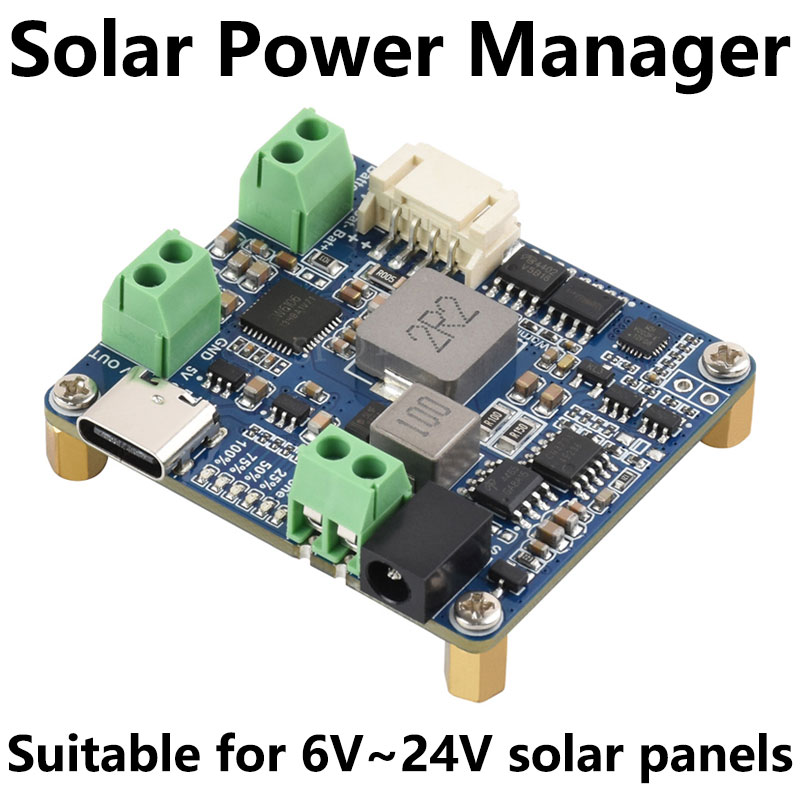

Solar Power Manager Module (D) Supports 6V~24V Solar Panel and Type-C Power Adapter

Solar Power Manager Module (D) Supports 6V~24V Solar Panel and Type-C Power Adapter

$11.99

Brand：Spotpear

SKU：0209013

Date：2024-01-24 10:09

Part Number：

Solar-Power-Manager-D Solar-Power-Manager-D-Acce-A

No：

- +

In Stock

Buy It Now

Add to cart

Ask a Question

Copy Link

The Solar Power Management Module (D) is designed for 6V~24V solar panel, it can charge the 3.7V rechargeable Li battery through solar panel or Type-C connector, and provides 5V/3A regulated output (supports multiple protocols such as PD/QC/FCP/PE/SFCP). The module features MPPT (Maximum Power Point Tracking) function and multi protection circuits, therefore, it is able to keep working with high-efficiency, stability, and safety. It is suited for solar-powered, low-power IoT, and other environmental protection projects.

Solar Power Management Module (D)

Recharged From 6V~24V Solar Panel, Or Type-C Power Adapter
5V/3A Regulated Output

Features At A Glance

The Solar Power Management Module (D) is designed for 6V~24V solar panel, it can charge the 3.7V rechargeable Li battery through solar panel or Type-C connector, and provides 5V/3A regulated output (supports multiple protocols such as PD/QC/FCP/PE/SFCP). The module features MPPT (Maximum Power Point Tracking) function and multi protection circuits, therefore, it is able to keep working with high-efficiency, stability, and safety. It is suited for solar-powered, low-power IoT, and other environmental protection projects.

Supports MPPT (Maximum Power Point Tracking) function, maximizing the efficiency of the solar panel
Supports solar panel / Type-C power adapter for battery charging
For 6V~24V solar panel, supports self-adaptive input voltage via DC-002 jack or screw terminal, with input anti-reverse protection
Multi LED indicators, for monitoring the status of solar panel and batteries
Multi protection circuits: over-charge / over-discharge / overheat / over-current, stable and safe to use

Version Selection

Application Examples

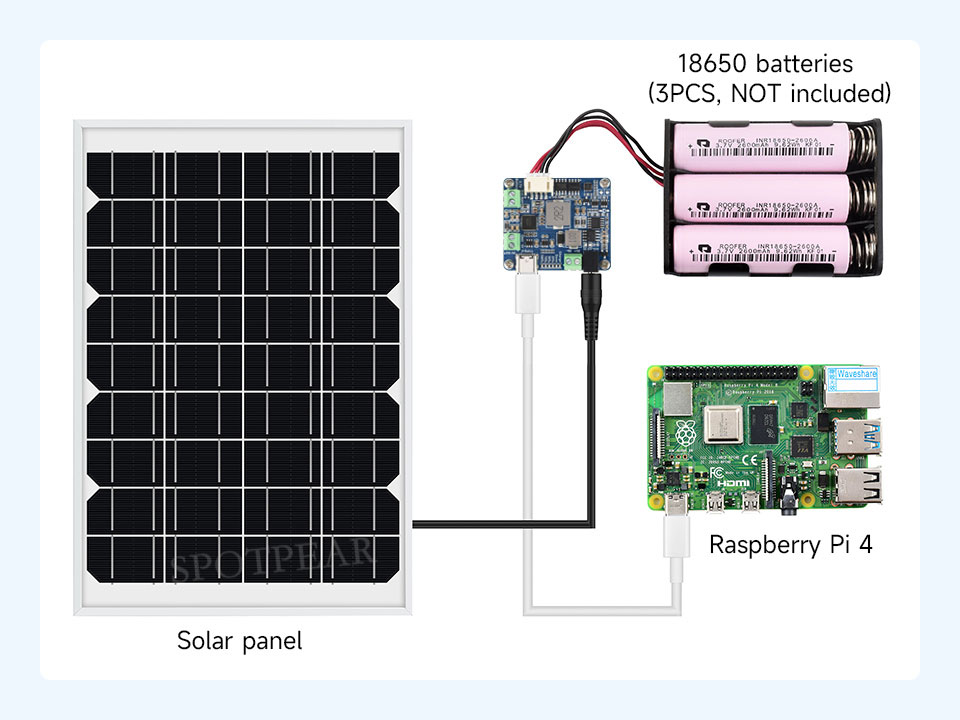

Suitable For Solar-Powered Control System For MCUs / Development Boards Like Raspberry Pi / Jetson Nano / Arduino...

for reference only, the Raspberry Pi 4B and solar panel are not included

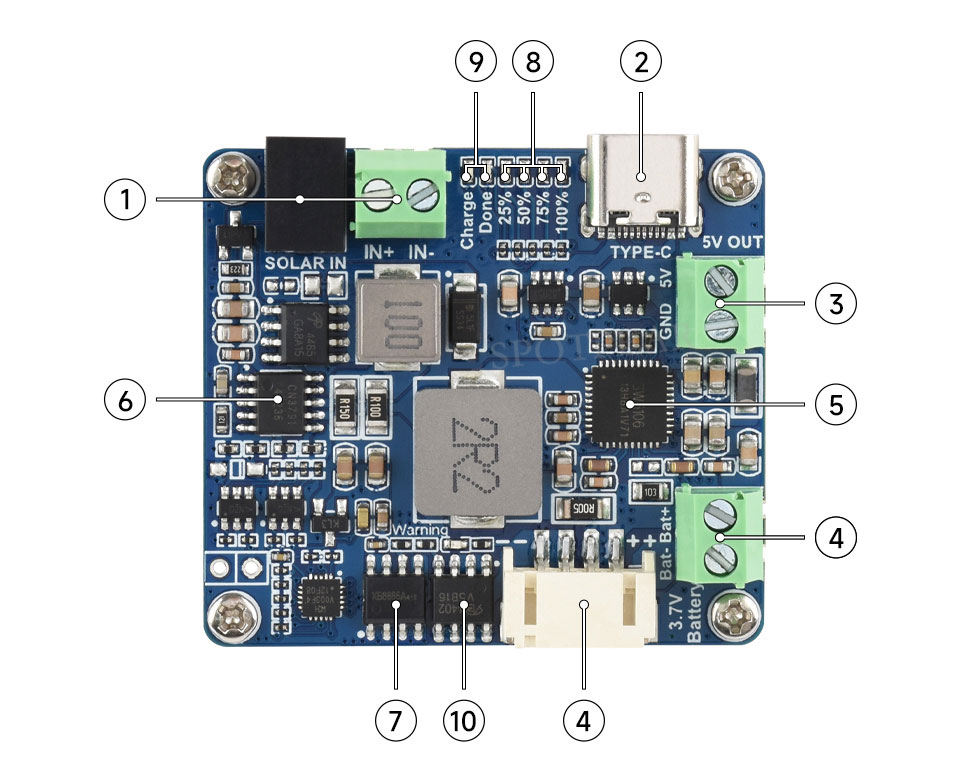

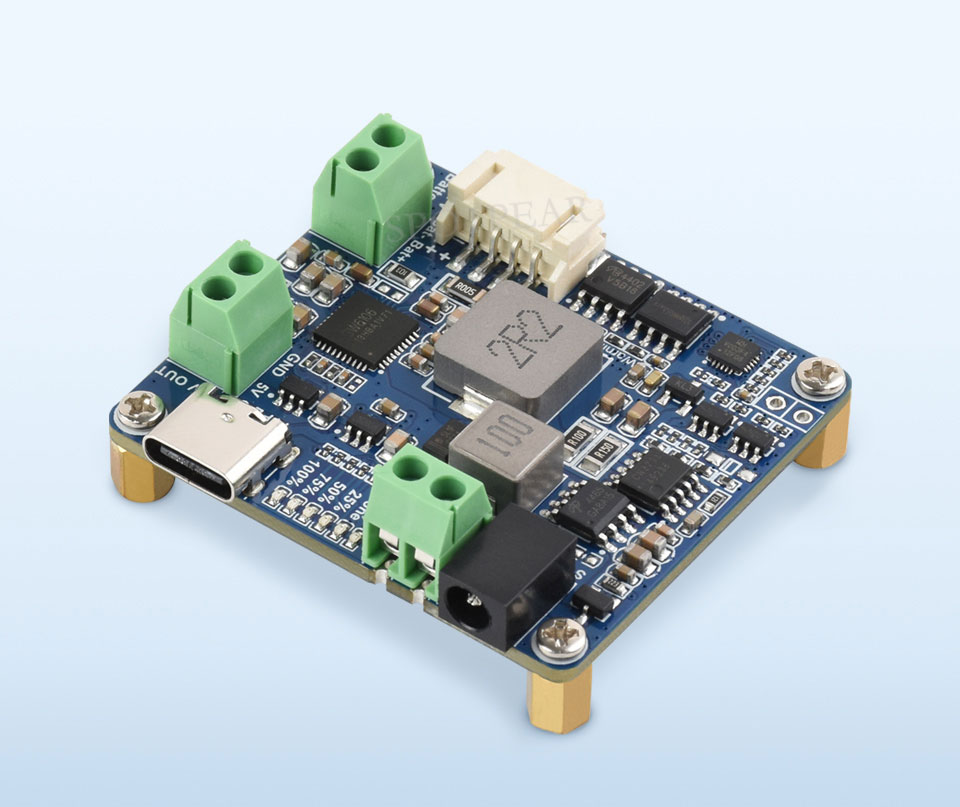

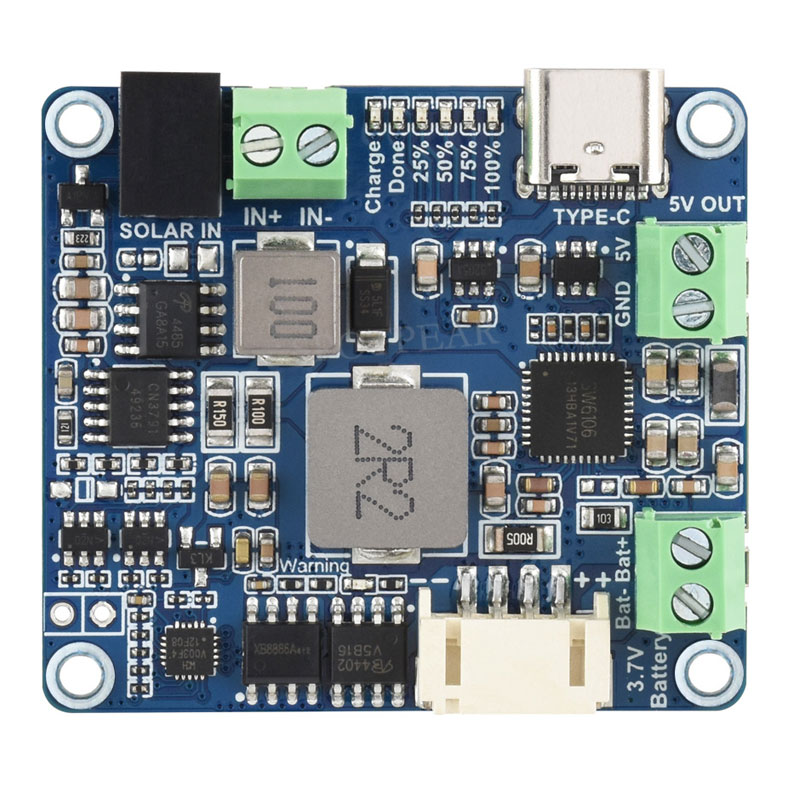

What's On Board

Solar panel charging input:
charged by solar panel via DC-002 jack or screw terminal, self-adaptive input voltage
Type-C charging input:
charged by 5V power adapter via Type C connector, or outputs 5V for external device
Power output:
screw terminal: 5V/3A output
Battery interfaces:
for connecting 3.7V rechargeable Li battery via screw terminal or PH2.0 4P connector
SW6106:
USB power management chip, for USB charging and 5V/3A boost output

CN3791:
solar power management chip, for solar panel charging and buck input
XB8886A
Li battery over-charge / over-discharge protection
Battery capacity indicators
lights up when charging or under load connection, and will turn off after 30s when there is no load connected
Solar panel charging indicators:
Charge: on when solar panel charging
Done: on when the battery is full charged by solar panel
Anti-reverse MOS tube
prevents reverse Batt connection

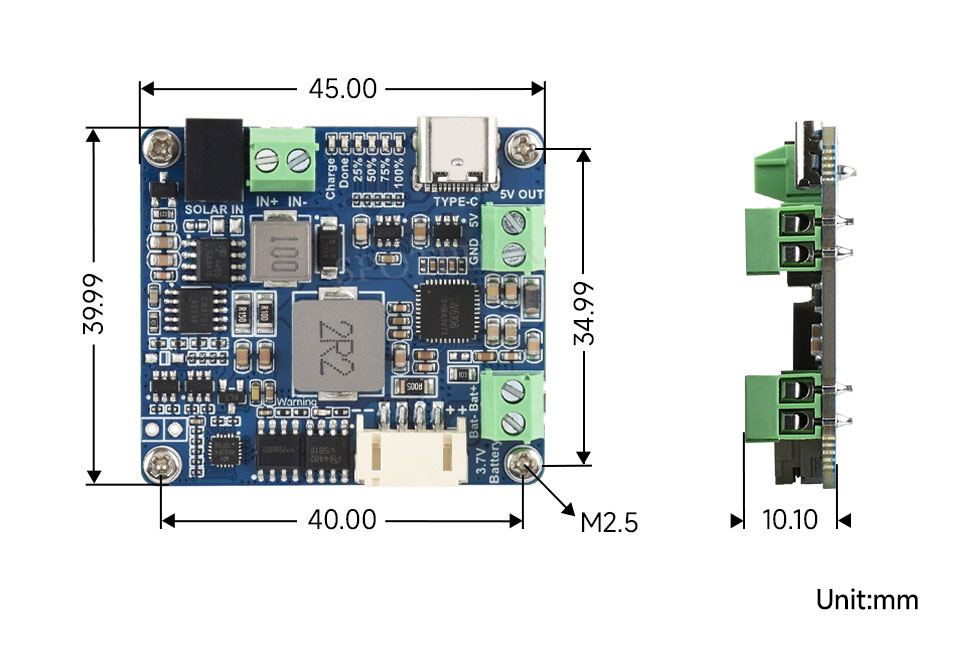

Outline Dimensions

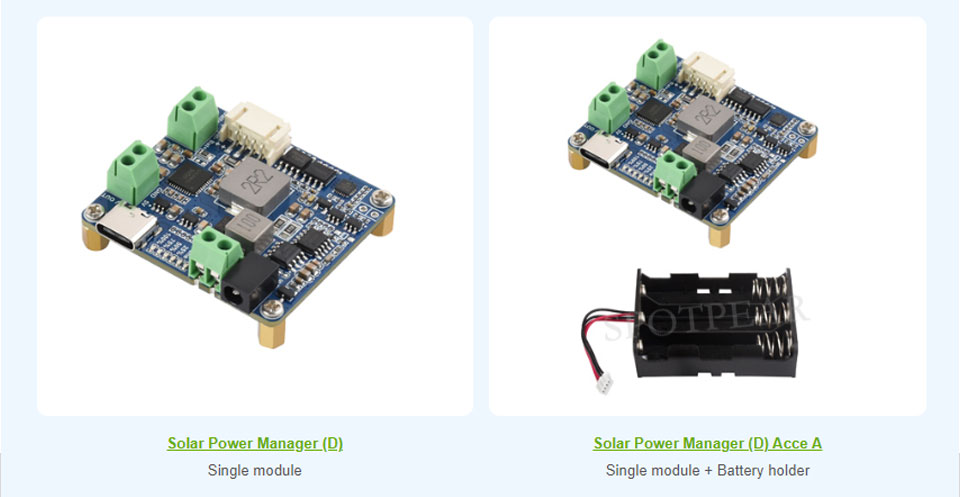

[] Solar-Power-Manager-D

1. Solar Power Manager (D) x1

2. Screws pack x1

[] Solar-Power-Manager-D-Acce-A

1. Solar Power Manager (D) x1

2. Battery holder x1

3. Screws pack x1
