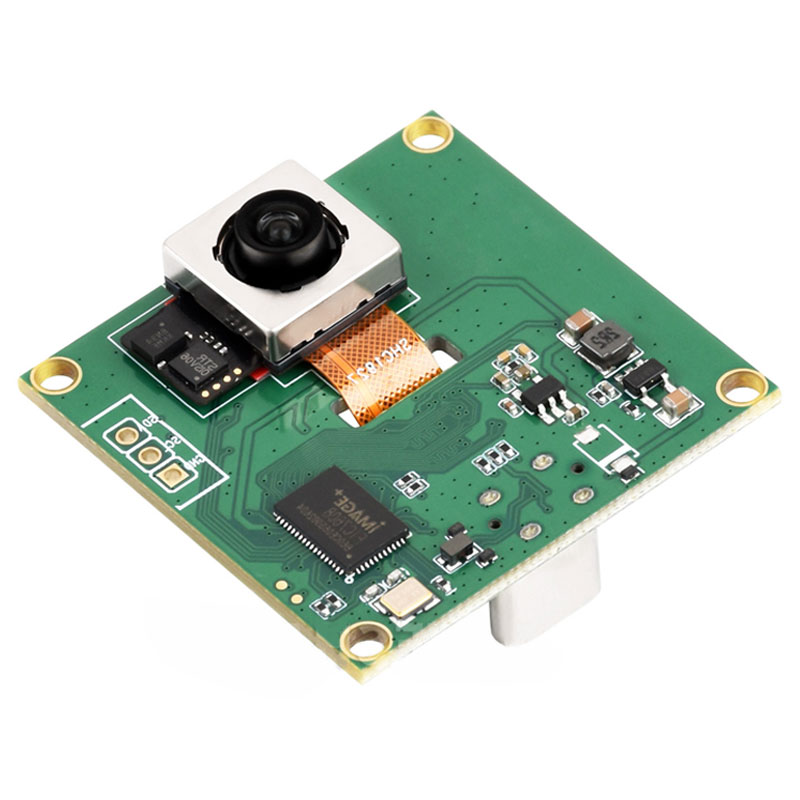

IMX563 12MP OIS USB Camera (A)

IMX563 Sensor, Dual-Axis Optical Image Stabilization

Product Features

This USB camera module features an IMX563 12MP CMOS image sensor that delivers excellent performance, including high sensitivity, low noise, and fast response. It integrates an autofocus lens with a 122° ultra-wide field of view and dual-axis optical image stabilization (OIS) system.

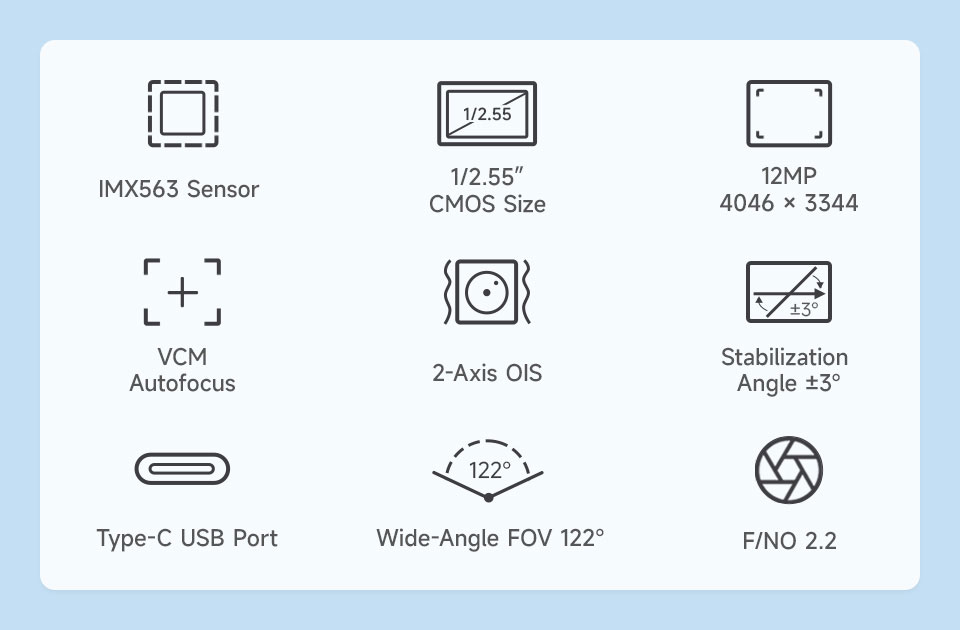

Specifications

SENSOR	MODEL	IMX563
	RESOLUTION	4046 × 3344 (12MP)
	CMOS SENSOR SIZE	1/2.55 inch
	PIXEL SIZE	1.4 × 1.4 μm
LENS	FIELD OF VIEW (FOV)	122° (D) × 107.2° (H) × 90.1° (V)
	APERTURE (F.NO)	2.2
	EFFECTIVE FOCAL LENGTH (EFL)	2.17mm
	DEPTH OF FIELD	10cm ~ ∞
	DISTORTION	< 5.6%
	FOCUS MODE	Autofocus
	OPTICAL FILTER	Built-in 650nm optical filter
IMAGE STABILIZATION		OIS (±3° stabilization angle, >25 dB)
VCM DRIVER IC	AUTOFOCUS	DW9800V
VCM DRIVER IC	OIS	AKM7323
FRAME RATE		120fps at Full Resolution; 240fps at 4K/2K; 960fps at 1080p
OUTPUT FORMAT		MJPEG
INTERFACE		Type-C USB 2.0
OPERATING TEMPERATURE		−20°C to 70°C

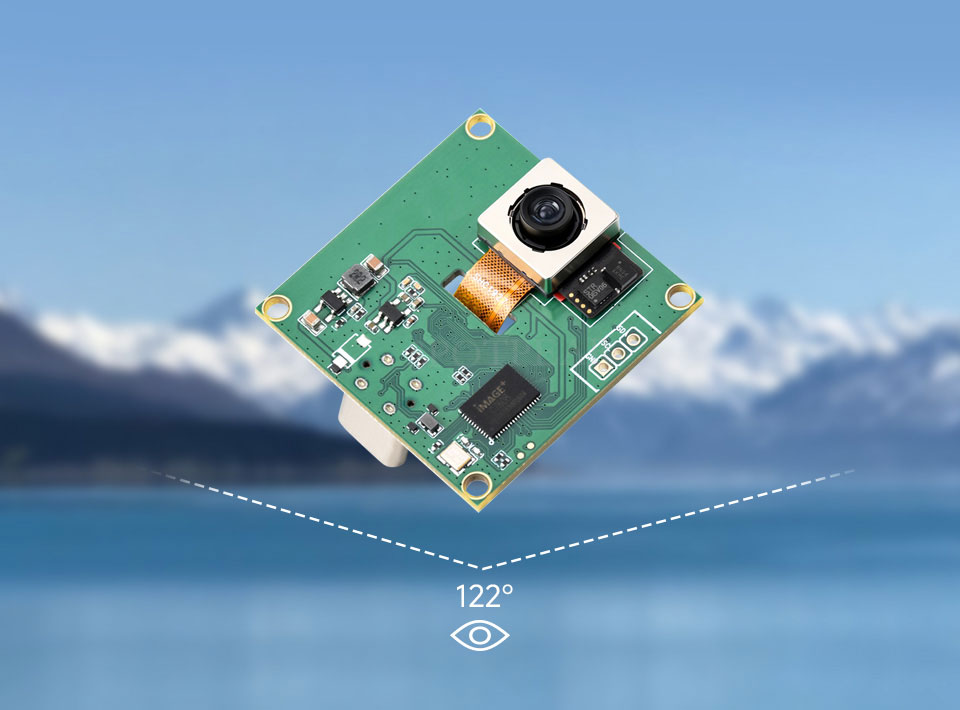

122° Ultra-Wide Field Of View

A 122° Diagonal Field Of View Captures More Of The Surrounding Scene

Autofocus Lens

Built-In Open-Loop Voice Coil Motor (VCM) Enables Autofocus And Automatically Adjusts The Focus According To The Shooting Distance

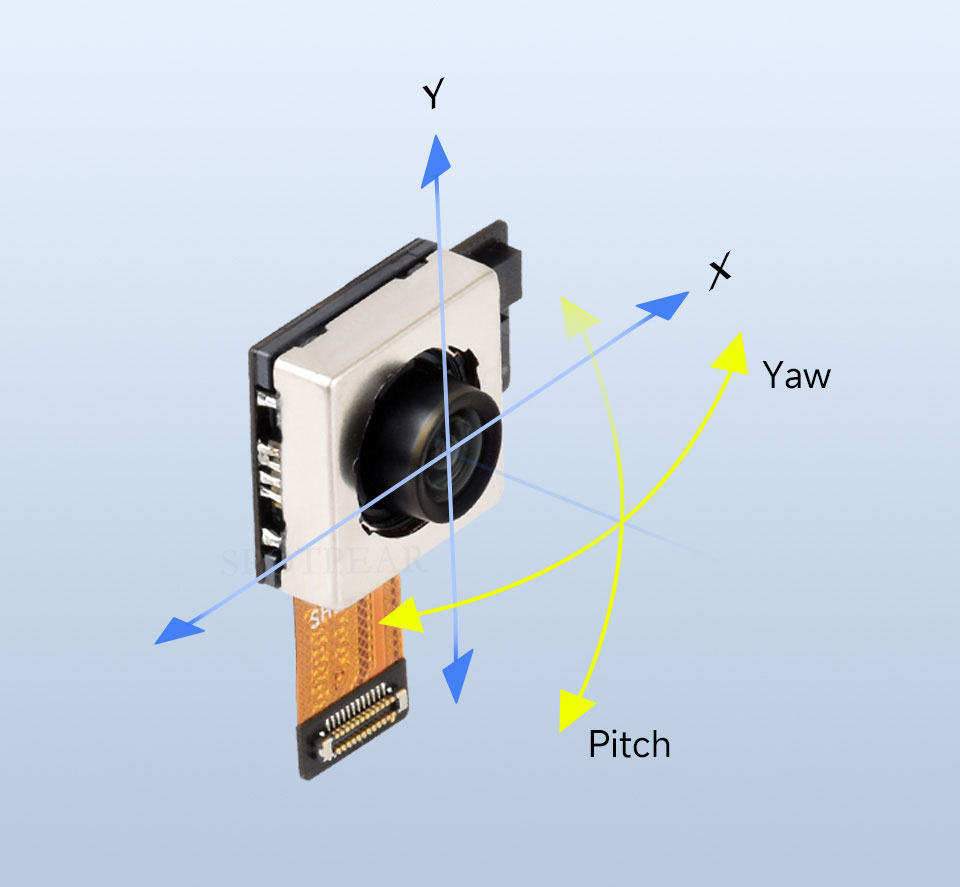

Dual-Axis Optical Image Stabilization

±3° Stabilization Compensation For Stable Images Even In Motion

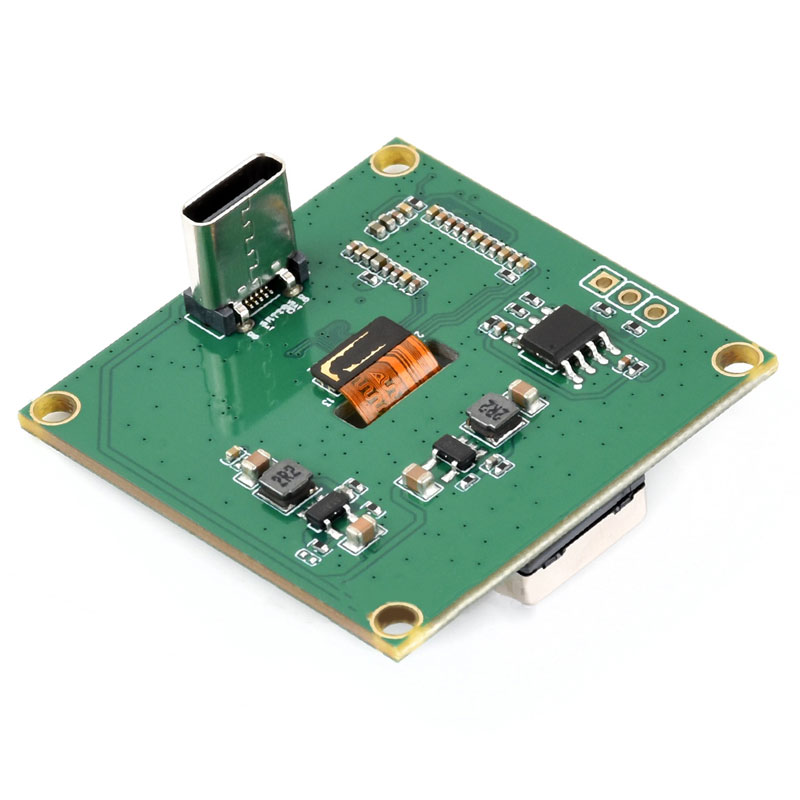

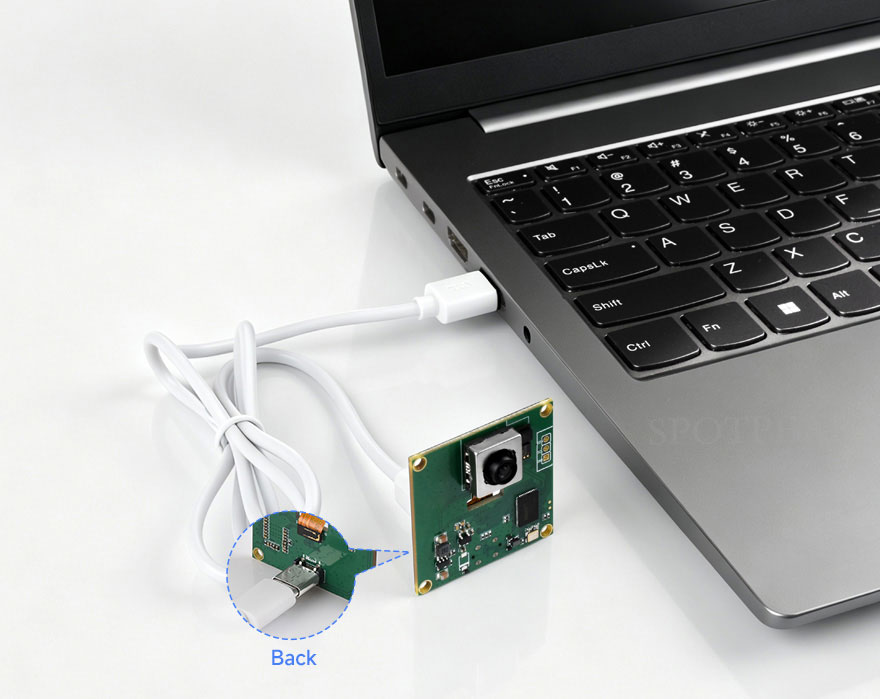

USB Type-C Interface

A USB 2.0 Interface With A Type-C Connector Allows Direct Connection To Computers, Embedded Boards, And Other Devices

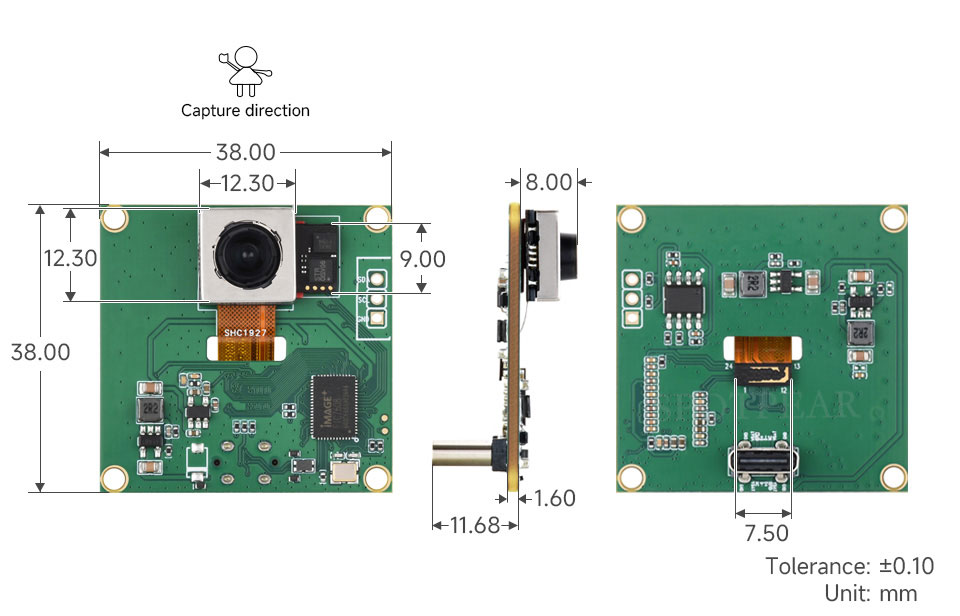

Outline Dimensions
