USB camera 5MP IMX335 No Distortion , Good low light performance, wide dynamic range

USB camera 5MP IMX335 No Distortion , Good low light performance, wide dynamic range

$34.9

Brand：SpotPear

SKU：010308600000

Date：2025-07-01 15:54

Part Number：

IMX335 5MP USB Camera (C)

No：

- +

In Stock

Buy It Now

Add to cart

Ask a Question

Copy Link

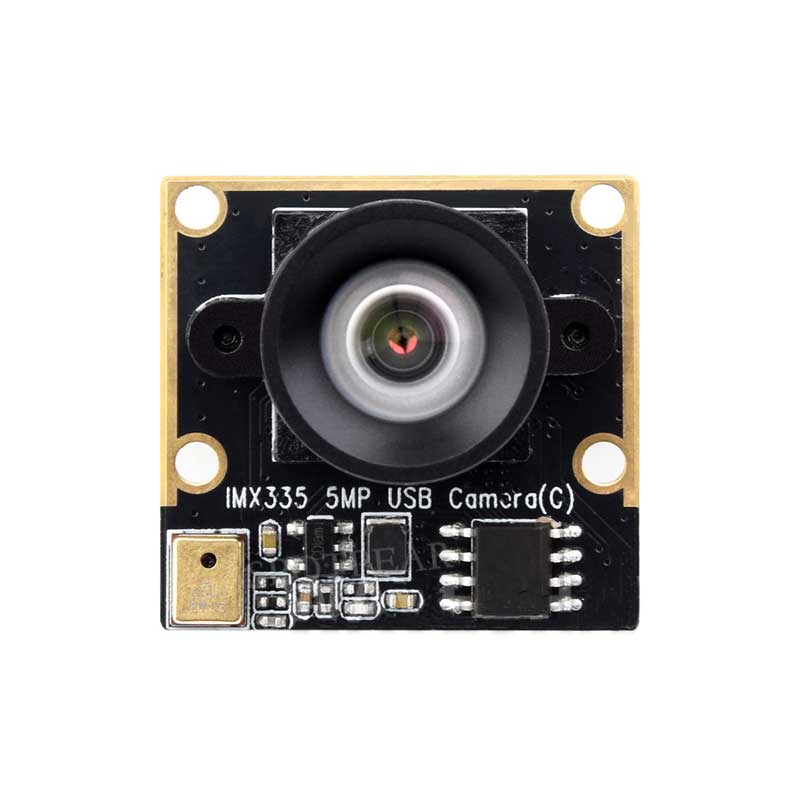

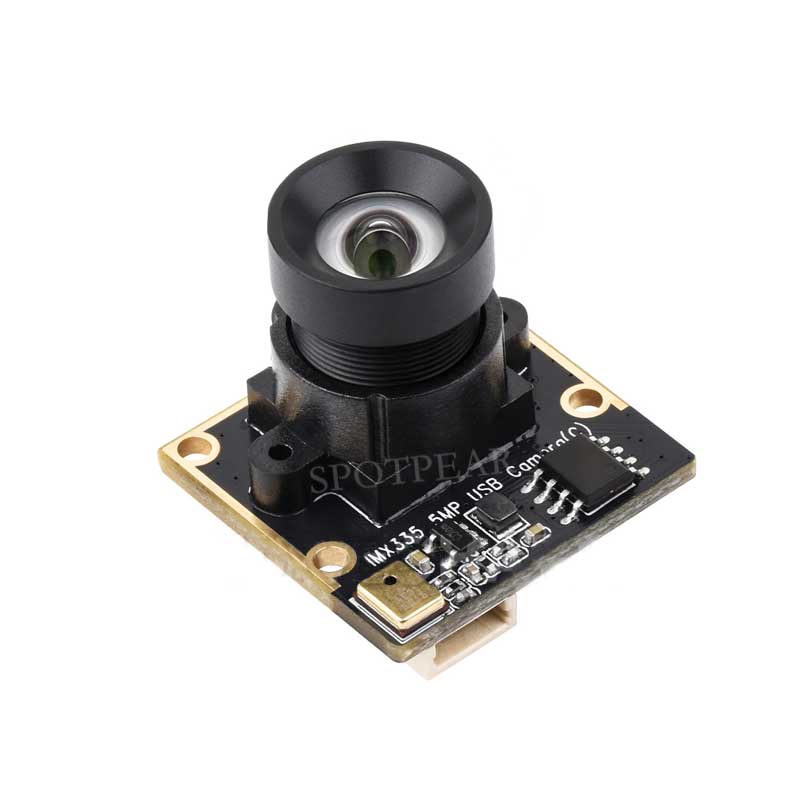

IMX335 USB camera module 5 megapixel 2K video recording Good low light performance Wide dynamic range No distortion

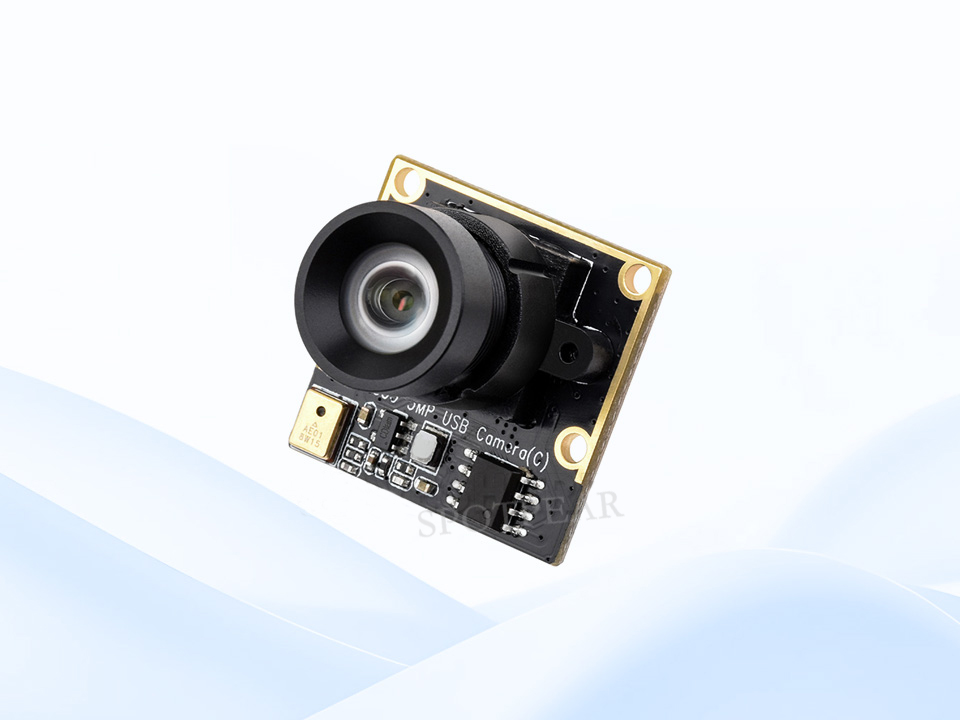

5 megapixel camera module

Adopt IMX335 photosensitive chip, USB2.0 interface, 91.7° distortion-free lens

Product Parameters

Pixel	5 million
Photosensitive chip	IMX335
Interface Type	USB2.0
Camera	Sensor size	1/2.8 inch
	Aperture (F)	2.4
	Focal length (EFL)	3.25mm
	Field of View (FOV)	91.7°
	distortion	<﹣1.22%
	Focusing method	Hard-burning
	Thread	M12
Lens construction	3G2P + IR Filter (650nm)
image	Supported formats	MJPG、YUY2
	Still image resolution	2592 × 1944
	Video recording support	30 FPS 2592 × 1944 30 FPS 1920 × 1080 30 FPS 1280 × 720
	Dynamic Range	71.6dB@8xgain
	Signal-to-Noise Ratio	36dB
Audio	Onboard microphone
Operating voltage	5V ± 5%
Operating temperature	-10°C ~ 60°C
Module size	25.00 × 24.30 (mm)

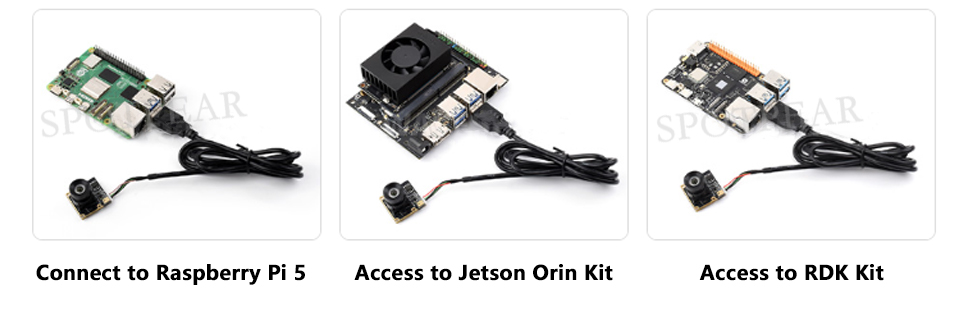

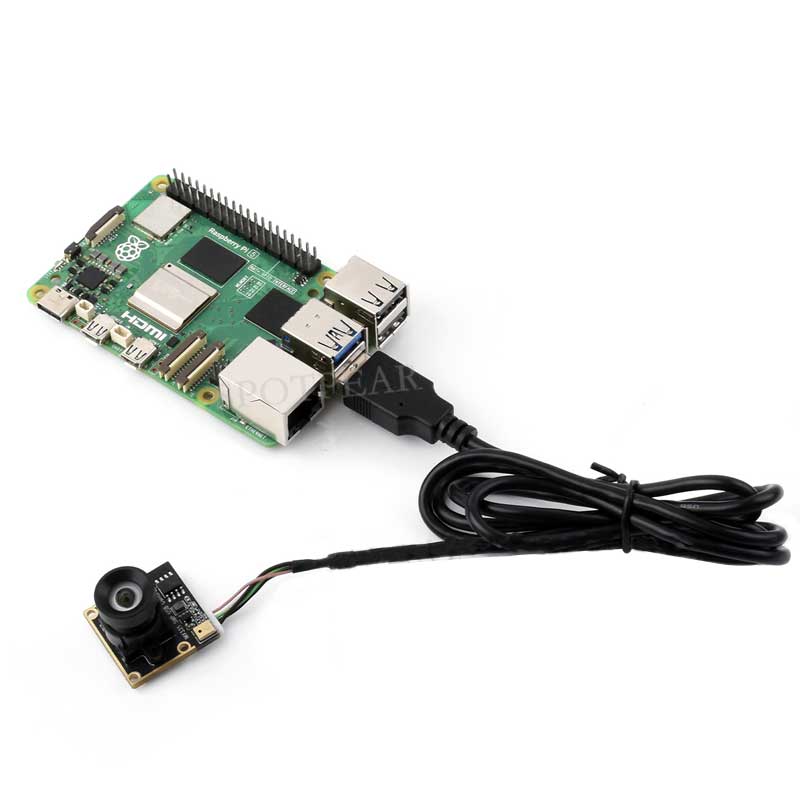

USB cable connection effect diagram

The above pictures are for display only. This product does not include Raspberry Pi 5, Jetson Orin kit and RDK kit.

High resolution supports 5 million pixels

Supports 30-frame output, suitable for application scenarios that require capturing details

Good low-light performance

IMX335 has good low-light performance and can capture images in dimly lit environments

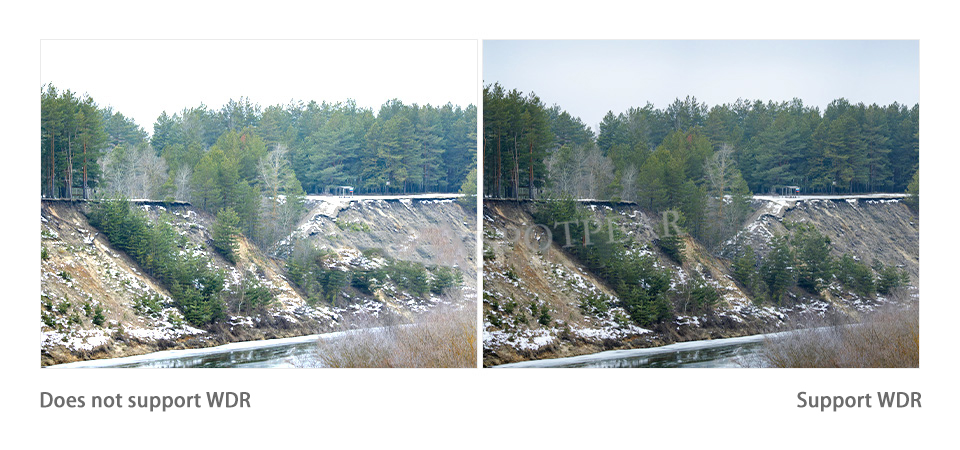

Wide dynamic range

IMX335 supports wide dynamic range (WDR) technology, which can maintain image details and quality in high-contrast scenes

The above pictures are simulated renderings, used to show the expected performance of the product under various conditions. The actual product performance may vary, please refer to the actual product

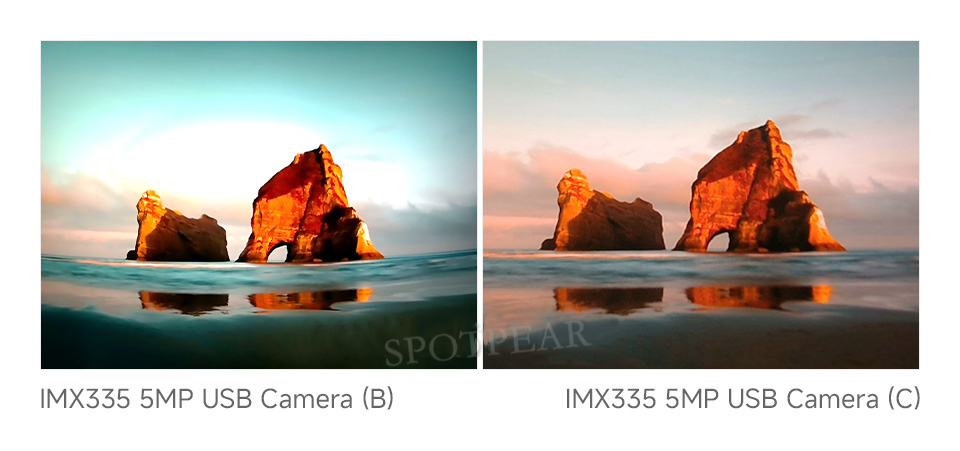

No distortion

Adopting distortion-free lens, the distortion rate is <﹣1.22%,

imaging is not deformed, restoring the real scene to a greater extent

Note: The industry considers a distortion value <2% as a distortion-free lens.

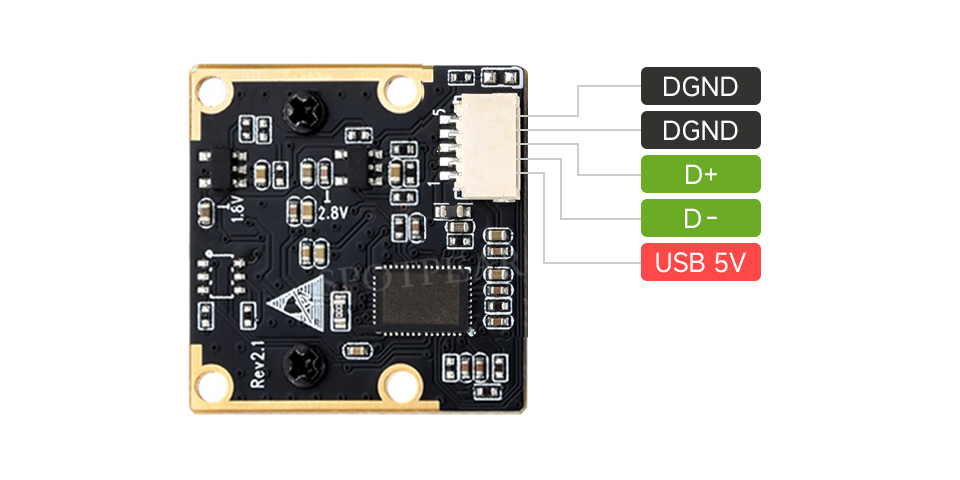

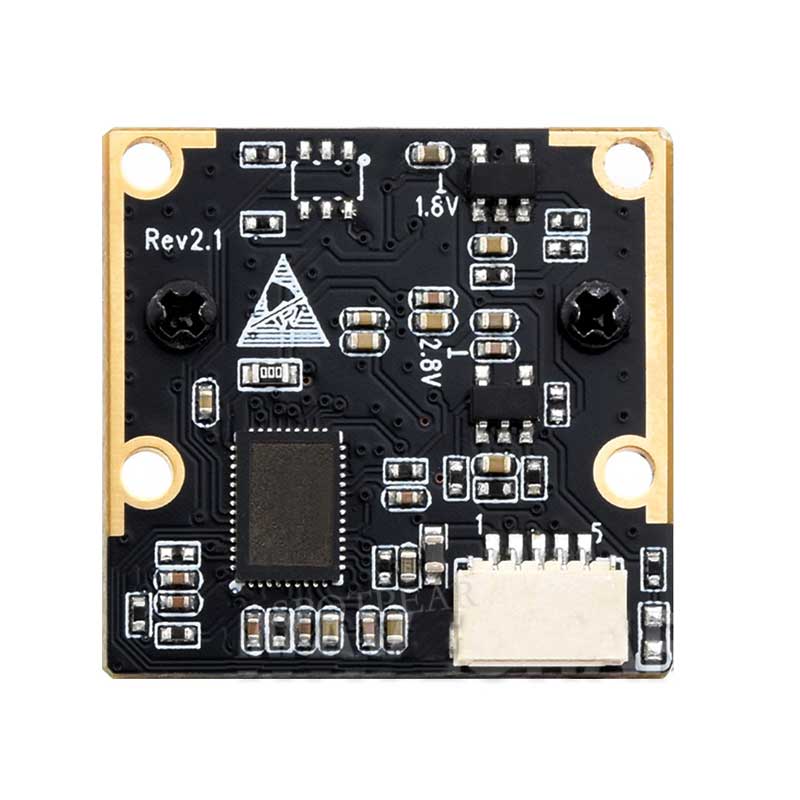

Interface line sequence

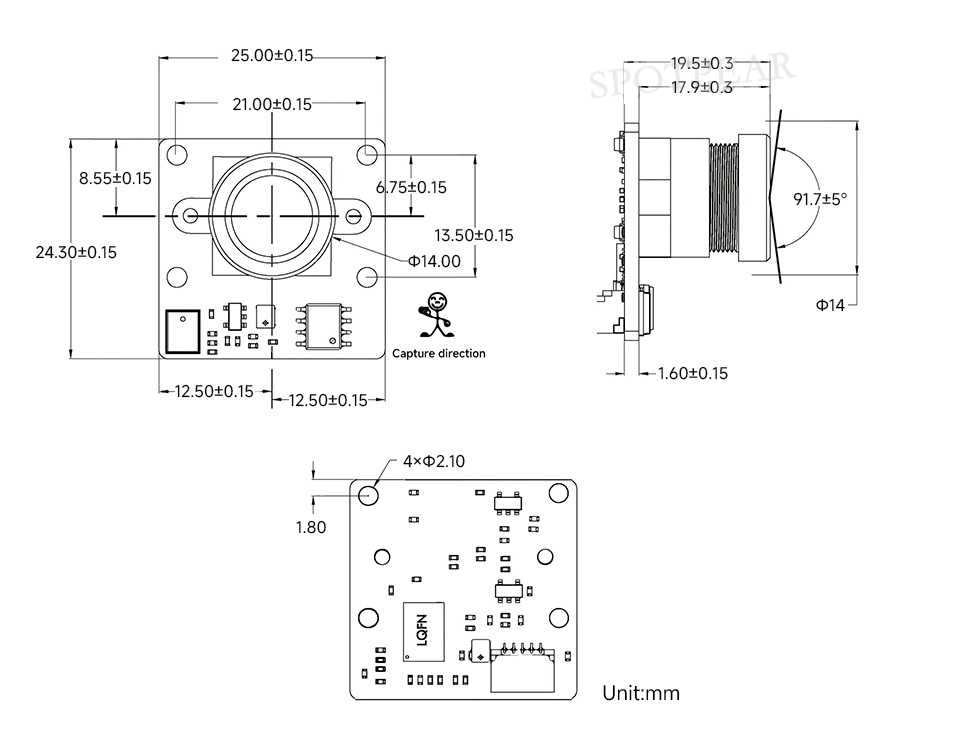

Dimensions
