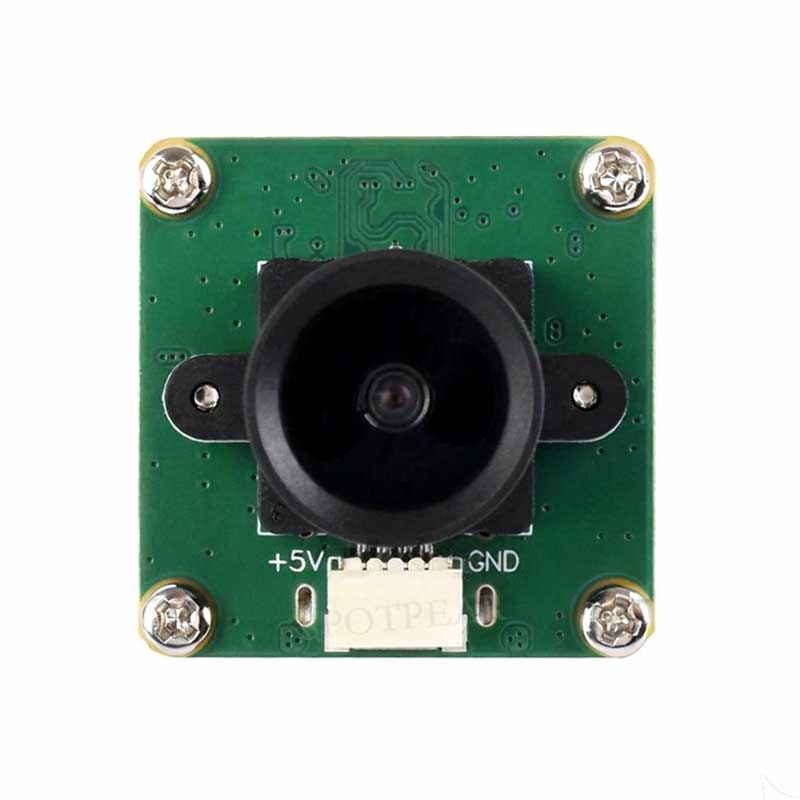

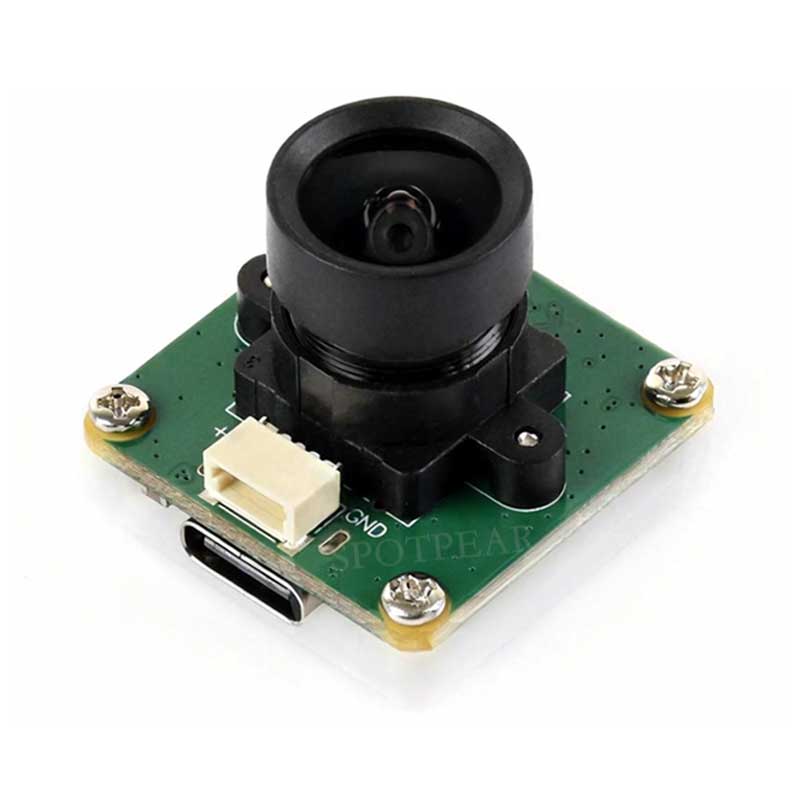

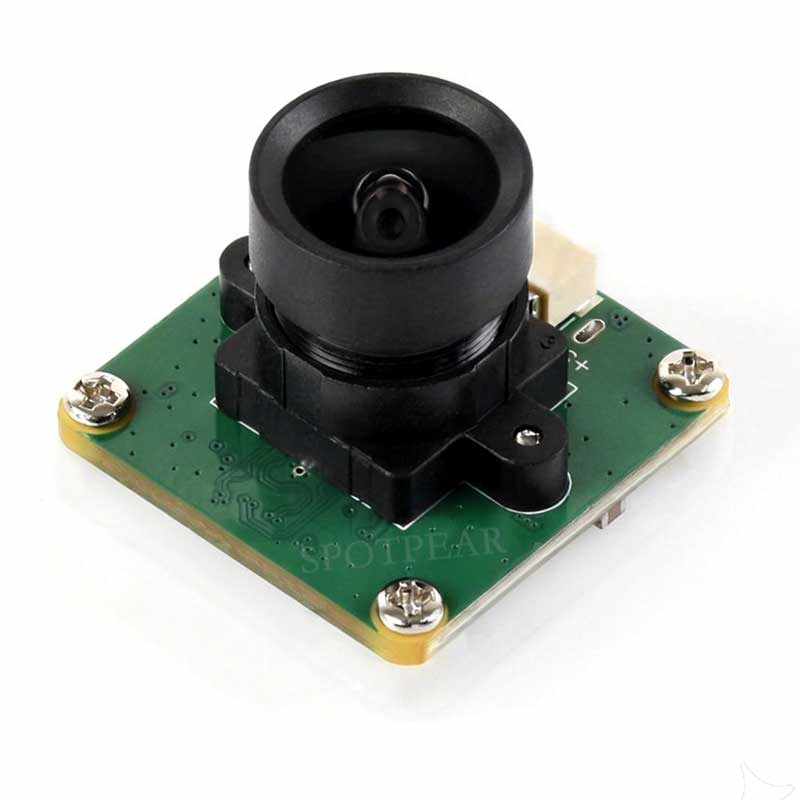

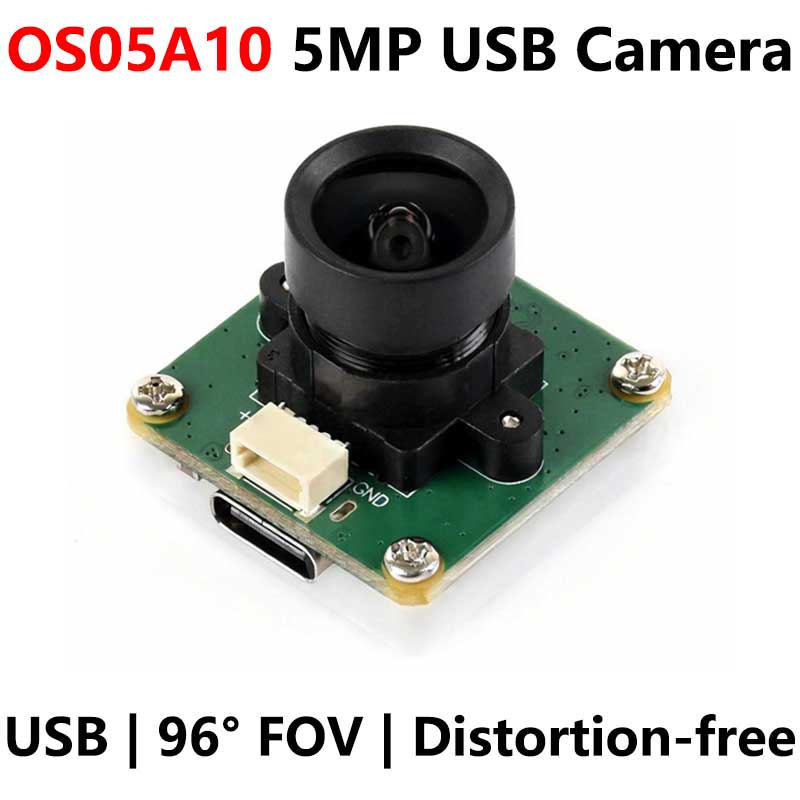

OS05A10 USB CAMERA

5MP | USB2.0 Type-C Port | 96° FOV

Specifications

PIXELS	5MP
SENSOR	OS05A10
INTERFACE	USB2.0 Type-C port / SH1.0 4PIN header
CAMERA	Sensor size	1/2.7 inch
	Aperture (F)	2.7
	Focal length (EFL)	2.88mm
	Field of view (FOV)	96°
	Distortion	<-0.2%
	Focusing	Fixed-focus
IMAGE	Format support	MJPG, YUY2
	Static image resolution	2592 × 1944
	Video recording	30 FPS 2592 × 1944 30 FPS 1920 × 1080 30 FPS 1280 × 720
OPERATING VOLTAGE	5V ± 5%
OPERATING TEMPERATURE	0°C ~ 50°C
MODULE SIZE	25.00 × 25.00 (mm)

5MP Resolution

Supports 30 FPS 2592 × 1944 30 FPS Output

Distortion-Free

Equipped With A Distortion-Free Lens With A Distortion Rate Of Less Than -0.2%, Delivering Undistorted Imaging And More Accurate Reproduction Of Real-World Scenes

* in the industry, lenses with distortion rate less than 2% are generally considered distortion-free.

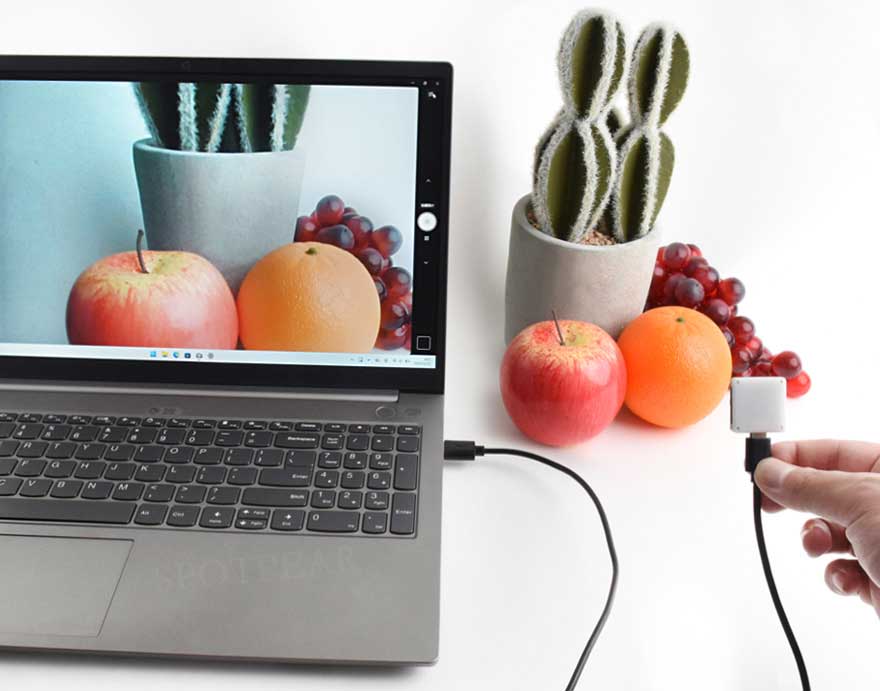

Plug And Play, Easy Connection

Onboard USB 2.0 Port, Driver-Free, Compatible With Various USB Hosts Such As PC And Smart Devices, Simply Plug It In To Start Using

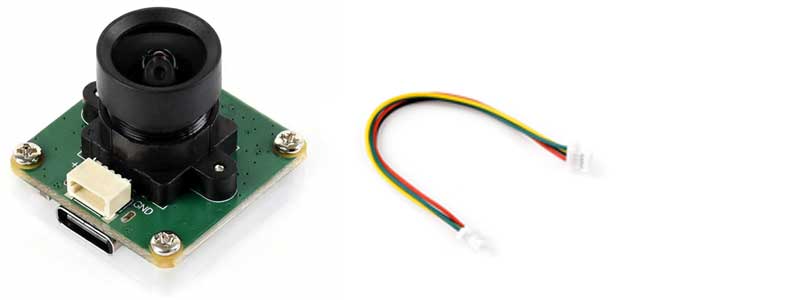

* for reference only, please refer to the package content for the detailed part list.

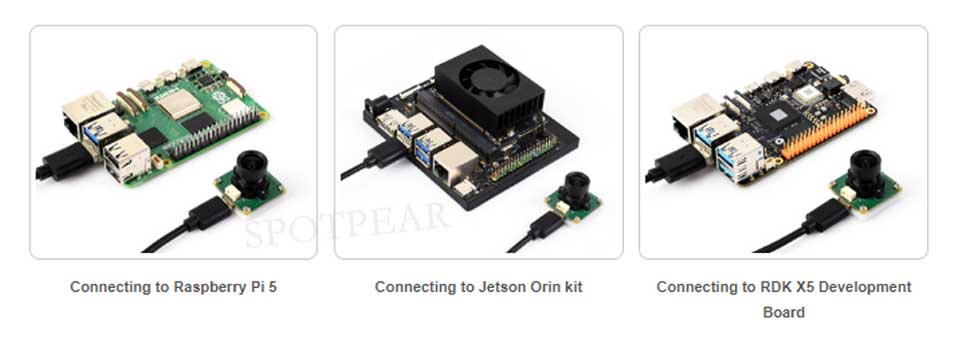

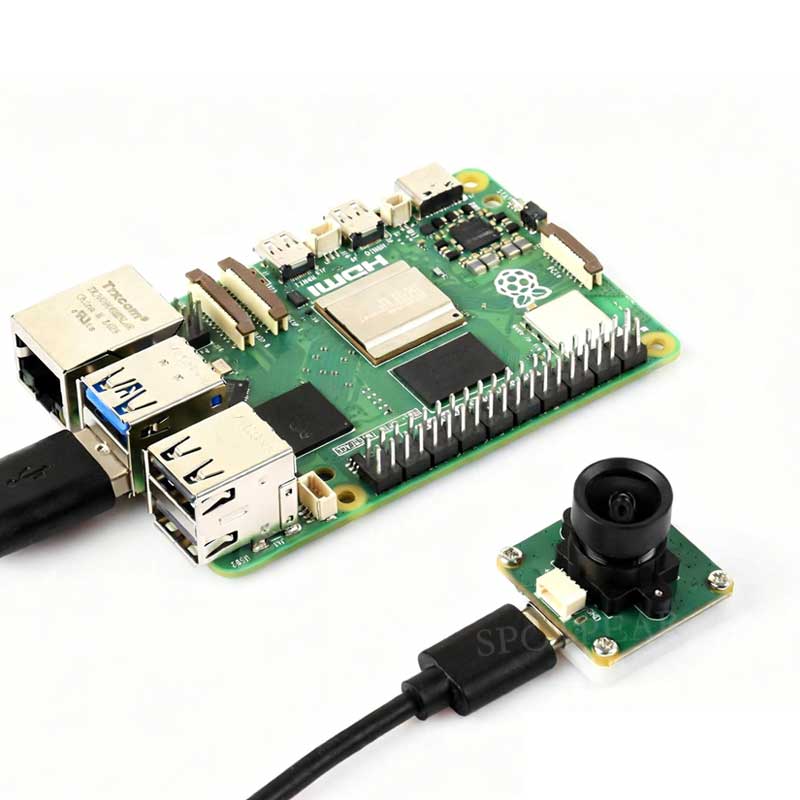

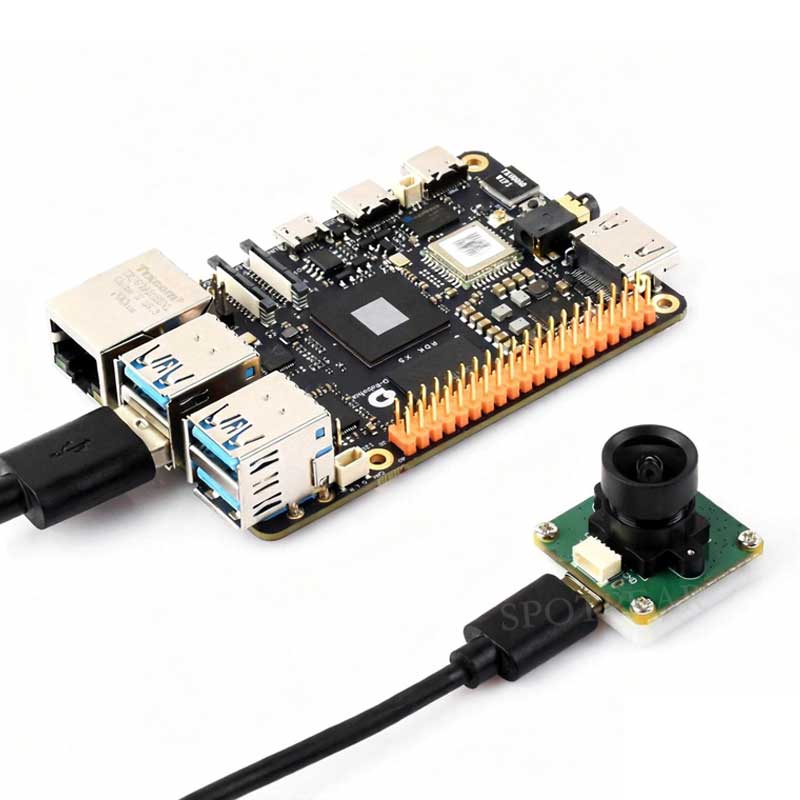

Connecting With USB Cable

* for reference only, the Raspberry Pi 5, Jetson Orin kit and RDK X5 Development Board are NOT included

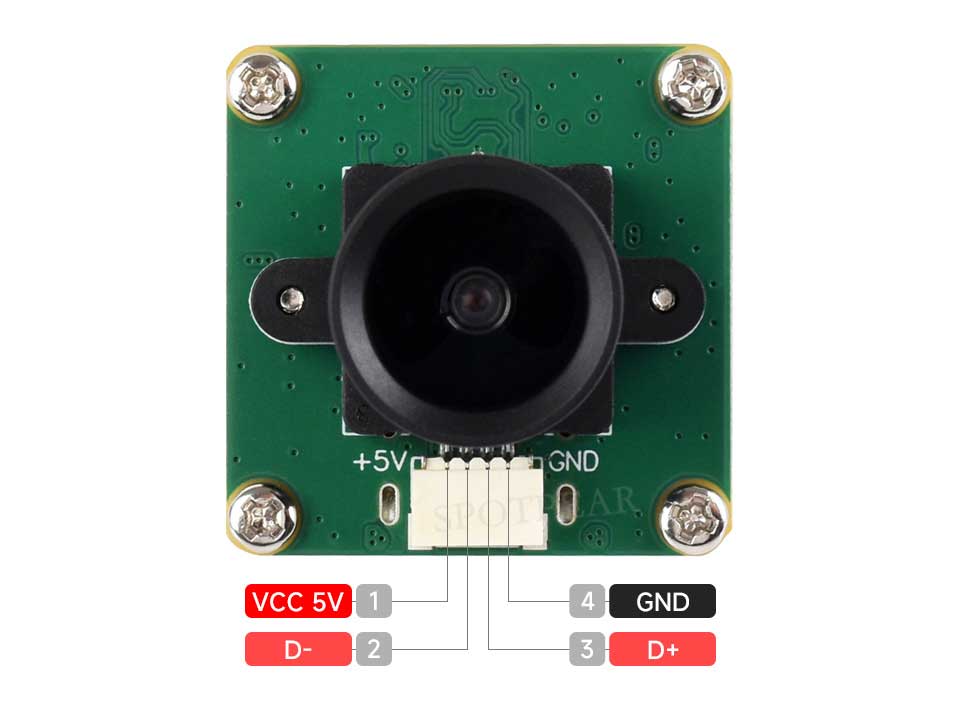

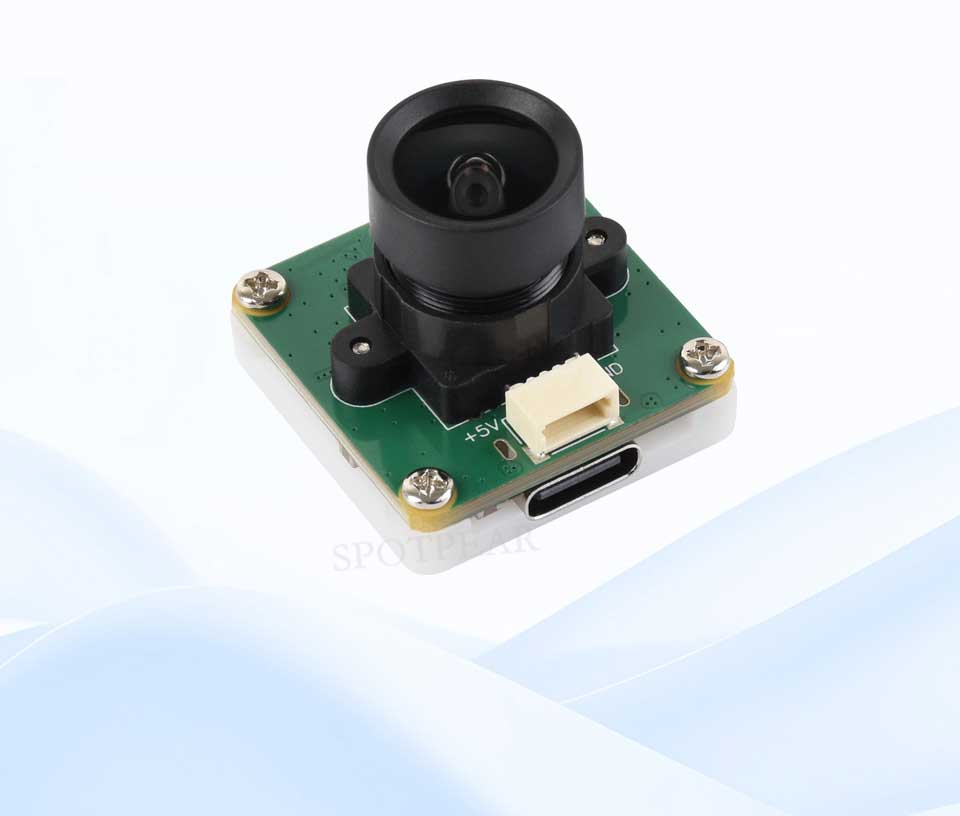

Pinout Definition

Onboard Two Types Of Connectors、

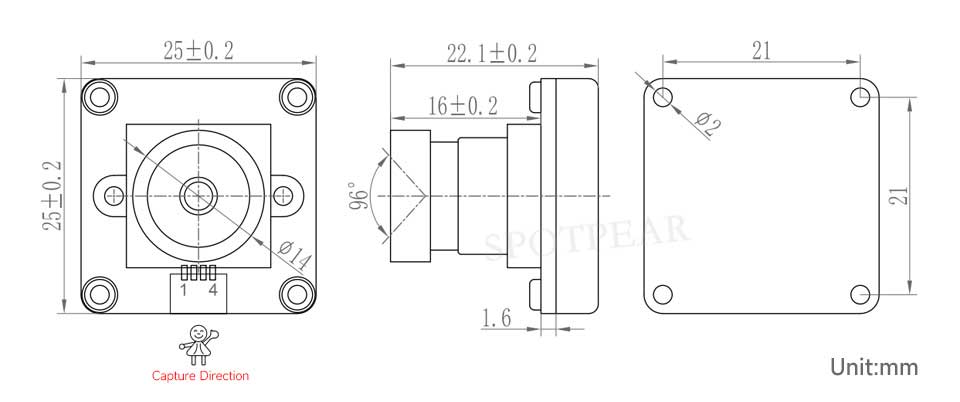

Outline Dimensions
