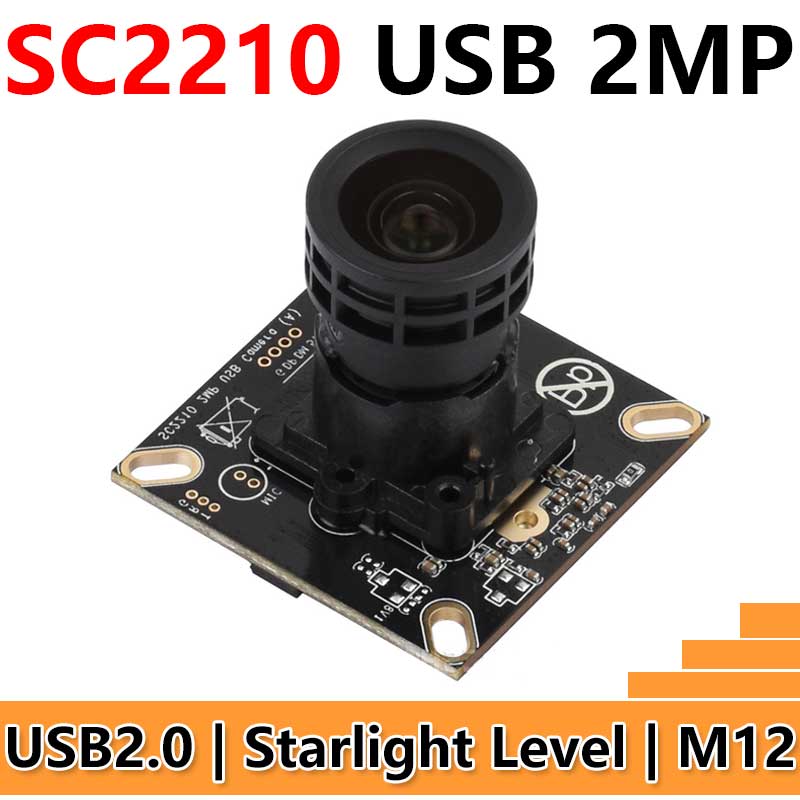

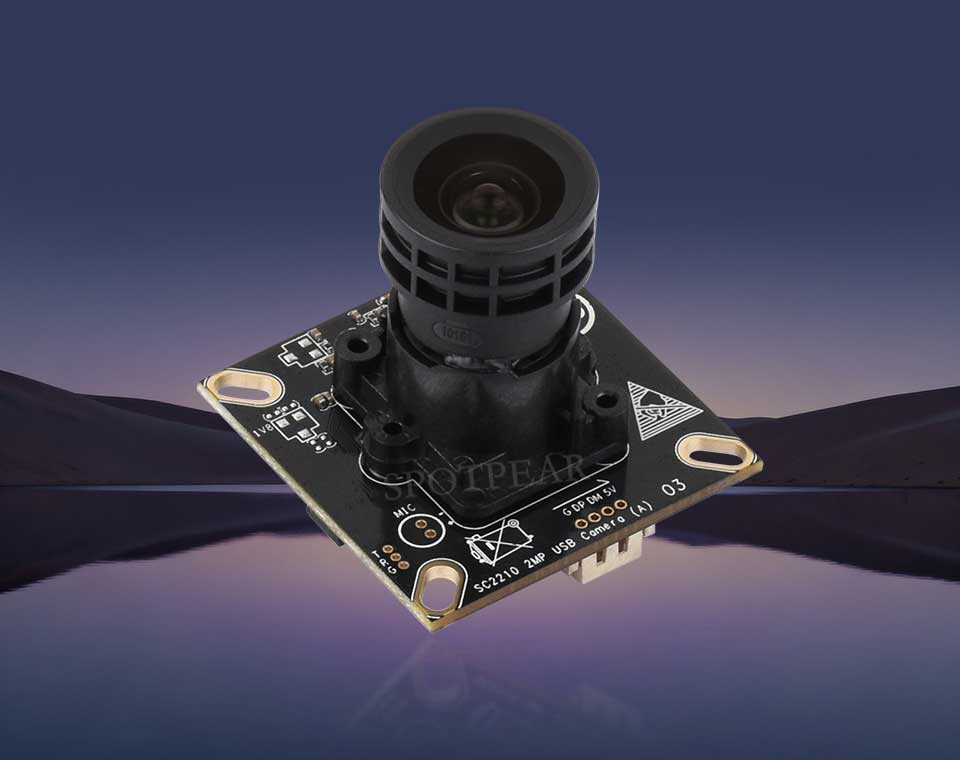

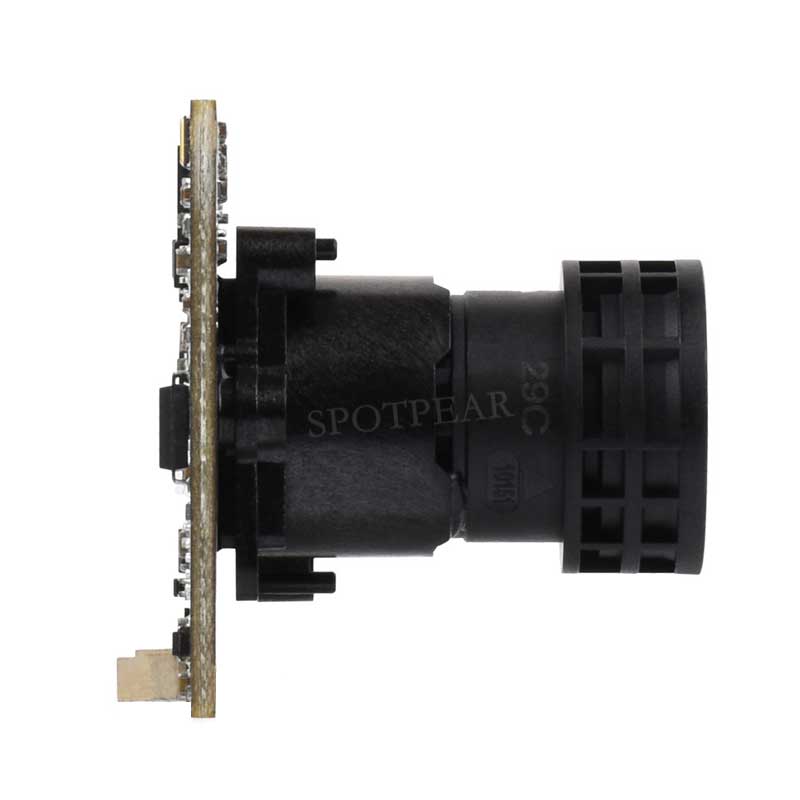

2MP M12 USB CAMERA MODULE

SC2210 Sensor | USB2.0 Port | Starlight Camera

Specifications

PIXELS		2MP
SENSOR CHIP		SC2210
INTERFACE		USB 2.0
CAMERA	SENSOR SIZE	1/1.8inch
	APERTURE (F)	1.0
	FOCAL LENGTH (EFL)	5.1mm
	FIELD OF VIEW (FOV)	110.8° (D) 93.1° (H) 49.6° (V)
	FOCUSING	Fixed-focus
	DISTORTION	<-12.7%
	IR FILTER	650nm filter
	SHUTTER	Rolling shutter
IMAGE	FORMAT SUPPORT	MJPG, YUY2
	STATIC IMAGE RESOLUTION	1920 × 1080
	VIDEO RECORDING	MJPG: 30FPS 1920×1080 30FPS 1280×720 30FPS 640×480
	VIDEO RECORDING	YUY2: 15FPS 1280×720 20FPS 1024×576 20FPS 640×480 25FPS 640×360 25FPS 480×272 25FPS 320×240
COMMUNICATION INTERFACE		MX1.25-4P USB
OPERATING VOLTAGE		5V ± 5%
OPERATING CURRENT		180mA
DIMENSIONS		38.00 × 38.00 × 32.20 (mm)

Starlight-Level Camera With Large Aperture Lens

Provides A Better Imaging Effect In Low Light Condition, Maintaining Clear Visuals Without Dark Or Blurry Shots

* The images above are simulated for reference only, please refer to the actual shooting effect.

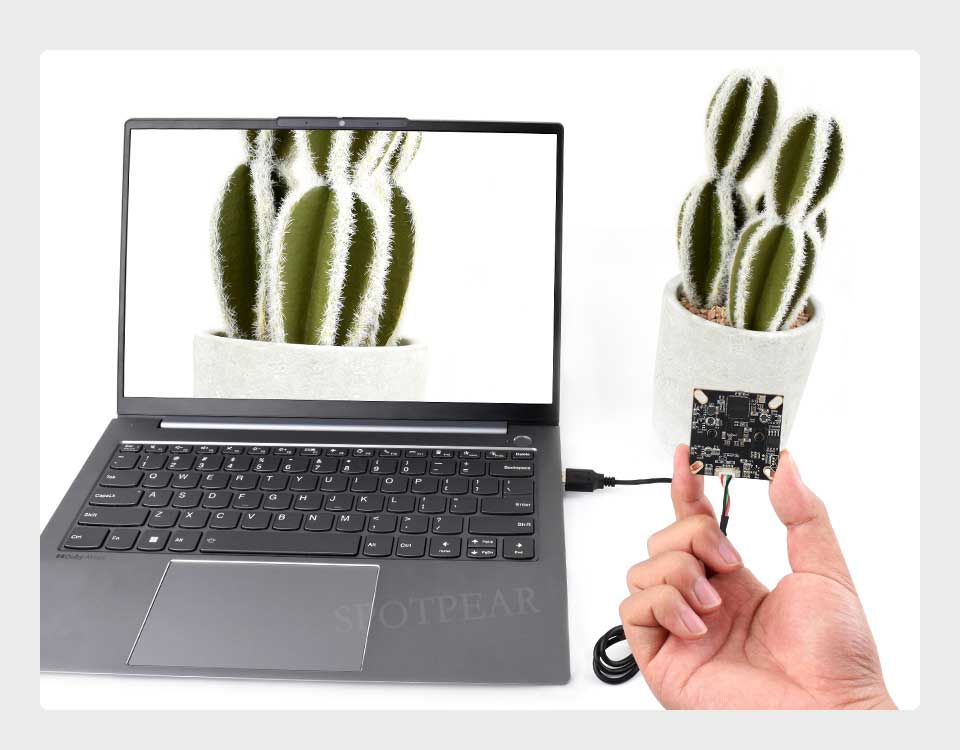

Plug And Play, Easy Connection

Onboard USB 2.0 Port, Driver-Free, Compatible With Various USB Hosts Such As PC And Smart Devices, Simply Plug It In To Start Using

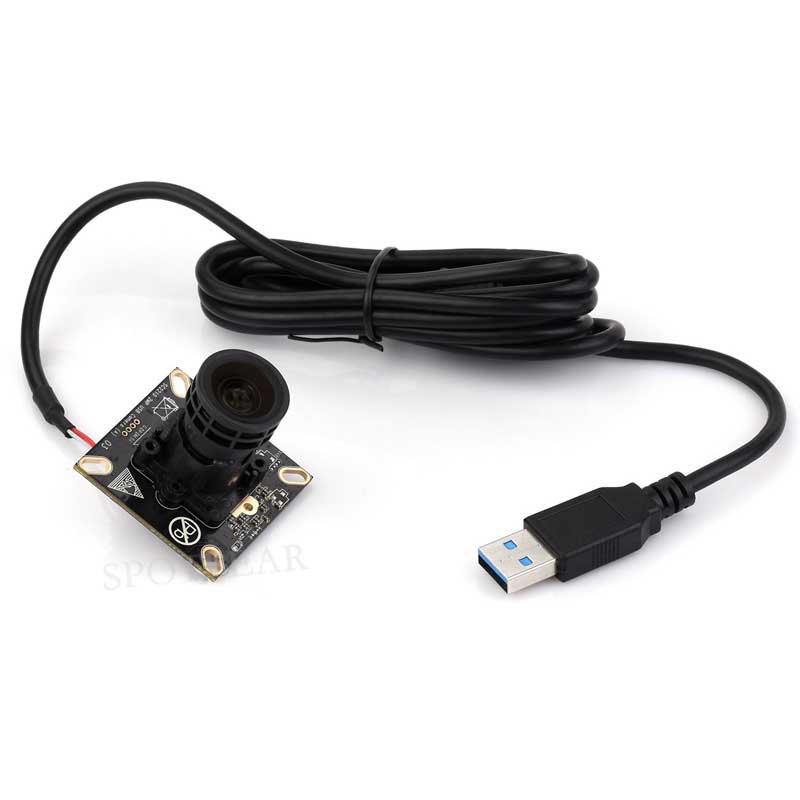

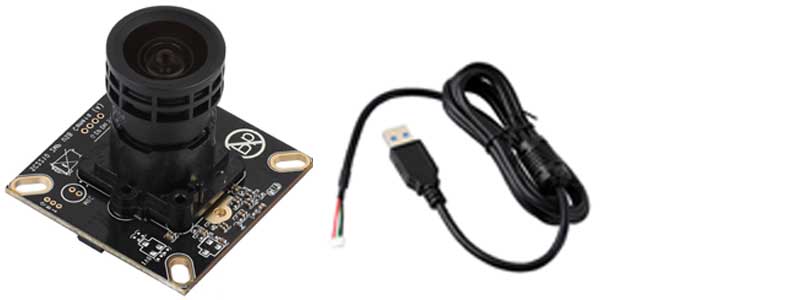

* for reference only, please refer to the package content for the detailed part list.

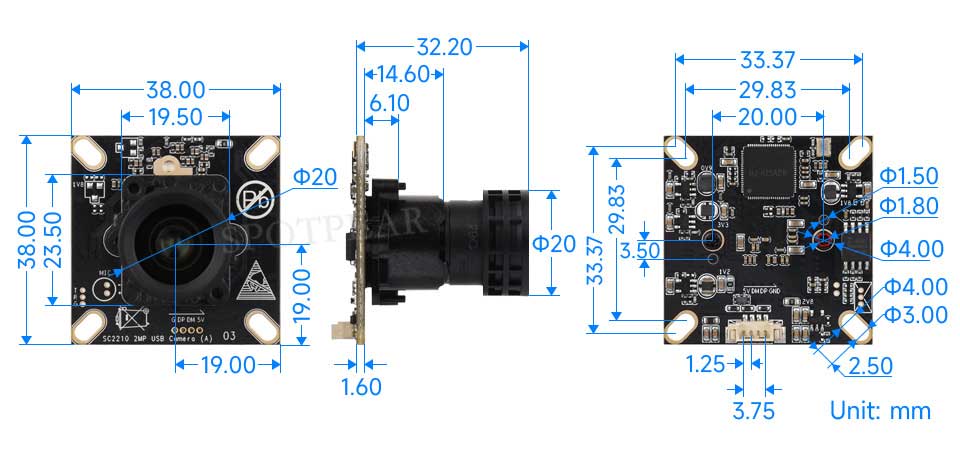

Outline Dimensions

[] SC2210 2MP USB Camera (A)
