Overview

Specifications

• Pixels: 5 million
• Resolution: 2592 × 1944
• Photosensitive chip: IMX335
• DSP: Auto gain/exposure/white balance
• Camera:
  • CCD size: 1/2.8 inch
  • Aperture (F): 2.4
  • Focal length (EFL): 3.25 mm
  • Field of View (FOV): 91.7° (D)
  • Distortion: < -1.22%
  • Focus mode: Fixed focus
• Interface type: USB2.0
• Image:
  • Supported image formats: MJPG, YVY2
  • Static image resolution: 2592 × 1944
  • Video recording support:

    30 FPS 2592 × 1944

    30 FPS 1920 × 1080

    30 FPS 1280 × 720

  • Dynamic range: 71.6dB@8xgain
  • Signal-to-noise ratio (SNR): 36dB
• Audio: Onboard microphone
• Operating voltage: 5V ± 5%
• Operating temperature: 10°C ~ 60°C
• Outline dimensions: 25.00 × 24.00 (mm)
• Supported systems: Windows, Linux, MacOS

Working with Windows PC

Test Software

Currently, a camera software is generally pre-installed with Windows 10 systems. You can test it by opening the camera software that comes with your Windows computer.
If you are using the Windows 7 system, or if the camera software cannot be found in the system, you can download and install the AMCAP test software provided by us from Resources->Softwares.

Test Steps

Window camera software

• Search for "Camera" to open the software

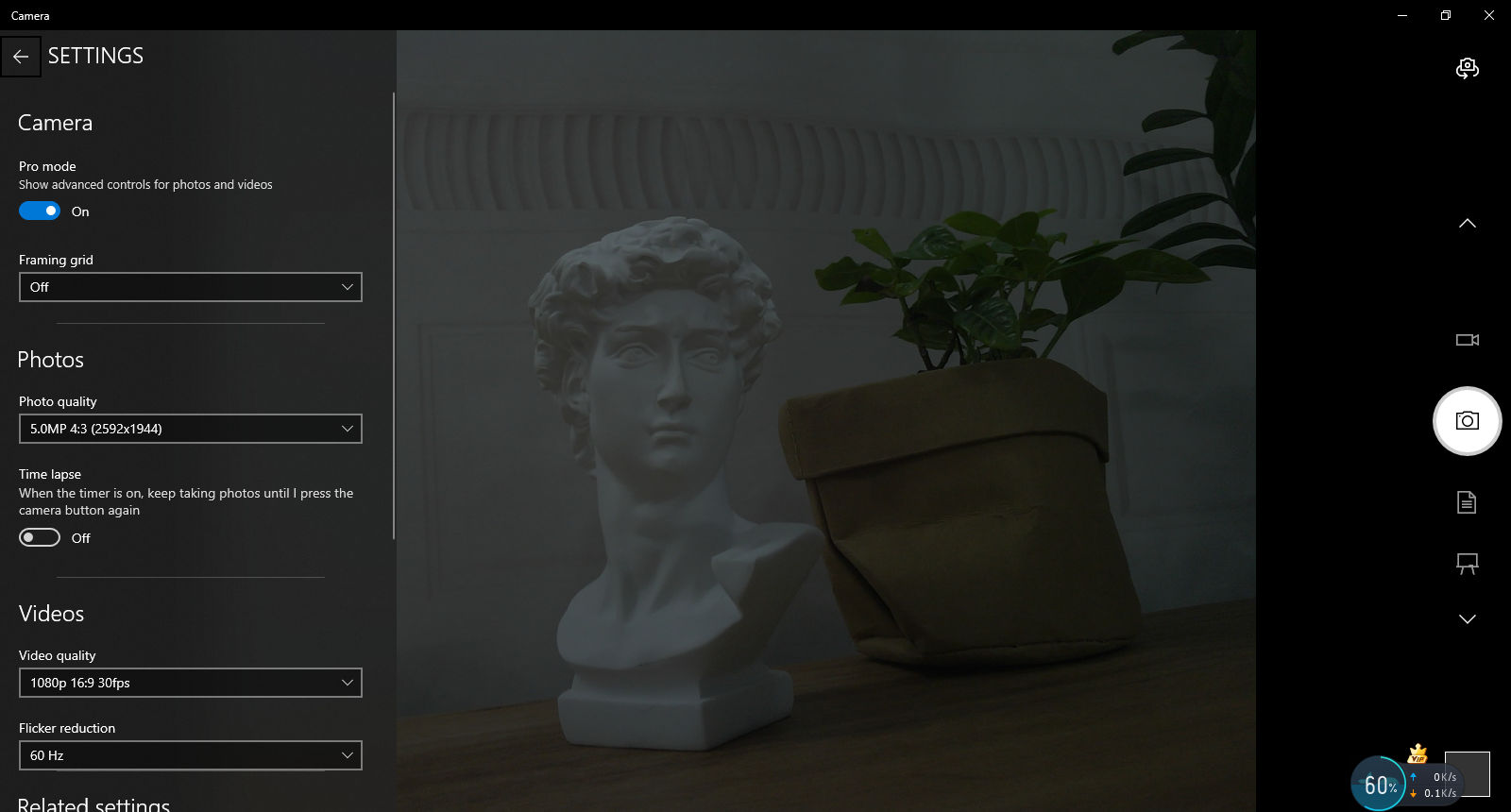

• Click the gear icon in the upper left corner to open the settings interface, where you can set the resolution for taking pictures or videos

• Click the video or capture icon on the right to switch between recording and shooting

AMCap software

• Download and install AMCap software

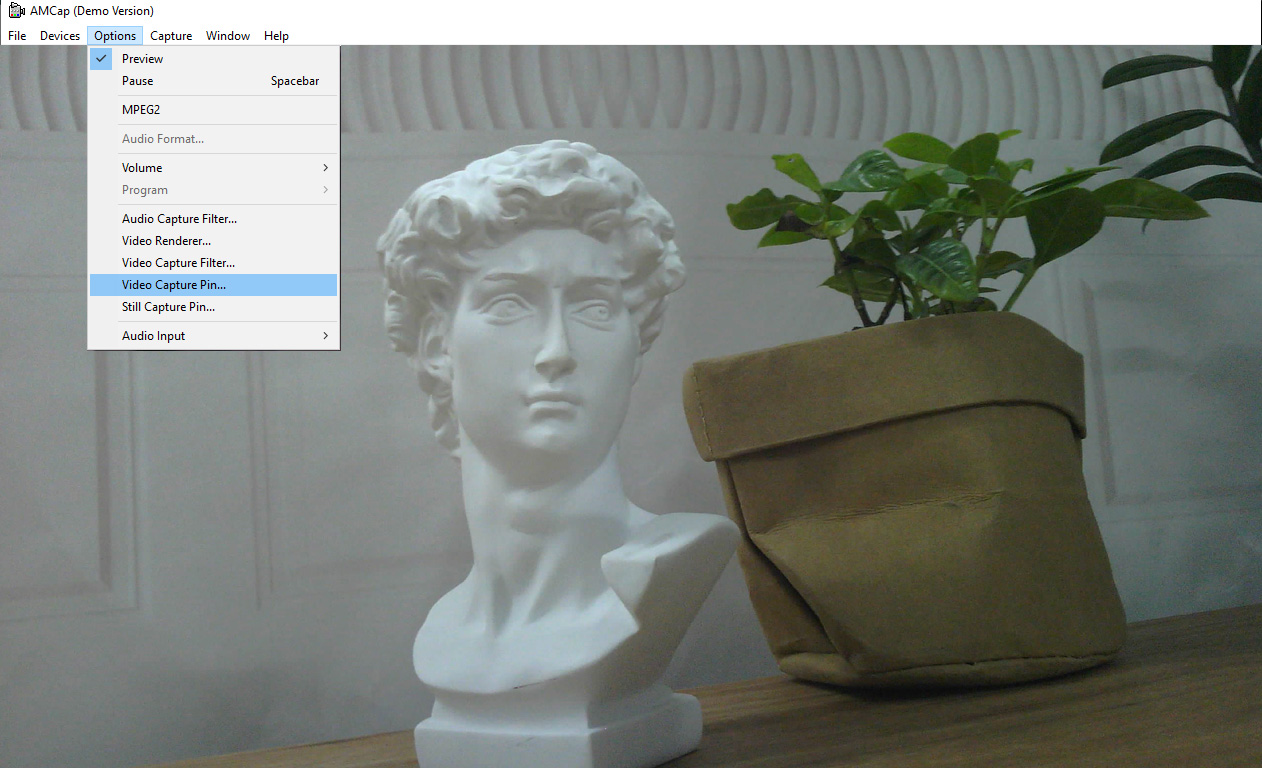

• You can click on the Option option and select Video Capture Pin... or Still Capture Pin... to set the parameters of the image and video

Working with Raspberry Pi

• Open the Raspberry Pi terminal, enter the command to install the Luvcview software
  • sudo apt-get install luvcview -y

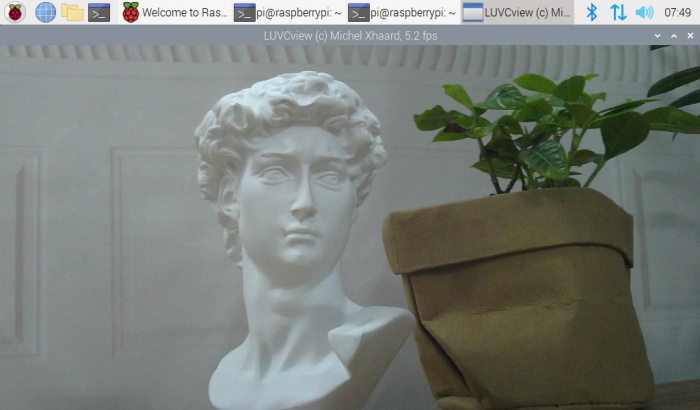

• After installation, enter the command on the terminal to open the software for USB camera testing

sudo luvcview -s 1920x1080

Working with Jetson Nano Developer Kit

• Open the Jetson Nano Developer Kit terminal (open with Ctrl+Alt+T or mouse click)
• Input the following command to preview:

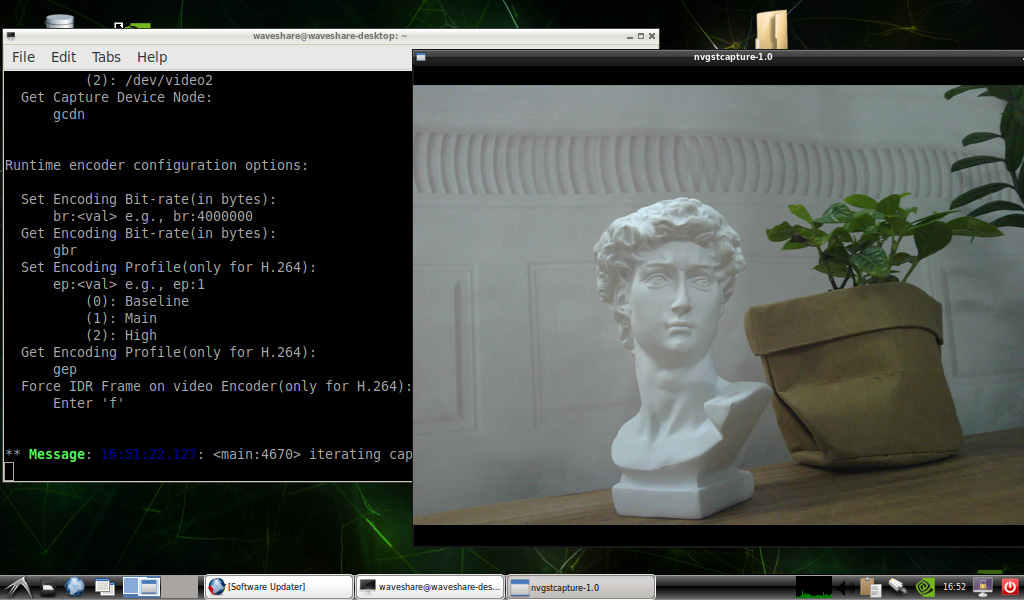

  • nvgstcapture-1.0 --camsrc=0
• After inputting, a preview window will open
•

Note: In practical application, you may need to call with a program, and you can refer to Opencv and other related image processing library materials by yourself
