NanoKVM-USB User Guide

1. Introduction

The NanoKVM-USB is a convenient tool for operations and multi-device collaboration. It allows you to perform maintenance tasks without the need for a keyboard, mouse, or monitor. Using just a single computer and no additional software downloads, you can start graphical operations directly through the Chrome browser.

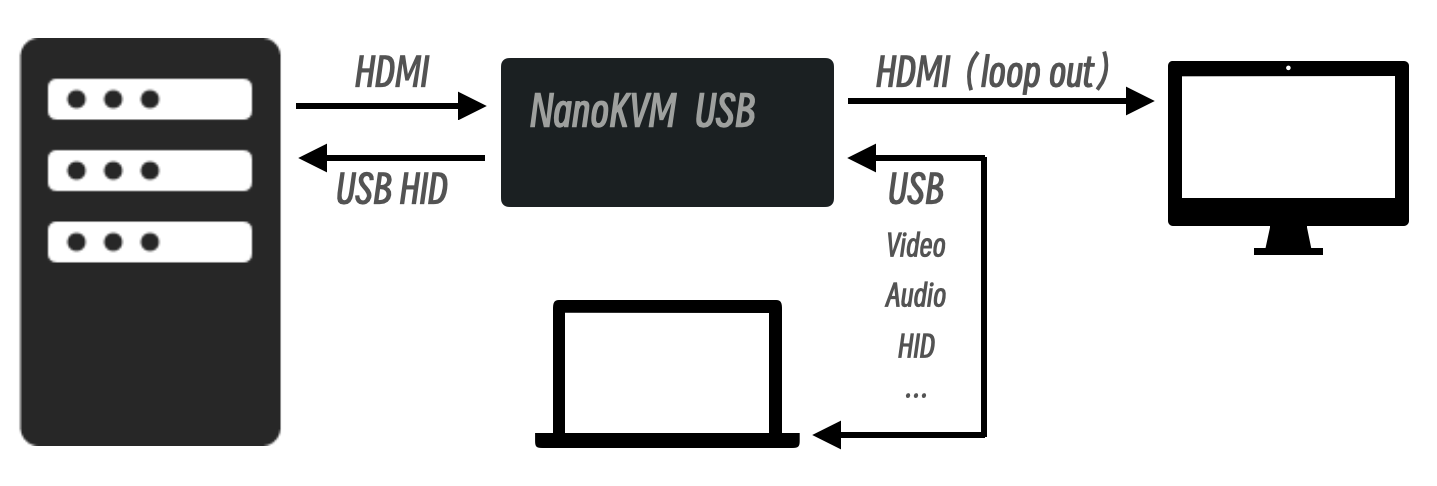

NanoKVM-USB captures HDMI video signals and transmits them to the host via USB 3.0. Unlike typical USB capture cards, NanoKVM-USB also captures keyboard and mouse input from the host and sends it to the target machine in real-time, eliminating the need for traditional screen and peripheral connections. It also supports HDMI loop-out, with a maximum resolution of 4K@30Hz, making it easy to connect to a large display.

Notably, NanoKVM-USB comes with a USB-A port that supports switching between HOST and TARGET sides. When a USB drive is connected, data can be easily transferred between two computers. Additional features can be explored freely.

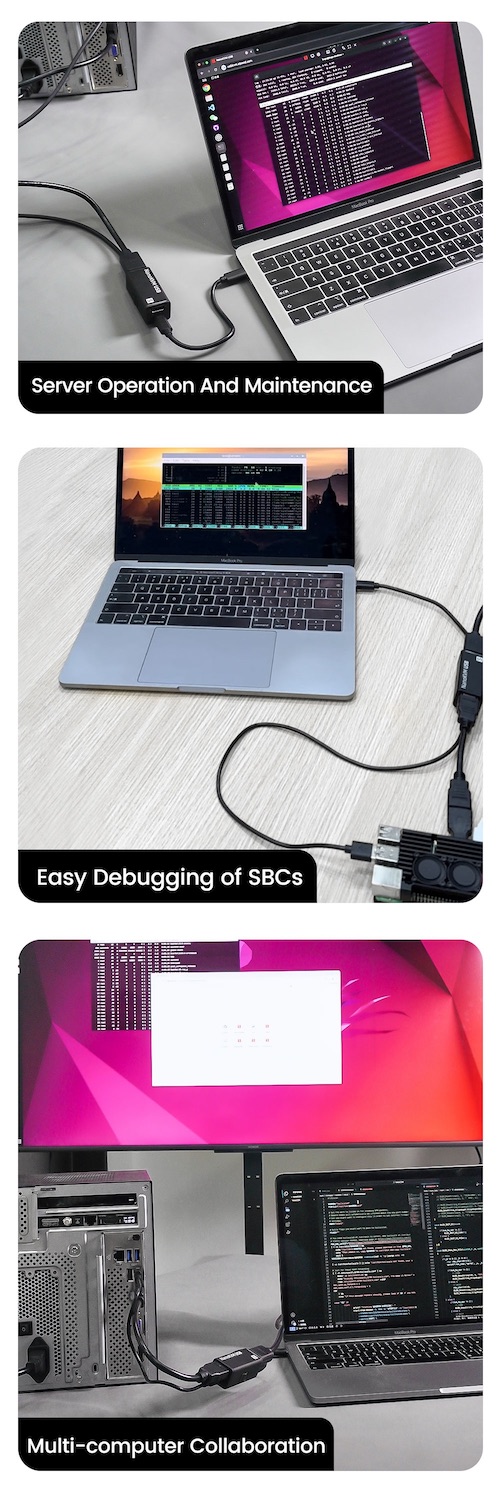

2. Use Cases

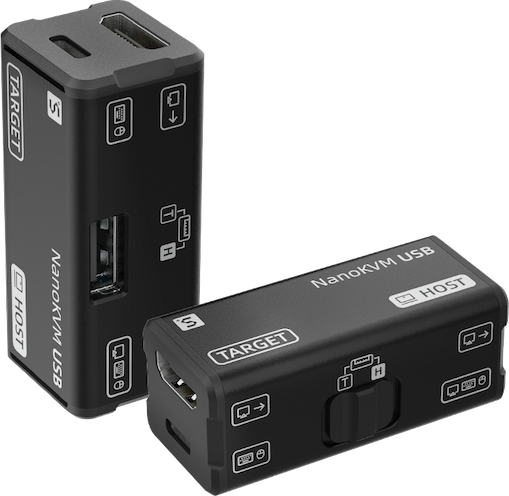

3. Interface

4. Parameters

	NanoKVM-USB	Mini-KVM	KIWI-KVM
HDMI Input	4K@30fps	1080P@60fps	4K@30fps
HDMI Loopback	4K@30fps	None	None
USB Capture	2K@30fps	1080P@60fps	1080P@60fps
USB Interface	USB3.0	USB2.0	USB3.0
USB Switch	Y	Y	N
Keyboard&Mouse	Y	Y	Y
Clipboard	Y	Y	Y
Software	No setup needed, works in chrome	Host App install required	Host App install required
Latency	50-100ms	50-100ms	50-100ms
Volume	57x25x23mm	61x13.5x53mm	80x80x10mm
Shell Material	Aluminum Alloy	Aluminum Alloy	Plastics
Color	Black / Blue / Red	Black	Black
Price	`$39.9 / $49.9`	`$89 / $109`	`$69 / $99`
