USB Camera 12MP IMX563 USB 2.0 Dual-Axis OIS Autofocus

USB Camera 12MP IMX563 USB 2.0 Dual-Axis OIS Autofocus

$69.99

Brand：SpotPear

SKU：010311100000

Date：2026-09-10 13:32

Part Number：

IMX563 12MP OIS USB Camera (A)

No：

- +

In Stock

Buy It Now

Add to cart

Ask a Question

Copy Link

IMX563 12MP OIS USB Camera (A), Autofocus, Dual-Axis Optical Image Stabilization (OIS), USB 2.0 Type-C Port

USB Industrial Camera

200W-OV2710 ---$36.9

500W-ICT518-Starlight-$52

200W-IMX462-Starlight-$52

1200W-IMX377-4K -$118

GC2093-2MP-USB-Camera-(A) $24.9

OV9281 1MP USB Camera (A) $25.9

OS08A10 8MP USB Camera (A)

OS02G10 Stereo USB Camera (A) $61.49

OV2735 2MP USB Camera (A) $14.9

OS05A10 5MP USB Camera (A) $33.9

OS05A20 5MP USB Camera (B) $45.99

OS05A20 5MP USB Camera (C) $45.99

AR0144 Stereo USB Camera (A) $72.9

IMX327 2MP IR-CUT Camera (A) $33.9

IMX335 5MP USB Camera (C) $34.9

IMX378 12MP USB Camera (A) $39.9

IMX415 8MP USB Camera (A) $31.9

IMX415 8MP Camera (A) $17.9

IMX415 8MP USB Camera (B) $61.99

IMX563 12MP OIS USB Camera (A) $69.99

IMX577 12MP USB Camera (A) $74.9

IMX577 12MP USB Camera (B) $69.9

IMX678 8MP USB Camera (A) $69

SC2210 2MP USB Camera (A) $67

PS5268-2MP-USB-Camera-A $112.9

OS05A20 5MP USB Camera (C) $45.99

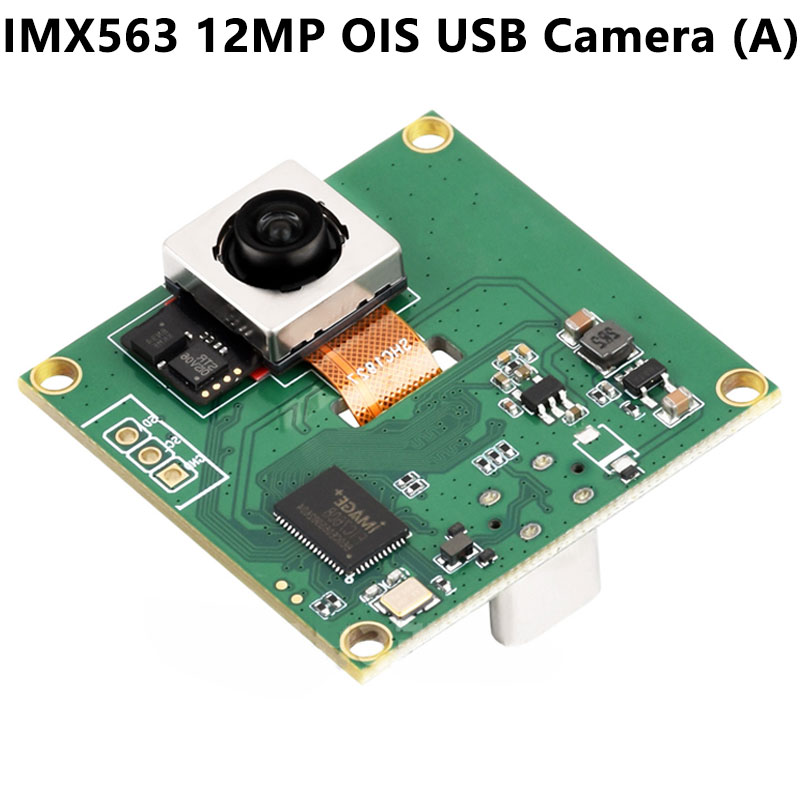

IMX563 12MP OIS USB Camera (A)

IMX563 Sensor, Dual-Axis Optical Image Stabilization

Product Features

This USB camera module features an IMX563 12MP CMOS image sensor that delivers excellent performance, including high sensitivity, low noise, and fast response. It integrates an autofocus lens with a 122° ultra-wide field of view and dual-axis optical image stabilization (OIS) system.

Specifications

SENSOR	MODEL	IMX563
	RESOLUTION	4032 × 3024 (12MP)
	CMOS SENSOR SIZE	1/2.55 inch
	PIXEL SIZE	1.4 × 1.4 μm
LENS	FIELD OF VIEW (FOV)	122° (D) × 107.2° (H) × 90.1° (V)
	APERTURE (F.NO)	2.2
	EFFECTIVE FOCAL LENGTH (EFL)	2.17mm
	DEPTH OF FIELD	10cm ~ ∞
	DISTORTION	< 5.6%
	FOCUS MODE	Autofocus
	OPTICAL FILTER	Built-in 650nm optical filter
IMAGE STABILIZATION		OIS (±3° stabilization angle, >25 dB)
VCM DRIVER IC	AUTOFOCUS	DW9800V
VCM DRIVER IC	OIS	AKM7323
IMAGE	VIDEO RECORDING	MJPG: 4000 × 3000 / 15FPS 3840 × 2160 / 30FPS 2560 × 1440 / 30FPS 1920 × 1080 / 60FPS 1280 × 720 / 30FPS 1024 × 768 / 15FPS 1024 × 576 / 30FPS 960 × 540 / 30FPS 800 × 600 / 30FPS 640 × 480 / 30FPS 480 × 270 / 30FPS 320 × 240 / 30FPS 320 × 180 / 15FPS 160 × 120 / 30FPS
OUTPUT FORMAT		MJPEG
INTERFACE		Type-C USB 2.0
OPERATING TEMPERATURE		−20°C to 70°C

122° Ultra-Wide Field Of View

A 122° Diagonal Field Of View Captures More Of The Surrounding Scene

Autofocus Lens

Built-In Open-Loop Voice Coil Motor (VCM) Enables Autofocus And Automatically Adjusts The Focus According To The Shooting Distance

Dual-Axis Optical Image Stabilization

±3° Stabilization Compensation For Stable Images Even In Motion

USB Type-C Interface

A USB 2.0 Interface With A Type-C Connector Allows Direct Connection To Computers, Embedded Boards, And Other Devices

Outline Dimensions

[] IMX563 12MP OIS USB Camera (A)
