Jetson Orin 5G/4G/3G expansion board GNSS GPS RM520N-GL

Jetson Orin 5G/4G/3G expansion board GNSS GPS RM520N-GL

$240

Brand：SpotPear

SKU：050114800000

Date：2025-09-05 18:10

Part Number：

RM520N-GL 5G for Jetson Orin

No：

- +

In Stock

Buy It Now

Add to cart

Ask a Question

Copy Link

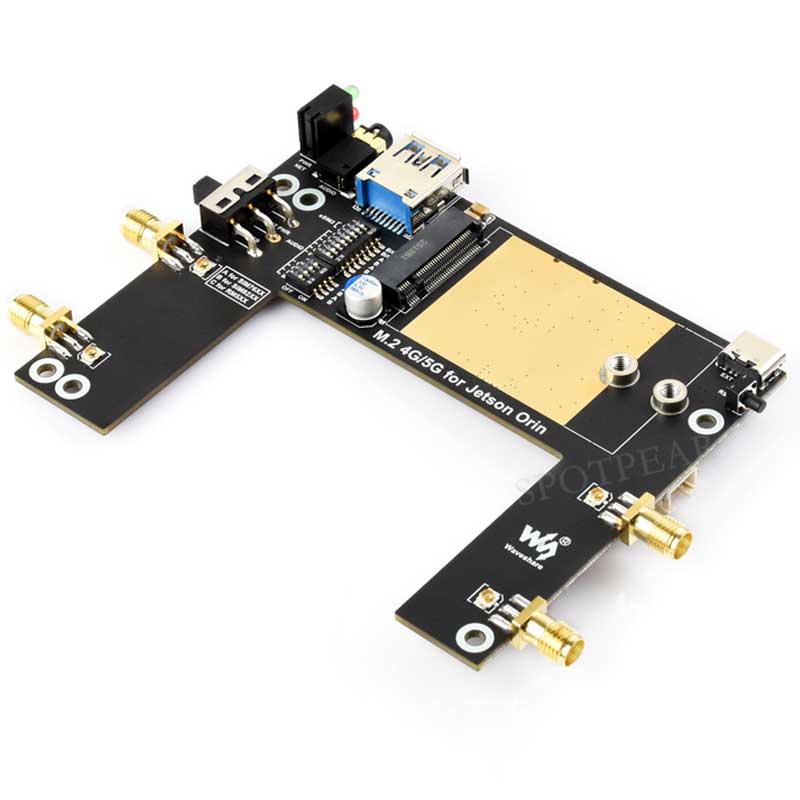

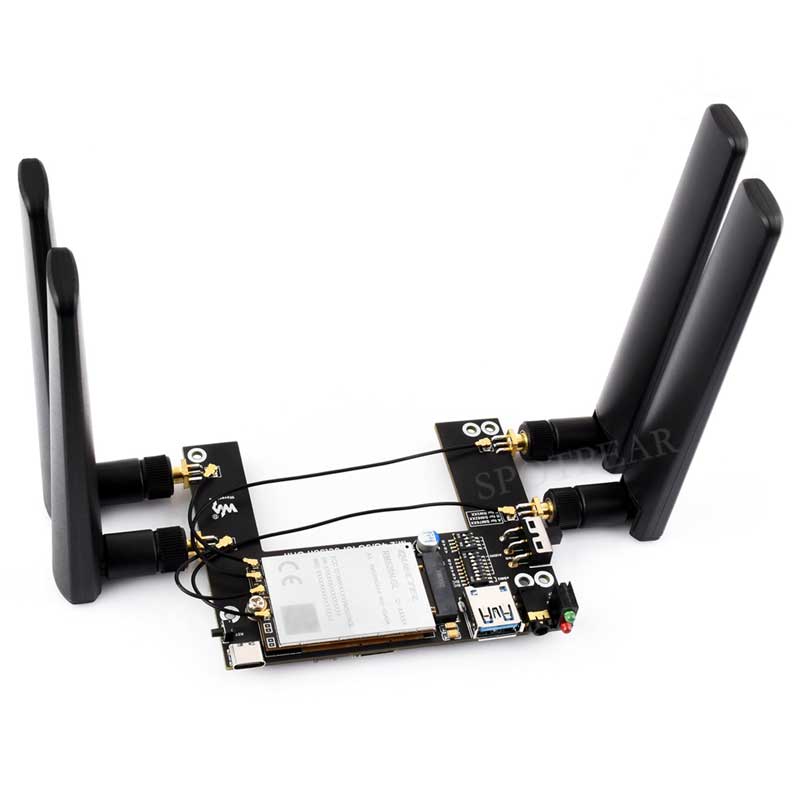

Jetson Orin 5G/4G/3G expansion board supports 5G NSA and SA networking and GNSS positioning, including the RM520N-GL module

Jetson Orin
5G / 4G / 3G expansion board

Supports 5G/4G/3G networks and GNSS positioning

Based on Quectel RM520N-GL 5G global communication module, supporting 3GPP 16

Product Features

Based on Qualcomm X62 platform, supports 5G NSA and SA networking, and supports multi-mode and multi-band
Integrated multi-constellation dual-frequency positioning: GPS, GLONASS, BeiDou, Galileo and QZSS
The onboard USB 3.1 interface is backward compatible with USB 2.0 and can be used to connect to the Jetson Orin motherboard, computer or Raspberry Pi for high-speed 5G Internet access.
Onboard M.2 B KEY standard interface and pin setting switch, compatible with optional RM520N-GL / RM530N-GL / RM500U-CNV / EM060K-GL series modules
Onboard 4-way SMA to IPEX antenna conversion interface, making antenna installation more convenient
A UART pad interface is reserved to facilitate data transmission and other functions with some modules through this interface
Onboard one Nano SIM card slot and one eSIM card slot packaged in QFN-8 (5 × 6), dual-SIM single standby, which can be switched and enabled via AT commands
Onboard power switch, reset button and LED indicator light make it easy to control the module power on and off and check the operating status
Onboard high-performance power circuitry capable of delivering up to 3A of current

Multi-mode and multi-band

Based on the Qualcomm platform, it supports 5G NSA and SA networking, multi-mode and multi-band, and is suitable for a variety of application scenarios.

The above image is a reference map of 4G and 5G network frequency bands around the world.

Before use, please confirm that the frequency band used by your local operator is within the module's supported range.

Multi-system compatible, easy to operate

Supports Windows 7/8/10/11, Ubuntu, Raspberry Pi OS, and OpenWRT. Simply plug in the USB port and configure it to achieve high-speed 5G networking.

Enjoy 5G high-speed Internet

Can be connected to the Jetson Orin motherboard, computer or Raspberry Pi for high-speed 5G Internet access

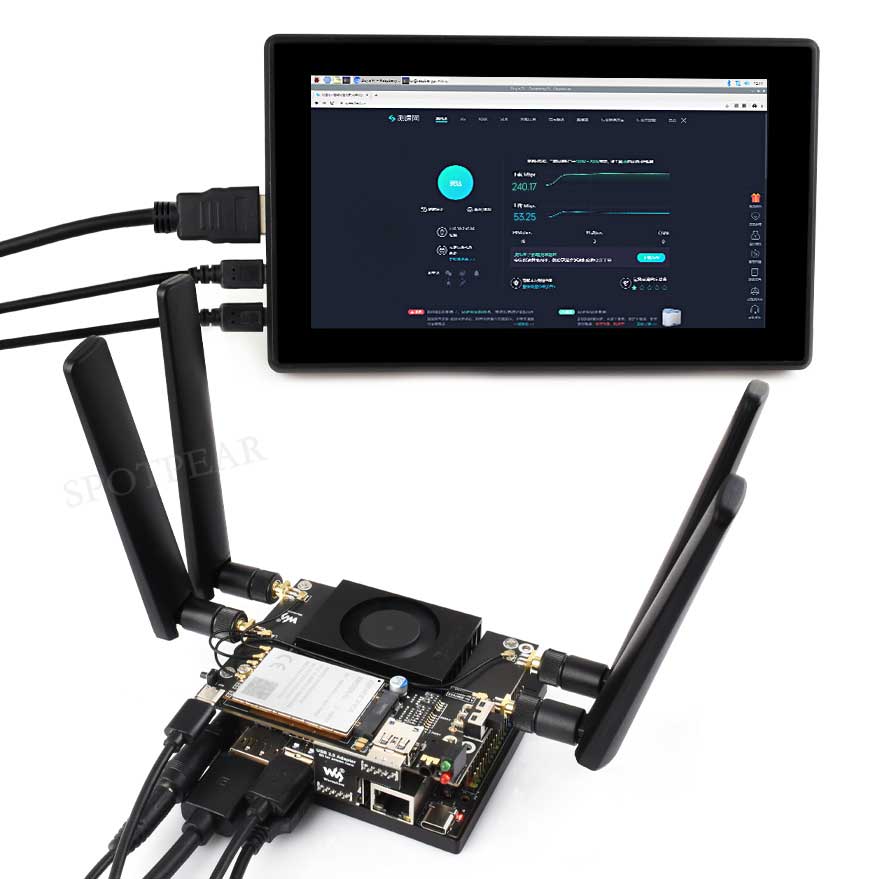

Example of accessing the Internet via Jetson Orin

接 Windows 电脑上网示例

Example of connecting to the Internet from a Windows computer

Actual speed measurements are affected by factors such as network coverage, network congestion, host performance, and base station deployment.

Support cloud platform communication

Application Examples

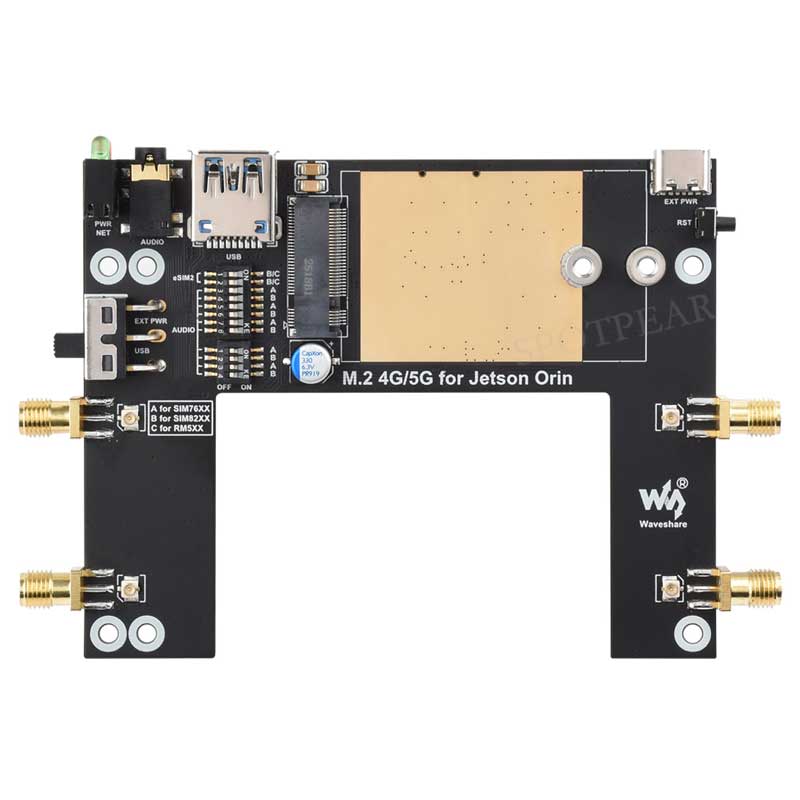

Resource Introduction

USB 3.1 interface
Backward compatible with USB 2.0, can be used to connect to various motherboards
M.2 interface
Compatible with most SIMCom and QUECTEL M.2 packages for 4G/5G modules
USB Type-C port
5V 3A input, stable and flexible power supply
Reset switch
One-button reset
Module fixing hole
Supports 3042/3052 package modules
Antenna interface
Onboard four antennas
Module setting switch
A silkscreen switch turned to ON, can be used for SIM7600X / A7906X / SIM7906X / SIM7912X series 4G M.2 modules
B. Turn the silkscreen switch to ON and it can be used with SIM8202X / SIM8200EA / SIM8262X / SIM8260X series 5G M.2 modules.
C silkscreen switch turned to ON, can be used with RM520N-GL / RM530X / EM06X series 5G / LTE-A M.2 modules
Power switch
If set to USB, the module will be powered by "⑤ USB3.1 port"
If set to EXT PWR, the module will be powered by the external power supply through the "⑥ USB Type-C port"

pilot lamp
Conveniently view the module operation status
Audio Interface
SIM82XX and SIM7600X series support audio function, but RM5XX series does not support this audio function.

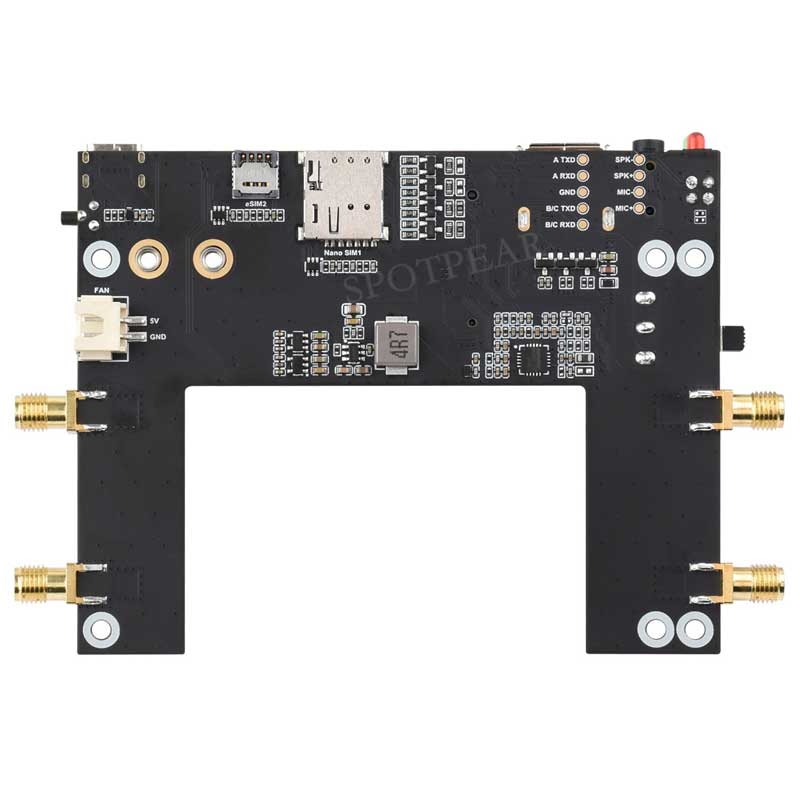

eSIM card slot
Package QFN-8 (5 × 6), can be configured through AT commands
Nano SIM card slot
Onboard two SIM card slots, dual SIM single standby
Level conversion circuit
Reserved UART and audio interface pads
Mounting holes
Mounted to Jetson Orin with screws
Audio driver circuit
Power supply circuit
Fan connector
Can be used to connect to a 5V cooling fan

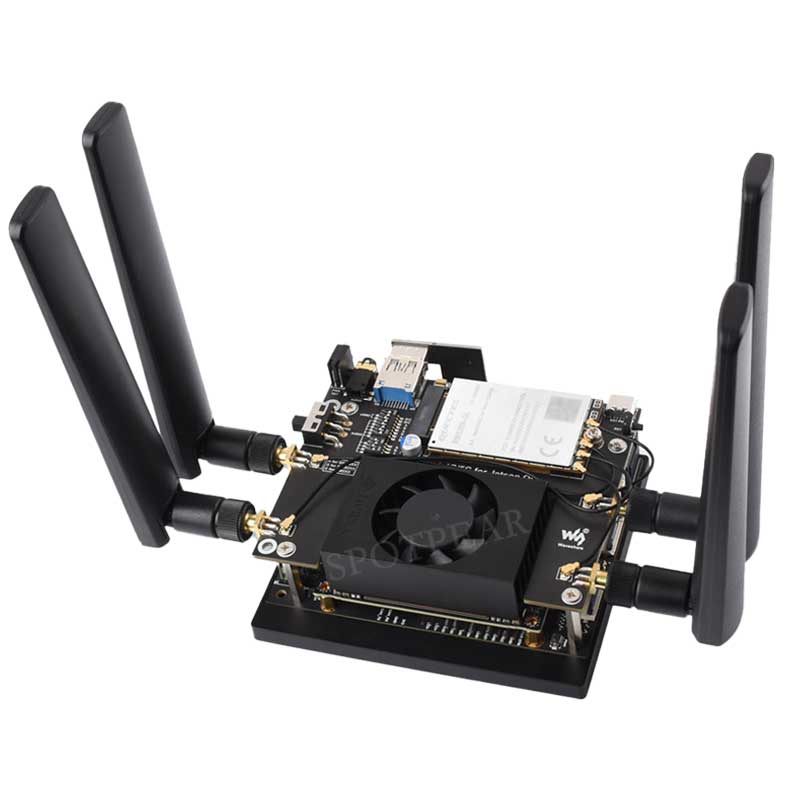

Installation Instructions

The pictures are for display only. Please refer to the configuration list for detailed configuration.

Product size

[] RM520N-GL 5G for Jetson Orin
