ESP32-S3 7inch LCD Display 7 inch TouchScreen 7B 1024×600 N16R8 CAN RS485 Sensor
$35.9
ESP32-S3 7-inch LCD capacitive five-point touch screen development board 1024×600 resolution 32-bit LX7 dual-core processor main frequency 240MHz support Wi-Fi Bluetooth onboard antenna
ESP32 Display Recommend
ESP32-S3
7-inch LCD screen development board
1024 × 600 resolution, RGB interface, adjustable backlight, multiple peripheral interfaces

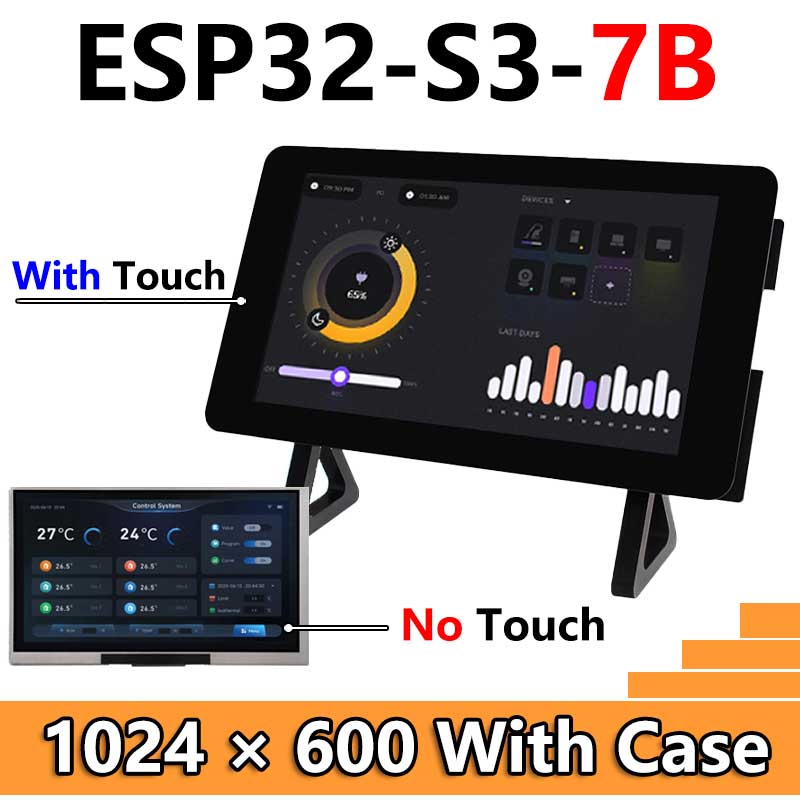

Version selection
Model 7B is an upgraded version with higher resolution, supporting backlight adjustment and lithium battery voltage reading
Product Features
This product is a microcontroller development board that supports 2.4GHz Wi-Fi and BLE 5. It integrates large-capacity Flash and PSRAM, has an onboard 7-inch LCD screen, can smoothly run GUI interface programs such as LVGL, and combines multiple peripheral interfaces to quickly develop applications such as HMI of ESP32-S3.
- Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, with a main frequency of up to 240MHz
- Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), onboard antenna
- Built-in 512KB SRAM and 384KB ROM, stacked with 16MB Flash and 8MB PSRAM
- Onboard 7-inch LCD screen, 1024 × 600 resolution, 65K colors
- Support I2C interface to control capacitive touch, 5-point touch, support interrupt (only with touch version)
- Onboard CAN, RS485, I2C interface and Micro SD card holder, integrated full-speed USB serial port
- External LED indicator for easy viewing of power and battery charging status
- You can adjust the backlight brightness and read the current battery voltage
- Supports flexible clock, module power individual setting and other precise control, realizing multi-scenario low power consumption mode
Application Scenario
IPS display panel
Excellent display performance with 170° viewing angle
Support expansion of multiple peripherals
More expansion devices can be connected through interfaces such as GPIO, CAN, RS485 and I2C
Application Examples
The pictures are for display only. Please refer to the configuration list for detailed configuration.
Resource Overview

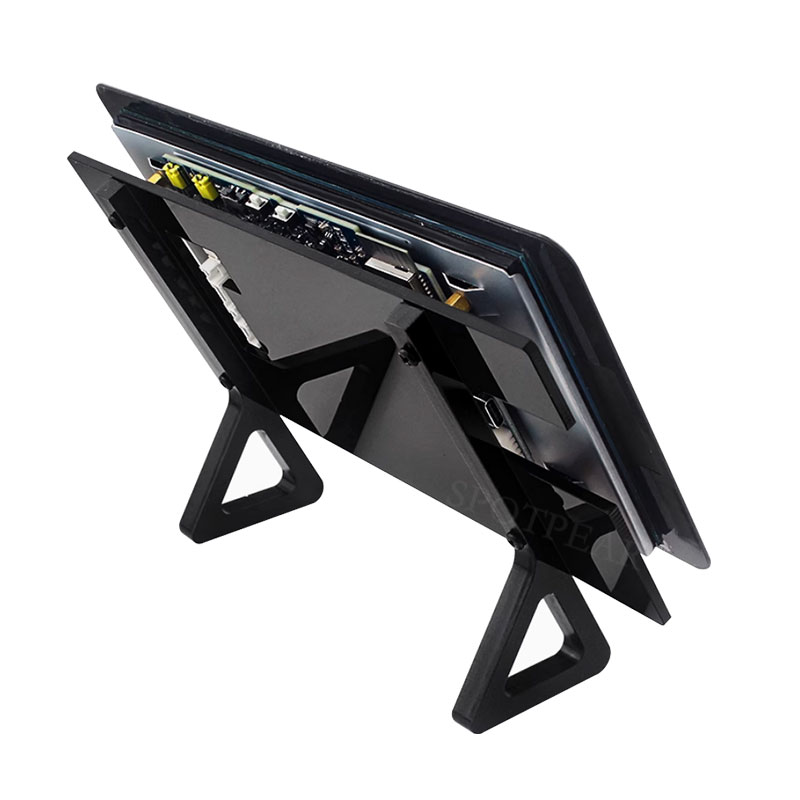

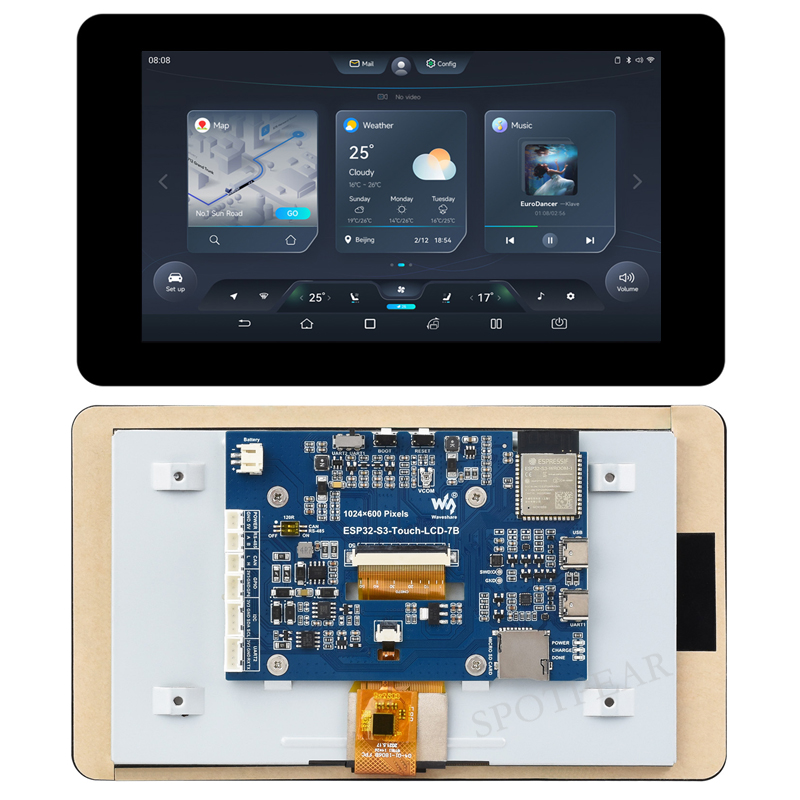

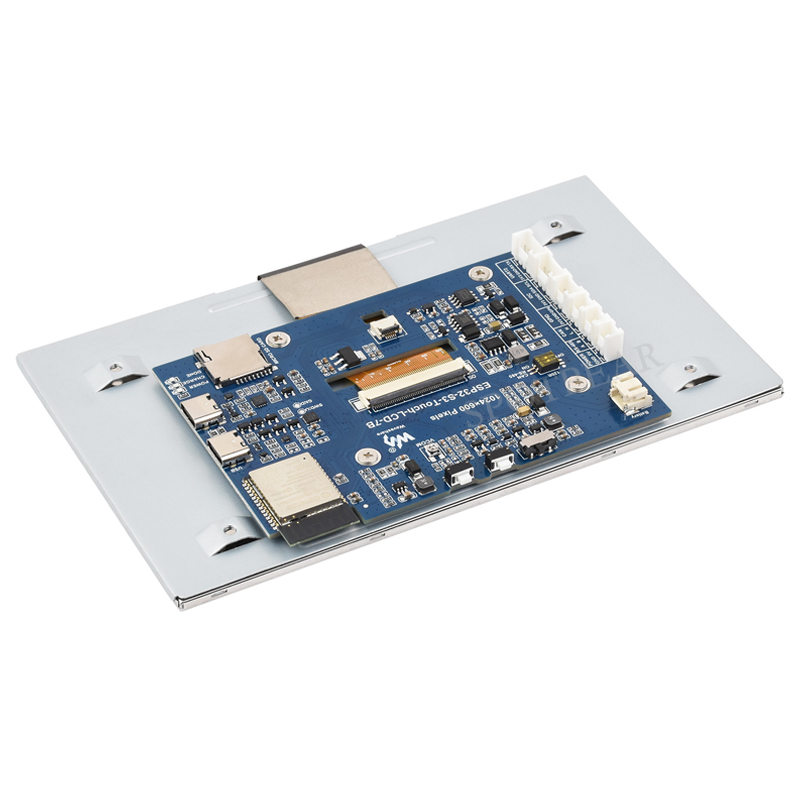

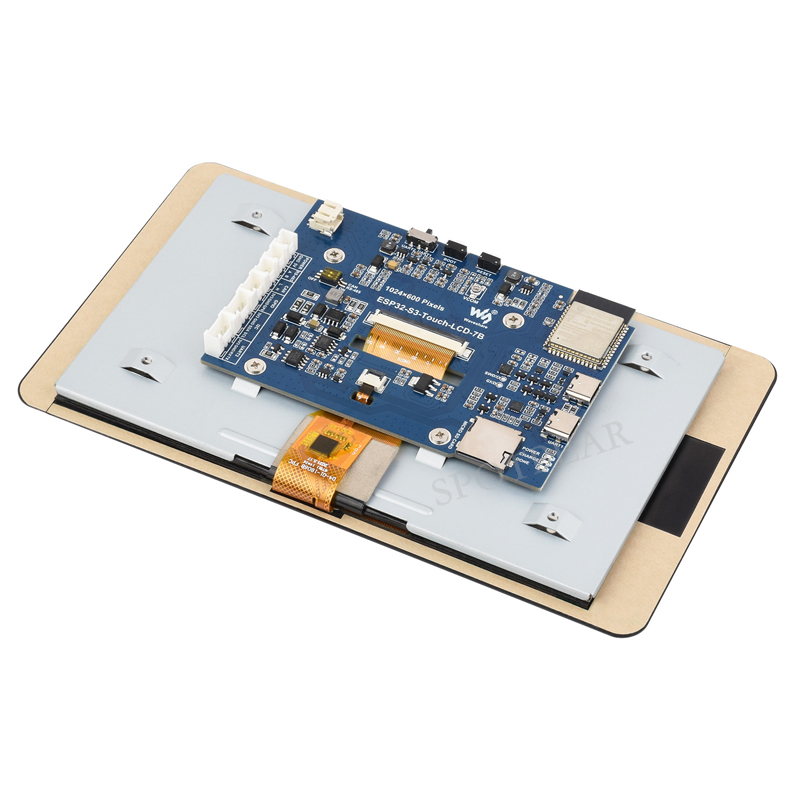

- ESP32-S3-WROOM-1-N16R8 module
Wi-Fi Bluetooth SoC module, 240MHz operating frequency, package 16MB Flash and 8MB PSRAM
- Screen display terminal
- Screen touch terminal block
- Micro SD card holder
- USB Type-C port
- USB TO UART Type-C interface
- UART Terminal Block
6 and 7 are the same UART, selected by the switch 16
- I2C Terminal Block
- Sensor terminal blocks
- CAN Terminal Blocks
- RS485 Terminal Blocks
- 5V output
- 3.7V single-cell lithium battery PH2.0 interface
- CAN terminal resistance selection interface
- RS485 terminal resistance selection interface
- UART select switch
UART1 or UART2
- BOOT button
Press and hold the power button to burn the program
- RESET button
Press reset controller
- DONE
Lithium battery charging completion indicator
- CHARGE
Lithium battery charging indicator
- POWER
Power indicator
