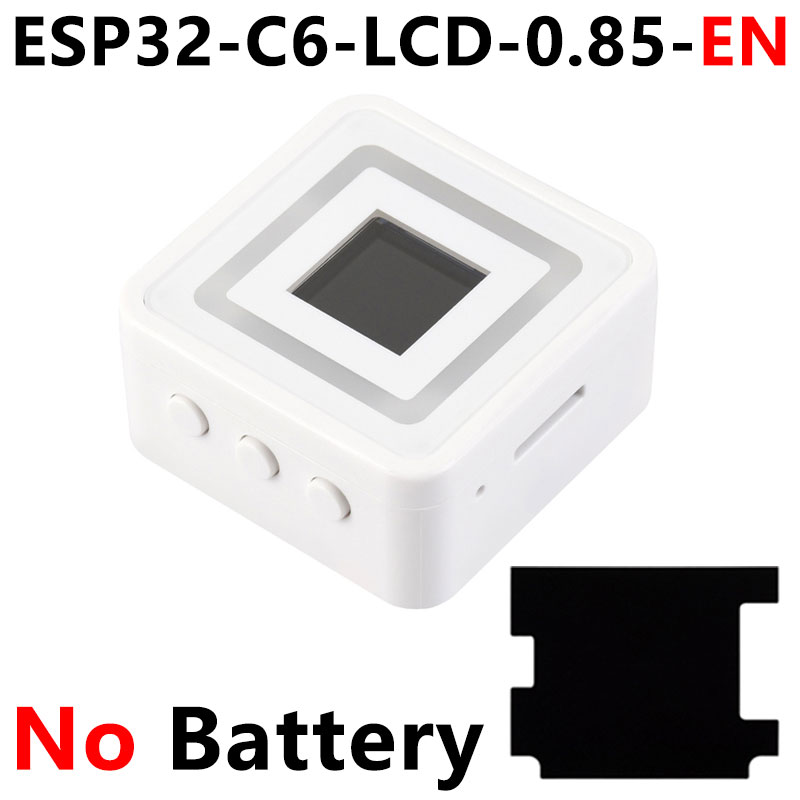

ESP32 C6 AI 0.85inch Development Board 0.85 inch DeepSeek RGB surround light Dual mike
$15.9
The ESP32-C6 0.85-inch LCD development board features a RISC-V core, 128×128 pixels, supports AI voice interaction, mainstream online large models, dual microphones, Wi-Fi 6, and Bluetooth 5.
EPS32 DeepSeek AI Recommend
ESP32-C6
0.85-inch LCD screen board
Supports AI voice interaction, can access mainstream online large models, and supports DIY personalized secondary development.
Version Selection
Product Features
The ESP32-C6-LCD-0.85 is a microcontroller development board supporting 2.4GHz Wi-Fi 6 and Bluetooth BLE 5. It features a compact, aesthetically pleasing, and high-quality square plastic casing. Onboard peripherals include a 0.85-inch IPS color LCD display, a Micro SD card slot, eight RGB LEDs, and a low-power audio codec chip, facilitating the development of multimedia and interactive applications. With these hardware resources, the product can achieve functions such as image display, audio playback, and lighting effect control, making it suitable for rapid prototyping as well as embedding in end products for personalized expansion and secondary development.
- Equipped with an ESP32-C6 high-performance 32-bit RISC-V processor with a clock speed of up to 160MHz
- Integrated Wi-Fi 6, Bluetooth 5, and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with an onboard antenna and excellent RF performance.
- Built-in 512 KB SRAM, 320 KB ROM and 8 MB Flash
- The adoption of a Type-C interface improves user convenience and device compatibility.
- Onboard 0.85-inch LCD screen, 128 × 128 resolution, 65K color.
- It features 8 onboard ring-shaped RGB LEDs, which can be programmed to achieve various dynamic lighting effects.
- Onboard 3.7V MX1.25 lithium battery charging/discharging interface
- It exposes pads for I2C, UART, etc., allowing for connection of external devices and debugging, and provides flexible configuration of peripheral functions.
- An onboard Micro SD card slot provides expanded storage, fast data transfer, and flexibility for data recording and media playback, simplifying circuit design.
- The board includes an onboard ES8311 audio codec chip, a dual-microphone module, and other resources.
LCD screen parameters
| Display resolution | 128 × 128 | Display color | 65K |
|---|---|---|---|
| Display panel | IPS | Pixel pitch | 39.6 × 118.8 (um) |
| Interface type | 4-wire SPI | Driver IC | ST7735 |
| Display size | 15.21 × 15.21 (mm) | ||
Onboard audio codec chip
It supports high-quality audio processing, providing clear and excellent audio input and output.
Supports AI voice interaction
Supports mainstream AI platforms and can be connected to online large model platforms, such as Doubao and Deepseek AI models.
Supports Wi-Fi 6 and BLE 5
Supports Wi-Fi 6, Bluetooth 5, and IEEE 802.15.4 (Zigbee 3.0 and Thread). Its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh.
RGB surround lighting effect
It features 8 onboard ring-shaped RGB LEDs, which can be programmed to achieve various dynamic lighting effects.
Supports ESP-IDF and Arduino
It comes with a complete SDK and open-source tutorials, making it easy to get started and quickly embedded into applications.
Resource Introduction
- ESP32-C6
Integrated RISC-V single-core processor, operating at 160MHz, supports 2.4GHz Wi-Fi 6 and BLE 5.
- NS4150
Audio power amplifier chip
- ES8311 audio codec chip
High-performance, low-power audio digital-to-analog converter
- Battery charge and discharge management chip
- ES7210
ADC chip implements echo cancellation circuit
- PLUS button
Supports customizable features
- PWR power button
Controllable power supply
- BOOT button
Used for device startup and function debugging
- microphone
- Micro SD card slot
- Patch ceramic antenna
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE)
- Battery interface
The MX1.25 2-pin connector can be used to connect a 3.7V lithium battery, supporting charging and discharging.
- USB Type-C interface
The ESP32-C6 features a USB interface for programming and log output.
- Speaker Interface
Product Dimensions
