USB camera 8MP IM678 Excellent low light performance USB 2.0 plug and play

USB camera 8MP IM678 Excellent low light performance USB 2.0 plug and play

$69

Brand：SpotPear

SKU：010307400000

Date：2025-11-01 14:18

Part Number：

IMX678 8MP USB Camera (A)

No：

- +

In Stock

Buy It Now

Add to cart

Ask a Question

Copy Link

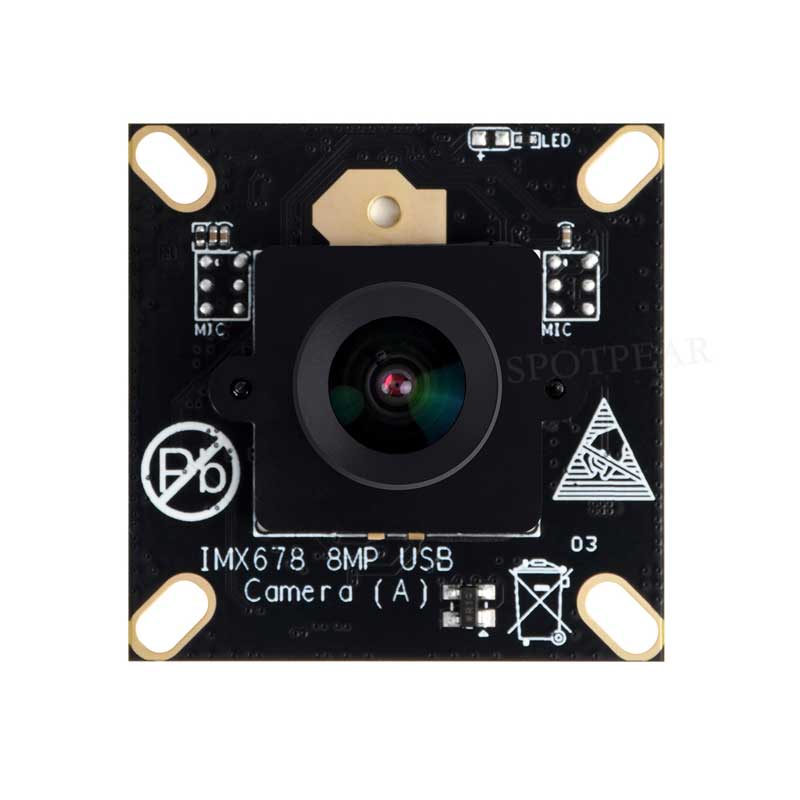

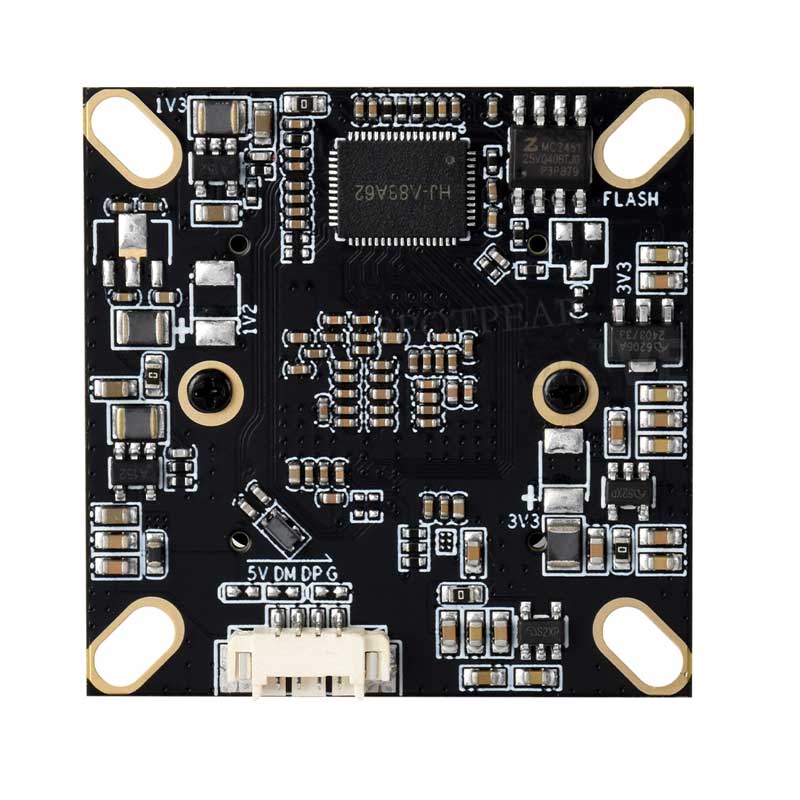

The 8MP M12 USB camera module uses an IMX678 image sensor, features a USB 2.0 interface, offers excellent low-light performance, and is plug-and-play for easy connection.

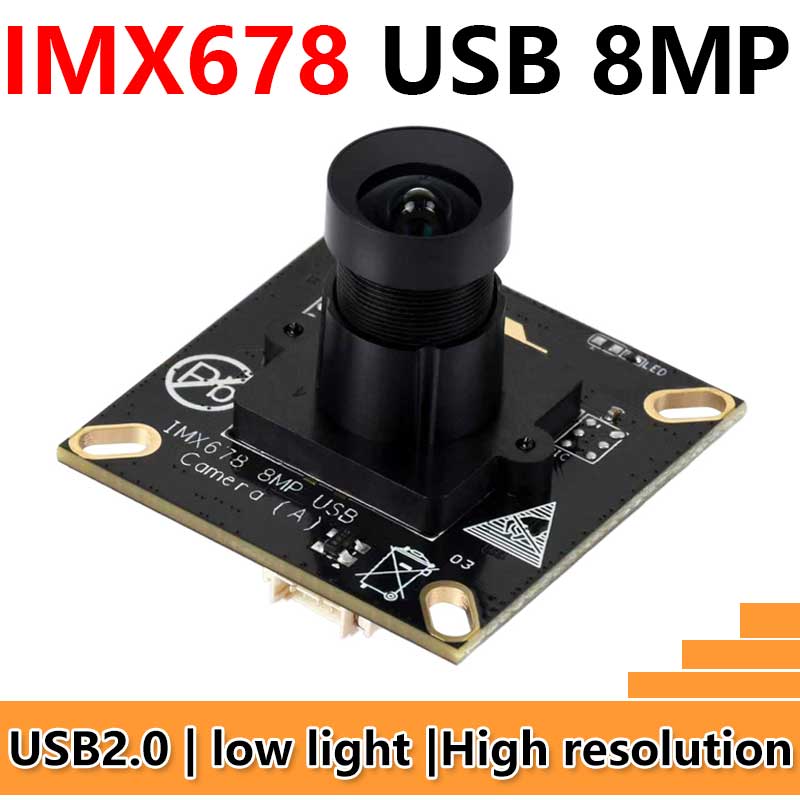

8MP M12 USB CAMERA MODULE

IMX678 Sensor | USB2.0 Port | Excellent Low-Light Performance

Specifications

PIXELS		8MP
SENSOR CHIP		IMX678
INTERFACE		USB 2.0
CAMERA	SENSOR SIZE	1/1.8inch
	APERTURE (F)	2.4
	FOCAL LENGTH (EFL)	4.2mm
	FIELD OF VIEW (FOV)	93° (D) / 86° (H) / 55° (V)
	FOCUSING	Fixed-focus
	DISTORTION	<-1.2%
	IR FILTER	650nm filter
	SHUTTER	Rolling shutter
IMAGE	FORMAT SUPPORT	MJPG, YUY2
	STATIC IMAGE RESOLUTION	3840 × 2160
	VIDEO RECORDING	MJPG: 30FPS 3840 × 2160 30FPS 2880 × 2160 30FPS 2048 × 1536 30FPS 1920 × 1080 30FPS 1600 × 1200 30FPS 1280 × 960 30FPS 1280 × 720 30FPS 800 × 600 30FPS 640 × 480
	VIDEO RECORDING	YUY2: 1.5FPS 3840 × 2160 1.5FPS 2880 × 2160 3.75FPS 2048 × 1536 3.75FPS 1920 × 1080 5FPS 1600 × 1200 7.5FPS 1280 × 960 10FPS 1280 × 720 10FPS 1024 × 768 20FPS 800 × 600 20FPS 640 × 480
OPERATING VOLTAGE		5V ± 5%
OPERATING CURRENT		250mA
DIMENSIONS		38.00 × 38.00 × 24.93 (mm)

8MP High Resolution

IMX678 8MP Resolution, Captures Clear Images At Both Near And Far Distances

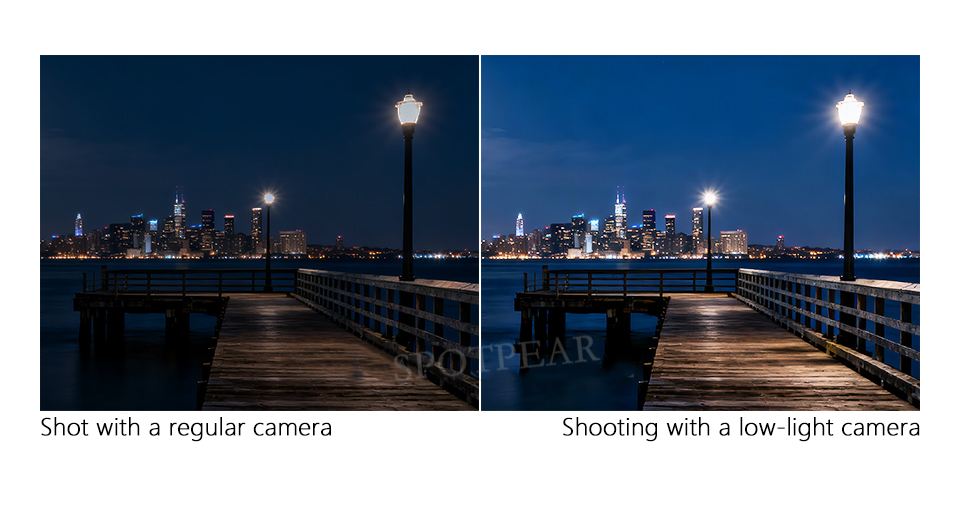

Better Low-Light Sensitivity

Provides A Better Imaging Effect In Low Light Condition, Maintaining Clear Visuals Without Dark Or Blurry Shots

* The images above are simulated for reference only, please refer to the actual shooting effect.

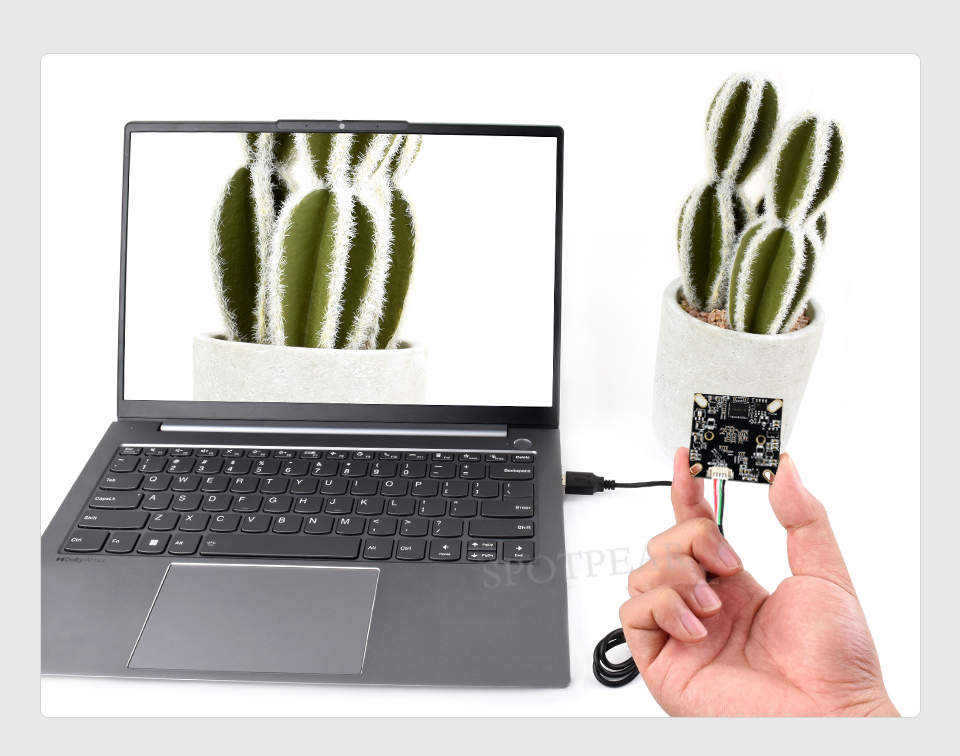

Plug And Play, Easy Connection

Onboard USB 2.0 Port, Driver-Free, Compatible With Various USB Hosts Such As PC And Smart Devices, Simply Plug It In To Start Using

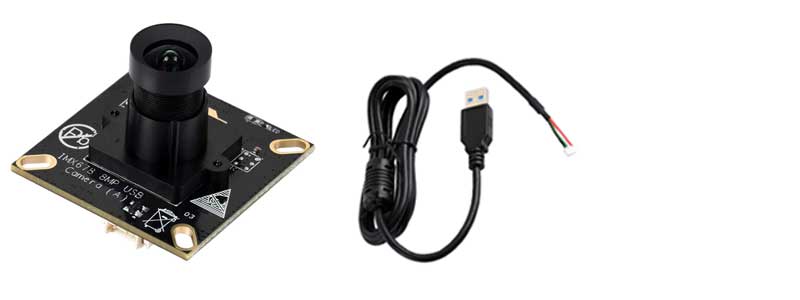

* for reference only, please refer to the package content for the detailed part list.

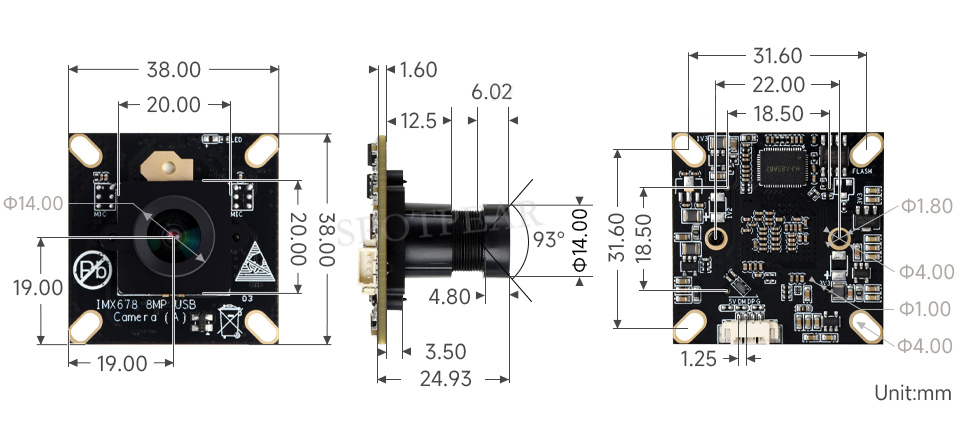

Outline Dimensions

[] IMX678 8MP USB Camera (A)
