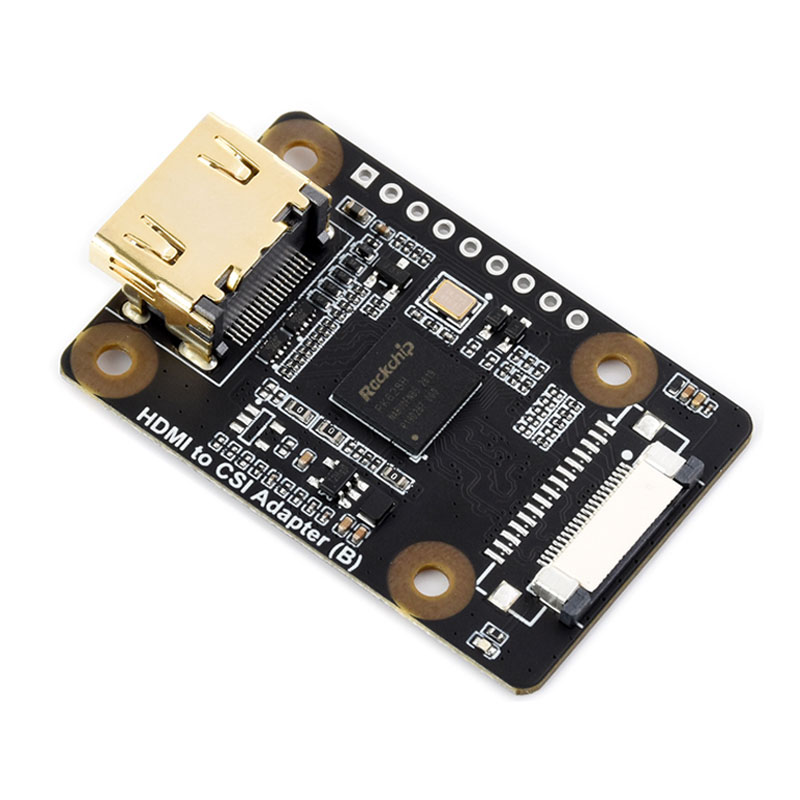

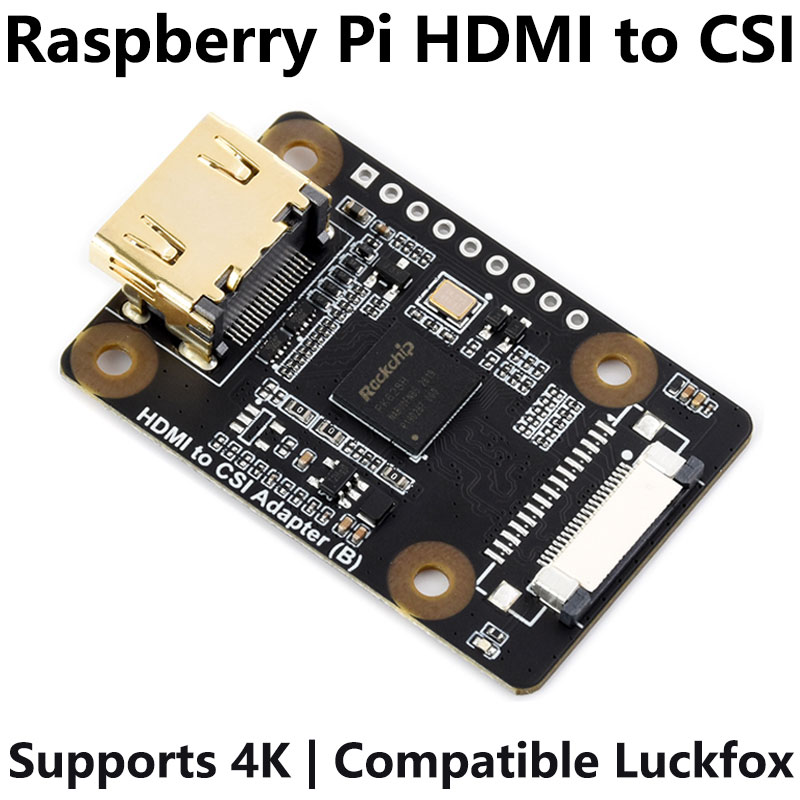

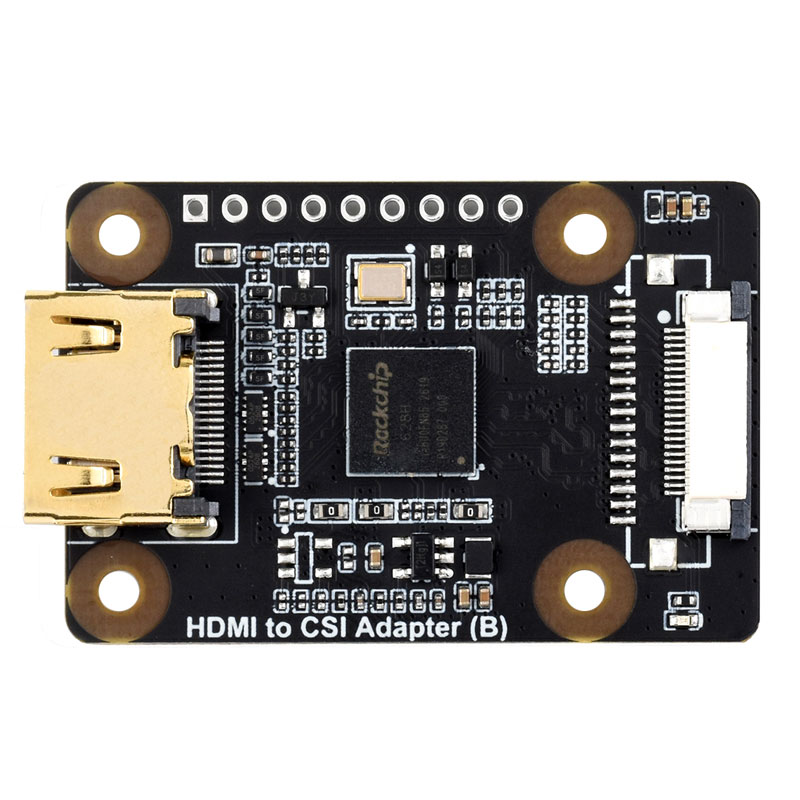

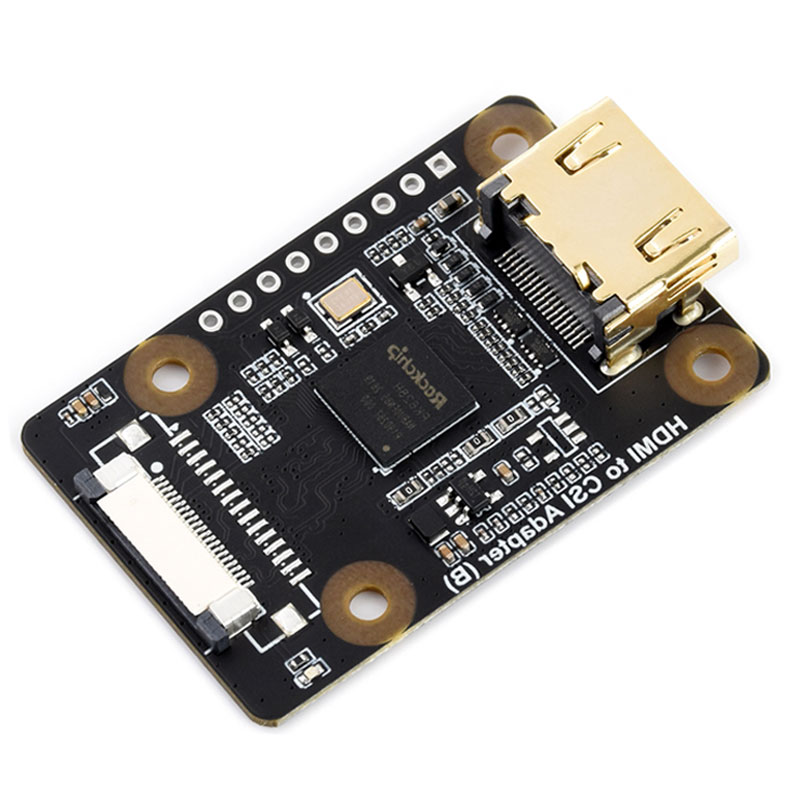

The HDMI to CSI Adapter (B) is an adapter based on the Rockchip RK628H chip, designed to convert HDMI input signal into MIPI CSI video and I2S audio signals. Supports HDMI input with up to 4K at 30fps resolution and MIPI CSI output with up to 4K at 30fps resolution. Supports HDMI video downsampling, with adjustable output resolution to meet different requirements. Suitable for video capture from HDMI sources such as PCs, game consoles, and cameras, and compatible with all Raspberry Pi boards and multiple Luckfox Linux boards.

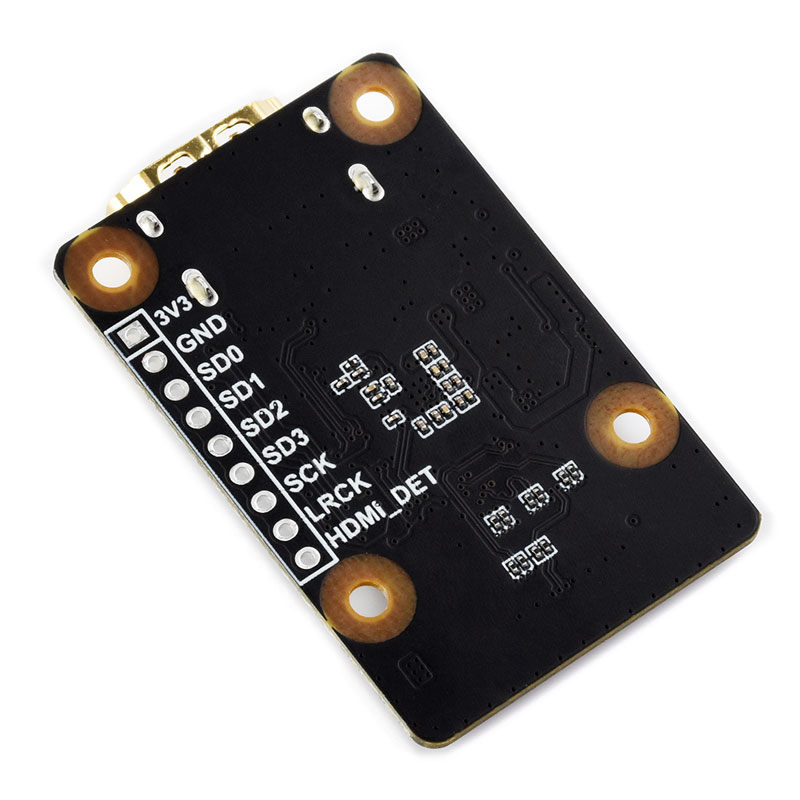

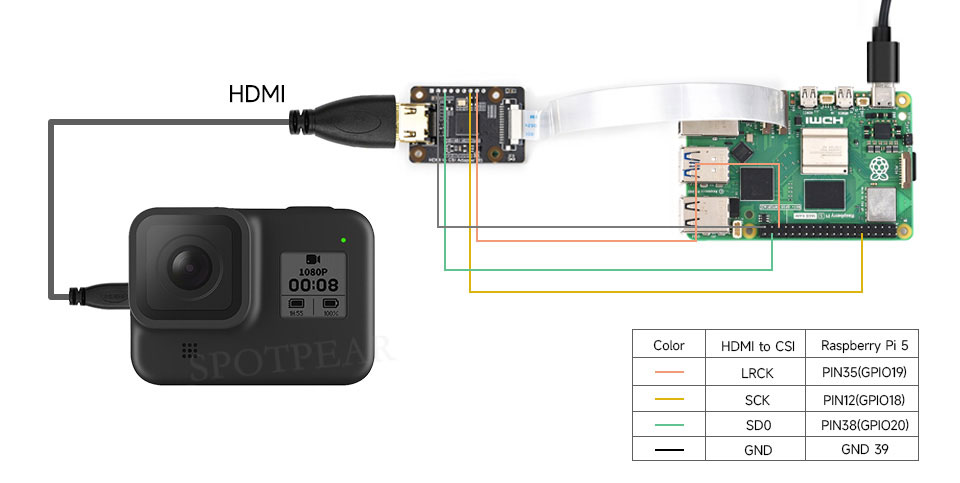

* Note: it is required to connect the reserved solder pad to the I2S pin
of Raspberry Pi for audio output

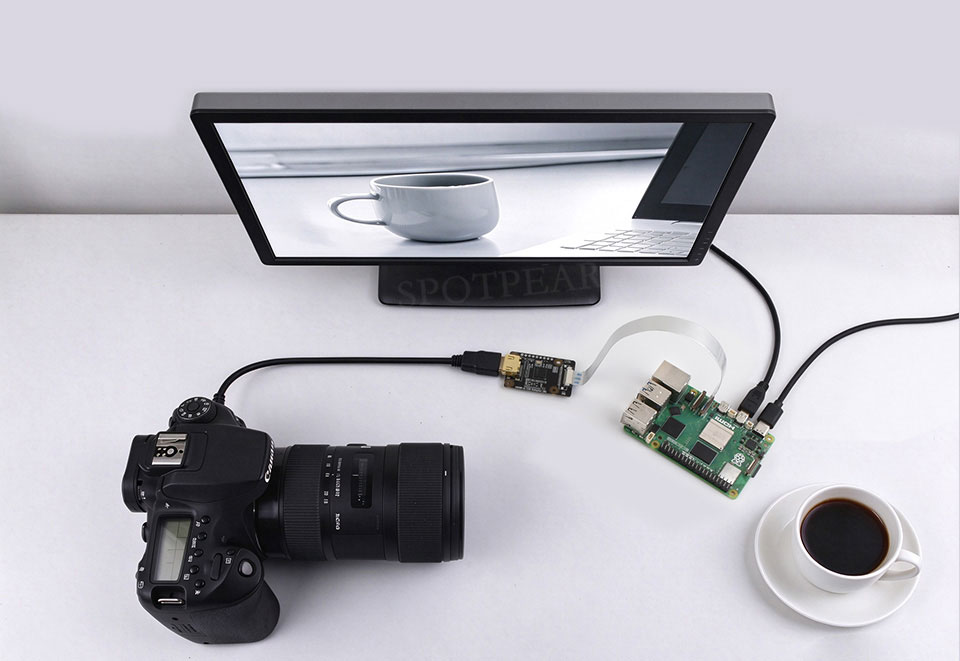

Connecting With Camera And Display

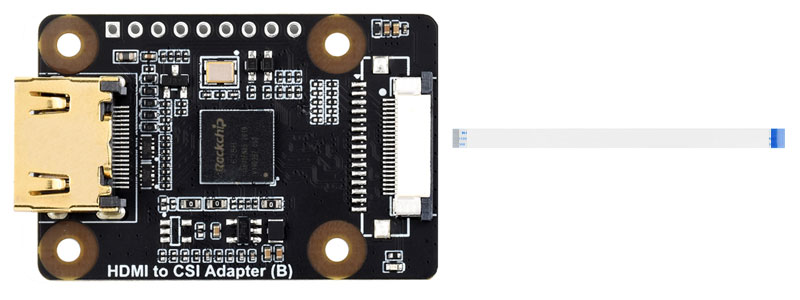

* for reference only, please refer to the package content for the detailed part list.

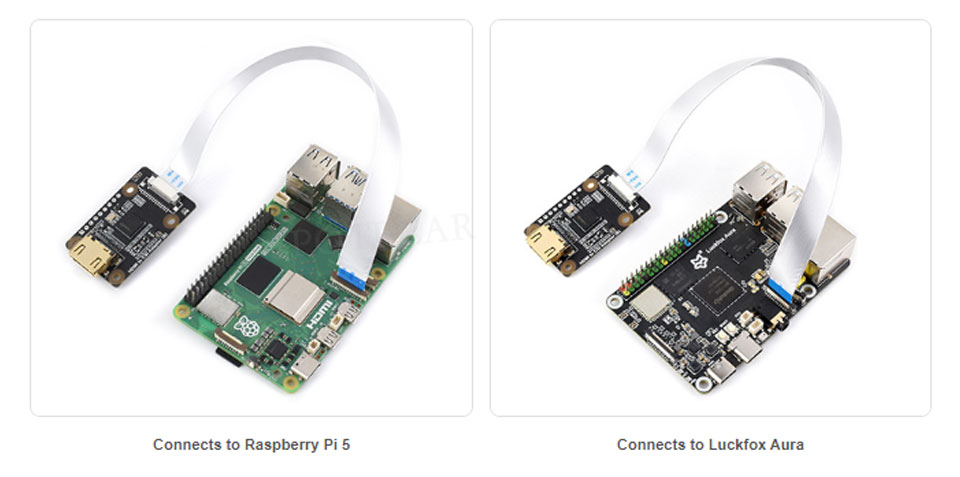

Connecting With Raspberry Pi / Luckfox Aura

* for reference only, the boards and hosts are NOT included in the package.

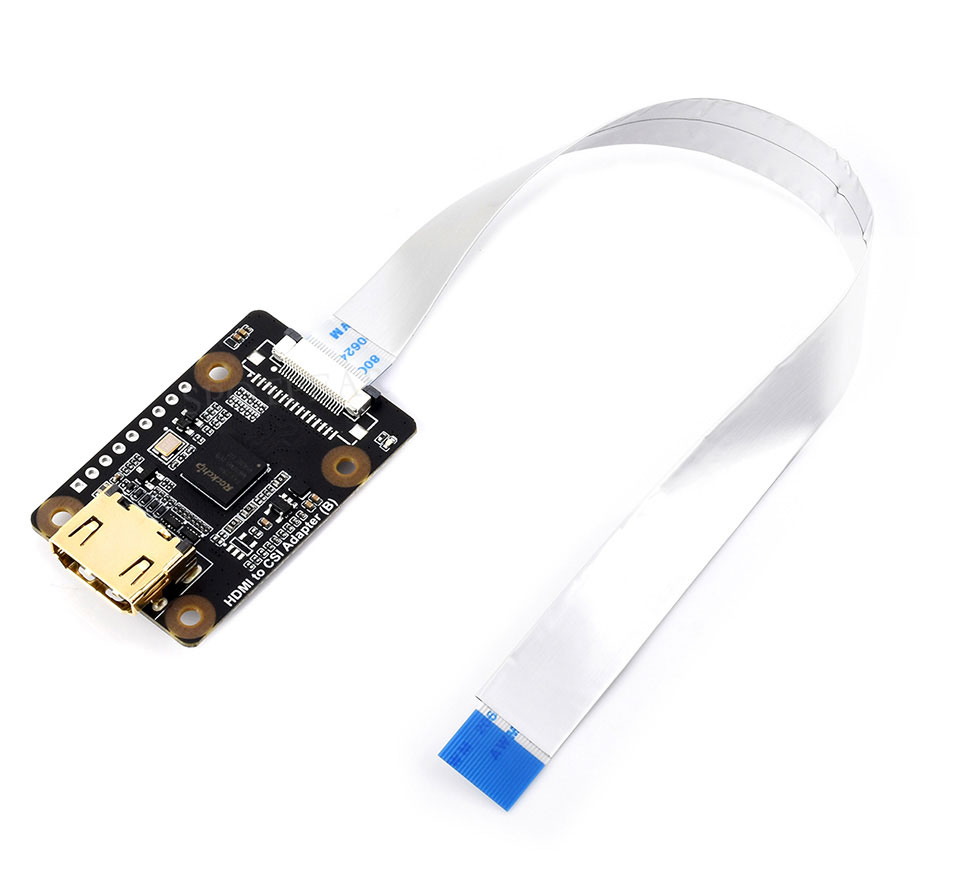

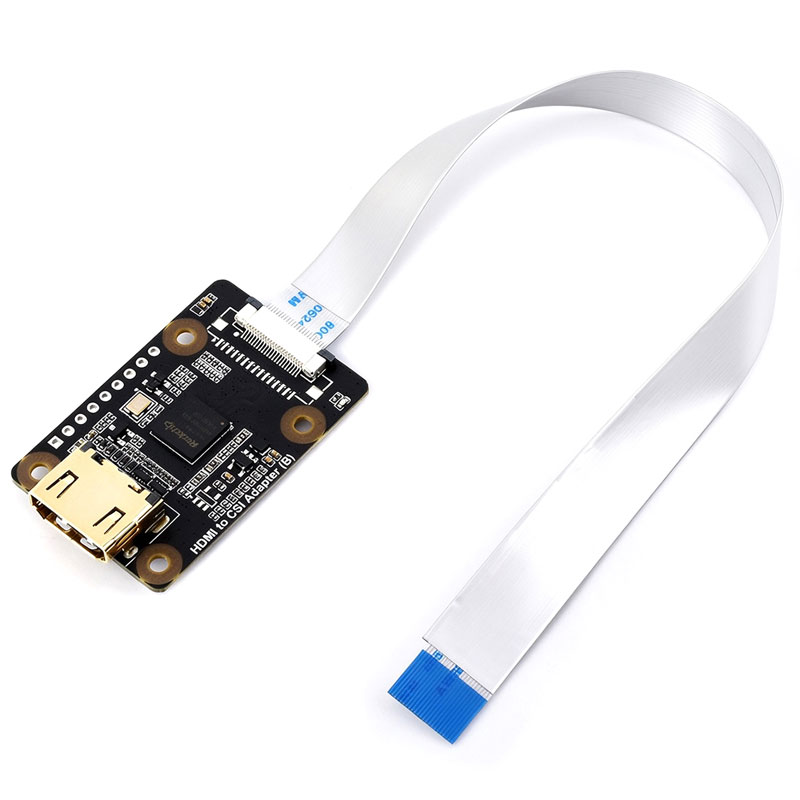

The FPC Cable is required for Raspberry Pi 4B, supports up to 1080P at 30fps.

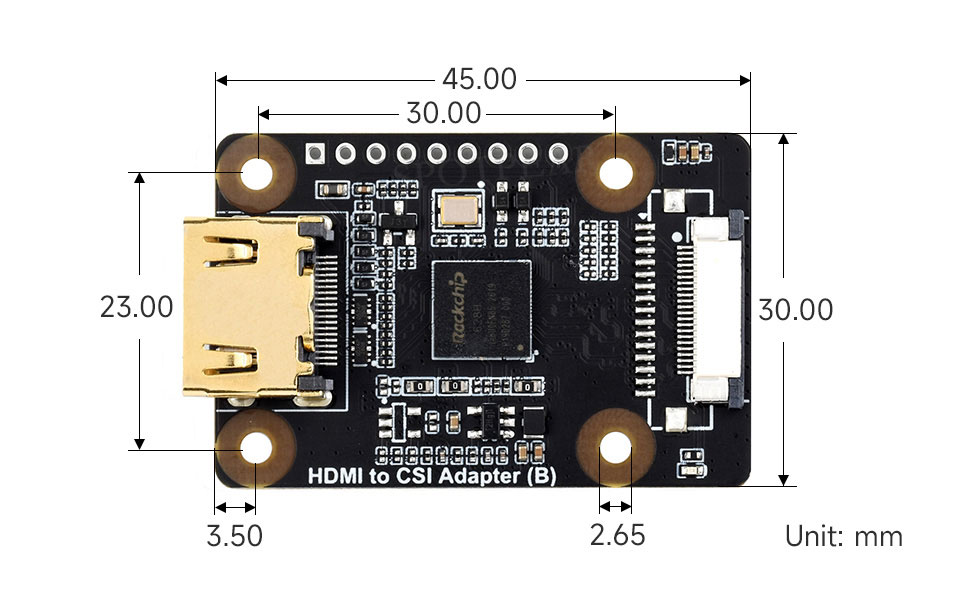

Outline Dimensions

[] HDMI to CSI Adapter (B)
