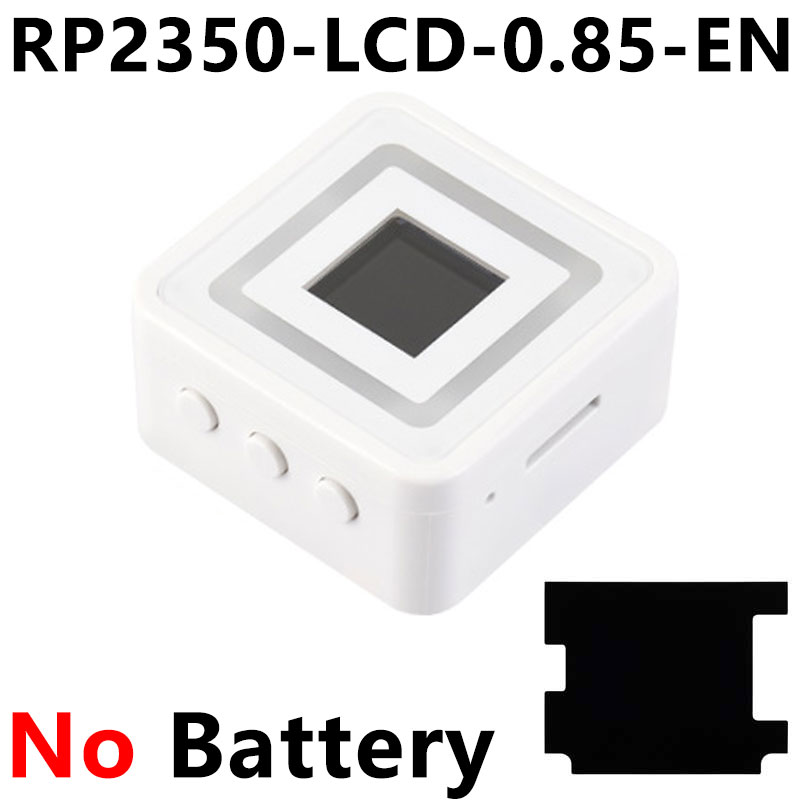

Raspberry Pi Pico 2 RP2350 0.85inch LCD Display Development Board RGB Lighting 128×128
$15.9
RP2350 0.85-inch LCD Development Board, 128×128 Resolution, 65K Colors, IPS Display Panel, Dual-Core Dual Architecture, RGB Lighting Effects
Raspberry Pi Pico 2 RP2350 Recommend
RP2350 0.85-inch LCD ScreenBoard
Version Selection
Product Features
This is a high-performance, highly integrated microcontroller development board independently designed by Waveshare. It features a large-capacity Flash memory, and is equipped with a 0.85-inch high-definition LCD screen, an IMU, a Micro SD card slot, and other peripherals. Combined with a variety of communication interfaces, it facilitates development and integration into end products.
- Powered by the RP2350 microcontroller chip developed by Raspberry Pi.
- It features a unique dual-core, dual-architecture design, equipped with a dual-core ARM Cortex-M33 processor and a dual-core Hazard3 RISC-V processor, running at a clock frequency of up to 150MHz, allowing users to switch flexibly between the two architectures.
- Built-in 520KB SRAM and 16MB on-board Flash memory.
- Equipped with a Type-C interface that follows modern design trends, allowing for convenient plug-in without worrying about orientation.
- On-board 0.85-inch LCD screen with 128×128 resolution and 65K colors.
- Supports USB 1.1 Host and Device modes.
- Supports low-power sleep and hibernate modes.
- It can be recognized as a mass storage device via USB, supporting drag-and-drop firmware flashing.
- 1 × I2C, 1 × UART, 2 × 12-bit ADCs, and 2 controllable PWM channels.
- High-precision on-chip clock and timers.
- Built-in temperature sensor for real-time chip temperature monitoring
- 12 programmable I/O (PIO) state machines for custom peripheral support.
LCD Screen Specifications
| Operating Voltage | 3.3V/5V | Display Size | 15.21 × 15.21 (mm) |
|---|---|---|---|
| Display Resolution | 128 × 128 | Display Colors | 65K |
| Display Panel | IPS | Pixel Pitch | 39.6 × 118.8 (um) |
| Interface Type | 4-wire SPI | Driver IC | ST7735 |
On-board Audio Codec Chip
Supports high-quality audio processing, delivering clear and superior audio input and output.
RGB Ambient Lighting Effects
On-board 8 circular RGB LEDs, programmable for various dynamic lighting effects.
Dual-core, dual-architecture processor
On-board dual-core ARM Cortex-M33 + dual-core Hazard3 RISC-V processors,
operating at frequencies up to 150 MHz
Supports C/C++, MicroPython, and Arduino.
Comes with a complete SDK and open-source documentation/tutorials for easy development and rapid integration into applications.
Resource Introduction
- RP2350
Dual-core, dual-architecture processor with operating frequency up to 150MHz
- NS4150B
Audio Power Amplifier Chip
- QMI8658
6-axis inertial measurement unit (IMU), integrating a 3-axis gyroscope and a 3-axis accelerometer
- ES8311
Low-power audio codec chip
- Volume control buttons
Short press to increase volume, long press to decrease volume; button functions are customizable
- PWR
- BOOT
- Battery charge and discharge management chip
- Microphone
- Micro SD
- 16MB NOR Flash
- MX1.25 Li-ion battery connector
Suitable for connecting a 3.7V lithium battery, supports charging and discharging, with a peak charging current of 500mA.
- USB Type-C
Can be used for program downloading and supports USB 1.1 host and device modes
- MX1.25 speaker connector
Product Dimensions
