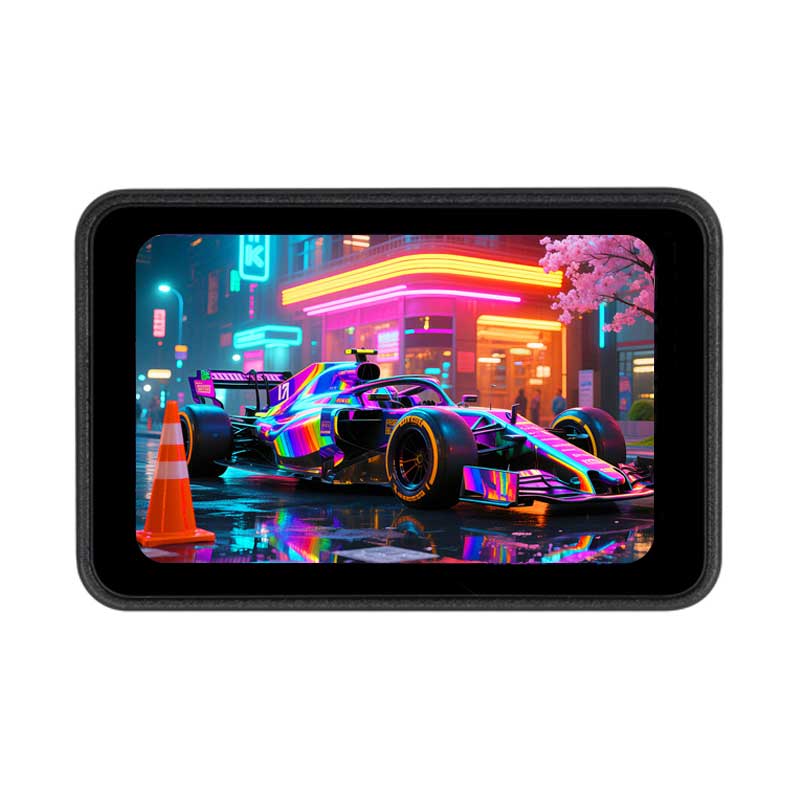

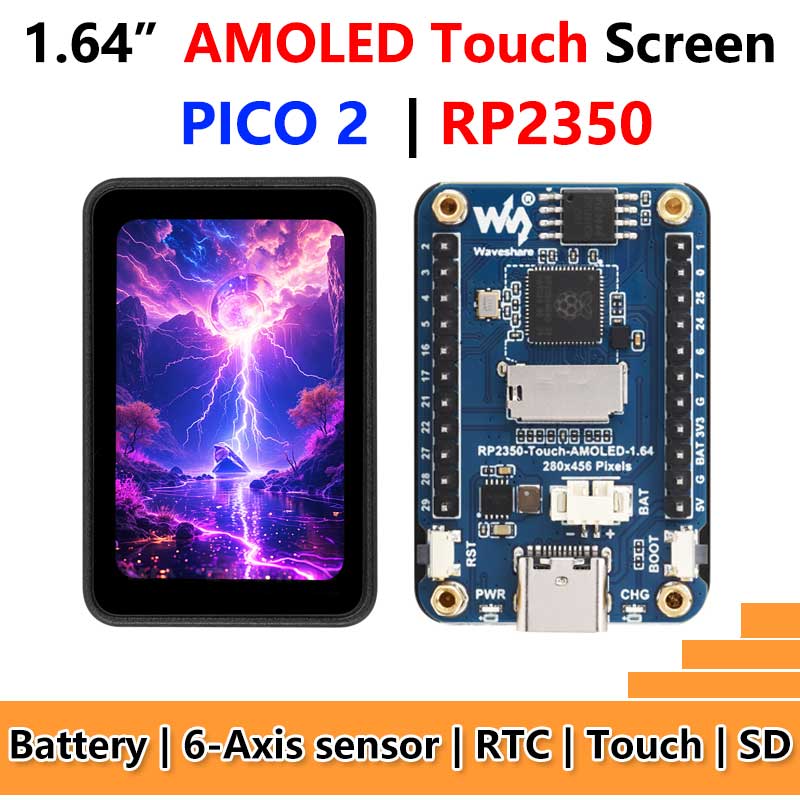

Raspberry Pi Pico 2 RP2350 1.64 inch AMOLED Development Board Display TouchScreen 280x456 QMI8658 IMU QSPI
$22.99
RP2350 1.64 inch AMOLED touch screen development board 280 × 456 pixels QSPI interface Onboard accelerometer/gyroscope IMU sensor Dual-core dual architecture
Raspberry Pi Pico 2 RP2350 Recommend
RP2350

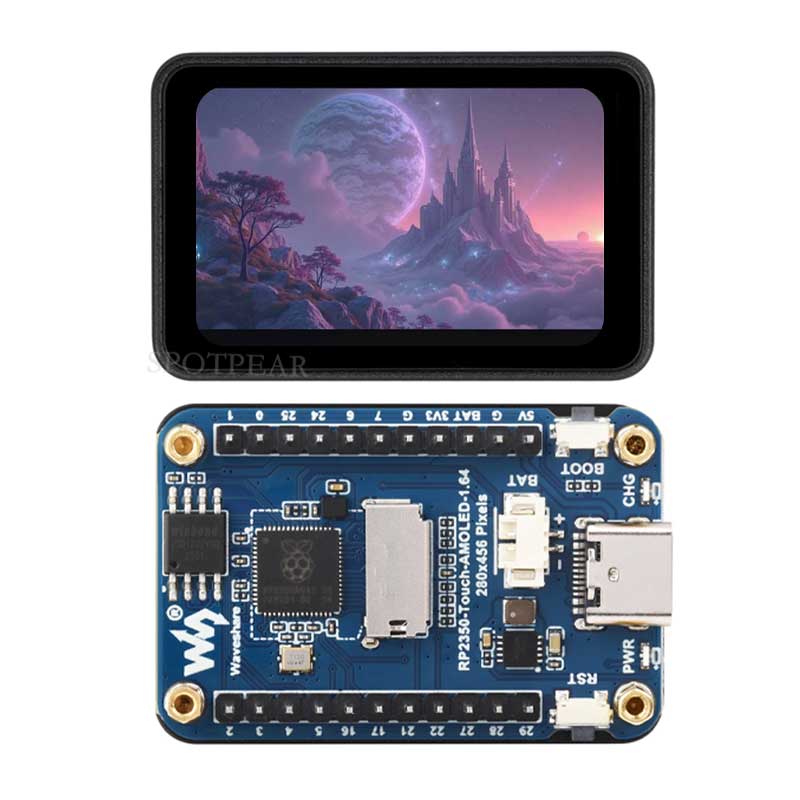

1.64-inch AMOLED screen development board
Built-in CO5300 display driver chip and FT3168 capacitive touch chip

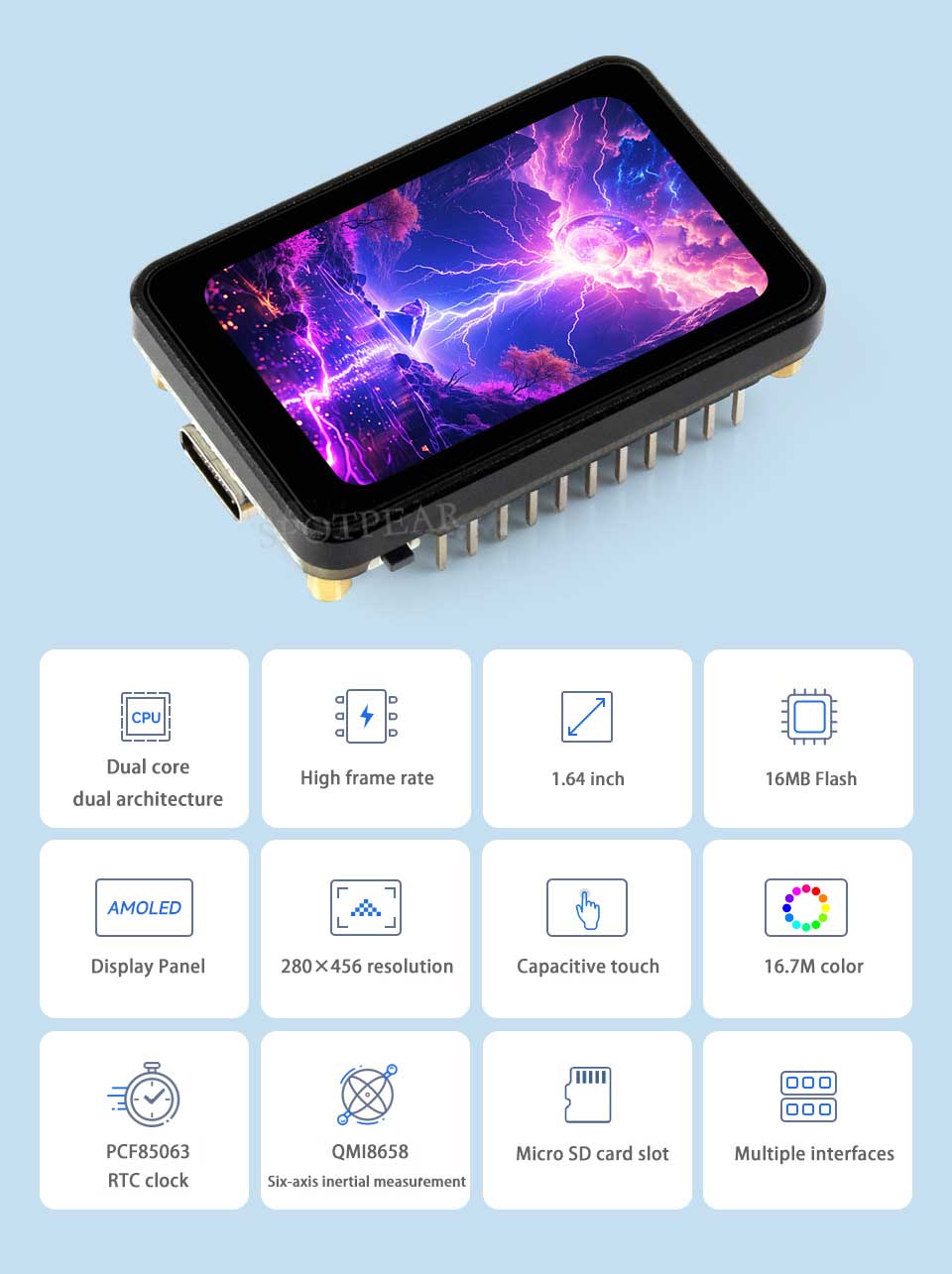

Product Features
This product is a high-performance, highly integrated microcontroller development board designed by Waveshare. In a small form factor, it is equipped with a 1.64-inch capacitive high-definition AMOLED screen, a six-axis sensor (three-axis accelerometer and three-axis gyroscope), RTC, a Micro SD card slot and other peripherals, making it easy to develop and integrate into products.
- RP2350A microcontroller chip designed with Raspberry Pi
- Unique dual-core, dual-architecture, equipped with dual-core ARM Cortex-M33 processor and dual-core Hazard3 RISC-V processor, clock frequency up to 150MHz, allowing users to flexibly switch between the two architectures
- Built-in 520KB SRAM and 16MB on-chip Flash
- Uses Type-C interface, no need to worry about plugging it in the right or wrong direction

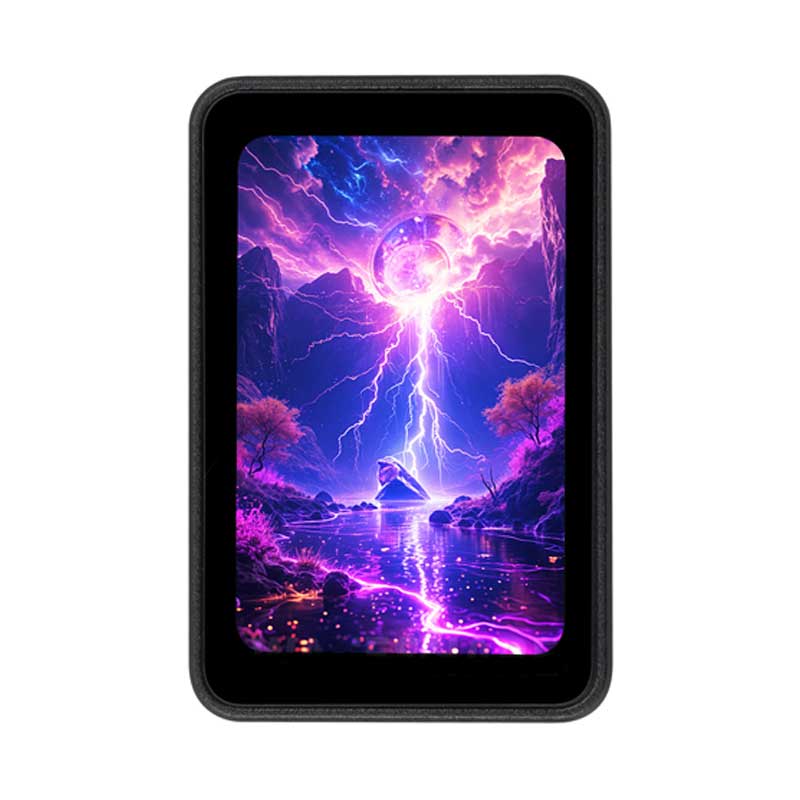

- Onboard 1.64-inch capacitive touch HD AMOLED screen, 280 × 456 resolution, 16.7M color, can clearly display color pictures
- Built-in CO5300 driver chip and FT3168 capacitive touch chip, using QSPI and I2C interface communication respectively
- Onboard lithium battery charging and discharging interface, which is convenient for mobile use
- Supports USB1.1 host and slave devices
- Supports low power sleep and hibernation modes
- Drag-and-drop program downloading via USB recognized as mass storage
- Bring out 17 multi-function GPIO pins
- 2 I2C, 2 UART, 3 12-bit ADC, and 13 controllable PWM channels
- Precise on-chip clocks and timers
- Temperature Sensor
- On-chip accelerated floating point library
- 12 Programmable I/O (PIO) state machines for custom peripheral support
AMOLED screen parameters
| Display Panel | AMOLED | Display size | 1.64 in |
|---|---|---|---|
| Display resolution | 280 × 456 pixels | Display Color | 16.7M |
| Display Brightness | 350cd/㎡ | Contrast | 60000:1 |
| Communication interface | QSPI | Driver IC | CO5300 |
| Touch | support | Touch IC | FT3168 |

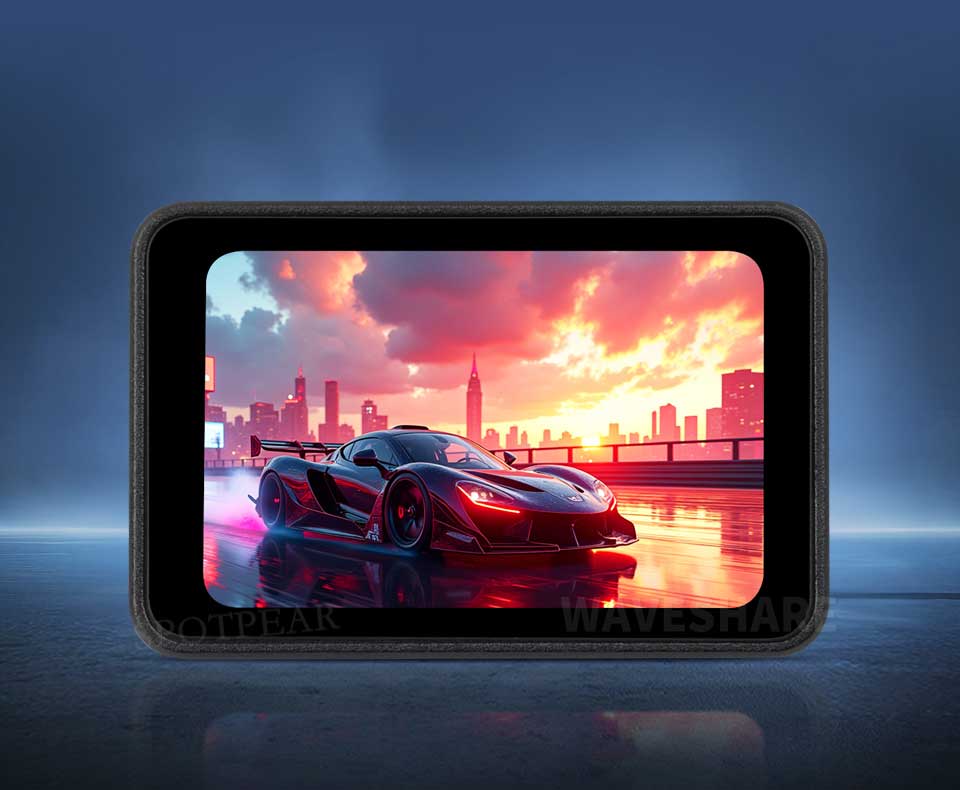

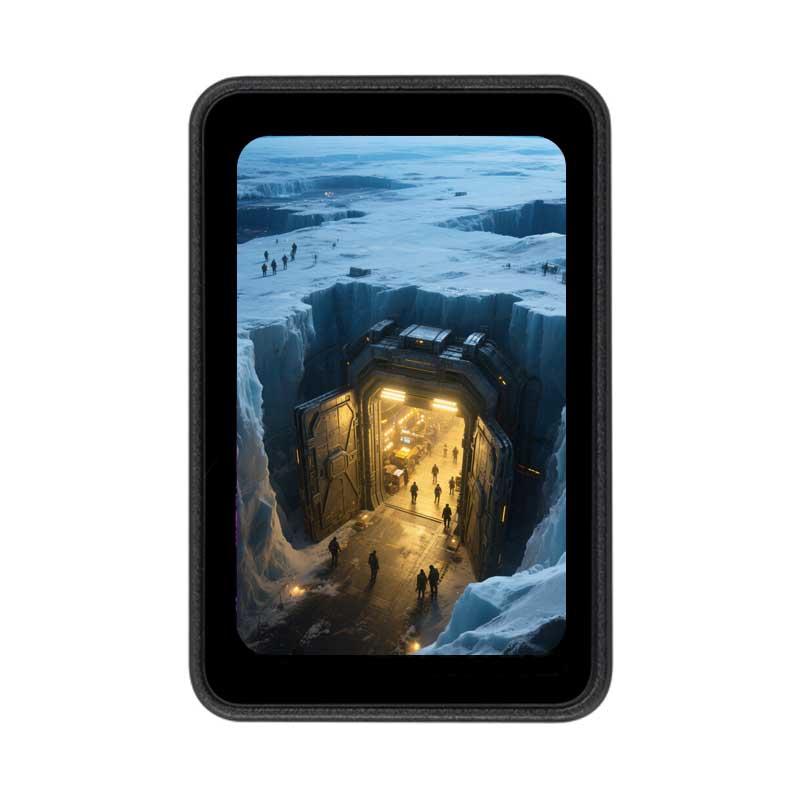

AMOLED screen
AMOLED is known as the next generation of display technology. Compared with traditional LCD screens, it has more precise light control capabilities, presents more delicate colors, more details, and more vivid images.
Application Scenario

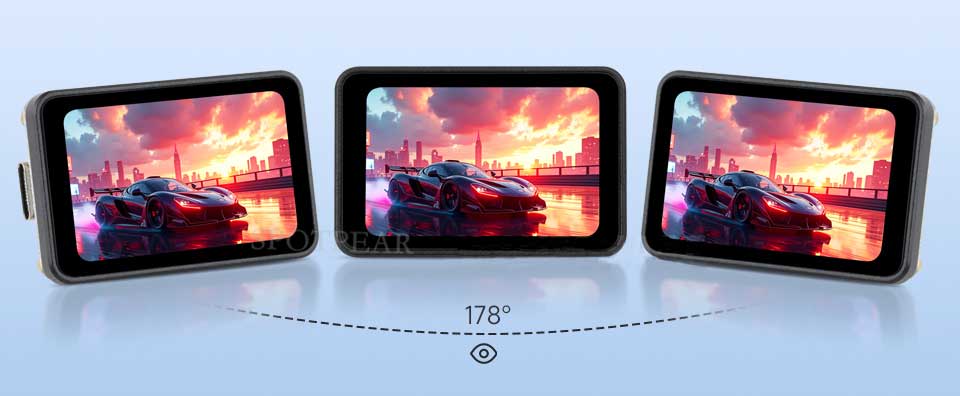

178° wide viewing angle
Excellent display performance, 16.7M colors, wide viewing angle
Unique dual-core, dual-architecture
The RP2350A's unique dual-core, dual-architecture capability allows users to switch between a pair of industry-standard Arm Cortex-M33 cores and a pair of open hardware Hazard3 cores, enabling developers to experiment with the RISC-V architecture in a stable, well-supported environment.
Supports C/C++, MicroPython, Arduino
Equipped with a complete SDK and open source tutorials, it is easy to get started and can be quickly embedded into the application

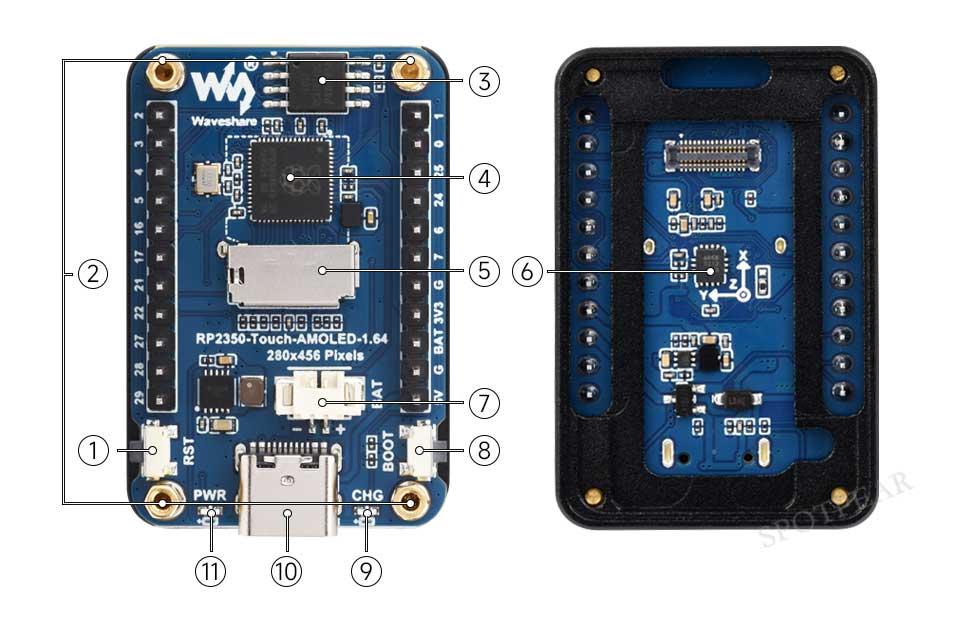

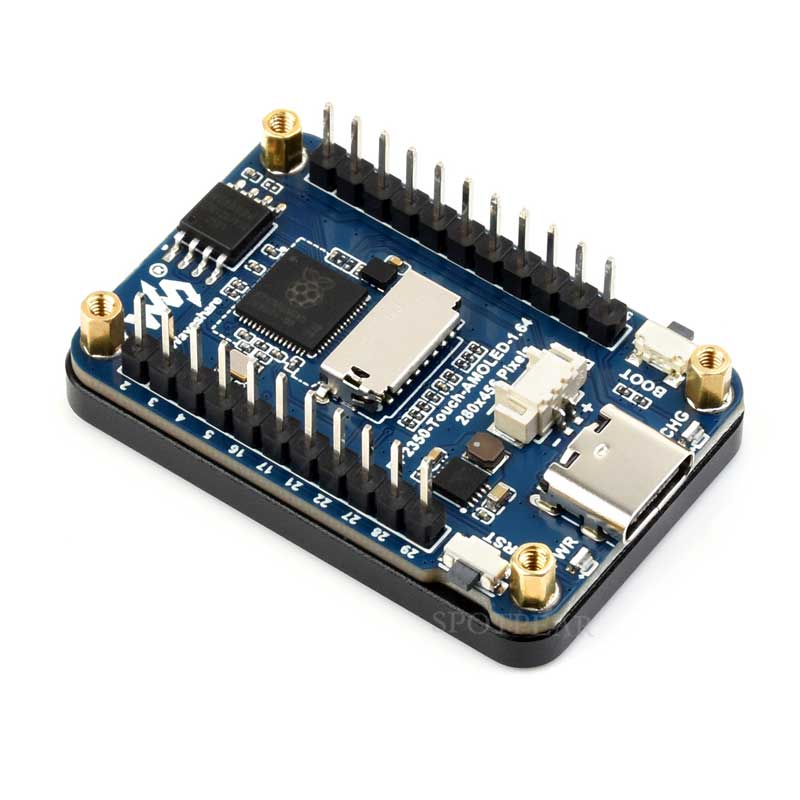

Resource Overview
- RST button
- 4 × Copper Pillars (M2 × 4 + 3)
- W25Q128JVSIQ
16MB NOR-Flash
- RP2350A
Dual-core, dual-architecture processors, both running at up to 150MHz clock speed
- Micro SD card slot
- QMI8658
Six-axis inertial measurement unit (IMU), including a 3-axis gyroscope and a 3-axis accelerometer
- MX1.25 Li-ion battery port
MX1.25 2P connector, can be used to connect 3.7V lithium battery, support charging and discharging
- BOOT button
- Charging indicator
- Type-C port
Can be used to download programs and supports USB1.1 host and slave devices
- Power indicator

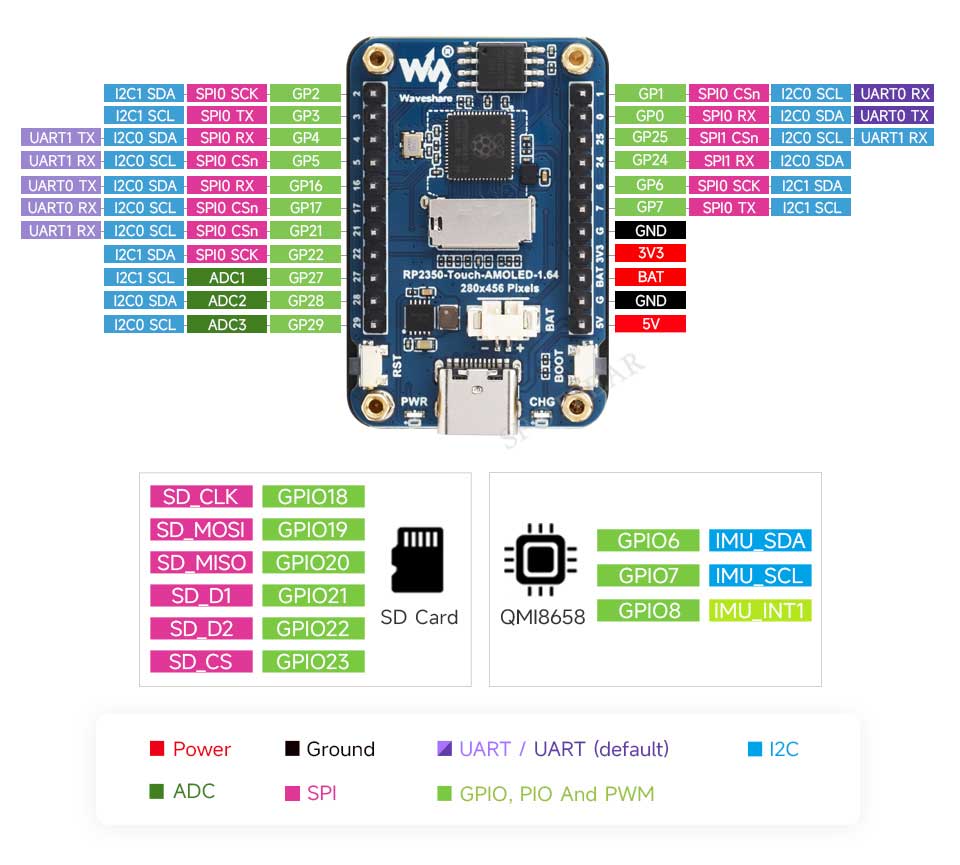

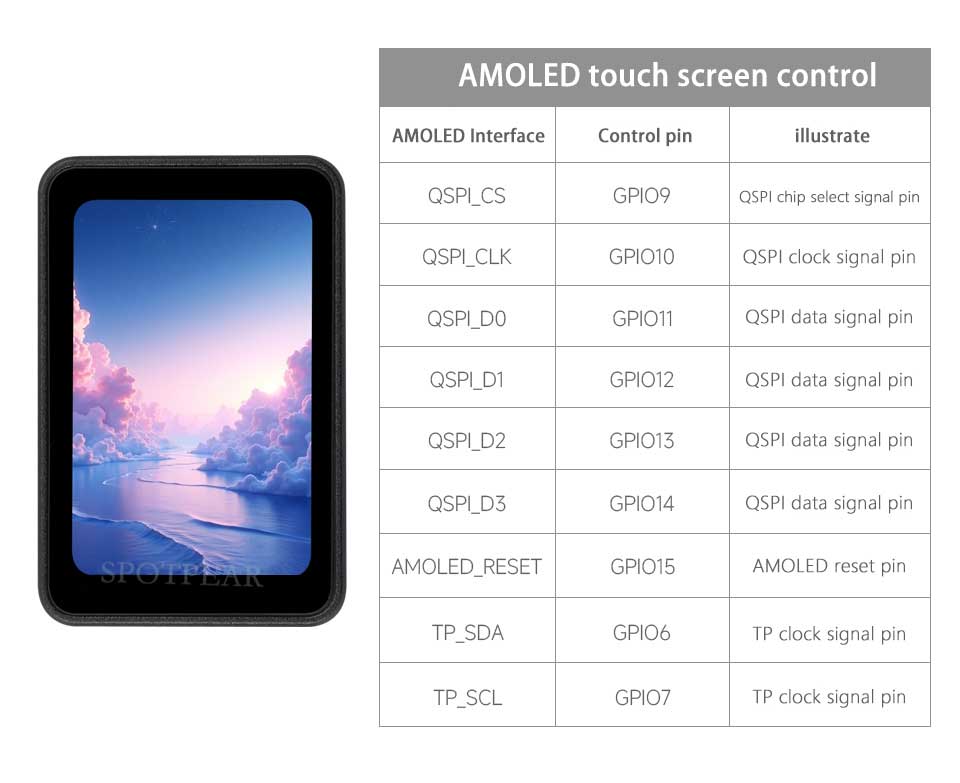

Interface Definition
Bring out a variety of interfaces to facilitate expansion and development, with greater flexibility

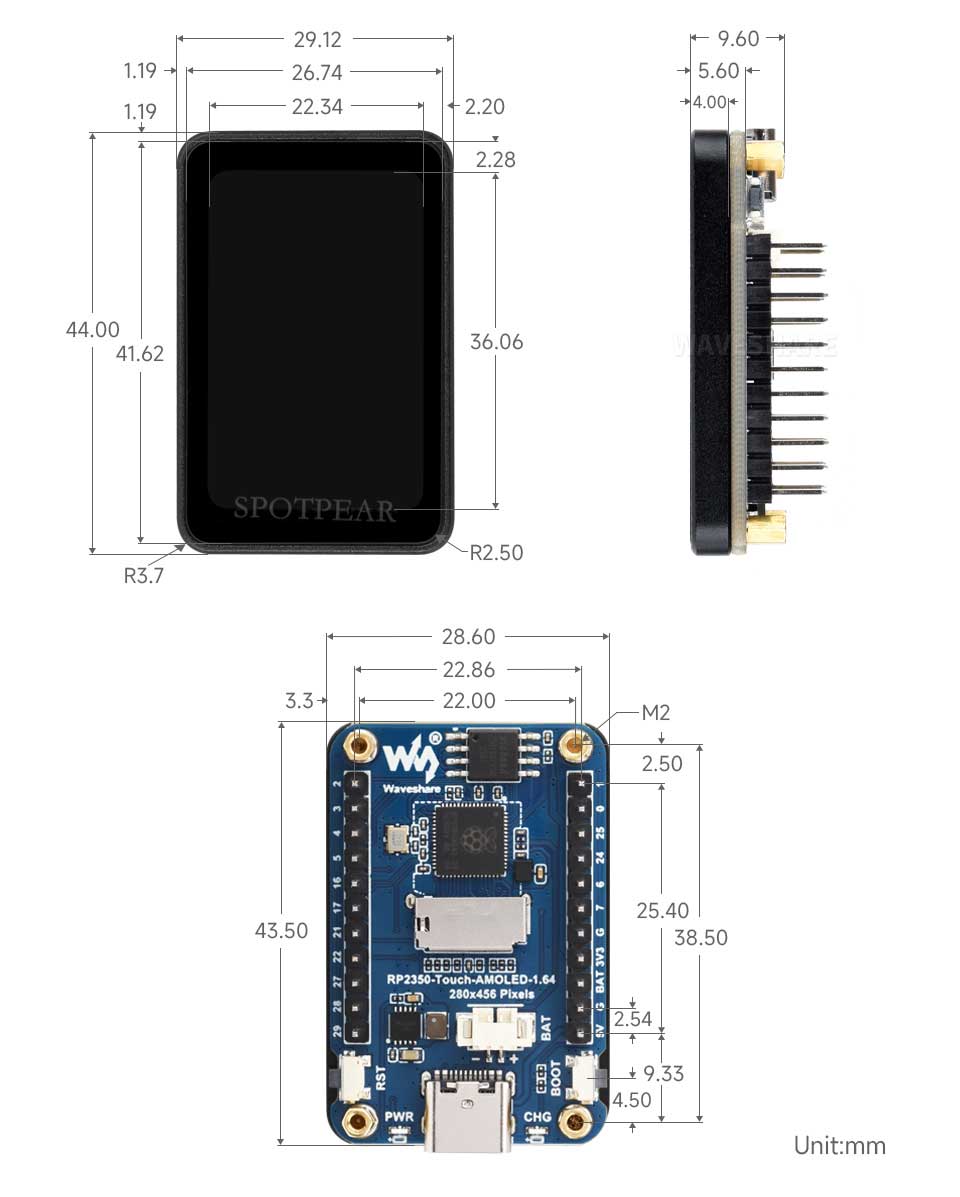

Product size
