Raspberry Pi 4/4.3 inch DSI MIPI LCD TouchScreen Display 4/4.3inch 480x800 For Luckfox Lyra RK3506/ESP32-P4/Luckfox Omni3576

Raspberry Pi 4/4.3 inch DSI MIPI LCD TouchScreen Display 4/4.3inch 480x800 For Luckfox Lyra RK3506/ESP32-P4/Luckfox Omni3576

$32.9

Brand：SpotPear

SKU：010537200000

Date：2026-04-14 16:54

Part Number：

4-DSI-TOUCH-A 4.3-DSI-TOUCH-A

No：

- +

In Stock

Buy It Now

Add to cart

Ask a Question

Copy Link

4.3-inch DSI capacitive touch screen, 480 × 800 resolution, IPS display panel, 5-point touch, fully laminated tempered glass panel

ESP32-P4 Recommend

ESP32-P4-Module

WT0132P4-A1-N16R32

ESP32-P4-NANO

ESP32-P4-Module-DEV-KIT

ESP32-P4-WIFI6

ESP32-P4-Pico

ESP32-P4-ETH

ESP32-P4-WIFI6-POE-ETH

ESP32-P4-WIFI6-DEV-KIT

ESP32-P4-WIFI6-Touch-LCD-3.4C

ESP32-P4-WIFI6-Touch-LCD-4C

4-DSI-TOUCH-C

4-DSI-TOUCH-A

ESP32-P4-WIFI6-Touch-LCD-4.3

ESP32-P4-WIFI6-Touch-LCD-7B

ESP32-P4-86-Panel-ETH-2RO

5-DSI-TOUCH-A

5-DSI-TOUCH-B

7-DSI-TOUCH-A 7inch-DSI-LCD-(H)

7-DSI-TOUCH-C

8-DSI-TOUCH-A

8.8-DSI-TOUCH-A

9-DSI-TOUCH-B

10.1-DSI-TOUCH-A

10.1-DSI-TOUCH-B

ESP32-P4-WIFI6-Touch-LCD-7/8/10.1

Luckfox Lyra RK3506 Recommend

Core3506B

Luckfox Lyra

Luckfox Lyra B

Luckfox Lyra Plus

Luckfox-Lyra-Zero-W

Luckfox-Lyra-Ultra

4-DSI-TOUCH-C

4-DSI-TOUCH-A

5-DSI-TOUCH-A 720x1280

5-DSI-TOUCH-B 720x1280

7-DSI-TOUCH-A DSI 720x1280

7-DSI-TOUCH-C 1024x600

8-DSI-TOUCH-A 800x1280

8.8-DSI-TOUCH-A 480x1920

9-DSI-TOUCH-B 720x1280

10.1-DSI-TOUCH-A DSI 800x1280

10.1-DSI-TOUCH-B 720x1280

MX1.25-4P To USB Cable

Luckfox Omni RK3576 Recommend

Core3576

Luckfox-Omni3576

4-DSI-TOUCH-C

4-DSI-TOUCH-A

5-DSI-TOUCH-A DSI 720x1280

5-DSI-TOUCH-B DSI 720x1280

7-DSI-TOUCH-A DSI 720x1280

7-DSI-TOUCH-C 1024x600

9-DSI-TOUCH-B 720x1280

8-DSI-TOUCH-A 800x1280

8.8-DSI-TOUCH-A 480x1920

10.1-DSI-TOUCH-A DSI 800x1280

10.1-DSI-TOUCH-B 720x1280

12.3-DSI-TOUCH-A 720x1920

IMX415-98 IR-CUT Camera

4/4.3-inch DSI Touch Screen

Version Selection

Device and System Support

Screen Specifications

Product Model	4-DSI-TOUCH-A	4.3-DSI-TOUCH-A
Resolution	480 × 800 pixels (H × V)
Contrast	800:1	1000:1
Display Chip	ST7701S
Touch Chip	GT911
Communication Interface	MIPI 2-lane
Brightness	350cd/m²	500cd/m²
Outline Dimensions	108.30 × 65.10 (mm)	116.50 × 68.90 (mm)
Display Size	86.40 × 51.84 (mm)	93.60 × 56.16 (mm)

Device Connection Diagram

Raspberry Pi 5

Please ensure the FFC cable is connected in the correct orientation, and provide 5V power via Dupont wires.

Raspberry Pi 4B

Please ensure that the DSI ribbon cable is connected in the correct direction, and supply 5V power using Dupont wires.

ESP32-P4-Module-DEV-KIT

Luckfox Omni3576

Luckfox Lyra

Images are for demonstration only. This product does not include the above-mentioned mainboard or host

IPS Display Panel

Excellent display performance with a wide viewing angle of up to 170°

Capacitive 5-point Touch

1、Supports 5-point touch. The actual number of touch points depends on the software system.
2、Tempered glass panel with hardness up to 6H.
3、Full lamination screen, clear display and dustproof.

Backlight brightness can be adjusted via software.

Interface Introduction

Product Dimensions

4-DSI-TOUCH-A

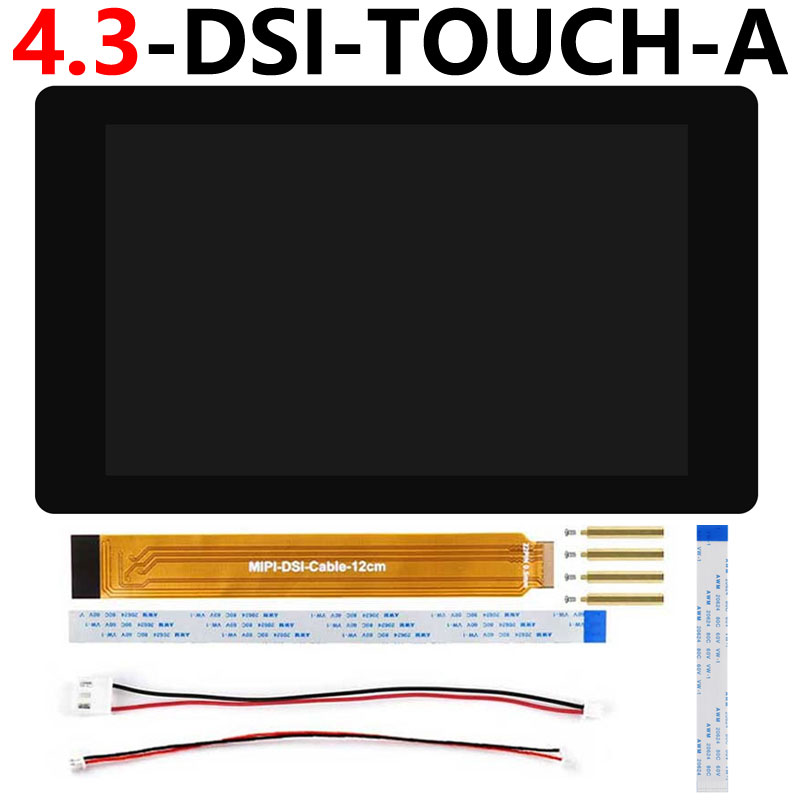

4.3-DSI-TOUCH-A

[] 4-DSI-TOUCH-A

[] 4.3-DSI-TOUCH-A
