【Overview】

[] 7-inch DSI touchscreen

The display orientation is portrait by default, with 720×1280 resolution (H×V). Change the software config for landscape display.

【Equipment and system support】

【Device connection diagram】
[] Connect to Raspberry Pi 5

Please make sure the FFC line is connected in the correct direction and provide 5V power through the Dupont line.

[] Connect to Raspberry Pi 4B

Please ensure that the DSI cable is connected in the correct direction and provide 5V power through the Dupont cable.

[] Connect to ESP32-P4-NANO

[] Connect to Luckfox Lyra

[] Connect to Luckfox Omni3576

The pictures are for display only. This product does not contain the above motherboard or host.

【IPS display panel】

[] Excellent display performance with a viewing angle of 170°

【Capacitive ten-point touch】

1. Supports 10-point touch, the actual number of touch points depends on the software system
2. Tempered glass panel, hardness up to 6H
3. Fully laminated screen, high clarity, dustproof

4. AF anti-fingerprint technology, not easy to get fingerprints, easy to clean

【Backlight brightness can be adjusted via software】

【Thinner and more space-saving】

[] Integrate the drive circuit onto the FPC, and only 9.3mm of space is required with the cover

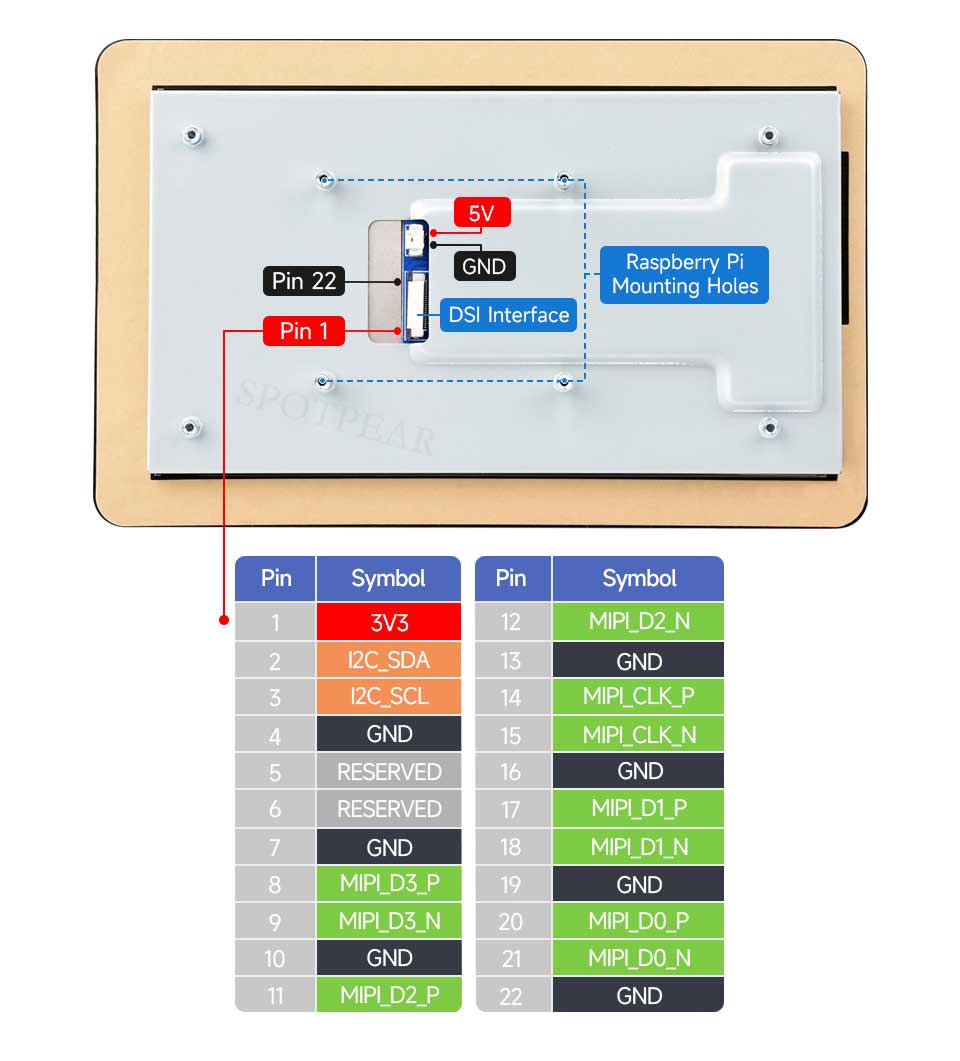

【Interface Introduction】

【Size】

[] 7-DSI-TOUCH-A
