3.97 inch e-Paper black and white four grayscale electronic ink screen bare screen 800 × 480 pixels SPI communication based on Raspberry Pi 40PIN GPIO interface design

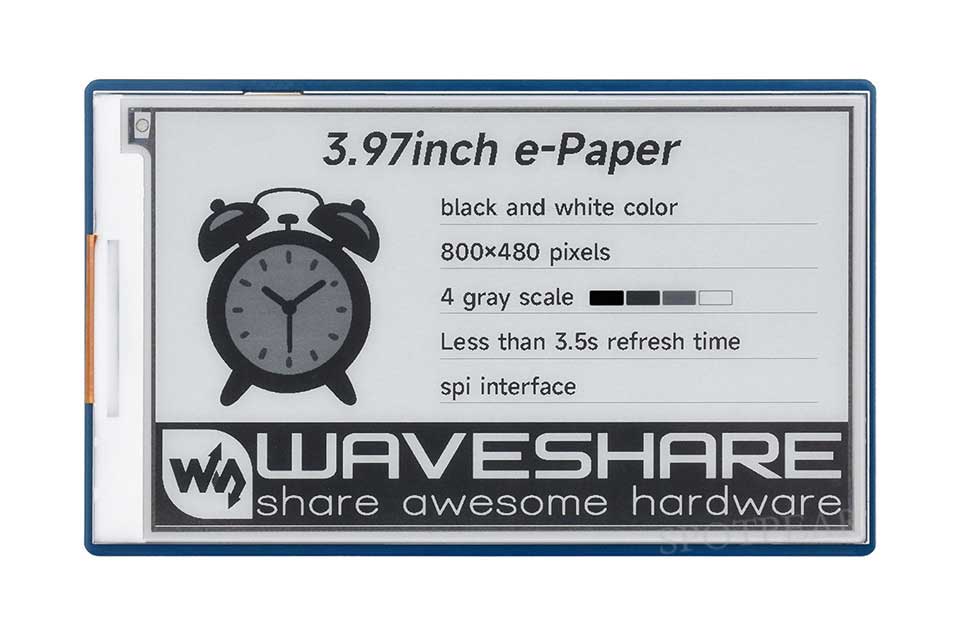

3.97-inch E-ink screen module

Low power consumption, wide viewing angle, clear display even when power is off

For display applications such as shelf labels, industrial instruments, etc.

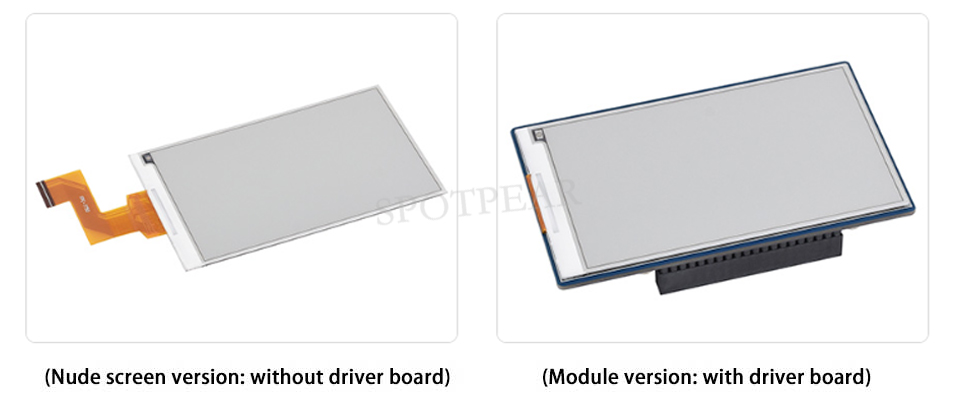

Version selection

Features

No backlight required, the last screen display can be kept for a long time after power failure
The power consumption is very low, basically only consuming power when refreshing
Provides complete supporting manuals: driver board schematics, Raspberry Pi / Jetson Nano / Arduino / STM32 / ESP32 and other sample programs
The following applies only to the module version
Based on Raspberry Pi 40PIN GPIO interface design, suitable for Raspberry Pi, Jetson Nano series motherboards
Adopting the Raspberry Pi HAT+ standard, the expansion board interoperability is improved, helping developers to design and develop faster, use various external devices more easily, and expand the functions and performance of the Raspberry Pi
Reserved SPI communication interface for easy access to Raspberry Pi / Arduino / STM32 / ESP32 and other main control boards
Onboard level conversion chip, compatible with 3.3V and 5V level interfaces

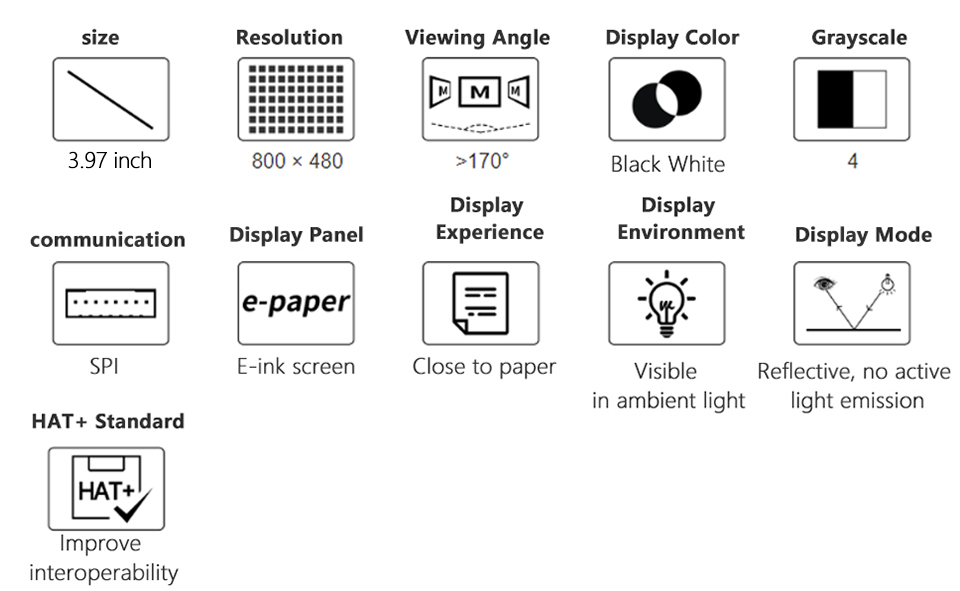

Product Parameters

Operating voltage	Naked screen version：3.3V	Display Color	Black and White
Operating voltage	Module version：3.3V / 5V	Display Color	Black and White
Communication interface	3-wire SPI、4-wire SPI	Grayscale	4
Dimensions (mm)	Naked screen version：96.62 × 56.24 × 0.92	Global Refresh	3.5s
Dimensions (mm)	Module version：99.50 × 60.00	Fast Refresh	2.8s
Display size	86.40 × 51.84 (mm)	Partial refresh	0.6s
Resolution	800 × 480 pixels	Four grayscale refresh	3.5s
Dot Pitch	0.108 × 0.108 (mm)	Refresh power consumption	<40mW
Viewing Angle	>170°	Sleep current	<0.01uA (close to 0)

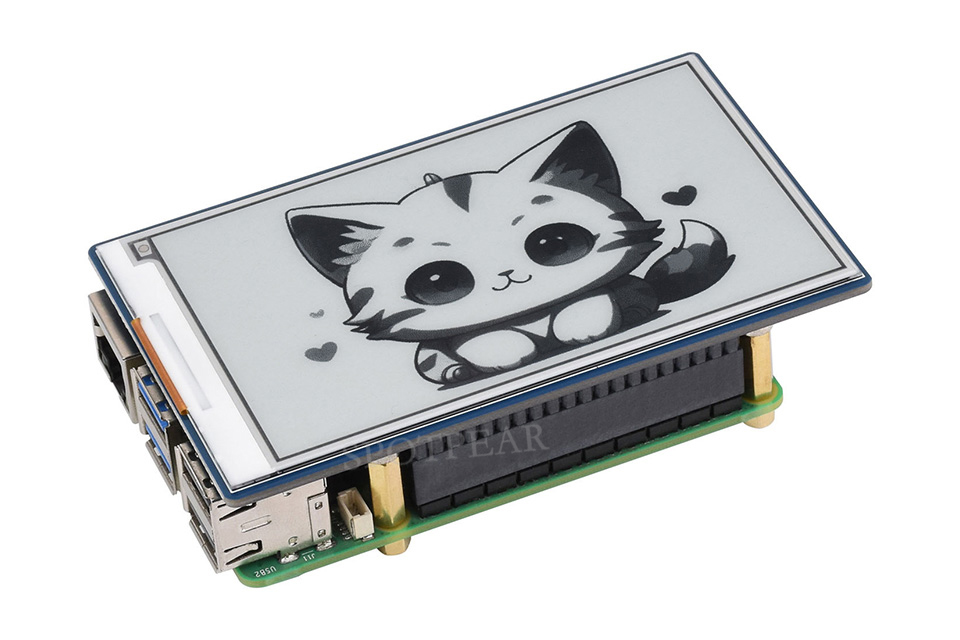

Based on Raspberry Pi 40PIN

Interface design

Applicable to Raspberry Pi, Jetson Nano series motherboards

Advantages of E-Ink Screen

The electronic ink screen uses "microcapsule electrophoresis display" technology to display images. Its working principle is that charged nanoparticles suspended in liquid migrate under the action of the electric field, and form a display effect close to traditional printed paper through reflection under ambient light. The electronic ink screen can display images clearly under ambient light such as light and natural light, without backlight, and the viewing angle is almost 180°. Because its display effect is comparable to that of traditional paper, it is often used in applications such as readers.

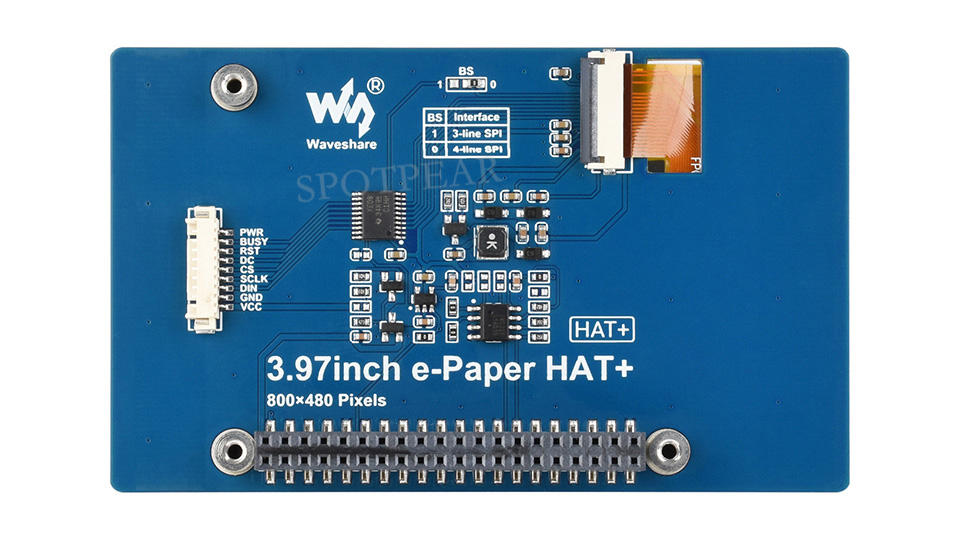

Reserved SPI control interface

Can be connected to Raspberry Pi / Jetson Nano / Arduino / STM32 and other main control boards

PWR	Power on/off control pin
BUSY	Busy status output pin
RST	External reset pin (low level reset)
DC	Data/command control pin (high level indicates data, low level indicates command)
CS	SPI chip select pin (active low)
SCLK	SPI Communication SCLK Pin
DIN	SPI communication MOSI pin
GND	GND
VCC	3.3V / 5V

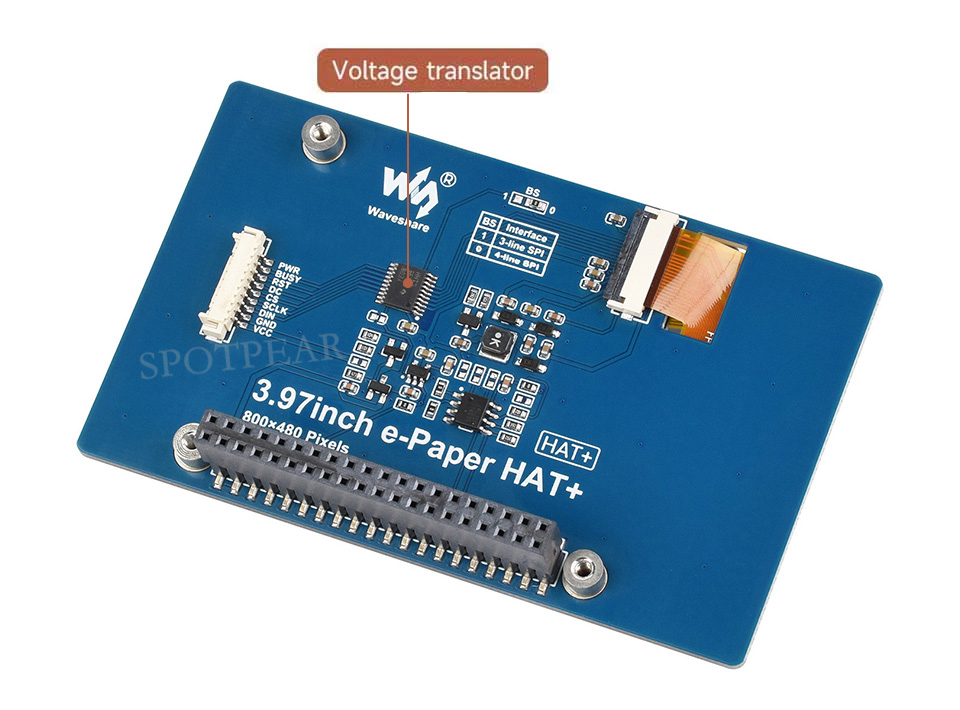

Onboard level conversion chip

Compatible with 3.3V and 5V level interfaces

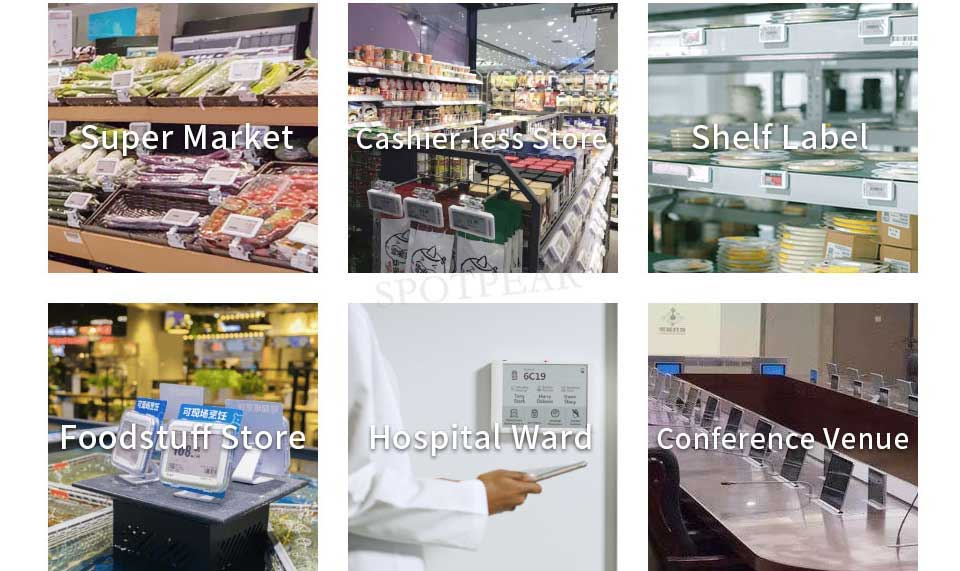

Application Scenario

Applicable to shopping mall price tags, asset equipment labels, electronic shelf labels and conference name tags, etc.

Product size

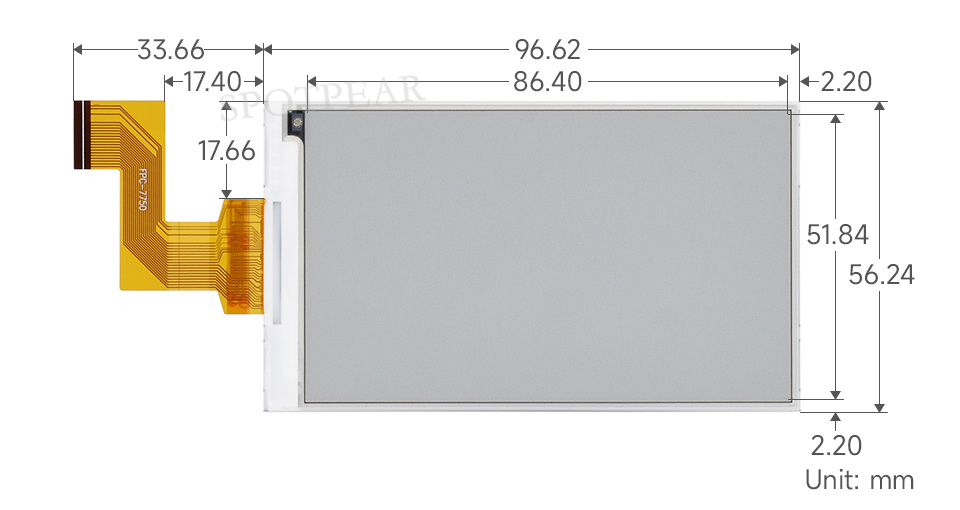

Naked screen version

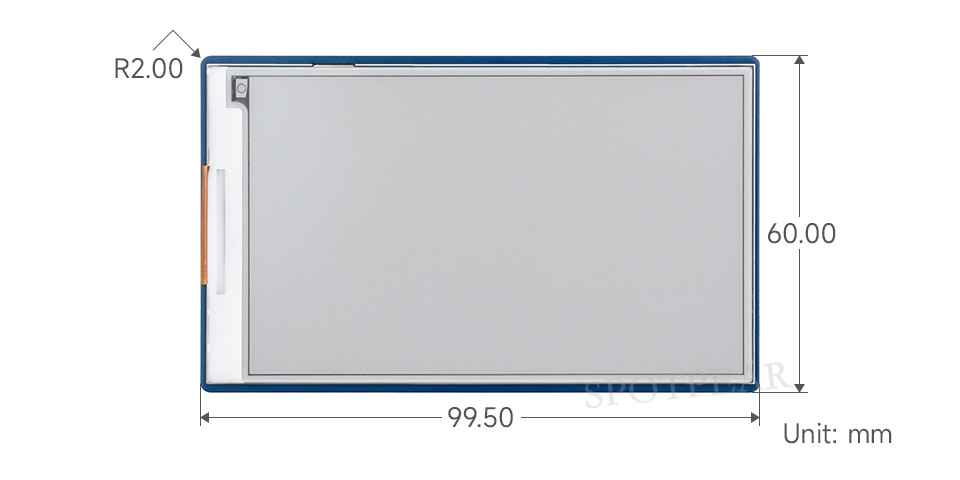

Module version
